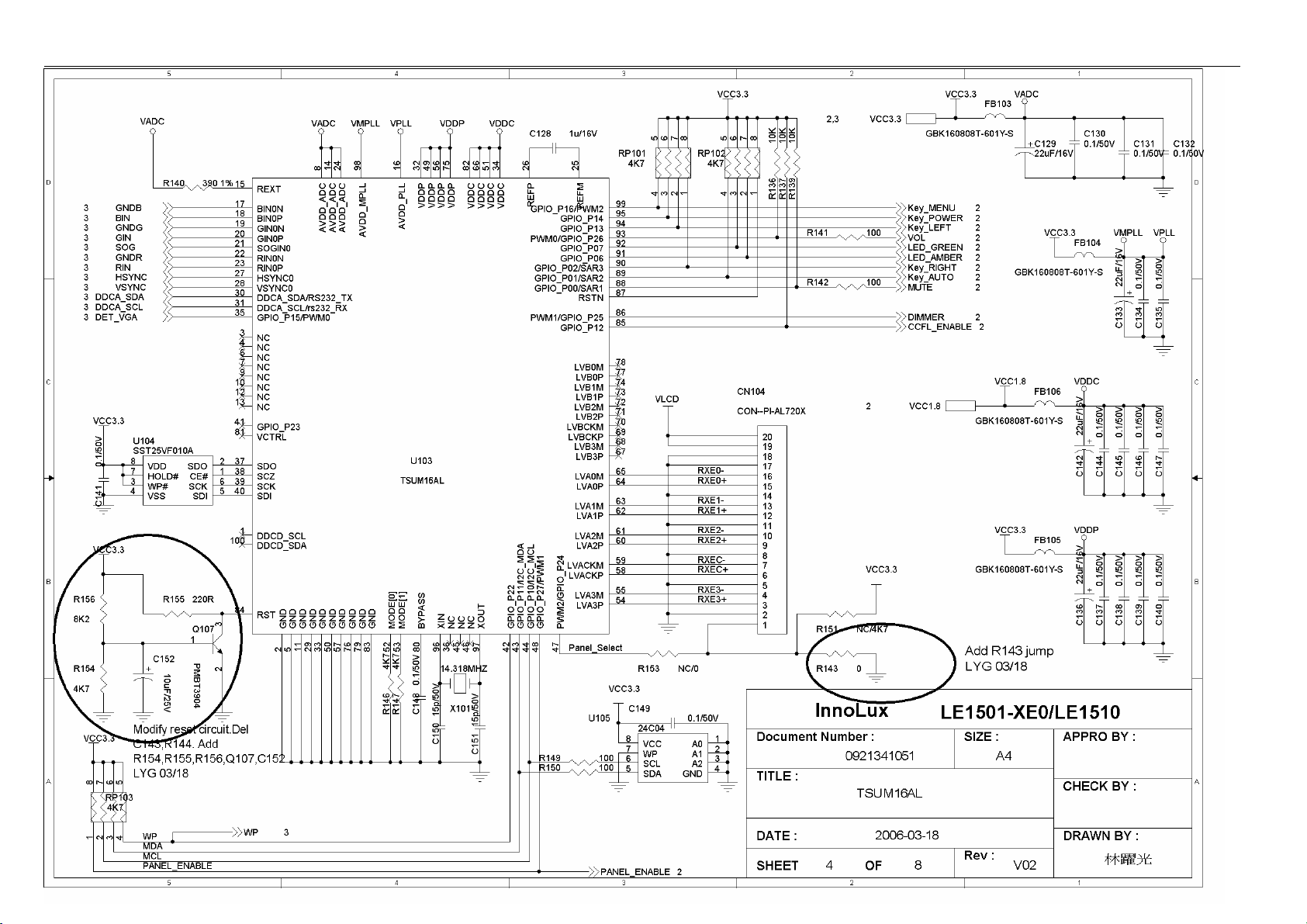

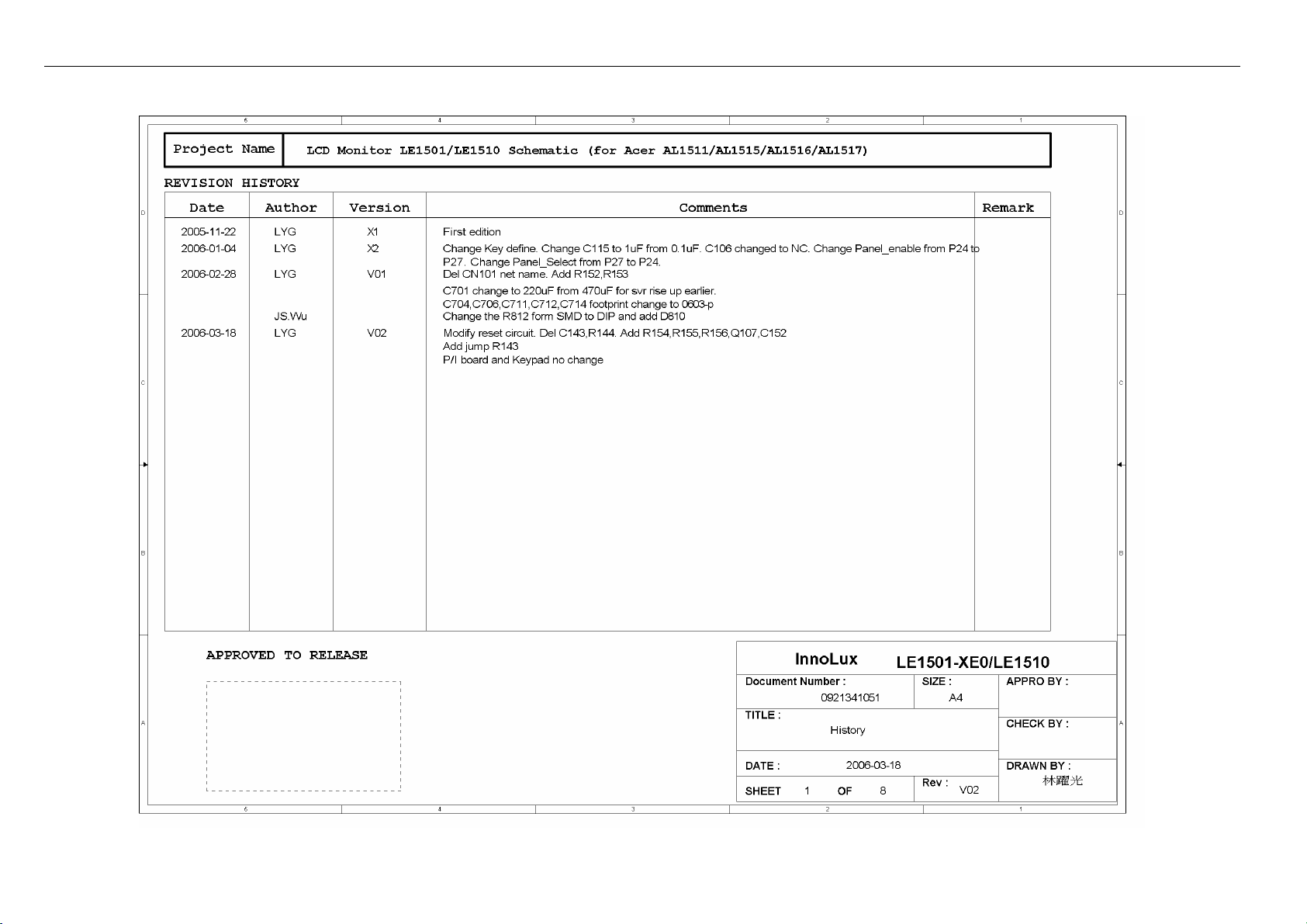

Acer Attachment 1- Bill of Material, AL1516x Schematic

Acer Service Manual

H

Attachment 1- Bill of Material

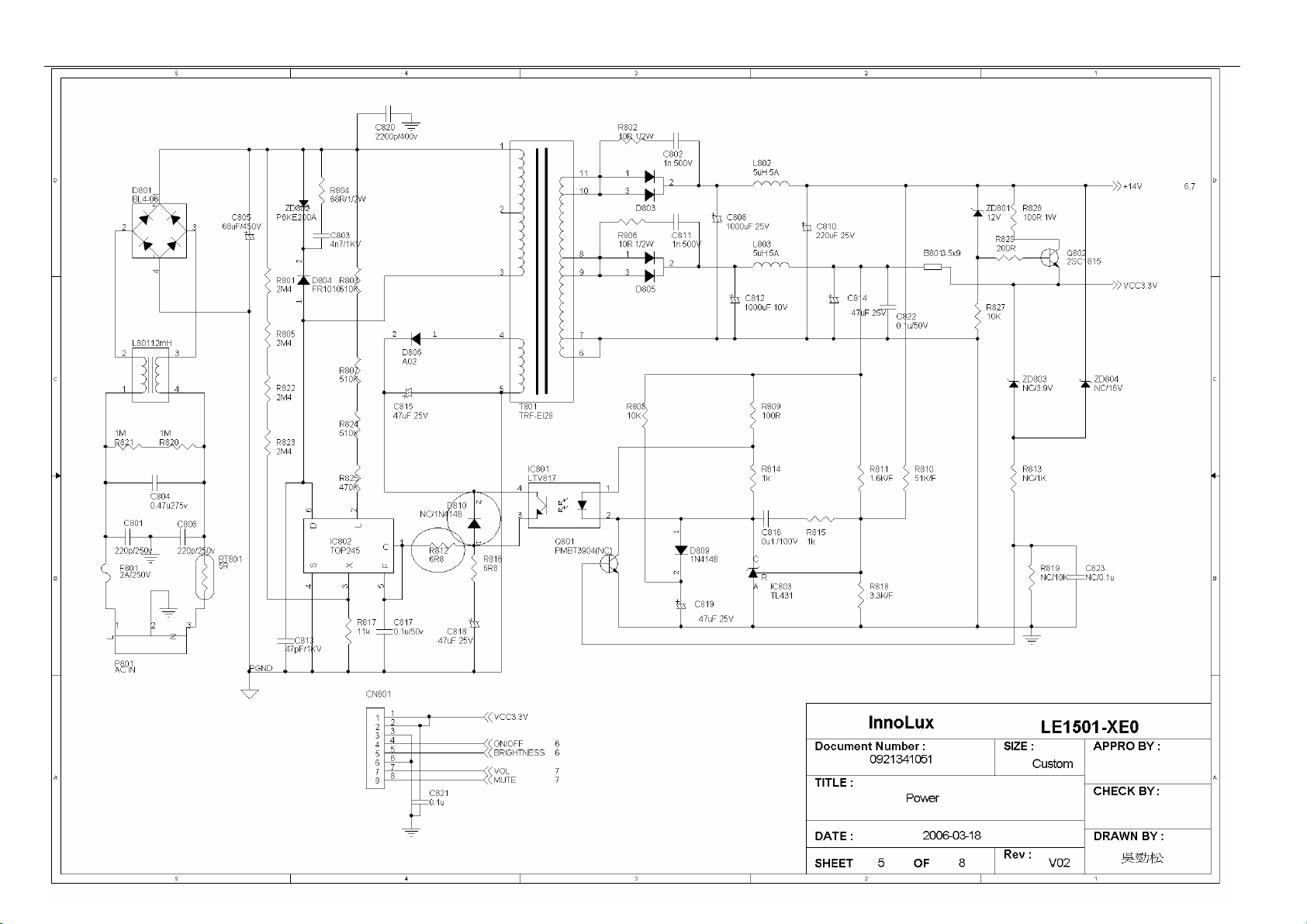

PCBA P+I

ITEM P/N Revision Description Supplier
790661400600R PCBA,P/I BOARD, LE1510-6E0
10 412140001390R A IC EL817M-B(EVERLIGHT)RoHS EVERLIGHT,
10 412140002380R A IC LTV817M-PR VDE (LITE-ON) P=10mm RoHS LITEON,
20 411050005020R A DIO BRDG BL4-06-BF52-LF 600V/4A(FRONTIER FRONTIER,
20 411050005090R A DIO BRDG FL406 600V/4A(PEC)RoH S PANJIT,
20 411050006041R A DIO BRDG KBL06M 600V/4A(MOSPEC RoHS MOSPEC,
20 411050007010R A DIO BRDG KBL405G 600V/4A(TSC) RoHS TSC,
30 416194743011R A CAP MEX 0.47uF 275V K X2,F15 RoHS HJC,PILKOR,TEAPO,
40 416202224610R A CAP MEY 2200pF 400V M Y,F10mm RoHS JNC,SUCCESS(SEC),TDK,
50 416202223610R A CAP MEY 2200pF 250V M Y2 Y5V P=7.5mm RoH JNC,SUCCESS(SEC),TDK,
60 420426810210R A CAP SD 680uF/25V M 105℃ F 10x20 RoHS LELON,SU'SCON,TEAPO,
70 420421020102R A CAP EC 1000uF/10V M,105℃ N-F 10x16(L-ES LELON,SU'SCON,TEAPO,
80 420438204583R A CAP SEK 82uF/450V M,105℃ CF 18x35,ROHS, OST,SU'SCON,
90 425000010530R A COIL CHK 5uH 7.8X10 CHK-053 0 181085R0L CHILISIN,FRONTIER,TDK,
100 426000050070R A CHOKE L-FILTER 12mH LIN-007 ET-20,RoHS NCE,TDK,
110 426000090650R A XFMR SW 750uH,EE28 DIP,SPW-065,RoHS LISHIN,NCE,TDK,

120 432009400701R A NTC 5Ω 4A 10ψ P=5mm, F RoHS OAKLAND,THINKING,
130 430613420290R A FUSE SLOW 2,250,Axial Lead,3.6 x10mm RoH CONQUER,WALTER,
140 440149000230R A SKT AC 10A/250V U/C/V,G/Y=45mm TU-301-SP DLK,TECX,

150 430300800570R A HRN ASS'Y 8P 90mm UL1007#24,W/O PIN7,8,R FOXCONN,GREATLAND,HEIG
160 418247233020R A CAP CD X7R 4700pF 1KV K,W/O FO RMING,RoH JNC,TDK,
170 420422210260R A CAP SD 220uF 25V M,105℃ ST 8x12 RoHS LELON,SU'SCON,TEAPO,
180 430631020080R A WFR 2 circuit/2P(8mm) R/A RoHS 4200-D208 FCN,FOXCONN,
190 418105058960R A CAP CD SL 5pF 3KV D,ST, RoHS CC45SL3FD05 JNC,SUCCESS(SEC),TDK,
200 418110058560R A CAP CD SL 10pF 3KV J,ST,RoHS CC45SL3FD10 JNC,SUCCESS(SEC),TDK,
240 426000090660R A XFMR SW,118uH EEL19 DIP SPW-066,RoHS ,IF DARFON,LISHIN,TDK,
250 735100005100R A ASSY,H/S TOP245Y, LE1704/05 ROHS
260 735100005800R V2 ASSY,H/S SRF5-04CT & SRF8-10CT LE1708-6C
270 790661440600R AA PCBA,P/I BOARD,SMD, LE1510-6E0
280 502040604500R A SHIELD,EMI, LE1915 ROHS DMC,ORIENTAL POWER,TOP
290 416203324620R A CAP MEY 3300pF 400V M Y,P10mm W/O FORMIN JNC,TDK,
300 511130001200R A SOLDER BAR,Sn96.5/Ag3.0/Cu0.5/Ni0.06/Ge0 TOMAS,
310 511110000101R A HOT-MELT ADHESIVES (#526) EXCELSTAR,
320 511110000501R A SILICONE RTV RUBBER,UB-511(EURO) EURO,

20060303
ITEM P/N Revision Description Supplier
735100005100R A ASSY,H/S TOP245Y, LE1704/05 ROHS
10 412000342270R A IC TOP245YN,TO-220-7C,RoHS (POWER INTEGR PI,
20 507200003700R B HEATSINK,46x20xt10mm LE1704/05 DMC,ORIENTAL POWER,TOP

25

Acer Service Manual

30 509112306100R A SCREW,P,CROSS,T.T-3*6,Zn JING YI,LIQUAN,

20060117
ITEM P/N Revision Description Supplier
735100005800R V2 ASSY,H/S SRF5-04CT & SRF8-10CT LE1708-6C
10 411090025040R A SCHTKY SRF1045CM 45V/10A ITO22 OAB(MOSPE MOSPEC,
10 411090024040R A SCHTKY SRF1040CM 40V/10A ITO22 OAB(MOSPE MOSPEC,
10 411090015020R A SCHTKY SRF5-04CT-LF ITO-220AB (FEC) RoHS FRONTIER,
20 411090009040R A SCHTKY SRF10100C 100V/10A(MOSP EC)ITO-22 MOSPEC,
20 411090016020R A SCHTKY SRF8-10CT-LF ITO-220AB (FEC) RoHS FRONTIER,
30 507200003700R B HEATSINK,46x20xt10mm LE1704/05 DMC,ORIENTAL POWER,TOP
40 509112306100R A SCREW,P,CROSS,T.T-3*6,Zn JING YI,LIQUAN,

20060511
ITEM P/N Revision Description Supplier
790661440600R AA PCBA,P/I BOARD,SMD, LE1510-6E0
10 414904100010R A RES SMD (1206) 100Ω F,RT RoHS TA-I,WALSIN,YAGEO,
20 414916100210R A RES SMD (0603) 10KΩ F,RT RoHS TA-I,WALSIN,YAGEO,
30 414908010350R A RES SMD (0805) 10KΩ J,RT RoHS REV:A TA-I,WALSIN,YAGEO,
40 414916010410R A RES SMD (0603) 100K F,RT RoHS TA-I,WALSIN,YAGEO,
50 414916110310R A RES SMD (0603) 110KΩ F,RT RoHS REV:A TA-I,WALSIN,YAGEO,
60 414916010550R A RES SMD (0603) 1MΩ J,RT RoHS REV:A TA-I,WALSIN,YAGEO,
70 414908024550R A RES SMD (0805) 2.4MΩ J,RT RoHS TA-I,WALSIN,YAGEO,
80 414916330410R A RES SMD (0603) 3.3M F RT RoHS TA-I,WALSIN,YAGEO,
90 414908010250R A RES SMD (0805) 1KΩ J,RT RoHS REV:A TA-I,WALSIN,YAGEO,
100 414916470210R A RES SMD (0603) 47KΩ F,RT RoHS TA-I,WALSIN,YAGEO,
110 414916470310R A RES SMD (0603) 470KΩ F,RT ROHS TA-I,WALSIN,YAGEO,
120 414908047450R A RES SMD (0805) 470KΩ J,RT RoHS TA-I,WALSIN,YAGEO,
130 414908051450R A RES SMD (0805) 510KΩ J,RT RoHS TA-I,WALSIN,YAGEO,
140 414916330010R A RES SMD (0603) 330Ω F,RT,RoHS TA-I,WALSIN,YAGEO,
150 414916047150R A RES SMD (0603) 470Ω J,RT RoHS REV:A TA-I,WALSIN,YAGEO,
160 414916510210R A RES SMD (0603) 51KΩ F,RT RoHS TA-I,WALSIN,YAGEO,
170 414908068150R A RES SMD (0805) 680Ω J,RT,RoHS TA-I,WALSIN,YAGEO,
180 414908330110R A RES SMD (0805) 3.3KΩ F,RT RoHS REV:A TA-I,WALSIN,YAGEO,
190 414908390110R A RES SMD (0805) 3.9KΩ F,RT RoHS TA-I,WALSIN,YAGEO,
200 414908068950R A RES SMD (0805) 6.8Ω J RT RoHS TA-I,WALSIN,YAGEO,
210 414908160110R A RES SMD (0805) 1.6KΩ F,RT,RoHS TA-I,WALSIN,YAGEO,
220 414908820110R A RES SMD (0805) 8.2KΩ F,RT RoHS TA-I,WALSIN,YAGEO,
230 414904010050R A RES SMD (1206) 10Ω J,RT RoHS TA-I,WALSIN,YAGEO,
240 414908020150R A RES SMD (0805) 200Ω J,RT RoHS TA-I,WALSIN,YAGEO,
250 414908033050R A RES SMD (0805) 33Ω J,RT RoHS TA-I,WALSIN,YAGEO,
340 414916015250R A RES SMD (0603) 1.5KΩ J,RT RoHS TA-I,WALSIN,YAGEO,
350 414908510210R A RES SMD (0805) 51KΩ F,RT RoHS TA-I,WALSIN,YAGEO,
360 414916604310R A RES SMD (0603) 604KΩ F,RT RoHS TA-I,WALSIN,YAGEO,

26

Acer Service Manual

O

O

O

O

O

O

O

O

O

370 419311040060R A C SMD(0603) X7R 0.1uF/50V K RoHS MURATA,TDK,WALSIN,YAGE
380 419311020060R A C SMD(0603) X7R 1000PF/50V K RoHS DARFON,TDK,WALSIN,YAGE
390 419342253670R A C SMD(0805) Y5V 2.2uF/25V Z RoHS MURATA,TDK,WALSIN,YAGE
400 419311020070R A C SMD(0805) X7R 1000PF/50V K RoHS DARFON,TDK,WALSIN,YAGE
410 419312233060R A C SMD(0603) X7R 0.022uF/25V K RoHS DARFON,TDK,WALSIN,YAGE
420 419303310560R A C SMD(0603) NPO 330PF/50V J RoHS DARFON,TDK,WALSIN,YAGE
430 419316820070R A C SMD(0805) X7R 6800PF/50V K RoHS DARFON,TDK,WALSIN,YAGE
440 419313330060R A C SMD(0603) X7R 0.033uF/50V K ROHS DARFON,TDK,WALSIN,YAGE
450 419311030060R A C SMD(0603) X7R 0.01uF/50V K RoHS DARFON,TDK,WALSIN,YAGE
480 411020046090R A DIO 1N4148W 75V/0.15A(PEC)RoHS SOD-123 PANJIT,
480 411020046310R A DIO 1N4148W-F 75V/0.15A(DIODES RoHS,SOD- DIODES,
480 411023004021R A DIO SN4148-LF 75V/0.15A SMD 1206 (FEC)Ro FRONTIER,
490 411020026390R A DIO BAV99,SOT-23(INFINEON)RoHS INFINEON,
490 411020026090R A DIO BAV99 350mW 75V SOT-23(PEC RoHS PANJIT,
490 411020026020R A DIO BAV99-LF 350mW 70V SOT-23 (FEC)RoHS FRONTIER,
490 411020026210R A DIO BAV99 350mW 70V SOT-23(PHI RoHS PHILIPS,
500 410500045130R A XSTR MMBT3904 NPN SOT-23(INFIN EON)RoHS INFINEON,
500 410500045140R A XSTR MMBT3904LT1G NPN 200MA 40V SOT23(ON ON SEMI,
500 410500045090R A XSTR MMBT3904 NPN SOT-23(PANJIT)RoHS PANJIT,
500 410500045210R A XSTR PMBT3904 NPN 200MA,40V SOT23(PHILIP PHILIPS,
510 411100956920R A ZENER 5.6V MMSZ5232A SOD123(PE C)RoHS PANJIT,
510 411131556920R A ZENER 5.6V 0.5W DDZ5V6B-F,SOD1 23(DIODES DIODES,
520 411100912020R A ZENER 12V MMSZ5242A SOD123(PEC RoHS PANJIT,
520 411131512052R A ZENER 12V 0.5W DDZ12C-F,SOD123 (DIODES)R DIODES,
530 412000455630R A IC OZ9938GN SOIC16(O2 MICRO)RoHS O2,
540 410050070340R A XSTR SSM9971GM DUAL N-CH,SO8(SILICON)RoH SILICON,
540 410500070290R A XSTR AP9971GM,N-CH,SO8(APEC) RoHS APEC,
550 790661410600R AA PCBA,P/I BOARD,AI, LE1510-6E0

20060511
ITEM P/N Revision Description Supplier
790661410600R AA PCBA,P/I BOARD,AI, LE1510-6E0
10 790661450600R AA PCBA,P/I BOARD,AI/A,LE1510-6E0
20 790661460600R AA PCBA,P/I BOARD,AI/R,LE1510-6E0

20060511
ITEM P/N Revision Description Supplier
790661450600R AA PCBA,P/I BOARD,AI/A,LE1510-6E0
10 415130680540R A RES CF 1/2W 68Ω J,AT RoHS REV:A QUEENMAO,TZAI YUAN,
20 415340101540R A RES MOF 1W 100Ω J,AT MINI RoHS QUEENMAO,TZAI YUAN,
30 414020689540R A RES FSM 1/4W 6.8Ω J AT MINI,RoHS QUEENMAO,TZAI YUAN,
40 411022010010R A DIO 1N4003 200V/1A DO-41(TSC) TSC,
40 411020052020R A DIO A02-LF 200V/1A R1(FEC)RoHS FRONTIER,
50 411020046090R A DIO 1N4148W 75V/0.15A(PEC)RoHS SOD-123 PANJIT,

27

Acer Service Manual

50 411022003020R A DIO 1N4148-LF 75V/0.15A AT (FEC)RoHS FRONTIER,
50 411022003210R A DIO 1N4148 75V/0.2A AT (PHIL) RoHS PHILIPS,
60 411032006020R A DIO FR10-10-LF 1000V/1A AT(FRO NTIER)RoH FRONTIER,
60 411020053090R A DIO PS1010R 1000V/1A DO-41(PAN JIT)RoHS PANJIT,
60 411020055330R A DIO MUR1100ERL AXIAL LEAD(ON) RoHS ON SEMI,
70 411022020010R A DIO P6KE200A 600W/100A DO-15(T SC)RoHS TSC,
70 411022020020R A DIO P6KE200A-LF 600W/100A DO-1 5(FRONTIE FRONTIER,
70 411022020090R A DIO P6KE200A 600W/100A,DO-15(P ANJIT)RoH PANJIT,
80 432002200160R A BEAD CORE BF30TA-3.5x9x0.8 AT CHILISIN,TDK,
90 415020105540R A RES CF 1/4W 1MΩ J,AT MINI REV:A ROHS QUEENMAO,TZAI YUAN,
100 414870305540R A RES MG HV 1/2Ws 3MΩ 3KV J,AT RoHS QUEENMAO,TZAI YUAN,

110 506140005700R A

120 430405000000R A JMPR ROLL/KG D=0.6mm,AT,RoHS 7.5MM
130 430405000000R A JMPR ROLL/KG D=0.6mm,AT,RoHS 10MM
140 430405000000R A JMPR ROLL/KG D=0.6mm,AT,RoHS 12.5MM
150 430405000000R A JMPR ROLL/KG D=0.6mm,AT,RoHS 15MM
160 430405000000R A JMPR ROLL/KG D=0.6mm,AT,RoHS 17.5MM
170 430405000000R A JMPR ROLL/KG D=0.6mm,AT,RoHS 20MM
180 490661400100R A PCB,P/I BOARD, LE1510-XE0 TAT CHUN,TCI,

20060511
ITEM P/N Revision Description Supplier
790661460600R AA PCBA,P/I BOARD,AI/R,LE1510-6E0
10 418147038530R A CAP CD NPO 47pF 1KV J,VT RoHS JNC,POE,SUCCESS(SEC),
20 418210227030R A CAP CD X7R 1000pF 500V K VT RoHS JNC,POE,SUCCESS(SEC),
30 418310413630R A CAP CD Y5V 0.1uF 50V Z,VT RoHS JNC,POE,SUCCESS(SEC),
40 420424700230R A CAP SD 47uF/25V M 105℃ VT 5x11,RoHS LELON,SU'SCON,TEAPO,

LABEL,BARCODE,BLANK,33x7mm, ROHS,FOR

KAIDA,

PCB

50 416141041531R A CAP MKT 0.1uF 100V J,VT(ARCO) RoHS,R82EC ARCOTRONIC,
50 416231041530R A CAP MEB 0.1uF 100V J,(RSB),VT RSBEC3100D ARCOTRONIC,AVX,
80 410072013370R A XSTR 2SC1815-GR (T2SPF.T) VT (TOSHIBA)Ro TOSHIBA,
80 410072013150R A XSTR UTC2SC1815L-GR NPN TO92 (UTC)RoHS UTC,
80 410072013210R A XSTR 2PC1815GR*I VT (PHILIPS) RoHS REV: PHILIPS,
90 412022002240R A IC KA431AZ 1%,VT (FAIRCHILD) RoHS FAIRCHILD,
90 412022002300R A IC AP431VL TO-92 1% VT (ATC) RoHS ATC,
90 412022002830R A IC AS431 TO-92 VT(A1SEMI)RoHS A1SEMI,
90 412022002840R A IC TL431ACLPG TO-92 1%,VT(ON)RoHS ON SEMI,

PCBA IF

ITEM P/N Revision Description Supplier
790591300400R PCBA,IF BOARD,W/SPK, LE1501-4E0
10 790591340400R BA PCBA,IF BOARD,SMD, LE1501-4E0
20 790591320400R BA PCBA,IF BOARD,OTHRS,LE1501-4E0
30 629030005500R V1 PROGRAM,W/SPK, LE1501-4E0

28

Acer Service Manual

A

A

A

40 511130002202R A SOLDER PASTE,Sn95.5%Ag3.9%Cu0.6% TAMURA,
40 511130002201R A SOLDER PASTE,Sn96.5%Ag3.0%Cu0.5% TOMAS,
40 511130002200R A SOLDER PASTE,Sn96.5-Ag3.0-Cu0.5 ROHS TOMAS,
50 511130001200R A SOLDER BAR,Sn96.5/Ag3.0/Cu0.5/Ni0.06/Ge0 TOMAS,
70 506440003800R A LABEL,BLANK,YELLOW,10x4mm KAIDA,

20060508
ITEM P/N Revision Description Supplier
790591320400R BA PCBA,IF BOARD,OTHRS,LE1501-4E0
10 430631080130R A WAFER 2x4P 2.0mm,200PHD-2*4ST RoHS FOXCONN,HEIGHTEN,
20 430631080070R A WFR 2.0mm 8P 180°4500-08 RoHS FOXCONN,HEIGHTEN,
30 440819015030R A CON,D-SUB,FEM.15P RA W/O SCREW DZ11AA1-H DLK,FOXCONN,ZJGHJ,
40 420431010461R A CAP EC 100uF 16V M,105℃ ST 5x11(SK) RoH LELON,SU'SCON,TEAPO,
50 420432200460R A CAP EC 22uF 16V M,105℃ ST, 5x11,RoHS LELON,SU'SCON,TEAPO,
60 432008010270R A XTAL 14.31818MHz HC-49US DIP 16pF 30PPM HARMONY,ZGC,
70 420431000260R A CAP EC 10uF 25V M,105℃ ST 5x11 RoHS LELON,SU'SCON,TEAPO,

20060408
ITEM P/N Revision Description Supplier
790591340400R BA PCBA,IF BOARD,SMD, LE1501-4E0
10 444091020010R A CON,COAXIAL SMD 1.25mm 20PIN RoHS FOXCONN,P-TWO,
20 419311040060R A C SMD(0603) X7R 0.1uF/50V K RoHS MURATA,TDK,
30 419341054660R A C SMD(0603) Y5V 1uF/16V Z,RoHS MURATA,TDK,WALSIN,
40 419314733060R A C SMD(0603) X7R 0.047uF/25V K RoHS DARFON,TDK,YAGEO,
50 419302210560R A C SMD(0603) NPO 220PF/50V J RoHS DARFON,TDK,WALSIN,Y
60 419303300560R A C SMD(0603) NPO 33PF/50V J RoHS DARFON,TDK,WALSIN,Y
70 419301500560R A C SMD(0603) NPO 15PF/50V J RoHS REV:A DARFON,TDK,WALSIN,Y
90 411020047210R A DIO BAV70 85V SOT23 (PHILIPS) RoHS PHILIPS,
90 411020047020R A DIO BAV70-LF 70V SOT23 (FEC) RoHS FRONTIER,
100 432002360111R A BEAD CORE SMD(0805) 600Ω 2A PBY201209T- CHILISIN,TAI-TECH,
110 432002312144R A BEAD CORE SMD(0603)120Ω 300mA SBK160808 CHILISIN,TAI-TECH,
120 432002360142R A BEAD CORE SMD(0603)600Ω 400mA GBK160808 CHILISIN,TAI-TECH,
130 410500050130R A XSTR SN7002N N-CH SOT-23(INFINEON),RoHS INFINEON,
130 410500050210R A XSTR 2N7002,N-CH FET SOT-23 (PHILIPS)RoH PHILIPS,
140 410500045140R A XSTR MMBT3904LT1G NPN 200MA 40V SOT23(ON ON SEMI,
140 410500045130R A XSTR MMBT3904 NPN SOT-23(INFIN EON)RoHS INFINEON,
140 410500045210R A XSTR PMBT3904 NPN 200MA,40V SOT23(PHILIP PHILIPS,
150 410500046130R A XSTR MMBT3906 PNP SOT-23(INFIN EON)RoHS INFINEON,
150 410500046180R A XSTR MMBT3906LT1G PNP 200mA 40V SOT23(ON ON SEMI,
150 410500046210R A XSTR PMBT3906 PNP 200MA,40V SOT23(PHILIP PHILIPS,
160 410500075270R A XSTR AO3415 P-CH,SOT23(AOS) RoHS AOS,
160 410500068290R A XSTR AP2305GN P-CH SOT23(APEC) RoHS APEC,
170 415754725080R A RP(0612)4.7KΩx4 1/16W J 8P4R RoHS REV:A COMPOSTAR,WALSIN,YA
180 414916047250R A RES SMD (0603) 4.7KΩ J,RT RoHS COMPOSTAR,WALSIN,YA

29

Acer Service Manual

E

N

R

190 414916010350R A RES SMD (0603) 10KΩ J,RT RoHS COMPOSTAR,WALSIN,YA
200 414916010150R A RES SMD (0603) 100Ω J,RT RoHS REV:A COMPOSTAR,WALSIN,YA
210 414916022150R A RES SMD (0603) 220Ω J,RT RoHS REV:A COMPOSTAR,WALSIN,YA
220 414916020350R A RES SMD (0603) 20KΩ J,RT RoHS REV:A COMPOSTAR,WALSIN,YA
230 414916047150R A RES SMD (0603) 470Ω J,RT RoHS REV:A COMPOSTAR,WALSIN,YA
240 414916750910R A RES SMD (0603) 75Ω F,RT RoHS REV:A COMPOSTAR,WALSIN,YA
250 414916022250R A RES SMD (0603) 2.2KΩ J,RT RoHS COMPOSTAR,WALSIN,YA
260 414916390010R A RES SMD (0603) 390Ω F,RT RoHS COMPOSTAR,WALSIN,YA
270 412000330020R A IC LD1117AL-1.8V-A SOT223(UTC) RoHS UTC,
270 412000330830R A IC AS1117L-1.8/TR-LF,SOT223(A1 SEMI)RoHS A1SEMI,
280 412000480280R A IC M24C02-RMN6TP SO8(ST)RoHS ST,
280 412000480990R A IC CAT24C02WI-TE13 SOIC-8(CATALYST)RoHS CATALYST,
280 412000435480R A IC AT24C02BN-10SU-1.8 SOIC8 2K (ATMEL)Ro ATMEL,
290 412000436190R A IC TSUM16AL-LF PQFP100(MSTAR)R oHS MSTAR,
300 412000373190R A IC SST25VF010A-33-4C-SAE,SOIC- 8(SST)RoH SST,
300 412000456190R A IC PS25LV010-33SCE SOIC8(MSTAR)RoHS MSTAR,
300 412000358310R A IC PM25LV010-25SCE SOIC8(PMC) RoHS PMC,
310 412000279280R A IC M24C04-WMN6TP4K SOP8 (ST) RoHS ST,
310 412000479990R A IC CAT24C04WI-TE13 SOIC-8(CATALYST)RoHS CATALYST,
310 412000279480R A IC AT24C04N-10SU-2.7 SOP8 4K(A TMEL)RoHS ATMEL,
330 490591300100R B PCB,INTERFACE, LE1501-XE0 ROHS EXPRESS,GOODWELL,W
340 414916033050R A RES SMD (0603) 33Ω J,RT RoHS REV:A COMPOSTAR,WALSIN,YA
350 506140005700R A LABEL,BARCODE,BLANK,33x7mm, ROHS,FOR PCB KAIDA,
360 414916082250R A RES SMD (0603) 8.2KΩ J,RT,RoHS TA-I,WALSIN,YAGEO,
370 414916000050R A RES SMD (0603) 0Ω J,RT RoHS COMPOSTAR,TA-I,WALSI

PCBA KEY PAD

ITEM P/N Revision Description Supplier
790401500601R PCBA,KEYPAD BOARD, LE1710 (NEW KEY) ROHS
10 411070066450R LED Y/G∮3x5mm 239-7UYSYGW/S530-A6/E4/F4 EVERLIGHT,
10 411070056990R LED G/Y∮3x5mm L-96VCGKSYKW-8. 75LSF5-SZ KINGBRIGHT,
10 411070038450R A LED Y/G 2x4x5mm HTL-VGVY4R1N4- FB(HONGTO HONGTONG,
20 430602980120R A SW TACT 160gf 1P,H=4.3mm,DIP SFKHHAL2420 FORWARD,HUA-JIE,
30 430631080110R A WAFER 8P 1.25mm 90°RoHS 125MX-08LT FCN,HEIGHTEN,JOWLE,
40 490401500101R A PCB,KEY PAD,LE1710 (NEW KEY) ROHS EXPRESS,HUIHO,WELFA
60 511130001200R A SOLDER BAR,Sn96.5/Ag3.0/Cu0.5/Ni0.06/Ge0 TOMAS,

30

2006.05.16 Dynamic List Display 1

Material 8151106EA010R

Acer Service Manual

Plant/Usage/Alt. S000 / 1 / 01
Description LE1510-6E0(S,V0/G1&2&3),W/O SPK,US(AAP/A
Base Qty (PC ) 100.000

Level Phant.item Item Component no. RevLev Object description Quantity Pr Un

.1 0010 506431000300R A FILM,PE 500mmx900M ROHS 0.175 ROL
.1 0020 506380001000R A TAPE,WRAPPING TYPE,ACER LOGO 50000x72mm, 0.100 ROL
.1 0030 506040008300R A CUSHION,EPS-L, LE1510 100 PC
.1 0040 506040008310R A CUSHION,EPS-R, LE1510 100 PC
.1 0050 506150001300R A PALLET,1120x784x120mm 1.111 PC
.1 0060 506431001200R A FILM,PE 1335x1120xT0.1mm 1.111 PC
.1 0070 506039000101R A CORNER PAPER,1000x50x50xT3mmLE1711 2.222 PC
.1 0080 506039002500R A CORNER PAPER,760x50x50mm,LE1504 2.222 PC
.1 0090 506039001000R A CORNER PAPER,2000x50x50xT3mm,LE1501 4.444 PC
.1 0100 506120002400R A BAG,PLASTIC,W420xL520xT0.04mm(PRINTED) 100 PC
.1 0110 506120002510R A BAG,PLASTIC,W220xL280xT0.05mm,CYCLE PRIN 100 PC
.1 x 0120 714076460000R A ASSY,FINAL(S,V0/G1&2&3),W/O SPK,LE1510-6 100 PC
..2 x 0010 714086460000R A ASSY,PANEL(V0/G1&2&3),W/O SPK,LE1510-6E0 100 PC
...3 0010 509146306100R A SCREW,P,CROSS W/WAS,M3*6,Zn ROHS 400 PC
...3 0020 509000000700R A BOLT,#4-40x11.8,Ni FOR D-SUB/DVI CONN.RO 200 PC
...3 0030 509146305300R A SCREW,PW,CROSS,W/WAS,M3*5,NI 400 PC
...3 0040 509112306100R A SCREW,P,CROSS,T.T-3*6,Zn 200 PC
...3 0050 509146306102R A SCREW,P,CROSS W/W-SPR,M3*6,Zn,ROHS 100 PC
...3 0060 511150102000R A FOIL,AL.,DOUBLE COND.,124x40xT0.07mm, LE 100 PC
...3 0070 505040503300R A INSULATOR,PC,145x55x0.5mm, LE1510 100 PC
...3 0080 509116606510R A SCREW,P,CROSS,M4*6,BLACK,NL ROHS (NYLOK) 400 PC
...3 0090 631102050390R A LCD PANEL 15" MT150XN03-V0-G1,AM15000050 100 1 PC
...3 0090 631102050400R A LCD PANEL 15" MT150XN03-V0-G2,AM15000050 2 PC
...3 0090 631102050410R A LCD PANEL 15" MT150XN03-V0-G3,AM15000050 3 PC
...3 0100 790661400600R AA PCBA,P/I BOARD, LE1510-6E0 100 PC
...3 0110 790591300610R BA PCBA,IF/B(V0),W/O SPK, LE1501-6E0 100 PC
...3 0120 790401500601R AA PCBA,KEYPAD BOARD, LE1710 (NEW KEY) ROHS 100 PC
...3 0130 430302000180R A HRN ASS'Y LVDS 20P 140mm,UL1571#30,RoHS, 100 PC
...3 0140 430300800610R A HRN ASS'Y 8P 180mm UL2651 #28,RoHS 100 PC
...3 0150 701000001600R A ASSY,CHASSIS, LE1510 100 PC

....4 0010 502090101300R A CHASSIS,W/O DVI, LE1510 100 PC

....4 0020 503010003200R A RUBBER,SPACER,L60xW10xT6.0mm, LE1510 100 PC

....4 0030 505040503100R A INSULATOR,PP,22x20x12X0.3mm,GLUE(3M), LE 300 PC

..2 0020 501020208000R A COVER,BACK,W/O DVI, LE1510 100 PC
..2 0030 714010005600R A ASSY,STAND, LE1510 100 PC
...3 0010 501260200500R A STAND, LE1710 100 PC
...3 0020 502060002300R A HINGE, LE1510 100 PC
...3 0030 509446620101R A SCREW,B,CROSS,W/W-SPR,M4*20,Zn ROHS 300 PC
...3 0040 502020101600R A BRACKET,FINGER, LE1710 ROHS 100 PC
..2 0040 501020208100R A COVER,HINGE, LE1510 100 PC
..2 0050 714020004900R A ASSY,BASE, LE1718 ROHS 100 PC
...3 0010 501240202800R A BASE, LE1718 100 PC
...3 0020 502170101300R A PLATE,BASE, LE1718 ROHS 100 PC
...3 0030 503020002700R A RUBBER,FOOT,L14.8*W9.6*T3.5mm,ROHS LE171 400 PC
...3 0040 503060004000R A GASKET,EMI,W11xH8xL15mm(TWO-SIDED ADHESI 100 PC
...3 0050 509112606100R A SCREW,P,CROSS,T.T-4*6,Zn 100 PC
..2 0060 714030005600R A ASSY,BEZEL(S), LE1510 100 PC
...3 0010 501010206000R A BEZEL,FRONT,SILVER, LE1510 100 PC
...3 0020 501030202001R A BUTTON,POWER KEY, LE1710(NEW KEY) ROHS 100 PC
...3 0030 501030202101R A BUTTON,FUNCTION KEY, LE1710(NEW KEY) ROH 100 PC
...3 0040 501120101301R A LENS, LE1710(NEW KEY) ROHS 100 PC
.1 0130 453070800150R A PWR CORD 10A/125V BLK 6FT UL/CSA,SVT 3Cx 100 PC
.1 0140 453010100150R A CABLE,D-SUB 15P MALE 6FT BLACK,SZ4120955 100 PC
.1 0150 506120100500R A SEALED BAG,ADHESIVE,330x230mm,LE1918 1.111 PC
.1 0160 506038001410R A CARDBOARD,L1120xW784xT4mm,LE1510 1.111 PC
.1 0170 506431001100R A FILM,PROTECTION,PRINTED(E),LE1501 100 PC

31

Acer Service Manual

Lev Phant.item Item Component no. RevLev Object description Quantity Un

.1 0010 506431000300R A FILM,PE 500mmx900M ROHS 0.190 ROL
.1 0020 506380001000R A TAPE,WRAPPING TYPE,ACER LOGO 50000x72mm, 1.560 ROL
.1 0030 506040007200R A CUSHION,EPS-L, LE1718 ROHS 100 PC
.1 0040 506040007210R A CUSHION,EPS-R, LE1718 ROHS 100 PC
.1 0050 506020009100R A CARTON,ACER, LE1718 100 PC
.1 0060 506150004900R A PALLET,L1060xW1060xH120mm,LE1922 1.250 PC
.1 0070 506431001200R A FILM,PE 1335x1120xT0.1mm 1.250 PC
.1 0080 506039004800R A CORNER PAPER,1770x50x50xT5mm,LE1909 ROHS 5 PC
.1 0090 506039005000R A CORNER PAPER,870x50x50xT5mm,ROHS LE1918 5 PC
.1 0100 506120000200R B BAG,PE AS 480x590xT0.05(PRINTED),ROHS LE 100 PC
.1 0110 506120002510R A BAG,PLASTIC,W220xL280xT0.05mm,CYCLE PRIN 100 PC
.1 x 0120 714075160110R A ASSY,FINAL(S,V4/G3),W/SPK,LE1718-6E0(EME 100 PC
..2 0010 618100101100R A SPEAKER 1.5W 16Ω 250mm,R/B,W/CASE,X3516 100 PC
..2 x 0020 714085160110R A ASSY,PANEL(V4/G3),W/SPK,LE1718-6E0(EMEA/ 100 PC
...3 0010 430303000360R A HRN LVDS FFC 30P 214mm,RoHS,ACCP30214KU2 100 PC
...3 0020 790571300601R 2A PCBA,IF/BOARD(EMEA),LE1718-6E0 ROHS 100 PC
...3 0030 790571400600R 2A PCBA,PWR&INV/B, LE1718 ROHS 100 PC
...3 0040 790571500000R 2A PCBA,KEYPAD BOARD, LE1718 ROHS 100 PC
...3 0050 631102071170R A LCD PANEL 17" MT170EN01-V4-G3,AM17000054 100 PC
...3 0060 509146306100R A SCREW,P,CROSS W/WAS,M3*6,Zn ROHS 500 PC
...3 0070 509000000700R A BOLT,#4-40x11.8,Ni FOR D-SUB/DVI CONN.RO 200 PC
...3 0080 509146305300R A SCREW,PW,CROSS,W/WAS,M3*5,NI 400 PC
...3 0090 509112308100R A SCREW,P,CROSS,T.T-3*8,Zn ROHS REV:A 200 PC
...3 0100 502090302710R A CHASSIS,W/O DVI, LE1718 ROHS 100 PC
...3 0110 505040202800R A INSULATOR,MYLAR,L150xW72xT0.4mm, LE1718 100 PC
...3 0120 509116606510R A SCREW,P,CROSS,M4*6,BLACK,NL ROHS (NYLOK) 400 PC
...3 0130 430300800380R B HRN ASS'Y 8P 160mm UL2651#28,RoHS 100 PC
...3 0140 505040503000R A INSULATOR,PP,15x9x6.5X0.3mm,GLUE(3M), LE 100 PC
...3 0150 505040503100R A INSULATOR,PP,22x20x12X0.3mm,GLUE(3M), LE 200 PC
..2 0030 714010004900R A ASSY,STAND, LE1718 ROHS 100 PC
...3 0010 501260200500R A STAND, LE1710 100 PC
...3 0020 502060001700R A HINGE, LE1718 ROHS 100 PC
...3 0030 509446620101R A SCREW,B,CROSS,W/W-SPR,M4*20,Zn ROHS 300 PC
...3 0040 502020101600R A BRACKET,FINGER, LE1710 ROHS 100 PC
..2 0040 501020206800R A COVER,HINGE, LE1718 ROHS 100 PC
..2 0050 714020004900R A ASSY,BASE, LE1718 ROHS 100 PC
...3 0010 501240202800R A BASE, LE1718 100 PC
...3 0020 502170101300R A PLATE,BASE, LE1718 ROHS 100 PC
...3 0030 503020002700R A RUBBER,FOOT,L14.8*W9.6*T3.5mm,ROHS LE171 400 PC
...3 0040 503060004000R A GASKET,EMI,W11xH8xL15mm(TWO-SIDED ADHESI 100 PC
...3 0050 509112606100R A SCREW,P,CROSS,T.T-4*6,Zn 100 PC
..2 0060 714030004900R A ASSY,BEZEL, LE1718 ROHS 100 PC
...3 0010 501010204900R A BEZEL,FRONT, LE1718 ROHS 100 PC
...3 0020 501030202600R A BUTTON,POWER KEY, LE1918 ROHS 100 PC
...3 0030 501030202500R A BUTTON,FUNCTION KEY, LE1918 ROHS 100 PC
...3 0040 501120102000R A LENS, LE1918 ROHS 100 PC
..2 0070 501020206710R A COVER,BACK,W/O DVI, LE1718 ROHS 100 PC
.1 0130 453070800210R A PWR CORD 16A/250V BLK 6FT VDE,H05VV-F 3G 100 PC
.1 0140 453010100150R A CABLE,D-SUB 15P MALE 6FT BLACK,SZ4120955 100 PC
.1 0150 453030300120R A CABLE,AUDIO 1P 6FT BLACK/GREEN CP03B06P0 100 PC
.1 0160 506038002900R A CARDBOARD,L1050xW1050xT7mm, LE1922 1.250 PC
.1 0170 506431001000R B FILM,PROTECTION,PRINTED(E),LE1701 100 PC

32

Acer Service Manual

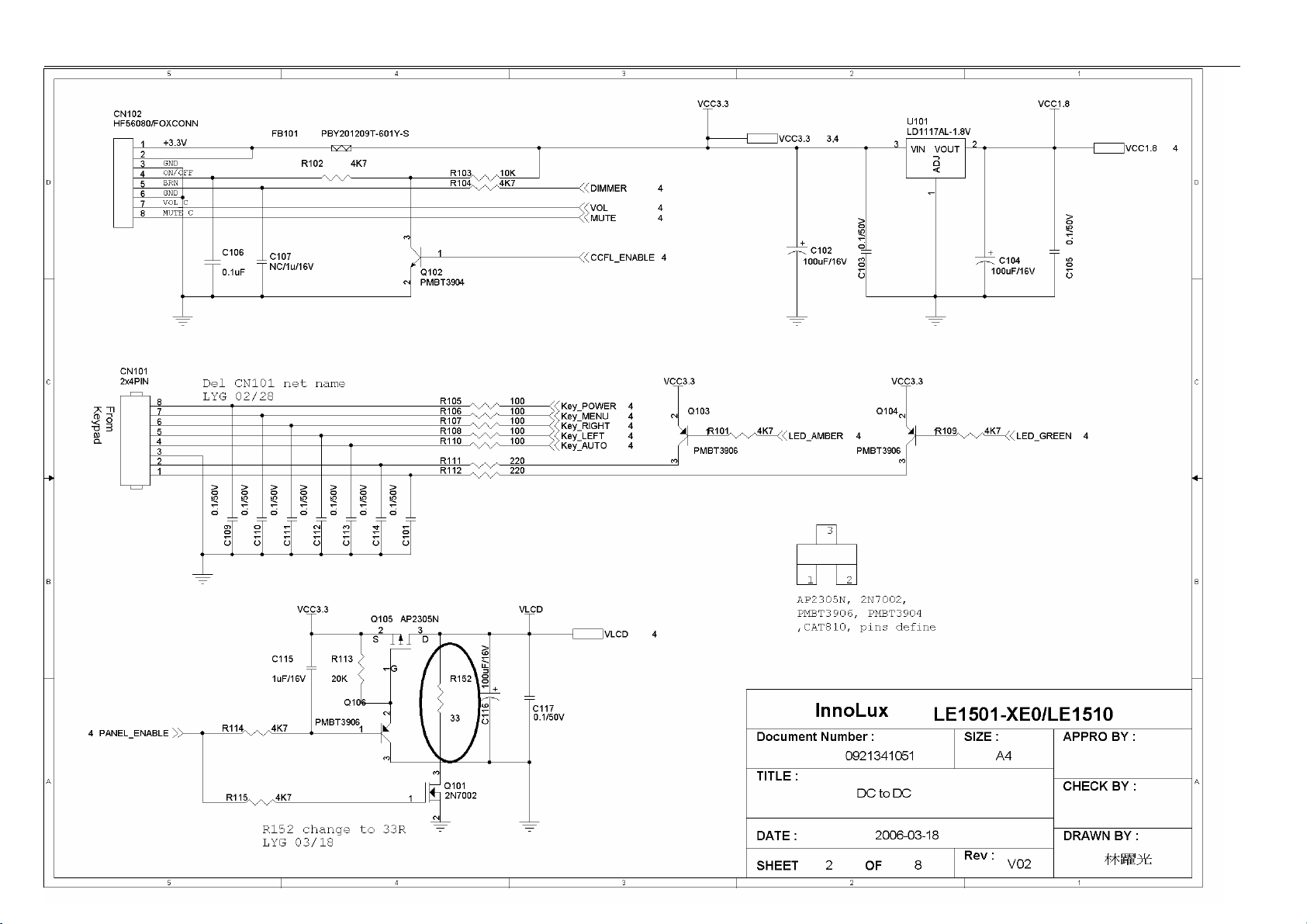

Attachment 2- Schematic

33

Acer Service Manual

35

Acer Service Manual

36

Acer Service Manual

38

Acer Service Manual

39

Acer Service Manual

40

Acer Service Manual

41

Acer Service Manual

42
