Acer AT350 F2 specifications

Product overview

The AT350 F2 is a dual-socket, rack-mountable tower server that delivers exceptional performance,
availability, expansion capability, and flexibility. With a maximum 16-core performance along with the latest
Intel® Xeon® processors and DDR3 memory, the AT350 F2 server is perfect for high-speed, memory­intensive and multi-threaded operations. Hot-swappable HDDs, PCIe® 3.0 expansion slots and up to 24
DIMM slots give your business the power to customize and expand. This ultra-dense tower server is a
power-efficient solution for medium-sized enterprises, departments and branch offices.

Internal view

1

2 x 920W 80 PLUS® Platinum-level (1+1 redundant, hot-swappable)

2

System Fans

3

24 x DDR3 ECC registered / 16 x DDR3 ECC unbuffered DIMMs

4

6 x PCIe® 3.0 expansion slots

5

2 x Intel® Xeon® E5-2600 family processors

6

N+1 redundant system fans

7

3 x 5.25" media bays

8

Up to 8 x 3.5" hot-swappable hard drive bays or
Up to 16 x 2.5" hot-swappable hard drive bays

1

Acer AT350 F2 specifications

Front View

Front I/O

1

Power Button

2

LED indicators: power, HDD activity, LAN

3

2 x USB 2.0 ports

4

Up to 8 x 3.5" hot-swappable hard drive bays or
Up to 16 x 2.5" hot-swappable hard drive bays

2

Acer AT350 F2 specifications

Rear View

Rear I/O

1

Serial port

2

4 x USB ports

3

4 x Gigabit LAN port (RJ-45)

4

Video port

5

PCIe expansion

6

Management port (RJ-45)

7

2 x 920W 80 PLUS® Platinum-level (1+1 redundant, hot-swappable)

8

1+1 redundant system fans

3

Acer AT350 F2 specifications

What's New

 New Intel® Xeon® E5-2600 family processors
 Hot-pluggable/redundant power supply with 80 PLUS® Platinum-level efficiency
 Smart Server Manager v1.2 with improved management functionality

Product Specifications
Processors and Chipset

 Up to two Intel® Xeon® E5-2600 family processors
 Chipset: Intel® C606

Memory

 Up to 24 x DDR3 registered DIMMs or up to 16 x DDR3 unbuffered DIMMs

Network Controllers

 1 x Quad-port Intel® I350 Ethernet controller

Storage

 Hard disk form factor: 2.5” or 3.5”
 Type: SAS / SATA / SSD with hot-plug capability
 3.5” Maximum capacity:

 Up to 24 TB SATA HDD (3 TB 3.5" x 8 HDDs)
 Up to 16 TB SAS (2 TB 3.5” x 8 HDDs)

 2.5” Maximum capacity:

 Up to 16 TB SATA HDD (1 TB 2.5" x 16 HDDs)
 Up to 14.4 TB SAS (900 GB 2.5” x 16 HDDs)

Storage Controllers

 Intel® 606 chipset with SCU (8 x 3 Gb/s SATA / SAS ports) with RAID 0, 1, 10 support
 Onboard SAS support for RAID 0, 1, 10
 Optional hardware SAS RAID controller with RAID 0, 1, 10, 5, 6, 50, 60 and BBU support

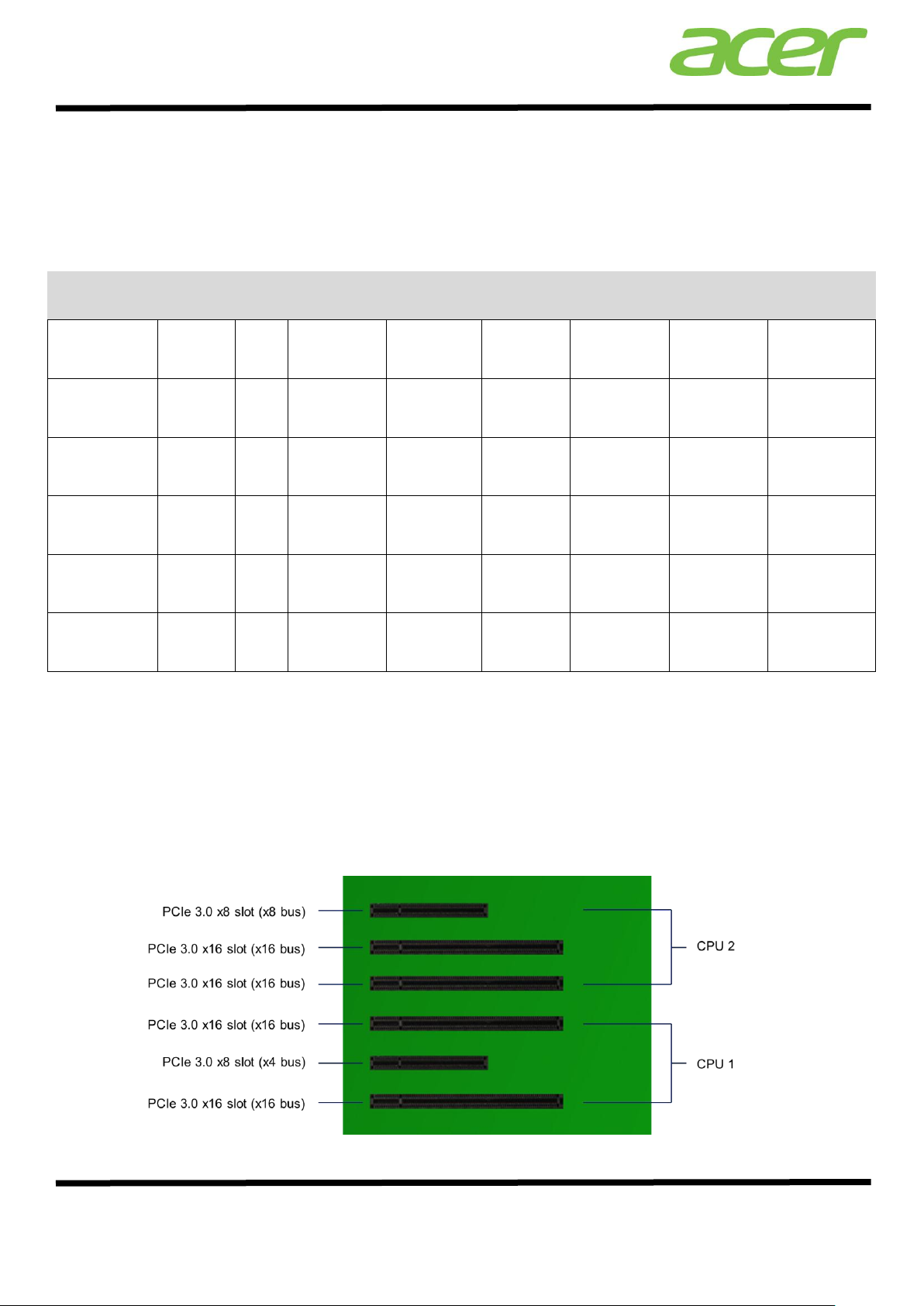

Expansion slots

 2 x PCIe® 3.0 x16 (x16 connector) (full-height, full-length)
 2 x PCIe® 3.0 x16 (x16 connector) (full-height, full-length, CPU 2)
 1 x PCIe® 3.0 x8 (x8 connector) (full-height, half-length, CPU 2)
 1 x PCIe® 3.0 x4 (x8 connector) (full-height, half-length)

Management

 Acer Smart Server Manager
 System ID LED buttons, System Health LED
 Acer Smart Console for server management and KVM over IP remote management

BIOS

 UEFI BIOS
 SMBIOS 2.7

Deployment/Serviceability

 Acer Smart Setup
 BIOS Update Tool
 IPMI Firmware Update Tool

4

Acer AT350 F2 specifications

Operating Systems

 Windows Server® 2008 (includes Hyper-V™)
 Windows Server® 2008 R2 (includes Hyper-V™)
 Red Hat Enterprise Linux 5
 Red Hat Enterprise Linux 6
 SUSE Linux Enterprise Server 10
 SUSE Linux Enterprise Server 11
 VMware ESXi™ 5.0
 Citrix® XenServer 6.0

Input/output interface

Front

 2 x USB 2.0 ports
 One Power/off button
 LED indicators: power, HDD activity, LAN, ID, and System status

Rear

 4 x USB 2.0 ports
 4 x Gigabit LAN port (RJ-45)
 Video port
 Serial port
 System ID LED
 Management port (RJ-45)

Optical drive

 5.25” SATA DVD Super multi

Graphics

 BMC embedded controller
 128 MB shared video memory
 16 MB dedicated

Chassis/Form Factor

 Tower / 4U rack mountable

Power Supply

 2 x 920 W 80 PLUS® Platinum-level efficient easy-swap power supply units (1+1 redundant, hot-

swappable)

Security

 HDD mechanical lock
 Chassis intrusion alert
 Administrator/user password
 Power-on password
 Setup password
 Device boot control
 Optional TPM (v1.2-compliant)
 Secure command line interface (SSH)
 Secure browser interface (Secure socket layer - SSL support)
 Secure IPMI LAN interface (Authentication, Integrity, and Confidentiality algorithm)

5

Acer AT350 F2 specifications

Regulatory Compliant Standards

EMC

 FCC (Class B)
 CE (Class B)
 BSMI
 CCC

Safety

 MET
 CB
 Nemko/GS

Environmental Specifications

Dimensions

434 (W) x 648 (D) x 178 (H) mm (17.1 x 25.5 x 7 inches)

Weight

Maximum

40 kg (88.2 lbs)

System inlet
temperature

Operating

0° - 40° C (32° - 104° F)

Non-operating

-20° - 60° C (-4° - 140° F)

Relative
humidity

Operating

8 - 90 %

Non-operating

5 - 95 %

Acoustics

Idle

LWAd

5.0 BA

LpAm

36 dBA

Operating

LWAd

5.7 BA

LpAm

40 dBA

Power

Rated Steady –state power

920 W

Maximum Peak Power

920.28 W

BTU rating

3140.93 BTU/hr at 100 - 240 VAC

6
