Acer AT3216MF, AT2616MF User Manual

1
AT2616M AT3216M
User Guide
Acer LCD TV

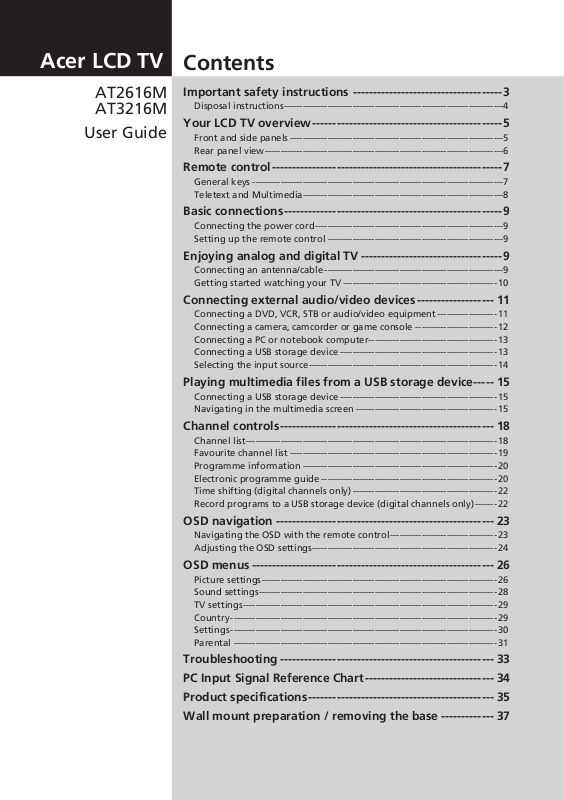

Contents
Important safety instructions ------------------------------------- 3
Your LCD TV overview ----------------------------------------------- 5
Remote control --------------------------------------------------------- 7
Basic connections ------------------------------------------------------ 9
Enjoying analog and digital TV ----------------------------------- 9
Connecting external audio/video devices ------------------- 11

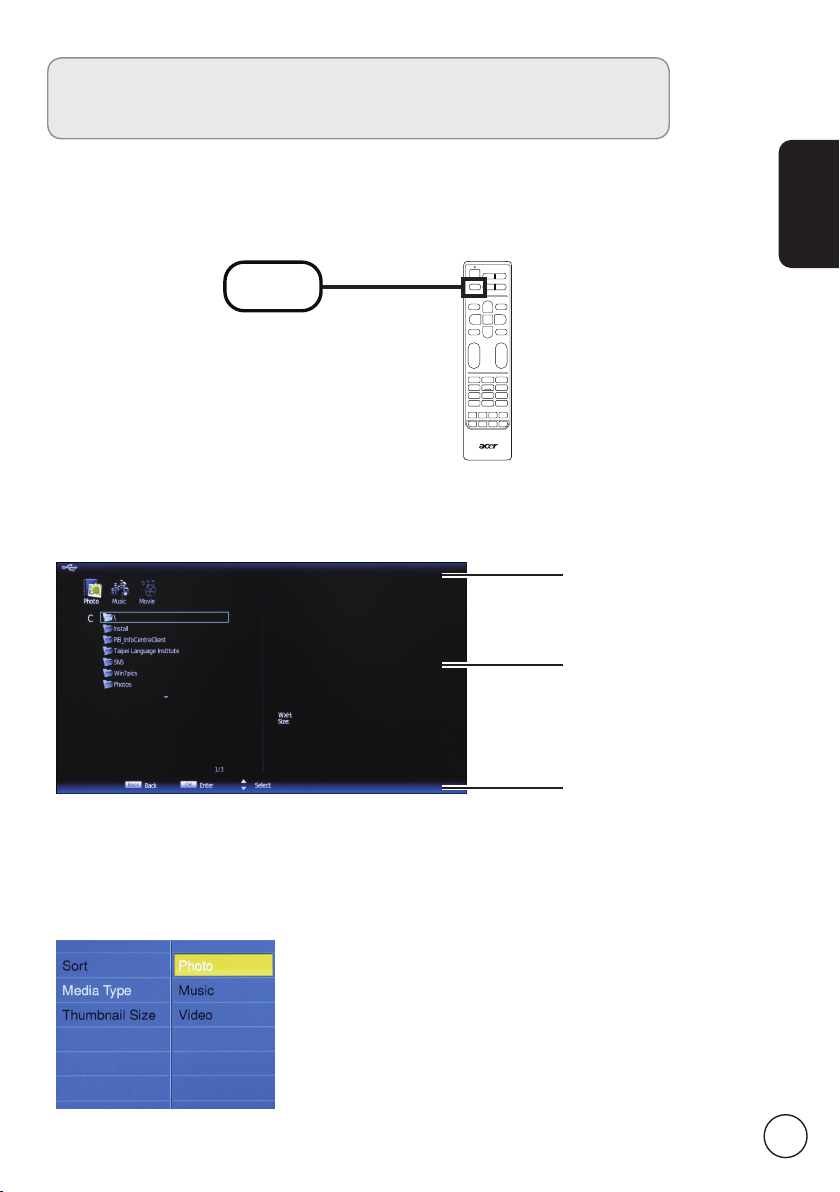

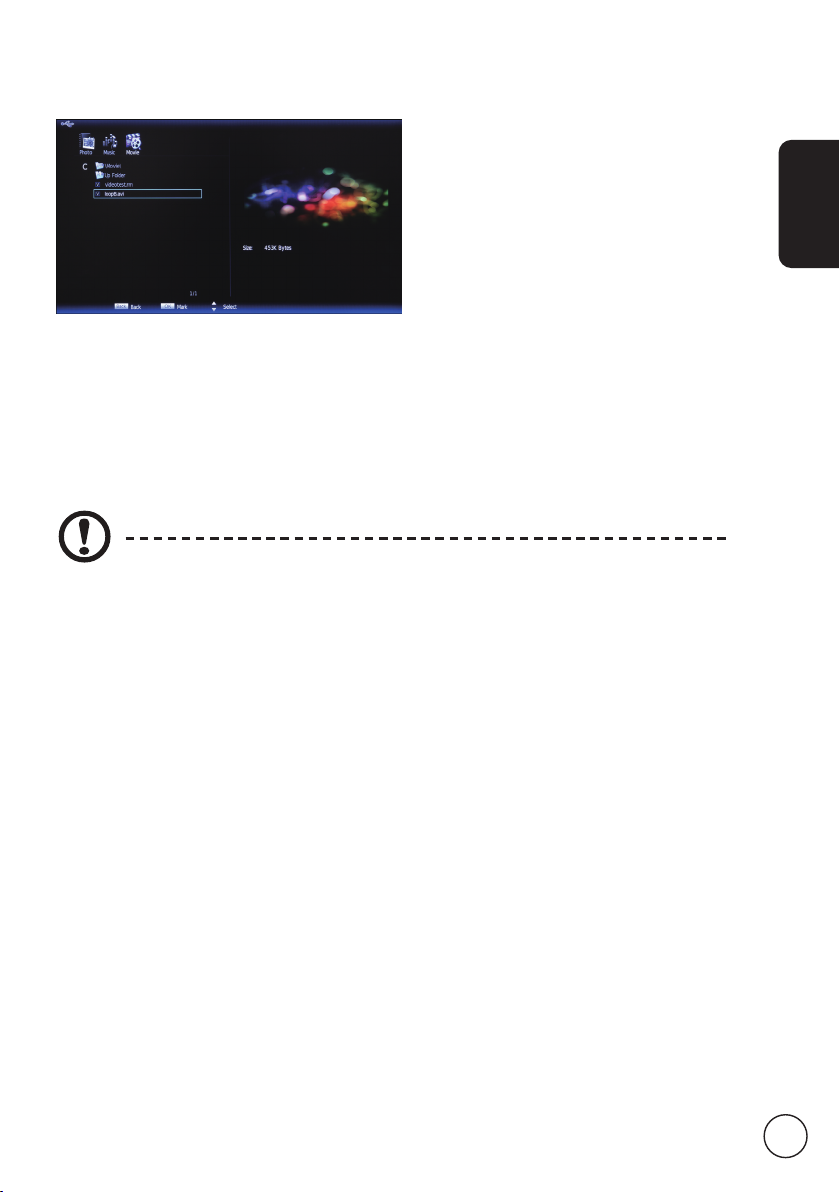

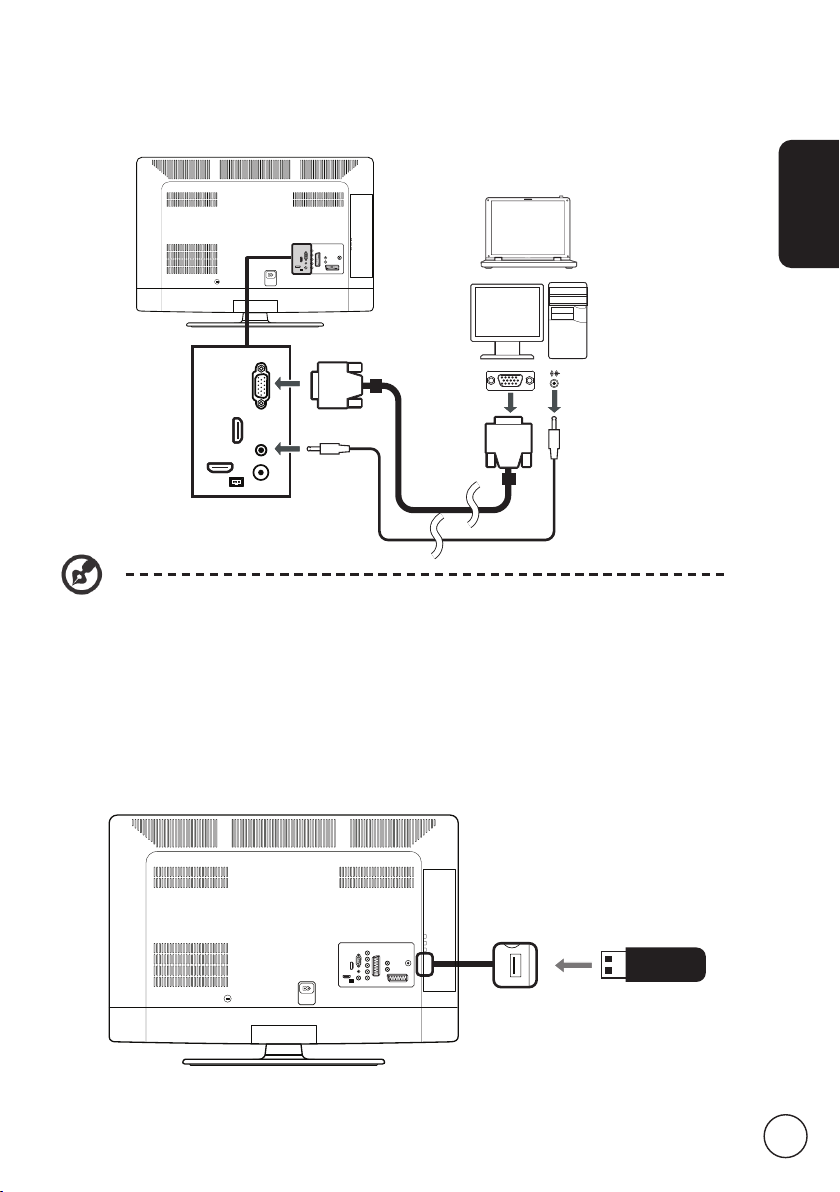

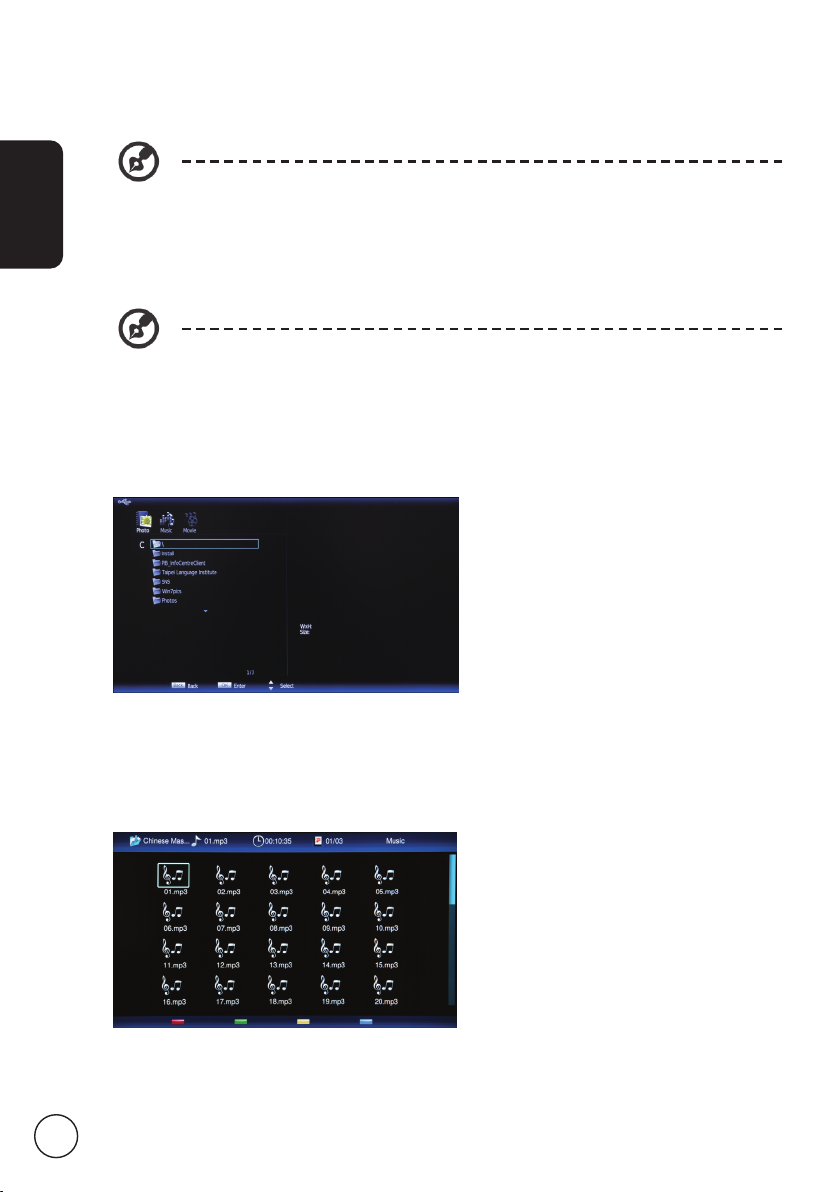

Playing multimedia files from a USB storage device ----- 15
Channel controls ----------------------------------------------------- 18

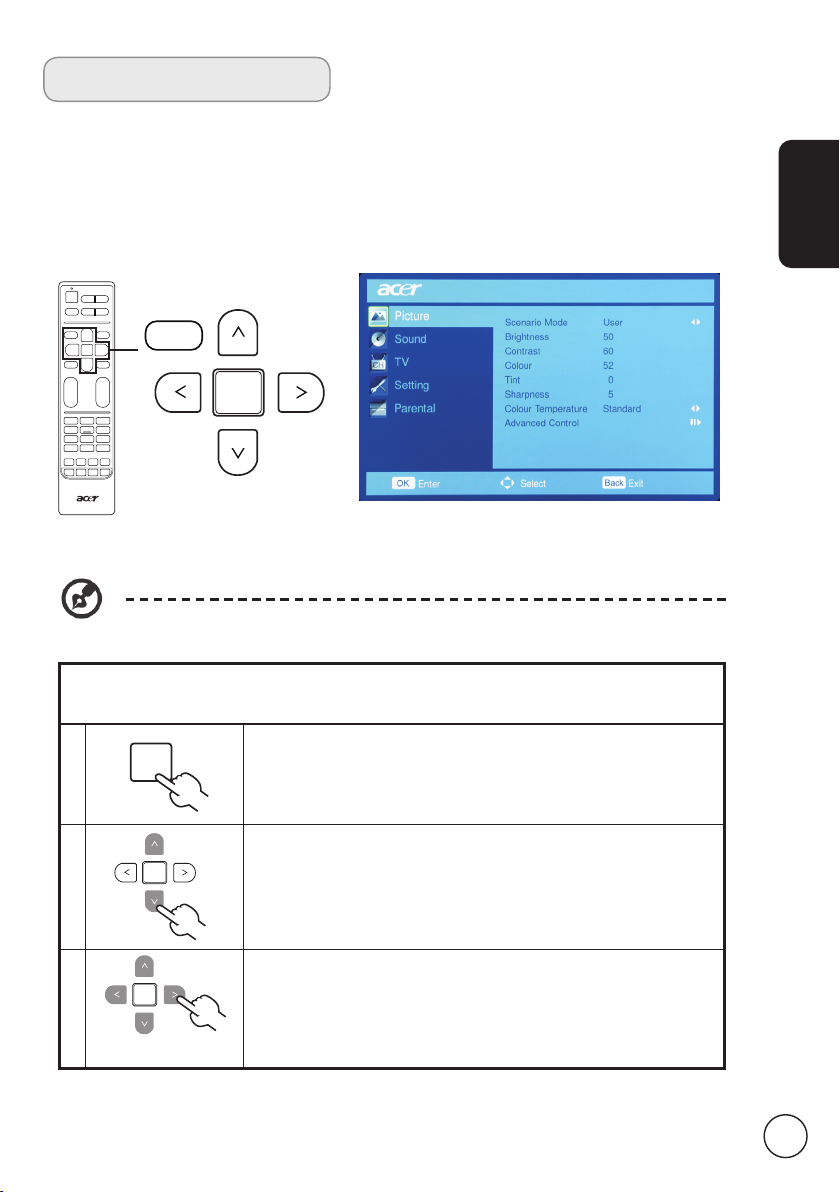

OSD navigation ------------------------------------------------------ 23

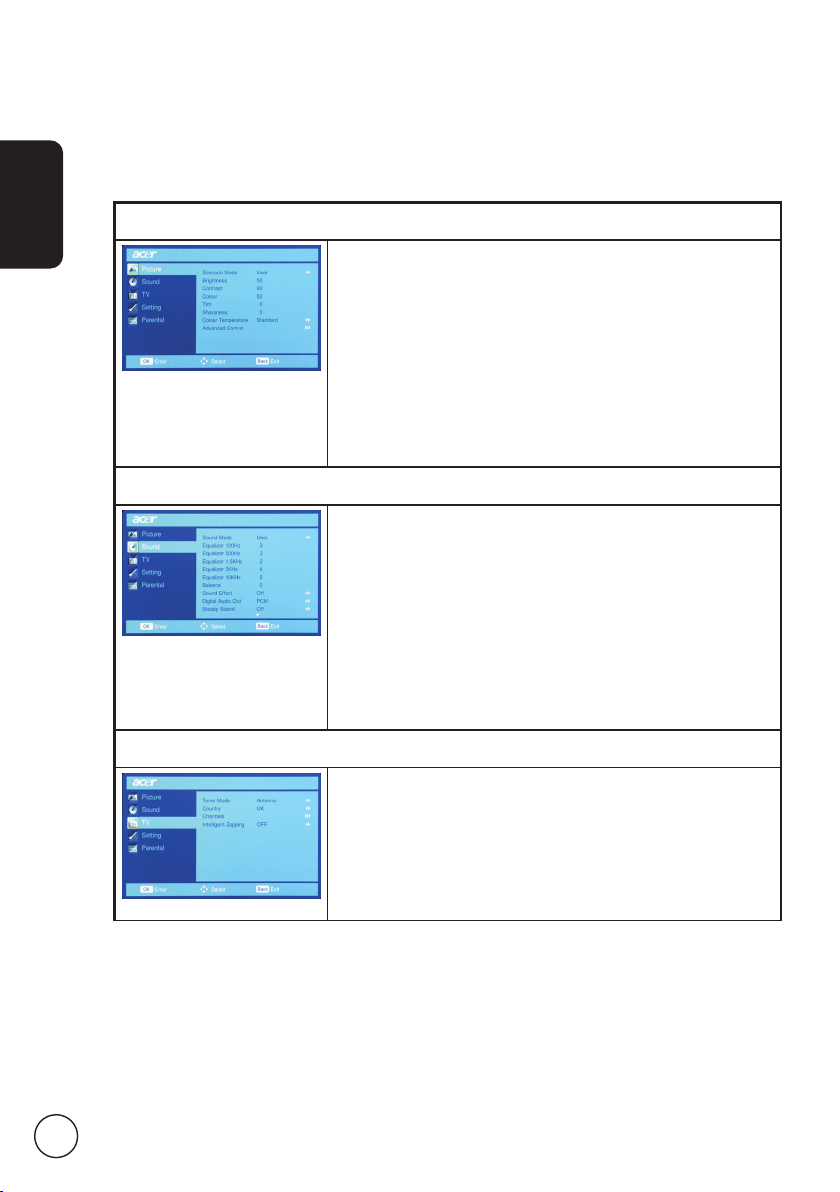

OSD menus ------------------------------------------------------------ 26
Troubleshooting ----------------------------------------------------- 33
PC Input Signal Reference Chart -------------------------------- 34
Product specifications ---------------------------------------------- 35

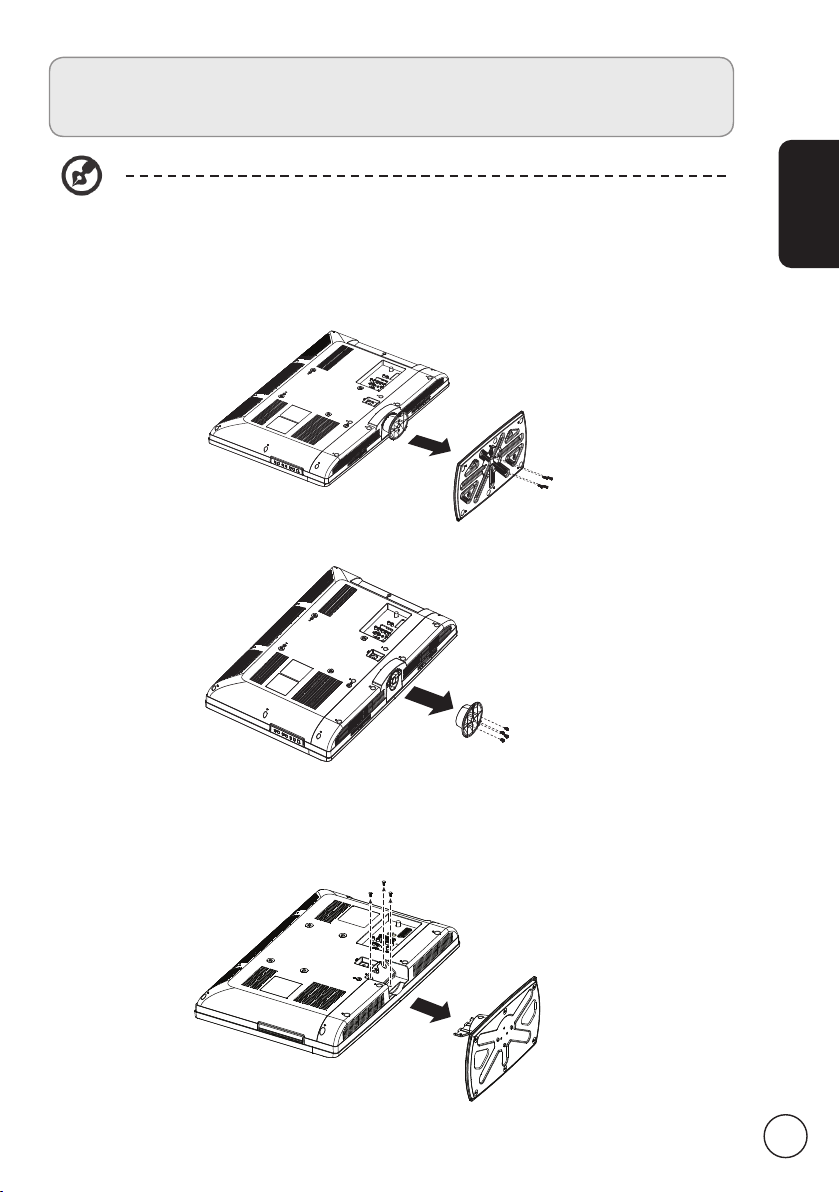

Wall mount preparation / removing the base ------------- 37
2
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trade­marks of HDMI Licensing LLC.
DVB is a registered trademark of the DVB Project.
© 2010 All Rights Reserved.
Acer LCD TV User Guide Original Issue: 06/2010
Model Number:
Serial Number:
Purchase Date:
Place of Purchase:
English
Important safety instructions
Read these instructions carefully. Please put them somewhere safe for future reference.
1. Only use attachments/accessories specified by the manufacturer.
2. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
3. Unplug this apparatus during lightning storms or when unused for long periods of time.
4. Do not install this equipment in a confined space such a book case or similar unit.
5. No naked flame sources, such as lighted candles, should be placed on the apparatus.
6. If the remote control will not to be used for a long time, remove the batteries. Use the remote control carefully. Do not drop the remote control on the floor. Keep it away from moisture, direct sunlight, and high temperatures.
7. Used or discharged batteries must be properly disposed of or recycled in compliance with all applicable laws. For detailed information, contact your local solid waste disposal authority.
8. Follow all warnings and instructions marked on the product.
9. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
10. Do not use this product near water.
11. Do not place this product on an unstable cart, stand or table. The product may fall, sustaining serious damage.
12. Slots and openings are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register or in a built-in installation unless proper ventilation is provided.
13. This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
14. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be stepped on.
15. If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
16. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts, which could result in a fire or electric shock. Never spill liquid of any kind on the product.
17. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
18. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
English
4
The grounding pin is an important safety feature. It is possible to receive an electric shock from a system that is not properly grounded.
The grounding pin is also providing good immunity ability against unexpected noise that interferes performance of this product and is produced by other nearby electrical devices.
Disposal instructions
Do not throw this electronic device into the rubbish bin / container when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle.
For more information regarding WEEE, please refer to http://global.acer.com/about/environmental.htm
Соответствует сертификатам, обязательным в РФ
(
Compliant with Russian regulatory certification)
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally when the operating instructions are
followed. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls could result in damage; extensive work by a qualified technician might then be required to restore the product to normal condition.
e. If the product has been dropped or the case has been damaged.
f. If the product exhibits a distinct change in performance, indicating a need for
service.
19. Use only the proper type of power supply cord set (provided in your accessories box) for this unit. Always disconnect the power cord from the wall outlet before servicing or disassembling this equipment.
20. Do not overload an electrical AC outlet, power strip, or convenience receptical. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip input rating.
21. Some products are equipped with a three-wire electrical grounding-type plug that has a third pin for grounding. This plug only fits into a grounded electrical outlet. This is a safety feature. Make sure the AC outlet is properly grounded. Do not defeat the safety purpose of the grounding-type plug by trying to insert it into a non­grounded outlet. If you cannot insert the plug into the outlet, contact your electrician to replace the obsolete outlet.
22. Do not use this LCD TV in the workplace in accordance with BildscharbV, and maintain ample distance from it when watching. Watching a big-screen TV too close can cause eyestrain.
23. This TV is designed for home entertainment purposes only. Make sure there is sufficient distance between you and the TV when you are viewing content to avoid harming your eyes.
English
5
Your LCD TV overview
Front and side panels
1 Common interface
2 AV in-COMPOSITE + Audio L/R
3 USB port
4 Earphone
5 HDMI port
6 Remote control receiver
7 Volume up When the OSD is on, functions the same as the Right arrow.
8 Volume down When the OSD is on, functions the same as the Left arrow.
9 Channel up When the OSD is on, functions the same as the Up arrow.
10
Channel down
When the OSD is on, functions the same as the Down arrow.
11 Menu key Turns the OSD menu ON and OFF.
12
Source (Input) key
Press to change input source. When the OSD is on, press this button to confirm selection.
13 Power button
6
1
5
4
2
7 8
9 10 11 12 13
3
English
6
Rear panel view
1 AC-in 5 AV in-COMPONENT + Audio L/R
2 VGA-in + PC Audio-in 6 SCART
3 HDMI port 7 CVBS, Audio L/R
4 SPDIF out 8 Tuner (hybrid)
4321
8765
English
7
General keys
Remote control
5 WIDE
Press to toggle scaling mode between Auto, Normal, Zoom1, Zoom2 and Wide modes.
6 MPX
Press to display and select the audio signal.
7 MENU
Press to open or close the Menu.
8 Back/CANCEL
Press to back to previous Menu.
9 Directional keys
On certain models, the left and right directional keys also function as rewind and fast-forward keys when viewing multimedia files.
10 OK/ENTER/CH LIST
ENTER: Press to confirm channel
number selection. CH LIST: Press to launch the channel list. See page 33.
11 MUTE
Press to toggle audio on and off.
12 FAV
Press to display the favorite channel list.
13 VOL (+/-)
Press to increase or decrease the volume.
14 CH (up/down)
Press to sequentially select the TV channel.
15 Number keys.
16 TELETEXT/MIX
Press to switch from TV/AV to Teletext mode. Press again to overlay teletext page on the TV image.
17 SUBTITLE
Press to view subtitles on the screen.
1
4
7
9
11
13
16
1 POWER
Press to turn your TV on/off.
2 DISPLAY
Press to display or change input/ channel information (dependent on input/source type).
3 GUIDE

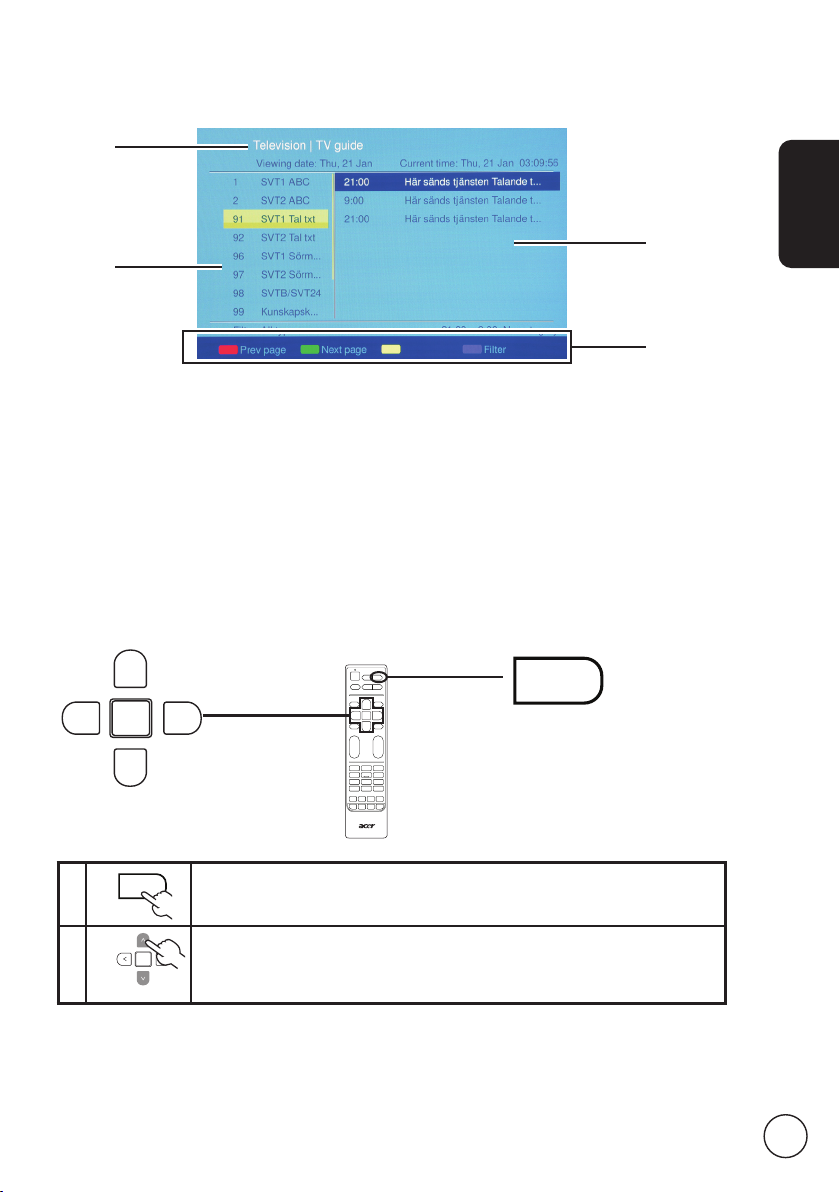

Press to launch Electronic Programme Guide (EPG) mode (Digital TV mode only). See page 34.
4 SOURCE
(TV/SCART1/SCART2/YPbPr/PC/HDMI1/ /HDMI2/HDMI3/AV/USB)
Press to select correct input mode.
DISPLAY GUIDE
WIDESOURCE
MPX
CANCEL
MENU
BACK
OK
MUTE
TELETEXT
INDEX SIZE HOLD REVEAL
FAV
SUBTITLE
2
3 5 6
8
10
12
14
15
17
English
8
OK
DISPLAY GUIDE
WIDESOURCE
MENU
MUTE
TELETEXT
INDEX SIZE HOLD REVEAL
SUBTITLE
BACK
CANCEL
FAV
MPX
Teletext
1 Colour buttons (R/G/Y/B)
Operates corresponding button on the teletext page.
2 INDEX
Press to go to the index page.
3 SIZE
Press once to zoom teletext page to 2X. Press again to resume.
4 HOLD
Press to pause the current teletext page.
5 REVEAL
Press to reveal hidden teletext information.
Multimedia
1 Colour buttons (R/G/Y/B)
No function when using the mutimedia interface.
2 Previous Track
Press to go to the beginning of a track, or the previous track.
3 Stop
Press to stop playback. On certain televisions the remote control can start recording programmes. This feature is not available on your television.
4 Play/Pause
Press to start playing the selected track, or pause a track if it is already playing.
5 Next track
Press to skip to the next track if multiple tracks have been selected.
6 You may use the left and right
directional buttons to avance or rewind in a track. Press the button again to increase how fast the track advances (x2/x4/x8/x16). Press the Play/Pause button to resume playback.
The left and right directional keys also
function as rewind and fast-forward keys when viewing multimedia files.
Teletext and Multimedia
3
1
5
4
2
English
9
Connecting the power cord
1 Connect the AC cord into the AC input on the back of the set.
2 Connect the plug to the wall outlet as shown.
Basic connections
Enjoying analog and digital TV
Connecting an antenna/cable
Connect the antenna cable to the appropriate antenna terminal on the back of the TV set as shown below.
Tuner
Setting up the remote control
1 Open the cover on the bottom of the remote unit.
2 Insert two AA batteries (supplied) to match the polarity indicated inside the battery
compartment.
English
10
Getting started watching your TV
You can also adjust these settings using the front control panel. Please see "Front panel view" on page 8 for details.
1
Power
a. Turn on the power switch. b. Press the power button or channel up/down button on the remote control.
2
Installation Guide
The first time you switch on the TV, you will be asked to select the language and scan for channels.
Press the OK key to begin the setup process.
Step 1. Select the setup language you prefer. Step 2. Please select the correct country for signal reception. Step 3. Select Home mode. Step 4. Ensure that your co-axial cables are connected correctly before proceeding. Step 5. Scan for digital channels and analog channels. Step 6. Setup is now complete. You are ready to begin watching TV.
3

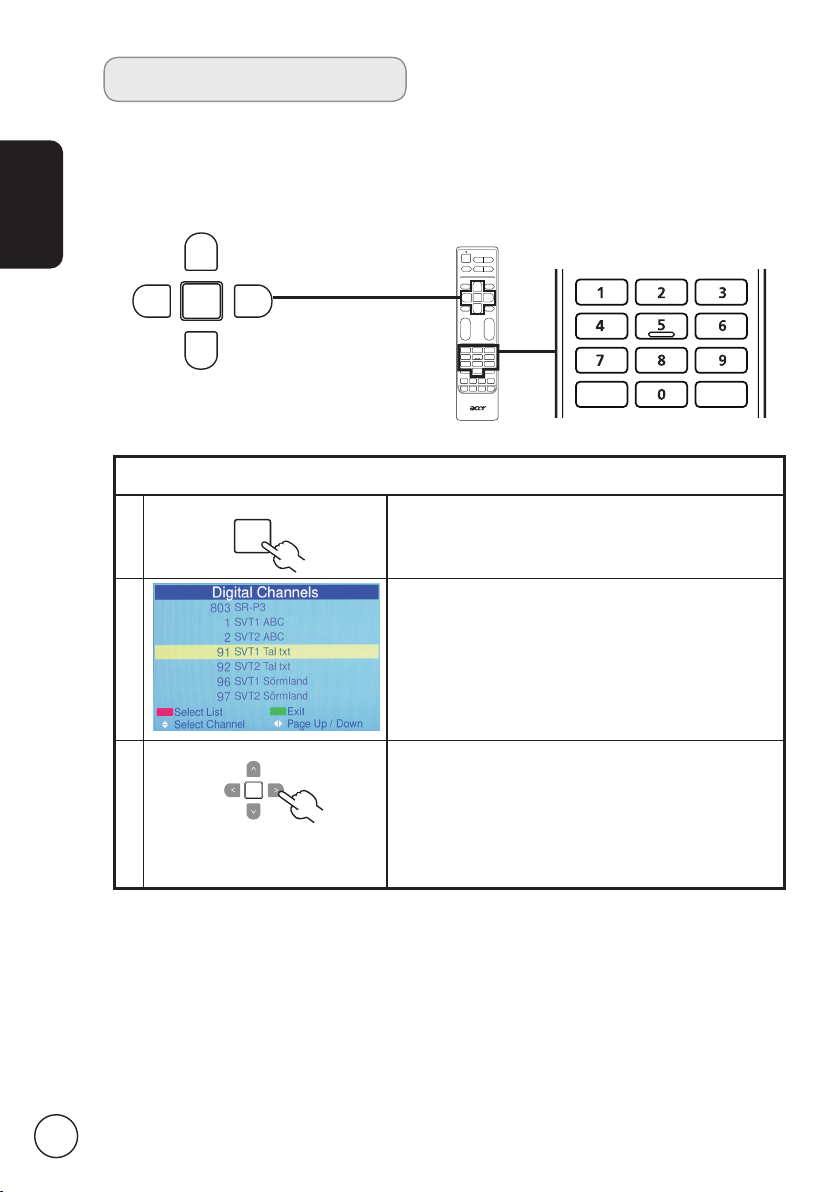

Changing channels
a. Press 0 - 9 on the remote control to select a channel. The channel changes after 2
seconds. Press OK to select the channel immediately.
b. Pressing the channel ( CH ) up / down button on the remote control will also
change the channel.
4
Adjusting the volume
Adjust the volume level using the ( VOL ) up/down button on the remote control.
1
2
4
1
3
Setup may vary due to local broadcast differences.
English
11
Connecting external audio/video devices
Connecting a DVD, VCR, STB or audio/video
equipment
Connect your DVD player, VCR or audio/video equipment using the SCART port located at the rear of your LCD TV as shown below.
Source-in
Y
Yellow
Red
White
Blue
Green
R
W
RB
G
R
B
G
R
W
R
W
SCART
D-Sub
D-Sub
or
DVDPC VCR STB
or
COMPONENT
AV
AUDIO
HDMI
VGA
PC-Audio in
B
G
* Acer recommends the following priority for connection types: HDMI -> COMPONENT -> SCART -> S-Video -> Composite.
English
12
TV-out
AV
Recorder
SCART
SPDIF
Connecting a camera, camcorder or game console
Connect your camera or camcorder to the video/audio ports on the left of the TV set as shown below.
RB
G
R
W
Y
R
B
G
YR
W
R
W
R
W
COMPONENT
COMPOSITE
AV
AUDIO
HDMI HDMI
