System Tour

Features

Below is a brief summary of the computer’s many feature: NOTE: The features listed in this section is for your reference only. The exact configuration of the system
depends on the model purchased.
Operating System
Microsoft Windows Windows7 Home Premium 64bits
Microsoft Windows Windows7 Home Premium 32bits
Microsoft Windows Windows7 Home Basic 32bits
Linpus Linux x-Window mode
Freedos
Processor
Socket Type: Intel Socket T LGA 775 pin
Socket Quantity: 1
Processor Type:
CPUs which compliant with Intel FSB 800/1066/1333 MHz CPUs
FMB
95W FMB
VRD 11.1
Chapter 1
Chipset
GMCH: Intel G43
ICH: Intel ICH10R
Design Criteria:
Should meet Intel G43+ICH10R platform design guide
Super I/O: ITE8720
Should support Intel ASFC
Should support Intel PECI
PCB
MicroATX (9.6 inches*9.6inches, 244mm*244mm)
Memory subsystem
Socket Type: DDR II connector
Socket Quantity: 4
Channel A: slot 0, 1; Channel B: slot 2, 3
Different colors for slot 0/2 and slot 1/3
Dual channel support
Support Intel Flex Memory Mode
Chapter 1 1
Capacity support:
1GB / 2GB DDRII 667/800 Un-buffered Non-ECC DIMM support
1GB to 8GB Max memory support
Design Criteria:
Should meet Intel G43 Express Chipset platform design guide
Dual channel should be enabled always when plug-in 2 same memory size DDRII memory
module
Hard disk
Support up to two SATA ports
3.5", 25.4mm
Capacity and models are listed on AVLC
Optical disk
Support two SATA 5.25" standard ODD
Support DVD-ROM, DVD-SuperMulti, BD-combo, BD-rewrite
Maximum ODD depth to 185mm with bezel
Models are listed on AVLC
Graphics card
No mechanical retriction to support for double slot, full length graphics cards in the single PSIe X16 slot
On-Board Graphic solution
Intel G43 on die graphic solution
DVMT 5.0 technology support
Enhanced 3D and Clear Video technology support
1 D-sub VGA port on rear
1 HDMI port on rear
Dual View function support
Serial ATA controller
Slot Type: SATA connector
Six SATA ports:
4 for HDD
2 for ODD
Storage Type support:
1.HDD : Support RAID 0/1/5/10
2.CD-ROM/CD-RW/DVD-ROM/DVD-RW/DVD+RW/DVD Dual/DVD SuperMultiPlus/Blu-Ray ODD
3.AHCI mode supported for internal SATA port
Audio
Chip : HD audio codec ALC888S-VC codec 7.1
Connectors support:
Rear 6 jack follow HD audio definition
Audio jacks color coding: should meet Microsoft Windows Logo Program Device Requirements:
Audio-0002
2 Chapter 1
2 S/PDIF-out header (1*4) for ALC888S-VC sku
1 front panel audio header (2*5)
LAN
MAC Controller: ICH10R
PHY: Intel Boazman 82567V PCI-E Giga LAN
USB ports
Controller: Intel ICH10R
Ports Quantity: 12
4 back panel ports
On-board: 4 2*5 headers ( 8 ports)
4 ports for front daughter board
Connector Pin: standard Intel FPIO pin definition
Data transfer rate support: USB 2.0/1.1
Extension slot
Support one PCIe x 16 slot
Support two PCIe x 1 slots
Support one PCIe x 2 slot
Total I/O ports
1 PS/2 Keyboard port,
1 PS/2 Mouse port
1 D-Sub VGA port
1 HDMI VGA port
1 RJ45 LAN port
1 1394 port
4 USB ports
7.1 channel phone jack
One HD headphone output in front bezel
One MIC-IN in front bezel
Multi-in-1 card reader (SD , MMC , Mini-SD , Micro-SD (T-flash) , RS-MMC, Mobile -MMC ,MMC-micro,
MS , MS-PRO , MS Duo , MS-PRO Due , Micro-MS(M2), xD type M and Type H card, CF type I and II, Microdrive)
System BIOS
Size: 2Mb Use SPI Flash
AMI Kernel with Acer skin
Power supply
500W/300W/250W in stable mode
Active PFC 220V for EMEA and China
Non-PFC 110V and 220V with select switch.
Active PFC 220V with Energy Star 5.0
Chapter 1 3

Block Diagram

4 Chapter 1

System Components

This section is a virtual tour of the system’s interior and exterior componen ts.

Front Panel

12
1
2
3 4
5
6
No. Component
1 USB 2.0 ports 2 Micro SD/M2 slot 3 CF I/II (CompactFlash Type I/II) slot 4 XD(XD-PICTURE) slot 5 Optical drive 6Acer logo 7 Optical drive button 8 SD(Secure Digital) solt 9 Power button 10 Memory stick PRO slot 11 Headphone/Speaker-out/line-out jack 12 Microphone-in jack
11
10
9 8
7
Chapter 1 5

Rear Panel

1
19
2
3
4
5
6
7
8
9
12
11
10
18
17
16
15
14
13
No. Component
1 Power connector 2 PS2 keyboard port 3VGA port 4 HDMI port 5 USB 2.0 ports 6 Side Surround 7 Surround 8Mic-in 9 Expansion slot (graphics card and TV tuner card and Mode card) 10 Line-out 1 1 Line-in 12 Center speaker/subwoofer jack 13 USB 2.0 ports 14 S/PDIF port 15 LAN connector 16 1394 port 17 System FAN 18 PS2 mouse port 19 Fan aperture
6 Chapter 1

Hardware Specifications and Configurations

Processor
Item Specification
Processor Type CPUs which complaint with Intel FSB 800/1066/1333 MHz CPUs Socket Type Intel Socket T LGA 755 pin FSB 1333 MHz Minimum operating speed 0 MHz (If Stop CPU Clock in Sleep State in BIOS Setup is set to Enabled.)
BIOS
Item Specification
BIOS code programer AMI Kernel with Acer skin BIOS version P01-A0 BIOS ROM type SPI ROM BIOS ROM size 2Mb Support protocol SMBIOS(DMI)2.4/DMI2.0 Device Boot Support Support BBS spec
1st priority: HDD 2nd priority: CD-ROM 3th priority: Removable Device
4th priority: LAN Support to LS-120 drive YES Support to BIOS boot block feature YES
IOS Hotkey List
Hotkey Function Description
Del Enter BIOS Setup Utility Press while the system is booting to enter BIOS Setup Utility.
Main Board Major Chips
Item Specification
North Bridge Intel G43 South Bridge Intel ICH10R Audio controller HD Audio codec ALC888S-VS LAN controller MAC controller: Intel ICH10R / PHY: Intel Boazman 82567V PCI-E Giga LAN HDD controller Intel ICH10R
Chapter 1 7
Memory Combinations
Slot Memory Total Memory
Slot 1 1MB,2GB 1G ~2GB Slot 2 1MB,2GB 1G ~2GB Slot 3 1MB,2GB 1G ~2GB Slot 4 1MB,2GB 1G ~2GB Maximum System Memory Supported 1G~8GB
System Memory
Item Specification
Memory slot number 4 slot Support Memory size per socket 1GB/2GB Support memory type DDRII Support memory interface DDRII 667/800MHz Support memory voltage 1.5V Support memory module package 240-pin DDRII Support to parity check feature Yes Support to error correction code (ECC) feature No Memory module combinations You can install memory modules in any combination as long as
they match the above specifications.
Audio Interface
Item Specification
Audio controller Intel ICH10 Audio controller type ALC8862-VC2-GR Audio channel codec 5.1 Audio function control No Mono or stereo Stereo Compatibility The ALC888S-VC series support host audio controller from the Intel ICH series
chipset, and also from any other HDA compatible audio controller. With EAX/ Direct Sound 3D/I3DL2/A3D compatibility, and excellent software utilities like environment sound emulation, multiple bands of software equalizer and dynamic range control, optional Dolby, Digital Live, DTS CONNECT, and Dolby Home Theater programs, provides an excellent home entertainment package
and game experience for PC users. Music synthesizer No Sampling rate 192KHz (max) MPU-401 UART support No Microphone/Headphone jack Supported
8 Chapter 1
SATA Interface
Item Specification
SATA controller JMB362-QGEZ0A SATA controller resident bus PCI bus Number of SATA channel SATA X 6 Support bootable CD-ROM YES
USB Port
Item Specification
Universal HCI USB 2.0/1.1 USB Class Support legacy keyboard for legacy mode USB Connectors Quantity 6 back real ports
4 top bezel ports 2 ports for media card reader
Environmental Requirements
Item Specification
Temperature Operating +5°C ~ +35°C Non-operating -20 ~ +60°C (Storage package) Humidity Operating 15% to 80% RH Non-operating 10% to 90% RH Vibration Operating (unpacked) 5 ~ 500 Hz: 2.20g RMS random, 10 minutes per axis in all 3 axes.
5 ~500 Hz: 1.09g RMS random, 1 hour per axis in all 3 axes.
Power Management
Devices S1 S3 S4 S5
Power ButtonVVVV USB Keyboard/Mouse V V N/A N/A PME Disabled Disabled Disabled Disabled RCT Disabled Disabled Disabled Disabled WOR Disabled Disabled Disabled Disabled
Devices wake up from S3 should be less than.
Devices wake up from S5 should be less than 10 seconds.
Chapter 1 9

Power Management Function(ACPI support function)

Device Standby Mode
Independent power management timer for hard disk drive devices(0-15 minutes,time step=1minute).
Hard Disk drive goes into Standby mode(for ATA standard interface).
Disable V-sync to control the VESA DPMS monitor.
Resume method:device activated (keyboard for DOS, keyboard &mouse for Windows.
Resume recovery time 3-5sec
Global Standby Mode
Global power management timer(2-120minutes,time step=10minute).
Hard disk drive goes into Standby mode(for A TA standard interface).
Disable H-sync and V-sync signals to control the VESA DPMS monitor.
Resume method: Resume to original state by pushing external switch Button,modem ring in,keyboard
an mouse for APM mode.
Resume recovery time :7-10sec
Suspend Mode
Independent power management timer(2-120minutes,time step=10minute )o r pushing extern switch
button.
CPU goes into SMM
CPU asserts STPCLK# and goes into the Stop Grant State.
LED on panel turns amber colour.
Hard disk drive goes into SLEEP mode (for ATA standard interface).
Disable H-sync and V-sync signals to control the VESA DPMS monitor.
Ultra I/O and VGA chip go into power saving mode.
Resume method: Resume to original state by pushing external switch Button,modem ring in,keyboard
an mouse for APM mode
Return to original state by pushing external switch button,modem ring in and USB keyboard for ACPI
mode.
ACPI
ACPI specification 1.0b
S0,S1,S2 and S5 sleep state support.
On board device power management support.
On board device configuration support.
10 Chapter 1
Chapter 2

System Utilities

CMOS Setup Utility

CMOS setup is a hardware configuration program built into the system ROM, called the complementary metal­oxide semiconductor (CMOS) Setup Utility. Since most systems are already properly configured and optimized, there is no need to run this utility. You will need to run this utility under the following conditions.
When changing the system configuration settings
When redefining the communication ports to prevent any conflicts
When modifying the power management configuration
When changing the password or making other changes to the security setup
When a configuration error is detected by the system and you are prompted ("Run Setup"
message) to make changes to the CMOS setup
NOTE: If you repeatedly receive Run Setup messages, the battery may be bad. In this case, the system
cannot retain configuration values in CMOS. Ask a qualified technician for assistance.
CMOS setup loads the configuration values in a battery-backed nonvolatile memory called CMOS RAM. This memory area is not part of the system RAM which allows configuration data to be retained when power is turned off.
Before you run the CMOS Setup Utility, make sure that you have saved all open files. The system reboots immediately after you close the Setup.
NOTE: CMOS Setup Utility will be simply referred to as “BIOS”, "Setup", or "Setup utility" in this guide.
The screenshots used in this guide display default system values. These values may not be the same those found in your system.
Chapter 2 11

Entering CMOS setup

1. Turn on the server and the monitor. If the server is already turned on, close all open applications, then restart the server.
2. During POST, press Delete. If you fail to press Delete before POST is completed, you will need to restart the server. The Setup Main menu will be displayed showing the Setup’s menu bar. Use the left and right arrow keys
to move between selections on the menu bar.

Navigating Through the Setup Utility

Use the following keys to move around the Setup utility.
Left and Right arrow keys – Move between selections on the menu bar.
Up and Down arrow keys – Move the cursor to the field you want.
PgUp and PgDn keys – Move the cursor to the previous and next page of a multiple page menu.
Home – Move the cursor to the first page of a multiple page menu.
End – Move the cursor to the last page of a multiple page menu.
+ and - keys – Select a value for the currently selected field (only if it is user-confi g u rab l e ). Press
these keys repeatedly to display each possible entry, or the Enter key to choose from a pop-up menu.
NOTE: Grayed-out fields are not user-configurable.
Enter key – Display a submenu screen.
NOTE: Availability of submenu screen is indicated by a (>).
Esc – If you press this key:
On one of the primary menu screens, the Exit menu displays.
On a submenu screen, the previous screen displays.
When you are making selections from a pop-up menu, closes the pop-up without making a
selection.
F1 – Display the General Help panel.
F6 – Press to load optimized default system values.
F7 – Press to load fail-safe default system values.
F10 – Save changes made the Setup and close the utility.
12 Chapter 2

Setup Utility Menus

The Setup Main menu includes the following main setup categories.
Parameter Description
Product Information This page shows the relevant information of the main board Standard CMOS Features This setup page includes all the items in standard compatible BIOS Advanced BIOS Features This setup page includes all the items of Award special enhanced features Advanced Chipset Features This setup page includes all advanced chipset features Integrated Peripherals This setup page includes all onboard peripherals Power Management Setup This setup page includes all the items of Green function features PC Health Status This setup page is the System auto detect Temperature, voltage, and fan speed Frequency/Voltage Control This setup page is the System Frequency setup BIOS Security Features Change, set or disable password. It allows you to limit access to the System Load Default Setting Load Default Setting indicates the value of the system parameters which the system would be
in best performance configuration Save & Exit Setup Save CMOS value settings to CMOS and exit setup Exit Without Saving Abandon all CMOS value changes and exit setup
In the descriptive table followi n g ea ch of th e me nu s cre en sh ots, settings in boldface are the default and suggested settings.
Chapter 2 13
Product Information
The Product Information menu displays basic information about the system. These entries are for your reference only and are not user-configurable.
Parameter Description
Processor Type Type of CPU installed on the system. Processor Speed Speed of the CPU installed on the system. System Memory Total size of system memory installed on the system. Product Name Product name of the system. System Serial Number Serial number of the system. System BIOS Version Version number of the BIOS setup utility. BIOS Release Date Date when the BIOS setup utility was released Asset Tag Number Asset tag number of this system.
14 Chapter 2
Standard CMOS Features
Parameter Description Option
System Date Set the date following the weekday-month-day-year format. System Time Set the system time following the hour-minute-second format. Halt On Determines whether the system will stop for an error during the POST. All, But Keyboard
No Errors All Errors
Chapter 2 15
Advanced BIOS Feature
Parameter Description Option
Quick Boot Allows you to decrease the time it takes to boot the computer by shortening
or skipping certain standard booting process.
Quiet Boot When enabled, the BIOS splash screen displays during startup.
When disabled, the diagnostic screen displays during startup.
1st/2nd/3rd/4th Boot Device Specifies the boot order from the available devices. Hard Disk
Hard Disk Drive Priority Press Enter to access the Hard Disk Drive Priority submenu and specify the boot device
priority sequence from available hard drives.
Optical Disk Drives Priority Press Enter to access the Optical Disk Drive Priority submenu and specify the boot device
priority sequence from available CD/DVD drives.
Removable Device Priority Press Enter to access the Removable Device Priority submenu and specify the boot device
priority sequence from available removable drives.
Bootup Num-Lock Selects power on state for Num Lock. On
USB Beep Message Enables or disables BIOS to display error beeps or messages during USB
device enumeration.
Enabled
Disabled
Enabled
Disabled
CD^DVD Removable
Device LAN
Off
Disabled
Enabled
16 Chapter 2
Advanced Chipset Features
Parameter Description Option
Intel EIST When enabled, this feature allows the OS to reduce power consumption.
When disabled, the system operates at maximum CPU speed.
Intel XD Bit When enabled, the processor disables code execution wh en a worm
attempts to insert a code in the buffer preventing damage and worm propagation.
When disabled, the processor forces the Execute Disable (XD) Bit feature flag to always return to 0.
Intel VT Enables or disables the Virtualization Technology (VT) availability. If
enabled, a virtual machine manager (VMM) can utilize the additional hardware virtualization capabilities provided by this technology.
Note: A full reset is required to change the setting.
Memory Hole Remapping Enables or disables remapping of overlapped PCI memory above the total
physical memory.
Primary Video Select a graphic controller as a primary boot device. Auto
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
PCIE Onboard VGA
Chapter 2 17
Integrated Peripherals
Parameter Description Option
Onboard SATA Controller Enables or disables the onboard SATA controller. Enabled
Disabled
Onboard SATA Mode Select an operating mode for the onboard SATA. RAID
Native IDE
Onboard USB Controller Enables or disables the onboard USB controller. Enabled
Disabled
Legacy USB Support Enables or disables support for legacy USB devices. Enabled
Disabled
USB Storage Emulation Enables or disables support for legacy USB devices. Enabled
Disabled
Onboard Audio Controller Enables or disables the onboard audio controller. Enabled
Disabled
Onboard LAN Controller Enables or disables the onboard LAN controller. Enabled
Disabled
Onboard LAN Option ROM Enables or disables the load of embedded option ROM for onboard
network controller.
Onboard 1394 Controller Enables or disables the onboard 1394 controller. Enabled
Enabled
Disabled
Disabled
18 Chapter 2
Power Management Setup
Parameter Description Option
ACPI Suspend Mode Select an ACPI state. S3 (STR)
S1 (POS)
Deep power off mode Select the Deep power off Mode Enabled
Disabled
Power On by RTC Alarm Enables or Disables to wake up the system by RTC Alarm Function Enabled
Disabled
Power On by PCIE Devices Enables or disables to wake up the system from a power saving mode
through an event on PCI Express device.
Power On by PCI Devices Enables or disables to wake up the system from a power saving mode
through an event on PCI device.
Wake Up by PS/2 KB/ Mouse
Wake Up by USB KB/ Mouse
Restore On AC Power Loss Enables or disables the system to reboot after a power failure or
Enables or disables to wake up the system from a power saving mode using a PS2 keyboard or mouse.
If enabled, press any key or click the mouse will wake system from S1/ S3 state.
interrupt occurs.
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Power Off
Power On Last State
Chapter 2 19
PC Health Status
Parameter Description Option
Smart FAN Enables or disables the smart system fan control function. Enabled
Disabled
20 Chapter 2
Frequency/Voltage Control
Parameter Description Option
Enable Clock to All DIMM/ PCI
Spread Spectrum Enables or disables the reduction of the mainboard’s EMI.
Enables or disables control the clock to all DIMM/PCI Enabled
Disabled
Enabled
Note: Remember to disable the Spread Spectrum feature if you are overclocking. A slight jitter can introduce a temporary boost in clock speed causing the overclocked processor to lock up.
Disabled
Chapter 2 21
BIOS Security Features
Parameter Description
Supervisor Password Indicates the status of the supervisor password. User Password Indicates the status of the user password. Change Supervisor
Password
Supervisor password prevents unauthorized access to the BIOS Setup Utility. Press Enter to change the Supervisor password.
Setting a supervisor password
1. Use the up/down arrow keys to select Change Supervisor Password menu then press Enter. A password box will appear.
2. Type a password then press Enter. The password may consist up to six alphanumeric characters (A-Z, a-z, 0-9)
3. Retype the password to verify the first entry then press Enter again.
4. Press F10.
5. Select Yes to save the new password and close the Setup Utility.
Changing the supervisor password
1. Use the up/down arrow keys to select Change Supervisor Password menu then press Enter.
2. Type the original password then press Enter.
3. Type a new password then press Enter.
4. Retype the password to verify the first entry then press Enter again.
5. Press F10.
6. Select Yes to save the new password and close the Setup Utility.
Removing a supervisor password
1. Use the up/down arrow keys to select Change Supervisor Password menu then press Enter.
2. Enter the current password then press Enter.
3. Press Enter twice without entering anything in the password fields.
22 Chapter 2
Load Default Settings
The Load Default Settings menu allows you to load the default settings for all BIOS setup parameters. Setup defaults are quite demanding in terms of resources consumption. If you are using low-speed memory chips or other kinds of low-performance components and you choose to load these settings, the system might not function properly.
Chapter 2 23
Save & Exit Setup
The Save & Exit Setup menu allows you to save changes made and close the Setup Utility.
Exit Without Saving
The Exit Without Saving menu allows you to discard changes made and close the Setup Utility.
24 Chapter 2
Chapter 3

System Disassembly

This chapter contains step-by-step procedures on how to disassemble the desktop computer for maintenance and troubleshooting.

Disassembly Requirements

To disassemble the computer, you need the following tools:
Wrist grounding strap and conductive mat for preventing electrostatic discharge
Flat-blade screwdriver
Philips screwdriver
Hex screwdriver
Plastic flat-blade screwdriver
Plastic tweezers
NOTE: The screws for the different components vary in size. During the disassembly process, group the
screws with the corresponding components to avoid mismatch when putting back the components.
Chapter 3 25

Pre-disassembly Procedure

Before proceeding with the disassembly procedure, perform the steps listed below:
1. Turn off the system and all the peripherals connected to it.
2. Unplug the power cord from the power outlets.
3. Unplug the power cord from the system.
4. Unplug all peripheral cables from the system.
5. Place the system unit on a flat, stable surface.
26 Chapter 3

Removing the Side Panel

1. Remove the two screws located on the rear edge of the side panel.
2. Slide the side panel toward the back of the chassis until the tabs on the cover disengage with the slots on
the chassis.
3. Lift the side panel away from the server and put it aside for reinstallation later.
Chapter 3 27

Removing the Heat Sink Fan Assembly

WARNING:The heat sink becomes very hot when the system is on. NEVER touch the heat sink with any metal
or with your hands.
1. disconnect the fan cable from the mainboard.
2. Use a long-nosed screwdriver to loosen the four screws on the heat sink, in the order as shown below.
3. Lift the heat sink fan assembly away from the mainboard.
28 Chapter 3

Removing the Processor

IMPORTANT:Before removing a processo r from the mainboa rd, make sure to create a backup file of all
important data.
WARNING:The processor becomes very hot when the system is on. Allow it to cool off first before handling.
1. Release the load lever (1).
2. Pull the load lever to the fully open, upright position (2) and lift the load plate (3).
3. Pull out the processor from the socket.
IMPORTANT: If you are going to install a new processor, note the arrow on the corner to make sure the
processor is properly oriented over the socket
Chapter 3 29

Removing the VGA Card

1. Release the Slot cover lock.
2. Remove the screw from chassis.
3. Disconnect the power cables from the VGA card.
4. One finger Press the clip and the same time Gently pull the card to remove it from the mainboard.
30 Chapter 3

Removing the TV Card

1. Gently pull the TV card to remove it from the mainboard.

Removing the Mode Card

1. Gently pull the Mode card to remove it from the mainboard.
Chapter 3 31

Removing the Hard Disk Drive

1. Disconnect the data and power cables from the rear of the optical drive and the mainbo ard.
2. Remove the HDD bracket
a. Remove the screw that secures the HDD bracket to the ODD bracket.
b. Lift the bracket up and turn it over.
32 Chapter 3
3. Remove the HDD module
a. Remove the eight screws secure the HDD module to the HDD bracket.
b. Slide the HDD out of the bracket.
Chapter 3 33

Removing the Front Bezel

1. Remove the side panel. Refer to the previous section for instructions.
2. Disconnect the LED cable.
3. Release the front bezel from the chassis interior.
4. Pull the bezel away from the chassis.
34 Chapter 3

Removing the Optical Drive

1. Disconnect the data and power cables from the rear of the optical drive.
Data cablePower cable
2. Remove Four screw from the optical drive.
3. Pull the drive out of the drive.
Chapter 3 35

Removing Cables

1. Remove power switch and LED cables from slot of M/B
2. Remove HDD Data and ODD Data cables from slot of M/B.
Powe-Led Cable
HDD Cable
3. Remove USB1/2/3 cable from M/B.
4. Remove SPDIF cable and Audio cable from M/B
Front USB Cable (USB1)
ODD Cable
Front Audio Cable
Front USB Cable (USB2)
36 Chapter 3
Rear IO USB Cable (USB2) Rear SPDIF Cable
Remove System FAN
1. Remove System FAN cable from M/B.
2. Release four screws according to the following picture.
3. Take off the system fan from chassis.
Chapter 3 37

Removing the Power Supply

1. Disconnect the 24-pin and 4-pin power supply cables from the mainboard.
2. Remove the four screw that secures the power supply to the chassis.
3. Lift the power supply module out of the chassis.
38 Chapter 3

Removing the Memory Modules

IMPORTANT:Before removing any DIMM from the memory board, make sure to create a backup file of all
important data.
1. Press the holding clips on both sides of the DIMM slot outward to release the DIMM.
2. Gently pull the DIMM upward to pull it away from the M/B.
Chapter 3 39

Removing the Mainboard

1. Remove the eight screws that secure the mainboard to the chassis.
2. Lift the board from the chassis.
40 Chapter 3

System Troubleshooting

Please refer to generic troubleshooting guide for troubleshooting information relating to following topics:
Power-On Self-Test (POST)
POST Check Points
POST Error Messages List
Error Symptoms List
Chapter 4
Chapter 4 41

Power-On Self-Test (POST)

Each time you turn on the system, the Power-on Self Test (POST) is initiated. Several items are tested during POST, but is for the most part transparent to the user.
The Power-On Self Test (POST) is a BIOS procedure that boots the system, initializes and diagnoses the system components, and controls the operation of the power-on password option. If POST discovers errors in system operations at power-on, it displays error messages on screen, generates a check point code at port 80h or even halts the system if the error is fatal.
NOTE: When Post executes a task, it uses a series of preset numbers called check points to belatched atport
80h, indicating the stages it is currently running. This latch can be read and shown on a debug board.The following table describes the BIOS common tasks carried out by POST . Each task is denoted by an unique check point number. For other unique check point numbers that are not listed in the table, refer to the corresponding product service guide.
Post Checkpoints List: The list may vary accordingly depending on your BIOS
Bootblock Initialization Code Checkpoints
Checkpoint Description
Before D0 If boot block debugger is enabled, CPU cache-as-RAM functionality is enabled at this
point. Stack will be enabled from this point.
D0 Early Boot Strap Processor (BSP) initialization like microcode update, frequency and other
CPU critical initialization. Early chipset initialization is done.
D1 Early super I/O initialization is done including RTC and keyboard controller. Serial port is
enabled at this point if needed for debugging. NMI is disabled. Perform keyboard controller BAT test. Save power-on CPUID value in scratch CMOS. Go to flat mode with 4GB limit
and GA20 enabled. D2 Verify the boot block checksum. System will hang here if checksum is bad. D3 Disable CACHE before memory detection. Execute full memory sizing module. If memory
sizing module not executed, start memory refresh and do memory sizing in Boot block
code. Do additional chipset initialization. Re-enable CACHE. Verify that flat mode is
enabled. D4 Test base 512KB memory. Adjust policies and cache first 8MB. Set stack. D5 Bootblock code is copied from ROM to lower system memory and control is given to it.
BIOS now executes out of RAM. Copies compressed boot block code to memory in right
segments. Copies BIOS from ROM to RAM for faster access. Performs main BIOS
checksum and updates recovery status accordingly. D6 Both key sequence and OEM specific method is checked to determine if BIOS recovery is
forced. If BIOS recovery is necessary, control flows to checkpoint E0. See Bootblock
Recovery Code Checkpoints section of document for more information. D7 Restore CPUID value back into register. The Bootblock-Runtime interface module is
moved to system memory and control is given to it. Determine whether to execute serial
flash. D8 The Runtime module is uncompressed into memory. CPUID information is stored in
memory. D9 Store the Uncompressed pointer for future use in PMM. Copying Main BIOS into memory.
Leaves all RAM below 1MB Read-Write including E000 and F000 shadow areas but
closing SMRAM.
42 Chapter 4
Checkpoint Description
DA Restore CPUID value back into register. Give control to BIOS POST
(ExecutePOSTKernel). See POST Code Checkpoints section of document for more
information. DC System is waking from ACPI S3 state E1-E8 EC-EE OEM memory detection/configuration error. This range is reserved for chipset vendors &
system manufacturers. The error associated with this value may be different from one
platform to the next.
Bootblock Recovery Code Checkpoints
Checkpoint Description
E0 Initialize the floppy controller in the super I/O. Some interrupt vectors are initialized. DMA
controller is initialized. 8259 interrupt controller is initialized. L1 cache is enabled. E9 Set up floppy controller and data. Attempt to read from floppy. EA Enable ATAPI hardware. Attempt to read from ARMD and ATAPI CDROM. EB Disable ATAPI hardware. Jump back to checkpoint E9. EF Read error occurred on media . Ju mp back to checkpoint EB. F0 Search for pre-defined recovery file name in root directory. F1 Recovery file not found . F2 Start reading FAT table and analyze FAT to find the clusters occupied by the recovery file. F3 Start reading the recovery file cluster by cluster. F5 Disable L1 cache. FA Check the validity of th e recovery file configuration to the current configuration of the flash
part. FB Make flash write enabled through chipset and OEM specific method. Detect proper flash
part. Verify that the found flash part size equals the recovery file size. F4 The recovery file size does not equal the found flash part size. FC Erase the flash part FD Program the flash part. FF The flash has been updated successfully. Make flash write disabled. Disable ATAPI
hardware. Restore CPUID value back into register. Give control to F000 ROM at
F000:FFF0h.
POST Code Checkpoints
Checkpoint Description
03 Disable NMI, Parity, video for EGA, and DMA controllers. Initialize BIOS, POST, Runtime
data area. Also initialize BIOS modules on POST entry and GPNV area. Initialized CMOS
as mentioned in the Kernel Variable "wCMOSFlags."
Chapter 4 43
Checkpoint Description
04 Check CMOS diagnostic byte to determine if battery power is OK and CMOS checksum is
OK. Verify CMOS checksum manually by reading storage area. If the CMOS checksum is
bad, update CMOS with power-on default values and clear passwords. Initialize status
register A.Initializes data variables that are based on CMOS setup questions. Initializes
both the 8259 compatible PICs in the system 05 Initializes the interrupt controlling hardware (generally PIC) and interrupt vector table. 06 Do R/W test to CH-2 count reg. Initialize CH-0 as system timer. Install the POSTINT1Ch
handler. Enable IRQ-0 in PIC for system timer interrupt.Traps INT1Ch vector to
"POSTINT1ChHandlerBlock." 07 Fixes CPU POST interface calling pointer. 08 Initializes the CPU. The BAT test is being done on KBC. Program the keyboard controller
command byte is being done after Auto detection of KB/MS using AMI KB-5. C0 Early CPU Init Start -- Disable Cache ?C Init Local APIC C1 Set up boot strap processor Information C2 Set up boot strap processor for POST C5 Enumerate and set up application processors C6 Re-enable cache for boot strap processor C7 Early CPU Init Exit 0A Initializes the 8042 compatible Key Board Controller 0B Detects the presence of PS/2 mouse. 0C Detects the presence of Keyboard in KBC port. 0E T esting and initialization of different Input Devices. Also, update the Kernel Variables.T raps
the INT09h vector, so that the POST INT09h handler gets control for IRQ1. Uncompress
all available language, BIOS logo, and Silent logo modules.
13 Early POST initialization of chipset registers. 24 Uncompress and initialize any platform specific BIOS modules. GPNV is initialized at this
checkpoint. 30 Initialize System Management Interrupt. 2A
2C nitializes different devices. Detects and initializes the video adapter installed in the system
2E Initializes all the output devices. 31 Allocate memory for ADM module and uncompress it. Give control to ADM module for
33 Initializes the silent boot module. Set the window for displaying text information.
Initializes different devices through DIM. See DIM Code Checkpoints section of document
for more information.
that have optional ROMs.
initialization. Initialize language and font modules for ADM. Activate ADM module.
37 Displaying sign-on message, CPU information, setup key message, and any OEM specific
information.
44 Chapter 4
Checkpoint Description
38 Initializes different devices through DIM. See DIM Code Checkpoints section of document
for more information. USB controllers are initialized at this point. 39 Initializes DMAC-1 & DMAC-2. 3A Initialize RTC date/time. 3B Test for total memory installed in the system. Also, Check for DEL or ESC keys to limit
memory test. Display total memory in the system. 3C Mid POST initialization of chipset registers. 40 Detect different devices (Parallel ports, serial ports, and coprocessor in CPU, ?? etc.)
successfully installed in the system and update the BDA, EBDA??etc. 50 Programming the memory hole or any kind of implementation that needs an adjustment in
system RAM size if needed. 52 Updates CMOS memory size from memory found in memory test. Allocates memory for
Extended BIOS Data Area from base memory. 60 Initializes NUM-LOCK status and programs the KBD typematic rate. 75 Initialize Int-13 and prepare for IPL detection. 78 Initializes IPL devices controlled by BIOS and option ROMs. 7A Initializes remaining option ROMs. 7C Generate and write contents of ESCD in NVRam. 84 Log errors encountered during POST. 85 Display errors to the user and gets the user response for error. 87 Execute BIOS setup if needed / requested. Check boot password if installed. 8C Late POST initialization of chipset registers. 8D Build ACPI tables (if ACPI is supported) 8E Program the peripheral parameters. Enable/Disable NMI as selected 90 Late POST initialization of system management interrupt. A0 Check boot password if installed. A1 Clean-up work needed before booting to OS. A2 Takes care of runtime image preparation for different BIOS modules. Fill the free area in
F000h segment with 0FFh. Initializes the Microsoft IRQ Routing Table. Prepares the
runtime language module. Disables the system configuration display if needed. A4 Initialize runtime language module. Display boot option popup menu. A7 Displays the system configuration screen if enabled. Initialize the CPU??s before boot,
which includes the programming of the MTRR??s. A8 Prepare CPU for OS boot including final MTRR values. A9 Wait for user input at config display if needed. AA Uninstall POST INT1Ch vector and INT09h vector. Deinitializes the ADM module. AB Prepare BBS for Int 19 boot.
Chapter 4 45
Checkpoint Description
AC End of POST initialization of chipset registers. B1 Save system context for ACPI. 00 Passes control to OS Loader (typically INT19h). 61-70 OEM POST Error. This range is reserved for chipset vendors & system manufacturers. The
error associated with this value may be different from one platform to the next.
DIM Code Checkpoints
Checkpoint Description
2A Initialize differe n t bu se s an d perform the following functions: Reset, Detect, and Disable
(function 0); Static Device Initialization (function 1); Boot Output Device Initialization
(function 2). Function 0 disables all device nodes, PCI devices, and PnP ISA cards. It also
assigns PCI bus numbers. Function 1 initializes all static devices that include manual
configured onboard peripherals, memory and I/O decode windows in PCI-PCI bridges, and
noncompliant PCI devices. Static resources are also reserved. Function 2 searches for
and initializes any PnP, PCI, or AGP video devices. 38 Initialize different buses and perform the following functions: Boot Input Device Initialization
(function 3); IPL Device Initialization (function 4); General Device Initialization (function 5).
Function 3 searches for and configures PCI input devices and detects if system has
standard keyboard controller. Function 4 searches for and configures all PnP and PCI boot
devices. Function 5 configures all onboard peripherals that are set to an automati c
configuration and configures all remaining PnP and PCI devices.
ACPI Runtime Checkpoints
Checkpoint Description
AC First ASL check point. Indicates the system is running in ACPI mode. AA System is running in APIC mode 01, 02, 03, 04, 05Entering sleep state S1, S2, S3, S4, or S5.
10, 20, 30, 40, 50Waking from sleep state S1, S2, S3, S4, or S5
46 Chapter 4

POST Error Messages List

If you cannot run the diagnostics program tests but did receive a POST error message, use "POST Error Messages List" to diagnose system problems. If you did not receive any error message, look for a description of your error symptoms in "Error Symptoms List"
NOTE: When you have deemed it necessary to replace an FRU, and have done so, you must run a total
system check to ensure that no other activity has been affected by the change. This system check can be done through the diagnostics program.
NOTE: Check all power supply voltages, switch, and jumper settings before you replace the main board.
Also check the power supply voltages if you have a "system no-power" condition.
If you are unable to correct the problem by using the "BIOS Messages List" table and "Error Symptoms List" table, go to "Undetermined Problems".
To diagnose a problem, first find the BIOS error messages in the left column. If directed to a check procedure, replace the FRU indicated in the check procedure. If no check procedure is indicated, the first Action/FRU listed in right column is the most likely cause.
Memory
Message
Displayed
Gate20 Error The BIOS is unable to properly control the motherboard??s Gate A20 function, which
controls access of memory over 1 MB. This may indicate a problem with the motherboard. Multi-Bit ECC
Error
Parity Error Fatal Memory Parity Error. System halts after displaying this message. RAM R/W test
failed CMOS
Memory Size Wrong
This message will only occur on systems using ECC enabled memory modules. ECC
memory has the ability to correct single-bit errors that may occur from faulty memory
modules
A multiple bit corruption of memory has occurred, and the ECC memory algorithm cannot
correct it. This may indicate a defective memory module.
This message is displayed by the AMIBIOS8 when the RAM read/write test fails.
The base memory (memory below 1MB) size that is reported in the CMOS (offset 15h)
mismatches with the actual size detected. This condition may occur when the hole is set at
512K base memory or when CMOS is corrupted.
Description
Boot
Message
Displayed
Boot Failure ... This is a generic message indicating the BIOS could not boot from a particular device. This
message is usually followed by other information concerning the device.
Description
Invalid Boot Diskette
Drive Not Ready
A: Drive Error The BIOS attempted to configure the A: drive during POST, but was unable to properly
Chapter 4 47
A diskette was found in the drive, but it is not configured as a bootable diskette.
The BIOS was unable to access the drive because it indicated it was not ready for data
transfer. This is often reported by drives when no media is present.
configure the device. This may be due to a bad cable or faulty diskette drive.
Message
Displayed
Description
B: Drive Error The BIOS attempted to configure the B: drive during POST, but was unable to properly
configure the device. This may be due to a bad cable or faulty diskette drive. Insert BOOT
diskette in A: Reboot and
Select proper Boot device or Insert Boot Media in selected Boot device
NO ROM BASIC
Storage Device
Message
Displayed
Primary Master Hard Disk Error
Primary Slave Hard Disk Error
The BIOS attempted to boot from the A: drive, but could not find a proper boot diskette.
BIOS could not find a bootable device in the system and/or removable media drive does
not contain media.
This message occurs on some systems when no bootable device can be detected.
Description
The IDE/ATAPI device configured as Primary Master could not be properly initialized by the
BIOS. This message is typically displayed when the BIOS is trying to detect and configure
IDE/ATAPI devices in POST.
The IDE/ATAPI device configured as Primary Slave could not be properly initialized by the
BIOS. This message is typically displayed when the BIOS is trying to detect and configure
IDE/ATAPI devices in POST. Secondary
Master Hard Disk Error
Secondary Slave Hard Disk Error
3rd Master Hard Disk Error
3rd Slave Hard Disk Error
4th Master Hard Disk Error
4th Slave Hard Disk Error
5th Master Hard Disk Error
The IDE/ATAPI device configured as Secondary Master could not be properly initialized by
the BIOS. This message is typically displayed when the BIOS is trying to detect and
configure IDE/AT API devices in POST.
The IDE/ATAPI device configured as Secondary Slave could not be properly initialized by
the BIOS. This message is typically displayed when the BIOS is trying to detect and
configure IDE/AT API devices in POST.
The IDE/ATAPI device configured as Master in the 3rd IDE controller could not be properly
initialized by the BIOS. This message is typically displayed when the BIOS is trying to
detect and configure IDE/ATAPI devices in POST.
The IDE/ATAPI device configured as Slave in the 3rd IDE controller could not be properly
initialized by the BIOS. This message is typically displayed when the BIOS is trying to
detect and configure IDE/ATAPI devices in POST.
The IDE/ATAPI device configured as Master in the 4th IDE controller could not be properly
initialized by the BIOS. This message is typically displayed when the BIOS is trying to
detect and configure IDE/ATAPI devices in POST.
The IDE/ATAPI device configured as Slave in the 4th IDE controller could not be properly
initialized by the BIOS. This message is typically displayed when the BIOS is trying to
detect and configure IDE/ATAPI devices in POST.
The IDE/ATAPI device configured as Master in the 5th IDE controller could not be properly
initialized by the BIOS. This message is typically displayed when the BIOS is trying to
detect and configure IDE/ATAPI devices in POST.
48 Chapter 4
Message
Displayed
Description
5th Slave Hard Disk Error
6th Master Hard Disk Error
6th Slave Hard Disk Error
Primary Master Drive ­ATAPI Incompatible
Primary Slave Drive - ATAPI Incompatible
Secondary Master Drive ­ATAPI Incompatible
Secondary Slave Drive ­ATAPI Incompatible
The IDE/ATAPI device configured as Slave in the 5th IDE controller could not be properly
initialized by the BIOS. This message is typically displayed when the BIOS is trying to
detect and configure IDE/ATAPI devices in POST.
The IDE/ATAPI device configured as Master in the 6th IDE controller could not be properly
initialized by the BIOS. This message is typically displayed when the BIOS is trying to
detect and configure IDE/ATAPI devices in POST.
The IDE/ATAPI device configured as Slave in the 6th IDE controller could not be properly
initialized by the BIOS. This message is typically displayed when the BIOS is trying to
detect and configure IDE/ATAPI devices in POST.
The IDE/ATAPI device configured as Primary Master failed an ATAPI comp atibility test.
This message is typically displayed when the BIOS is trying to detect and configure IDE/
ATAPI devices in POST.
The IDE/ATAPI device configured as Primary Slave failed an ATAPI compatibility test. This
message is typically displayed when the BIOS is trying to detect and configure IDE/ATAPI
devices in POST.
The IDE/ATAPI device configured as Secondary Master failed an ATAPI compatibility test.
This message is typically displayed when the BIOS is trying to detect and configure IDE/
ATAPI devices in POST.
The IDE/ATAPI device configured as Secondary Slave failed an ATAPI compatibility test.
This message is typically displayed when the BIOS is trying to detect and configure IDE/
ATAPI devices in POST.
3rd Master Drive - ATAPI Incompatible
3rd Slave Drive - ATAPI Incompatible
4th Master Drive - ATAPI Incompatible
4th Slave Drive
- ATAPI Incompatible
5th Master Drive - ATAPI Incompatible
5th Slave Drive
- ATAPI Incompatible
6th Master Drive - ATAPI Incompatible
The IDE/ATAPI device configured as Master in the 3rd IDE controller failed an ATAPI
compatibility test. This message is typically displayed when the BIOS is trying to detect and
configure IDE/AT API devices in POST.
The IDE/ATAPI device configured as Slave in the 3rd IDE controller failed an ATAPI
compatibility test. This message is typically displayed when the BIOS is trying to detect and
configure IDE/AT API devices in POST.
The IDE/ATAPI device configured as Master in the 4th IDE controller failed an ATAPI
compatibility test. This message is typically displayed when the BIOS is trying to detect and
configure IDE/AT API devices in POST.
The IDE/ATAPI device configured as Slave in the 4th IDE controller failed an ATAPI
compatibility test. This message is typically displayed when the BIOS is trying to detect and
configure IDE/AT API devices in POST.
The IDE/ATAPI device configured as Master in the 5th IDE controller failed an ATAPI
compatibility test. This message is typically displayed when the BIOS is trying to detect and
configure IDE/AT API devices in POST.
The IDE/ATAPI device configured as Slave in the 5th IDE controller failed an ATAPI
compatibility test. This message is typically displayed when the BIOS is trying to detect and
configure IDE/AT API devices in POST.
The IDE/ATAPI device configured as Master in the 6th IDE controller failed an ATAPI
compatibility test. This message is typically displayed when the BIOS is trying to detect and
configure IDE/AT API devices in POST.
Chapter 4 49
Message
Displayed
Description
6th Slave Drive
- ATAPI Incompatible
S.M.A.R.T. Capable but Command Failed
S.M.A.R.T. Command Failed
S.M.A.R.T. Status BAD, Backup and Replace
S.M.A.R.T. Capable and Status BAD
Virus Rel ated
The IDE/ATAPI device configured as Slave in the 6th IDE controller failed an ATAPI
compatibility test. This message is typically displayed when the BIOS is trying to detect and
configure IDE/AT API devices in POST.
The BIOS tried to send a S.M.A.R.T. message to a hard disk, but the command transaction
failed.
This message can be reported by an AT API device using the S.M.A.R.T. error reporting
standard. S.M.A.R.T. failure messages may indicate the need to replace the hard disk.
The BIOS tried to send a S.M.A.R.T. message to a hard disk, but the command transaction
failed.
This message can be reported by an AT API device using the S.M.A.R.T. error reporting
standard. S.M.A.R.T. failure messages may indicate the need to replace the hard disk.
A S.M.A.R.T. capable hard disk sends this message when it detects an imminent failure.
This message can be reported by an AT API device using the S.M.A.R.T. error reporting
standard. S.M.A.R.T. failure messages may indicate the need to replace the hard disk.
A S.M.A.R.T. capable hard disk sends this message when it detects an imminent failure.
This message can be reported by an AT API device using the S.M.A.R.T. error reporting
standard. S.M.A.R.T. failure messages may indicate the need to replace the hard disk.
Message
Displayed
BootSector Write
VIRUS: Continue (Y/ N)?
The BIOS has detected software attempting to write to a drive??s boot sector. This is
flagged as possible virus activity. This message will only be displayed if Virus Detection is
enabled in AMIBIOS setup.
If the BIOS detects possible virus activity, it will prompt the user . This message will only be
displayed if Virus Detection is enabled in AMIBIOS setup.
Description
System Configuration
Message
Displayed
DMA-1 Error Error initializing primary DMA controller. This is a fatal error, often indication a problem with
system hardware DMA-2 Error
Error initializing secondary DMA controller. This is a fatal error, often indication a problem
with system hardware. DMA
Controller Error
POST error while trying to initialize the DMA controller. This is a fatal error, of ten indication
a problem with system hardware.
Description
Checking NVRAM..Upda te Failed
50 Chapter 4
BIOS could not write to the NVRAM block. This message appears when the FLASH part is
write-protected or if there is no FLASH part (System uses a PROM or EPROM).
Message
Displayed
Description
Microcode Error
NVRAM Checksum Bad, NVRAM Cleared
Resource Conflict
NVRAM Ignored
NVRAM Bad The NVRAM data used to store Plug??n??Play (PnP) data was not used for system
Static Resource Conflict
PCI I/O conflict A PCI adapter generated an I/O resource conflict when configured by BIOS POST. PCI ROM
conflict PCI IRQ
conflict
BIOS could not find or load the CPU Microcode Update to the CPU. This message only
applies to INTEL CPUs. The message is most likely to appear when a brand new CPU is
installed in a motherboard with an outdated BIOS. In this case, the BIOS must be updated
to include the Microcode Update for the new CPU.
There was an error in while validating the NVRAM data. This causes POST to clear the
NVRAM data.
More than one system device is trying to use the same non-shareable resources (Memory
or I/O).
The NVRAM data used to store Plug??n??Play (PnP) data was not used for system
configuration in POST.
configuration in POST due to a data error.
Two or more Static Devices are trying to use the same resource space (usually Memory or
I/O).
A PCI adapter generated an I/O resource conflict when configured by BIOS POST.
A PCI adapter generated an I/O resource conflict when configured by BIOS POST.
PCI IRQ routing table error
Timer Error Indicates an error while programming the count register of channel 2 of the 8254 timer.
Refresh timer test failed
Interrupt Controller-1 error
Interrupt Controller-2 error
BIOS POST (DIM code) found a PCI device in the system but was unable to figure out how
to route an IRQ to the device. Usually this error is causing by an incomplete description of
the PCI Interrupt Routing of the system.
This may indicate a problem with system hardware.
BIOS POST found that the refresh timer hardware failed to pass the Refresh Retrace Test.
BIOS POST could not initialize the Master Interrupt Controller. This may indicate a problem
with system hardware.
BIOS POST could not initialize the Slave Interrupt Controller. This may indicate a problem
with system hardware.
CMOS
Message
Displayed
CMOS Date/ Time Not Set
CMOS Battery Low
The CMOS Date and/or Time are invalid. This error can be resolved by readjusting the
system time in AMIBIOS Setup.
CMOS Battery is low. This message usually indicates that the CMOS battery needs to be
replaced. It could also appear when the user intentionally discharges the CMOS battery.
Description
Chapter 4 51
Message
Displayed
Description
CMOS Settings Wrong
CMOS Checksum Bad
Miscellaneous
Message
Displayed
KBC BAT Test failed
Keyboard Error
PS2 Keyboard not found
PS2 Mouse not found
Keyboard/ Interface Error
CMOS settings are invalid. This error can be resolved by using AMIBIOS Setup.
CMOS contents failed the Checksum check. Indicates that the CMOS data has been
changed by a program other than the BIOS or that the CMOS is not retaining its data due to
malfunction. This error can typically be resolved by using AMIBIOS Setup.
Description
Keyboard controller BAT test failed. This may indicate a problem with keyboard controller
initialization.
Keyboard is not present or the hardware is not responding when the keyboard controller is
initialized.
PS2 Keyboard support is enabled in the BIOS setup but the device is not detected.
PS2 Mouse support is enabled in the BIOS setup but the device is not detected.
Keyboard Controller failure. This may indicate a problem with system hardware.
Unlock Keyboard
System Halted The system has been halted. A reset or power cycle is required to reboot the machine. This
<INS> Pressed
Password check failed
Unknown BIOS error. Error code = 004Ah
Unknown BIOS error. Error code = 004Bh
Floppy Controller Failure
PS2 keyboard is locked. User needs to unlock the keyboard to continue the BIOS POST.
message appears after a fatal error has been detected.
Indicates that <INS> key is pressed during the BIOS POST. The POST will load and use
default CMOS settings.
The password entered does not match the password set in the setup. This condition may
occur for both Supervisor and User password verification.
This message is displayed when ADM module is not present in the AMIBIOS8 ROM.
This message is displayed when language module is not present in the AMIBIOS8 ROM.
Error in initializing legacy Floppy Controller.
52 Chapter 4
USB eModule Error Messages
Message
Displayed
Warning! Unsupported USB device found and disabled!
Warning! Port 60h/64h emulation is not supported by this USB Host Controller!
Warning! EHCI controller disabled. It requires 64bit data support in the BIOS.
This message is displayed when a non-bootable USB device is enumerated and disabled
by the BIOS.
This message is displayed to indicate that port 60h/64h emulation mode cannot be enabled
for this USB host controller. This condition occurs if USB KBC emulation option is set for
non-SMI mode.
This message is displayed to indicate that EHCI controller is disabled because of incorrect
data structure. This condition occur if the USB host controller needs 64-bit data structure
while the USB is ported with 32-bit data structure.
SMBIOS eModule Error Messages
Message Displayed Description
Description
Not enough space in Runtime area!!. SMBIOS data will not be available.
This message is displayed when the size of the SMBIOS data exceeds the available SMBIOS runtime storage size
CPU eModule Error Messages
Message Displayed Description
Warning! This system board does not support the power requirements of the installed processor. The processor will be run at a reduced frequency, which will impact system performance. area!!. SMBIOS data will not be available.
This message is displayed when the power requirements of the board do not match the power requirement of the CPU.
MPS Table (Multi-processor) eModule Error Messages
Message Displayed Description
Insufficient Runtime space for MPS data! System may operate in PIC or Non-MPS mode.
This message is displayed when there is not enough space in the 0F000h runtime area for creating MPS table.
Chapter 4 53

Error Symptoms List

NOTE: T o diagnose a problem, first find the error symptom in the left column. If directed to a check procedure,
replace the FRU indicated in the check procedure. If no check procedure is indicated, the first Action/ FRU listed in right column is the most likely cause.
Error Symptom Action/FRU
Processor / Processor Fan
NOTE: Normally, the processor fan should be operative, and the processor clock setting should be
exactly set to match its speed requirement before diagnosing any processor problems.
Processor fan does not run but power supply fan runs.
Processor test failed. 1.Processor.
Main board and Memory
NOTE: Ensure the memory modules are installed properly and the contact leads are clean before
diagnosing any system problems.
Memory test failed. 1.See "Memory"
Incorrect memory size shown or repeated during POST.
System works but fails to enter power saving mode when the Power Management Mode is set to Enabled.
1. Ensure the system is not in power saving mode.See “Power Management”in chapter2.
2.With the system power on, measure the voltage of processor fan connector. Its reading should be +12Vdc. Its reading should be +12Vdc. If the reading shows normal, but the fan still does not work, then replace a good fan.3. Main board.
2.Main board.
2.Main board
1.Insert the memory modules in the DIMM sockets properly, then reboot the system.
2.Memory module.
3.Main board.
1.Enter BIOS Setup and load default settings.In Windows Systems, check settings in Power Management Property of Control Panel.
2.Reload software from Recovery CD.
Blinking cursor only; system does not work. 1.Diskette/IDE drive connection/cables
2. Diskette/IDE disk drives
3.See “Undetermined Problems”.
4.Main board
Diskette Drive
NOTE: Ensure the diskette drive is auto-setting in BIOS Setup and its read/write head is clean before
diagnosing any diskette drive problems.(If only one drive is installed, please make sure the drive is connected to master connector or the drive is set to master.)
Media and drive are mismatched. 1.Ensure the diskette drive is configured correctly in
the Disk Drives of BIOS Setup.
2.Ensure the diskette drive is correctly formatted.
3.Diskette drive connection/cable
4.Diskette drive
5.Main board
54 Chapter 4
Error Symptom Action/FRU
Diskette drive does not work. 1.Ensure the diskette drive is not set to None in the
Disk Drives of BIOS Setup.
2.Diskette drive power
3.Diskette drive connection/cable
4.Diskette drive
5.Main board
Diskette drive read/write error. 1.Diskette.
2.Diskette drive cable.
3.Diskette drive.
4.Main board
Diskette drive LED comes on for more than 2 minutes when reading data.
Diskette drive LED fails to light, and the drive is unable to access for more than 2 minutes.
Diskette drive test failed. 1.Diskette
Hard Disk Drive
NOTE: Ensure hard disk drive is configured correctly in BIOS Setup, cable/jumper are set correctly
before diagnosing any hard disk drive problems. (If only one drive is installed, please make sure the drive is connected to master connector or the drive is set to master.)
Hard disk drive test failed. 1.Enter BIOS Setup and Load default settings.
1.Diskette
2.Diskette drive connection/cable
3.Diskette drive
4.Main board
1.Diskette
2.Diskette drive power
3.Diskette drive connection/cable
4.Diskette drive
5.Main board
2.Diskette drive
3.Diskette drive cable
4.Main board
2.Hard disk drive cable.
3.Hard disk drive.
4. Main board.
Hard disk drive cannot format completely. 1.Enter BIOS Setup and Load default settings.
2.Hard disk drive cable.
3.Hard disk drive.
4.Main board
Hard disk drive has write error. 1.Enter BIOS Setup and Load default settings.
2.Hard disk drive.
Hard disk drive LED fails to light, but system operates normally.
CD/DVD-ROM Drive
NOTE: Ensure CD/DVD-ROM drive is configured correctly in BIOS Setup, cable/jumper are set correctly
and its laser beam is clean before diagnosing any CD/DVD-ROM drive problems.
Chapter 4 55
1.With the system power on, measure the voltage of hard disk LED connector.
2.Hard drive LED cable.
Error Symptom Action/FRU
CD/DVD-ROM drive LED doesn't come on but works normally.
CD/DVD-ROM drive LED flashes for more than 30 seconds before LED shutting off.
Software asks to reinstall disc.Software displays a reading CD/DVD error.
CD/DVD-ROM drive cannot load or eject when the system is turned on and its eject button is pressed and held.
CD/DVD-ROM drive does not read and there are no messages are displayed.
CD/DVD-ROM drive can play audio CD but no sound output.
Real-time clock
1.CD/DVD-ROM drive
1.CD/DVD-ROM may have dirt or foreign material on it. Check with a known good disc.
2. CD/DVD-ROM is not inserted properly.
3.CD/DVD-ROM is damaged.
1.Disconnect all cables from CD/DVD-ROM drive except power cable, then press eject button to try to unload the disk.
2.CD/DVD-ROM drive power.
3.CD/DVD-ROM drive
1.CD may have dirt or foreign material on it. Check with a known good disc.
2.Ensure the CD/DVD-ROM driver is installed properly.
3.CD/DVD-ROM drive.
1.Ensure the headphone jack of the CD/DVD-ROM has an output.
2.Turn up the sound volume.
3.Speaker power/connection/cable.
4.CD/DVD-ROM drive.
Real-time clock is inaccurate. 1.Ensure the information in the Standard CMOS
Feature of BIOS Setup is set correctly.
2.RTC battery.
3.Main board.
Audio
Audio software program invokes but no sound comes from speakers.
Modem ring cannot wake up system from suspend mode.
Data/fax modem software program invokes but cannot receive/send data/fax
Fax/voice modem software program invokes but has no sound output. (Data files are received normally; voice from modem cannot be produced, but system sound feature works normally.)
1.Speaker power/connection/cable.
Modem
1.For the External Modem, make sure Power on By Ring in BIOS Setup or Power Management is set to Enabled. For the PCI modem, make sure Wake up by PCI card is set to Enabled.
2.If PCI modem card is used, reinsert the modem card to PCI slot firmly or replace the modem card.
3.In Win 98, ensure the telephone application is configured correctly for your modem and set to receive messages and/or fax.
1.Ensure the modem card is installed properly.
1.Ensure the modem voice-in cable from modem adapter card to main board
Video and Monitor
56 Chapter 4
Error Symptom Action/FRU
Video memory test failed.Video adapter failed. 1.Remove all non-factory-installed cards.
2.Load default settings (if screen is readable).
3.Main board
Display problem:
-Incorrect colors No high intensity Missing, broken, or incorrect characters Blank monitor (dark) Blank monitor (bright) Distorted image Unreadable monitor
Other monitor problems Display changing colors. 1.Monitor signal connection/cabl e
Display problem not listed above (including blank or illegible monitor).
Parallel/Serial Ports
Execute “Load BIOS Default Settings” in BIOS Setup to confirm ports presence before diagnosing any parallel/serial ports problems.
Serial or parallel port loop-back test failed. 1.Make sure that the LPT# or COM# you test is the
1.Monitor signal connection/cable.
2.Monitor
3.Video adapter card
4.Main board
2.Monitor
3.Main board
1.”Monitor"
2.Load default settings (if screen is readable).
3.Main board
same as the setting in BIOS Setup.
2.Loop-back.
3.Main board
Printing failed. 1.Ensure the printer driver is properly installed.
Refer to the printer service manual.
2.Printer.
3.Printer cable.
4.Main board.
Printer problems. 1.Refer to the service manual for the printer.
Keyboard
Some or all keys on keyboard do not work. 1.Keyboard
Power Supply
Pressing power switch does not turn off system. (Only unplugging the power cord from electrical outlet can turn off the system.)
Pressing power switch does not turn on the system. 1.Ensure the power override switch (situated at the
Chapter 4 57
1.Ensure the Soft-off by PWR-BTTN. in BIOS Setup of Power Management is not set to Instant-off.
2.Power switch cable assembly
back of the machine, just above the connector for the power cable) is not set to OFF.
2.Power switch cable assembly.
Error Symptom Action/FRU
Executing software shutdown from Windows98 Start menu does not turn off the system. (Only pressing power switch can turn off the system).
No system power, or power supply fan is not running.
Other Problems
Any other problems. 1.Undetermined Problems
1.Load default settings.
2.Reload software from Recovery CD.
1.Power Supply
2.Main board
58 Chapter 4

Undetermined Problems

If an error message is present, go to "POST Error Messages List" on page 85. If you did not receive any messages, if the symptom is listed in "or "Error Symptoms List" on page 87. If you still cannot solve the problem, continue with this check:
1. Check the power supply voltage. If the voltage are correct continue with the following steps:
2. Power off the system unit.
3. Perform the following checks, one by one, until you have isolated the problem FRU.
4. Load default settings in setup.
5. Check all main board jumper positions and switch settings.
6. Check all adapter card jumper positions.
7. Check all device jumper positions.
8. Check all cables and connectors for proper installation.
9. If the jumpers, switches and voltage settings are correct, remove or disconnect the following, on e at a
time:
10. Non-Acer devices
External devices
Any adapter card (modem card, LAN card or video card, if installed)
CD/DVD-ROM drive
Diskette drive
Hard disk drive
DIMM
Processor
Main board
11. Power on the system unit.
12. Repeat steps 2 through 5 until you find the failing device or adapter.
Chapter 4 59

Jumper and Connector Information

M/B Placement

Chapter 5
Chapter 5 60
No Label Description No Label Description
1 CPU Socket CONN,Socket,IntelPrescot
tCPU,LGA­775P,10u,G,SMD
2 CPU_FAN CPU fan power header 12 SPDIF_OUT1~2SPDIF out header
3 DIMM1~4 CONN,DIMM,DDRIII,1.5V,
V/T,Blu,15u,G,DIP-240
4 GPIO1~2 General Purpose Input/
Output headers
5ATX_POWER1M/B main power connector 15 SPI_ROM SPI_ROM header
6 ME_DISABLE Front panel USB header 16 PCIEx1-1 PCIEx 1 socket 7 SATA1~6 SATA data transfe
connectors
8 F_PANEL Front panel audio header 18 ATX12V1 4-pin +12V power
9 F_USB1~4 Front panel USB headers 19 SYS_FA N System cooling fan
10 CLR_CMOS Clear CMOS jumper
11 1394A1 Onboard 1394a header
13 F_AUDIO Front panel audio header
14 PCI1~2 32-bit add-on card slots
17 PCIE1 PCIEx 16 soc ket
connector
connector
61 Chapter 5

Jumper Setting

The section explains how to set jumper for correct configuration of the mainboard.

Setting Jumper

Use the motherboard jumpers to set system configuration options. Jumpers with more Than one pin are numbered. When setting the jumpers, ensure that the jumper caps are Placed on the correct pins.
Internal header pin definition
Jumper/Header Name Function Definition
CLEAR CMOS HEADER 1-2: NORMAL (Default)
2-3: CLEAR CMOS
ME_DISABLE HEADER 1-2:NORMAL
2-3:MEDISABLE(Default)
GPIO HEADER (RESERVE)
GPIO HEADER (RESERVE)
CPU FAN HEADER 1: GND
1:G941 2: GND
1:GP46 2: GND
2: +12V 3: SENSE 4: PWM CONTROL
Chapter 5 62
Jumper/Header Name Function Definition
F_USB1
1
VCC USB0-3USB1­USB0+5USB1+
7
GND
9
KEY
H5X2-P9E-Y
VCC
GND
OC0
SYS FAN HEADER (3pin & 4 pin colay
default:3 pin)
1: GND 2: +12V 3: SENSE 4: PWM CONTROL(4 pin
Fan)
FRONT PANEL HEADER 1: SATALED+
2: ACPI_LED 3: SATALED- 4: PWR_LED 5: GND 6: PWR_SW 7: RESET 8: GND 9: NC 10: Key 11: NC 12: VCC 13: NC 14: -ACTIVE_C
FRONT USB HEADER 1: USBVCC_1
2: USBVCC_1
2 4 6 8 10
3: USB0_XN 4: USB1_XN 5: USB0_XP 6: USB1_XP 7:GND 8: GND 9: KEY 10: GND
1: USBVCC_2
F_USB2
1
VCC USB0-3USB1­USB0+5USB1+
7
GND
9
KEY
H5X2-P9E-Y
VCC
GND
OC0
2 4 6 8 10
FRONT USB HEADER
2: USBVCC_2 3: USB2_XN 4: USB4_XN 5: USB2_XP 6: USB4_XP 7:GND 8: GND 9: KEY 10: GND
63 Chapter 5
Jumper/Header Name Function Definition
1: USBVCC_3
F_USB3
1
VCC USB0-3USB1­USB0+5USB1+
7
GND
9
KEY
H5X2-P9E-Y-O
VCC
GND
OC0
2 4 6 8 10
FRONT USB HEADER
2: USBVCC_3 3: USB5_XN 4: USB7_XN 5: USB5_XP 6: USB7_XP 7:GND 8: GND 9: KEY 10: GND
FRONT USB HEADER 1: USBVCC_4
2: USBVCC_4 3: USB3_XN 4: USB6_XN 5: USB3_XP 6: USB6_XP 7:GND 8: GND 9: KEY 10: GND
FRONT AUDIO HEADER 1: PORT-F_L
2: AUGND 3: PORT-F_R 4: FRONT_AUD_DET 5: PORT-E_R 6: MIC2_JD 7: AUGND 8: KEY 9: PORT-E_L 10: LINE2_JD
SPDIF HEADER 1: VCC
2: KEY 3: SPO1 4: GND
SPDIF HEADER 1: VCC
2: KEY 3: SPO2 4: GND
Chapter 5 64

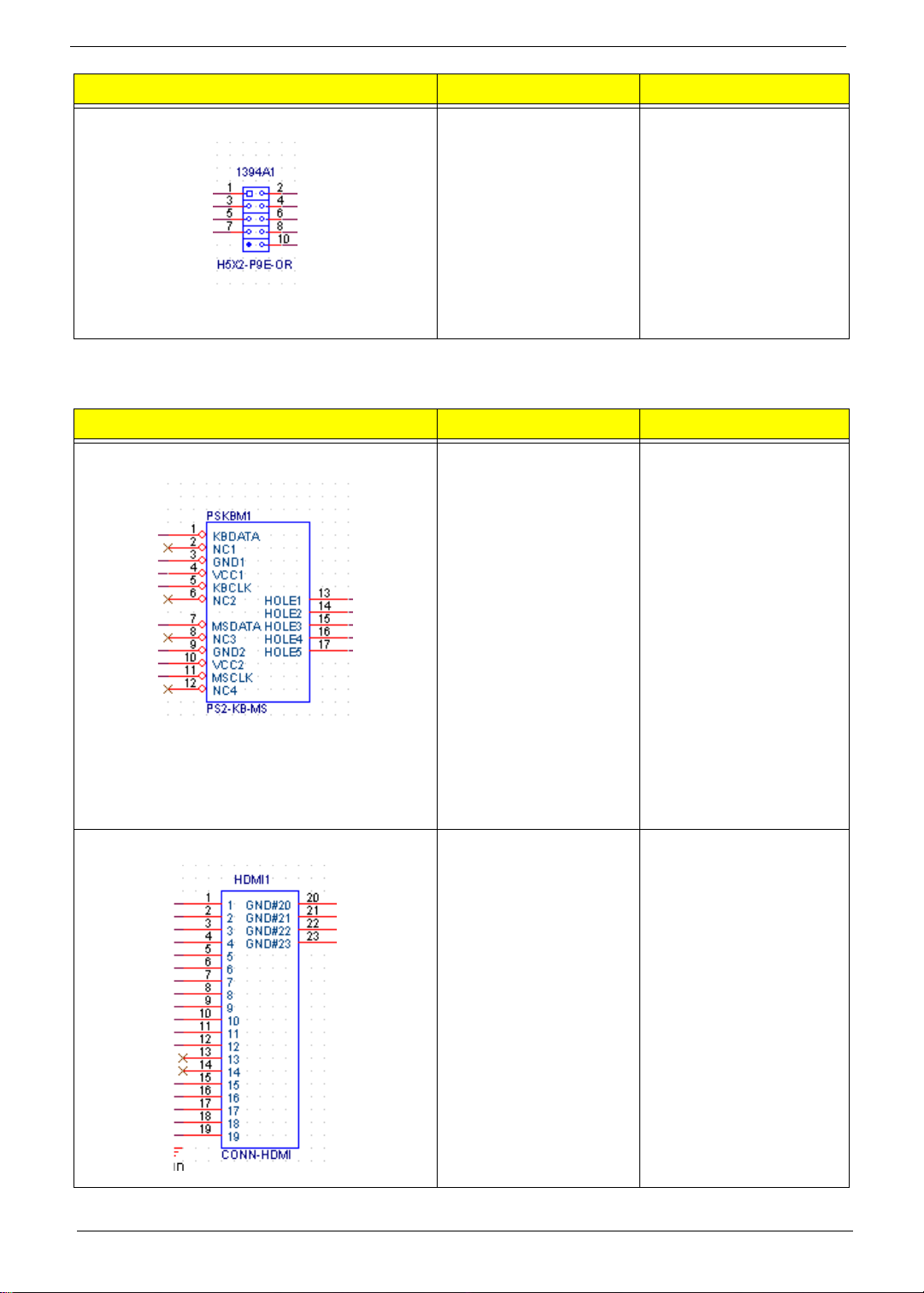

Jumper/Header Name Function Definition
Connector pin definition
Connector Name Function Definition
FRONT 1394 HEADER 1: T_PA0+
2: T_PA0­3: GND 4: GND 5: T_PB0+ 6: T_PB0­7: CPWR1 8: CPWR1 9: KEY 10: GND
PSKBMS CONN 1: KBDATA
2: NC 3: GND 4: KBVCCSB 5: KBCLK 6: NC 7: MSDATA 8: NC 9: GND 10: KBVCCSB 11: MSCLK 12: NC 13: GND 14: GND 15: GND 16: GND 17: GND
HDMI CONN 1: HDMI_TX2_P
3: HDMI_TX2_N 4: HDMI_TX1_P 6: HDMI_TX1_N 7: HDMI_TX0_P 9: HDMI_TX0_N 10: HDMI_TXC_P 12: HDMI_TXC_N 13,14: NC 15: SLHD_CLK 16: SLHD_DATA 18: HDMIVCC 19: HD_HPD 2,5,8,11,17,20,21,22,23:
GND
65 Chapter 5
Connector Name Function Definition
VGA CONN 1: RED
2: GREEN 3: BLUE 4,11: NC 9: HDMIVCC 12: VDAC_SDAT 13: HSYNC 14: VSYNC 15: VDAC_SCLK 5,6,7,8,10,16,17: GND
USB+1394 CONN 1: USBVCC_5
2: USB9_XN 3: USB9_XP 4: AUGND2 5: USBVCC_5 6: USB8_XN 7: USB8_XP 8: AUGND2 9: CPWR2 10: AUGND2 11: T_P B1- 12: T_PB1+ 13: T_PA1- 14: T_PA1+ 15: USBVDD1 G1,G2,G3,G4,G5,G6,G7,
G8: AUGND2
Chapter 5 66
Connector Name Function Definition
USB+LAN CONN 1:USBVCC_6 12:MDI1_P
2:USB10_XN 13:MDI1_N 3:USB10_XP 14:MDI2_P 4:AUGND2 15:MDI2_N 5:USBVCC_6 16:MDI3_P 6:USB1 1_XN 17:MDI3_N 7:USB1 1_XP 18:DGND 8:AUGND2 9:LAN_1P8V 10: MDI0_P 11: MD I0_N 19:LAN_LED2 20:LAN_LED1 21: LAN_LED0 22: CL_3P3V G1,G2,G3,G4,G5,G6,G7,
G8: AUGND2
SATA CONN 1: GND
2: SATA0_TX_P 3: SATA0_TX_N 4: GND 5: SATA0_RX_N 6: SATA0_RX_P 7: GND
SATA CONN 1: GND
2: SATA1_TX_P 3: SATA1_TX_N 4: GND 5: SATA1_RX_N 6: SATA1_RX_P 7: GND
67 Chapter 5
Connector Name Function Definition
SATA CONN 1: GND
2: SATA2_TX_P 3: SATA2_TX_N 4: GND 5: SATA2_RX_N 6: SATA2_RX_P 7: GND
SATA CONN 1: GND
2: SATA3_TX_P 3: SATA3_TX_N 4: GND 5: SATA3_RX_N 6: SATA3_RX_P 7: GND
SATA CONN 1: GND
2: SATA4_TX_P 3: SATA4_TX_N 4: GND 5: SATA4_RX_N 6: SATA4_RX_P 7: GND
SATA CONN 1: GND
2: SATA5_TX_P 3: SATA5_TX_N 4: GND 5: SATA5_RX_N 6: SATA5_RX_P 7: GND
Chapter 5 68
Connector Name Function Definition
ATX_POWER CONN 1:VCC3 13:VCC3
2:VCC3 14:-12V 3: GND 15:GND 4:VCC 16:ATX_PSON_L 5:GND 17:GND 6:VCC 18:GND 7:GND 19:GND 8:AT X_PWRGD 20:NC 9:5VSB 21VCC 10:+12V 22:VCC 11:+12V 23:VCC 12:VCC3 24:GND
AT X12V CONN 1: GND
2: GND 3: +12V_4P 4: +12V_4P
69 Chapter 5
Chapter 6

FRU (Field Replaceable Unit) List

This chapter offers the FRU (Field Replaceable Unit) list in global configuration of the Aspire M5802 desktop computer. Refer to this chapter whenever ordering the parts to repair or for RMA (Return Merchandise Authorization).
NOTES:
When ordering FRU parts, check the most up-to-date information available on your regional web
or channel. For whatever reasons a part number is changed, it will NOT be noted on the printed Service Guide. For Acer authorized service providers, your Acer office may have a different part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for service.
To scrap or to return the defective parts, follow the local government ordinance or regulations on
how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.
This document will be updated as more information about the FRU list becomes available.
chapter 6 70

Aspire M5802 Exploded Diagram

NOTE: This section will be updated when more information becomes available.
71 Chapter 6
ITEM NAME TYPE Q’TY ITEM NAME TYPE Q’TY
1 PANEL_TOP-X2 PART 1 21 DOOR_ODD_ARM_LO-
2 COVER_TOP-X1 PART 1 22 DOOR_ODD_UP_M5-X2 PART 1 3 MYLAR-COVER-TOP 23 BTN_ODD_LO-X1 PART 2 4 MYLAR-DOOR-TOP 24 BTN_ODD_DCR_UP-X1 PART 2 5 DOOR_TOP-X1 PART 1 25 SPRING_ODD_BTN-2 PART 4 6 LED_3 PART 1 26 LOGO_ASPIRE_M5-X1 PART 1 7 BTN_PWR_DCR-X1 ELECT
RONIC 8 BTN_PWR_V2-X1 PART 1 28 PANEL_FRT_LO-X2 PART 1 9 MCR_HOLDER-X4 PART 1 29 DOOR_ODD_LOWER_M
10 BKT_PWR-BTN-X1 PART 1 30 SPRING-ODD-DOOR PART 2 11 MCR-KYE-M5-D224 PART 1 31 ACER-M330-MAIN-
12 CONTACT_SWITCH PART 1 32 HDD-BKT PART 1 13 IO-PANEL_TOP-X2 PART 1 33 MB-SUPPORT PART 1 14 TOP-BRKT_USB PART 1 34 SIDE_DOOR PART 1
1 27 LOGO-AM530 PART 1
X1
5-X2
CHASSIS
PART 1
PART 1
PART 1
15 FIO-AM520 PART 1 35 ODD_CAGE PART 1 16 ACER-M330-MAIN-
CHASSIA 17 LED-A1 PART 2 37 CHASSIS_SUPPORT PART 2 18 HDD_LENS-X1 PART 1 38 PCI-DOOR PART 1 19 PANEL_MAIN_M5-X1 PART 1 39 REAR_CHASSIS PART 1 20 DOOR_ODD_ARM_UP-
X1
PART 1 36 SUB_CHASSIS PART 1
PART 1
Chapter 6 72

Aspire M5802 FRU List

Category Description Part Number
MAINBOARD
CARD READER
CPU COOLER
SYSTEM FAN
POWER SUPPLY
MB Kit HimalayanII_D2 Intel G43 ICH10R GMA X4500 384M Intel 82567V Giga LAN ATX W/ 1394 V1.0 LF w/ EuP Lot6
NS 16-in-1 CR M5 w/USB2.0, Realtek RTS-5181,w/micro SD, M2 CR.10400.075 KYE 16-in-1 CR M5 w/USB2.0, Realtek RTS-5181,w/micro SD, M2 CR.10400.073
FAN COOLER P4_SKT775 PKP367 W/I SUNON 4000RPM HI.3670C.001
Fan Cooler LGA775 TMD06 Fan 9225 HI.10800.006
MB.SCQ07.002
CPU
FR 500W EUP 82+ (ES5.0) PY.50008.004
Core 2 Quad Q9650 (3.0G 12M 1333FSB), 95W , E0 KC.96501.QQE Core 2 Quad Q9550 (2.83G 12M 1333FSB), 95W , E0 KC.95501.QQE Core 2 Quad Q9400 (2.66G 6M 1333FSB) , 95W , R0 KC.94001.QQ0 Core 2 Duo E8600 (3.33G 6M 1333FSB) , 65W , E0 KC.86001.DEE Core 2 Quad Q8400 (2.66G 4M 1333FSB) ,95W , R0 KC.84001.QQ0 Core 2 Quad Q8300 (2.5G 4M 1333FSB) 95W , R0 KC.83001.QQV Core 2 Quad Q8200 (2.33G 4M 1333FSB) 95W , M1 KC.82001.QQR Core 2 Duo E8500 (3.16G 6M 1333FSB) , 65W , E0 KC.85001.DEE Core 2 Duo E8400 (3.0G 6M 1333FSB) , 65W , E0 KC.84001.DEE Core 2 Duo E7600 (2.66G 3M 1066FSB) , 65W , R0 KC.76001.DE0 Core 2 Duo E7500 (2.66G 3M 1066FSB) , 65W , R0 KC.75001.DEV Core 2 Duo E7400 (2.66G 3M 1066FSB) , 65W , R0 KC.74001.DEV
73 Chapter 6
Category Description Part Number
Core 2 Duo E7300 (2.66G 3M 1066FSB) , 65W , M0 KC.73001.DE0 Pentium Dual Core E6300 (2.8G 2M 1066FSB) , 65W , R-0 KC.63001.DEM Pentium Dual Core E5400 (2.7G 2M 800FSB) , 65W , R-0 KC.54001.DEV Pentium Dual Core E5300 (2.6G 2M 800FSB) , 65W , R-0 KC.53001.DEV Pentium Dual Core E5200 (2.5G 2M 800FSB) , 65W , R-0 KC.52001.DER
MEMORY
HDD
Memory UNIFOSA UNB-DIMM DDRII 800 1GB GU341G0ALEPR6B2C6F1 LF 128*8 0.065um
Memory NANYA UNB-DIMM DDRII 800 1GB NT1GT64U88D0BY-AD LF 128*8 0.07um
Memory SAMSUNG UNB-DIMM DDRII 800 1GB M3782863QZS-CF7 LF 128*8 0.065um
Memory SAMSUNG UNB-DIMM DDRII 800 1GB M378T2863EHS-CF7 LF 128*8 0.055um
Memory HYNIX UNB-DIMM DDRII 800 1GB HYMP112U64CP8-S6 LF 128*8
0.065um Memory UNIFOSA UNB-DIMM DDRII 800 2GB GU342G0ALEPR692C6F1
LF 128*8 0.065um Memory NANYA UNB-DIMM DDRII 800 2GB NT2GT64U8HD0BY-AD LF
128*8 0.07um Memory HYNIX UNB-DIMM DDRII 800 2GB HYMP125U64CP8-S6 LF 128*8
0.065um Memory SAMSUNG UNB-DIMM DDRII 800 2GB M378T5663QZ3-CF7 LF
128*8 0.065um Memory SAMSUNG UNB-DIMM DDRII 800 2GB M378T5663EH3-CF7 LF
128*8 0.055um
KN.1GB0H.013
KN.1GB03.024
KN.1GB0B.021
KN.1GB0B.034
KN.1GB0G.015
KN.2GB0H.007
KN.2GB03.009
KN.2GB0G.008
KN.2GB0B.006
KN.2GB0B.022
160GB KH.16007.023 320GB KH.32007.006 640GB KH.64007.001 1TB KH.01K07.002 160GB KH.16001.041 320GB KH.32001.015 750GB KH.75001.008 1TB KH.01K01.007
1.5TB KH.15K01.002 640GB KH.64008.003 750GB KH.75008.005 1TB KH.01K08.005 2TB KH.02K08.001
Chapter 6 74
Category Description Part Number
ODD
DH-16D5S Win7 KV.0160F.002 DH-20N(H/F) Win7 KV.0160D.016 GH-41F(H/F) Win7 non-Labelflash KU.0160D.049 DH-16AASH (H/F) Win7 non-Labelflash KU.0160F.009 DH-4O3S Win7 KV.0040F.002 CH-10F Win7 non-Labelflash KO.0060D.004 DH-6E2S Win7 non-Labelflash KO.0060F.002 BH-30F (H/F) Win7 non-Labelflash KU.0060D.004
VGA CARD
TV TUNER
GEFORCE GTS250 1GB GDDR3 QIMUNDA (256BITS) DUAL DVI ATX BRACKET
GEFORCE GTS240 2GB GDDR3 SAMSUNG (256BITS) VGA DVI HDMI ATX BRACKET
GEFORCE GT230 1.5GB GDDR3 (192BITS) SAMSUNG VGA DVI HDMI ATX BRACKET
GEFORCE GT220 1GB DDR2 (128BITS) SAMSUNG DVI HDMI VGA ATX BRACKET
HD4870 1GB DDR 5 (256BITS) HYNIX 6 LAYER DUAL DVI NEW COOLER NEW PCB W/ATX BKT ROHS
HD4850 1GB DDR 3 (256bits) SAMSUNG 6 LAYER DUAL DVI W/ATX BKT ROHS
HD4650 1GB DDR 2 (128BITS) SAMSUNG DVI HDMI VGA W/ATX BKT ROHS
HD4350 512MB DDR 2 (64BITS) SAMSUNG DVI HDMI VGA W/ATX BKT ROHS
PE988-A TV Tuner Card PCIe Hybrid ATSC with S/W Encoder TU.10500.038 PE988-D TV Tuner Card PCIe Hybrid DVB-T with S/W Encoder TU.10500.040 Avermedia H751-A TV Tuner Card PCIe Hybrid ATSC, S/W Encoder TU.10500.045
VG.PCGT2.501
VG.PCGT2.401
VG.PCGT2.301
VG.PCGT2.201
VG.APC48.712
VG.APC48.511
VG.APC46.502
VG.APC43.501
Avermedia H751-D TV Tuner Card PCIe Hybrid ATSC, S/W Encoder TU.10500.048
MODEM
D-1156I#/A7A, Modem PCI card, LSI Universal Modem (PCI) 56K V.92 ­Pinball (P40)
WLAN CARD
WP61R2, WLAN PCI Card 802.11 b/g, Realtek RTL8185L NI.10200.005 WP81R1, WLAN PCI Card 802.11b/g/n 1T x 2R, Realtek RTL8190 NI.10200.021 WN5301A, WLAN PCI Card 802.11 b/g, Atheros AR2415 NI.10200.027
FX.10100.004
75 Chapter 6
Category Description Part Number
SPEAKER
Neosonica Speaker USB with new color AC-MT-018 SP.10600.027
MOUSE
Lite-on Optical mouse USB SM-9625 with new color AC-MT-018 MS.11200.048 Chicony RF2.4 MG-0766 with new silver color MS.11200.054
KEYBOARD
Keyboard LITE-ON SK-9625 USB Standard 104KS Black US with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Simplified Chinese with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Traditional Chinese with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 104KS Black US International with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Arabic/English with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Thailand with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Spanish with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Portuguese with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Canadian French with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 107KS Black Brazilian Portuguese with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 109KS Black Japanese with new color AC-MT-018
KB.USB0B.082
KB.USB0B.083
KB.USB0B.084
KB.USB0B.085
KB.USB0B.086
KB.USB0B.087
KB.USB0B.088
KB.USB0B.089
KB.USB0B.090
KB.USB0B.091
KB.USB0B.092
Keyboard LITE-ON SK-9625 USB Standard 105KS Black German with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Italian with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black French with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Swedish with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black UK with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Dutch with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Swiss/G with new color AC-MT-018
KB.USB0B.093
KB.USB0B.094
KB.USB0B.095
KB.USB0B.096
KB.USB0B.097
KB.USB0B.098
KB.USB0B.099
Chapter 6 76
Category Description Part Number
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Belgium with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Icelandic with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Norwegian with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Hebrew with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Polish with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Slovenian with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Slovak with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Russian with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Hungarian with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Greek with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Danish with new color AC-MT-018
KB.USB0B.100
KB.USB0B.101
KB.USB0B.102
KB.USB0B.103
KB.USB0B.104
KB.USB0B.105
KB.USB0B.106
KB.USB0B.107
KB.USB0B.108
KB.USB0B.109
KB.USB0B.110
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Czech with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Romanian with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Turkish with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Spanish Latin with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Turkish-Q with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Arabic/French with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Kazakh with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 104KS Black Turkmen with new color AC-MT-018
Keyboard LITE-ON SK-9625 USB Standard 105KS Black Nordic with new color AC-MT-018
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black US with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Traditional Chinese with new silver color
KB.USB0B.111
KB.USB0B.112
KB.USB0B.113
KB.USB0B.114
KB.USB0B.115
KB.USB0B.116
KB.USB0B.117
KB.USB0B.118
KB.USB0B.119
KB.RF403.135
KB.RF403.136
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Simplified Chinese with new silver color
KB.RF403.137
77 Chapter 6
Category Description Part Number
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black US International with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Arabic/English with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Thailand with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Spanish with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Portuguese with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Canadian French with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 107KS Black Brazilian Portuguese with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 109KS Black Japanese with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black German with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Italian with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black French with new silver color
KB.RF403.138
KB.RF403.139
KB.RF403.140
KB.RF403.141
KB.RF403.142
KB.RF403.143
KB.RF403.144
KB.RF403.145
KB.RF403.146
KB.RF403.147
KB.RF403.148
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Swedish with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black UK with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Dutch with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Swiss/G with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Belgium with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Icelandic with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Norwegian with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Hebrew with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Polish with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Slovenian with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Slovak with new silver color
KB.RF403.149
KB.RF403.150
KB.RF403.151
KB.RF403.152
KB.RF403.153
KB.RF403.154
KB.RF403.155
KB.RF403.156
KB.RF403.157
KB.RF403.158
KB.RF403.159
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Russian with new silver color
KB.RF403.160
Chapter 6 78
Category Description Part Number
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Hungarian with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Greek with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Danish with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Czech with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Romanian with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Turkish with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Spanish Latin with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Turkish-Q with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Arabic/French with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Kazakh with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Turkmen with new silver color
KB.RF403.161
KB.RF403.162
KB.RF403.163
KB.RF403.164
KB.RF403.165
KB.RF403.166
KB.RF403.167
KB.RF403.168
KB.RF403.169
KB.RF403.170
KB.RF403.171
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Nordic with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black US with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Traditional Chinese with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Simplified Chinese with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black US International with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Arabic/English with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Thailand with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Spanish with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Portuguese with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Canadian French with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 107KS Black Brazilian Portuguese with new silver color
KB.RF403.172
KB.RF403.135
KB.RF403.136
KB.RF403.137
KB.RF403.138
KB.RF403.139
KB.RF403.140
KB.RF403.141
KB.RF403.142
KB.RF403.143
KB.RF403.144
Keyboard CHICONY KG-0766 RF2.4 Standard 109KS Black Japanese with new silver color
KB.RF403.145
79 Chapter 6
Category Description Part Number
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black German with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Italian with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black French with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Swedish with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black UK with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Dutch with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Swiss/G with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Belgium with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Icelandic with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Norwegian with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Hebrew with new silver color
KB.RF403.146
KB.RF403.147
KB.RF403.148
KB.RF403.149
KB.RF403.150
KB.RF403.151
KB.RF403.152
KB.RF403.153
KB.RF403.154
KB.RF403.155
KB.RF403.156
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Polish with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Slovenian with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Slovak with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Russian with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Hungarian with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Greek with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Danish with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Czech with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Romanian with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Turkish with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Spanish Latin with new silver color
KB.RF403.157
KB.RF403.158
KB.RF403.159
KB.RF403.160
KB.RF403.161
KB.RF403.162
KB.RF403.163
KB.RF403.164
KB.RF403.165
KB.RF403.166
KB.RF403.167
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Turkish-Q with new silver color
KB.RF403.168
Chapter 6 80
Category Description Part Number
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Arabic/French with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Kazakh with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 104KS Black Turkmen with new silver color
Keyboard CHICONY KG-0766 RF2.4 Standard 105KS Black Nordic with new silver color
KB.RF403.169
KB.RF403.170
KB.RF403.171
KB.RF403.172
81 Chapter 6

Intel RAID SOP

INTEL® MATRIX STORAGE TECHNOLOGY CHECK(DOS)

1.Intel(R) Matrix Storage Manager option ROM

1-1: Create SATA RAID 0
Step 1:Shut down the EUT, unplug the power cable,connect two SATA HDDS to EUT , check the EUT all devices are connect/plug ok.
Step 2:Press "PWR-BTTN" to power on the EUT,Load BIOS default setting . Step 3:At "Integrated_Peripherals" page "OnChip SATA Type" item set is as "RAID" mode,save and exit. Step 4:During BIOS post, press <Ctrl-I> to enter into Intel RAID setup utility,as picture1.
Chapter 7
Picture1 Step 5: Select "1" to enter create RAID mode ,if there is no enough avalable space (there was exist a Raid ,
delete it ).
chapter 7 82
Step 6:Create RAID 0 Mode,enter the RAID name,such as "MyRaid0",default is"Volume0".
Picture2 Step 7:Select "RAID0(Stripe)" at "RAID Level".
83 Chapter 7
Step 8:You can select the "Strip Size" and define RAID capacity in "Capactity".
Step 9:Press "Create Volume" to create RAID0,it will pop the warning message that all data will be lost,"press "Y" to confirm it.
Picture5 Step 10:It will back to create RAID interface,then press "ESC" or select 4 to exit and install OS.
Chapter 7 84
1-2: Create SATA RAID 1
Step 1:Shut down the EUT, unplug the power cable,connect two SATA HDDS to EUT , check the EUT all devices are connect/plug ok.
Step 2:Press "PWR-BTTN" to power on the EUT,Load BIOS default setting . Step 4:During BIOS post, press <Ctrl-I> to enter into Intel RAID setup utility. Step 5: Select "1" to enter create RAID mode ,if there is no enough avalable space (there was exist a Raid ,
delete it ). Step 6:Create RAID 1 Mode,enter the RAID name,such as "MyRaid1",default is"Volume0". Step 7:Select "RAID1(Mirror)" at "RAID Level".
Picture6 Step 8:You can select the "Strip Size" and define RAID capacity in "Capactity". Step 9:Press "Create Volume" to create RAID1,it will pop the warning message that all data will be lost,"press
"Y" to confirm it. Step 10:It will back to create RAID interface,then press "ESC" or select 4 to exit and install OS.
1-3: Create SATA RAID 5
Step 1:Shut down the EUT, unplug the power cable,connect three SATA HDDS to EUT , check the EUT all devices are connect/plug ok.
Step 2:Press "PWR-BTTN" to power on the EUT,Load BIOS default setting . Step 3:At "Integrated_Peripherals" page "OnChip SATA Type" item set is as "RAID" mode,save and exit. Step 4:During BIOS post, press <Ctrl-I> to enter into Intel RAID setup utility. Step 5: Select "1" to enter create RAID mode ,if there is no enough avalable space (there was exist a Raid ,
delete it ). Step 6:Create RAID 5 Mode,enter the RAID name,such as "MyRaid5",default is"Volume0".
85 Chapter 7
Step 7:Select "RAID5(Parity)" at "RAID Level".
Picture7 Step 8:You can select the "Strip Size" and define RAID capacity in "Capactity". Step 9:Press "Create Volume" to create RAID5,it will pop the warning message that all data will be lost,"press
"Y" to confirm it. Step 10:It will back to create RAID interface,then press "ESC" or select 4 to exit and install OS.
1-4: Create SATA RAID 0+1
Step 1:Shut down the EUT, unplug the power cable,connect four SATA HDDS to EUT , check the EUT all devices are connect/plug ok.
Step 2:Press "PWR-BTTN" to power on the EUT,Load BIOS default setting . Step 3:At "Integrated_Peripherals" page "OnChip SATA Type" item set is as "RAID" mode,save and exit. Step 4:During BIOS post, press <Ctrl-I> to enter into Intel RAID setup utility. Step 5: Select "1" to enter create RAID mode ,if there is no enough avalable space (there was exist a Raid ,
delete it ). Step 6:Create RAID 0+1 Mode,firstly create RAID 0 Mode,enter the RAID name,such as "MyRaid0+1",default
is"Volume0". Step 7:Select "RAID0(Stripe)" at "RAID Level".
Chapter 7 86
Step 8:Select two HDDs in "Disk" by space key.
Picture8 Step 9:Press "Enter" to finish HDD selection and it will back to RAID creation interface. Step 10:Repeat RAID1 creation step and exit,then install OS.
87 Chapter 7

Intel RAID SOP (Windows for WIN7)

2.Intel(R) Matrix Storage Console

2-1:Create a“RAID Ready” System into" RAID 0" with two Hard Drives by‘Create RAID Volume from Existing HDD Drive ’.
Step 1:Install Win7 OS with one SATA HDD. Step 2:Shut down the system,then add one Serial ATA hard drive in the system. Step 3:Boot to OS desktop, open the Intel® Matrix Storage Con sole.
Picture1 Step 4:Click on the by‘Create RAID Volume from Existing HDD Drive ’ to create a RAID volume.
Chapter 7 88
Step 5:Click "Next" at create a RAID volume window.
Picture3 Step 6:Key the name in "Volume Name" and select "RAID 0" in RAID Level.
Picture4 Step 7:Select minimum HDD as "Source Hard Drive".
89 Chapter 7
Picture6 Step 8:Select Menber Hard Drive(s).
Chapter 7 90
Step 9:Specify Volume Size then press "next".
Picture8 Step 10:Press "next" to finish setup and start create RAID0.
Picture9 Step 11:It may takes half and hours to create RAID0.After create completely,it will ask to reboot to finish create
RAID0.
2-2:Create a“RAID Ready” System into" RAID 1" with two Hard Drives by‘Create RAID Volume from Existing HDD Drive ’.
Step 1:Install WIN7 OS with one SAT A HDD. Step 2:Shut down the system,then add another Serial ATA hard drive in the system. Step 3:Boot to OS desktop, open the Intel® Matrix Storage Con sole. Step 4:Click on the by‘Create RAID Volume from Existing HDD Drive ’ to create a RAID volume. Step 5:Click "Next" at create a RAID volume window.
91 Chapter 7
Step 6:Key the name in "Volume Name" and select "RAID 1" in RAID Level.
Picture10 Step 7:Select minimum HDD as "Source Hard Drive". Step 8:Select Menber Hard Drive(s). Step 9:Specify Volume Size then press "next". Step 10:Press "next" to finish setup and start create RAID1. Step 11:It may takes half and hours to create RAID1.After create completely,it will ask to reboot to finish create
RAID1.
2-3:Create a“RAID Ready” System into" RAID 5" with three Hard Drives by‘Create RAID Volume from Existing HDD Drive ’.
Step 1:Install WIN7 OS with one SAT A HDD. Step 2:Shut down the system,then add other two serial ATA hard drives in the system. Step 3:Boot to OS desktop, open the Intel® Matrix Storage Con sole. Step 4:Click on the by‘Create RAID Volume from Existing HDD Drive ’ to create a RAID volume. Step 5:Click "Next" at create a RAID volume window. Step 6:Key the name in "Volume Name" and select "RAID 1" in RAID Level.
Chapter 7 92
Loading...
