Acer Aspire 3640 User Manual

Aspire 3640 Series

User's Guide

Aspire 3640 Series User's Guide Original Issue: 4 / 2006

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Aspire 3640 Series Notebook PC

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

Information for your safety and comfort

Safety instructions

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Turning the product off before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Warnings

• Do not use this product near water.

• Do not place this product on an unstable cart, stand or table. If the product

falls, it could be seriously damaged.

• Slots and openings are provided for ventilation to ensure reliable

operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

• Never push objects of any kind into this product through cabinet slots as

they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.

• To avoid damage of internal components and to prevent battery leakage,

do not place the product on a vibrating surface.

iii

Using electrical power

• This product should be operated from the type of power indicated on the

marking label. If you are not sure of the type of power available, consult your dealer or local power company.

• Do not allow anything to rest on the power cord. Do not locate this

product where people will walk on the cord.

• If an extension cord is used with this product, make sure that the total

ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

• Do not overload a power outlet, strip or receptacle by plugging in too

many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.

This product's AC adapter is equipped with a three-wire grounded plug.

•

The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

• Use the product only with the supplied power supply cord set. If you need

to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, type SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.6 meters (15 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

• the power cord or plug is damaged, cut or frayed

• liquid was spilled into the product

• the product was exposed to rain or water

• the product has been dropped or the case has been damaged

• the product exhibits a distinct change in performance, indicating a need

for service

• the product does not operate normally after following the operating

instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Replacing the battery pack

The notebook uses lithium batteries. Replace the battery with the same type as that which came bundled with your product. Use of another battery may present a risk of fire or explosion.

Warning! Batteries may explode if not handled properly. Do not disassemble or dispose of them in fire. Keep them away from children. Follow local regulations when disposing of used batteries.

Telephone line safety

• Disconnect all telephone lines from the equipment when not in use and/or

before servicing.

• To avoid the remote risk of electric shock from lightning, do not connect

the telephone line to this equipment during lightning or thunderstorms.

Warning! For safety reasons, do not use non-compliant parts when adding or changing components. Consult your reseller for purchase options.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://global.acer.com/about/environmental.htm

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display: Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org information, check www.lamprecycle.org

. For lamp-specific disposal

Tips and information for comfortable use

Computer users may complain of eyestrain and headaches after prolonged use. Users are also at risk of physical injury after long hours of working in front of a computer. Long work periods, bad posture, poor work habits, stress, inadequate working conditions, personal health and other factors greatly increase the risk of physical injury.

Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis or other musculoskeletal disorders. The following symptoms may appear in the hands, wrists, arms, shoulders, neck or back:

• numbness, or a burning or tingling sensation

• aching, soreness or tenderness

• pain, swelling or throbbing

• stiffness or tightness

• coldness or weakness

If you have these symptoms, or any other recurring or persistent discomfort and/or pain related to computer use, consult a physician immediately and inform your company's health and safety department.

The following section provides tips for more comfortable computer use.

Finding your comfort zone

Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest, or raising your sitting height to achieve maximum comfort. Observe the following tips:

• refrain from staying too long in one fixed posture

• avoid slouching forward and/or leaning backward

• stand up and walk around regularly to remove the strain on your leg

muscles

• take short rests to relax your neck and shoulders

• avoid tensing your muscles or shrugging your shoulders

• install the external display, keyboard and mouse properly and within

comfortable reach

• if you view your monitor more than your documents, place the display at

the center of your desk to minimize neck strain

Taking care of your vision

Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room lighting, poorly focused screens, very small typefaces and low-contrast displays could stress your eyes. The following sections provide suggestions on how to reduce eyestrain.

vii

Eyes

• Rest your eyes frequently.

• Give your eyes regular breaks by looking away from the monitor and

focusing on a distant point.

• Blink frequently to keep your eyes from drying out.

Display

• Keep your display clean.

• Keep your head at a higher level than the top edge of the display so your

eyes point downward when looking at the middle of the display.

• Adjust the display brightness and/or contrast to a comfortable level for

enhanced text readability and graphics clarity.

• Eliminate glare and reflections by:

• placing your display in such a way that the side faces the window or

any light source

• minimizing room light by using drapes, shades or blinds

• using a task light

• changing the display's viewing angle

• using a glare-reduction filter

• using a display visor, such as a piece of cardboard extended from the

display's top front edge

• Avoid adjusting your display to an awkward viewing angle.

• Avoid looking at bright light sources, such as open windows, for extended

periods of time.

Developing good work habits

Develop the following work habits to make your computer use more relaxing and productive:

• Take short breaks regularly and often.

• Perform some stretching exercises.

• Breathe fresh air as often as possible.

• Exercise regularly and maintain a healthy body.

Warning! We do not recommend using the computer on a couch or bed. If this is unavoidable, work for only short periods, take breaks regularly, and do some stretching exercises.

Note: For more information, please refer to "Regulations and safety notices" on page 62 in the AcerSystem User's Guide.

viii

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the Just for Starters... poster helps you get started with setting up your computer.

The printed User's Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the AcerSystem User's Guide. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook. Follow these steps to access it:

1 Click on Start, All Programs, AcerSystem. 2 Click on AcerSystem User's Guide. Note: Viewing the file requires Adobe Reader. If Adobe Reader is

not installed on your computer, clicking on AcerSystem User's Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

Basic care and tips for using your computer

Turning your computer on and off

To turn on the computer, simply press and release the power button below the LCD screen beside the easy-launch buttons. See "Front view" on page 13 for the location of the power button.

To turn the power off, do any of the following:

• Use the Windows shutdown command

Click on Start, Turn Off Computer, then click on Turn Off.

• Use the power button

You can also shut down the computer by closing the display cover, or by pressing the sleep hotkey <Fn> + <F4>.

Note: If you cannot power off the computer normally, press and hold the power button for more than four seconds to shut down the computer. If you turn off the computer and want to turn it on again, wait at least two seconds before powering up.

Taking care of your computer

Your computer will serve you well if you take care of it.

• Do not expose the computer to direct sunlight. Do not place it near sources

of heat, such as a radiator.

• Do not expose the computer to temperatures below 0 ºC (32 ºF) or above

50 ºC (122 ºF).

• Do not subject the computer to magnetic fields.

• Do not expose the computer to rain or moisture.

• Do not spill water or any liquid on the computer.

• Do not subject the computer to heavy shock or vibration.

• Do not expose the computer to dust or dirt.

• Never place objects on top of the computer.

• Do not slam the computer display when you close it.

• Never place the computer on uneven surfaces.

Taking care of your AC adapter

Here are some ways to take care of your AC adapter:

• Do not connect the adapter to any other device.

• Do not step on the power cord or place heavy objects on top of it.

Carefully route the power cord and any cables away from foot traffic.

• When unplugging the power cord, do not pull on the cord itself but pull

on the plug.

• The total ampere ratings of the equipment plugged in should not exceed

the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

Taking care of your battery pack

Here are some ways to take care of your battery pack:

• Use only batteries of the same kind as replacements. Turn the power off

before removing or replacing batteries.

• Do not tamper with batteries. Keep them away from children.

• Dispose of used batteries according to local regulations. Recycle if possible.

Cleaning and servicing

When cleaning the computer, follow these steps: 1 Turn off the computer and remove the battery pack. 2 Disconnect the AC adapter.

3 Use a soft, moist cloth. Do not use liquid or aerosol cleaners. If either of the following occurs:

• the computer has been dropped or the body has been damaged;

• the computer does not operate normally

please refer to "Frequently asked questions" on page 40.

Information for your safety and comfort iii

Safety instructions iii Disposal instructions v Tips and information for comfortable use vi

First things first viii

Your guides viii Basic care and tips for using your computer viii

Turning your computer on and off viii Taking care of your computer ix Taking care of your AC adapter ix Taking care of your battery pack x Cleaning and servicing x

Acer Empowering Technology 1

Empowering Technology password 1 Acer ePower Management 2 Acer ePresentation Management 5 Acer eLock Management 6 Acer eRecovery Management 8 Acer eSettings Management 10 Acer ePerformance Management 11

Your Acer notebook tour 13

Front view 13 Closed front view 14 Left view 16 Right view 17 Rear view 18 Base view 19

Specifications 20 Indicators 24 Easy-launch buttons 25 Touchpad 26

Touchpad basics 26

Using the keyboard 28

Lock keys and embedded numeric keypad 28 Windows keys 29 Hotkeys 30 Special key 32

Ejecting the optical (CD or DVD) drive tray 33 Using a computer security lock 33 Audio 34

Adjusting the volume 34

Acer OrbiCam

(for selected models)35

Launching the Acer OrbiCam 36 Using the Acer OrbiCam as webcam 36

Using the system utilities 37

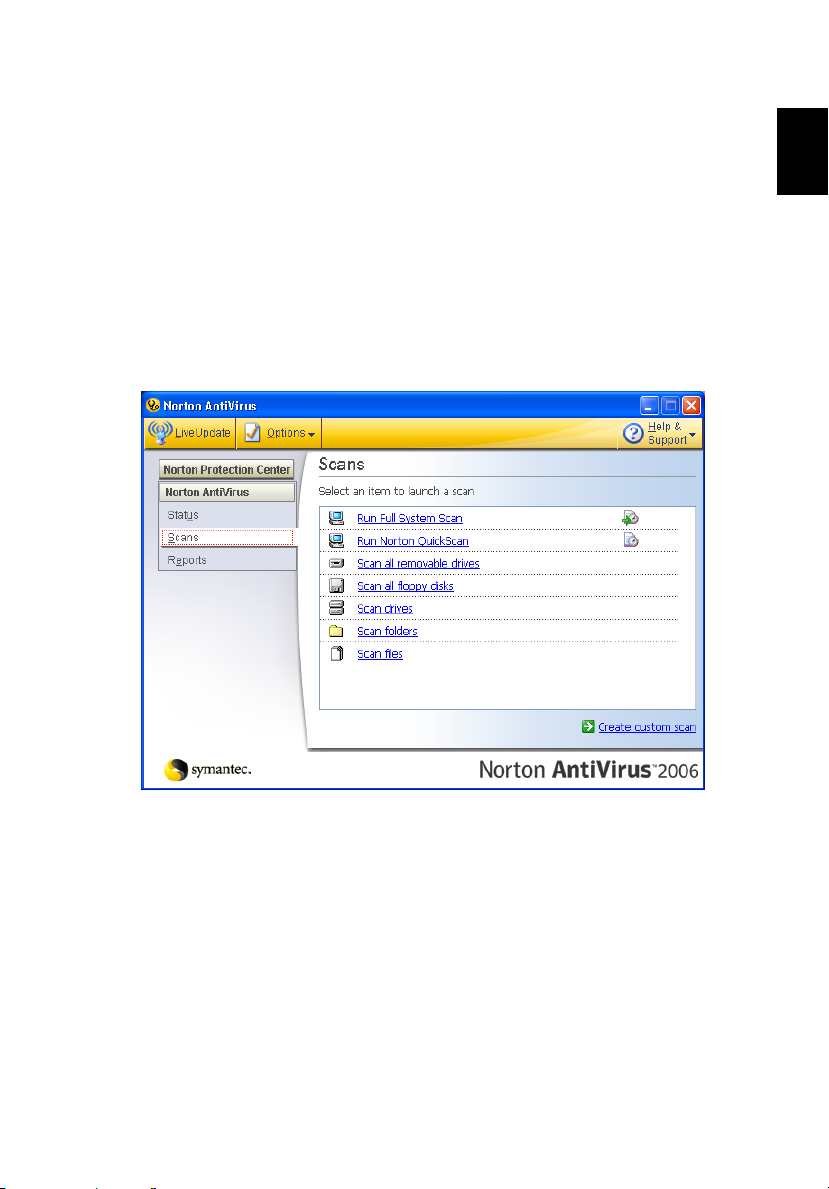

Acer GridVista (dual-display compatible) 37 Launch Manager 38 Norton AntiVirus 39

Frequently asked questions 40

Requesting service 43

International Travelers Warranty (ITW) 43 Before you call 43

Taking your notebook PC with you 44

Disconnecting from the desktop 44 Moving around 44

Preparing the computer 44 What to bring to meetings 45

Taking the computer home 45

Preparing the computer 45 What to take with you 45 Special considerations 46 Setting up a home office 46

Traveling with the computer 46

Preparing the computer 46 What to take with you 46 Special considerations 47

Traveling internationally with the computer 47

Preparing the computer 47 What to bring with you 47 Special considerations 47

Securing your computer 48

Using a computer security lock 48 Using passwords 48

Entering passwords 49 Setting passwords 49

Expanding through options 50

Connectivity options 50

Fax/data modem 50 Built-in network feature 51 Universal Serial Bus (USB) 51 PC Card slot 52

Installing memory 53 BIOS utility 54 Boot sequence 54

Enable disk-to-disk recovery 54 Password 54 Using software 55

Playing DVD movies 55

Power management 56 Acer eRecovery Management 56

Create backup 57 Restore from backup 57 Create factory default image CD 58 Re-install bundled software without CD 58 Change password 59

Troubleshooting 60

Troubleshooting tips 60 Error messages 60

Regulations and safety notices 62

ENERGY STAR guidelines compliance 62 FCC notice 62 Modem notices 63 Laser compliance statement 66 LCD pixel statement 66 Macrovision copyright protection notice 66 Radio device regulatory notice 67 General 67 European Union (EU) 67 The FCC RF safety requirement 68 Canada — Low-power license-exempt radio communication devices (RSS-210) 69 Federal Communications Comission Declaration of Conformity 70 Declaration of Conformity for CE Marking 71 LCD panel ergonomic specifications 72

Index 73

Acer Empowering Technology

Acer's innovative Empowering Technology toolbar makes it easy for you to access frequently used functions and manage your new Acer computer. Displayed by default in the upper-right corner of your screen, it features the following handy utilities:

• Acer ePower Management extends battery power via versatile usage

profiles.

• Acer ePresentation Management connects to a projector and adjusts

display settings conveniently.

• Acer eLock Management limits access to external storage media and

interfaces.

• Acer eRecovery Management backs up and recovers data flexibly, reliably

and completely.

• Acer eSettings Management accesses system information and adjusts

settings easily

• Acer ePerformance Management improves system performance by

optimizing disk space, memory and registry settings..

For more information, right click on the Empowering Technology toolbar, then select the Help or Tutorial function.

Empowering Technology

Empowering Technology password

Before using Acer eLock Management and Acer eRecovery Management, you must initialize the Empowering Technology password. Right-click on the Empowering Technology toolbar and select "Password Setup" to do so. If you do not initialize the Empowering Technology password, you will be prompted to do so when running Acer eLock Management or Acer eRecovery Management for the first time.

If you lose your password, there is no method to reset it except by reformatting your notebook or taking your notebook to an Acer Customer Service Center. Be sure to remember or write down your password.

Acer ePower Management

Acer ePower Management features a straightforward user interface. To launch it, select Acer ePower Management from the Empowering Technology interface.

AC mode (Adapter mode)

The default setting is "Maximum Performance." You can adjust CPU speed, LCD brightness and other settings, or click on buttons to turn the following functions on/off: Wireless LAN, Bluetooth, CardBus, FireWire(1394), Wired LAN

Empowering Technology

and Optical Device if supported.

DC mode (Battery mode)

There are four pre-defined profiles — Entertainment, Presentation, Word Processing, and Battery Life. You can also define up to three of your own.

To create a new power profile:

1 Change power settings as desired. 2 Click "Save as ..." to save to a new power profile. 3 Name the newly created profile. 4 Select whether this profile is for Adapter or Battery mode, then click OK. 5 The new profile will appear in the profile list.

Battery status

For real-time battery life estimates based on current usage, refer to the panel in the upper half of the window.

Empowering Technology

For additional options, click "Settings" to:

• Set alarms.

• Re-load factory defaults.

• Select what actions to be taken when the cover is closed or the power

button is pressed.

• Set passwords for accessing the system after Hibernation or Standby.

• View information about Acer ePower Management.

Empowering Technology

Acer ePresentation Management

Acer ePresentation Management lets you project your computer's display to an external device or projector using the hot key: Fn + F5. If auto-detection hardware is implemented in the system and the external display supports it, your system display will be automatically switched out when an external display is connected to the system. For projectors and external devices that are not auto-detected, launch Acer ePresentation Management to choose an appropriate display setting.

Empowering Technology

Note: If the restored resolution is not correct after disconnecting a projector, or you need to use an external resolution that is not supported by Acer ePresentation Management, adjust your display settings using Display Properties or the utility provided by the graphics vendor.

Acer eLock Management

Acer eLock Management is a security utility that allows you to lock your removable data, optical and floppy drives to ensure that data can't be stolen while your notebook is unattended.

• Removable data devices — includes USB disk drives, USB pen drives, USB

flash drives, USB MP3 drives, USB memory card readers, IEEE 1394 disk drives and any other removable disk drives that can be mounted as a file system when plugged into the system.

• Optical drive devices — includes any kind of CD-ROM or DVD-ROM drives.

Empowering Technology

• Floppy disk drives — 3.5-inch disks only.

• Interfaces — includes serial port, parallel port, infrared (IR), and Bluetooth.

To activate Acer eLock Management, a password must be set first. Once set, you can apply locks to any of the devices types. Lock(s) will immediately be set without any reboot necessary, and will remain locked after rebooting, until unlocked.

Note: If you lose your password, there is no method to reset it

except by reformatting your notebook or taking your notebook

to an Acer Customer Service Center. Be sure to remember or write

down your password.

Empowering Technology

Acer eRecovery Management

Acer eRecovery Management is a powerful utility that does away with the need for recovery disks provided by the manufacturer. The Acer eRecovery Management utility occupies space in a hidden partition on your system's hard drive. By default, user-created backups are stored on the D:\ drive.

Acer eRecovery Management provides you with:

• Password protection.

• Recovery of applications and drivers.

Empowering Technology

• Image/data backup:

• Back up to HDD (set recovery point).

• Back up to CD/DVD.

• Image/data recovery tools:

• Recover from a hidden partition (factory defaults).

• Recover from the HDD (most recent user-defined recovery point).

• Recover from CD/DVD.

Empowering Technology

For more information, please refer to "Acer eRecovery Management" on page 56 in the AcerSystem User's Guide.

Note: If your computer did not come with a Recovery CD or System CD, please use Acer eRecovery Management's "System backup to optical disk" feature to burn a backup image to CD or DVD. To ensure the best results when recovering your system using a CD or Acer eRecovery Management, detach all peripherals (except the external Acer ODD, if your computer has one), including your Acer ezDock.

Acer eSettings Management

Acer eSettings Management allows you to inspect hardware specifications, change BIOS passwords or other Windows settings, and to monitor the system health status.

Acer eSettings Management also:

• Provides a simple graphical user interface for navigation.

• Displays general system status and advanced monitoring for power users

on Acer computer.

Empowering Technology

Acer ePerformance Management

Acer ePerformance Management is a system optimization tool that boosts the performance of your Acer computer. It provides an express optimization method to release unused memory and disk space quickly. The user can also enable advanced options for full control over the following options:

• Memory optimization — releases unused memory and check usage.

• Disk optimization — removes unneeded items and files.

• Speed optimization — improves the usability and performance of your

Windows XP system.

Empowering Technology

Your Acer notebook tour

After setting up your computer as illustrated in the Just for Starters... poster, let us show you around your new Acer notebook.

Front view

English

# Icon Item Description 1 Display screen Also called Liquid-Crystal Display (LCD),

2 Status indicators Light-Emitting Diodes (LEDs) that light

displays computer output.

up to show the status of the computer's functions and components.

English

# Icon Item Description 3 Keyboard For entering data into your computer. 4 Touchpad Touch-sensitive pointing device which

functions like a computer mouse.

5 Click buttons (left,

center and right)

6 Palmrest Comfortable support area for your hands

7 Microphone Internal microphone for sound

8 Power button Turns the computer on and off. 9 Easy-launch buttons Buttons for launching frequently used

10 Built-in camera 310,000 pixel web camera for video

The left and right buttons function like the left and right mouse buttons; the center button serves as a 4-way scroll button.

when you use the computer.

recording.

programs. See "Easy-launch buttons" on page 25 for more details.

communication (for selected models).

Closed front view

# Icon Item Description 1 Speakers Left and right speakers deliver stereo

audio output.

2 USB 2.0 ports Connect to USB 2.0 devices

(e.g., USB mouse, USB camera).

# Icon Item Description 3Bluetooth

communication switch/indicator

4 Wireless

communication switch/indicator

5 Line-in jack Accepts audio line-in devices

6 Microphone jack Accepts input from external

7 Headphones/speaker/

line-out jack

8 Battery indicator Indicates the computer's batttery status.

9 Power indicator Indicates the computer's power status.

10 Latch Locks and releases the lid.

Press to enable/disable the Bluetooth function. Indicates the status of Bluetooth communication.

Press to enable/disable the wireless function. Indicates the status of wireless LAN communication.

(e.g., audio CD player, stereo walkman).

microphones.

Connects to audio line-out devices (e.g., speakers, headphones).

English

Left view

# Icon Item Description 1 Kensington lock

slot 2 Optical drive Internal optical drive; accepts CDs or DVDs . 3 Optical disk access

indicator 4 Optical drive eject

button 5 Emergency eject

hole

Connects to a Kensington-compatible computer security lock.

Lights up when the optical drive is active.

Ejects the optical disk from the drive.

Ejects the optical drive tray when the computer is turned off.

Right view

# Icon Item Description 1 PC Card slot Accepts one Type II PC Card.

2 PC Card slot eject

button

3 USB 2.0 ports Connect to USB 2.0 devices

4 Ventilation slots Enable the computer to stay cool, even after

5 Modem (RJ-11)

port

6 Ethernet (RJ-45)

port

Ejects the PC Card from the slot.

(e.g., USB mouse, USB camera).

prolonged use. Connects to a phone line.

Connects to an Ethernet 10/100-based network.

English

Rear view

# Icon Item Description 1 DC-in jack Connects to an AC adapter.

2 External display

(VGA) port

3 Battery Powers the computer.

Connects to a display device (e.g., external monitor, LCD projector).

Base view

# Item Description 1 Battery lock Locks the battery in position. 2 Cooling fan Helps keep the computer cool.

Note: Do not cover or obstruct the opening of the fan.

3 Hard disk bay Houses the computer's hard disk (secured with

screws). 4 Memory compartment Houses the computer's main memory. 5 Battery release latch Releases the battery for removal. 6 Battery bay Houses the computer's battery pack.

English

Specifications

English

Operating system

Platform

System memory

Display and graphics

Storage subsystem

Dimensions and weight

• Windows

• Genuine Windows

• Intel

cache, 1.46/1.60/1.73 GHz, 533 MHz FSB) or higher

• ATI Radeon

Vista™ Capable

XP Professional (Service Pack 2)

XP Home Edition (Service Pack 2)

XP Starter Edition

Windows® Vista ™Capable PCs come with Windows upgraded to Windows information on Windows

to upgrade, go to: Microsoft.com/ windowsvista.

Celeron® M processor 410/420/430 (1 MB L2

XP installed, and can be

Xpress 200M chipset

Vista™. For more

Vista™ and how

• Up to 2 GB of DDR2 533/667 MHz system memory,

upgradeable to 2 GB using two soDIMM modules

• 14.1" WXGA Acer CrystalBrite

pixel resolution, supporting simultaneous multiwindow viewing via Acer GridVista

• ATI Radeon

graphics, featuring HyperMemory MB of shared system memory

Xpress 200M chipset with integrated 3D

™

TFT LCD, 1280 x 800

™

and up to 128

• 16.7 million colors

• Simultaneous LCD and CRT display, with LCD panel

resolution at 70 Hz refresh rate

• MPEG-2/DVD hardware-assisted capability

• 40/60/80/100/120 GB ATA/100 hard disk drive

• Optical drive options:

• DVD-Super Multi double-layer

• DVD-Dual double-layer

• DVD/CD-RW combo drive 334 (W) x 243 (D) x 28/35(H) mm (13.4 x 9.57 x 0.94/1.38 inches)

2.35 kg (5.18 lbs.)

Power subsystem

Input devices

Audio

Communication

• ACPI 2.0 CPU power management standard: supports

Standby and Hibernation power-saving modes

• 44.4 W 4000 mAh Li-ion battery pack (6-cell)

• 3-pin 65 W AC adapter

• 88-/89-key keyboard with inverted "T" cursor layout,

2.5 mm (minimum) key travel

• Touchpad with 4-way scroll button

• 12 function keys, four media keys (play/pause, stop,

previous, next), four cursor keys, two Windows hotkey controls, embedded numeric keypad, international language support

keys,

• Four easy-launch buttons: Empowering Key, Internet,

email, user-programmable button

• Two front-access communication switches: WLAN,

Bluetooth

• Intel

High-Definition audio support

• Audio system with two built-in speakers

• Sound Blaster Pro

™

and MS-Sound compatible

• Built-in microphone

• Acer Video Conference featuring Voice and Video

over Internet Protocol (VVoIP) support via Acer OrbiCam

• Acer OrbiCam

camera, featuring :

• 225 degree ergonomic rotation

• Acer PrimaLite

• WLAN: Acer InviLink

solution, supporting Acer SignalUp technology

™

and optional Acer Bluetooth® VoIP phone

™

integrated 310,000 pixel CMOS

™

technology

™

802.11b/g Wi-Fi CERTIFIED™

™

wireless

• LAN: Fast Ethernet; Wake-on-LAN ready

• Modem: 56K ITU V.92 with PTT approval; Wake-on-

Ring ready

English

I/O interface

Security

Software

Options and accessories

• PC Card slot (one Type II)

• 3 USB 2.0 ports

• External display (VGA) port

• Headphones/speaker/line-out jack

• Microphone-in jack

• Ethernet (RJ-45) port

• Modem (RJ-11) port

• DC-in jack for AC adapter

• Kensington lock slot

• BIOS user and supervisor passwords

• Acer Empowering Technology

• Acer ePower Management

• Acer ePresentation Management

• Acer eLock Management

• Acer eRecovery Management

• Acer eSettings Management

• Acer ePerformance Management

• Acer GridVista

™

• Acer Launch Manager

• Norton AntiVirus

• Adobe

Reader

• CyberLink

• NTI CD-Maker

• Acer Bluetooth

™

PowerProducer

™

VoIP phone

™

• 512 MB, 1 or 2 GB DDR2 533 MHz soDIMM memory

• 9-cell Li-ion battery pack

• 6-cell Li-ion battery pack

• 3-pin 65 W AC adapter

• External USB floppy disk drive

Environment Temperature:

• Operating: 5 °C to 35 °C

• Non-operating: -20 °C to 65 °C

Humidity (non-condensing):

• Operating: 20% to 80%

• Non-operating: 20% to 80%

System compliance

• Cisco Compatible Extensions (CCX)

• Wi-Fi

• ACPI

• Mobile PC 2002

• DMI 2.0

Warranty One-year International Travelers Warranty (ITW)

Note: The specifications listed above are for reference only. The exact configuration of your PC depends on the model purchased.

English

Indicators

English

The computer has seven easy-to-read status indicators, including four on the front panel.

The power, battery and wireless communication status indicators are visible even when the LCD display is closed.

Icon Function Description

Caps Lock Lights up when Caps Lock is activated.

Num Lock Lights up when Num Lock is activated.

HDD Indicates when the hard disk drive is active.

Bluetooth Indicates the status of Bluetooth communication.

Wireless LAN Indicates the status of wireless LAN communication.

Battery Indicates the computer's batttery status.

Power Indicates the computer's power status.

1. Charging: The light shows amber when the battery is charging.

2. Fully charged: The light shows green when in AC mode.

Easy-launch buttons

Located above the keyboard are four buttons. These buttons are called easylaunch buttons. They are: mail, Web browser, Empowering Key < > and one

user-programmable button.

Press < > to run the Acer Empowering Technology. Please see "Acer Empowering Technology" on page 1. The mail and Web browser buttons are

pre-set to email and Internet programs, but can be reset by users. To set the Web browser, mail and programmable buttons, run the Acer Launch Manager. See "Launch Manager" on page 38.

English

Easy-launch button Default application

Web browser Internet browser (user-programmable)

Mail Email application (user-programmable)

User-programmable

Acer Empowering Technology (user-programmable)

Touchpad

English

The touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your finger across the surface of the touchpad. The central location on the palmrest provides optimum comfort and support.

Touchpad basics

The following items show you how to use the touchpad:

• Move your finger across the touchpad (2) to move the cursor.

• Press the left (1) and right (4) buttons located below the touchpad to

perform selection and execution functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the touchpad is the same as clicking the left button.

• Use the 4-way scroll (3) button to scroll up or down and move left or right

a page. This button mimics your cursor pressing on the right scroll bar of Windows applications.

Function Left button (1)

Execute Quickly click

twice.

Select Click once. Tap once.

Drag Click and hold,

then use finger on the touchpad to drag the cursor.

Access context menu

Scroll Click and

Right button (4)

Click once.

Main touchpad (2)

Tap twice (at the same speed as double-clicking a mouse button).

Tap twice (at the same speed as double-clicking a mouse button); rest your finger on the touchpad on the second tap and drag the cursor.

Center button (3)

hold to move up/ down/left/ right.

English

Note: When using the touchpad, keep it — and your fingers — dry and clean. The touchpad is sensitive to finger movement; hence, the lighter the touch, the better the response. Tapping harder will not increase the touchpad's responsiveness.

Note: By default, vertical and horizontal scrolling is enabled on your touchpad. It can be disabled under Mouse settings in Windows Control Panel.

Using the keyboard

English

The keyboard has full-sized keys and an embedded numeric keypad, separate cursor, lock, Windows, function and special keys.

Lock keys and embedded numeric keypad

The keyboard has three lock keys which you can toggle on and off.

Lock key Description Caps Lock When Caps Lock is on, all alphabetic characters typed are

Num Lock <Fn> + <F11>

Scroll Lock <Fn> + <F12>

in uppercase. When Num Lock is on, the embedded keypad is in numeric

mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on

the keys.

Desired access Num Lock on Num Lock off Number keys on

embedded keypad Cursor-control keys

on embedded keypad

Type numbers in a normal manner.

Hold <Shift> while using cursor-control keys.

Hold <Fn> while using cursor-control keys.

Desired access Num Lock on Num Lock off Main keyboard keys Hold <Fn> while typing

letters on embedded keypad.

Type the letters in a normal manner.

Windows keys

The keyboard has two keys that perform Windows-specific functions.

Key Description

Windows key Pressed alone, this key has the same effect as clicking on

the Windows Start button; it launches the Start menu. It can also be used with other keys to provide a variety of functions:

< > + <Tab>: Activates the next Taskbar button.

< > + <E>: Opens the My Computer window.

< > + <F1>: Opens Help and Support Center.

< > + <F>: Opens the Search Results window.

<> + <R>: Opens the Run dialog box.

< > + <M>: Minimizes all windows.

<Shift> + < > + <M>: Undoes the minimize all windows action.

Application key

This key has the same effect as clicking the right mouse button; it opens the application's context menu.

English

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness, volume output and the BIOS utility.

To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey combination.

Hotkey Icon Function Description <Fn> + <F1> Hotkey help Displays help on hotkeys.

<Fn> + <F2> Acer eSettings Launches Acer eSettings in Acer

<Fn> + <F3> Acer ePower

Management

<Fn> + <F4> Sleep Puts the computer in Sleep

<Fn> + <F5> Display toggle Switches display output

<Fn> + <F6> Screen blank Turns the display screen

Empowering Technology. See "Acer Empowering Technology" on page 1.

Launches Acer ePower Management in Acer Empowering Technology. See "Acer Empowering Technology" on page 1.

mode.

between the display screen, external monitor (if connected) and both.

backlight off to save power. Press any key to return.

Hotkey Icon Function Description <Fn> + <F7> Touchpad toggle Turns the internal touchpad on

and off.

<Fn> + <F8> Speaker toggle Turns the speakers on and off.

<Fn> + <↑> Volume up Increases the sound volume.

<Fn> + <↓> Volume down Decreases the sound volume.

<Fn> + <→> Brightness up Increases the screen brightness.

<Fn> + <←> Brightness down Decreases the screen brightness.

English

Special key

You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your keyboard.

The Euro symbol

1 Open a text editor or word processor. 2 Either press < > at the bottom-right of the keyboard, or hold <Alt Gr>

and then press the <5> key at the upper-center of the keyboard.

Note: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/typography/faq/faq12.htm more information.

for

The US dollar sign

1 Open a text editor or word processor. 2 Either press < > at the bottom-right of the keyboard, or hold <Shift>

and then press the <4> key at the upper-center of the keyboard.

Note: This function varies according to the language settings.

Ejecting the optical (CD or DVD) drive tray

Press the drive eject button to eject the optical drive tray when the computer is on.

Insert a clip to the emergency eject hole to eject the optical drive tray when the computer is off.

Using a computer security lock

English

The notebook comes with a Kensington-compatible security slot for a security lock.

Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

Audio

English

The computer comes with 32-bit Intel High Definition (HD) audio, and dual stereo speakers.

Adjusting the volume

Adjusting the volume on the computer is as easy as pressing some buttons. See "Hotkeys" on page 30 for more information on adjusting the speaker volume.

Acer OrbiCam (for selected models)

The Acer OrbiCam is a 310,000 pixel CMOS camera appropriately mounted on top of the LCD panel. The camera's 225-degree ergonomic rotation allows you to capture high-resolution photos or videos up front or at the back of the LCD panel. The Acer OrbiCam fully supports the Acer Video Conference technology so you transmit the best video conference quality over an Instant Messenger service.

Getting to know your Acer OrbiCam

123

# Item 1Lens 2 Power indicator 3 Rubber grip (selected models only)

English

Rotating the Acer OrbiCam

The Acer OrbiCam rotates 225 degrees counterclockwise to achieve the desired angle. Refer to the illustrations below.

Note: DO NOT rotate the camera clockwise to prevent damage to the device.

For your convenience, the camera snaps to 45 degrees to match the position of your face in front or at the back of the LCD panel.

English

Launching the Acer OrbiCam

To launch the Acer OrbiCam, double-click on the Acer OrbiCam logo in the desktop.

Click Start > All Programs > Acer > Acer OrbiCam. The Acer OrbiCam capture window appears.

Using the Acer OrbiCam as webcam

The Acer OrbiCam is automatically selected as the capture device of any Instant Messenger (IM) application. To use the Acer OrbiCam as a webcam, open the IM service, then select the video/webcam feature. You can now broadcast from your location to an IM partner anywhere in the world.

Using the system utilities

Note: The system utilities work under Microsoft Windows XP only.

Acer GridVista (dual-display compatible)

Note: This feature is only available on certain models.

To enable the dual monitor feature of your notebook, first ensure that the second monitor is connected, then, select Start, Control Panel, Display and click on Settings. Select the secondary monitor (2) icon in the display box and then click the check box Extend my Windows desktop onto this monitor. Finally, click Apply to confirm the new settings and click OK to complete the process.

English

Acer GridVista is a handy utility that offers four pre-defined display settings so you can view multiple windows on the same screen. To access this function, please go to Start, All Programs and click on Acer GridVista. You may choose any one of the four display settings indicated below:

Double (vertical), Triple (primary at left), Triple (primary at right), or Quad Acer Gridvista is dual-display compatible, allowing two displays to be

partitioned independently.

English

Acer GridVista is simple to set up: 1 Run Acer GridVista and select your preferred screen configuration for each

display from the taskbar. 2 Drag and drop each window into the appropriate grid. 3 Enjoy the convenience of a well-organized desktop.

Note: Please ensure that the resolution setting of your second monitor is set to the manufacturer's recommended value.

Launch Manager

Launch Manager allows you to set the four easy-launch buttons located above the keyboard. "Easy-launch buttons" on page 25 for the location of the easylaunch buttons.

You can access the Launch Manager by clicking on Start, All Programs, and then Launch Manager to start the application.

Norton AntiVirus

Norton AntiVirus is an anti-virus software that finds and repairs infected files, and protects against viruses to keep your computer data safe and secure.

How do I check for viruses?

A Full System Scan scans all files on your computer. To perform a system scan: 1 Start Norton AntiVirus.

Double click on the Norton AntiVirus Icon on the desktop or click on the Start menu in the Windows taskbar, highlight Programs, and select Norton AntiVirus.

2 In the Norton AntiVirus main window, click Scans.

English

3In the Scans panel, click Run Full System Scan. 4 When the scan is complete, a scan summary appears. Click Finished.

You can schedule customized virus scans that run unattended on specific dates and times or at periodic intervals. If you are using the computer when the scheduled scan begins, it runs in the background so that you do not have to stop working.

For more information refer to the Norton AntiVirus Help menu.

Frequently asked questions

English

The following is a list of possible situations that may arise during the use of your computer. Easy solutions are provided for each one.

I turned on the power, but the computer does not start or boot up.

Look at the power indicator:

• If it is not lit, no power is being supplied to the computer. Check the

following:

• If you are using on the battery, it may be low and unable to power

the computer. Connect the AC adapter to recharge the battery pack.

• Make sure that the AC adapter is properly plugged into the computer

and to the power outlet.

• If it is lit, check the following:

• Is a non-bootable (non-system) disk in the external USB floppy drive?

Remove or replace it with a system disk and press <Ctrl> + <Alt> + <Del> to restart the system.

Nothing appears on the screen.

The computer's power management system automatically blanks the screen to save power. Press any key to turn the display back on.

If pressing a key does not turn the display back on, three things might be the cause:

• The brightness level might be too low. Press <Fn> + <→> (increase) to

adjust the brightness level.

• The display device might be set to an external monitor. Press the display

toggle hotkey <Fn> + <F5> to toggle the display back to the computer.

• If the Sleep indicator is lit, the computer is in Sleep mode. Press and release

the power button to resume.

Image is not full-screen.

Each computer display has a different native resolution depending on the screen. If you set the resolution lower than this native resoution, the screen expands to fill the computer display. Right-click on your Windows desktop and select Properties to bring up the "Display Properties" dialog box. Then click on the Settings tab to make sure that the resolution is set to the appropriate resolution. Resolutions lower than the specified resolution are not full-screen on the computer or on an external monitor.

No audio is heard from the computer.

Check the following:

• The volume may be muted. In Windows, look at the volume control

(speaker) icon on the taskbar. If it is crossed-out, click on the icon and deselect the Mute all option.

• The volume level may be too low. In Windows, look at the volume control

icon on the taskbar. You can also use the volume control buttons to adjust the volume. See "Hotkeys" on page 30 for more detail.

• If headphones, earphones or external speakers are connected to the line-

out port on the computer, the internal speakers automatically turn off.

I want to eject the optical drive tray without turning on the power.

There is a mechanical eject hole on the optical drive. Simply insert the tip of a pen or paperclip into the hole and push to eject the tray. (If your computer's optical drive is a slot-load model, it will not have an eject hole.)

The keyboard does not respond.

Try attaching an external keyboard to a USB port on the computer. If it works, contact your dealer or an authorized service center as the internal keyboard cable may be loose.

The printer does not work.

Check the following:

• Make sure that the printer is connected to a power outlet and that it is

turned on.

• Make sure that the printer cable is connected securely to the computer's

parallel port or a USB port and the corresponding port on the printer.

English

I want to set up my location to use the internal modem.

To properly use your communication software (e.g. HyperTerminal), you need to set up your location:

1 Click on Start, Settings, Control Panel. 2 Double-click on Phone and Modem Options. 3 Click on Dialing Rules and begin setting up your location.

Refer to the Windows manual.

English

Note: Please note, on first booting your notebook, that you can skip the Internet Connection setup, as it is not necessary to complete the installation of your Operating System. After the Operating System is set up, you can proceed with the Internet Connection setup.

I want to restore my computer to its original settings without recovery CDs.

Note: If your system is the multilingual version, the operating system and language you choose when you first turn on the system will be the only option for future recovery operations.

This recovery process helps you restore the C: drive with the original software content that is installed when you purchase your notebook. Follow the steps below to rebuild your C: drive. (Your C: drive will be reformatted and all data will be erased.) It is important to back up all data files before using this option.

Before performing a restore operation, please check the BIOS settings.

1 Check to see if Acer disk-to-disk recovery is enabled or not. 2 Make sure the D2D Recovery setting in Main is Enabled. 3 Exit the BIOS utility and save changes. The system will reboot.

Note: To activate the BIOS utility, press <F2> during POST.

To start the recovery process: 1 Restart the system. 2 While the Acer logo is showing, press <Alt> + <F10> at the same time to

enter the recovery process.

3 Refer to the onscreen instructions to perform system recovery.

Important! This feature occupies 4 to 5 GB in a hidden partition on your hard disk.

Requesting service

International Travelers Warranty (ITW)

Your computer is backed by an International Travelers Warranty (ITW) that gives you security and peace of mind when traveling. Our worldwide network of service centers are there to give you a helping hand.

An ITW passport comes with your computer. This passport contains all you need to know about the ITW program. A list of available, authorized service centers is in this handy booklet. Read this passport thoroughly.

Always have your ITW passport on hand, especially when you travel, to receive the benefits from our support centers. Place your proof-of-purchase in the flap located inside the front cover of the ITW passport.

If the country you are traveling in does not have an Acer-authorized ITW service site, you can still get in contact with our offices worldwide. Please consult http://global.acer.com

English

Before you call

Please have the following information available when you call Acer for online service, and please be at your computer when you call. With your support, we can reduce the amount of time a call takes and help solve your problems efficiently. If there are error messages or beeps reported by your computer, write them down as they appear on the screen (or the number and sequence in the case of beeps).

You are required to provide the following information: Name: _____________________________________________ Address: ___________________________________________ Telephone number: _________________________________ Machine and model type: ____________________________ Serial number: ______________________________________ Date of purchase: ___________________________________

Taking your notebook PC with you

English

This section gives you tips and hints to consider when moving around or traveling with your computer.

Disconnecting from the desktop

Follow these steps to disconnect your computer from external accessories:

1 Save any open files. 2 Remove any media, floppy disks or compact disks from the drive(s). 3 Shut down the computer. 4 Close the display cover. 5 Disconnect the cord from the AC adapter. 6 Disconnect the keyboard, pointing device, printer, external monitor and

other external devices. 7 Disconnect the Kensington lock if you are using one to secure the

computer.

Moving around

When you are just moving within short distances, for example, from your office desk to a meeting room.

Preparing the computer

Before moving the computer, close and latch the display cover to place it in Sleep mode. You can now safely take the computer anywhere you go within the building. To bring the computer out of Sleep mode, open the display; then press and release the power button.

If you are taking the computer to a client's office or a different building, you may choose to shut down the computer:

Click on Start, Turn Off Computer, then click on Turn Off (Windows XP).

Or:

You can put the computer in Sleep mode by pressing <Fn> + <F4>. Then close and latch the display.

When you are ready to use the computer again, unlatch and open the display; then press and release the power button.

Note: If the Sleep indicator is off, the computer has entered Hibernation mode and is turned off. If the power indicator is off but the Sleep indicator is on, the computer has entered Sleep mode. In both cases, press and release the power button to turn the computer back on. Note that the computer may enter Hibernation mode after being in Sleep mode for a period of time.

What to bring to meetings

If your meeting is relatively short, you probably do not need to bring anything with you other than your computer. If your meeting will be longer, or if your battery is not fully charged, you may want to bring the AC adapter with you to plug in your computer in the meeting room.

If the meeting room does not have an electrical outlet, reduce the drain on the battery by putting the computer in Sleep mode. Press <Fn> + <F4> or close the display cover whenever you are not actively using the computer. To resume, open the display (if closed), then press and release the power button.

Taking the computer home

When you are moving from your office to your home or vice versa.

English

Preparing the computer

After disconnecting the computer from your desktop, follow these steps to prepare the computer for the trip home:

• Check that you have removed all media and compact disks from the

drive(s). Failure to remove the media can damage the drive head.

• Pack the computer in a protective case that can prevent the computer from

sliding around and cushion it if it should fall.

Caution: Avoid packing items next to the top cover of the computer. Pressure against the top cover can damage the screen.

What to take with you

Unless you have some items at home, take the following items with you:

• AC adapter and power cord

• The printed User's Guide

English

Special considerations

Follow these guidelines to protect your computer while traveling to and from work:

• Minimize the effects of temperature changes by keeping the computer

with you.

• If you need to stop for an extended period of time and cannot carry the

computer with you, leave the computer in the trunk of the car to avoid

exposing the computer to excessive heat.

• Changes in temperature and humidity can cause condensation. Allow the

computer to return to room temperature, and inspect the screen for

condensation before turning on the computer. If the temperature change

is greater than 10 °C (18 °F), allow the computer to come to room

temperature slowly. If possible, leave the computer for 30 minutes in an

environment with a temperature between outside and room temperature.

Setting up a home office

If you frequently work on your computer at home, you may want to purchase a second AC adapter for use at home. With a second AC adapter, you can avoid carrying the extra weight to and from home.

If you use your computer at home for significant periods of time, you might also want to add an external keyboard, monitor or mouse.

Traveling with the computer

When you are moving within a larger distance, for instance, from your office building to a client's office building or traveling locally.

Preparing the computer

Prepare the computer as if you were taking it home. Make sure that the battery in the computer is charged. Airport security may require you to turn on your computer when carrying it into the gate area.

What to take with you

Take the following items with you:

• AC adapter

• Spare, fully-charged battery pack(s)

• Additional printer driver files if you plan to use another printer

Special considerations

In addition to the guidelines for taking the computer home, follow these guidelines to protect your computer while traveling:

• Always take the computer as carry-on luggage.

• If possible, have the computer inspected by hand. Airport security X-ray

machines are safe, but do not put the computer through a metal detector.

• Avoid exposing floppy disks to hand-held metal detectors.

Traveling internationally with the computer

When you are moving from country to country.

Preparing the computer

Prepare the computer as you would normally prepare it for traveling.

What to bring with you

Bring the following items with you:

• AC adapter

• Power cords that are appropriate for the country to which you

are traveling

• Spare, fully-charged battery packs

• Additional printer driver files if you plan to use another printer

• Proof of purchase, in case you need to show it to customs officials

• International Travelers Warranty passport

English

Special considerations

Follow the same special considerations as when traveling with the computer. In addition, these tips are useful when traveling internationally:

• When traveling in another country, check that the local AC voltage and the

AC adapter power cord specifications are compatible. If not, purchase a power cord that is compatible with the local AC voltage. Do not use converter kits sold for appliances to power the computer.

• If you are using the modem, check if the modem and connector is

compatible with the telecommunications system of the country you are traveling in.

Securing your computer

English

Your computer is a valuable investment that you need to take care of. Learn how to protect and take care of your computer.

Security features include hardware and software locks — a security notch and passwords.

Using a computer security lock

A security keylock notch, located on the chassis of the computer, lets you connect a Kensington-compatible computer security lock.

Wrap a computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

Using passwords

Passwords protect your computer from unauthorized access. Setting these passwords creates several different levels of protection for your computer and data:

• Supervisor Password prevents unauthorized entry into the BIOS utility.

Once set, you must enter this password to gain access to the BIOS utility.

See "BIOS utility" on page 54.

• User Password secures your computer against unauthorized use. Combine

the use of this password with password checkpoints on boot-up and

resume from Hibernation for maximum security.

• Password on Boot secures your computer against unauthorized use.

Combine the use of this password with password checkpoints on boot-up

and resume from Hibernation for maximum security.

Important! Do not forget your Supervisor Password! If you forget your password, please get in touch with your dealer or an authorized service center.

Entering passwords

When a password is set, a password prompt appears in the center of the display screen.

• When the Supervisor Password is set, a prompt appears when you press

<F2> to enter the BIOS utility at boot-up.

• Type the Supervisor Password and press <Enter> to access the BIOS utility.

If you enter the password incorrectly, a warning message appears. Try again and press <Enter>.

• When the User Password is set and the password on boot parameter is

enabled, a prompt appears at boot-up.

• Type the User Password and press <Enter> to use the computer. If you

enter the password incorrectly, a warning message appears. Try again and press <Enter>.

Important! You have three chances to enter a password. If you fail to enter the password correctly after three tries, the system halts. Press and hold the power button for four seconds to shut down the computer. Then turn on the computer again, and try again.

Setting passwords

You can set passwords using the BIOS utility.

English

Expanding through options

English

Your notebook PC offers you a complete mobile computing experience.

Connectivity options

Ports allow you to connect peripheral devices to your computer as you would with a desktop PC. For instructions on how to connect different external devices to the computer, read the following section.

Fax/data modem

Your computer has a built-in V.92 56 Kbps fax/data modem.

Warning! This modem port is not compatible with digital phone lines. Plugging this modem into a digital phone line will damage the modem.

To use the fax/data modem port, connect a phone cable from the modem port to a telephone jack.

Warning! Please make sure that the cable you use is appropriate for the country in which you are working.

Built-in network feature

The built-in network feature allows you to connect your computer to an Ethernet-based network.

To use the network feature, connect an Ethernet cable from the Ethernet (RJ-45) port on the chassis of the computer to a network jack or hub on your network.

Universal Serial Bus (USB)

The USB 2.0 port is a high-speed serial bus which allows you to connect USB peripherals without taking up precious system resources.

English

PC Card slot

The Type II PC Card slot of the computer accepts PC Cards that enhance the usability and expandability of the computer. These cards should have a PC Card logo on them.

PC Cards (formerly PCMCIA) are add-on cards for portable computers, giving you expansion possibilities long afforded by desktop PCs. Popular PC Cards include flash, fax/data modem, wireless LAN and SCSI cards. CardBus improves on the 16-bit PC card technology by expanding the bandwidth to 32 bits.

Note: Refer to your card's manual for details on how to install and use the card, and its functions.

Inserting a PC Card

Insert the card into the slot and make the proper connections (e.g., network cable), if necessary. See your card manual for details.

Ejecting a PC Card

Before ejecting a PC Card:

1 Exit the application using the card. 2 Left-click on the PC Card icon on the taskbar and stop the card operation. 3 Press the slot eject button to pop out the eject button; then press it again

to eject the card.

Installing memory

Follow these steps to install memory:

1 Turn off the computer, unplug the AC adapter (if connected) and remove

the battery pack. Then turn the computer over to access its base.

2 Remove the screws from the memory cover; then lift up and remove the

memory cover.

3 (a) Insert the memory module diagonally into the slot, then (b) gently press

it down until it clicks into place.

4 Replace the memory cover and secure it with the screw. 5 Reinstall the battery pack, and reconnect the AC adapter. 6 Turn on the computer.

The computer automatically detects and reconfigures the total memory size. Please consult a qualified technician or contact your local Acer dealer.

English

BIOS utility

English

The BIOS utility is a hardware configuration program built into your computer's BIOS.

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run it.

To activate the BIOS utility, press <F2> during the POST; while the notebook PC logo is being displayed.

Boot sequence

To set the boot sequence in the BIOS utility, activate the BIOS utility, then select Boot from the categories listed at the top of the screen.

Enable disk-to-disk recovery

To enable disk-to-disk recovery (hard disk recovery), activate the BIOS utility, then select Main from the categories listed at the top of the screen. Find D2D Recovery at the bottom of the screen and use the <F5> and <F6> keys to set this value to Enabled.

Password

To set a password on boot, activate the BIOS utility, then select Security from the categories listed at the top of the screen. Find Password on boot: and use the <F5> and <F6> keys to enable this feature.

Using software

Playing DVD movies

When the DVD drive module is installed in the optical drive bay, you can play DVD movies on your computer.

1 Eject the DVD tray and insert a DVD movie disk; then close the DVD tray.

Important! When you launch the DVD player for the first time, the program asks you to enter the region code. DVD disks are divided into 6 regions. Once your DVD drive is set to a region code, it will play DVD disks of that region only. You can set the region code a maximum of five times (including the first time), after which the last region code set will remain permanent. Recovering your hard disk does not reset the number of times the region code has been set. Refer to the table below for DVD movie region code information.

2 The DVD movie will automatically play after a few seconds.

Region code Country or region 1 USA, Canada 2 Europe, Middle East, South Africa, Japan 3 Southeast Asia, Taiwan, South Korea 4 Latin America, Australia, New Zealand 5 Former USSR, parts of Africa, India 6 People's Republic of China

English

Note: To change the region code, insert a DVD movie of a different region into the DVD drive. Please refer to the online help for more information.

Power management

English

This computer has a built-in power management unit that monitors system activity. System activity refers to any activity involving one or more of the following devices: keyboard, mouse, hard disk, peripherals connected to the computer, and video memory. If no activity is detected for a period of time (called an inactivity timeout), the computer stops some or all of these devices in order to conserve energy.

This computer employs a power management scheme that supports the advanced configuration and power interface (ACPI), which allows for maximum power conservation and maximum performance at the same time. Windows handles all power-saving chores for your computer.

Acer eRecovery Management

Acer eRecovery Management is a tool to quickly backup and restore the system. You can create and save a backup of the current system configuration to hard disk, CD or DVD.

Acer eRecovery Management consists of the following functions: 1 Create backup 2 Restore from backup 3 Create factory default image CD, or burn bundled software to an

application CD 4 Re-install bundled software without CD 5 Change Acer eRecovery Management password

This chapter will guide you through each process.

Note: This feature is only available on certain models. For systems that do not have a built-in optical disk burner, plug in an external USB or IEEE 1394-compatible optical disk burner before entering Acer eRecovery Management for optical disk-related tasks.

Acer eRecovery Management requires a specific hard disk partitioning structure to function. If the system detects that the hard disk does not use this structure, Acer eRecovery Management functionality will be disabled.

Create backup

You can create and save backup images to hard disk, CD or DVD. 1 Boot to Windows XP 2 Press <Alt> + <F10> to open the Acer eRecovery Management utility. 3 Enter the password to proceed. The default password is six zeros. 4 In the Acer eRecovery Management window, select Recovery settings and

click Next.

5 In the Recovery settings window, select Backup snapshot image and

click Next.

6 Select the backup method.

aUse Backup to HDD to store the backup disk image on drive D:. b Backup to optical device to store the backup image on CD or DVD.

7 After choosing the backup method, click Next.

Follow the instructions on screen to complete the process.

Restore from backup

You can restore backups previously created (as stated in the Create backup section) from hard disk, CD or DVD.

1 Boot to Windows XP. 2 Press <Alt> + <F10> to open the Acer eRecovery Management utility. 3 Enter the password to proceed. The default password is six zeros. 4 In the Acer eRecovery Management window, select Recovery actions and

click Next.

5 Select the desired restore action and follow the onscreen instructions to

complete the restore process.

English

Note: The "Restore C:" item is enabled only if there is a user backup stored on the hard disk (D:\). Please refer to the Create backup section.

Create factory default image CD

English

When the System CD and Recovery CD are not available, you can create them by using this feature.

click Next. 5 In the Recovery settings window, select Burn image to disk and click Next. 6 In the Burn image to disk window, select 1. Factory default image or

2. Application CD and click Next.

7 Follow the instructions on screen to complete the process.

Note: Select 1. Factory default image when you want to burn a bootable disk that contains your computer's entire operating system as it was delivered to you from the factory. If you wish to have a disk that will allow you to browse the contents and install selected drivers and applications, select 2. Application CD — this disk will not be bootable.

Re-install bundled software without CD

Acer eRecovery Management stores pre-loaded software internally for easy driver and application re-installation.

click Next. 5 In the Recovery settings window, select Reinstall applications/drivers and

click Next. 6 Select the desired driver/application and follow the instructions on screen

to re-install.

At first launch, Acer eRecovery Management prepares all the needed software and may take few seconds to bring up the software content window.

Change password

Acer eRecovery Management and Acer disk-to-disk recovery are protected by a password that can be changed by the user. Follow the steps below to change the password in Acer eRecovery Management.

click Next.

5 In the Recovery settings window, select Password: Change Acer eRecovery

Management password and click Next.

6 Follow the instructions on screen to complete the process.

Note: If the system crashes, and will not boot to Windows, you can run Acer disk-to-disk recovery to restore the factory default image under DOS mode.

English

Troubleshooting

English

This chapter shows you how to deal with common system problems. Read it before calling a technician if a problem occurs. Solutions to more serious problems require opening up the computer. Do not attempt to open the computer yourself; contact your dealer or authorized service center for assistance.

Troubleshooting tips

This notebook PC incorporates an advanced design that delivers onscreen error message reports to help you solve problems.

If the system reports an error message or an error symptom occurs, see "Error messages" below. If the problem cannot be resolved, contact your dealer. See "Requesting service" on page 43.

Error messages

If you receive an error message, note the message and take the corrective action. The following table lists the error messages in alphabetical order together with the recommended course of action.

Error messages Corrective action

CMOS battery bad Contact your dealer or an authorized service center.

CMOS checksum error Contact your dealer or an authorized service center.

Disk boot failure Insert a system (bootable) disk into the floppy drive

(A:), then press <Enter> to reboot.

Equipment configuration error

Hard disk 0 error Contact your dealer or an authorized service center.

Hard disk 0 extended type error

I/O parity error Contact your dealer or an authorized service center.

Keyboard error or no keyboard connected

Keyboard interface error

Memory size mismatch Press <F2> (during POST) to enter the BIOS utility,

Press <F2> (during POST) to enter the BIOS utility, then press Exit in the BIOS utility to reboot.

Contact your dealer or an authorized service center.

then press Exit in the BIOS utility to reboot.

If you still encounter problems after going through the corrective measures, please contact your dealer or an authorized service center for assistance. Some problems may be solved using the BIOS utility.

English

Regulations and safety notices

English

ENERGY STAR guidelines compliance

As an ENERGY STAR partner, Acer Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Remarque à l'intention des utilisateurs canadiens

Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada.

Declaration of Conformity for EU countries

Hereby, Acer, declares that this notebook PC series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. (Please visit http://global.acer.com/products/notebook/reg-nb/index.htm complete documents.)

Compliant with Russian regulatory certification

for

English

Modem notices

Notice for USA

This equipment complies with Part 68 of the FCC rules. Located on the modem is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. Upon request, you must provide this information to your telephone company.

If your telephone equipment causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But, if advance notice is not practical, you will be notified as soon as possible. You will also be informed of your right to file a complaint with the FCC.

English

Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If this equipment should fail to operate properly, disconnect the equipment from the phone line to determine if it is causing the problem. If the problem is with the equipment, discontinue use and contact your dealer or vendor.

Caution: To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.

TBR 21

This equipment has been approved [Council Decision 98/482/EC - "TBR 21"] for single terminal connection to the Public Switched Telephone Network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact your equipment supplier in the first instance.

List of applicable countries

EU member states as of May 2004 are: Belgium, Denmark, Germany, Greece, Spain, France, Ireland, Italy, Luxembourg, the Netherlands, Austria, Portugal, Finland, Sweden, United Kingdom Estonia, Latvia, Lithuania, Poland, Hungary, Czech Republic, Slovak Republic, Slovenia, Cyprus and Malta. Usage allowed in the countries of European Union, as well as Norway, Switzerland, Iceland and Liechtenstein. This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact local office in the country of use.

Notice for Australia

For safety reasons, only connect headsets with a telecommunications compliance label. This includes customer equipment previously labelled permitted or certified.

Notice for New Zealand

1 The grant of a Telepermit for any item of terminal equipment indicates

only that Telecom has accepted that the item complies with minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of Telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom's network services.

2 This equipment is not capable, under all operating conditions, of correct

operation at the higher speeds for which it is designed. Telecom will accept no responsibility should difficulties arise in such circumstances.

3 Some parameters required for compliance with Telecom's Telepermit

requirements are dependent on the equipment (PC) associated with this device. The associated equipment shall be set to operate within the following limits for compliance with Telecom's Specifications:

a There shall be no more than 10 call attempts to the same number

within any 30 minute period for any single manual call initiation, and

b The equipment shall go on-hook for a period of not less than 30

seconds between the end of one attempt and the beginning of the next call attempt.

4 Some parameters required for compliance with Telecom's Telepermit

requirements are dependent on the equipment (PC) associated with this device. In order to operate within the limits for compliance with Telecom's specifications, the associated equipment shall be set to ensure that automatic calls to different numbers are spaced such that there is not less than 5 seconds between the end of one call attempt and the beginning of another.

5 This equipment shall not be set up to make automatic calls to Telecom's

111 Emergency Service.

6 This device is equipped with pulse dialing while the Telecom standard is

DTMF tone dialing. There is no guarantee that Telecom lines will always continue to support pulse dialing.

7 Use of pulse dialing, when this equipment is connected to the same line as

other equipment, may give rise to bell tinkle or noise and may also cause a false answer condition. Should such problems occur, the user should NOT contact the telecom Fault Service.

8 This equipment may not provide for the effective hand-over of a call to

another device connected to the same line.

9 Under power failure conditions this appliance may not operate. Please

ensure that a separate telephone, not dependent on local power, is available for emergency use.

English

Laser compliance statement

The CD or DVD drive used with this computer is a laser product. The CD or DVD drive's classification label (shown below) is located on the drive.

CLASS 1 LASER PRODUCT CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1 VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHLL AUSSETZEN

PRODUCTO LÁSER DE LA CLASE I ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO. EVITE EXPONERSE A LOS RAYOS.

ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN. VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.

VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ TUIJOTA SÅTEESEENSTIRRA EJ IN I STRÅLEN

VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ IN I STRÅLEN

ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I STRÅLEN

LCD pixel statement

The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction.

Macrovision copyright protection notice

"U.S Patent Nos. 4,631,603; 4,819,098; 4,907,093; 5,315,448; and 6,516,132." This product incorporates copyright protection technology that is protected by

U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Radio device regulatory notice

Note: Below regulatory information is for models with wireless LAN and/or Bluetooth only.

General

This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules). Below information is for products with such devices.

European Union (EU)

This device complies with the essential requirements of the European Council Directives listed below:

73/23/EEC Low Voltage Directive

• EN 60950-1 89/336/EEC Electromagnetic Compatibility (EMC) Directive

• EN 55022

• EN 55024

• EN 61000-3-2/-3

99/5/EC Radio & Telecommunications Terminal Equipment (R&TTE) Directive

• Art.3.1a) EN 60950-1

• Art.3.1b) EN 301 489 -1/-17

• Art.3.2) EN 300 328-2

• Art.3.2) EN 301 893 *applies to 5 GHz only

English

List of applicable countries

The FCC RF safety requirement

The radiated output power of the wireless LAN Mini PCI Card/ Mini Card and Bluetooth card is far below the FCC radio frequency exposure limits. Nevertheless, the notebook PC series shall be used in such a manner that the potential for human contact during normal operation is minimized as follows:

1 Users are requested to follow the RF safety instructions on wireless option

devices that are included in the user's manual of each RF option device.

Caution: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm (8 inches) must be maintained between the antenna for the integrated wireless LAN Mini PCI Card/ Mini Card built in to the screen section and all persons.

Note: The Acer wireless Mini PCI Card/ Mini Card adapter implements a transmission diversity function. The function does not emit radio frequencies simultaneously from both antennas. One of the antennas is selected automatically or manually (by users) to ensure good quality radiocommunication.

2 This device is restricted to indoor use due to its operation in the 5.15 to

5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems.

3 High power radar are allocated as primary users of the 5.25 to 5.35 GHz

and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.

4 An improper installation or unauthorized use may cause harmful

interference to radio communications. Also any tampering of the internal antenna will void the FCC certification and your warranty.

Canada — Low-power license-exempt radio communication devices (RSS-210)

a Common information

Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired operation of the device.

b Operation in 2.4 GHz band

To prevent radio interference to the licensed service, this device is intended to be operated indoors and installation outdoors is subject to licensing.

c Operation in 5 GHz band

• The device for the band 5150-5250 MHz is only for indoor usage to reduce

potential for harmful interference to co-channel Mobile Satellite systems.

• High power radars are allocated as primary users (meaning they have

priority) of 5250-5350 MHz and 5650-5850 MHz and these radars could cause interference and/or damage to LELAN (Licence-Exempt Local Area Network) devices.

English

Federal Communications Comission

Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

The following local manufacturer/importer is responsible for this declaration:

Product name: Notebook PC

Model number: MS2180

Machine type: Aspire 3640

SKU number: Aspire 364xxx

("x" = 0 - 9, a - z, or A - Z)

Name of responsible party: Acer America Corporation

Address of responsible party: 2641 Orchard Parkway

Contact person: Mr. Young Kim

Tel: 408-922-2909

Fax: 408-922-2606

San Jose, CA 95134 USA

Declaration of Conformity for CE Marking

Name of manufacturer: Beijing Acer Information Co., Ltd. Address of

manufacturer: Contact person: Mr. Easy Lai Tel: 886-2-8691-3089 Fax: 886-2-8691-3000 E-mail: easy_lai@acer.com.tw Declares that product: Notebook PC Trade name: Acer Model number: MS2180 Machine type: Aspire 3640 SKU number: Aspire 364xxx ("x" = 0 - 9, a - z, or A - Z)

Is in compliance with the essential requirements and other relevant provisions of the following EC directives.

Reference no. Title

89/336/EEC Electromagnetic Compatibility (EMC directive)

73/23/EEC Low Voltage Directive (LVD)

Huade Building, No.18, ChuangYe Rd. ShangDi Zone, HaiDian District Beijing PRCE marking

English

1999/5/EC Radio & Telecommunications Terminal Equipment

The product specified above was tested conforming to the applicable Rules under the most accurate measurement standards possible, and all the necessary steps have been taken and are in force to assure that production units of the same product will continue to comply with these requirements.

Easy Lai, Director Date Regulation Center Environment & Safety

Directive (R&TTE)

04/2006

LCD panel ergonomic specifications

English

Design viewing distance 500 mm Design inclination angle 0.0° Design azimuth angle 90.0° Viewing direction range class Class IV Screen tilt angle 85.0° Design screen illuminance • Illuminance level:

α)] lx where α = 85°

• Color: Source D65

Reflection class of LCD panel (positive and negative polarity)

Image polarity Both Reference white:

Pre-setting of luminance and color temperature @ 6500K (tested under BM7)

Pixel fault class Class II

• Ordinary LCD: Class I

• Protective or Acer CrystalBrite

• Yn

• u'n

• v'n

[250 + (250cos

Class III

™

LCD:

Index

AC adapter

caring for v

audio

adjusting the volume 33 troubleshooting 38

battery pack

caring for vi BIOS utility 53 brightness

hotkeys 30

caps lock 27

on indicator 23 care

AC adapter v

battery pack vi

computer v CD-ROM

ejecting manually 38

troubleshooting 38 cleaning

computer vi computer

caring for v

cleaning vi

disconnecting 41

features 11, 34

indicators 23

keyboards 27

moving around 41

on indicator 12, 23

security 45

setting up a home office 43

taking home 42

traveling internationally 44

traveling on local trips 43

troubleshooting 59

turning off v connections

network 48

display

hotkeys 29

troubleshooting 37 DVD 54 DVD movies

playing 54

error messages 59 Euro 31

FAQ. See frequently-asked questions frequently-asked questions 37 front view 12

Hibernation mode

hotkey 29 hotkeys 29

IEEE 1394 port 49 infrared 48

keyboard 27

embedded numeric keypad 27

hotkeys 29

lock keys 27

troubleshooting 38

Windows keys 28

left view 12

media access

on indicator 23 memory

installing 52 messages

error 59 modem 47

network 48 Notebook Manager

hotkey 29

English

num lock 27

on indicator 23

numeric keypad

embedded 27

password 45

types 45

PC Card 50

ejecting 50

inserting 50 ports 47 printer

troubleshooting 38 problems 37

CD-ROM 38

display 37

keyboard 38

printer 38

startup 37

troubleshooting 59

questions

setting location for modem use

safety

CD or DVD 67

FCC notice 61

general instructions 65

modem notices 62 scroll lock 27

security

keylock 32, 45 passwords 45

speakers

hotkey 30 troubleshooting 38

support

information 40

touchpad 25

hotkey 30 using 25– 26

travel

international flights 44 local trips 43

troubleshooting 59

tips 59

universal serial bus 49

view

front 14 left 14 rear 16 right 15

volume

adjusting 33

Windows keys 28

Acer Aspire 3640 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Information for your safety and comfort

Safety instructions

Disposal instructions

Tips and information for comfortable use

First things first

Your guides

Basic care and tips for using your computer

Contents

Acer Empowering Technology

Empowering Technology password

Acer ePower Management

Acer ePresentation Management

Acer eLock Management

Acer eRecovery Management

Acer eSettings Management

Acer ePerformance Management

Your Acer notebook tour

Front view

Closed front view

Left view

Right view

Rear view

Base view

Specifications

Indicators

Easy-launch buttons

Touchpad

Touchpad basics

Using the keyboard

Lock keys and embedded numeric keypad

Windows keys

Hotkeys

Special key

Ejecting the optical (CD or DVD) drive tray

Using a computer security lock

Audio

Adjusting the volume

Acer OrbiCam (for selected models)

Launching the Acer OrbiCam

Using the Acer OrbiCam as webcam

Using the system utilities

Acer GridVista (dual-display compatible)

Launch Manager

Norton AntiVirus

Frequently asked questions

Requesting service

Taking your notebook PC with you

Disconnecting from the desktop

Moving around

Taking the computer home

Traveling with the computer

Traveling internationally with the computer

Securing your computer

Using a computer security lock

Using passwords

Expanding through options

Connectivity options

BIOS utility

Boot sequence

Enable disk-to-disk recovery

Password

Using software

Power management

Acer eRecovery Management

Create backup

Restore from backup

Create factory default image CD

Re-install bundled software without CD

Change password

Troubleshooting

Troubleshooting tips

Error messages

Regulations and safety notices

ENERGY STAR guidelines compliance

FCC notice

Modem notices
