Aspire 3600/5500 Series

User's Guide

Page 2

Aspire 3600/5500 Series User's Guide Original Issue: May 2005

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date, and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number, and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording, or otherwise, without the prior written permission of Acer Incorporated.

Aspire 3600/5500 Series Notebook Computer

Model number: __________________________________

Serial number: ___________________________________

Purchase date: ___________________________________

Place of purchase: ________________________________

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

Page 3

First things first

We would like to thank you for making the Aspire series of notebook computers your choice for meeting your mobile computing needs.

Your guides

To help you use your Aspire, we have designed a set of guides:

First off, the Just for Starters... poster helps you get started with setting up your computer.

The printed User's Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the AcerSystem User's Guide. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options, and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook. Follow these steps to access it: 1 Click on Start, All Programs, AcerSystem.

2 Click on AcerSystem User's Guide. Note: Viewing the file requires Adobe Acrobat Reader. If Adobe Acrobat Reader is not installed on your computer, clicking on

AcerSystem User's Guide will run the Acrobat Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Acrobat Reader, access the Help and Support menu.

iii

Basic care and tips for using your computer

Turning your computer on and off

To turn on the computer, simply press and release the power button below the LCD screen beside the Easy-launch buttons. See "Front view" on page 1 for the location of the power button.

To turn the power off, do any of the following:

• Use the Windows shutdown command

Click on Start, Turn Off Computer, then click on Turn Off.

Page 4

• Use the power button

Note: You can also use the power button to perform power management functions.

• Use the customized functions for power management

You can also shut down the computer by closing the display cover, or by pressing the sleep hotkey <Fn> + <F4>.

Note: If you cannot power off the computer normally, press and hold the power button for more than four seconds to shut down the computer. If you turn off the computer and want to turn it on again, wait at least two seconds before powering up.

Taking care of your computer

Your computer will serve you well if you take care of it.

• Do not expose the computer to direct sunlight. Do not place it near sources

of heat, such as a radiator.

• Do not expose the computer to temperatures below 0 ºC (32 ºF) or above

50 ºC (122 ºF).

• Do not subject the computer to magnetic fields.

• Do not expose the computer to rain or moisture.

• Do not spill water or any liquid on the computer.

• Do not subject the computer to heavy shock or vibration.

• Do not expose the computer to dust or dirt.

• Never place objects on top of the computer.

• Do not slam the computer display when you close it.

• Never place the computer on uneven surfaces.

Taking care of your AC adapter

Here are some ways to take care of your AC adapter:

• Do not connect the adapter to any other device.

• Do not step on the power cord or place heavy objects on top of it.

Carefully route the power cord and any cables away from foot traffic.

• When unplugging the power cord, do not pull on the cord itself but pull

on the plug.

Page 5

• The total ampere ratings of the equipment plugged in should not exceed

the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

Taking care of your battery pack

Here are some ways to take care of your battery pack:

• Use only batteries of the same kind as replacements. Turn the power off

before removing or replacing batteries.

• Do not tamper with batteries. Keep them away from children.

• Dispose of used batteries according to local regulations. Recycle if possible.

Cleaning and servicing

When cleaning the computer, follow these steps: 1 Turn off the computer and remove the battery pack. 2 Disconnect the AC adapter.

3 Use a soft, moist cloth. Do not use liquid or aerosol cleaners. If either of the following occurs:

• the computer has been dropped or the body has been damaged;

• the computer does not operate normally

please refer to "Frequently asked questions" on page 22.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Users are requested to follow the RF safety instructions for wireless option devices that are included in the user's manual of each RF option device.

An improper installation or unauthorized use may cause harmful interference to radio communications. Also, any tampering of the internal antenna will void the FCC certification and your warranty.

To prevent radio interference to the licensed service, this device is intended to be operated indoors, and installation outdoors is subject to licensing.

For more information about our products, services, and support information, please visit our website: http://global.acer.com

Page 6

First things first iii

Your guides iii Basic care and tips for using your computer iii

Turning your computer on and off iii Taking care of your computer iv Taking care of your AC adapter iv Taking care of your battery pack v Cleaning and servicing v

An Aspire tour 1

Front view 1 Closed front view 2 Left view 3 Right view 4 Rear view 4 Base view 5

Specifications 6 Indicators 9 Easy-launch buttons 10 Touchpad 11

Touchpad basics 11

Using the keyboard 13

Lock keys and embedded numeric keypad 13 Windows keys 14 Hotkeys 14 Special keys 16

Ejecting the optical (CD or DVD) drive tray 17 Using a computer security lock 17 Audio 18

Adjusting the volume 18

Using the system utilities 19

Acer eManager 19 Acer GridVista (dual-display compatible) 20 Launch Manager 21

Frequently asked questions 22

Requesting service 25

International Travelers Warranty (ITW) 25 Before you call 25

Page 7

Acer Arcade (for selected models) 27

Arcade hotkeys 28 Finding and playing content 29

Settings 29

Arcade controls 29

Navigation controls 30 Player controls 30

Cinema 30

DVD settings 31

Album 32

Slideshow settings 33

Video 33

Playing a video file 33 Video authoring 34

Music 34 Burner 35

Copy — Back up your CD/DVD collection 35 Audio — Create your own greatest hits CDs 35 Data — Store files simply and easily 35 Video — Your world in pictures 35

Taking your notebook PC with you 36

Disconnecting from the desktop 36 Moving around 36

Preparing the computer 36 What to take to short meetings 37 What to take to long meetings 37

Taking the computer home 37

Preparing the computer 37 What to take with you 38 Special considerations 38 Setting up a home office 38

Traveling with the computer 38

Preparing the computer 38 What to take with you 39 Special considerations 39

Traveling internationally with the computer39

Preparing the computer 39 What to bring with you 39 Special considerations 40

Page 8

Securing your computer 40

Using a computer security lock 40 Using passwords 40

Entering passwords 41 Setting passwords 41

Expanding through options 42

Connectivity options 42

Fax/data modem 42 Built-in network feature 43 Fast Infrared (selected models only) 43 Universal Serial Bus (USB) 44 IEEE 1394 port (selected models only) 44 PC Card slot 45

BIOS utility 46

Boot sequence 46 Enable disk-to-disk recovery 47 Password 47

Using software 47

Playing DVD movies 47

Power management 48 Acer eRecovery 49

Create backup 49 Restore from backup 50 Create factory default image CD 50 Re-install bundled software without CD 50 Change password 51

Troubleshooting 52

Troubleshooting tips 52 Error messages 52

Regulations and safety notices 54

ENERGY STAR guidelines compliance 54 FCC notice 54 Modem notices 56 Important safety instructions 59

Page 9

An Aspire tour

After setting up your computer as illustrated in the Just for Starters... poster, let us show you around your new Aspire computer.

Front view

English

# Item Description 1 Display screen Also called Liquid-Crystal Display (LCD), displays

computer output. 2 Power button Turns the computer on and off. 3 Easy-launch

buttons

4 Microphone Internal microphone for sound recording.

Buttons for launching frequently used programs.

See "Easy-launch buttons" on page 10 for more

details.

Page 10

English

# Item Description 5 Status indicators Light-Emitting Diodes (LEDs) that turn on and off to

show the status of the computer's functions and components.

6 Palmrest Comfortable support area for your hands when you

7 Click buttons (Left,

center, and right)

8 Touchpad Touch-sensitive pointing device which functions like

9 Keyboard For entering data into your computer.

use the computer. The left and right buttons function like the left and

right mouse buttons, the center button serves as a 4way scroll button.

a computer mouse.

Closed front view

# Icon Item Description 1 Speaker-out/line-out/

Headphone jack

2 Mic-in jack Accepts inputs from external

3 Speakers Left and right speakers deliver stereo

4Bluetooth

communication button/indicator

5 Wireless

communication button/indicator

6 Power indicator Lights up when the computer is on.

Connects to audio line-out devices (e.g., speakers, headphones).

microphone.

audio output. Press to enable/disable the Bluetooth

function. Indicates the status of Bluetooth communication (optional).

Press to enable/disable the wireless function. Indicates the status of wireless LAN communication.

Page 11

# Icon Item Description 7 Battery indicator Lights up when the battery is being

charged.

Left view

# Icon Item Description 1 External display

port

2 S-video out port Connects to a television or display

3 Network jack Connects to an Ethernet 10/100/1000

4 Modem jack Connects to a phone line.

Connects to a display device (e.g., external monitor, LCD projector).

device with S-video input. (selected models only)

based network (depending on model).

English

5 Two USB 2.0 ports Connect to USB 2.0 devices

(e.g., USB mouse, USB camera).

6 IEEE 1394 port Connects to IEEE 1394 devices.

(selected models only)

7 PC Card slot Accepts one Type II PC Card.

(selected models only)

8 5-in-1 card reader Accepts an MS, MS PRO, MMC, SD, or

xD-Picture card (selected models only). Note: Only one card can operate at any given time.

(selected models only)

9 Infrared port Interfaces with infrared devices

e.g., infrared printer and IR-aware computer. (selected models only)

Page 12

English

# Icon Item Description 10 PC Card slot eject

button

Ejects the PC Card from the slot.

Right view

# Icon Item Description 1 Optical drive

eject button 2 LED indicator Lights up when the optical drive is active. 3 Optical drive Internal optical drive; accepts CDs or DVDs

4 Ventilation

slots 5Security

keylock

Ejects the optical drive tray from the drive.

depending on the optical drive type. (slot or tray design, depending on model)

Enable the computer to stay cool, even after prolonged use.

Connects to a Kensington-compatible computer security lock.

Rear view

# Icon Item Description 1 Battery Powers the computer.

Page 13

# Icon Item Description 2 Power jack Connects to an AC adapter.

3 USB 2.0 port Connects to USB 2.0 devices (e.g., USB

mouse, USB camera).

Base view

# Item Description 1 Battery bay Houses the computer's battery pack. 2 Battery lock Locks the battery in position. 3 Cooling fan Helps keep the computer cool.

Note: Do not cover or obstruct the opening of the fan.

4Memory

compartment 5 Hard disk bay Houses the computer's hard disk (secured by a screw). 6 Battery release

latch

Houses the computer's main memory and mini PCI Card.

Releases the battery for removal.

English

Page 14

Specifications

English

Operating system

Microsoft

Windows® XP Home Edition (Service Pack 2)

Platform Aspire 3600

Intel

Pentium® M processor 725

(2 MB L2 cache, 1.6 GHz, 400 MHz FSB)

Intel

Celeron® M processor 350/360/370 or above (1 MB L2 cache, 1.3/1.4/1.5 GHz or above , 400 MHz FSB)

Intel

910GML Express chipset

Aspire 5500

Intel

Pentium® M processor 730/740/750/760/770 (2 MB L2 cache, 1.6/1.73/1.86/2.0/2.13 GHz, 533 MHz FSB)

Intel

Pentium® M processor 725 (2 MB L2 cache, 1.6 GHz, 400 MHz FSB)

Intel

915PM Express chipset

System memory 256/512 MB of DDR2 400/533 memory, upgradeable to

2 GB using two soDIMM modules

Display and graphics

14.1" WXGA Acer CrystalBrite color TFT LCD: 1280 x 800 resolution

16.7 million colors Aspire 3600

Aspire 5500

Intel

910GML integrated 3D graphics, featuring

Intel

Graphics Media Accelerator 900 and up to 128 MB of VRAM, supporting Microsoft

ATI MOBILITY of DDR video RAM, supporting ATI POWERPLAY Microsoft

™

RADEON® X700 with 64 MB or above

DirectX® 9.0 and PCI Express

DirectX® 9.0

™

5.0,

Dualview™ support

S-video/TV-out support Dual independent display support MPEG-2/DVD hardware-assisted capability

Storage subsystem

40/60/80 GB or larger ATA/100 hard disk drive Optical drive options: Aspire 3600

DVD-Dual double layer DVD/CD-RW combo

Aspire 5500

DVD-Dual slot loading type double layer DVD/CD-RW combo

Page 15

Dimensions and weight

335 (W) x 240 (D) x 31.9/34.1 (H) mm (13.2 x 9.45 x 1.26/1.34 inches)

2.38 kg (5.25 lbs.)

Power subsystem

ACPI 1.0b power management standard: supports Standby and Hibernation power-saving modes

53.6 W (6-cell) and 80.3 W (9-cell) Li-ion battery packs (for Aspire 5500)

• 3-hour battery life for models using ATI MOBILITY

RADEON

X700 (6-cell)

44.6 W (6-cell) Li-ion battery pack (for Aspire 3600)

• 2.5-hour battery life

2.5-hour rapid charge, 3.5-hour charge-in-use 3-pin 65 W AC adapter

Input devices 84-/85-key keyboard

Touchpad with 4-way integrated scroll button Four easy-launch buttons Two front-panel buttons: WLAN LED-button and

Bluetooth

Audio Audio system with two built-in speakers

Sound Blaster Pro Built-in microphone S/PDIF (Sony/Philips Digital Interface) support

Communication Modem: 56K ITU V.92 with PTT approval;

Wake-on-Ring ready LAN: 10/100 Mbps (Aspire 3600) or gigabit (Aspire 5500) Ethernet; Wake-on-LAN ready WLAN: Aspire 3600

Aspire 5500

WPAN: integrated Bluetooth

LED-button

™

and MS-Sound compatible

Integrated 802.11b/g Wi-Fi

CERTIFIED™ solution

supporting Acer SignalUp wireless technology support

Integrated Intel

PRO/Wireless 2200BG network

connection (dual band 802.11b/g) Wi-Fi solution supporting Acer SignalUp wireless technology support

CERTIFIED™

English

™

Page 16

English

I/O interface Three USB 2.0 ports

IEEE 1394 port (depending on model) Ethernet (RJ-45) port Modem (RJ-11) port External display (VGA) port S-video/TV-out (NTSC/PAL) port (depending on model) Microphone/line-in jack Headphones/speaker/line-out port with S/PDIF support Infrared (FIR) Port (depending on model) Type II PC Card slot 5-in-1 card reader (MS/MS PRO/MMC/SD/XD) (depending on model) DC-in jack for AC adapter

Security Kensington lock slot

BIOS user and supervisor passwords

Software Acer eManager (eSettings/ePresentation/

ePowerManagement/eNetManagement/eRecovery) Acer GridVista Acer Arcade Acer Launch Manager Acer System Recovery CD

™

soDIMM memory

Options and accessories

Norton AntiVirus Adobe® Reader CyberLink® PowerDVD NTI CD-Maker

512 MB or 1 GB External USB floppy disk drive 9-cell Li-ion battery pack 65 W AC adapter

Environment Temperature:

• Operating: 5° C to 35° C

• Non-operating: -20° C to 65° C

Humidity (non-condensing):

• Operating: 20% to 80%

• Non-operating: 20% to 80%

System compliance

Cisco Compatible Extensions (CCX) Mobile PC 2001 ACPI 1.0b DMI 2.0

Warranty One-year International Travelers Warranty (ITW)

Note: The specifications listed above are for reference only. The exact configuration of your PC depends on the model purchased.

Page 17

Indicators

The computer has three easy-to-read status indicators on the upper-left above the keyboard, and four on the front panel.

The power, battery, and wireless communication status indicators are visible even when the LCD display is closed.

Icon Function Description

Caps Lock Lights up when Caps Lock is activated.

Num Lock Lights up when Num Lock is activated.

Media activity Indicates when the hard disk or optical drive is active.

English

Bluetooth Indicates the status of Bluetooth communication.

Wireless LAN Indicates the status of wireless LAN communication.

Power Lights up when the computer is on.

Battery Lights up when the battery is being charged.

1. Charging: The light shows amber when the battery is charging.

2. Fully charged: The light shows green when in AC mode.

Page 18

Easy-launch buttons

English

Located at the upper-left, above the keyboard are four buttons. These buttons are called Easy-launch buttons. They are: mail, Web browser, Acer Empowering

Key " " and one user-programmable button.

Press " " to run the Acer eManager. Please see "Acer eManager" on page 19. The mail and Web buttons are pre-set to email and Internet programs, but can

be reset by users. To set the Web browser, mail and programmable keys, run the Acer Launch Manager. See "Launch Manager" on page 21.

Launch key Default application Mail Email application (user-programmable) Web browser Internet browser (user-programmable)

Acer eManager (user-programmable)

User-programmable

Page 19

Touchpad

The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your finger across the surface of the touchpad. The central location on the palmrest provides optimum comfort and support.

Touchpad basics

The following items show you how to use the touchpad:

English

• Move your finger across the touchpad (2) to move the cursor.

• Press the left (1) and right (4) buttons located beneath the touchpad to

perform selection and execution functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the touchpad is the same as clicking the left button.

• Use the 4-way scroll (3) button to scroll up or down and move left or right

a page. This button mimics your cursor pressing on the right scroll bar of Windows applications.

Page 20

English

Function Left button (1)

Execute Quickly click

twice.

Select Click once. Tap once. Drag Click and hold,

then use finger on the touchpad to drag the cursor.

Access context menu

Scroll Click and

Note: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean. The touchpad is sensitive to finger movement; hence, the lighter the touch, the better the response. Tapping harder will not increase the touchpad's responsiveness.

Right button (4)

Click once.

Main touchpad (2)

Tap twice (at the same speed as double-clicking a mouse button).

Tap twice (at the same speed as double-clicking a mouse button); rest your finger on the touchpad on the second tap and drag the cursor.

Center button (3)

hold to move up/down/ left/right.

Page 21

Using the keyboard

The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys and 12 function keys.

Lock keys and embedded numeric keypad

The keyboard has three lock keys which you can toggle on and off.

Lock key Description Caps Lock When Caps Lock is on, all alphabetic characters typed are

Num Lock <Fn> + <F11>

Scroll Lock <Fn> + <F12>

in uppercase. When Num Lock is on, the embedded keypad is in numeric

mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.

English

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired access Num Lock on Num Lock off Number keys on

embedded keypad Cursor-control keys on

embedded keypad Main keyboard keys Hold <Fn> while typing

Type numbers in a normal manner.

Hold <Shift> while using cursor-control keys.

letters on embedded keypad.

Hold <Fn> while using cursor-control keys.

Type the letters in a normal manner.

Page 22

English

Windows keys

The keyboard has two keys that perform Windows-specific functions.

Key Description

Windows key

Application key

Pressed alone, this key has the same effect as clicking on the Windows Start button; it launches the Start menu. It can also be used with other keys to provide a variety of functions:

< > + <Tab> Activates the next Taskbar button.

< > + <E> Opens the My Computer window.

< > + <F1> Opens Help and Support.

< > + <F> Opens the Find: All Files dialog box.

<> + <R> Opens the Run dialog box.

< > + <M> Minimizes all windows.

<Shift> + < > + <M> Undoes the minimize all windows action. This key has the same effect as clicking the right mouse

button; it opens the application's context menu.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness, volume output and the BIOS utility.

To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey combination.

Page 23

Hotkey Icon Function Description <Fn> + <F1> Hotkey help Displays help on hotkeys.

English

<Fn> + <F2> Acer

eSettings

<Fn> + <F3> Acer ePower-

Management

<Fn> + <F4> Sleep Puts the computer in Sleep mode.

<Fn> + <F5> Display

toggle

<Fn> + <F6> Screen blank Turns the display screen backlight off to

<Fn> + <F7> Touchpad

toggle

<Fn> + <F8> Speaker

toggle

<Fn> + <↑> Volume up Increases the sound volume.

<Fn> + <↓> Volume down Decreases the sound volume.

<Fn> + <→> Brightness up Increases the screen brightness.

<Fn> + <←> Brightness

down

Launches Acer eSettings in Acer eManager. See "Acer eManager" on page 19.

Launches Acer ePowerManagement in Acer eManager. See "Acer eManager" on page 19.

Switches display output between the display screen, external monitor (if connected) and both.

save power. Press any key to return. Turns the internal touchpad on and off.

Turns the speakers on and off.

Decreases the screen brightness.

Page 24

English

Special keys

You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your keyboard. To type:

The Euro symbol

1 Open a text editor or word processor. 2 Either directly press the <Euro> key at the bottom-right of the keyboard,

or hold <Alt Gr> and then press the <5> key at the upper-center of the keyboard.

Note: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/typography/faq/faq12.htm more information.

for

The US dollar sign

1 Open a text editor or word processor. 2 Either directly press the <Dollar> key at the bottom-right of the keyboard,

or hold <Shift> and then press the <4> key at the upper-center of the keyboard.

Note: This function varies according to the language settings.

Page 25

Ejecting the optical (CD or DVD) drive tray

To eject the optical drive tray when the computer is turned on, press the drive eject button.

When the power is off, you can eject the drive tray by using the emergency eject hole (tray design drives only.)

Using a computer security lock

A security keylock notch, located on the chassis of the computer, lets you connect a Kensington-compatible computer security lock.

English

Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

Page 26

Audio

English

The computer comes with 16-bit high-fidelity AC'97 stereo audio, and dual stereo speakers.

Adjusting the volume

Adjusting the volume on the computer is as easy as pressing some buttons. See "Hotkeys" on page 14 for more information on adjusting the speaker volume.

Page 27

Using the system utilities

Acer eManager

The innovative Acer eManager software is designed for easy access to frequently used functions. Press " " to launch the Acer eManager user

interface, which features five main settings: Acer ePowerManagement, Acer eNetManagement, Acer ePresentation, Acer eRecovery and Acer eSettings.

To set the " " key, see "Easy-launch buttons" on page 10.

Acer ePowerManagement (on selected models) Provides a central location from which to control all your PC's power schemes and maximize battery life.

Acer eNetManagement (on selected models) Helps you to quickly and easily connect to networks in a variety of locations.

Acer ePresentation Simplifies resolution settings when connecting to a projector.

English

Acer eRecovery Creates backups and recovers system configurations reliably.

Acer eSettings Makes managing system settings and security easy.

For more information, open Acer eManager, click on the appropriate application and select the Help function.

Page 28

English

Note: When recovering your system using a CD or Acer eRecovery, detach all peripherals, including your Acer ezDock, to ensure the best results.

Acer GridVista (dual-display compatible)

Note: This feature is only available on certain models.

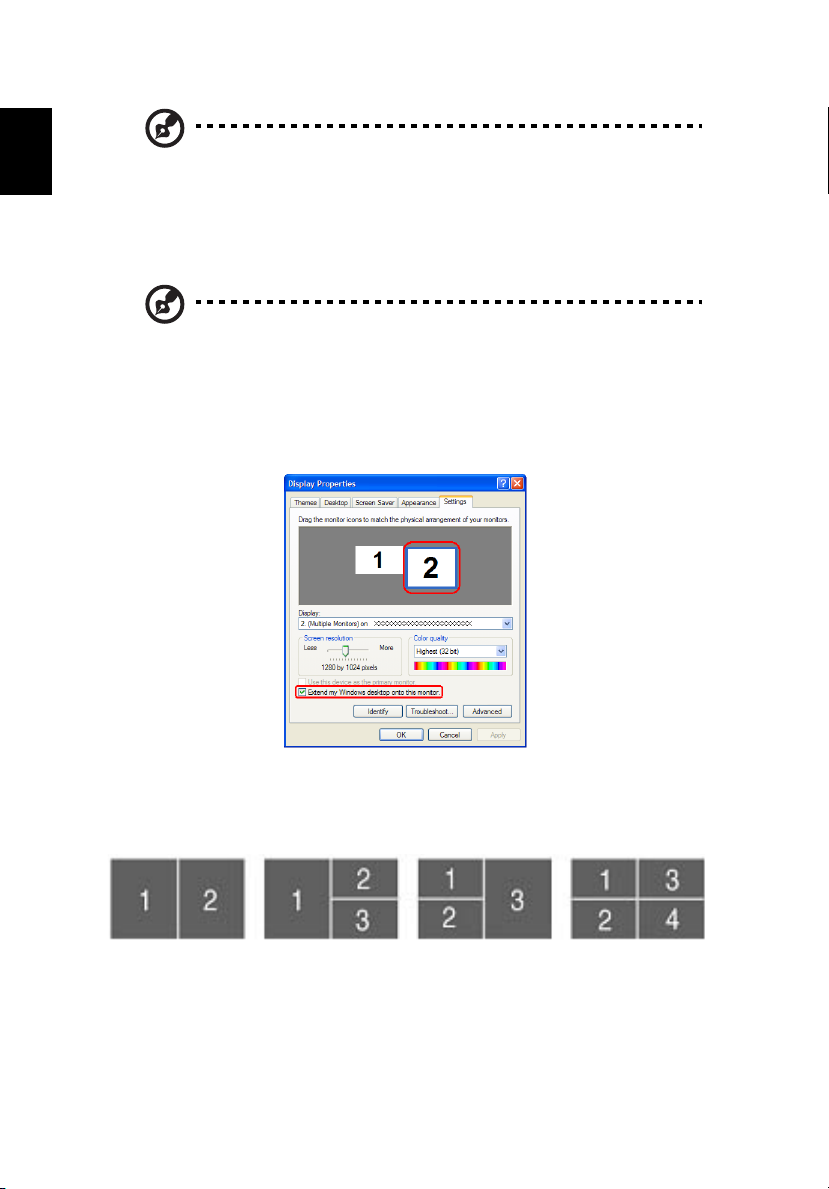

To enable the dual monitor feature of your notebook, first ensure that the second monitor is connected, then, select Start, Control Panel, Display and click on Settings. Select the secondary monitor (2) icon in the display box and then click the check box Extend my windows desktop onto this monitor. Finally, click Apply to confirm the new settings and click OK to complete the process.

Acer GridVista is a handy utility that offers four pre-defined display settings so you can view multiple windows on the same screen. To access this function, please go to Start, All Programs and click on Acer GridVista. You may choose any one of the four display settings indicated below:

Double (vertical), Triple (primary at left), Triple (primary at right), or Quad Acer Gridvista is dual-display compatible, allowing two displays to be

partitioned independently. Acer GridVista is simple to set up:

Page 29

1 Run Acer GridVista and select your preferred screen configuration for each

display from the taskbar. 2 Drag and drop each window into the appropriate grid. 3 Enjoy the convenience of a well-organized desktop.

Note: Please ensure that the resolution setting of your second monitor is set to the manufacturer's recommended value.

Launch Manager

English

Launch Manager allows you to set the four Easy-launch buttons located above the keyboard. See "Easy-launch buttons" on page 10 for the location of the Easy-launch buttons.

You can access the Launch Manager by clicking on Start, All Programs, and then Launch Manager to start the application.

Page 30

Frequently asked questions

English

The following is a list of possible situations that may arise during the use of your computer. Easy solutions are provided for each one.

I pressed the power button and opened the display, but the computer does not start or boot-up.

Look at the power indicator:

• If it is not lit, no power is being supplied to the computer. Check the

following:

• If you are using on the battery, it may be low and unable to power

the computer. Connect the AC adapter to recharge the battery pack.

• Make sure that the AC adapter is properly plugged into the computer

and to the power outlet.

• If it is lit, check the following:

• Is a non-bootable (non-system) disk in the external USB floppy drive?

Remove or replace it with a system disk and press <Ctrl> + <Alt> + <Del> to restart the system.

Nothing appears on the screen.

The computer's power management system automatically blanks the screen to save power. Press any key to turn the display back on.

If pressing a key does not turn the display back on, three things might be the cause:

• The brightness level might be too low. Press <Fn> + <→> (increase) to

adjust the brightness level.

• The display device might be set to an external monitor. Press the display

toggle hotkey <Fn> + <F5> to toggle the display back to the computer.

• If the Sleep indicator is lit, the computer is in Sleep mode. Press and release

the power button to resume.

Image is not full-screen.

Each computer display has a different native resolution depending on the screen. If you set the resolution lower than this native resoution, the screen expands to fill the computer display. Right-click on your Windows desktop and select Properties to bring up the "Display Properties" dialog box. Then click on the Settings tab to make sure that the resolution is set to the appropriate resolution. Resolutions lower than the specified resolution are not full-screen on the computer or on an external monitor.

Page 31

No audio is heard from the computer.

Check the following:

• The volume may be muted. In Windows, look at the volume control

(speaker) icon on the taskbar. If it is crossed-out, click on the icon and

deselect the Mute option.

• The volume level may be too low. In Windows, look at the volume control

icon on the taskbar. You can also use the volume control buttons to adjust

the volume. See "Hotkeys" on page 14 for more detail.

• If headphones, earphones or external speakers are connected to the line-

out port on the computer, the internal speakers automatically turn off.

I want to eject the optical drive tray without turning on the power. I cannot eject the optical drive tray (tray design only.)

There is a mechanical eject hole on the optical drive. Simply insert the tip of a pen or paperclip and push to eject the tray.

The keyboard does not respond.

Try attaching an external keyboard to a USB 2.0 port on the computer. If it works, contact your dealer or an authorized service center as the internal keyboard cable may be loose.

The infrared port does not work (selected models only.)

Check the following:

• Make sure that the infrared ports of the two devices are facing each other

(+/- 15 degrees) a maximum of 1 meter apart.

• Make sure there is a clear path between the two infrared ports. Nothing

should be blocking the ports.

• Make sure you have the appropriate software running on both devices (for

file transfers) or you have the appropriate drivers (for printing to an

infrared printer).

• During the POST, press <F2> to access the BIOS utility and verify that the

infrared port is enabled.

• Make sure both devices are IrDA-compliant.

English

The printer does not work.

Check the following:

• Make sure that the printer is connected to a power outlet and that it is

turned on.

Page 32

• Make sure that the printer cable is connected securely to the computer's

parallel port or a USB port and the corresponding port on the printer.

English

I want to set up my location to use the internal modem.

To properly use your communication software (e.g. HyperTerminal), you need to set up your location:

1 Click on Start, Settings, Control Panel. 2 Double-click on Modems. 3 Click on Dialing Properties and begin setting up your location.

Refer to the Windows manual.

Note: Please note, on first booting your notebook, that you can skip the Internet Connection setup, as it is not necessary to complete the installation of your Operating System. After the Operating System is set up, you can proceed with the Internet Connection setup.

I want to restore my computer to its original settings without recovery CDs.

Note: If your system is the multilingual version, the operating system and language you choose when you first turn on the system will be the only option for future recovery operations.

This recovery process helps you restore the C: drive with the original software content that is installed when you purchase your notebook. Follow the steps below to rebuild your C: drive. (Your C: drive will be reformatted and all data will be erased.) It is important to back up all data files before using this option.

Before performing a restore operation, please check the BIOS settings.

1 Check to see if Acer disk-to-disk recovery is enabled or not. 2 Make sure the D2D Recovery setting in Main is Enabled. 3 Exit the BIOS setup utility and save changes. The system will reboot.

Note: To activate the BIOS setup utility, press <F2> during POST.

Page 33

To start the recovery process: 1 Restart the system. 2 While the Acer logo is showing, press <Alt> + <F10> at the same time to

enter the recovery process. 3 Refer to the on-screen instructions to perform system recovery.

Important: This feature occupies 2 to 3 GB in a hidden partition on your hard drive.

Requesting service

International Travelers Warranty (ITW)

Your computer is backed by an International Travelers Warranty (ITW) that gives you security and peace of mind when traveling. Our worldwide network of service centers are there to give you a helping hand.

An ITW passport comes with your computer. This passport contains all you need to know about the ITW program. A list of available, authorized service centers is in this handy booklet. Read this passport thoroughly.

Always have your ITW passport on hand, especially when you travel, to receive the benefits from our support centers. Place your proof-of-purchase in the flap located inside the front cover of the ITW passport.

If the country you are traveling in does not have an Acer-authorized ITW service site, you can still get in contact with our offices worldwide. Please consult http://global.acer.com

English

Before you call

Please have the following information available when you call Acer for online service, and please be at your computer when you call. With your support, we can reduce the amount of time a call takes and help solve your problems efficiently.

If there are error messages or beeps reported by your computer, write them down as they appear on the screen (or the number and sequence in the case of beeps).

Page 34

English

You are required to provide the following information:

Name: _____________________________________________

Address: ___________________________________________

Telephone number: _________________________________

Machine and model type: ____________________________

Serial number: ______________________________________

Date of purchase: ___________________________________

Page 35

Acer Arcade (for selected models)

Acer Arcade is an integrated player for music, photos, DVD movies and videos. To watch or listen, click a content button (e.g., Music, Video, etc.) on the Arcade home page.

• Cinema — Watch DVDs or VCDs

• Album — View photos stored on your hard drive or removable media

• Video — Watch and/or edit video clips

• Music — Listen to music files in a variety of formats

• Burner — Create CDs and/or DVDs to share or archive data

• Settings — Adjust Acer Arcade according to your preferences

English

Note: While watching videos, DVDs or slideshows, your screensaver and power-saving features are unavailable. These functions are enabled when you listen to music.

Page 36

English

Arcade hotkeys

When running in the Windows environment, the key combinations listed below are available to control and fine-tune the features and settings of Acer Arcade.

Hotkey Function <Fn> + <F1> Online help menu <Fn> + <F3> Acer ePowerManagement with battery information <Fn> + <F5> Display toggle <Fn> + <F6> Screen blank <Fn> + <F8> Speaker toggle <Fn> + <↑> Volume up; increases the speaker volume. <Fn> + <↓> Volume down; decreases the speaker volume <Fn> + <→> Brightness up; increases the screen brightness <Fn> + <←> Brightness down; decreases the screen brightness <Fn> +

<Home>

<Fn> + <Pg Up> Stop; press to stop playing the audio track or video file. <Fn> + <Pg Dn> Backward; press to skip backward to the previous track

<Fn> + <End> Forward; press to skip forward to the next track or

Play; press to start playing the audio track or video file. Press again to pause.

or video file and start playing.

video file.

Page 37

Finding and playing content

Clicking a button on the Arcade home page opens the corresponding feature's home page. The content pages have buttons on the left and a content browsing area on the right. If a button shows one of several choices, such as sort order, the current setting is shown by a brightly colored ball on the left side.

To pick content, click an item in the content area. When there is more than one CD or DVD drive, all drives will be shown. Pictures and videos are shown as files (with thumbnails) and organized into folders.

To browse a folder, click to open it. To go back up to the folder above it, click the Up one level button. If there is more content than will fit on a page, use the buttons at the lower right to scroll through the pages.

Settings

There are settings in Acer Arcade that allow you to fine tune its performance to your machine and your personal preferences. The Settings page is reached by the Advanced Settings button on the Home page.

Use the "screen ratio" setting to choose between standard (4:3) or widescreen (16:9) display.

"Audio output" should be set to "Stereo" if you are listening to speakers, or "Virtual surround sound" if you are using headphones.

Note: If your speakers are not capable of outputting low frequency signals, it is recommended that you do not select this option in order to avoid damaging your speakers.

English

Click About Acer Arcade to open a page with version and copyright information.

Click Restore to factory settings to return the Acer Arcade settings to their default values.

Arcade controls

When watching video clips, movies, or slideshows as full-screen visual content, two pop-up control panels are shown when you move the mouse. They automatically disappear after several seconds. The "Navigation controls" panel appears at the top and the "Player controls" panel appears at the bottom of the screen.

Page 38

English

Navigation controls

To return to the Arcade home page, click the Home button in the upper left corner of the window. To go up one folder level while searching for content, click Up one level. To return to a previous screen, click Return. The buttons in the upper right (minimize, maximize, and close) have standard PC behaviours.

To quit Arcade, click the Close button in the upper right corner of the window. You can also click To PC.

Player controls

At the bottom of the window, the player controls — used for video, slideshows, movies and music — are shown. The group on the left provides standard playback controls (play, pause, stop, etc.). The group on the right controls volume (mute and volume up/down).

Note: When playing DVDs, there are additional controls added to the right of the volume controls. These are discussed in more detail in the Cinema section of this guide.

Cinema

If your computer came with a DVD drive, you can play movies from DVDs and Video CDs (VCDs) with the Cinema function of Acer Arcade. This player has the features and controls of a typical DVD player.

When you insert a disk into the DVD drive, the movie begins playing automatically. To control the movie, the pop-up player control panel appears at the bottom of the window when you move the mouse.

If more than one optical drive contains a playable disk, click the Cinema button on the Home page to open the Cinema content page, then select the disk you'd like to watch from the list on the right.

When viewing DVDs, the following special controls are added to the pop-up panel:

• DVD Menu

• Subtitle

• Language

• Angle

The disk currently playing will be shown in the area above the list of drives. This page is also displayed when you press the Stop button during a movie. The buttons on the left side allow you to resume the movie from the point it was stopped, restart the movie from the beginning, jump to the DVD menu, eject the disk, or go to the "DVD Settings" page.

Page 39

DVD settings

There are two types of DVD settings: "Video" and "Language." Click the appropriate button to open its settings page.

Video

The Video settings control the video output of DVDs/VCDs. Hardware acceleration takes advantage of the special processing power of

some graphics cards to reduce CPU loading when playing back DVDs and video files. If you have problems with video quality, try turning this option Off.

Select an output type:

• 4:3 Standard or 16:9 Widescreen according to your display preferences.

• The Letterbox option displays widescreen movie content in its original

aspect ratio and adds black bars at the top and bottom of the screen.

• The Pan & Scan feature is for DVD titles with a widescreen aspect ratio.

• Acer CinemaVision is a nonlinear video stretching technology that

produces minimal distortion in the center of the picture.

• Stretch stretches the video display to the size of the display screen.

• The "Color profile" option allows you to select from a list of color

configurations to change the overall color of the video content during

playback. "Original" uses the color scheme of the disk you are watching,

while "Vivid," "Bright" and "Theater" add enhanced color to the

video display.

• Acer ClearVision is a video enhancement technology that detects video

content and dynamically adjusts the brightness/contrast/saturation levels

so that you do not need to change the color settings if the movie you are

watching contains scenes that are overly dark or too bright.

• Click Restore to factory settings to return the settings to their

default values.

English

Language

The "Language settings" control the audio and subtitle output of DVDs/VCDs. "Subtitle" selects the default subtitle language for DVDs when available. The

factory setting is "Off." "Closed caption" turns on the closed captions on DVDs. This function displays

captions encoded in the video signal that describe onscreen action and dialog for the hearing impaired. The factory setting is "Off."

"Audio" selects the default language for DVD titles.

Page 40

English

Album

Acer Arcade lets you view digital photos individually or as a slideshow, from any available drive on your computer. Click the Album button on the Arcade Home page to show the Album main page.

The content area on the right shows both individual pictures and folders. Click on a folder to open it.

Page 41

To view a slideshow, open the folder containing the pictures you wish to view, then click Play slideshow. The slideshow is played full-screen. Use the pop-up control panel to control the slideshow.

To rotate a picture in full-screen, click Rotate right or Rotate left. You can also view a single picture by clicking on it. This opens the picture

full-screen.

Slideshow settings

To change slideshow settings, click the Settings button on the Album page. "Slide duration" determines how long each slide is shown before automatically

advancing to the next picture in the slideshow. "Transition effects" sets the style of transition used between pictures. To add background music to a slideshow, set the "Play music during slideshow"

option to "Yes." The Select Music page will ask you to choose music from your personal music library.

Click Restore to factory settings to return your settings to their default values.

Video

To open the Video function, click Video on the Arcade Home page.

Note: The Video feature is designed to play back MPEG1, MPEG2 (if a DVD drive is installed), AVI, WMV and ASF formats. If you want to watch a DVD or VCD, use the "Cinema" function.

English

Two options are shown on the Video page: "Video Play" or "Video Edit."

Playing a video file

Click Video Play to watch video files. The Video page shows the video files in the content area on the right side. They are organized by folders and a thumbnail image shows the first frame of the video.

To play a video file, click on it. The video will play full-screen. The pop-up control panel will appear at the bottom of the screen when you move the mouse. To return to the Video page, click Stop.

Page 42

English

Video authoring

Click the Video Authoring button to open the PowerProducer program, which allows you to finalize your digital video productions and burn them to disk. Before you produce your movie using PowerProducer, first gather (or create) its component parts: video clips, photos, and background music. You may collect raw footage yourself with a camcorder or other recording device, or you may simply use files that you have on hand; including movies you have already created in a video editing program.

When your movie is ready for production, use PowerProducer, which offers basic video editing tools. PowerProducer's production functions include:

• burns CDs, DVDs, VCDs, SVCDs and editable DVDs

• erases rewritable disks that contain unwanted content

• copies disks

• defragments disks for appending video content

• burns DV content straight to DVD

• sets chapters within video content

• adds background music to videos and menus

• offers custom menu layouts for buttons, frames and backgrounds

• captures from DVD, firewire devices, analog capture cards, USB devices

and files

For help with authoring video, refer to PowerProducer's online help system.

Music

For convenient access to your music collection, click Music on the Arcade homepage to open the Music homepage.

Select the folder or CD that contains the music you want to listen to. Click Play to listen to the entire content from the beginning, or select the song that you want to hear from the list in the content area.

The songs in the folder are shown in the content area, while the left side has controls for "Play," "Random," and "Repeat all." The Visualize option allows you to watch computer generated visualizations while you listen to music. When playing music, the control panel at the bottom of the page makes it easy to adjust the volume and control playback.

To rip music from a CD, click Rip CD. In the page that opens, select the songs you would like to rip (or click Select or Clear all), then click Rip now.

Page 43

Burner

NTI CD/DVD-Maker simplifies today's digital lifestyle by providing an easy and complete solution for recording data, audio, photos or video. Now you can burn and share anything on CD/DVD — your data, music, photos or videos — faster and easier than ever before.

Copy — Back up your CD/DVD collection

Make backup copies of (non-copy-protected) CDs and DVDs with just a few clicks of your mouse.

Audio — Create your own greatest hits CDs

Create better sounding music in a snap. Burn your favorite songs to CD so you can listen to them on any CD player. Convert songs from your music collection to MP3 and other popular audio formats. Even create MP3 CDs with over 100 of your favorite songs and listen to them on your PC or MP3 CD player.

Data — Store files simply and easily

Copy your computer's hard drive files for easy recovery in the event of a crash. Archiving your data on CD/DVD eliminates the need for extra hard drives.

Video — Your world in pictures

Turn digital photos into a slideshow VCD with background music that can be played by most DVD players. Bring new life to your video clips and share any event with your friends and family for playback on most DVD players. You can even add customized menus to Video CDs and Super Video CDs.

For specific details about each of these options, consult the User's Guide or click the Help button to open NTI CD/DVD-Maker's help menu.

English

Page 44

Taking your notebook PC with you

English

This section gives you tips and hints to consider when moving around or traveling with your computer.

Disconnecting from the desktop

Follow these steps to disconnect your computer from external accessories:

1 Save any open files. 2 Remove any media, floppy disks or compact disks from the drive(s). 3 Shut down the computer. 4 Close the display cover. 5 Disconnect the cord from the AC adapter. 6 Disconnect the keyboard, pointing device, printer, external monitor and

other external devices.

7 Disconnect the Kensington lock if you are using one to secure the

computer.

Moving around

When you are just moving within short distances, for example, from your office desk to a meeting room.

Preparing the computer

Before moving the computer, close and latch the display cover to place it in Sleep mode. You can now safely take the computer anywhere you go within the building. To bring the computer out of Sleep mode, open the display; then press and release the power button.

If you are taking the computer to a client's office or a different building, you may choose to shut down the computer:

Click on Start, Turn Off Computer, then click on Turn Off (Windows XP).

Or:

You can put the computer in Sleep mode by pressing <Fn> + <F4>. Then close and latch the display.

When you are ready to use the computer again, unlatch and open the display; then press and release the power button.

Page 45

Note: If the Sleep indicator is off, the computer has entered Hibernation mode and is turned off. If the power indicator is off but the Sleep indicator is on, the computer has entered Sleep mode. In both cases, press and release the power button to turn the computer back on. Note that the computer may enter Hibernation mode after being in Sleep mode for a period of time.

What to take to short meetings

A fully charged battery runs the computer for about 3 to 4 hours (depending on model.) If your meeting is shorter than that, you probably do not need to take anything with you other than the computer.

What to take to long meetings

If your meeting lasts longer than 3 hours, or if your battery is not fully charged, you may want to take the AC adapter with you to plug in your computer while in the meeting room.

If the meeting room does not have an electrical outlet, reduce the drain on the battery by putting the computer in Sleep mode. Press <Fn> + <F4> or close the display cover whenever you are not actively using the computer. To resume, open the display (if closed); then press and release the power button.

English

Taking the computer home

When you are moving from your office to your home or vice versa.

Preparing the computer

After disconnecting the computer from your desktop, follow these steps to prepare the computer for the trip home:

• Check that you have removed all media and compact disks from the

drive(s). Failure to remove the media can damage the drive head.

• Pack the computer in a protective case that can prevent the computer from

sliding around and cushion it if it should fall.

Caution: Avoid packing items next to the top cover of the computer. Pressure against the top cover can damage the screen.

Page 46

English

What to take with you

Unless you have some items at home, take the following items with you:

• AC adapter and power cord

• The printed User's Guide

Special considerations

Follow these guidelines to protect your computer while traveling to and from work:

• Minimize the effects of temperature changes by keeping the computer

with you.

• If you need to stop for an extended period of time and cannot carry the

computer with you, leave the computer in the trunk of the car to avoid exposing the computer to excessive heat.

• Changes in temperature and humidity can cause condensation. Allow the

computer to return to room temperature, and inspect the screen for condensation before turning on the computer. If the temperature change is greater than 10 °C (18 °F), allow the computer to come to room temperature slowly. If possible, leave the computer for 30 minutes in an environment with a temperature between outside and room temperature.

Setting up a home office

If you frequently work on your computer at home, you may want to purchase a second AC adapter for use at home. With a second AC adapter, you can avoid carrying the extra weight to and from home.

If you use your computer at home for significant periods of time, you might also want to add an external keyboard, monitor or mouse.

Traveling with the computer

When you are moving within a larger distance, for instance, from your office building to a client's office building or traveling locally.

Preparing the computer

Prepare the computer as if you were taking it home. Make sure that the battery in the computer is charged. Airport security may require you to turn on your computer when carrying it into the gate area.

Page 47

What to take with you

Take the following items with you:

• AC adapter

• Spare, fully-charged battery pack(s)

• Additional printer driver files if you plan to use another printer

Special considerations

In addition to the guidelines for taking the computer home, follow these guidelines to protect your computer while traveling:

• Always take the computer as carry-on luggage.

• If possible, have the computer inspected by hand. Airport security X-ray

machines are safe, but do not put the computer through a metal detector.

• Avoid exposing floppy disks to hand-held metal detectors.

Traveling internationally with the computer

When you are moving from country to country.

Preparing the computer

Prepare the computer as you would normally prepare it for traveling.

English

What to bring with you

Bring the following items with you:

• AC adapter

• Power cords that are appropriate for the country to which you

are traveling

• Spare, fully-charged battery packs

• Additional printer driver files if you plan to use another printer

• Proof of purchase, in case you need to show it to customs officials

• International Travelers Warranty passport

Page 48

English

Special considerations

Follow the same special considerations as when traveling with the computer. In addition, these tips are useful when traveling internationally:

• When traveling in another country, check that the local AC voltage and the

AC adapter power cord specifications are compatible. If not, purchase a power cord that is compatible with the local AC voltage. Do not use converter kits sold for appliances to power the computer.

• If you are using the modem, check if the modem and connector is

compatible with the telecommunications system of the country you are traveling in.

Securing your computer

Your computer is a valuable investment that you need to take care of. Learn how to protect and take care of your computer.

Security features include hardware and software locks — a security notch and passwords.

Using a computer security lock

A security keylock notch, located on the chassis of the computer, lets you connect a Kensington-compatible computer security lock.

Wrap a computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

Using passwords

Passwords protect your computer from unauthorized access. Setting these passwords creates several different levels of protection for your computer and data:

• Supervisor Password prevents unauthorized entry into the BIOS utility.

Once set, you must enter this password to gain access to the BIOS utility. See "BIOS utility" on page 46.

• User Password secures your computer against unauthorized use. Combine

the use of this password with password checkpoints on boot-up and resume from Hibernation for maximum security.

Page 49

• Password on Boot secures your computer against unauthorized use.

Combine the use of this password with password checkpoints on boot-up

and resume from Hibernation for maximum security.

Important! Do not forget your Supervisor Password! If you forget your password, please get in touch with your dealer or an authorized service center.

Entering passwords

When a password is set, a password prompt appears in the center of the display screen.

• When the Supervisor Password is set, a prompt appears when you press

<F2> to enter the BIOS utility at boot-up.

• Type the Supervisor Password and press <Enter> to access the BIOS utility.

If you enter the password incorrectly, a warning message appears. Try

again and press <Enter>.

• When the User Password is set and the password on boot parameter is

enabled, a prompt appears at boot-up.

• Type the User Password and press <Enter> to use the computer. If you

enter the password incorrectly, a warning message appears. Try again and

press <Enter>.

Important! You have three chances to enter a password. If you fail to enter the password correctly after three tries, the system halts. Press and hold the power button for four seconds to shut down the computer. Then turn on the computer again, and try again.

English

Setting passwords

You can set passwords using the BIOS utility.

Page 50

Expanding through options

English

Your notebook PC offers you a complete mobile computing experience.

Connectivity options

Ports allow you to connect peripheral devices to your computer as you would with a desktop PC. For instructions on how to connect different external devices to the computer, read the following section.

Fax/data modem

Your computer has a built-in V.92 56 Kbps fax/data modem.

Warning! This modem port is not compatible with digital phone lines. Plugging this modem into a digital phone line will damage the modem.

To use the fax/data modem port, connect a phone cable from the modem port to a telephone jack.

Warning: Please make sure that the cable you use is appropriate for the country in which you are working.

Page 51

Built-in network feature

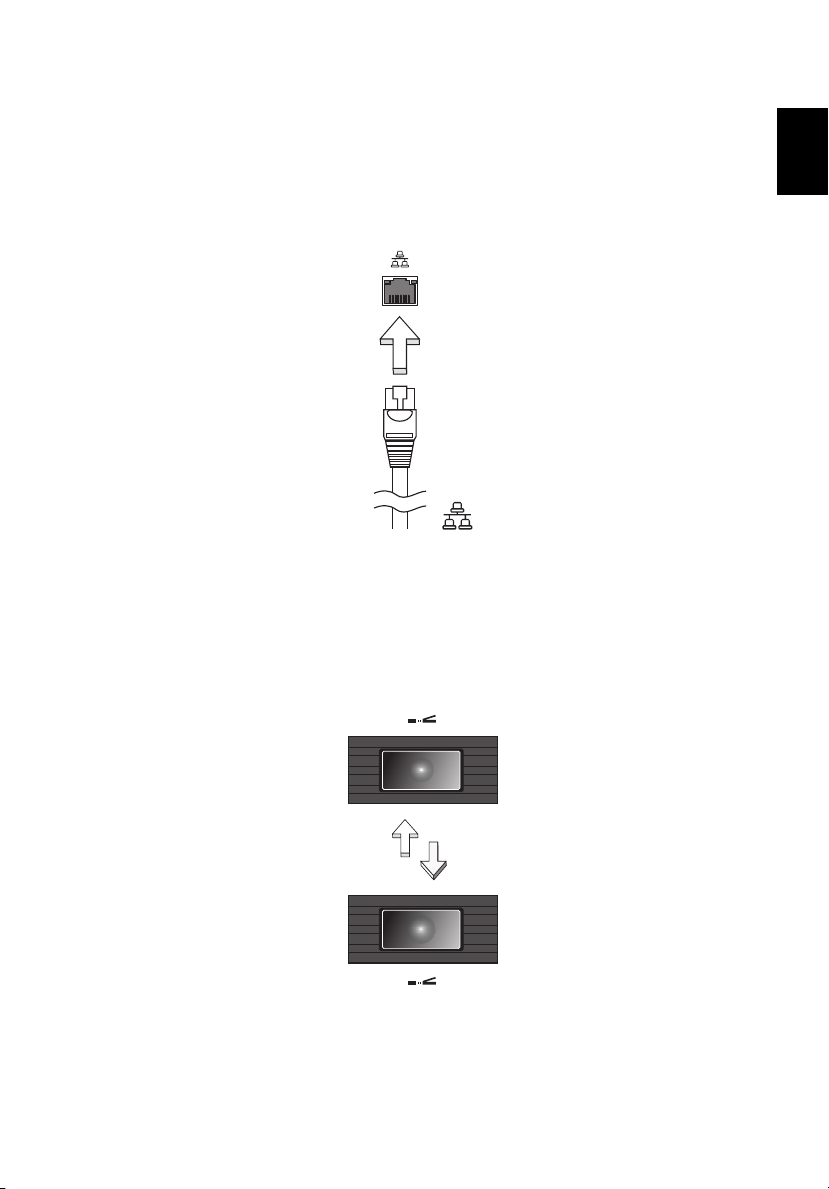

The built-in network feature allows you to connect your computer to an Ethernet-based network.

To use the network feature, connect an Ethernet cable from the network jack on the chassis of the computer to a network jack or hub on your network.

Fast Infrared (selected models only)

The computer's Fast Infrared (FIR) port allows you to do wireless data transfer with other IR-aware computers and peripherals such as PDAs, mobile phones, and infrared printers. The infrared port can transfer data at speeds of up to 4 Mbps at a distance of up to one meter.

English

Page 52

English

Universal Serial Bus (USB)

The USB 2.0 port is a high-speed serial bus which allows you to connect USB peripherals without taking up precious system resources.

IEEE 1394 port (selected models only)

The computer's IEEE 1394 port allows you to connect to an IEEE 1394compatible device like a video camera or digital camera. See your video or digital camera's documentation for details.

Page 53

PC Card slot

The Type II PC Card slot of the computer accepts PC Cards that enhance the usability and expandability of the computer. These cards should have a PC Card logo on them.

PC Cards (formerly PCMCIA) are add-on cards for portable computers, giving you expansion possibilities long afforded by desktop PCs. Popular PC Cards include flash, fax/data modem, wireless LAN and SCSI cards. CardBus improves on the 16-bit PC card technology by expanding the bandwidth to 32 bits.

Note: Refer to your card's manual for details on how to install and use the card, and its functions.

Inserting a PC Card

Insert the card into the slot and make the proper connections (e.g., network cable), if necessary. See your card manual for details.

English

Ejecting a PC Card

Before ejecting a PC Card:

1 Exit the application using the card. 2 Left-click on the PC Card icon on the taskbar and stop the card operation. 3 Press the slot eject button to pop out the eject button; then press it again

to eject the card.

Page 54

English

Installing memory

Follow these steps to install memory:

1 Turn off the computer, unplug the AC adapter (if connected) and remove

the battery pack. Then turn the computer over to access its base.

2 Remove the screws from the memory cover; then lift up and remove the

memory cover.

3 (a) Insert the memory module diagonally into the slot, then (b) gently press

it down until it clicks into place.

4 Replace the memory cover and secure it with the screw. 5 Reinstall the battery pack, and reconnect the AC adapter. 6 Turn on the computer.

The computer automatically detects and reconfigures the total memory size. Please consult a qualified technician or contact your local Acer dealer.

BIOS utility

The BIOS utility is a hardware configuration program built into your computer's BIOS.

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run it.

To activate the BIOS utility, press <F2> during the POST; while the notebook PC logo is being displayed.

Boot sequence

To set the boot sequence in the BIOS utility, activate the BIOS utility, then select Boot from the categories listed at the top of the screen.

Page 55

Enable disk-to-disk recovery

To enable disk-to-disk recovery (hard disk recovery), activate the BIOS utility, then select Main from the categories listed at the top of the screen. Find D2D Recovery at the bottom of the screen and use the <F5> and <F6> keys to set this value to Enabled.

Password

To set a password on boot, activate the BIOS utility, then select Security from the categories listed at the top of the screen. Find Password on boot: and use the <F5> and <F6> keys to enable this feature.

Using software

Playing DVD movies

When the DVD drive module is installed in the optical drive bay, you can play DVD movies on your computer.

1 Eject the DVD tray and insert a DVD movie disk; then close the DVD tray.

Important! When you launch the DVD player for the first time, the program asks you to enter the region code. DVD disks are divided into 6 regions. Once your DVD drive is set to a region code, it will play DVD disks of that region only. You can set the region code a maximum of five times (including the first time), after which the last region code set will remain permanent. Recovering your hard disk does not reset the number of times the region code has been set. Refer to the table below for DVD movie region code information.

English

2 The DVD movie will automatically play after a few seconds.

Region code Country or region 1 USA, Canada 2 Europe, Middle East, South Africa, Japan 3 Southeast Asia, Taiwan, South Korea 4 Latin America, Australia, New Zealand 5 Former USSR, parts of Africa, India 6 People's Republic of China

Page 56

English

Note: To change the region code, insert a DVD movie of a different region into the DVD drive. Please refer to the online help for more information.

Power management

This computer has a built-in power management unit that monitors system activity. System activity refers to any activity involving one or more of the following devices: keyboard, mouse, floppy drive, hard disk, peripherals connected to the serial and parallel ports, and video memory. If no activity is detected for a period of time (called an inactivity timeout), the computer stops some or all of these devices in order to conserve energy.

This computer employs a power management scheme that supports the advanced configuration and power interface (ACPI), which allows for maximum power conservation and maximum performance at the same time. Windows handles all power-saving chores for your computer.

Page 57

Acer eRecovery

Acer eRecovery is a tool to quickly backup and restore the system. You can create and save a backup of the current system configuration to hard drive, CD or DVD.

Acer eRecovery consists of the following functions: 1 Create backup 2 Restore from backup 3 Create factory default image CD 4 Re-install bundled software without CD 5 Change Acer eRecovery password

This chapter will guide you through each process.

Note: This feature is only available on certain models. For systems that do not have a built-in optical disk burner, plug in an external USB or IEEE 1394-compatible optical disk burner before entering Acer eRecovery for optical disk-related tasks.

Create backup

You can create and save backup images to hard drive, CD or DVD. 1 Boot to Windows XP 2 Press <Alt> + <F10> to open the Acer eRecovery utility. 3 Enter the password to proceed. The default password is six zeros. 4 In the Acer eRecovery window, select Recovery settings and click Next. 5 In the Recovery settings window, select Backup snapshot image and

click Next. 6 Select the backup method.

aUse Backup to HDD to store the backup disk image on drive D:.

b Backup to optical device to store the backup image on CD or DVD. 7 After choosing the backup method, click Next.

Follow the instructions on screen to complete the process.

English

Page 58

Restore from backup

English

You can restore backups previously created (as stated in the Create backup section) from hard drive, CD or DVD.

1 Boot to Windows XP. 2 Press <Alt> + <F10> to open the Acer eRecovery utility. 3 Enter the password to proceed. The default password is six zeros. 4 In the Acer eRecovery window, select Recovery actions and click Next. 5 Select the desired restore action and follow the onscreen instructions to

complete the restore process.

Note: The "Restore C:" item is enabled only if there is a user backup stored on the hard drive (D:\). Please refer to the Create backup section.

Create factory default image CD

When the System CD and Recovery CD are not available, you can create them by using this feature.

1 Boot to Windows XP. 2 Press <Alt> + <F10> to open the Acer eRecovery utility. 3 Enter the password to proceed. The default password is six zeros. 4 In the Acer eRecovery window, select Recovery settings and click Next. 5 In the Recovery settings window, select Burn image to disk and click Next. 6 In the Burn image to disk window, select 01. Factory default image and

click Next.

7 Follow the instructions on screen to complete the process.

Re-install bundled software without CD

Acer eRecovery stores pre-loaded software internally for easy driver and application re-installation.

1 Boot to Windows XP. 2 Press <Alt> + <F10> to open the Acer eRecovery utility. 3 Enter the password to proceed. The default password is six zeros. 4 In the Acer eRecovery window, select Recovery actions and click Next. 5 In the Recovery settings window, select Reinstall applications/drivers and

click Next.

Page 59

6 Select the desired driver/application and follow the instructions on screen

to re-install.

At first launch, Acer eRecovery prepares all the needed software and may take few seconds to bring up the software content window.

Change password

Acer eRecovery and Acer disk-to-disk recovery are protected by a password that can be changed by the user. Follow the steps below to change the password in Acer eRecovery.

1 Boot to Windows XP. 2 Press <Alt> + <F10> to open the Acer eRecovery utility. 3 Enter the password to proceed. The default password is six zeros. 4 In the Acer eRecovery window, select Recovery settings and click Next. 5 In the Recovery settings window, select Password: Change Acer eRecovery

password and click Next. 6 Follow the instructions on screen to complete the process.

Note: If the system crashes, and will not boot to Windows, you can run Acer disk-to-disk recovery to restore the factory default image under DOS mode.

English

Page 60

Troubleshooting

English

This chapter shows you how to deal with common system problems. Read it before calling a technician if a problem occurs. Solutions to more serious problems require opening up the computer. Do not attempt to open the computer yourself; contact your dealer or authorized service center for assistance.

Troubleshooting tips

This notebook computer incorporates an advanced design that delivers onscreen error message reports to help you solve problems.

If the system reports an error message or an error symptom occurs, see "Error messages" below. If the problem cannot be resolved, contact your dealer. See "Requesting service" on page 25.

Error messages

If you receive an error message, note the message and take the corrective action. The following table lists the error messages in alphabetical order together with the recommended course of action.

Error messages Corrective action CMOS battery bad Contact your dealer or an authorized service center. CMOS checksum error Contact your dealer or an authorized service center. Disk boot failure Insert a system (bootable) disk into the floppy drive

(A:), then press <Enter> to reboot.

Equipment configuration error

Hard disk 0 error Contact your dealer or an authorized service center. Hard disk 0 extended

type error I/O parity error Contact your dealer or an authorized service center. Keyboard error or no

keyboard connected Keyboard interface

error Memory size mismatch Press <F2> (during POST) to enter the BIOS utility,

Press <F2> (during POST) to enter the BIOS utility, then press Exit in the BIOS utility to reboot.

Contact your dealer or an authorized service center.

then press Exit in the BIOS utility to reboot.

Page 61

If you still encounter problems after going through the corrective measures, please contact your dealer or an authorized service center for assistance. Some problems may be solved using the BIOS utility.

English

Page 62

Regulations and safety notices

English

ENERGY STAR guidelines compliance

As an ENERGY STAR partner, Acer Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Page 63

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Remarque à l'intention des utilisateurs canadiens

Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada.

Declaration of Conformity for EU countries

Hereby, Acer, declares that this notebook PC series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. (Please visit http://global.acer.com/products/notebook/reg-nb/index.htm complete documents.)

Compliant with Russian regulatory certification

for

English

Page 64

Modem notices

English

Notice for USA

This equipment complies with Part 68 of the FCC rules. Located on the modem is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. Upon request, you must provide this information to your telephone company.

If your telephone equipment causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But, if advance notice is not practical, you will be notified as soon as possible. You will also be informed of your right to file a complaint with the FCC.

Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If this equipment should fail to operate properly, disconnect the equipment from the phone line to determine if it is causing the problem. If the problem is with the equipment, discontinue use and contact your dealer or vendor.

Caution: To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.

TBR 21

This equipment has been approved [Council Decision 98/482/EC - "TBR 21"] for single terminal connection to the Public Switched Telephone Network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact your equipment supplier in the first instance.

Page 65

List of applicable countries

EU member states as of May 2004 are: Belgium, Denmark, Germany, Greece, Spain, France, Ireland, Italy, Luxembourg, the Netherlands, Austria, Portugal, Finland, Sweden, United Kingdom Estonia, Latvia, Lithuania, Poland, Hungary, Czech Republic, Slovak Republic, Slovenia, Cyprus and Malta. Usage allowed in the countries of European Union, as well as Norway, Switzerland, Iceland and Liechtenstein. This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact local office in the country of use.

Notice for Australia

For safety reasons, only connect headsets with a telecommunications compliance label. This includes customer equipment previously labelled permitted or certified.

Notice for New Zealand

For modem with approval number PTC 211/03/008 1 The grant of a Telepermit for any item of terminal equipment indicates

only that Telecom has accepted that the item complies with minimum

conditions for connection to its network. It indicates no endorsement of

the product by Telecom, nor does it provide any sort of warranty. Above

all, it provides no assurance that any item will work correctly in all respects

with another item of Telepermitted equipment of a different make or

model, nor does it imply that any product is compatible with all of

Telecom's network services. 2 This equipment is not capable, under all operating conditions, of correct

operation at the higher speeds for which it is designed. Telecom will accept

no responsibility should difficulties arise in such circumstances. 3 Some parameters required for compliance with Telecom's Telepermit

requirements are dependent on the equipment (PC) associated with this

device. The associated equipment shall be set to operate within the

following limits for compliance with Telecom's Specifications:

a There shall be no more than 10 call attempts to the same number

within any 30 minute period for any single manual call initiation, and

b The equipment shall go on-hook for a period of not less than 30

seconds between the end of one attempt and the beginning of the next call attempt.

English

Page 66

English

4 Some parameters required for compliance with Telecom's Telepermit

requirements are dependent on the equipment (PC) associated with this device. In order to operate within the limits for compliance with Telecom's specifications, the associated equipment shall be set to ensure that automatic calls to different numbers are spaced such that there is not less than 5 seconds between the end of one call attempt and the beginning of another.

5 This equipment shall not be set up to make automatic calls to Telecom's

111 Emergency Service. For modem with approval number PTC 211/01/030 1 The grant of a Telepermit for any item of terminal equipment indicates
