AccuTemp ACELT, ACEL, ACEP Parts List
PARTS LIST
SELF-GENERATING STEAM KETTLES

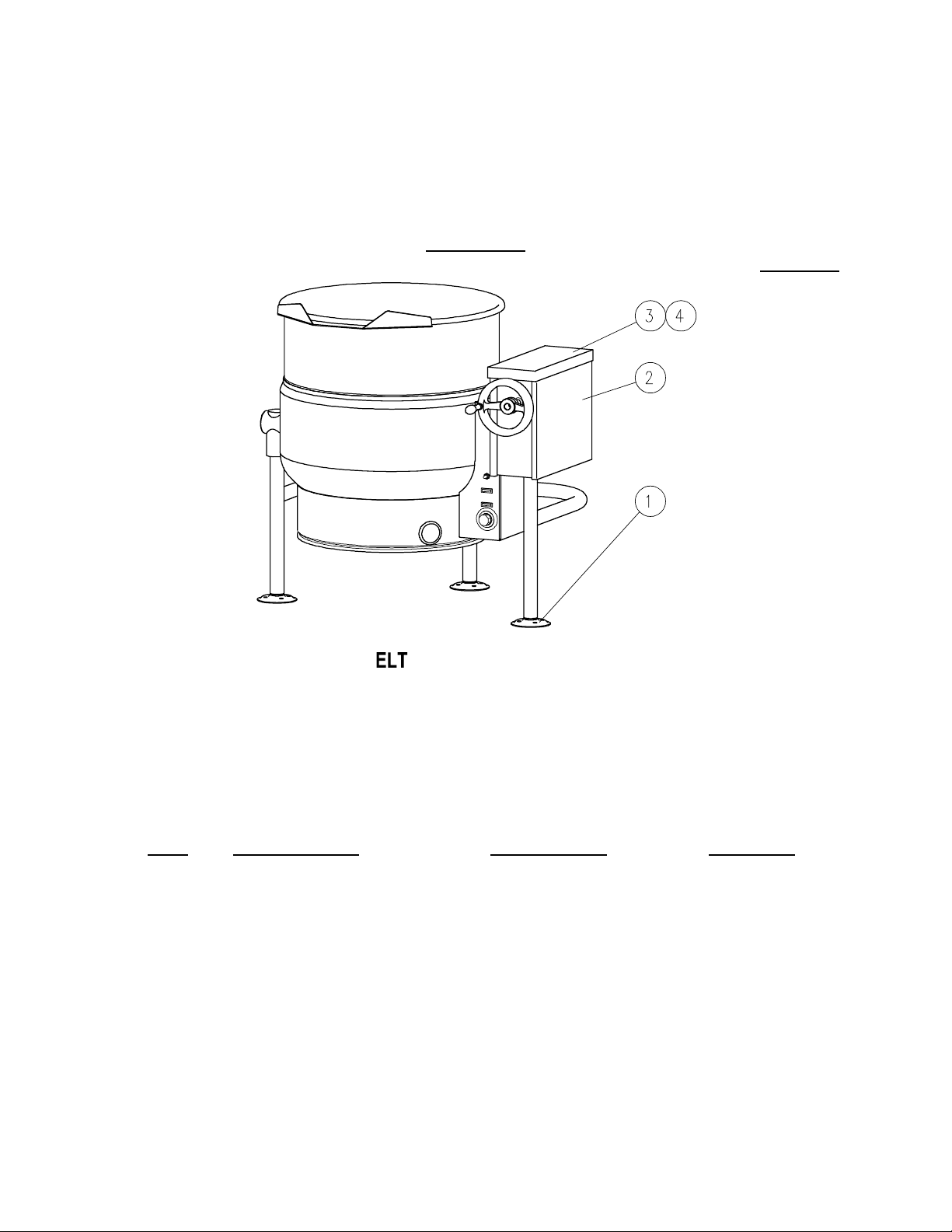

MODELS: ACELT
ACEL
ACEP
AC
AC
AC
ACCUTEMP PRODUCTS, INC.
8415 North Clinton Park Dr. · Fort Wayne, IN · 46825 800 210-5907
Office · 260 493-0415 Fax ·
www.accutemp.net
PART NUMBER 10032R11 1 2010-09-08
PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS: ACELT, ACEL, ACEP
FIGURE 1
PART NUMBER 10032R11 2 2010-09-08
PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS: ACELT, ACEL, ACEP
FIGURE 1
ITEM PART
DESCRIPTION QUANTITY
NO.
20 30 40 60 100
80
1. 1-66S6 Hex Bolt, 5/16 - 18 x 3/4" 4 4 4 4 4
** 2. 7-5019 Element Assembly, 208V, 12 kW 1
7-5020 Element Assembly, 220/380V, 12 kW 1
7-5021 Element Assembly, 240/416V, 12 kW 1
7-5022 Element Assembly, 480V, 12 kW 1
9-3298-1 Element Assembly, 600V, 12 kW 1
7-5023 Element Assembly, 208V, 15 kW 1
7-5024 Element Assembly, 220/380V, 15 kW 1
7-5025 Element Assembly, 240/416V, 15 kW 1
7-5026 Element Assembly, 480V, 15 kW 1
9-3298-2 Element Assembly, 600V, 15 kW 1
7-5027 Element Assembly, 208V, 18 kW 1 1
7-5028 Element Assembly, 220/380V, 18 kW 1 1
7-5029 Element Assembly, 240/416V, 18 kW 1 1
7-5030 Element Assembly, 480V, 18 kW 1 1
9-3298 Element Assembly, 600V, 18 kW 1 1
7-5031 Element Assembly, 208V, 24 kW 1 1 1
7-5037 Element Assembly, 220/380V, 24 kW 1 1 1
7-5032 Element Assembly, 240/416V, 24 kW 1 1 1
7-5033 Element Assembly, 480V, 24 kW 1 1 1
9-3299 Element Assembly, 600V, 24 kW 1 1 1
7-5034 Element Assembly, 208V, 33 kW 1 1 1
7-5038 Element Assembly, 220/380V, 33 kW 1 1 1
7-5035 Element Assembly, 240/416V, 33 kW 1 1 1
7-5036 Element Assembly, 480V, 33 kW 1 1 1
2348-2 Element Assembly, 600V, 33 kW 1 1 1
** SELECT AS REQUIRED
PART NUMBER 10032R11 3 2010-09-08
PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS: ACELT, ACEL, ACEP
ITEM PART
DESCRIPTION QUANTITY
NO.
20 30 40 60 100
80
3. 8-3147 Element Gasket 1
4. 9110-1 Power Switch 1
5. 4996-5 Pilot Light - Low Water 1
6. 4996-5 Pilot Light - Temperature 1
7. 4-TK05 Dial 1
8. 4-TB05 Bezel 1
9. 9126-1 Thermostat 1
10. 2-230R “O” Ring 1
11. 4967-1 Pressure Gauge 1
12. 8-3097 Pressure Gauge Mounting Plate 1
13. 1-66S4 Hex Bolt, 5/16 - 18 x 1/2" 1
** 14. 8-2077 Bottom Cover, (3041-7), ELT-20 1
8-2078 Bottom Cover, (3041-8), ELT-30 1
8-2079 Bottom Cover, (3041-9), ELT-40 1
8-2080 Bottom Cover, (3041-10), ELT-60 1
8-2081 Bottom Cover, (3041-11), ELT-80 1
8-2082 Bottom Cover, (3041-12), ELT-100 1
8-2077-1 Bottom Cover, (3041-1), EL-20 1
8-2078-1 Bottom Cover, (3041-2), EL-30 1
8-2079-1 Bottom Cover, (3041-3), EL-40 1
8-2080-1 Bottom Cover, (3041-4), EL-60 1
8-2081-1 Bottom Cover, (3041-5), EL-80 1
8-2082-2 Bottom Cover, (3041-6), EL-100 1
7139-1 Bottom Cover, EP-20 1
7139-2 Bottom Cover, EP-30 1
7139-3 Bottom Cover, EP-40 1
7139-4 Bottom Cover, EP-60 1
PART NUMBER 10032R11 4 2010-09-08
PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS: ACELT, ACEL, ACEP
ITEM PART
DESCRIPTION QUANTITY
NO.
20 30 40 60 100
80
** 14. 7139-5 Bottom Cover, EP-80 1
7139-6 Bottom Cover, EP-100 1
15. 3-664B Connector, 1/4 cc x 1/4 FPT 1
16. 2-686C Connector, Thermostat 1
17. 3-684C Connector, 1/4 cc x 3/8 MPT 1
18. 5514-1 Copper Tube 1/4 x 26", 20 Gallon 1
5514-2 Copper Tube, 1/4 x 28", 30, 40 Gallon 1
5514-3 Copper Tube, 1/4 x 29", 60 Gallon 1
5514-4 Copper Tube, 1/4 x 33", 80 Gallon 1
5514-5 Copper Tube, 1/4 x 35", 100 Gallon 1
** 19. 4-NG41 Contactor,
2
208, 220, 240V - 12, 15, 18 kW
4-NG41 Contactor, 380, 220/380, 416,
1
240/416, 480, 600V, -12, 15, 18 kW
4-CG42 Contactor, 208, 220, 240V- 24 kW 2
4-CG42 Contactor, 480, 600V, 24 kW 1
4-DG42 Contactor, 208, 220, 240V - 33 kW 2
4-DG42 Contactor, 480, 600V -33 kW 1
20. 3974-2 Level Control 1
20A. 5885-1 Level Control, Mounting Bracket 1
** 21. 9002-1 Fuse Block, 600V (380V - 600V) 2
9001-2 Fuse, 1/2 Amp., 600V (380V-600V) 2
9092-3 Fuse, 250V, 3A (208-240V) 2
9068-1 Fuse Holder, (208-240V) 2
9092-3 Fuse, 250V, 3A,
1
(220/380V and 240/415V)
9068-1 Fuse Holder (220/380V and
1
240/415V)
PART NUMBER 10032R11 5 2010-09-08
PARTS LIST, SELF-GENERATING STEAM KETTLES, MODELS: ACELT, ACEL, ACEP
ITEM PART
DESCRIPTION QUANTITY
NO.
20 30 40 60 100
80
** 22. 4-T251 Transformer, 380-220, 50/60 Hz,
1
100VA
4-T251 Transformer, 415-220, 50/60 Hz,
1
100VA
4-T255 Transformer, 480-240, 60 Hz, 100VA 1
4-T260 Transformer, 600-240, 60 Hz, 100VA 1
23. 5164-1 Transformer Fuse Block Mounting
1
Bracket
24. 4-33ES End Section 1
25. 4-33TB Terminal Block Section 3
* 4980-030 Rail 1
** 26. 8-2070 Component Mounting Plate (2781-1),
1
20 Gallon
8-2071 Component Mounting Plate (2783-1),
1
30 Gallon
8-2072 Component Mounting Plate (2782-1),
1
40 Gallon
8-2073 Component Mounting Plate (2784-1),
1
60 Gallon
8-2074 Component Mounting Plate (2785-1),
1
80, 100 Gallon
27. 4-LLP1 Probe 1
28. 5184-1 Down Tube 1
29. 3-SRV9-1 Relief Valve 1
30. 3-AV01 Air Vent Assembly
1
