The Chamberlain Group, Inc. A DUCHOSSOIS ENTERPRISE 845 Larch Avenue Elmhurst, Illinois 60126-1196

For Residential Use Only

Garage Door Opener

Owner’s Manual

Model M150

1/2 HP

Complies with UL 325 regulations effective January 1, 1993

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System

is connected and properly

aligned.

■ Periodic checks of the opener are required to ensure safe operation.

■ The model number label is located on the back of your opener.

Start by reviewing these important safety alert symbols:

Safety alert symbol review ...........................................2

Safety information and precautions..............................3

Testing your garage door for binding & balance ..........3

Hardware supplied........................................................3

Carton inventory ...........................................................4

Illustration of sectional door installation .....................5

Illustration of one-piece door installation.....................5

Assembly section - pages 6 – 7

Fasten rail to power unit .............................................6

Install the trolley.........................................................6

Attach the rail brackets ...............................................7

Installation safety instructions ....................................7

Installation section - pages 8 – 23

Determine the header bracket location

Sectional door ...........................................................8

One-piece door..........................................................9

Install the header bracket..........................................10

Attach the rail to the header bracket .........................11

The Protector System

.............................................12

Install the safety reversing sensor.............................13

Position the opener....................................................15

Hang the opener........................................................16

Install the door control and connect all wires...........17

Electrical requirements .............................................18

Complete the safety reversing sensor installation.....18

Install the lights and lens ..........................................19

Attach the manual release rope and handle...............19

Fasten the door bracket (sectional door)...................20

Fasten the door bracket (one-piece door)..................21

Connect door arm to trolley (sectional door)............22

Connect door arm to trolley (one-piece door)...........23

Adjustment section - pages 24 – 26

Travel limit adjustments............................................24

Force adjustments .....................................................25

Test the Protector System

........................................26

Test the safety reverse system ..................................26

Operation safety instructions ......................................27

Care of your opener ....................................................27

Maintenance schedule.................................................27

Operation of your opener............................................28

Receiver & remote control programming...................29

Having a problem?......................................................30

Repair parts, rail assembly..........................................32

Repair parts, installation .............................................32

Repair parts, power unit..............................................33

Accessories .................................................................34

Index ...........................................................................35

How to order repair parts............................................36

Warranty......................................................................36

When you see these Safety Symbols on the following pages, they will alert you to the possibility of serious injury or death if you do not comply with the corresponding instructions. The hazard may come from something

mechanical or from electric shock. Read the instructions carefully.

When you see this Safety Symbol on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the corresponding instructions. Read the

instructions carefully.

This garage door opener is designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the safety instructions contained in this manual.

Mechanical Electrical

WARNING

CAUTIONCAUTION

An unbalanced garage door might not reverse when required and someone under the door could be seriously injured or killed.

If your garage door binds, sticks or is out of balance, call for professional garage door service.

Garage doors, door springs, cables, pulleys, brackets, and their hardware are under extreme tension and can cause serious injury or death.

Do not try to loosen, move or adjust them

yourself!

Ropes left on a garage door could cause someone to become entangled and killed.

Remove all ropes connected to the door before installing and operating the opener.

To avoid damage to the garage door and opener, disable locks before installing and operating the opener. Use a wood screw or nail to hold locks in the "open" (unlocked) position.

Operation at other than 120V 60 Hz will cause opener malfunction and damage.

Identify the type and height of your door, any special conditions that exist, and any additional materials that may be required.

Test Your Door for Balance

Before you begin, complete the following test to make sure your door is balanced, and is not sticking or binding:

• Lift the door about halfway as shown. Release the door. It should stay in place, supported entirely by its springs.

• Raise and lower the door to see if there is any binding or sticking.

Sectional Door

One-Piece

Door

Safety Information and Precautions

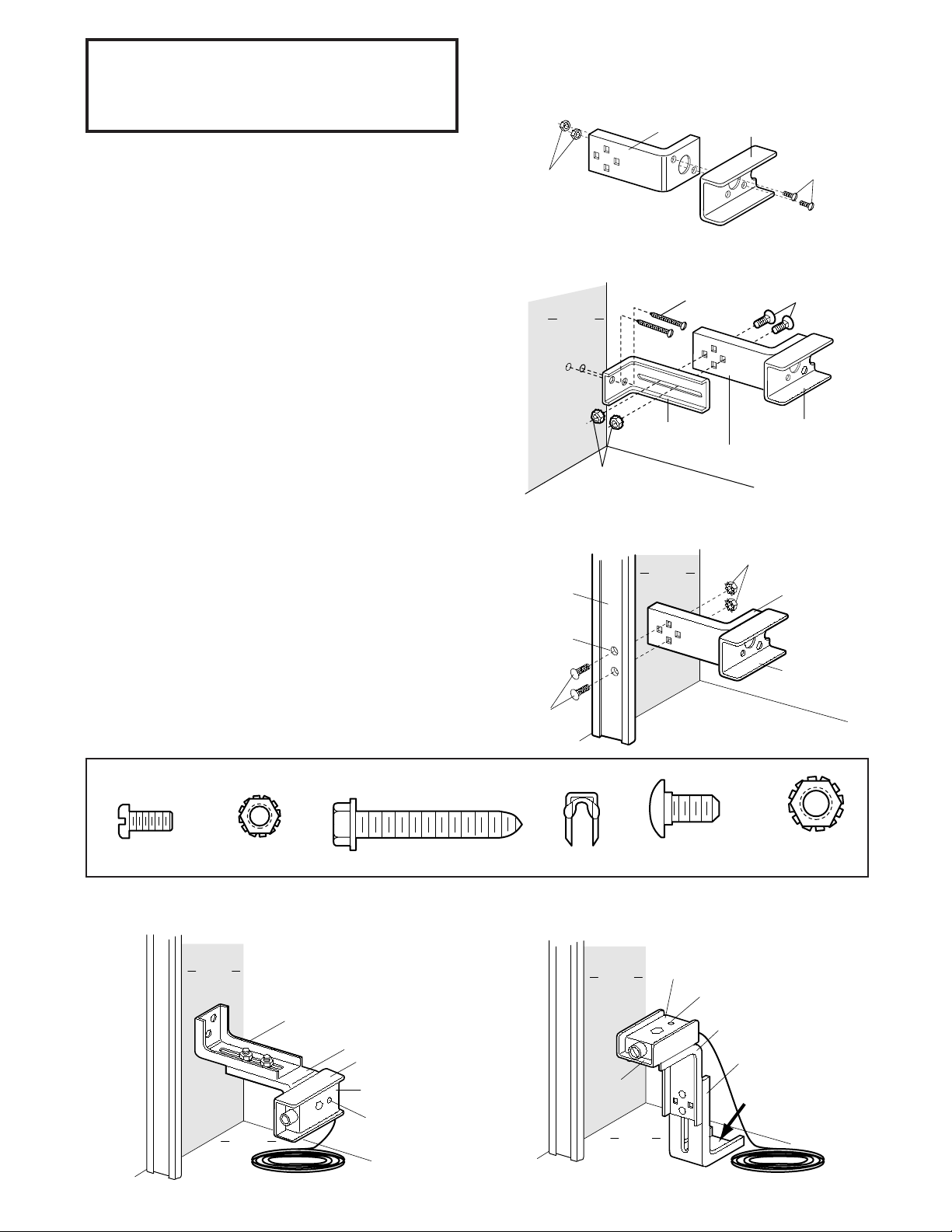

Safety Reversing Sensor

Installation

Lag Screw #14-10 x 1-1/2" HH (4) Hex Screw 1/4-20 x 1-1/2" (2) Carriage Bolts 1/4" - 20 x 1/2" (4) Screw #10 - 32 x 3/8" (4) Lock Nut 1/4" - 20 (4) Lock Nut #10 x 32 (4) Wing Nut (2) Insulated Staples (20)

Rail Assembly

Coupling Sleeve (1) Hex Screw 1/4"-20 x 5/8" (4) Nut 1/4" - 20 (4)

Opener Installation

Hex Screw 5/16"-18 x 7/8" (4) Lag Screw 5/16"-9 x 1-5/8" (2) Lag Screw 5/16"-18 x 1-7/8" (2) Carriage Bolt 5/16"-18 x 2-1/2" (2) Clevis Pin 5/16" x 2-3/4" (1) Clevis Pin 5/16" x 1-1/4" (1) Clevis Pin 5/16" x 1" (1) Nut 5/16" - 18 (6) Lock Washer 5/16" (6) Screw 6AB x 1-1/4" (2) Insulated Staples (10) Ring Fastener (3) Handle Dry Wall Anchors (2) Rope

Hardware Supplied

WARNING

SECTIONAL DOOR

CAUTIONCAUTION

ONE-PIECE DOOR

Your garage door opener is packaged in two cartons which contain the power unit and parts illustrated below. Accessories will depend on model purchased. If anything is missing, carefully check the packing material. Parts may be "stuck" in the foam. KEEP THE FOAM INTACT (see page 6). Hardware is listed on page 3.

Carton Inventory

LOCK

LIGHT

Sprocket Coupling

Remote Control

Multi-Function

Door Control Panel

2-Conductor Bell Wire

White & White/Red

SECURITY✚

3-Channel Remote Control

Light Lens

Transmitter Visor Clip

Trolley

Rail Brackets

Safety Reversing Sensor

Mounting Bracket

With Square Holes (2)

CEILING MOUNT ONLY

Header Bracket

Rail

Assembly

Door Bracket

"C" Wrap (2)

Straight Door

Arm Section

Curved Door

Arm Section

Safety Reversing Sensor

Mounting Bracket

With Slot (2)

Safety Labels

and

Literature

(2) Safety Reversing Sensors

(1 Sending Eye and 1 Receiving Eye)

with

2-Conductor White & White/Black Bell Wire

attached

You may find it helpful to refer back to this page as you proceed with the installation of your opener.

Before you begin, survey your garage area to see whether any of the conditions below apply to your installation.

SECTIONAL Door or

ONE-PIECE Door with Track Installation

ONE-PIECE Door Without Track Installation

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door with glass panels, etc.).

See page 20 for details.

Header Wall

— — — — — — — —

Door Center

Torsion Spring

FINISHED CEILING

Support bracket &

fastening hardware

is required.

See page 13.

Extension Spring

One-Piece Door-Extension Spring

Header

Wall

Access Door

Floor must be level

across width of door

Safety Reversing Sensor

Header

Wall

Door

Track

Safety

Reversing

Sensor

FINISHED CEILING

Support bracket

& fastening

hardware is required.

See page 13.

Access Door

Safety

Reversing

Sensor

Gap between floor and bottom of

Safety Reversing Sensor

door must not exceed 1/4".

ASSEMBLY STEP 1

Fasten the Rail To the Power Unit

Rail

Sprocket

Rail

Assembly

Trolley

Coupling

Rail/Power Unit

Bracket

Lock Nuts

1/4"-20

Power Unit

Sprocket

Opener

Chassis

Foam Packaging

Hex Screws 1/4"-20x5/8"

ASSEMBLY STEP 2

Install the Trolley

As illustrated above, slide the trolley onto and along the bottom of the rail until it snaps firmly in place. Be certain

to install it facing correctly: the trolley release arm must be horizontal (lock position), with its arrow pointed away from the power unit.

Assembly Section: Pages 6 - 7

Hardware Shown Actual Size

• Working on a level surface, align the rail assembly with the power unit, as shown.

• Slip the coupling over the rail sprocket.

• Slide the rail through the power unit bracket until the coupling fits securely over the power unit sprocket.

• Align the two screw holes in the rail with those in the power unit bracket. Insert two 1/4"-20x5/8" hex screws and lock nuts. Tighten securely with a 7/16" socket wrench.

NOTE: To aid in assembly and installation, replace the foam packing around the power unit. Remove it after Installation Step 5.

1/4" - 20 x 5/8"

Hex Screw

1/4" - 20

Lock Nut

ASSEMBLY STEP 3

Attach the Rail Brackets

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS

2. Install only on a properly balanced and lubricated garage door. An improperly balanced door may not reverse and could result in severe injury or death. Repairs to cables, spring assemblies and other hardware must be made by a professional service person before installing opener.

3. Disable all locks and remove all ropes connected to the garage door before installing the opener. Ropes

connected to a garage door can cause entanglement and death.

4. If possible, install door opener 7 feet or more above floor with the manual release handle mounted 6 feet above the floor.

5. Do not connect the opener to power source until instructed to do so.

6. Locate the Door Control within sight of the door at a minimum height of 5 feet where small children cannot reach and away from all moving parts of the door.

7. Install the User Safety Instruction Label on the wall adjacent to the control button and the Maintenance Instruction Label in a prominent location on the inside of the garage door.

8. Upon completion of the installation, the door must reverse when it comes in contact with a one-inch high object or a 2x4 laid flat on the floor.

9. Do not wear watches, rings or loose clothing while installing or servicing an opener. Jewelry or loose clothing can be caught in the mechanism of the garage door or the opener.

• Align rail brackets to end of rail assembly, as shown.

• Insert two 1/4"-20 x 5/8" hex screws and lock nuts. Tighten securely with a 7/16" socket.

You have now finished assembling your garage door opener. Please read the following warnings before proceeding to the installation section:

Hardware Shown Actual Size

1/4" - 20 x 5/8"

Hex Screw

1/4" - 20

Lock Nut

1/4"-20x5/8

Hex

Screws

Rail

Brackets

Rail

1/4"-20

Lock Nuts

WARNING

• Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the header wall 3" above the high point. This height will provide travel clearance for the top edge of the door.

Proceed to Step 2, page 10.

SECTIONAL Door or

ONE PIECE Door with Track

• Close the door and mark the inside vertical centerline of the garage door.

• Extend the line onto the header wall above the door.

Remember, you can fasten the header bracket within 2 feet of the left or right of the door center only if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (refer to page 10) when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2".)

If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws (not supplied) to securely fasten the 2x4 to structural supports as shown here and on page 9.

Installation Section: Pages 8 – 23

Sectional door

with curved track

One-piece door

with horizontal track

Installation Step 1

Determine Header Bracket Location

Installation procedures vary according to garage door types. Follow the instructions which apply to your door.

If the header bracket is not rigidly fastened to a structural support on the header wall or ceiling, the safety reverse system may not work properly (see page

26).

The door might not reverse when required, and

could cause serious injury or death.

The garage door springs, cables, pulleys, brackets and their hardware are under extreme tension.

Do not attempt to loosen, move or adjust them yourself. Serious personal injury or death could result.

Call for

professional garage door service.

Finished

Ceiling

2x4

Header

Wall

Vertical

Guideline

Vertical

Guideline

Structural

Supports

WARNING

Ceiling

Header

Wall

Highest Point

of Travel

Door

Track

Header

Wall

Highest Point

Door

Track

of Travel

• Close the door and mark the inside vertical centerline of your garage door. Extend the line onto the header wall above door.

If headroom clearance is minimal, you can install the header bracket on the ceiling. See page 10.

• If you need to install the header

bracket on a 2x4 (on wall or ceiling), use lag screws (not supplied) to securely fasten the 2x4 to structural supports as shown.

EXAMPLE

Distance from top of door

(at highest point of travel) to floor................................92"

Actual height of door...................................................-88"

Remainder.......................................................................4"

Add...............................................................................+8"

Bracket height on header wall....................................=12"

(Measure UP from top of CLOSED door.)

Proceed to Step 2, page 10.

ONE-PIECE Door Without Track

• Open your door to the highest point of travel as shown. Measure the distance from the top of the door to the floor. Subtract the actual height of the door. Add 8" to the remainder. (See Example).

• Close the door and draw an intersecting horizontal line on the header wall at the determined height.

If the total number of inches exceeds the height available in your garage, use the maximum height possible, or refer to page 10 for ceiling installation.

One-piece door without track

pivot hardware

One-piece door without track

jamb hardware

Read the Safety Instructions on page 8. They also apply to doors without tracks.

Header Wall

Highest Point

of Travel

Header Wall

Vertical

Centerline

Garage Door

2x4

Vertical

Centerline of

Header

Wall

Unfinished

Ceiling

Structural Supports

2x4

Header Support

OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

Highest Point

of Travel

Door

Jamb

Hardware

Distance

Floor

Door

Distance

Pivot

Floor

You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements.

Fastening the Header Bracket to the Wall

• Center the bracket on the vertical guideline with the bottom edge of the bracket on the horizontal line as shown (with the arrow pointing toward the ceiling).

• Mark either set of bracket holes (do not use the holes designated for ceiling mount). Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.

• Extend the vertical guideline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than 6" from the wall. Make sure the arrow is pointing toward the wall. The bracket can be mounted flush against the ceiling when clearance is minimal.

• Mark holes designated for ceiling mount only. Drill 3/16" pilot holes and fasten bracket securely to a structural support with the hardware provided.

Fastening the Header Bracket to the Ceiling

Installation Step 2

Install the Header Bracket

Hardware Shown Actual Size

Wall

Mounting Holes

CEILING MOUNT ONLY

The nail hole is for

positioning only.

You must use lag screws

to mount the header bracket.

Vertical

Center

Line

Lag Screws

5/16"x9x1-5/8"

Door

Spring

2x4

Structural

Support

Optional

Wall Mounting

Holes

Header

Wall

Header Bracket

CEILING MOUNT ONLY

Ceiling Mounting Holes

CEILING MOUNT ONLY

The nail hole is for

positioning only.

You must use lag screws

to mount the header bracket.

– Finished Ceiling –

Vertical

Center Line

Header Bracket

Maximum

Door

Spring

Lag Screws

5/16"x9x1-5/8"

Highest

Point of Travel

(of Garage Door)

Garage

Door

Vertical

Center

Line

Garage

Lag Screw

5/16"-9 x 1-5/8"

Door

Vertical

Center Line

Header

Wall

• Position the opener on the garage floor below the header bracket. Use packing material as a protective base.

If the door spring is in the way you’ll need help. Have someone hold the opener securely on a temporary support to allow the rail to clear the spring.

• Position the rail bracket against the header bracket.

• Align the bracket holes and join with a clevis pin as shown.

• Insert a ring fastener to secure.

Installation Step 3

Attach the Rail to the Header Bracket

Hardware Shown Actual Size

Header Wall

Header Bracket

Rail Bracket

Garage

Door

Ring Fastener

Header Bracket

Rail

Clevis Pin

5/16"x2-3/4 "

Rail

Bracket

Rail

Foam Packaging

Opener Carton or

Temporary

Support

Clevis Pin

5/16" x 2-3/4"

Ring Fastener

The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction. This is a required safety device and cannot be disabled.

Installation procedures are the same for sectional and one-piece doors.

Be sure power to the opener is disconnected.

The sending eye transmits an invisible light beam to the receiving eye. The units can be installed on either side of the garage door as long as the sun never shines directly into the receiving eye lens.

Look at the label on the connector end of each case to identify the sensors.

The brackets must be connected and fastened so that the sending and receiving eyes face each other as shown.

If an obstruction breaks the light beam while the garage door is closing, the door will stop and reverse to full open position and the opener lights will flash for 5 seconds.

The brackets must be securely fastened to a solid surface such as the studs on either side of the door, or add a piece of wood at each location if installing in masonry construction. The invisible light beam path must be unobstructed. No part of the garage door (or door tracks, springs, hinges, rollers or other hardware) can interrupt the beam while the door is closing. If it does, use a piece of wood to build out each sensor mounting location to the minimum depth required for light beam clearance.

Without a properly working safety reversing sensor, persons (particularly children) could be injured or killed by a closing garage door.

Read and follow all

instructions. To protect small children, install the safety reversing

sensor so that the beam will be no higher than 4"-6" above the garage floor.

Disconnect power to the garage door opener before installing the safety reversing sensor.

Facing the door from inside the garage

The Protector System

Information you'll need before you begin the installation of the safety reversing sensor

WARNING

Sensor

Beam

4-6" max.

above floor

Invisible Light Beam

Protection Area

Sensor

Beam

4-6" max.

above floor

Installation Step 4

Install the Safety Reversing Sensor (Receiving and Sending Eyes)

Figures 1, 2 and 3 show recommended assembly of bracket(s) and "C" wrap based on the wall installation of the sensors on each side of the garage door as shown on page 12, or on the garage door tracks themselves.

Figures 4 and 5 are variations which may fit your installation requirements better. Make sure the wraps

and brackets are aligned so the sensors will face each other across the garage door.

Garage Wall or Door Track Installation Procedure

1. Fasten the "C" wraps to the mounting brackets having square holes, using the hardware shown in Figure 1.

Garage Wall Installation Procedure

2. Connect each assembly to a slotted bracket, using the hardware shown in Figure 2. Note alignment of

brackets for left and right sides of the door.

3. Finger tighten the lock nuts.

4. Use bracket mounting holes as a template to locate and drill (2) 3/16" diameter pilot holes on both sides of the garage door, 4"-6" above the floor but not exceeding 6" (see warning on page 12).

5. Attach bracket assemblies with #14-10x1-1/2" lag screws as shown in Figure 2.

6. Adjust right and left side bracket assemblies to the same distance out from mounting surface. Make sure all door hardware obstructions are cleared. Tighten the nuts securely.

Garage Door Track Installation Procedure

Discard slotted bracket. Drill 3/8" holes in each track and fasten securely with hardware as shown in Figure 3.

Hardware Shown Actual Size

Figure 1

Figure 4

Figure 5

Figure 3

Figure 2

Garage WALL or DOOR TRACK Installation

Mounting Bracket

With Square Holes

"C" Wrap

#10 - 32

Lock Nuts

Garage

Door Track

Drill 3/8"

Holes

Garage WALL Installation

#14-10 x 1-1/2" HH

Lag Screws

Inside

Wall

Mounting Bracket

with Slot

1/4" - 20

Lock Nuts

1/4-20 x 1/2" Carriage Bolts

(with square shoulder)

Mounting Bracket

with Square Holes

Garage DOOR Track Installation

Inside

Garage

Wall

1/4 " Lock Nuts

#10-32x3/8"

Screws

"C" Wrap

Mounting Bracket

with Square Holes

#10-32x3/8"

Screw

#10x32

Lock Nut

Alternate Wall Mount

Inside

Garage

Wall

Mounting Bracket

with Slot

Garage

Floor

Mounting Bracket

with Square Holes

Indicator Light

#14-10x1-1/2" HH

Lag Screw

"C" Wrap

Sensor

with wire

1/4-20 x 1/2"

Carriage Bolts

Staples

1/4"-20x1/2"

Carriage Bolts

Alternate Floor Mount

Inside

Garage

Wall

"C" Wrap

Sensor with wire

Garage

Floor

"C" Shaped

Wrap

1/4"-20

Lock Nut

Indicator Light

Mounting Bracket

with Square Holes

Mounting Bracket

with Slot

Attach with

concrete anchors

(not provided)

Figure 6

Hardware Shown Actual Size

Installation Step 4 (Continued)

Install the Safety Reversing Sensor

Figure 7

7. Center each sensor unit in a “C”- wrap with lenses pointing toward each other across the door (see Figure 6).

8. Secure sensors with the hardware shown. Finger tighten the wing nut on the receiving eye to allow for final adjustment. Securely tighten the sending eye wing nut.

Recommended Wire Routing

1. Using insulated staples, run the wires from both sensors to the rail at the door header (see Figure 7).

2. Cross and twist the two wires where they meet the rail (see inset A). Run the wires inside the channels at the top of the rail, along each side, to the power unit and pull taut (see inset B). Do not use the lower (trolley)

channels.

NOTE: If your access door is near the garage door, you may choose to install the door control at this time and run the door control wire along the rail with the sensor wires. Use one rail channel for the wall control wire and the other channel for both sensor wires. If you choose this option, follow instructions 1-3 on page 17 now.

3. Thread the wires through the tabs on top of the drive shaft cover.

4. With your screwdriver tip, tuck the wires snugly into the rail channels. You will complete the wiring in Installation Step 7.

Indicator

Light

1/4-20 x 1-1/2"

Hex Bolt

"C" Wrap

Wing

Nut

Sensor

with Wire

1/4-20 x 1-1/2"

Hex Bolt

Wing Nut

Header

Wall

Sensor

Wire

Twist

Wires

Sensor

Wire

Header Bracket

1. Run wires from sensors to end of rail

at the door header. Cross & twist here to

help contain wires in channels on

2. Run wires along channels to power unit and pull taut.

3. Thread wires through tabs on top of Drive Shaft Cover.

4. With screwdriver blade,

tuck wires snugly into channels.

Foam

Packaging

Carton

top

of rail.

Sensor

Bell Wire

Invisible Light Beam

Protection Area

Rail

Channel

Sensor

Installation Step 5

Position the Opener

Follow instructions which apply to your door type as illustrated.

To prevent damage to steel, aluminum, fiberglass or glass panel doors, do not rest the opener on the door without using a 2x4.

SECTIONAL Door or

ONE-PIECE Door with Track

A 2x4 laid flat is convenient for setting an ideal doorto-rail distance.

• Raise the opener onto a stepladder.

You will need help at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 laid flat on the top section beneath the rail.

If the top panel hits the trolley when you raise the door, pull down on the trolley release arm to disconnect the inner and outer sections. The trolley can remain disconnected until Step 12 is completed.

ONE-PIECE Door without Track

• With the door fully open and parallel to the floor, measure the distance from the floor to the top of the door.

• Using a stepladder as a support, raise the opener to the same distance as the door from the floor (it will be at a slight angle as shown).

• The top of the door should be level with the top of the opener. Do not position the opener more than 3" above this point.

CAUTIONCAUTION

Rail

Door

2x4

Foam

Packaging

Trolley

Release Arm

Header

Bracket

Top of Opener

Foam

Packaging

Top of Door

Installation Step 6

Hang the Opener

Two representative installations are shown. Yours may be different. Hanging brackets should be angled,

Figure 1, to provide rigid support. On finished ceilings, Figure 2, attach a sturdy metal bracket to structural supports before installing the opener. The bracket and

fastening hardware are not supplied.

• Measure the distance from each side of the opener to

the structural support.

• Cut both pieces of the hanging bracket to required lengths.

• Drill 3/16" pilot holes in the structural supports.

• Attach one end of each bracket to a support with 5/16" - 18x1-7/8" lag screws.

• Fasten the opener to the hanging brackets with 5/16" - 18x7/8" screws, lock washers and nuts.

• Check to make sure the rail is centered over the door (or in line with the header bracket if the bracket is not centered above the door).

• Remove the 2x4. Operate the door manually. If the door hits the rail, raise the header bracket.

The opener could fall and injure someone if it is not properly secured.

Fasten the opener securely to

structural supports of the garage.

Figure 1

Figure 2

Hardware Shown Actual Size

WARNING

Measure Distance

5/16"-18x7/8"

Hex Screws

5/16" Lock Washers

5/16"-18 Nuts

Structural

Supports

Lag Screws

5/16"- 18x1-7/8"

CONTROL

CENTER

Preferred Range of Bracket Placement

Lag Screw

5/16"-18 x 1-7/8"

Hex Screw

5/16"- 18 x 7/8"

Nut 5/16" - 18

Lockwasher 5/16"

Bracket

(Not Supplied)

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

— FINISHED CEILING —

Lag Screws

5/16"-18x1-7/8"

CONTROL

CENTER

Preferred Range of Bracket Placement

Hidden Support

(Not Supplied)

5/16"-18x7/8" Screw

5/16" Lock Washer

5/16"-18 Nut

Installation Step 7

Install the Door Control and Connect all Wiring

Children operating or playing with a garage door opener can injure themselves or others.

The garage door could

close and cause serious injury or death.

Install the door control (or any additional push buttons) out of the reach of children and away from all moving parts of the door and door hardware,

but where the garage door is visible.

Do not allow children to operate the push button(s) or the remote control transmitter(s).

A moving garage door could injure someone under it.

Activate the opener only when the door is properly adjusted, you can see it clearly, and there are no obstructions to door travel.

Install Door Control

Locate the door control within sight of the door at a minimum height of 5 feet where small children cannot reach, and away from all moving parts of the door and door hardware.

1. Strip 1/4" of insulation from one end of the bell wire and connect it to the two screw terminals on the back of the door control by color: white to 2 and white/red to 1 (see Figure 1).

2. Fasten the Multi-Function Door Control uses 6ABx1-1/4" screws. If installing into drywall, drill 5/32" holes and use the anchors provided.

3. Run the bell wire up the wall and across the ceiling to the opener. Use insulated staples to secure the wire in several places. Be careful not to pierce the wire with a staple, creating a short. If your access door is near the

garage door, you may run this wire with the Safety Reversing Sensor wires along the top of the rail. See page 14.

4. Remove the Control Center door on the right panel of the opener to access the terminal screws.

Connect Door Control and Sensor Wiring

5. Thread all wires through the opening at the base of the drive shaft cover (see Figure 2).

6. Insert the remaining wire through the hole in the power unit and strip 1/4" of insulation from each set of wires.

7. Connect the door control wire to the opener terminal screws: white to 2 and white/red to 1. (See Figure 3.)

8. Separate the sensor white and white/black wires sufficiently to connect to the opener terminal screws: white to 2 and white/black to 3.

9. Attach the User Safety Instruction label to the wall near the door control, and the Maintenance Instruction label in a prominent location on the inside of the garage door.

Page 28 explains how to operate the opener using the door controls and the Lock & Light features available on the Multi-Function Door Control Panel.

Hardware Shown Actual Size

Outside Keylock Connections (see Accessories)

To opener terminal screws: white to 2; white/red to 1

Do NOT connect the power and operate the opener at this time. The trolley will travel to the full open

position but will not return to the close position until the sensor beam is connected and properly aligned. See Step 9 on page 18.

Door

Control

Sensors

Terminal

Screws

Control

Center

Figure 1

Figure 3

Figure 2 WIRING TO CONTROL CENTER

Insert wires

through

opening in

Drive Shaft Cover

Push wiring

through hole in chassis

(above Control Center) and connect to opener

terminal screws

WARNING

Door Control Panel

Terminal Screws

RED

WHITE

6ABx1-1/4" Screw

Multi-Function Door Control Panel

Insulated Staples

Dry Wall Anchors

Door Control

Connections

(dotted line)

OPENER TERMINAL SCREWS

(In Control Center)

Sensor

Connections

To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will only fit into a grounding type outlet.

If the plug doesn't fit into the outlet you have, contact a qualified electrician to install the proper outlet.

If permanent wiring is required by your local code, refer to the following procedure:

Installation Step 8

Electrical Requirements

To make a permanent connection through the 7/8" diam. hole in the top of the opener (according to local code):

• Remove the opener cover screws and set the cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the brass terminal; the white (neutral) wire to the screw on the silver terminal; and the ground wire to the green ground screw. The opener must be grounded.

• Reinstall the cover.

To prevent electrocution or fire,

installation and wiring must be in compliance with local electrical and building codes.

Do NOT use an extension cord, 2-wire adapter, or change the plug in any way to make it fit your outlet.

To avoid installation difficulties,

do not run the opener until Step 9 below.

To prevent electrocution,

remove power from the

garage door opener

and

from the circuit you plan to

use for the permanent connection.

Installation Step 9

Complete Safety Reversing Sensor Installation

Aligning the Safety Sensors

• Plug in the opener. Green indicator lights in both the

sending and receiving eyes will glow steadily if wiring connections and alignment are correct.

The sending eye indicator light will glow regardless of alignment or obstruction. If the indicator light is off, dim, or flickering in the receiving eye (and the invisible light beam path is not obstructed), alignment is required.

• Loosen the sending eye wing nut and re-adjust, aiming directly at the receiving eye. Lock in place.

• Loosen the receiving eye wing nut and adjust sensor vertically and/or horizontally until it receives the sender’s beam. When the green indicator light glows steadily, tighten the wing nut.

Trouble Shooting

1. If the sending eye indicator light does not glow steadily after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These can occur under staples or at screw terminal connections.

• Incorrect wiring between sensors and opener.

• An open wire (wire break).

2. If the sending eye indicator light glows steadily but the receiving eye indicator light doesn't:

• Check alignment.

• Check for an open wire to the receiving eye.

3. If the receiving eye indicator light is dim, realign either sensor.

NOTE: When the invisible beam path is obstructed or misaligned while the door is closing, the door will reverse. If the door is already open, it will not close. The opener lights will flash 10 times. (If bulbs are not installed, 10 clicks are audible.) See page 12.

WARNING

Right

Wrong

Permanent Wiring

Connection

Ground Tab

Green

Ground Screw

Ground Wire

White Wire

Black

Wire

Black

Wire

Installation Step 10

Install the Lights and Lens

Installation Step 11

Attach the Manual Release Rope and Handle

Do not use the red handle to pull the door open or closed.

The rope knot could become untied and you

could fall.

Use the manual release only to disengage the

trolley and, if possible, only when the door is closed. Garage doors are heavy. If the door is open when the

handle is pulled, the door could close inadvertently if it is not properly balanced. Serious injury may result to persons under the door. Make sure the doorway is clear of persons and obstructions before pulling handle when door is open.

• Thread one end of the rope through the hole in the top

of the red handle so “NOTICE” reads right side up as shown. Secure with an overhand knot.

The knot should be at least 1" from the end of the rope to prevent slipping.

• Thread the other end of the rope through the hole in the release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet above the floor. Secure with an overhand knot .

If it is necessary to cut the rope, heat seal the cut end with a match or lighter to prevent unraveling.

• Install a 100 watt maximum light bulb in each socket. The lights will turn ON and remain lit for approximately 4-1/2 minutes when power is connected. Then the lights will turn OFF.

• Insert bottom lens tabs into slots on chassis and tilt towards chassis to engage top tabs, then drop down gently into place. (See illustration.)

• To remove, lift lens up and gently tilt slightly outward and down, then pull out to clear bulbs. Use care to

avoid snapping off bottom lens tabs.

• If the bulbs burn out prematurely, replace with standard neck Garage Door Opener bulbs. (Fluorescent bulbs are

not recommended because of possible interference with receiver/transmitter signals.)

Light Socket

CONTROL

CENTER

Bottom Lens Slot

Bottom Lens Tab

CONTROL

CENTER

100 Watt Max.

Light Bulb

Top Lens Slot

Top Lens Tab

Lens

Trolley

Release Arm

Overhand

NOTICE

Knot

Rope

Release Handle

Manual

Overhand

Knot

Chassis

Insert Bottom Lens Tabs First

WARNING

Installation Step 12

Fasten Door Bracket

Follow instructions which apply to your door type as illustrated below or on page 21.

To prevent damage to steel, aluminum, fiberglass or glass panel doors, always reinforce the inside of the door both vertically and horizontally with an angle iron.

A horizontal brace should be long enough to be secured to 2 vertical supports. A vertical brace should cover the height of the top panel.

The illustration shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of angle iron are used to create a U-shaped support. The best solution is to check with your garage door manufacturer for an opener installation door reinforcement kit.

• Center the door bracket on the previously marked

vertical guideline used for the header bracket installation. Note the correct UP placement, as

stamped inside the bracket.

• Position the bracket on the face of the door within the

following limits:

A) The top edge of the bracket 2-4" below the top edge

of the door.

B) The top edge of the bracket directly below any

structural support across the top of the door.

• Mark and drill 5/16" left and right fastening holes.

Secure the bracket as shown in Figure 1 if there is vertical reinforcement.

If your installation doesn't require vertical reinforcement but does need top and bottom fastening holes for the door bracket, fasten as shown in Figure 2.

Door Bracket

Inside Edge

of Door or

Reinforcement Board

Door

Bracket

Nut

5/16"-18

Carriage Bolt

5/16"-18x2-1/2"

Lock

Washer

5/16"

Vertical

Guideline

Vertical

Reinforcement

Vertical

Guideline

Door

Bracket

Location

Header Bracket

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, aluminum, steel, doors with glass panel, etc).

SECTIONAL Door Installation Procedure

Figure 1

Figure 2

Hardware Shown Actual Size

CAUTIONCAUTION

Nut 5/16" - 18

Carriage Bolt

5/16"-18 x 2-1/2"

Lockwasher 5/16"

All ONE-PIECE Door Installation Procedure

• Center the bracket on the top of the door, in line with the header bracket as shown. Mark holes.

• Drill 5/16" pilot holes and fasten the door bracket with hardware supplied.

If the door has no exposed framing, drill 3/16" pilot holes and fasten the bracket with 5/16"x1-1/2" lag screws (not supplied) to the top of the door.

The door bracket may be installed on the top edge of the door if required for your installation. (Refer to the dotted line optional placement drawing.) Drill 3/16" pilot holes and substitute 5/16"x1-1/2" lag screws (not supplied) to fasten the bracket to the door.

Please read and comply with the warnings and reinforcement instructions on page 20. They apply to one-piece doors also.

Hardware Shown Actual Size

Header Wall

2x4 Support

Finished Ceiling

Header Bracket

Optional

Placement

of Door Bracket

Door

Bracket

Vertical Centerline of Garage Door

Horizontal and vertical

reinforcement is needed for

lightweight garage doors

(fiberglass, aluminum, steel,

door with glass panel, etc.).

Nut

5/16"-18

Door

Bracket

For a door with no exposed framing or for the optional installation, use 5/16"x1-1/2" lag screws (not supplied) to fasten door bracket.

Nut 5/16" - 18

Carriage Bolt

5/16"-18 x 2-1/2"

Lock Washer

5/16"

Top of Door

(Inside Garage)

Top Edge

of Door

Optional

Placement

Carriage Bolt

5/16"-18x2-1/2"

Lockwasher 5/16"

Installation Step 13

Connect Door Arm to Trolley

Follow instructions which apply to your door type as illustrated below and on page 23.

Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the inner trolley. Slide the outer trolley back (away from the door) about 2" as shown in Figures 1, 2 and 3.

Figure 2:

• Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far apart as possible to increase door arm rigidity.

Figure 3:

• If holes in curved arm are above holes in straight arm,

disconnect straight arm. Cut about 6" from the solid end. Reconnect to trolley with cut end down as shown.

• Bring arm sections together.

• Find two pairs of holes that line up and join with screws, lock washers and nuts.

Proceed to Adjustment Step 1, page 24. Trolley will re-engage automatically when the opener is operated.

Figure 1:

• Fasten straight door arm section to outer trolley with

the 5/16"x1" clevis pin. Secure the connection with a ring fastener.

• Fasten curved section to the door bracket in the same way, using the 5/16"x1-1/4" clevis pin.

Figure 1

Figure 2

Figure 3

SECTIONAL Doors Only

Hardware Shown Actual Size

Hole Alignment Alternative

Inner

Trolley

Outer

Trolley

Clevis Pin

5/16"x1"

Straight

Door Arm

Clevis Pin

5/16"x1-1/4"

Ring

Fastener

Door

Bracket

Curved

Door Arm

Rope

Manual

Release

Handle

Screws

Nuts

5/16"-18

Bracket

Door

Lock

Washers

5/16"

5/16"-18x7/8"

Lock

Washers

5/16"

Nuts

5/16"-18

Screws

5/16"-18x7/8"

Cut this end

Nut 5/16"-18

Clevis Pin

5/16"x1" (Trolley)

Lock Washer 5/16"

5/16"x1-1/4" (Door Bracket)

Ring Fastener

Clevis Pin

Hex Screw

5/16"-18x7/8"

All ONE-PIECE Doors

Assemble the Door Arm:

• Fasten the straight and curved door arm sections

together to the longest possible length (with a 2 or 3 hole overlap).

• With the door closed, connect the straight door arm

section to the door bracket with the 5/16"x1-1/4" clevis pin.

• Secure with a ring fastener.

On one-piece doors, before connecting the door arm to the trolley the travel limits must be adjusted. Limit adjustment screws are located on the right side panel as shown on page 24. Follow adjustment procedures below.

Adjustment Procedures for One-Piece Doors

Open Door Adjustment:

Decrease UP Travel Limit

• Turn the UP limit adjustment screw counter-clockwise

5 1/2 turns.

• Press the Door Control push bar or button. The trolley

will travel to the fully open position.

• Manually raise the door to the open position (parallel

to the floor), and lift the door arm to the trolley. The arm should touch the trolley just in back of the door arm connector hole. Refer to the fully open trolley/door arm positions in the illustration. If the arm does not extend far enough, adjust the limit further. One full turn equals 2" of trolley travel.

Closed Door Adjustment:

Decrease DOWN Travel Limit

• Turn the DOWN limit adjustment screw clockwise 5 complete turns.

• Press the Door Control push bar or button. The trolley will travel to the fully closed position.

• Manually close the door and lift the door arm to the trolley. The arm should touch the trolley just ahead of the door arm connector hole. Refer to the fully closed trolley/door arm positions in the illustration. If the arm is behind the connector hole, adjust the limit further. One full turn equals 2" of trolley travel.

Connect the Door Arm to the Trolley:

• Close the door and join the curved arm to the connector hole in the trolley with the remaining clevis pin. It may be necessary to lift the door slightly to make the connection.

• Secure with a ring fastener.

• Run the opener through a complete travel cycle. If the door has a slight "backward" slant in full open position as shown in the illustration, decrease the UP limit until the door is parallel to the floor.

Screws

Ring

Fastener

Lock

Washers

5/16"

Nuts

5/16"-18

Door Arm

Door

Bracket

Clevis Pin

5/16"x1-1/4"

Straight

Arm

5/16"-18x7/8

Fully Closed

Trolley

Fully Open

Trolley

Door Arm

Connector Hole

Door Arm

Connector Hole

Curved

Closed

Door

Open Door

Door with

Backward Slant

Door Arm

Adjustment Step 1

Adjust the UP and DOWN Limits

Do not make any limit adjustments until the safety reversing sensors are completely installed.

Limit adjustment settings regulate the points at which the door will stop when moving up or down.

The door will stop in the up direction if anything interferes with door travel. The door will reverse in the down direction if anything interferes with the door travel (including binding or unbalanced doors).

To operate the opener, press the Door Control push bar. Run the opener through a complete travel cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse unintentionally when fully closed?

If your door passes both of these tests, no limit adjustments are necessary unless the reversing test fails (see page 26).

Adjustment procedures are outlined below.Run the

opener through a complete travel cycle after each adjustment.

Repeated operation of the opener during adjustment procedures may cause the motor to overheat and shut off. Simply wait 15 minutes and try again.

Read the procedures carefully before proceeding to Adjustment Step 2. Use a screwdriver to make limit adjustments.

How and When to Adjust the Limits

If the door does not open completely but opens at least five feet:

Increase up travel. Turn the UP limit adjustment screw clockwise. One turn equals 2" of travel.

If door does not open at least 5 feet: Adjust the UP (open) force as explained in Adjustment Step 2.

If the door does not close completely:

Increase down travel. Turn the DOWN limit adjustment screw counterclockwise. One turn equals 2" of travel.

If door still won't close completely, try lengthening the door arm. (Page 22.)

If you have adjusted the door arm to the maximum length and the door still will not close completely, lower the header bracket. See Installation Step 1, pages 8/9.

If the opener reverses in fully closed position:

Decrease down travel. Turn the DOWN limit adjustment screw clockwise. One turn equals 2" of travel.

If the door reverses when closing and there is no visible interference to travel cycle:

If the opener lights are flashing, the Safety Reversing Sensors are either not installed, misaligned, or obstructed. See Troubleshooting, page 18.

Test the door for binding: Pull the manual release handle. Manually open and close the door. If the door is binding, call for garage door service. If the door is not binding or unbalanced, adjust the DOWN (close) force. See Adjustment Step 2.

Adjustment Section: Pages 24 – 26

Improper adjustment of the travel limits will interfere with the proper operation of the safety reverse system.

The door might not reverse properly when required and could seriously injure or kill someone under it.

Test the safety reverse system monthly, and following all adjustments to the travel limits. See page 26.

WARNING

321

Right Side Panel

LIMIT ADJUSTMENT

LABEL

Adjust UP Travel

Adjust DOWN Travel

Travel Limit Adjustment

Screws

Adjustment Step 2

Adjust the Force

Too much force on the door will interfere with the proper operation of the safety reverse system.

The door might not reverse properly when required and could seriously injure or kill someone under it.

Do not increase the force beyond the minimum amount required to close the door. Do not use the force adjustments to compensate for a binding or sticking garage door. Test the safety reverse system monthly, and following all adjustments to force levels. See page 26.

Force Adjustment Label

Right Side

Panel

Force Adjustment

Controls

321

How and When to Adjust the Forces

Test the DOWN (close) force

Grasp the door bottom when the door is about halfway through DOWN (close) travel. The door should reverse.

Reversal halfway through down travel does not guarantee reversal on a one-inch obstruction. See page 26. If the door is hard to hold or doesn't reverse,

decrease the DOWN (close) force by turning the control counterclockwise.

Make small adjustments until the door reverses normally. After each adjustment, run the opener through a complete cycle.

Test the UP (open) force

Grasp the door bottom when the door is about halfway through UP (open) travel. The door should stop. If the door is hard to hold or doesn't stop, decrease UP (open) force by turning the control counterclockwise.

Make small adjustments until the door stops easily. After each adjustment, run the opener through a complete travel cycle.

If the door doesn't open at least 5 feet:

Increase UP (Open) force by turning the control clockwise. Make small adjustments until door opens completely. Readjust the UP limit if necessary. After each adjustment, run the opener through a complete travel cycle.

If the door reverses during the down (close) cycle and the opener lights aren't flashing:

Increase DOWN (close) force by turning the control clockwise. Make small adjustments until the door completes a close cycle. After each adjustment, run the opener through a complete travel cycle. Do not increase

the force beyond the minimum amount required to close the door.

Force adjustment controls are located on the right panel of the opener. Force adjustment settings regulate the amount of power required to open and close the door.

The door will stop in the up direction if anything interferes with its travel. The door will reverse in the down direction if anything interferes with its travel (including binding or unbalanced doors).

If the forces are set too light, door travel may be interrupted by nuisance reversals in the down direction and stops in the up direction. Weather conditions can affect the door movement, so occasional adjustment may be needed.

The maximum force adjustment range is about 3/4 of a complete turn. Do not force controls beyond that point. Turn force adjustment controls with a screwdriver.

WARNING

Adjustment Step 4

Test the Safety Reverse System

Test

• Place a one-inch board (or a 2x4 laid flat) on the floor, centered under the garage door.

• Operate the door in the down direction. The door must

reverse on striking the obstruction.

Adjustment

If the door stops on the obstruction, it is not traveling far enough in the down direction.

• Increase the DOWN limit by turning the DOWN limit adjustment screw counterclockwise 1/4 turn.

• Repeat the test.

On a sectional door, make sure limit adjustments do not force the door arm beyond a straight up and down position. See the illustration on page 22.

• When the door reverses on the one-inch board, remove the obstruction and run the opener through 3 or 4 complete travel cycles to test adjustment.

If the door will not reverse after repeated adjustment attempts, call for professional garage door service.

Important Safety Check

Repeat Adjustment Steps 1-4 after:

• Each adjustment of door arm length, force controls or limit controls.

• Any repair to or adjustment of the garage door (including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

Failure to test and adjust the safety reverse system may result in serious injury or death to persons trapped by a closing garage door.

Repeat this test once a month and

adjust as needed.

Adjustment Step 3

Test The Protector System

• Press the remote control push button to open the door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the door.

The door will not move more than an inch, and the opener light will flash for 5 seconds.

Professional service is required if the opener closes the door when the safety reversing sensor is obstructed.

The garage door opener will not close from a remote if the indicator light in either sensor is off (alerting you to the fact that the sensor is misaligned or obstructed).

The garage door can be closed by pressing and holding the Door Control push bar until down travel is completed.

Without a properly working safety reversing sensor, persons (particularly children) could be seriously injured or killed if trapped by a closing garage door.

Repeat this

test once a month.

One-Inch board (or a 2x4 laid flat)

WARNING

Safety Reversing Sensor

WARNING

1 Inch Obstruction

The Remote Control Transmitter

The opener must learn the code of any new remote control. Page 29 explains how to program your receiver and how to erase all codes if required. Self service of your receiver and remote controls is not recommended. If service is needed, call the toll-free number listed on the back page.

The Transmitter Battery

The lithium battery should produce power for up to 5 years. To replace battery, pry open case with visor clip or screwdriver, as shown. Insert battery positive side up.

Dispose of your old battery properly.

Once a Month

Manually operate door. If it is unbalanced or binding, call for professional garage door service.

Check to be sure door opens & closes fully. Adjust limits and/or force if necessary. (See pages 24 & 25.)

Repeat the safety reverse test. Make any necessary adjustments (See page 26).

Once a Year

Oil door rollers, bearings and hinges. The opener does not require additional lubrication. Do not grease the door tracks.

Weather conditions may cause some minor changes in door operation requiring some re-adjustments, particularly during the first year of operation.

Pages 24 and 25 refer to the limit and force adjustments. Only a screwdriver is required. Follow the instructions carefully.

Repeat the safety reverse test (page 26) after any adjustment of limits or force.

Care of Your Opener

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Do not permit children either to operate or to play with the opener. Keep remote control in a location inaccessible to children.

3. Operate opener only when the door is in full view and free from any obstruction. Keep the door in sight until it is completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

4. Check safety reversal system monthly. See page 26. The garage door MUST reverse on contact with a one inch object (or a 2x4 board laid flat) placed on the floor. If an adjustment is made to one of the controls (either force or limits of travel), the other control may need to be adjusted also, and the safety reversal system must be checked. Failure to properly adjust the opener may result in severe injury or death.

5. If possible, use the manual release only when the door is in a closed position. Caution should be taken whenever the disconnect cord is actuated with the door open. Weak or broken springs may cause the door to

fall rapidly, causing injury or death to persons.

6. KEEP GARAGE DOORS PROPERLY BALANCED. See page 3. An improperly balanced door may not reverse when required, and could result in severe injury or death. Repairs to cables, spring assemblies and

other hardware must be made by a professional garage door person.

7. Disconnect the electric power to the garage door opener before making any repairs or removing the covers.

SAVE THESE INSTRUCTIONS

FORCE CONTROLS

LIMIT CONTROLS

Force and Limit Adjustment Controls

Maintenance Schedule

Keep batteries away from small children. If swallowed, promptly notify doctor.

WARNING

Activate the opener with any of the following:

• The Remote Control Transmitter. Hold push button down

until the door starts to move.

• The Door Control. Hold push bar down until the door starts

to move.

• The Outside Keylock or Keyless Entry. (SeeAccessories) When the opener is activated with the safety reversing

sensor installed and correctly aligned:

1. If open, the door will close. If closed, it will open.

2. If closing, the door will reverse.

3. If opening, the door will stop (allowing space for entry and exit of pets and for fresh air).

4. If the door has been stopped in a partially open position, it will close.

5. If obstructed while closing, the door will reverse.

6. If obstructed while opening, the door will stop.

7. The garage door will reverse in the closing cycle, and the opener lights will blink for 5 seconds, when the invisible beam is broken. If fully open, the door will not close when the beam is broken. The sensor has no effect in the opening cycle.

If the sensor is not installed, or is not aligned correctly, the door won't close from any remote transmitter. You can close the door with the Door Control, the Outside Keylock, or Keyless Entry, however, if you activate them until down travel is complete. If you release them too soon, the door will reverse.

Opener Lights will turn on under the following conditions: When the opener is initially plugged in; when the power is interrupted; when the opener is activated. It will turn off automatically after 4-1/2 minutes or provide constant light when the Light feature on the Multi-Function Door Control is activated. Bulb size is 100 watts maximum.

Lights will also turn on when someone walks through the open garage door. With a Multi-Function Door Control, this feature may be turned off as follows: With the opener lights of f, press and hold the light button for 10 seconds, until the light goes on and off again. To restore this feature, start with the opener lights on, then press and hold the light button for 10 seconds.

Lockout position

(Manual disconnect)

To reconnect

Weak or broken springs could allow an open door to fall (either rapidly or unexpectedly), resulting in serious injury, death or property damage .

If possible, use the

manual release rope and handle

only

when the door is

fully closed.

Operation of Your Opener

Door Control Push Bar: Press to open or close the door. Press again to reverse the door during the closing cycle or to stop the door while it's opening.

Light Feature: Press the Light button. If the opener light is off, it will turn on. If the opener light is on, (even in the 4-1/2 minute automatic cycle) it will turn off.

But if you use the Light button to turn the lights on and then activate the opener, the lights will turn off after 4-1/2 minutes.

The Light button will not control the opener lights when the door is in motion.

Lock Feature: The Lock feature is designed to prevent operation of the door from remote controls. However, the door will open and close from the Door Control push bar, the Outside Keylock and the Keyless Entry Accessories.

To Activate: Press and hold the Lock button for 2 seconds. The push bar light will flash as long as the Lock feature is on.

To turn off: Press and hold the Lock button again for 2 seconds. The push bar light will stop flashing. Normal operation will resume. The Lock feature will also turn off whenever the “Smart” button on the opener panel is activated.

Operation of the Multi-Function Door Control

(See additional programming features, next page.)

To open the door manually:

The door should be fully closed if possible. Pull down on the manual release handle (so that the trolley release arm snaps into a vertical position) and lift the door manually. The lockout feature prevents the trolley from reconnecting automatically, and the door can be raised and lowered manually as often as necessary.

To reengage the trolley: Pull the manual release handle toward the opener at a 45 degree angle so that the trolley release arm is horizontal. The trolley will reconnect on the next UP or DOWN operation, either manually or by pressing the Door Control push bar.

WARNING

Trolley

ReleaseArm

(in Manual

Disconnect

Position)

NOTICE

Trolley

Release Arm

Manual

Release

Handle

(Pull at 45° angle)

NOTICE

Trolley

Children operating or playing with a garage door opener can injure themselves or others.

The garage door could

close and cause serious injury or death.

Do not allow

children to operate the door controls or remote controls.

A moving garage door could injure or kill someone under it.

Activate the opener only when you can see the door

clearly, it is free of obstructions, and is properly adjusted.

SECURITY✚

Your garage door opener receiver and remote control transmitter have been set at the factory to a matching code. The door will activate when you press the LARGE remote control push button.

Your SECURITY✚ opener will operate with:

• several SECURITY✚ remote controls utilizing up to

8 functions. NOTE: Open/Close/Stop operation counts

as 1 function.

• one Keyless Entry System (with SECURITY✚ logo)

Follow the instructions below to program your opener to match any additional remotes you may purchase. See Accessories on page 34.

To Add a Remote Control

Select a remote control push button to operate the opener. The large button is recommended for use with a garage door opener. See Figure 1.

1. Press and hold the remote control push button. See

Figure 1.

2. Press and release the “Smart” (learn) button on the

right side panel of the opener. See Figure 2. The indicator light on the panel will begin to blink and the opener lights will flash once.

3. Release the remote push button.

Now the opener will operate when the remote control push button is pressed. Test by pressing the remote button to see that the door goes up and down.

Adding a remote can also be done from the door control, as follows:

1. With the door closed, press and hold a remote push

button.

2. Press and hold the Light button on the door control.

3. Press and hold the door control push bar.

4. After the opener lights flash, release all buttons.

Test by pressing the remote push button.

To Erase All Remote Control Codes

Press and hold the “Smart” button on the opener panel until the indicator light turns off (about 6 seconds). All transmitter codes are now erased. Then follow the steps above to re-program each remote control.

To Control the Opener Lights

With SECURITY✚transmitters, a remote push button can be programmed to operate the opener lights without opening the door.

1. With the door closed, press and hold the remote button

that you want to control the light.

2. Press and hold the Light button on the door control.

3. Press and hold the Lock button on the door control.

4. After the opener lights flash, release all buttons.

Test by pressing the remote push button. The opener lights should turn on or off but the door should not move.

Figure 1

Receiver & Remote Control Programming

NOTICE: To comply with FCC rules, adjustment or modification of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the transmitter battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Open/Close/Stop Operation

Your SECURITY✚ remote control can be programmed to operate one door using all 3 buttons: the large button will only open the door, the middle button will only close the door, and the third button will stop the door’s movement. You may set up this feature as follows:

1. With the door closed, press and hold the large remote push button.

2. Press and hold the Lock button on the door control.

3. Press and hold the door control push bar.

When the opener lights flash, release all buttons. Test by pressing the large (Open) button on the remote. The door should open. Press it again while the door is open and nothing should happen. Press the middle (Close) button and the door should close. Press the third (Stop) button while the door is moving and it should stop immediately.

Model 976LG SECURITY✚ Keyless Entry

Follow instructions on page 34 (Accessories).

Open

Stop

Figure 2

WARNING

SECURITY✚ 3-Channel

Remote Control

Select a

Push Button

"Smart" (learn)

Button

SECURITY✚

Garage Door Opener

321

Indicator

Light

Code programming instructions are

also located on the opener panel.

1. Does the opener have electric power? Plug a lamp into the outlet. If it doesn't light, check the fuse box or the circuit breaker. (Some outlets are controlled by a wall switch.)

2. Have you disabled all door locks? Review installation instruction warnings on Page 7.

3. Is there a build-up of ice or snow under the door? The door may be frozen to the ground. Remove any restriction.

4. The garage door spring may be broken. Have it replaced.

5. Repeated operation may have tripped the overload protector in the motor. Wait 15 minutes. Try again.

Having a Problem?

Situation Probable Cause & Solution

The opener doesn't operate from either the door control or the remote control:

Opener operates from the remote control, but not from the door control:

1. Is the door control push bar lit? If not, Remove the bell wire from the opener terminal screws. Short the red and white terminals by touching both terminals at the same time with a piece of wire. If the opener runs, check for a faulty wire connection at the door control, a short under the staples, or a broken wire.

2. Are the wiring connections correct? Review Installation Step 7, page 17.

The door operates from the door control, but not from the remote control:

1. Is the door push bar flashing? If your model has the Lock feature, turn it off.

2. Your opener needs to re-learn a remote control code. Refer to instructions on the opener panel.

3. Program the receiver to match the remote control code.

4. Repeat the receiver programming procedure with all remote controls.

The remote control has short range:

The garage door opens and closes by itself:

1. Be sure that all remote control push buttons are off.

2. Remove the bell wire from the door control terminals and operate from the remote control only. If this solves the problem, the door control is faulty (replace), or there is an intermittent short on the wire between the door control and the opener.

3. Clear memory and reprogram all remote controls.

The door doesn't open completely:

1. If the door has been working properly but now doesn't open all the way, increase the up force. See page 25.

2. Is something obstructing the door? Remove the obstruction or repair the door.

3. If door opens at least 5 feet, the travel limits may need to be increased. One turn equals 2 inches of travel. See page 24.

Repeat the safety reverse test after the adjustment is complete.

The door stops but doesn't close completely:

Review the travel limits adjustment procedures on page 24.

Repeat the safety reverse test after any adjustment of door arm length, close force or down limit.

1. Change the location of the remote control in your car.

2. Check to be sure the antenna on the right side panel of opener extends fully.

3. Some installations may have shorter range due to a metal door, foil backed insulation, or metal garage siding.

Opener noise is disturbing in living quarters of home:

If operational noise is a problem because of proximity of the opener to the living quarters, the Vibration Isolator Kit 41A3263 can be installed. This kit was designed to minimize vibration to the house and is easy to install.

Having a Problem?

(continued)

Situation Probable Cause & Solution

The door reverses for no apparent reason and opener lights don't blink:

The door reverses for no apparent reason and opener lights blink for 5 seconds after reversing:

1. Is something obstructing the door? Pull the manual release handle. Operate the door manually. If it is unbalanced or binding, call for professional garage door service.

2. Clear any ice or snow from the garage floor area where the door closes.

3. Review the force adjustment procedures on page 25.

4. If door reverses in the fully closed position, decrease the travel limits (page 24).

Repeat the safety reverse test after adjustments to force or travel limits. The need for occasional adjustment of the force and limit settings is normal. Weather conditions in particular can affect door travel.

The opener lights… don't turn on:

Replace the light bulb(s) (100 watts maximum). Use a standard neck garage door opener bulb if regular bulb burns out.

don't turn off:

Is the Light feature on? Turn it off.

The opener strains or maximum force is needed to operate door:

The door may be out of balance or the springs are broken. Close the door and use the manual release handle to disconnect the trolley. Open and close the door manually. A properly balanced door will stay in any point of travel while being supported entirely by its springs. If it does not, disconnect the opener and call for professional garage door service. Do not

increase the force to operate the opener.

The opener motor hums briefly, then won't work:

1. The garage door springs are broken. See above.

2. If the problem occurs on the first operation of the opener, door may be locked. Disable the

door lock.

Repeat the safety reverse test after the adjustment is complete.

The opener won't operate due to power failure:

1. Use the manual release handle to disconnect the trolley. The door can be opened and closed manually. When power is restored, press the Door Control push bar or button and trolley will automatically reconnect (unless trolley is in lockout position.) See page 28.

2. The Outside Quick Release accessory (for use on garages with no service door) disconnects the trolley from outside the garage in case of power failure.

The door opens but won't close:

1. If the opener lights blink, check the safety reversing sensor. See page 18.

2. If the opener lights do not blink and it is a new installation, check the down force. See Adjustment Step 2, page 25. For an existing installation, see below.

Repeat the safety reverse test after the adjustment is complete.

Check the safety reversing sensor. Remove any obstruction or align the receiving eye. See page 18.

Rail Assembly Parts

Installation Parts

KEY PART NO. NO. DESCRIPTION

1 41A4795 Hardware bag (Includes

sprocket coupling) 2 12B569-1 Left rail bracket 3 12B569-2 Right rail bracket 4 81C168 Rack 5 41C4677 Complete trolley assembly 6 1D4828-1 One-piece T-rail 7 41A4836 Drive sprocket kit 8 25A18 Sprocket coupling

KEY PART NO. NO. DESCRIPTION

1 41A4202-12B Multi-function door control panel 2 10A20 3V2032 Lithium battery 3 41A5056-6 3-Channel remote control housing

(no circuit board) 4 29B137 Remote control visor clip 5 217A238 2-Conductor bell wire - white & white/red 6 41A2828 Manual release rope & handle assy. 7 41A5047 Door bracket w/clevis pin & fastener 8 41A4353 Header bracket w/clevis pin & fastener 9 41A4373A Safety sensor kit (receiving and sending eyes

with 3' 2-conductor bell wire attached)

10 178B34 Straight door arm section 11 12B483 C-wrap bracket 12 178B35 Curved door arm section 13 12B484 Square hole bracket 14 12B485 Slotted bracket

NOT SHOWN

41A4116 Safety sensor hardware 41A4675-4 Opener installation hardware bag (See page 3) 114A2390 Owner's manual

Repair Parts

2 3

LOCK

LIGHT

NOTICE

CEILING MOUNT ONLY

Repair Parts

Brown

Wire

(Down)

Contact

LIMIT SWITCH ASSY.

Grey Wire

Yellow

Wire

(Up)

Contact

Center Limit

Contact

Drive

Gear

Power Unit Parts

KEY PART NO. NO. DESCRIPTION

1 31D426 Drive shaft cover 2 41B4245 Line cord 3 30B363 Capacitor – 1/2 HP 4 12A373 Capacitor bracket 5 41A3150 Terminal block w/screws 6 41D4671 Limit switch assembly 7 12D554 Limit switch bracket 8 41D4759 Complete Motor Drive Assy., with

8a 144B41 22T Pulley

8b 144B42 28T Pulley

8c 20C14 Drive Belt

8d 158A69 Retainer Ring

KEY PART NO. NO. DESCRIPTION

9 41A4843 Interrupter cup 10 41A4837 Worm gear and retainer 11 41C4669 Wire harness assembly 12 41C4672 RPM sensor assembly 13 41D4674-19E Receiver logic board assembly 14 41D5285 Cover – 1/2 HP 15 1C4840-9 Control Center access door 16 175C123 Light socket 17 108D47 Light lens

LOCK

LIGHT

Accessories Available For Your Opener

Model 971AC

Model 974AC

Model 970LM

Model 1702

SECURITY✚ Single-Function

Remote Control

Includes visor clip.

SECURITY✚ 2-Channel Remote Control

Includes visor clip.

SECURITY✚ 3-Channel Remote Control

Includes visor clip.

SECURITY✚ 4-Channel Remote Control

Includes visor clip.

SECURITY✚ 3-Channel Mini Remote Control

With key ring and Velco fastening strip.

SECURITY✚ Keyless Entry

Enables homeowner to operate garage door opener from outside by entering code on specially designed keyboard. Also can add a temporary pass code for visitors or service persons. This temporary code can be limited to a programmable number of hours or entries.

Outside Quick Release

Required for a garage with NO access door. Enables homeowner to open garage door manually from outside by disengaging trolley.

8 foot Complete Rail

To allow an 8 foot door to open fully.

Multi-Function Door Control Panel

Provides a Lock Feature which prevents operation of garage door opener from portable remotes and a Light Feature for constant light.

Outside Keylock

Operates the garage door automatically from outside when remote control is not handy.

Model 972AC

Model 973AC

Model 59

Model 88SD

Model 78LM

Model 976LG

We recommend that you program your code before you install the Keyless Entry. You will not need assistance, and you can test the reception at the mounting location before installation.

1. Choose a 4-digit code using numbers from 0 to 9 (a number can be used more than once, for example, 4, 0, 4, 1).

2. Press the four buttons for the code, then press and hold the Enter button. The indicator light on the door opener panel will blink.

3. Press and release the “Smart” (learn) button on the opener panel. After the opener lights flash, release the Enter button.

Test by pressing the the code, then press Enter. The door should begin to move.

You may also program the Keyless Entry from the Multi-Function Door Control, as follows:

1. With the door closed, enter the four digit code desired, then press and hold Enter.

2. Press and hold the light button on the door control.

3. Press and hold the door control push bar.

4. After the opener lights flash, release all buttons.

To Add the Keyless Entry

Index

Access Door/Outside Quick Release Accessory.........................................................................................................31, 34

Electrical Safety Warnings......................................................................................................................................7, 18, 27

Garage Door

Testing for balance, binding and sticking.................................................................................................................3, 24, 27

Determining high point of travel:

Sectional door....................................................................................................................................................................8

One-piece door..................................................................................................................................................................9

Disabling existing locks...................................................................................................................................................3, 7

Force controls

Adjustment procedures....................................................................................................................................................25

Problems that might require force adjustments.........................................................................................................30, 31

Safety warnings.........................................................................................................................................................25, 27

Door hardware............................................................................................................................................3, 7, 8, 17, 27, 28

Maintenance .............................................................................................................................................................7, 24-27

Reinforcement requirements....................................................................................................................................5, 20, 21

Removing of all ropes......................................................................................................................................................3, 7

Possible door damage...............................................................................................................................................4, 15, 20

Travel limits

Adjustment procedures..............................................................................................................................................23, 24

Problems that might require limit adjustments .........................................................................................................30, 31

Safety warnings.........................................................................................................................................................24, 27

Manual Release Rope & Handle

Lockout feature .................................................................................................................................................................28

Manual disconnect.......................................................................................................................................................28, 31

Safety warnings.................................................................................................................................................7, 19, 27, 28

Opener Terminals

Door control connections..................................................................................................................................................17

Safety reversing sensor connections .................................................................................................................................17

Outside Keylock accessory connections...........................................................................................................................17

Protector System

.........................................................................................................................................................12, 26

Receiver & Remote Controls

Programming the receiver.................................................................................................................................................29

Erasing all codes................................................................................................................................................................29

Safety warning...................................................................................................................................................................29

Problems with remote control transmitter operation.........................................................................................................30

Safety Reverse Test Procedure..........................................................................................................................................26

Testing required.................................................................................................................................................7, 26, 30, 31

Safety reverse system problems

Securing header bracket to wall........................................................................................................................................8

Adjusting travel limits.....................................................................................................................................................24

Applying excessive force on the door.............................................................................................................................25

Buckling or uneven floor...................................................................................................................................................5

Safety Warnings..........................................................................2, 3, 7, 8, 12, 15, 16, 17, 18, 19, 20, 24, 25, 26, 27, 28, 29

Troubleshooting............................................................................................................................................................30, 31

User Instruction Label for Garage Wall......................................................................................................................7, 17

Vibration Noise (isolator kit).............................................................................................................................................30

ACCESS MASTER

SERVICE IS ON CALL

OUR LARGE SERVICE ORGANIZATION

SPANS AMERICA

INSTALLATION AND SERVICE INFORMATION IS AS NEAR AS YOUR TELEPHONE SIX DAYS A WEEK. SIMPLY DIAL OUR TOLL FREE NUMBER:

1-800-528-2817

HOURS: (Mountain Standard Time)

6:00 A.M. TO 6:00 P.M. Monday through Friday

7:00 A.M. TO 3:00 P.M. Saturday

Closed Sunday

For professional installation, parts and service,

contact your local ACCESS MASTER/ CHAMBERLAIN dealer. Look for him in the Yellow Pages, or call our service number for a list of dealers in your area.

HOW TO ORDER

REPAIR PARTS

Selling prices will be furnished on request or parts will be shipped at prevailing prices and you will be billed accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

• PART NUMBER

• PART NAME

• MODEL NUMBER

ADDRESS ORDERS TO:

THE CHAMBERLAIN GROUP, INC.

Pars and Service Department

2301 N. Forbes Boulevard, Suite 104

Tucson, Arizona 85745

SERVICE INFORMATION TOLL FREE NUMBER:

1-800-528-2817

ACCESS MASTER GARAGE DOOR OPENER ONE-YEAR LIMITED WARRANTY

Access Master/Chamberlain (“Seller”) warrants to the first retail purchaser of this product that it is free from defect in

materials and/or workmanship for a period of one year from the date of purchase. The proper operation of this

product is dependent on your compliance with the Owner’s Manual instructions regarding installation,

operation, maintenance and testing. Failure to comply strictly with those instructions will void this warranty in

its entirety. Please note that the safety reverse system, in order to operate properly with your garage door,

must be adjusted and periodically tested in accordance with the Owner’s Manual.

If, during the limited warranty period, it appears as though this product contains a defect which is covered by this

limited warranty, call our toll free service number, before dismantling this product, at 1-800-528-2817. Then send

this product, pre-paid and insured, to our service center for warranty repair. You will be advised of shipping instructions

when you call the toll free service number. Please include a brief description of the problem and a dated proof-of-

purchase receipt with any product that is returned for warranty repair.

Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered

by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid.

Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option.

THIS LIMITED WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY

IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE,

AND OF ANY OTHER OBLIGATIONS OR LIABILITY ON SELLER’S PART. THIS LIMITED WARRANTY DOES

NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR

CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND

NECESSARY MAINTENANCE, OR ANY ALTERNATIONS TO THIS PRODUCT), LABOR CHARGES FOR

DISMANTLING OR REINSTALLING A REPAIRED OR REPLACED UNIT, OR REPLACEMENT BATTERIES.

UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL

DAMAGES ARISING IN CONNECTION WITH THE USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT

SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR

STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED

TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the above

limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also

have other rights which vary from state to state.

LIMITED WARRANTY ON MOTOR

The motor is fully warranted for the lifetime of the product to the first-time purchaser.

Access M150 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Assembly

Determine Header Bracket Location

Electrical Requirements

Fasten Door Bracket

Connect Door Arm to Trolley

Receiver & Remote Control Programming

Having a Problem?

Rail Assembly Parts

Installation Parts

Repair Parts

Index
