Contactless Payment Module (CPM)
Installation Manual
Contactless Payment Module
Installation Manual
Installation manual - v0.1
1
Contactless Payment Module (CPM)
Installation Manual
1. Introduction
This document describes the hardware of the Contactless Payment Module (CPM). The readers of this document
would benefit if they have prior knowledge of the specifications mentioned in References section.
2. References
The readers of this document shall have knowledge on the following specifications

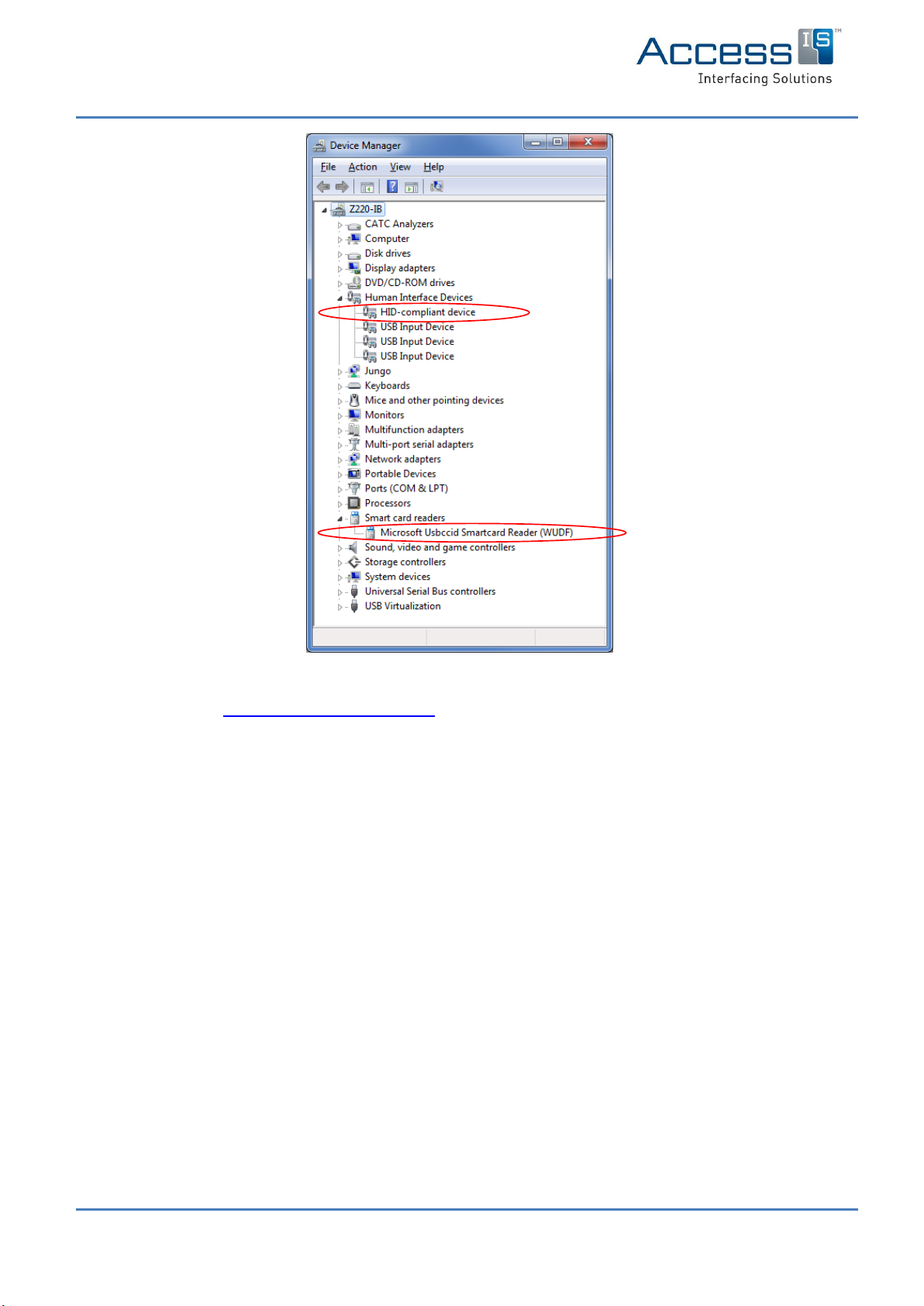

USB CCID rev1.1 : Specification for Integrated Circuit Cards Interface Devices
ISO/IEC 14443-2 : Radio frequency power and signal interface
ISO/IEC 14443-3 : Initialisation and anti-collision
ISO/IEC 14443-4 : Transmission protocol
Mifare contactless card (Classic 1K, Classic 4K and Ultralight) datasheets
ISO/IEC 7816-3 : Electronic signals and transmission protocols
ISO/IEC 7816-4 : Inter-Industry commands for interchange
CPM USB/Serial software reference manual
3. FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
No changes shall be made to the equipment without the manufacturer’s permission as this may void the user’s
authority to operate the equipment
It is the responsibility of the product manufacturer to ensure compliance with FCC Part 15B with the Contactless
Smartcard Module integrated into their product.
The host product using CPM module shall have the following text on a permanent label.
Contains FCC ID : ZERCPM01
The label should be on a visible location outside the enclosure of the product.
Installation manual - v0.1
2
Contactless Payment Module (CPM)
Parameter
Minimum
Typical
Maximum
Impedance @13.56MHz
800 Ohms
1500 Ohms
-
Phase @ 13.56MHz
-10 Degrees
0 Degrees
+10 Degrees
Antenna Coil inductance
700nH
1200nH
2000nH
Antenna Coil Q
30
25
100
Antenna Gain
0.6 (-2.21 dB)
0.7 (-1.54 dB)
0.8 (-0.96 dB)
Antenna maximum size
- - 11cm x 15cm
Installation Manual
4. Industry Canada Statement
This device complies with Industry Canada licence‐exempt RSS standards. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This device complies with the safety requirements for RF exposure in accordance with RSS-102 Issue 5 for
portable use conditions.
This radio transmitter (IC : 9653A‐CPM01) has been approved by Industry Canada to operate with the antenna
types listed below with the maximum permissible gain indicated *. Antenna types not included in this list,
having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this
device.
* (and required antenna impedance for each antenna type indicated)
The host product using CPM module shall have the following text on a permanent label.
Contains IC : 9653A-CPM01
The label should be on a visible location outside the enclosure of the product.
Installation manual - v0.1
3
Contactless Payment Module (CPM)
Parameter
Minimum
Typical
Maximum
Impedance @13.56MHz
800 Ohms
1500 Ohms
-
Phase @ 13.56MHz
-10 Degrees
0 Degrees
+10 Degrees
Antenna Coil inductance
700nH
1200nH
2000nH
Antenna Coil Q
30
25
100
Antenna Gain
0.6 (-2.21 dB)
0.7 (-1.54 dB)
0.8 (-0.96 dB)
Antenna maximum size
- - 11cm x 15cm
Installation Manual
5. Conformité IC
Le présent appareil est conforme aux CNR dʹIndustrie Canada applicables aux appareils radio exempts de
licence. Lʹexploitation est autorisée aux deux conditions suivantes :
1. Lʹappareil ne doit pas produire de brouillage.
2. Lʹutilisateur de lʹappareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible dʹen compromettre le fonctionnement.
Conformément à la réglementation dʹIndustrie Canada, le présent émetteur radio peut fonctionner avec une
antenne dʹun type et dʹun gain maximal (ou inférieur) approuvé pour lʹémetteur par Industrie Canada. Dans le
but de réduire les risques de brouillage radioélectrique à lʹintention des autres utilisateurs, il faut choisir le type
dʹantenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
lʹintensité nécessaire à lʹétablissement dʹune communication satisfaisante.
Cet appareil est conforme avec les exigences de sécurité pour l’exposition aux radiofréquences conformément
au CNR-102, 5e édition, pour les conditions d’utilisation portables.
Le présent émetteur radio (IC : 9653A‐CPM01) a été approuvé par Industrie Canada pour fonctionner avec les
types dʹantenne énumérés ci‐dessous et ayant un gain admissible maximal indiqué *. Les types dʹantenne non
inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour
lʹexploitation de lʹémetteur.
* (et l'impédance d'antenne requise pour chaque type indiqué d'antenne)
Le produit de l'hôte en utilisant le module CPM a le texte suivant sur une étiquette permanente.
Contient IC : 9653A-CPM01
L'étiquette doit être sur un emplacement visible à l'extérieur de l'enceinte du produit.
Installation manual - v0.1
4
Contactless Payment Module (CPM)
Antenna
connector
30 Way
Host
connector
PIN 1
Installation Manual

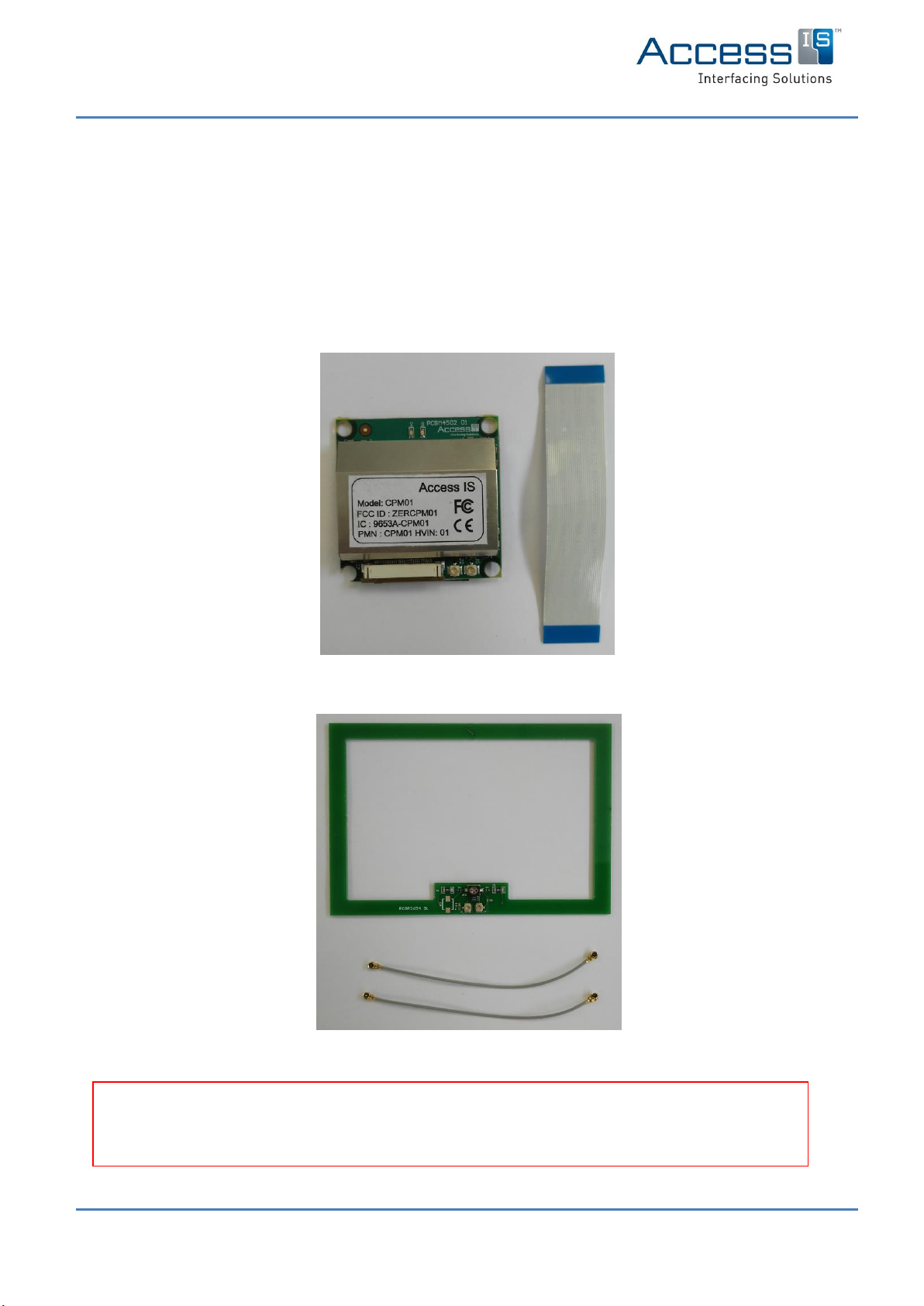

6. Product pictures

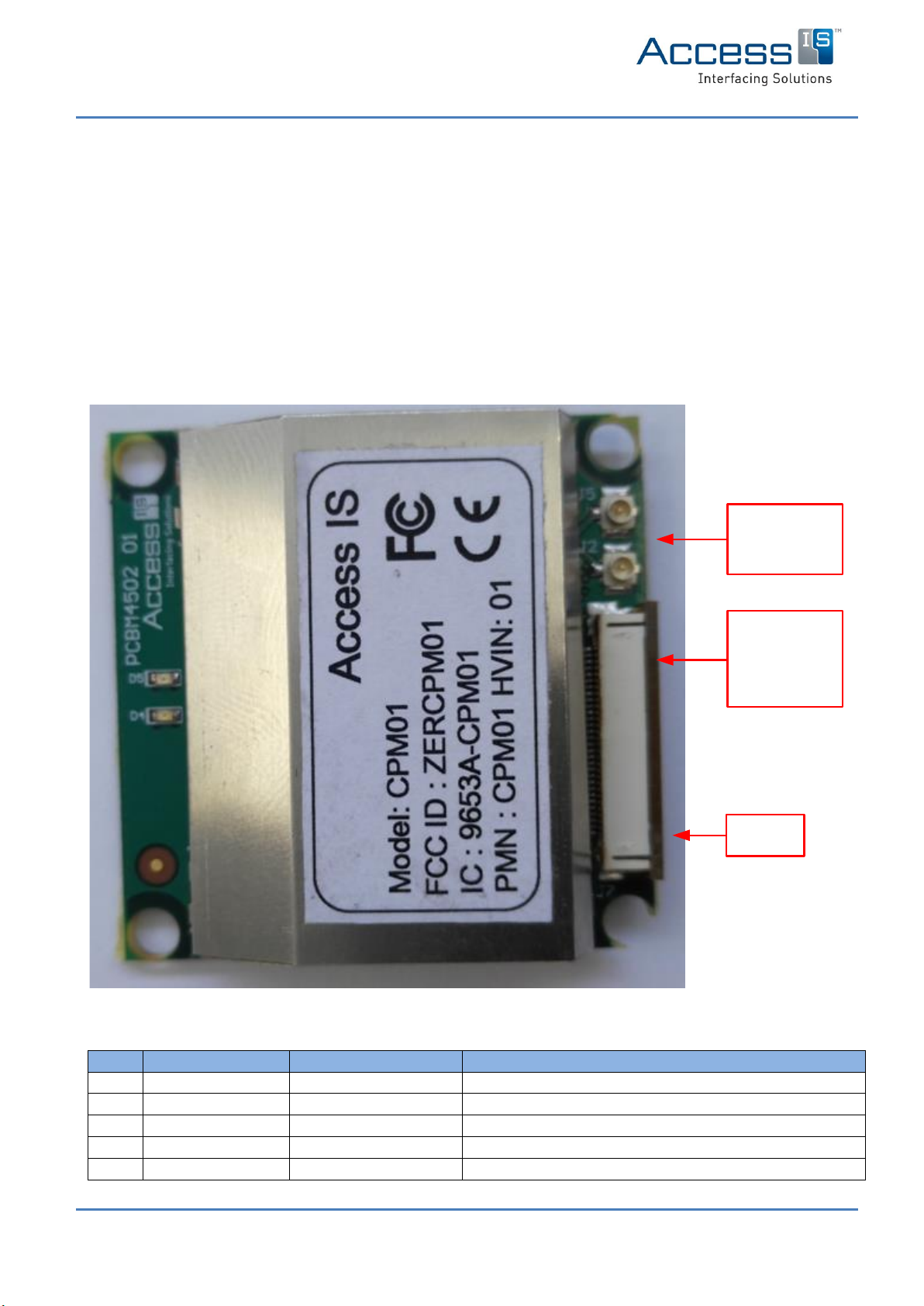

6.1. CPM – Top view with Shield
Installation manual - v0.1
5
Contactless Payment Module (CPM)
40 Way
4x Smartcard/
PSAM connector
Installation Manual
6.2. CPM – Bottom view
