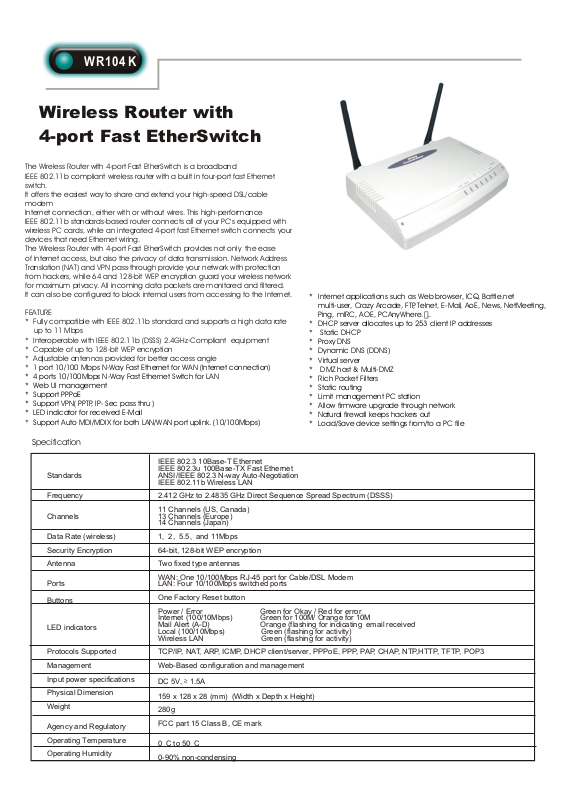

WR104 K
Wireless Router with
4-port Fast EtherSwitch
The Wireless Router with 4-port Fast EtherSwitch is a broadband
IEEE 802.11b compliant wireless router with a built in four-port fast Ethernet
switch.
It offers the easiest way to share and extend your high-speed DSL/cable
modem
Internet connection, either with or without wires. This high-performance
IEEE 802.11b standards-based router connects all of your PC's equipped with
wireless PC cards, while an integrated 4-port fast Ethernet switch connects your
devices that need Ethernet wiring.
The Wireless Router with 4-port Fast EtherSwitch provides not only the ease
of Internet access, but also the privacy of data transmission. Network Address
Translation (NAT) and VPN pass-through provide your network with protection
from hackers, while 64 and 128-bit WEP encryption guard your wireless network
for maximum privacy. All incoming data packets are monitored and filtered.
It can also be configured to block internal users from accessing to the Internet.
FEATURE
*
Fully compatible with IEEE 802.11b standard and supports a high data rate
up to 11 Mbps
Interoperable with IEEE 802.11b (DSSS) 2.4GHz-Compliant equipment
*
Capable of up to 128-bit WEP encryption
*
Adjustable antennas provided for better access angle
*
* 1 port 10/100 Mbps N-Way Fast Ethernet for WAN (Internet connection)
* 4 ports 10/100Mbps N-Way Fast Ethernet Switch for LAN
* Web UI management
* Support PPPoE
* Support VPN( PPTP, IP- Sec pass thru )
* LED indicator for received E-Mail
Support Auto MDI/MDIX for both LAN/WAN port uplink. (10/100Mbps)*
* Internet applications such as Web browser, ICQ, Battle.net
multi-user, Crazy Arcade, FTP, Telnet, E-Mail, AoE, News, NetMeeting,
Ping, mIRC, AOE, PCAnyWhere.…..
* DHCP server allocates up to 253 client IP addresses
* Static DHCP
* Proxy DNS
* Dynamic DNS (DDNS)
* Virtual server
* DMZ host & Multi-DMZ
* Rich Packet Filters
* Static routing
* Limit management PC station
* Allow firmware upgrade through network
* Natural firewall keeps hackers out
* Load/Save device settings from/to a PC file
Specification
Standards
Frequency
Channels
Data Rate (wireless)
Security Encryption
Antenna
Ports
Buttons
LED indicators
Protocols Supported
Management
Input power specifications
Physical Dimension
Weight
Agency and Regulatory
Operating Temperature
Operating Humidity
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
ANSI/IEEE 802.3 N-way Auto-Negotiation
IEEE 802.11b Wireless LAN
2.412 GHz to 2.4835 GHz Direct Sequence Spread Spectrum (DSSS)
11 Channels (US, Canada)
13 Channels (Europe)
14 Channels (Japan)
1, 2, 5.5, and 11Mbps
64-bit, 128-bit WEP encryption
Two fixed type antennas
WAN: One 10/100Mbps RJ-45 port for Cable/DSL Modem
LAN: Four 10/100Mbps switched ports
One Factory Reset button
Power / Error Green for Okay / Red for error
Internet (100/10Mbps) Green for 100M/ Orange for 10M
Mail Alert (A-D) Orange (flashing for indicating email received
Local (100/10Mbps) Green (flashing for activity)
Wireless LAN Green (flashing for activity)
TCP/IP, NAT, ARP, ICMP, DHCP client/server, PPPoE, PPP, PAP, CHAP, NTP,HTTP, TFTP, POP3
Web-Based configuration and management
³
DC 5V, 1.5A
159 x 128 x 28 (mm) (Width x Depth x Height)
280g
FCC part 15 Class B, CE mark
0¢XC to 50¢XC
0-90% non-condensing
