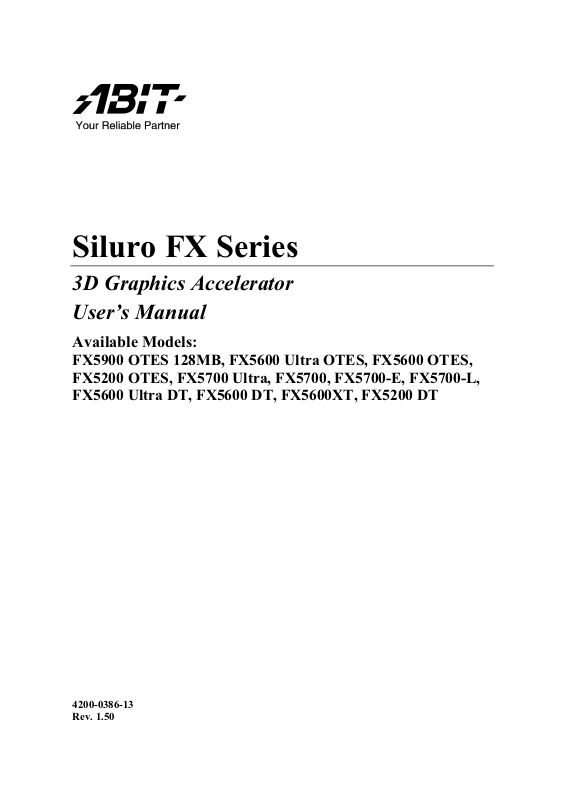

Abit SILURO FX User Manual
Siluro FX Series
3D Graphics Accelerator
User’s Manual
Available Models:
FX5900 OTES 128MB, FX5600 Ultra OTES, FX5600 OTES,
FX5200 OTES, FX5700 Ultra, FX5700, FX5700-E, FX5700-L,
FX5600 Ultra DT, FX5600 DT, FX5600XT, FX5200 DT
4200-0386-13
Rev. 1.50
Copyright and Warranty Notice
The information in this document is subject to change without notice and does
not represent a commitment on part of the vendor, who assumes no liability or
responsibility for any errors that may appear in this manual.
No warranty or representation, either expressed or implied, is made with
respect to the quality, accuracy or fitness for any particular part of this
document. In no event shall the manufacturer be liable for direct, indirect,
special, incidental or consequential damages arising from any defect or error
in this manual or product.
Product names appearing in this manual are for identification purpose only
and trademarks and product names or brand names appearing in this document
are property of their respective owners.
This document contains materials protected under International Copyright
Laws. All rights reserved. No part of this manual may be reproduced,
transmitted or transcribed without the expressed written permission of the
manufacturer and authors of this manual.
If you do not properly set the Graphics Accelerator settings causing the
motherboard to malfunction or fail, we cannot guarantee any responsibility.
Siluro FX Series
3D Graphics Accelerator
Index
Schnellinstallationsanleitung................................................................... 2
Guide d’Installation Rapide .................................................................... 4
Guida all’installazione rapida ................................................................. 6
Краткое руководство по установке ..................................................... 8
快速安裝指引 .......................................................................................... 10
快速安装指南 .......................................................................................... 12
クイックインストールガイド.............................................................. 14
빠른 설치 설명서 .................................................................................. 16
CHAPTER 1. INTRODUCTION ..............................................1-1
1-1. FEATURES .....................................................................................1-1
1-2. SPECIFICATION.............................................................................. 1-2
Siluro FX5900 OTES 128MB: ................................................................1-2
Siluro FX5700 Ultra: ...............................................................................1-3
Siluro FX5700/FX5700-E/FX5700-L:.....................................................1-4
Siluro FX5600 Ultra OTES/FX5600 Ultra DT:.......................................1-5
Siluro FX5600 OTES/FX5600 DT: .........................................................1-6
Siluro FX5600XT:....................................................................................1-7
Siluro FX5200 OTES/FX5200 DT: .........................................................1-8
1-3. SYSTEM REQUIREMENTS............................................................... 1-9
CHAPTER 2. HARDWARE SETUP ........................................2-1
2-1. CARD INSTALLATION .................................................................... 2-1
New Systems:...........................................................................................2-1
Systems with Existing VGA Card:...........................................................2-1
2-2. DEVICES CONNECTION ................................................................. 2-2
Siluro FX5900 OTES 128MB: ................................................................2-2
Siluro FX5600 Ultra OTES: ....................................................................2-3
Siluro FX5600 OTES:..............................................................................2-4
Siluro FX5200 OTES:..............................................................................2-5
Siluro FX5700 Ultra: ...............................................................................2-6
Siluro FX5700/FX5700-E/FX5700-L:.....................................................2-7
Siluro FX5600 Ultra DT: .........................................................................2-8
Siluro FX5600 DT/FX5200 DT:..............................................................2-9
Siluro FX5600XT:..................................................................................2-10
2-3. CONNECTING TO COMPUTER’S POWER SUPPLY ...........................2-11
CHAPTER 3. DRIVER INSTALLATION ...............................3-1
3-1. WINDOWS 98/ME ......................................................................... 3-1
Auto Setup: ..............................................................................................3-1
User’s Manual
3-2. WINDOWS 2000 ............................................................................3-2
Plug and Play Setup: ................................................................................3-2
Auto Setup: ..............................................................................................3-4
3-3. WINDOWS XP ............................................................................... 3-5
Plug and Play Setup: ................................................................................3-5
Auto Setup: ..............................................................................................3-6
CHAPTER 4. DISPLAY PROPERTIES ..................................4-1
4-1. SETTINGS ......................................................................................4-1
4-2. GENERAL ......................................................................................4-2
4-3. ADAPTER ...................................................................................... 4-3
4-4. MONITOR ......................................................................................4-3
4-5. TROUBLESHOOT............................................................................4-4
4-6. COLOR MANAGEMENT.................................................................. 4-4
4-7. GEFORCE FX ................................................................................ 4-5
Performance and Quality Settings:...........................................................4-5
Direct3D Settings:....................................................................................4-7
More Direct3D: ........................................................................................4-8
OpenGL Settings:.....................................................................................4-9
Overlay Controls:...................................................................................4-11
Clock Frequencies:.................................................................................4-12
Troubleshooting: ....................................................................................4-13
NVRotate: ..............................................................................................4-13
Refresh Rate Overrides: .........................................................................4-14
Change Resolutions: ..............................................................................4-14
Desktop Management: ...........................................................................4-15
Screen Menus:........................................................................................4-16
nView Display Mode: ............................................................................4-17
4-8. DEVICE SETTINGS ....................................................................... 4-20
TV Settings: ...........................................................................................4-20
TV Output: .............................................................................................4-20
Color Correction: ...................................................................................4-21
Screen Adjustment: ................................................................................4-22
Display Timing:......................................................................................4-22
CHAPTER 5. UTILITY SETUP................................................5-1
5-1. NVIEW DESKTOP MANAGER SETUP WIZARD ............................... 5-1
5-2. SILURODVD ................................................................................. 5-3
5-3. DIRECTX....................................................................................... 5-7
5-4. GRAPHIC MAX ..............................................................................5-9
5-5. SILUROIQ (FOR SILURO FX5600/FX5200 OTES ONLY) ........... 5-11
5-6. DISPLAY TRAY ICON................................................................... 5-17
Display Modes Table..............................................................................5-18
5-7. BIOS FLASHING UTILITY ...........................................................5-19
APPENDIX A. HOW TO GET TECHNICAL SUPPORT ......... A-1
Siluro FX Series
1
User’s Manual
2 Schnellinstallationsanleitung
Schnellinstallationsanleitung
Installation der Karte
Diese Grafikkarte kann nur auf Motherboards mit AGP-Steckplatz installiert werden.
Bitte behandeln Sie diese Karte vorsichtig und vergewissern Sie sich, die
Netzversorgung Ihres Systems vor der Installation abzutrennen.
Neue Systeme:
1.
Trennen Sie alle Netzkabel von
Ihrem Computer.
2.
Nehmen Sie den
Computergehäusedeckel ab.
3.
Finden Sie den AGP-Steckplatz
auf Ihrem Motherboard.
4.
Entfernen Sie die
Metallklammer des
AGP-Steckplatzes. Bewahren
Sie die Schraube gut auf.
5.
Richten Sie die Karte mit dem
AGP-Steckplatz aus. Halten Sie
ihn an seinen Rändern fest und
stecken die Karte in den
Steckplatz, ohne Gewalt
anzuwenden oder Druck auf
Komponenten der Videokarte
auszuüben. Achten Sie darauf,
dass der Anschluss der Karte
fest und ganz im Steckplatz
sitzt.
6.
Sichern Sie die Halteklammer der Karte mit der anfangs von der
Metallklammer entfernten Schraube an der Rückwand des Computergehäuses.
7.
Setzen Sie den Gehäusedeckel wieder auf.
Siluro FX Series
Schnellinstallationsanleitung 3
Systeme mit vorhandener VGA-Karte:
1.
Ändern Sie den Anzeigetreiber zu “Standard VGA”.
2.
Schalten Sie Ihren Computer aus und trennen alle Netzkabel ab.
3.
Ersetzen Sie die bestehende VGA-Karte mit dieser neuen Karte.
Die Installation Ihrer Grafikkarte ist nun vervollständigt. Verbinden Sie einen
PC-Monitor oder ein anderes Anzeigegerät mit dieser Karte, bevor Sie den Computer
neu starten (siehe Kapitel 2-2 “Geräteverbindung”).
Treiberinstallation
Starten Sie nach der Verbindung Ihren
Computer neu und installieren dann die
Treiber und Utility-Software. Klicken
Sie auf “Driver”, um die Einstellung des
Treibers für diese Karte zu starten.
(Detaillierte Installationsvorgänge
finden Sie im Kaptitel 3
“Treiberinstallation”.)
User’s Manual
4 Guide d’Installation Rapide
Guide d’Installation Rapide
Installation de la Carte
Cette carte graphique ne peut être installée que sur une carte disposant d’un slot AGP.
Veuillez manipuler cette carte avec précautions et assurez-vous de débrancher la
source d’alimentation de votre système avant l’installation.
Nouveaux Systèmes:
1.
Débranchez tous les cordons d’alimentation de votre ordinateur.
2.
Enlevez le couvercle de votre
boîtier.
3.
Localisez le slot AGP de votre
carte mère.
4.
Enlevez le cache en métal
correspondant au slot AGP.
Gardez la vis.
5.
Alignez la carte sur le slot AGP.
Tenez la carte par ses extrémités
et insérez la dans le slot AGP
sans force excessive ou pression
sur ses composants.
Assurez-vous qu’elle soit
fermement et complètement
fixée dans le slot.
6.
Vissez ensuite la carte sur le
panneau arrière du boîtier avec
la vis que vous aviez auparavant
mis de côté.
7.
Remettez en place le couvercle du boîtier.
Le schéma de la carte VGA peut varier
en fonction des modèles
Siluro FX Series
Guide d’Installation Rapide 5
Systèmes avec déjà une carte VGA:
1.
Changez le pilote d’affichage en VGA Standard.
2.
Eteignez votre ordinateur et débranchez tous les câbles d’alimentation.
3.
Remplacez la carte VGA actuelle avec la nouvelle.
Votre carte graphique est maintenant installée. Avant de relancer votre ordinateur,
connectez le moniteur PC ou tout autre périphérique d’affichage à cette carte (voir
Chapitre 2-2 “Connexion des Périphériques”).
Installation du Pilote
Après la connexion, relancez votre
ordinateur et installez les drivers du
logiciel ainsi que les utilitaires. Cliquez
sur “Driver” pour commencer la
définition du driver pour cette carte.
(Pour connaître la procédure
d’installation détaillée, veuillez vous
référer au Chapitre 3 “Installation du
pilote”.)
User’s Manual
6 Guida all’installazione rapida
Guida all’installazione rapida
Installazione della scheda
Questa scheda grafica può essere installata solamente su schede madri che abbiano
uno slot AGP. Maneggiare la scheda con cura ed assicurarsi di scollegare
l’alimentazione del sistema prima dell’installazione.
Sistemi nuovi:
1.
Scollegare tutti i cavi d’alimentazione del computer.
2.
Rimuovere la copertura del
telaio.
3.
Localizzare lo slot AGP sulla
scheda madre.
4.
Rimuovere i supporti in metallo
che corrispondono allo slot AGP.
Conservare le viti.
5.
Allineare la scheda nello slot
AGP. Tenere la scheda per i lati
ed inserirla nello slot senza
utilizzare una forza eccessiva, o
premendo qualsiasi componente
sulla scheda. Assicurarsi che la
scheda sia inserita
completamente e con sicurezza
nello slot.
6.
Assicurare i supporti della
scheda al pannello posteriore
del telaio del computer, utilizzando
le viti rimosse dal supporto di metallo.
7.
Rimettere la copertura al telaio.
La disposizione della scheda VGA può
variare secondo i modelli
Siluro FX Series
Guida all’installazione rapida 7
Sistemi con una scheda VGA esistente:
1.
Cambiare il driver schermo su Standard VGA.
2.
Spegnere il computer e scollegare tutti i cavi d’alimentazione.
3.
Sostituire la scheda VGA esistente con la scheda nuova.
La scheda grafica è installata. Prima di riavviare il computer, collegare il monitor PC
o altri dispositivi di visualizzazione, a questa scheda (vedi capitolo 2-2, “Connessione
periferiche”).
Installazione del driver
Dopo avere effettuato il collegamento,
riavviare il computer ed installare i
driver software e le utilità. Fare clic su
“Driver” per iniziare ad impostare il
driver della scheda. (Per la descrizione
dettagliata della procedura di
installazione, si rimanda al Capitolo 3,
“Installazione del driver”.)
User’s Manual
8 Краткое руководство по установке
Краткое руководство по установке
Установка Платы
Данную графическую плату можно установить только в систему с AGP слотом.
Пожалуйста, аккуратно обращайтесь с платой и, прежде чем ее устанавливать,
убедитесь в том, что питание компьютера выключено.
Новые Системы:
1.
Отсоедините все провода питания компьютера.
2.
Откройте корпус компьютера.
3.
Найдите на материнской плате
AGP слот.
4.
Удалите металлическую
заглушку, относящуюся к AGP
слоту. Сохраните винт.
5.
Примерьте плату к слоту AGP.
Держа плату за края, вставьте
ее в слот, не прилагая
особенных усилий и не
нажимая ни на какие ее
элементы. Убедитесь, что она
плотно вошла в слот.
6.
Закрепите плату в задней
части корпуса винтом от ранее
удаленной металлической
заглушки.
7.
Закройте корпус компьютера.
Схема расположения элементов на плате VGA
может изменяться в зависимости от модели
Siluro FX Series
Краткое руководство по установке 9
Системы с установленной VGA Платой:
1.
Замените драйвер монитора на Standard VGA.
2.
Выключите компьютер и отсоедините все шнуры питания.
3.
Замените старую плату VGA на новую.
Ваш графический адаптер теперь установлен. Перед перезагрузкой компьютера
не забудьте подключить монитор, или какое-либо другое устройство вывода
изображения (см. Часть 2-2 “Подключение Устройств”).
Установка Драйвера
После завершения подключения
перезагрузите компьютер и
установите драйверы и программные
утилиты. Нажмите “Driver”
(“Драйвер”) для запуска настройки
драйвера этой платы. (За подробную
процедуру установки обращайтесь к
Части 3 “Установка Драйвера”.)
User’s Manual
10 快速安裝指引
快速安裝指引
卡片安裝
這張顯示卡只能安裝到具有 AGP 插槽設計的主機板上面，請您小心地拿取這張
顯示卡，並且在安裝顯示卡到主機板上之前，先確認電腦的電源線已經拔掉。
全新系統：
1.
拔下電腦的所有電源線。
2.
拆下電腦機蓋。
3.
找出主機板上的 AGP 插槽。
4.
移除該 AGP 插槽之對應金屬
蓋條。請保留好螺絲。
5.
將本顯示卡與 AGP 插槽對齊
好。握住卡片邊緣，將其插到
插槽中，切忌用力過度，也不
要按到卡片上的任何組件。請
確定其已牢固並完全插入插槽
當中。
6.
用原來從固定槽上取下的螺絲
將顯示卡鎖到固定槽上。
7.
蓋回電腦機蓋。
現有顯示卡之系統：
1.
將顯示驅動程式變更為「標準 VGA」。
2.
關閉電腦電源，並拔下所有電源線。
3.
用新的顯示卡換掉現有的顯示卡。
您的顯示卡現已安裝好。在重新啟動電腦前，將 PC 監視器或其他顯示裝置接回
到本卡片上。（請參考 2-2 章 “輸出裝置連接圖”）
Siluro FX Series
快速安裝指引 11
安裝驅動程式
在連接好顯示裝置後，重新啟動您的
電腦，並安裝驅動及公用程式。點選
“Driver”，即可開始顯示卡的驅動程式
安裝。（關於詳細的安裝程序，請參
考第 3 章 “安裝驅動程式”。）
User’s Manual
12 快速安装指南
快速安装指南
板卡安装
这块图形卡只能安装在配有 AGP 槽口的主板上。请小心地处理该卡，并在安装
之前确认系统电源已断开。
新系统：
1.
拔去电脑的所有电源线。
2.
拆下电脑底盘盖板。
3.
找到主板上的 AGP 槽口。
4.
拆下 AGP 槽口所对应的金属
支架。保留螺丝。
5.
将该卡对准 AGP 槽口。抓住板
卡的边缘将它插入槽口，不要
用力过大或挤压板卡上的任何
零部件。确认它已完全地固定
在槽口之中。
6.
利用从金属支架上拆下来的螺
丝将该卡的安装支架固定到电
脑底盘上。
7.
装上底盘盖板。
VGA 卡的设计可根据模型变化。
已配有 VGA 卡的系统：
1.
将显示驱动程序更改成标准 VGA。
2.
关闭您的电脑，并拔去所有电源线。
3.
用这块新卡替换现有的 VGA 卡。
您的图形卡现在已安装完毕。在重启您的电脑之前，请将 PC 监视器或其他显示
设备接入该卡（参考 2-2 小节中的“设备连接”）。
Siluro FX Series
快速安装指南 13
驱动程序安装
在连接好之后，请重启您的电脑并安
装软件和实用工具。点击“驱动程序”
即可开始设置该卡的驱动程序。（关
于详细的安装步骤，请参考第 3 章“驱
动程序安装”）
User’s Manual
14 クイックインストールガイド
クイックインストールガイド
カードの取り付け
このグラフィックスカードは、AGP スロットを搭載するマザーボードにだけ
取り付けることができます。このカードは細心の注意を払って取り扱い、取り
付ける前にシステムの電源装置からプラブを抜いてあることを確認してくだ
さい。
新しいシステム：
1.
コンピュータの電源コードをす
べて抜く。
2.
コンピュータのシャーシカバー
を取り外す。
3.
マザーボードに AGP スロットを
配置する。
4.
AGP スロットに対応する金属製
ブラケットを取り除く。ネジは保
管しておいてください。
5.
このカードを AGP スロットの位
置に合わせます。カードの端をつ
かみ、不要な力を入れずに、また
カードの他のコンポーネントを
押すことなく、スロットに差し込
む。スロットにしっかりと完全
に固定されているか、確認してください。
6.
このカードの取り付けブラケットを、金属製ブラケットから取り外した
ネジで、コンピュータのシャーシの背面パネルにしっかり固定する。
7.
シャーシカバーを元に戻す。
Siluro FX Series
VGA カードの配置は型式によって異なります
クイックインストールガイド 15
既存の VGA カードを搭載するシステム：
1.
ディスプレイドライバを標準の VGA に変更する。
2.
コンピュータの電源をオフにして、すべての電源コードを抜く。
3.
既存の VGA カードをこの新しいカードに取り替える。
グラフィックスカードの取り付けがこれで完了しました。コンピュータを再起
動する前に、PC モニタまたはその他の表示デバイスをこのカードに接続して
ください（第 2-2 章「デバイス接続」をご覧ください）。
ドライバのインストール
接続が済んだら、コンピュータを再
起動し、ソフトウェアドライバとユ
ーティリティをインストールします。
“Driver” をクリックして、このカー
ド用のドライバの設定を開始します。
(詳細なインストール手順について
は、第 3 章「ドライバのインストー
ル」を参照してください。)
User’s Manual
16 빠른 설치 설명서
빠른 설치 설명서
카드 설치
이 그래픽 카드는 AGP 슬롯을 가진 마더보드에만 설치가 가능합니다.
카드는 항상 주의를 기울여 취급하시고 설치 전에는 시스템 전원 코드를
뽑으십시오.
새 시스템:
1.
컴퓨터의 모든 전원 코드를 뽑습니다.
2.
컴퓨터 새시 커버를
제거합니다.
3.
AGP 슬롯을 마더보드에
위치시킵니다.
4.
AGP 슬롯에 해당하는 금속
브래킷을 제거합니다.
나사를 조입니다.
5.
이 카드를 AGP 슬롯의
중심에 맞춥니다. 카드의
가장자리를 잡고 슬롯에
삽입합니다. 무리한 힘을
가하거나 카드의 구성품을
누르면 안됩니다. 슬롯에
단단히 고정되었는지
확인합니다.
6.
금속 브래킷에서 제거한
나사를 사용하여
컴퓨터새시의 뒷면에 이 카드의
마운팅 브래킷을 고정시킵니다.
7.
새시 커버를 제자리에 다시 설치합니다.
Siluro FX Series
VGA 카드 레이아웃은 모델에 따라
다릅니다.
빠른 설치 설명서 17
기존 VGA 카드를 가진 시스템:
1.
디스플레이 드라이버를 표준 VGA 로 교체합니다.
2.
컴퓨터를 끄고 모든 전원 코드를 뽑습니다.
3.
기존의 VGA 카드를 새 카드로 교체합니다.
이제 그래픽 카드가 설치되었습니다. 컴퓨터를 다시 시작하기 전에, PC
모니터나 기타 디스플레이 장치를 이 카드에 연결하십시오 (2-2 장 "장치
연결"을 참조하십시오).
드라이버 설치
연결 후에는, 컴퓨터를 다시
시작하고 소프트웨어 드라이버 및
유틸리티를 설치합니다. “Driver” 를
클릭하여 이 카드의 드라이버
설치를 시작합니다. (자세한 설치
순서는 3 장 "드라이버 설치"를
참조하십시오.)
User’s Manual
18 18
Siluro FX Series
Siluro FX Series
Introduction 1-1
Chapter 1. Introduction
1-1. Features
Thank you for purchasing ABIT Siluro FX Series Graphics Cards, the most advanced
solution for graphics enthusiasts.
®
Powered by NVIDIA
and the new CineFX™ Shading Architecture, integrated Dual 350/400MHz
RAMDACs, and nView™ Multiple Display Technology, the ABIT Siluro FX Series
Graphics Cards deliver the most visually compelling and complete graphics
experience available today.
Combined with other innovations such as SiluroDVD, the Siluro FX Series Graphics
Cards cater to all your graphics needs and enable a wide range of application.
In addition, AGP 8X provides double the bandwidth of AGP 4X, enables more
complex models and detailed textures creating richer and more lifelike environments.
With ABIT Siluro FX Series Graphics Cards, you will not just see things in the old
way but also experience the dynamic and vivid modern 3D world.
GeForce™ FX family of Graphics Processing Units (GPUs),
User’s Manual
1-2 Chapter 1
1-2. Specification
Siluro FX5900 OTES 128MB:
Powered by NVIDIA® GeForce™ FX 5900 GPU working on 400 MHz with
256-bit Graphics Core
128MB 256-bit DDR Memory Interface
NVIDIA
Integrated NTSC/PAL TV-encoder provides best-of-class TV-out
functionality
AGP 8X with Fast Writes and Sideband Addressing
CineFX™ 2.0 Engine support for DX 9.0 Pixel Shader 2.0+ and Vertex
Shader 2.0+
UltraShadow™ Technology enhances performance of Bleeding-edge Games
using Complex Shadows
NVIDIA
resolutions
Integrated Full Hardware MPEG-2 Decoder delivers Full-frame, Full-screen
MPEG-2 Video
NVIDIA
compatibility with Software Drivers
Dual, 400 MHz RAMDACs for display resolutions up to and including 2048 x
1536 @ 85Hz
Digital Vibrance Control™ (DVC) 3.0 Technology delivers superior display
quality
Video Mixing Renderer (VMR) software solution
Highest Quality for Scaling DVD and Other Video to Full-screen HDTV
resolutions
TV-out supports S-Video/Composite
DVI-I interface able to drive large display with up to 1600 x 1200 resolution
On-board Outside Thermal Exhaust System (O.T.E.S.) cooling unit
Complete DirectX
Full OpenGL
Support operating system under Windows
®
nView™ Multi-display Technology
®
Intellisample™ HCT Technology improved performance at High
®
Unified Driver Architecture (UDA) delivers Rock-solid
®
support, including DirectX 9.0 and lower
®
1.4 and lower support
®
XP/2000/NT/ME/98
Siluro FX Series
Introduction 1-3
Siluro FX5700 Ultra:
Powered by NVIDIA® GeForce™ FX 5700 Ultra GPU working on 475 MHz
with 256-bit Graphics Core
On-board 128MB DDR II Video Memory with 14.4GB/sec memory
bandwidth
NVIDIA
AGP 8X including Fast Writes and sideband addressing
CineFX™ Shading Architecture support for DX 9.0 Pixel Shader 2.0+ and
Vertex Shader 2.0+
High-Performance, High-Precision 3D Rendering Engine
NVIDIA
Industry-renowned NVIDIA® Unified Driver Architecture (UDA)
Dual, 400 MHz RAMDACs for display resolutions up to and including 2048 x
1536 @ 85Hz
16 texels per pixel with 8 textures applied per clock
4 pixels per clock Rendering Pipeline
New 64-phase Video Scaler for Scaling DVD and Other Video to Full-screen
HDTV resolutions
Digital Vibrance Control™ (DVC) 3.0 Technology
Video Mixing Renderer (VMR) software solution
128-bit, studio-precision color
Integrated Full Hardware MPEG-2 Decoder
Bright NTSC/PAL TV-out support with flicker filter
Provides best-of-class TV-out functionality up to 1024x768 resolutions
DVI-I interface support up to 1600 x 1200 resolution
Complete DirectX
Full OpenGL
Support operating system under Windows
®
nView™ Multi-display Technology
®
Intellisample™ Technology
®
support, including DirectX 9.0 and lower
®
1.5 and lower support
®
XP/2000/NT/ME/98
User’s Manual
1-4 Chapter 1
Siluro FX5700/FX5700-E/FX5700-L:
Powered by NVIDIA® GeForce™ FX 5700 GPU working on 425 MHz with
256-bit Graphics Core
Siluro FX5700/FX5700-L: On-board 256MB DDR Video Memory
Siluro FX5700-E: On-board 128MB DDR Video Memory
NVIDIA
AGP 8X including Fast Writes and sideband addressing
CineFX™ Shading Architecture support for DX 9.0 Pixel Shader 2.0+ and
Vertex Shader 2.0+
High-Performance, High-Precision 3D Rendering Engine
NVIDIA
Industry-renowned NVIDIA® Unified Driver Architecture (UDA)
Dual, 400 MHz RAMDACs for display resolutions up to and including 2048 x
1536 @ 85Hz
16 texels per pixel with 8 textures applied per clock
4 pixels per clock Rendering Pipeline
New 64-phase Video Scaler for Scaling DVD and Other Video to Full-screen
HDTV resolutions
Digital Vibrance Control™ (DVC) 3.0 Technology
Video Mixing Renderer (VMR) software solution
128-bit, studio-precision color
Integrated Full Hardware MPEG-2 Decoder
Bright NTSC/PAL TV-out support with flicker filter
Provides best-of-class TV-out functionality up to 1024x768 resolutions
DVI-I interface support up to 1600 x 1200 resolution
Complete DirectX
Full OpenGL
Support operating system under Windows
®
nView™ Multi-display Technology
®
Intellisample™ Technology
®
support, including DirectX 9.0 and lower
®
1.5 and lower support
®
XP/2000/NT/ME/98
Siluro FX Series
Introduction 1-5
Siluro FX5600 Ultra OTES/FX5600 Ultra DT:
Powered by NVIDIA® GeForce™ FX 5600 Ultra GPU
On-board 128MB DDR Video Memory with 11.2GB/sec memory bandwidth
NVIDIA
AGP 8X with Fast Writes and Sideband Addressing
CineFX™ Shading Architecture support for DX 9.0 Pixel Shader 2.0+ and
Vertex Shader 2.0+
High-Performance, High-Precision 3D Rendering Engine
NVIDIA
Dual, 400 MHz RAMDACs for display resolutions up to and including 2048 x
1536 @ 85Hz
Digital Vibrance Control™ (DVC) 3.0 Technology
Video Mixing Renderer (VMR) software solution
High-quality HDTV/DVD playback support
TV-out supports S-Video/Composite
DVI-I interface for LCD Monitor
Complete DirectX
Full OpenGL
Support operating system under Windows® XP/2000/NT/ME/98
On-board Outside Thermal Exhaust System (O.T.E.S.) cooling unit (for Siluro
FX5600 Ultra OTES)
®
nView™ Multi-display Technology
®
Intellisample™ Technology
®
support, including DirectX 9.0 and lower
®
1.4 and lower support
User’s Manual
1-6 Chapter 1
Siluro FX5600 OTES/FX5600 DT:
Powered by NVIDIA® GeForce™ FX 5600 GPU working on 325 MHz with
256-bit Graphics Core
On-board 128MB/256MB DDR Video Memory
NVIDIA
AGP 8X with Fast Writes and Sideband Addressing
CineFX™ Shading Architecture support for DX 9.0 Pixel Shader 2.0+ and
Vertex Shader 2.0+
High-Performance, High-Precision 3D Rendering Engine
NVIDIA
Dual, 400 MHz RAMDACs for display resolutions up to and including 2048 x
1536 @ 85Hz
Digital Vibrance Control™ (DVC) 3.0 Technology
Video Mixing Renderer (VMR) software solution
High-quality HDTV/DVD playback support
TV-out supports S-Video/Composite
DVI-I interface for LCD Monitor
Complete DirectX
Full OpenGL® 1.4 and lower support
Support operating system under Windows
On-board Outside Thermal Exhaust System (O.T.E.S.) cooling unit (for Siluro
FX5600 OTES)
ABIT designed Hardware Monitor – SiluroIQ delivers the greatest operating
safety to your precious system (for Siluro FX5600 OTES)
®
nView™ Multi-display Technology
®
Intellisample™ Technology
®
support, including DirectX 9.0 and lower
®
XP/2000/NT/ME/98
Siluro FX Series
Introduction 1-7
Siluro FX5600XT:
Powered by NVIDIA® GeForce™ FX 5600XT GPU working on 235 MHz
with 256-bit Graphics Core
On-board 128MB DDR Video Memory
NVIDIA
AGP 8X with Fast Writes and Sideband Addressing
CineFX™ Shading Architecture support for DX 9.0 Pixel Shader 2.0+ and
Vertex Shader 2.0+
High-Performance, High-Precision 3D Rendering Engine
NVIDIA
Dual, 400 MHz RAMDACs for display resolutions up to and including 2048 x
1536 @ 85Hz
Digital Vibrance Control™ (DVC) 3.0 Technology
Video Mixing Renderer (VMR) software solution
High-quality HDTV/DVD playback support
TV-out supports S-Video/Composite
DVI-I interface for LCD Monitor
Complete DirectX
Full OpenGL® 1.4 and lower support
Support operating system under Windows
®
nView™ Multi-display Technology
®
Intellisample™ Technology
®
support, including DirectX 9.0 and lower
®
XP/2000/NT/ME/98
User’s Manual
1-8 Chapter 1
Siluro FX5200 OTES/FX5200 DT:
Powered by NVIDIA® GeForce™ FX 5200 GPU working on 250 MHz with
256-bit Graphics Core
On-board 64MB/128MB DDR Video Memory
NVIDIA
AGP 8X with Fast Writes and Sideband Addressing
CineFX™ Shading Architecture support for DX 9.0 Pixel Shader 2.0+ and
Vertex Shader 2.0+
High-Performance, High-Precision 3D Rendering Engine
Dual, 350 MHz RAMDACs for display resolutions up to and including 2048 x
1536 @ 75Hz
Digital Vibrance Control™ (DVC) 3.0 Technology
Video Mixing Renderer (VMR) software solution
High-quality HDTV/DVD playback support
TV-out supports S-Video/Composite
DVI-I interface for LCD Monitor
Complete DirectX
Full OpenGL
Support operating system under Windows® XP/2000/NT/ME/98
On-board Outside Thermal Exhaust System (O.T.E.S.) cooling unit (for Siluro
FX5200 OTES)
ABIT designed Hardware Monitor – SiluroIQ delivers the greatest operating
safety to your precious system (for Siluro FX5200 OTES)
®
nView™ Multi-display Technology
®
support, including DirectX 9.0 and lower
®
1.4 and lower support
