Abit GF4 TI4600 User Manual

Copyright and Warranty Notice

The information in this document is subject to change without notice and does
not represent a commitment on part of the vendor, who assumes no liability or
responsibility for any errors that may appear in this manual.

No warranty or representation, either expressed or implied, is made with
respect to the quality, accuracy or fitness for any particular part of this
document. In no event shall the manufacturer be liable for direct, indirect,
special, incidental or consequential damages arising from any defect or error
in this manual or product.

Product names appearing in this manual are for identification purpose only
and trademarks and product names or brand names appearing in this document
are property of their respective owners.

This document contains materials protected under International Copyright
Laws. All rights reserved. No part of this manual may be reproduced,
transmitted or transcribed without the expressed written permission of the
manufacturer and authors of this manual.

If you do not properly set the Graphics Accelerator settings causing the
motherboard to malfunction or fail, we cannot guarantee any responsibility.

Siluro GF4 Ti4400/Ti4600

Graphics Accelerator

Index

CHAPTER 1.

1-1. F
1-2. S
1-3. M
1-4. D

CHAPTER 2.

2-1. C

2-2. S

CHAPTER 3.

3-1. W

3-2. W

3-3. W

CHAPTER 4.

4-1. W

EATURES

PECIFICATIONS

ISPLAY MODES TABLE

ARD INSTALLATION

New Systems: ............................................................................. 2-1

Systems with Existing VGA Card: ............................................. 2-1

ILURO

Auto Setup: ................................................................................. 3-1

Plug and Play Setup: ................................................................... 3-3

Auto Setup: ................................................................................. 3-5

Plug and Play Setup: ................................................................... 3-7

Auto Setup: ................................................................................. 3-9

3D Antialiasing Settings: ............................................................ 4-6

Direct3D Settings:....................................................................... 4-7

OpenGL Settings: ....................................................................... 4-8

Overlay Controls:...................................................................... 4-10

Desktop Utilities: ...................................................................... 4-11

For Windows 98/ME:................................................................ 4-12

For Windows 2000/XP: ............................................................4-14

Device Selection: ...................................................................... 4-16

INTRODUCTION...................................................... 1-1

.................................................................................... 1-1

........................................................................... 1-2

ULTIPLE MONITORS

HARDWARE SETUP................................................ 2-1

GF4 TI4400/TI4600 C

SOFTWARE SETUP ................................................. 3-1

INDOWS

INDOWS

INDOWS

INDOWS DISPLAY PROPERTIES

98/ME ........................................................................ 3-1

2000 ........................................................................... 3-3

XP.............................................................................. 3-7

UTILITY SETUP ....................................................... 4-1

.................................................................. 1-3

.............................................................. 1-5

................................................................... 2-1

ONNECTION

................................................. 4-1

................................. 2-2

4200-0261-02 Rev. 1.00

4-2. S
4-3. D
4-4. G
4-5. 3D
4-6. D
4-7. BIOS F

TV Output:................................................................................ 4-17

Color Correction: ...................................................................... 4-18

Screen Adjustment:................................................................... 4-19

Display Timing: ........................................................................ 4-19

ILURO

DVD.............................................................................. 4-20

IRECT

X ................................................................................... 4-23

RAPHIC MAX

EEP COLOR

ISPLAY TRAY ICON

........................................................................... 4-24

............................................................................ 4-28

.................................................................. 4-33

LASHING UTILITY

.......................................................... 4-35

APPENDIX A. HOW TO GET TECHNICAL SUPPORT ..................A-1

Siluro GF4 Ti4400/Ti4600

Introduction 1-1

Chapter 1. Introduction

1-1. Features

Thank you for purchasing ABIT Siluro GF4 Ti4400/Ti4600 Graphics Card, the most
advanced solution for game enthusiasts.

Powered by Most Powerful NVIDIA GeForce4™ Ti4400/Ti4600 GPU, and the new
nFiniteFX™ II Engine, Advanced high-speed 128MB DDR Memory, Lightspeed
Memory Architecture™ (LMA)II, delivers nearly double gaming performance than
previous hi-performance nVidia’s GPUs. With NVIDIA latest nView™ technology, it
creates maximum flexibility for multi-display option for your gaming experiences.

Combined with other innovations such as ABIT SiluroDVD, 3Deep
GF4 Ti4400/Ti4600 cater to all your graphics needs, With High-Definition Video
Processor (HDVP) and outstanding TV-Out quality, it enables a wide range of
applications and turns your desktop into a fully functionally DVD player and
big-screen gaming.

With this ABIT Siluro GF4 Ti4400/Ti4600 Graphics Card, you will not only see but
also experience dynamic and realistic 3D worlds.

®

Color, the Siluro

User’s Manual

1-2 Chapter 1

1-2. Specifications

 Powered by the world’s most powerful NVIDIA GeForce4™ Ti4400/Ti4600

GPU working at 275MHz/300MHz respectively with 256-bit Graphics Core

 On board 128 MB DDR SDRAM working on effective memory clock rate

550MHz/650MHz with 8.8GB/sec. or 10.4 GB/sec. memory bandwidth

 nFiniteFX

deliver the next leap in the realism to 3D graphics

 Dual Vertex Shaders and Advanced Pixel Shaders create realistic 3D effects

and custom animation

 Lightspeed Memory Architecture™ II for unsurpassed game play speeds even

in the highest resolutions

 Accuview™ Antialiasing delivers hi-performance visual quality
 nView™ display Architecture provides the ultimate in multiple display

flexibility and user control

 1.12/1.23 trillion operations per second respectively
 AGP 4X with Fast writes
 AGP 2X/4X support and AGP texturing
 Integrated hardware transform engine, light engine
 Complete support for DirectX
 High-quality HDTV/DVD playback support
 On board TV-Out supports S-Video/RCA output
 DVI Output for high resolution display on digital monitors
 DVI-I to VGA Adapter supports dual VGA displays simultaneously.

™

II engine enables a virtually infinite number of special effects that

®

8.1 and OpenGL® 1.3

Siluro GF4 Ti4400/Ti4600

Introduction 1-3

1-3. Multiple Monitors

Your Siluro GF4 Ti Series provide dual display functionality and TV-out from a
single video card. This technology changes the way you view your PC, TV, and video
graphics.

Just a single application can span to all monitors, or many applications can occupy
their own specific monitor. This feature will take your PC’s graphics and video
capabilities to the next level.

Connecting your Siluro GF4 Ti4400/Ti4600 to your monitors

The Siluro GF4 Ti Series provides supports for one DVI-I monitor or two VGA
monitors using the supplied DVI-I to VGA Adapter. A television can also be used to
expand your desktop by using the S-Video connector accompanying with the Cable
bundled.

Plug the monitor cable into your card (if you are running multiple monitors,
connect their cables to the appropriate connectors), then turn on the computer and
monitor(s).

To connect a flat panel to the Siluro GF4 Ti Series, use the DVI-I connector as shown
on next page. To connect a VGA monitor to the DVI-I connector, plug the supplied
DVI-I to VGA Adapter into the DVI-I connector, then plug your monitor cable into
the adapter. When you use multiple monitors with your Siluro GF4 Ti Series, one
monitor will always be primary. Any additional monitor(s) will be designated as
secondary.

User’s Manual

1-4 Chapter 1

Connection by connectors on Siluro GF4 Ti Series

Display Configurations

Display Configuration

Connector(s) Used

CRT monitor -15-pin VGA Connector

-24-pin DVI-I Connector

(with DVI-I to VGA Adapter)

DFP monitor -24-pin DVI-I Connector

TV -S-Video Connector or Composite

CRT monitor + TV -15-pin VGA Connector +

S-Video Connector or Composite

DFP monitor + TV -24-pin DVI-I Connector +

CRT monitor +

DFP connector

CRT monitor +

CRT monitor

S-Video Connector or Composite

-15-pin VGA Connector +

24-pin DVI-I Connector

-15-pin VGA Connector +

24-pin DVI-I Connector

(with DVI-I to VGA Adapter)

Siluro GF4 Ti4400/Ti4600

Introduction 1-5

1-4. Display Modes Table

This display mode table is for your reference only. The display mode will differ
depending on your specific monitor, and so the resulting display may not be identical
to this table.

Resolution Colors Vertical Refresh Rate

640 x 480

800 x 600

1024 x 768

1024 x 768

1152 x 864

1152 x 864

1280 x 960

1280 x 960

1280 x 1024

1280 x 1024

1600 x 900

1600 x 900

1600 x 1200

1600 x 1200

1920 x 1080

1920 x 1080

1920 x 1200

1920 x 1200

1920 x 1440

1920 x 1440

2048 x 1536

2048 x 1536

8/16/32 bits 60Hz to 240Hz

8/16/32 bits 60Hz to 240Hz

8/16 bits 60Hz to 240Hz

32 bits 60Hz to 200Hz

8/16 bits 60Hz to 200Hz

32 bits 60Hz to 170Hz

8/16 bits 60Hz to 170Hz

32 bits 60Hz to 150Hz

8/16 bits 60Hz to 170Hz

32 bits 60Hz to 150Hz

8/16 bits 60Hz to 150Hz

32 bits 60Hz to 120Hz

8/16 bits 60Hz to 120Hz

32 bits 60Hz to 100Hz

8/16 bits 60Hz to 100Hz

32 bits 60Hz to 85Hz

8/16 bits 60Hz to 100Hz

32 bits 60Hz to 85Hz

8/16 bits 60Hz to 85Hz

32 bits 60Hz to 75Hz

8/16 bits 60Hz to 75Hz

32 bits 60Hz

User’s Manual

1-6 Chapter 1

Siluro GF4 Ti4400/Ti4600

Hardware Setup 2-1

Chapter 2. Hardware Setup

2-1. Card Installation

This graphics card can only be installed in a motherboard with AGP slot. Please
handle this card with care and make sure to unplug the power supply of your system
before installation.

New Systems:

1. Unplug all power cords of your computer.

2. Remove computer chassis cover.

3. Locate the AGP slot on your motherboard.

4. Remove the metal bracket corresponding to the AGP slot. Keep the screw.

5. Align this card to the AGP slot. Hold the card’s edges and insert it into the
slot without using excessive force or pressing any components on the card.
Make sure it is firmly and completely fixed into the slot.

6. Secure this card’s mounting bracket to the back panel of computer chassis
with the screw removed from the metal bracket.

7. Replace the chassis cover.

8. Connect PC monitor or other display devices to this card.

9. You are now ready to install the software drivers and utilities.

Systems with Existing VGA Card:

1. Change the display driver to Standard VGA.

2. Shut down your computer and unplug all power cords.

3. Replace the existing VGA card with this new card.

4. Restart your computer.

5. Install the software drivers.

User’s Manual

2-2 Chapter 2

2-2. Siluro GF4 Ti4400/Ti4600 Connection

Package List:

 Siluro GF4 Ti4400/Ti4600 2D/3D Graphics Accelerator

 User's Manual

 Installation CD including Driver, SiluroDVD, 3Deep

Color

®

 Mini Din to S-Video and RCA adapter

 S-Video extended cable

 Composite (RCA) cable

 DVI-I to VGA Adapter

®

and True Internet

Siluro GF4 Ti4400/Ti4600

Software Setup 3-1

Chapter 3. Software Setup

The screen displays in this manual may not exactly reflect the screenshots on your
screen. The contents of the Installation CD that came with this card are subject to
change at any time without notice. The latest driver for this board is also
downloadable from our WEB site at http://www.abit.com.tw

3-1. Windows 98/ME

Auto Setup:

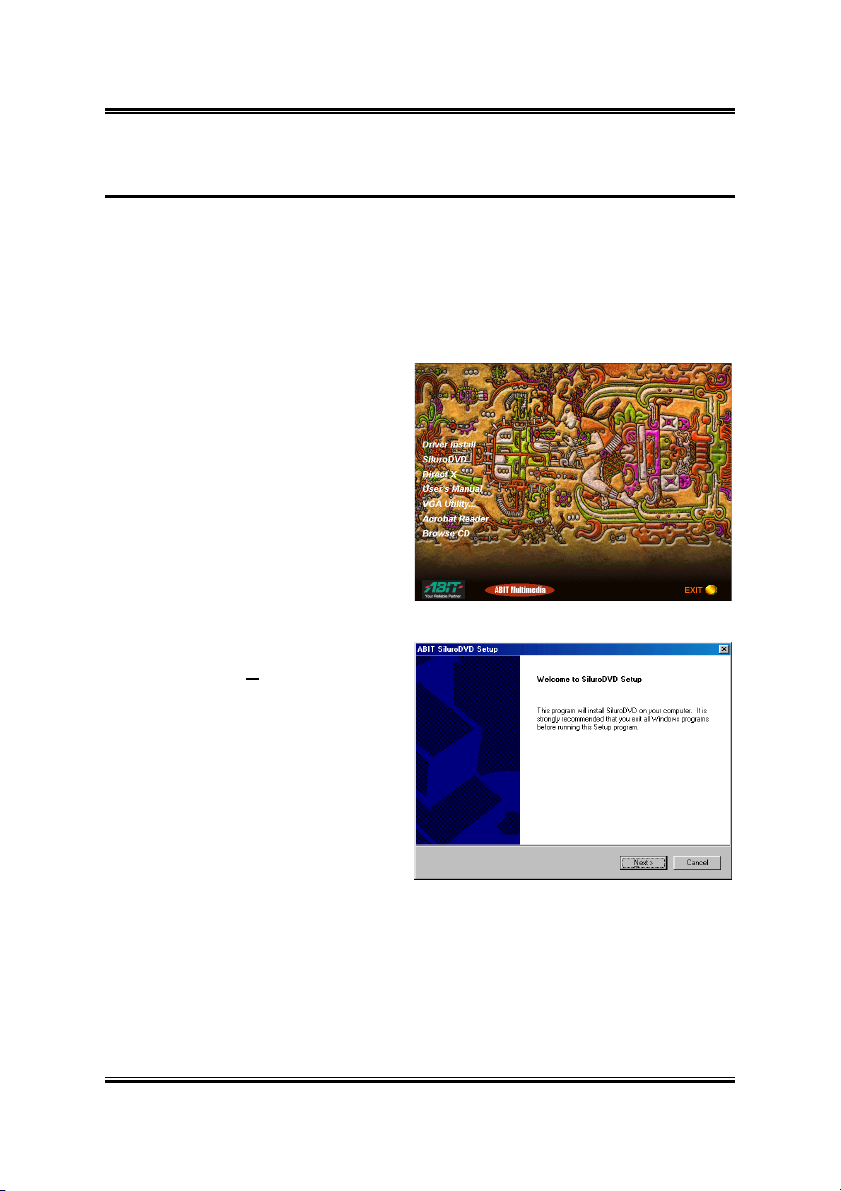

1. Start Windows. Insert the
Installation CD into CD-ROM
drive, it should execute the
installation program
automatically. If not,
double-click the execution file
at the main directory of this
Installation CD to enter the
installation menu.

Click “Driver Install”.

2. The welcome screen appears,
click “N
installation.

ext>” to start

.

User’s Manual

3-2 Chapter 3

3. Click “Yes” if you want to
install the DirectX, and then
follow the on-screen
instruction to complete the
setup. Click “N

o” if you

don’t want to install the DirectX, and then restart the computer.

Siluro GF4 Ti4400/Ti4600

Software Setup 3-3

3-2. Windows 2000

Plug and Play Setup:

1. Start Windows. When

Windows detects your graphics
card, the Found New Hardware
Wizard dialog box appears.
Click “Next>”.

2. Select “Search for a suitable

driver for my device
[recommended]”, and then
click “Next>”.

3. Select “Specify a location”,

and then click “Next>”.

User’s Manual

3-4 Chapter 3

4. Insert the Installation CD into
CD-ROM drive. Use the

rowse...” button to locate the

“B
driver, or type
“E:\Driver\Win2KXP” to
specify the path. E: is the
CD-ROM drive. Click “OK” to
continue.

5. The wizard has found the driver
for this device. Click “Next>” to
continue.

6. Click “Y

es” to continue.

7. Windows has finished installing

the software for this device.
Click “Finish” to close the
wizard.

Siluro GF4 Ti4400/Ti4600

Software Setup 3-5

Auto Setup:

1. Start Windows. Insert the

Installation CD into CD-ROM
drive, it should execute the
installation program
automatically. If not,
double-click the execution file
at the main directory of this
Installation CD to enter the
installation menu.

Click “Driver Install”.

2. The welcome screen appears,

click “N
installation.

ext>” to start

3. Click “Y

es” to continue.

User’s Manual

3-6 Chapter 3

4. Click “Yes” if you want to

install DirectX, and then follow
the on-screen instruction to
complete the setup. Click “N

o”
if you don’t want to install
DirectX, and then restart the computer.

Siluro GF4 Ti4400/Ti4600

Software Setup 3-7

3-3. Windows XP

Plug and Play Setup:

1. Start Windows

2. When Windows detects your
Siluro GF4 Ti4400/Ti4600
graphics card, the Found New
Hardware Wizard dialog box
appears. Click “Next>”.

3. Select "Search for the best driver
in these locations", use the
"Browse" button to locate the
driver, or type
"E:\Driver\Win2KXP" to
specify the path. E is the
CD-ROM drive. and then click
"Next>".

4. This is warning information.
Click "Continue Anyway" to
continue.

User’s Manual

3-8 Chapter 3

5. Click “Finish” to complete the
installation.

Siluro GF4 Ti4400/Ti4600
