ABC Office FD 572 User Manual
Specifications and Main Features
- Nominal Identifier: Cut Sheet Cutter FD 572,
- Kind: Electromechanical with a tabletop configuration.
- Type of paper: Distinctively, thepaper's width ranges from 106 mm to 364 mm which classifies it as B4 and the length ranges from 110 mm to 364 mm, With the cut’s capacity to fit one section of paper weighing between 50 and 135 kilograms.
- Minimal cutting metric requires a cut paper to have a dimension of 55 mm.
- There exists a Maximum Cutting Dimension which is the size of the sheet that can be cut ranging to 182 mm.
- The current cutting mechanism being implemented is the guillotine cutter system.
- The system has an adaptation of the top feed system with rubber rings to assist in the cutting of the papers.
- Reserve and load holding Capacity is at 500 sheets which is 55 Kg when for high grade paper.
- Under Normal circumstances, the Least Feed that is applied is 0.1 mm.
- Conclusively there is space of Alternative Cutting Precision of up to ± 1 mm with the exception of final cuts.
- There are 100 Connection Type another name, Cutting Sizes which are interchangeable with A4, A4R, A5, A5R, B4, and other related letters A. Also one can begin cutting from two as the lowest number to five or even up to fourteen which is the peak standard.
- Currently the speed cutting of type A4 by three lateral pieces has a structure of 2160 sheets per hour,
- Vertical A4R Cutting with 3 Pieces produces 2400 sheets Cutting per hour.
- Type of Stacker: Drop Stacker
- Machine Functions include:

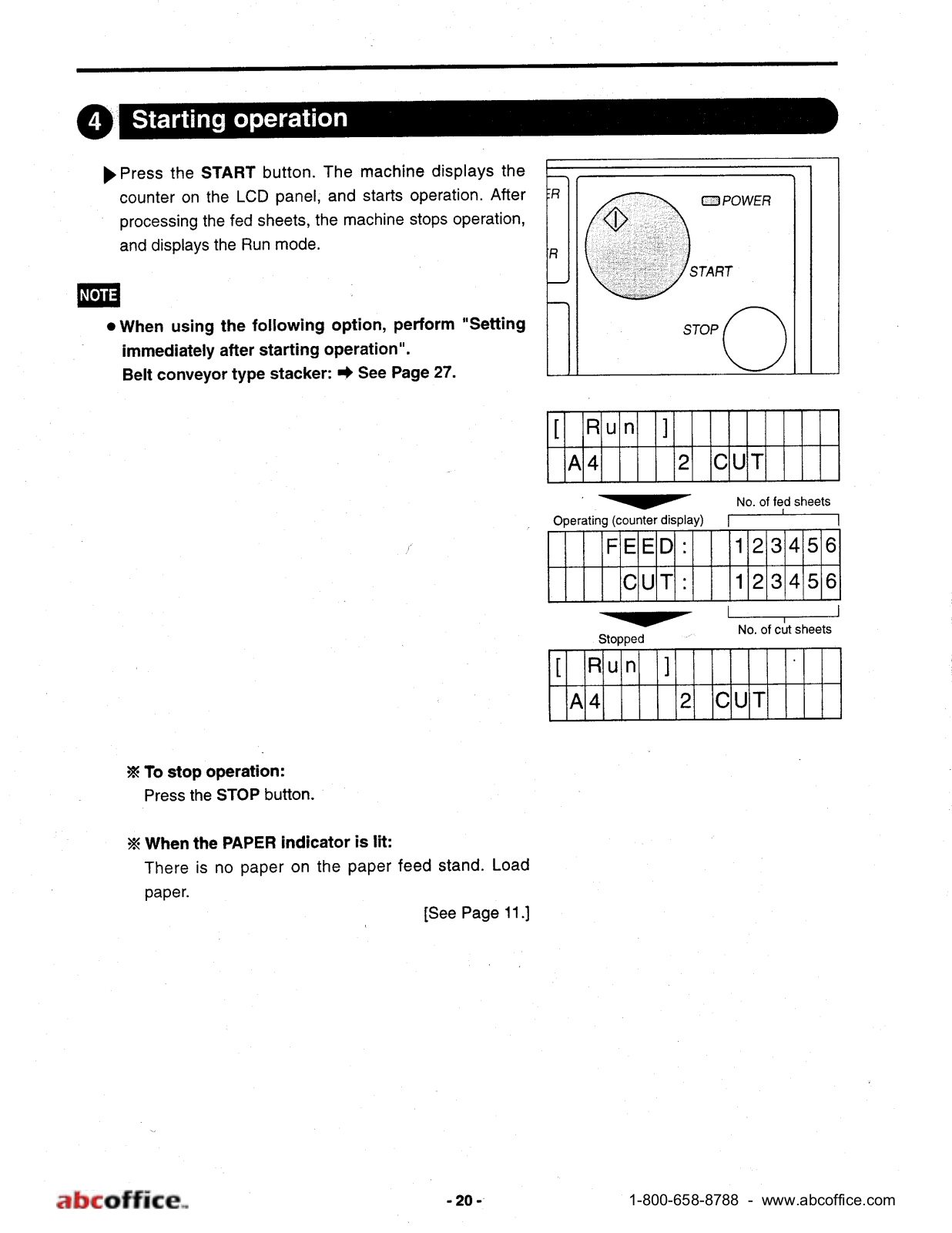

- LCD: custom made display of 16 characters with 2 line rotations
- The machine which consists of Jam detection alongside machine stop and jam monitoring displays
- A Safety Cover that is Interlocked
- Sheet Counter display
- A display for the Final Sheet
- Feed Pressure Adjustment display
- Double Feed Detection display
- An Automated Shut Down feature
- Machine's Dimensions: 510 (W) x 575(D) x 215 (H) mm for the main unit which gets increased to 940 mm when the unit is used together with Sheet Cutter Stand, the Ejection unit increases the measurements to 105 mm and the Feed unit increases the mm to 135.
- Weight of Machine: 30 kg Approximately
- Power required:
- Model/Type: AC 120V Type related AC 120V + 10%, 50/60Hz 0.6A
- Model/Type: AC 230V Type related AC 230V + 10%, 50/60Hz 0.4A
- Required Operating Conditions: Temperature between 5 - 35 °C, Humidity levels of 45 – 80% with no condensation requirements.

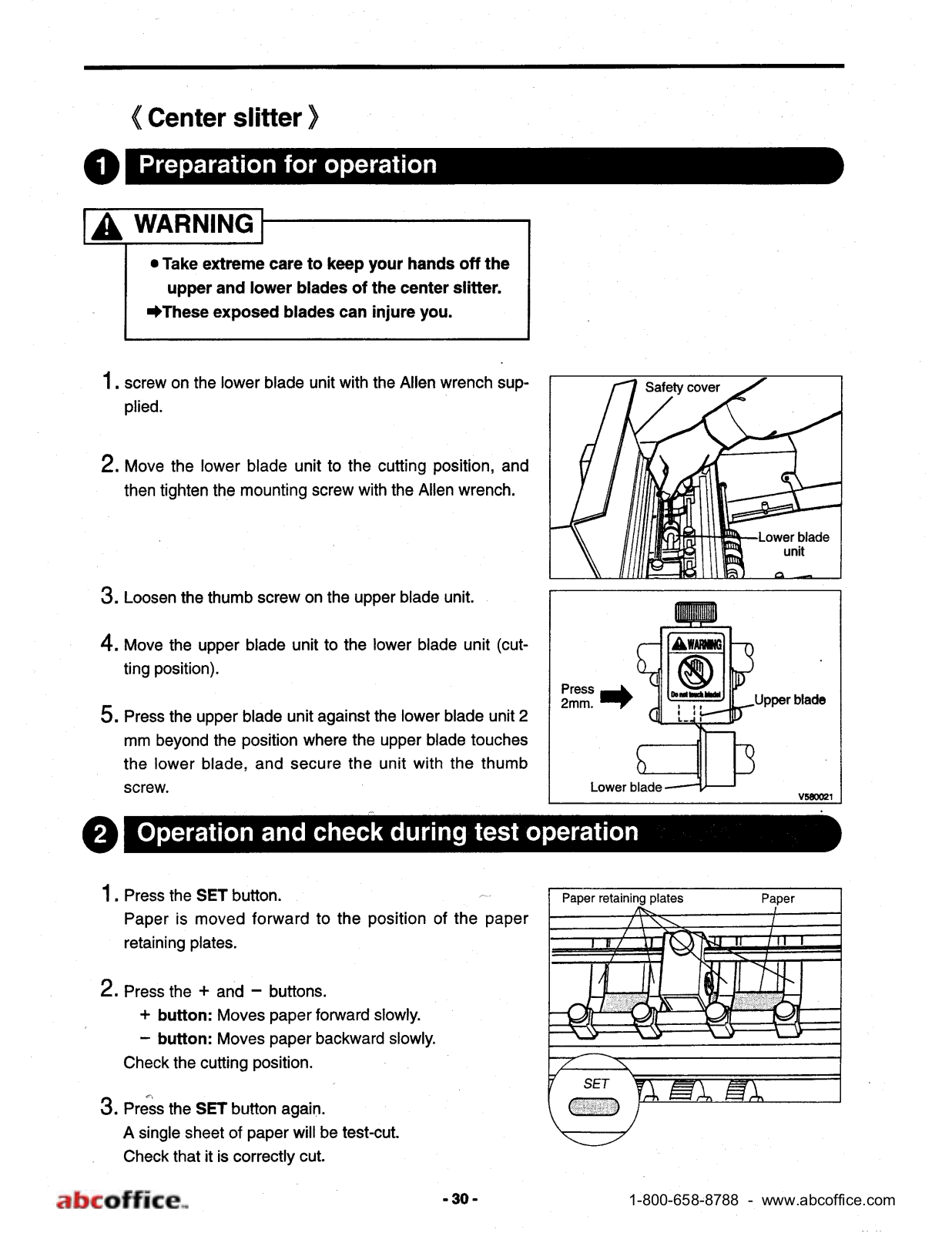

- Equipment Support: Peripherals including but not limited to: Belt Conveyor Type Stackers, Center Slitters, Perforator, and a Sheet Cutter Stand
- Other Equipment: An Algorithms power cord, Ejection Trays and Guides, along with Ejection Stoppers and Tweezers, and lastly a Manual
---
Frequently Asked Questions
Q1: Can you let me know what type of scaling system is used in the FD 572 cutting machine?
A1: Quite
cutting in a guillotine system. The FD 572 employs cutting edge and automated methodologies.
Q2: Can you provide the power supply specification for FD 572?
A2: In terms of the FD 572 power supply specification, for the 120V type, it is 0.6A, 50/60Hz, and 230V with an upper limit of 10%, and for the 230V type it is 0.4A at 50 or 60 Hz, Ac 230v with an upper limit of 10%.
Q3: What is the Maximum Capacity of the FD 572?
A3: FD 572 accommodates a 182-millimeter paper width with paper unloading capability of 500 sheets.
Q4: What is the maximum number of paper sheets that can be fed into the FD 572 at one go?
A4: The FD 572 is designed to accept a maximum of 500 paper sheets in a single load.
Q5: Does the machine have a mechanism to detect any type of malfunctioning?
A5: Absolutely, the FD 572 is equipped to identify and resolve some, but not all, types of jams by instantly ceasing machine operations and presenting a form of monitoring error message on the screen.
Q6: What is the speed achieved while trimming three A 4 sized paper pieces?
A6: The A4 (Lateral) paper pieces are cut into 3 parts in one sitting at a speed of 2160 sheets per hour and A4R (Vertical) paper pieces at a rate of 2400 sheets per hour.
Q7: Are there any additional add-ons available with the FD 572?
A7: Yes, you have the option of additional equipment which consist of a belt conveyor type stacker, center slitter, perforator, and sheet cutter stand.
