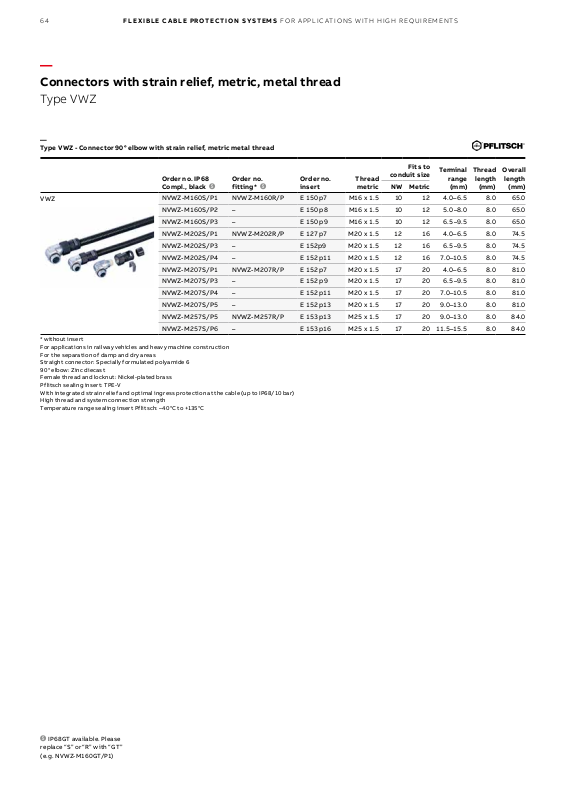

64 FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS

—

Connectors with strain relief, metric, metal thread

Type V W Z

—

Type VWZ - Connector 90° elbow with strain relief, metr ic metal thread

VWZ

* with out ins ert
For applications in railway vehicles and heavy machine construction
For the se paration of da mp and dry areas

Straight connector : Speciall y formulated p olya mide 6
90° el bow: Zin c diecast

Femal e thread and loc knut: Nicke l-p lated brass
Pflitsch sealing insert: TPE-V

With in tegrat ed strain reli ef and optimal ingre ss prote ction at the cable (up to I P68/10 bar)

High thread and system connection strength

Temperature ran ge seal ing insert P flitsch: – 40°C to +135°C

Order no. IP68
Compl., black

NVWZ-M160S/P1 NVWZ-M160R/P E 150 p7 M16 x 1.5 10 12 4 . 0 – 6 . 5 8 . 0 6 5 . 0

NVWZ-M160S/P2 – E 150 p8 M16 x 1.5 10 12 5.0 –8.0 8.0 6 5 . 0

NVWZ-M160S/P3 – E 150 p9 M16 x 1.5 10 12 6.5–9.5 8.0 6 5 . 0

NVWZ-M202S/P1 NVWZ-M202R/P E 127 p7 M20 x 1.5 12 16 4 . 0 – 6 . 5 8.0 7 4 . 5

NVWZ-M202S/P3 – E 152p9 M20 x 1.5 12 16 6.5–9.5 8.0 7 4 . 5

NVWZ-M202S/P4 – E 152 p11 M20 x 1.5 12 16 7 . 0 – 1 0 . 5 8.0 7 4 . 5

NV WZ-M207S/P1 NV WZ-M 207R/P E 152 p7 M20 x 1.5 17 20 4.0 –6.5 8.0 81.0

NV WZ-M207S/P3 – E 152 p9 M20 x 1.5 17 20 6.5–9.5 8.0 8 1 . 0

NV WZ-M207S/P4 – E 152 p11 M20 x 1.5 17 20 7. 0 – 1 0 . 5 8.0 8 1 . 0

NV WZ-M207S/P5 – E 152 p13 M20 x 1.5 17 20 9.0–13.0 8.0 8 1 . 0

NV WZ-M257S/P5 NV WZ-M 257R/P E 153 p13 M25 x 1.5 17 20 9.0–13.0 8.0 84.0

NV WZ-M257S/P 6 – E 153 p16 M25 x 1.5 17 20 11.5–15.5 8.0 84.0

❺

Order no.

❺

fitting*

Order no.
insert

Thread

metric

Fits to

conduit size

Terminal

range

(mm)

Thread

length

(mm)

Overall

length

(mm)NW Metric

❺

IP68 GT available . Plea se

replace “S” or “R” w ith “GT”

(e.g . NVW Z- M160GT/P1)
