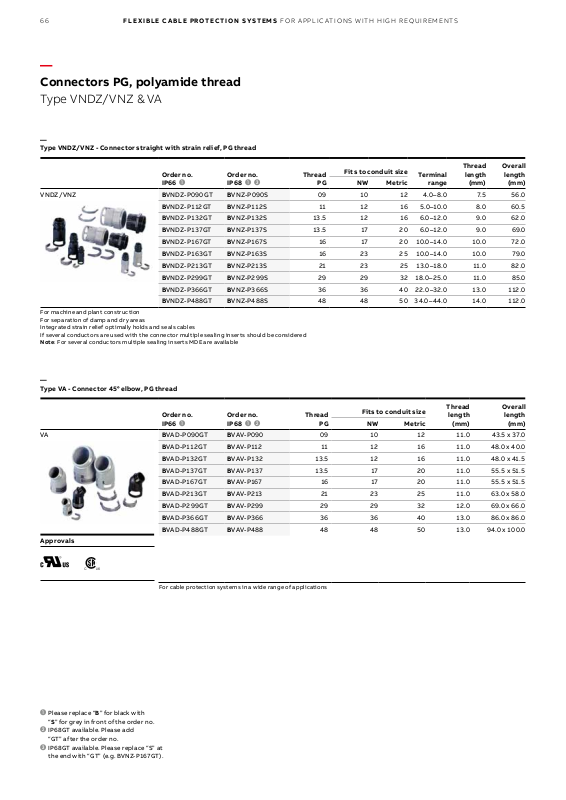

66 FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS

—

Connectors PG, polyamide thread

Type VNDZ/VNZ & VA

—
Type VNDZ/VNZ - Connector straight with strain relief, PG thread

Order no.

VNDZ/VNZ

For machine and plant construction
For separation of damp and dry areas
Integrated strain relief optimally holds and seals cables
If several conducto rs are used with the connec tor multiple sealing inse rts sh ould be considered

Note: For several co nduc tors multiple sealing ins erts MDE are available

—

Type VA - Connector 45° elbow, PG thread

VA

Approvals

❶

IP66

BVNDZ-P090GT BVNZ-P090S 09 10 12 4.0– 8.0 7 . 5 5 6 . 0

BVN DZ- P112GT BVNZ-P 112S 11 12 16 5.0–10.0 8 . 0 60.5

BVN DZ- P132GT BVNZ-P132S 13.5 12 16 6.0 –12.0 9 . 0 62.0

BVN DZ- P137GT BVNZ-P137S 13.5 17 20 6.0–12.0 9 . 0 69.0

BVN DZ- P167GT BVNZ-P167S 16 17 20 10.0–14.0 1 0 . 0 72.0

BVN DZ- P163GT BVNZ-P163S 16 23 25 10.0 –14.0 1 0 . 0 79.0

BVN DZ- P213GT BVNZ-P213S 21 23 25 13.0–18.0 1 1 . 0 82.0

BVNDZ-P299GT BVNZ-P 29 9S 29 29 32 18.0– 25.0 1 1 . 0 85.0

BVN DZ- P366 GT BVNZ-P366S 36 36 40 22.0–32.0 13.0 112.0

BVNDZ-P488GT BVNZ-P488S 48 48 50 34.0– 44.0 14.0 112.0

Order no.

❶

IP66

BVAD-P090GT BVAV-P09 0 09 10 12 1 1 . 0 43.5 x 37.0

BVAD- P112GT BVAV-P112 11 12 16 1 1 . 0 48.0 x 40.0

BVAD-P132GT BVAV-P132 13.5 12 16 1 1 . 0 48.0 x 41.5

BVAD -P137GT BVAV-P137 13.5 17 20 1 1 . 0 55.5 x 51.5

BVAD -P167G T BVAV-P167 16 17 20 1 1 . 0 55.5 x 51.5

BVAD -P213GT BVAV-P213 21 23 25 1 1 . 0 63.0 x 58.0

BVAD-P299GT BVAV-P299 29 29 32 1 2 . 0 69.0 x 66.0

BVAD-P366GT BVAV- P366 36 36 40 1 3 . 0 86.0 x 86.0

BVAD-P488GT BVAV-P488 48 48 50 1 3 . 0 94.0 x 100.0

Order no.

❶ ❸

IP68

Order no.

❶ ❷

IP68

Thread

PG

Thread

PG

Fits to conduit size

Fits to conduit size

Ter min al

range

Thread

Thread

length

(mm)

length

(mm)

Overall

length

(mm)NW Metric

Overall

length

(mm)NW Metric

❶

Pl ease replace “B” for b lack w ith

“S” for grey in front of the order no.

❷

IP68GT avail able . Please add

“GT” af ter the order n o.

❸

IP68GT avail able . Please repl ace “S” at

the end w ith “GT” (e.g. BV NZ-P167GT).

For cab le prote ction systems in a w ide range of applications
