DEH41091 Installation Instructions R02
g
A
Series®Lighting Control Panel boards
WARNING: Danger of electrical shock or injury. Turn
Use for Mounting 1,2 & 3 Pole TEY breakers
Catalog No. Qty. Description
TEYKIT 10 TEY Breaker Mounting kit
Installation Instructions:
OFF power service to the line side of the panel board
or switchboard before working inside the equipment
or removing any component
installed and maintained by properly trained and
qualified personnel only.
1. Select the TEY breaker position to be panel mounted.

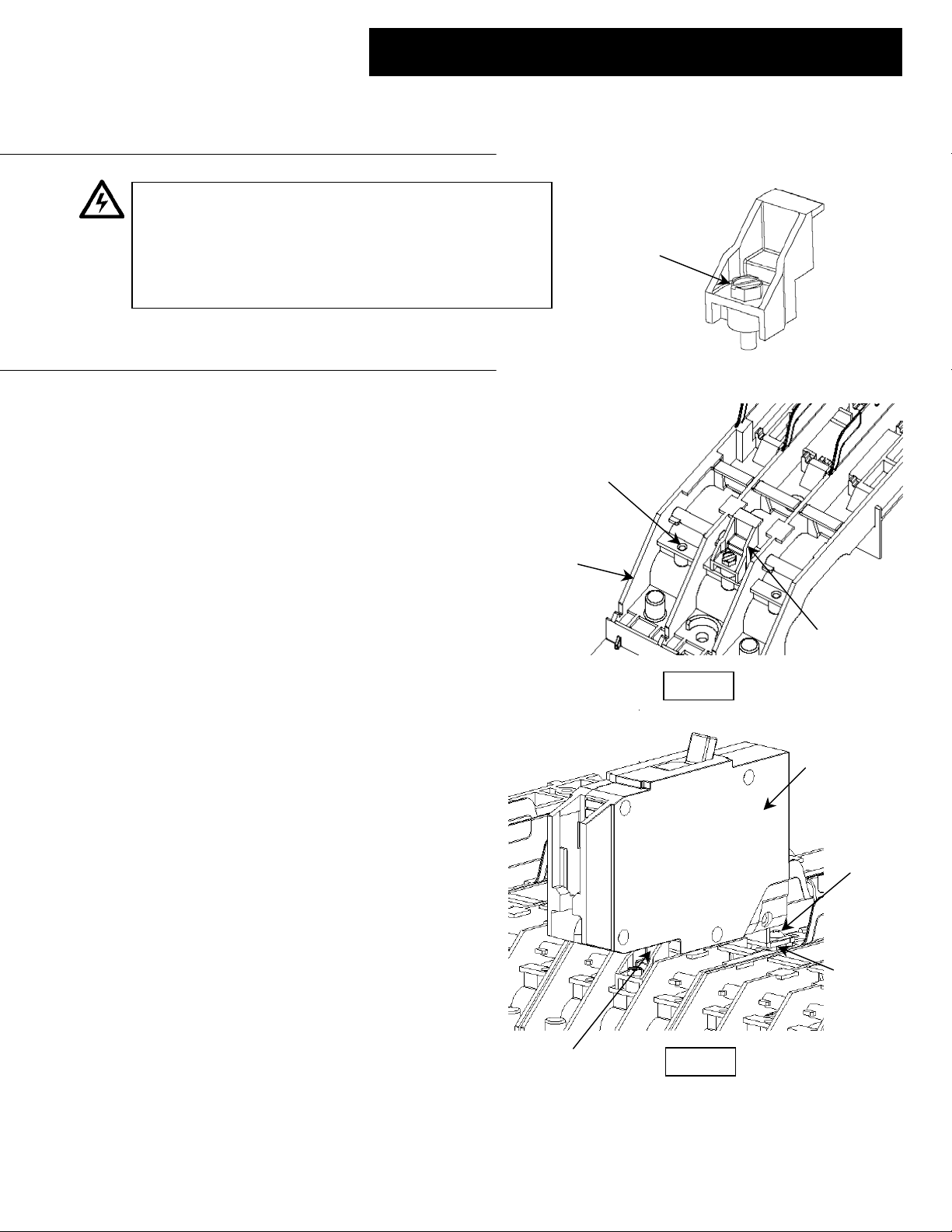

2. Insert TEYKIT in to position shown in Fig1 and tighten
mounting screw in to the holes provided in the Panel
plastic mounting base.
3. Screw TEYKIT into the one for each pole & torque to
10 Lb-inch.
Note: For 3 pole TEY Breaker use 3 mounting kits
For 2 Pole TEY Breaker use 2 mounting kits
For 1 Pole TEY Breaker use 1 mounting kits
4. Mount TEY breaker and drive line strap screw into Bus
bar strap and torque it to 35 lb-inch (Refer to Fig 2).
. Equipment is to be
TEYKIT
Mounting
Screw
TEYKIT
Mounting Hole
Plastic
Mounting
Base
FIG 1
TEYKIT
TEYKIT
Shown
Installed
TEY-1 Pole
Breaker
Shown
Line strap
screw
TEYKIT
Shown
Installed
GE Consumer & Industrial General Electric Company, Plainville, CT 06062
2004 General Electric Company DEH41091 R02
FIG 2
Bus Bar
Strap
