ABB Technical catalogue STC804013D0203 3/1
SR2 Enclosures
General characteristics
The range of SR2 enclosures is a complete offer of monobloc enclosures for constructing small and medium-sized electric automation, switching and control switchboards.
The SR2 enclosures come from the experience ABB has gained
3
over the years in building IP65 metal structures (in accordance with the IEC 60529 Standard), together with the innovative new production process used for construction and patented by ABB. The typical use of SR2 Enclosures is to make switchgear and controlgear switchboards for a very wide variety of industrial machines: from large machinery with automated production lines or parts of these, down to the typical installations of on-board machine switchboards, boilers, heating plants and so on.
They conform to the EN 62208 Standard “Empty enclosures for low voltage protection switchgear and controlgear assemblies” and allow realization of electrical equipment conforming to the prescriptions of the IEC 60204-1 Standard “Safety of machinery. Electrical equipment of machines” and of the EN 60439- 1 Standard and the new EN 61439-1-2 Standard “Low voltage protection switchgear and controlgear for assemblies”. The degree of protection, in accordance with the IEC 60529 Standard
“Degrees of protection of enclosures (IP Code)”, is IP65. The SR2 enclosures have also passed the control required to obtain the UL (Underwriters Laboratories) and CSA (Canadian Standards Association) Type 12 marks.
The SR2 enclosures also allow secondary distribution switchboards to be made, thanks to the possibility, in the 400, 600 and 800 mm widths, of installing the whole range of apparatus and modular circuit-breakers on DIN rails combined with special pre-drilled and hinged modular front panels, thereby allowing construction of AS/ANS type electrical switchgear conforming to the IEC 60439-1 Standard and the new EN 61439-1-2 Standard. A single line of metalwork structures therefore allows construction of automation and secondary and end distribution electrical switchboards thanks to the availability of a series of accessories (modular panels, DIN rails) and to the possibility of stacking the enclosures.
3/2 1STC804013D0203 | ABB Technical catalogue
The SR2 enclosures are available in two versions (blind door or glazed door) and in 23 different dimensions, as well as a further 19 combinations obtained by stacking the enclosures, up to a maximum height of 2000 mm, which guarantee ample selection possibilities for the various end applications.
The SR2 enclosures have been designed to fulfil all the typical needs of the builder or installer of switchgear in the best way possible and the user is presented with a unique ensemble of functional characteristics:
• wide dimensional range
• certied IP65 degree of protection
• internal galvanised sheet mounting plate with 20/10 thickness
(made to allow threaded holes to be made easily), adjustable in depth by using a special accessory
• fairlead plate screwed on (at top and bottom) made of 15/10
thick galvanised sheet, with a sealing gasket applied inside
• complete reversibility of the enclosure, so the door can open
either on the right or on the lefthand side
• possibility of installing all the apparatus and modular circuit-
breakers on a DIN rail combined with a hinged modular panel.
The standard colour is RAL 7035 orange peel. On request, the SR2 enclosures can be ordered in a wide range of RAL colours (see page 7/12).
Both the enclosures with glazed door or blind door can be stacked: stacking is done simply by removing the fairlead plates and
inserting the IP65 sealing gasket (GZ....), made of neoprene with
closed cells.
Assembly of the stacked enclosures is carried out by means of the same holes used for the fairlead plates. The door is supplied with the enclosure (single code) so as to reduce the number of articles and assembly times.
3
ABB Technical catalogue STC804013D0203 3/3
SR2 Enclosures
General characteristics
The range is completed with a series of accessories: brackets for wall assembly, rain shield top cover, locks of various types, internal document pocket, spacers, and spray paint for touching up. It is possible floor fixing by means plinth.
3

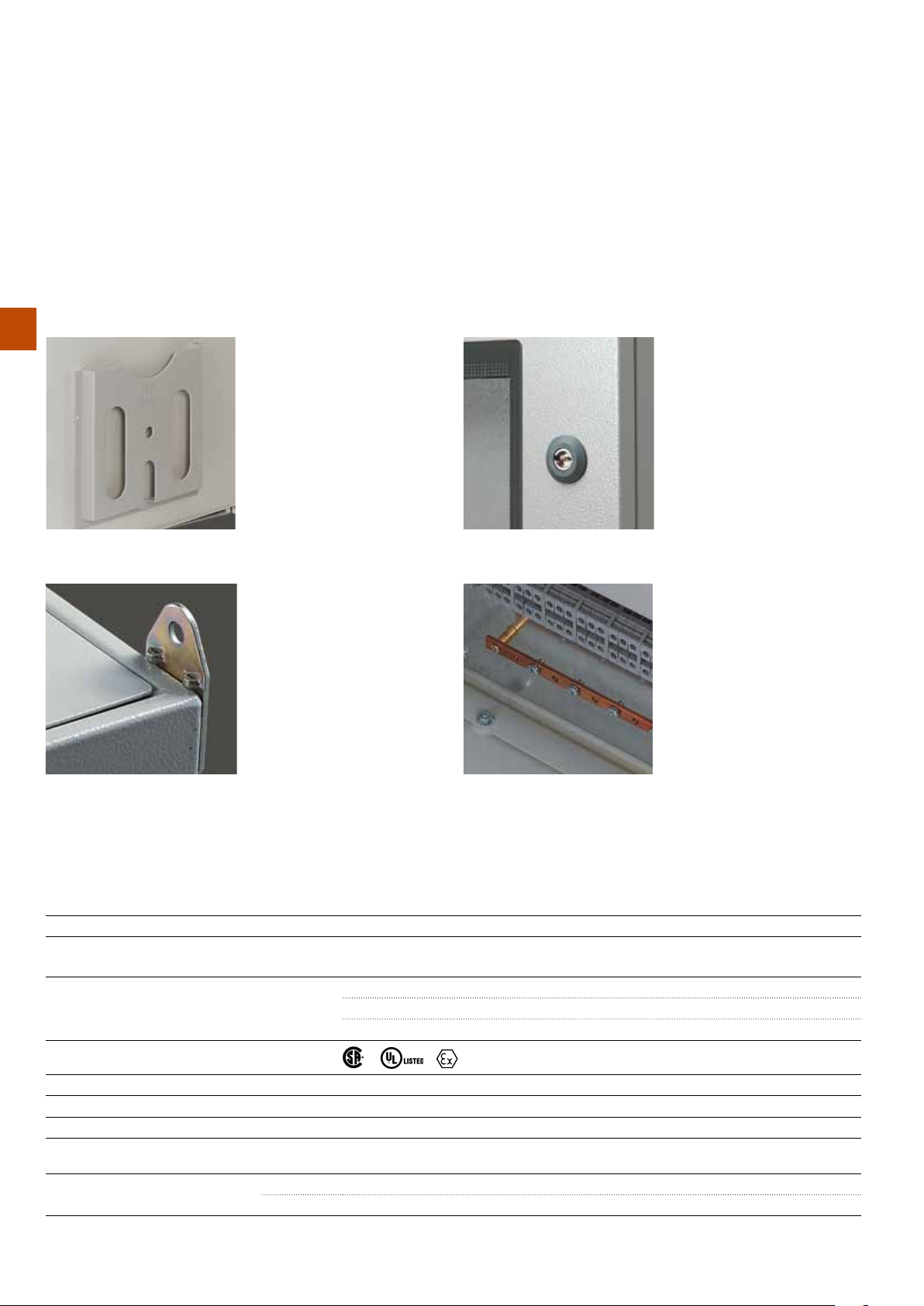

Many closure systems can Plastic document pocket, RAL 7035, size A4, the pocket is apply within the solid doors wider than 400 mm, with stickers provided.
replace the standard closures
of the external doors.
The inserts are interchangeable
and easily replaced by
loosening a nut.
The brackets for wall mounting allows installation of the boxes on the wall using the holes located on the back of the enclosure.
Technical characteristics
Conformity with Standard IEC 62208, IEC 60439-1, IEC 61439-1-2
Degree of protection IP65 (IEC 60529)
TYPE 12 (Normativa UL)
Degree of mechanical strength IK10 blind door
IK09 glazed door
(IEC 62262)
Certifications
Type of material Metallic
Installation site Indoors
Fixing method floor/wall
Normal service conditions
- ambient temperature da –5 a +40°C
Operating climate (t°/Ur%) costant 23°C/83% - 40°C/93%
variable 23°C/98% - 40°C/98%
II 3 G D
The bars, made of electrolytic
copper with M6 threaded holes
in 25 mm, can be mounted
on mounting plates using the
appropriate supports.
3/4 1STC804013D0203 | ABB Technical catalogue
SR2 Enclosures

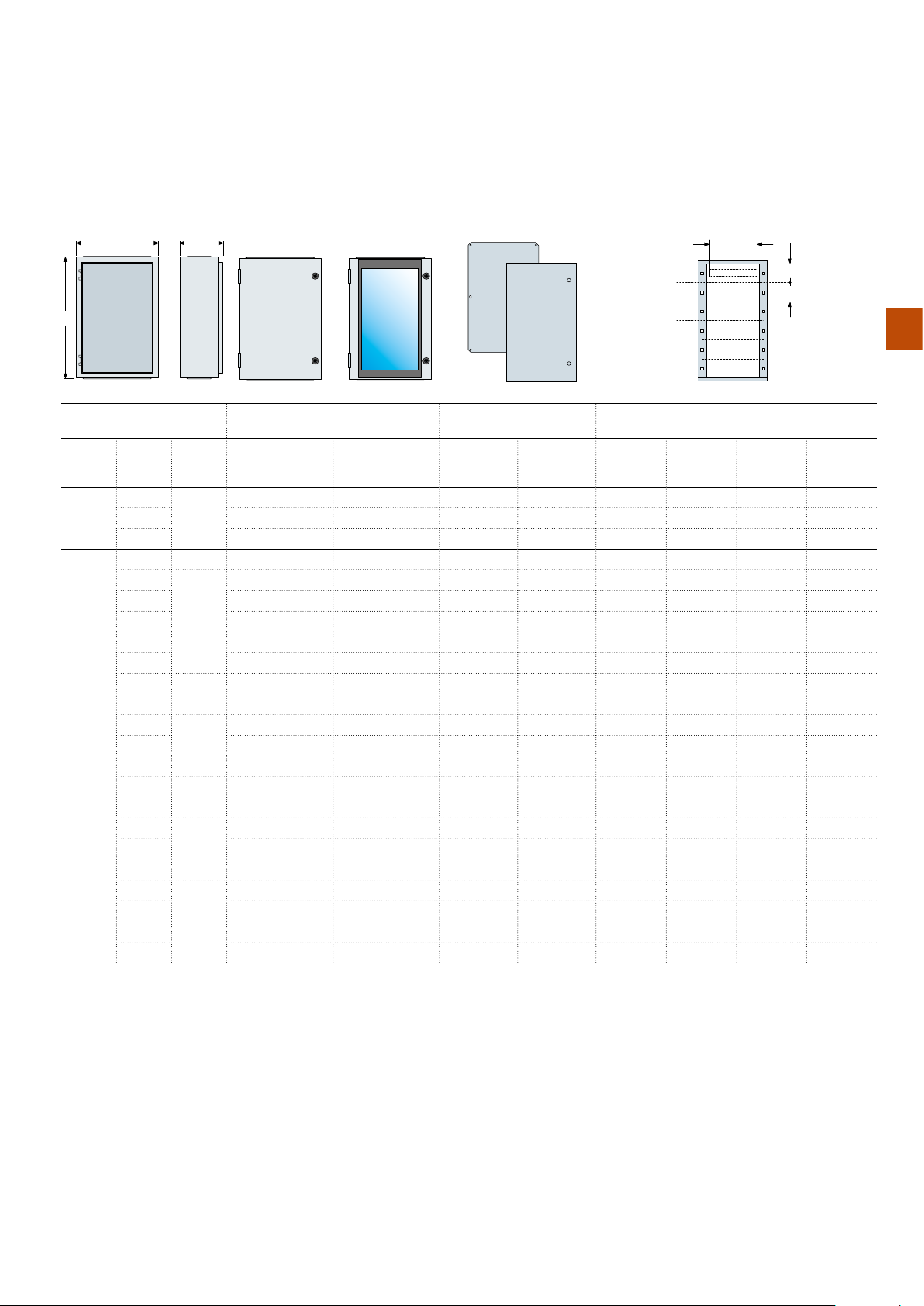

Selection table
Rapid selection table
W D
H
Overall dimensions Enclosures Kit for automation
H mm
300
400
500
600 400 200 SRN6420K SRN6420VK KC6040K PF6040 3 14 42 KD6040K
700 500 200 SRN7520K SRN7520VK KC7050K PF7050
800 600 250 SRN8625K SRN8625VK KC8060K PF8060 4 25 100 KD8060K
1000 600 250 SRN10625K SRN10625VK KC1060K PF1060 5 25 125 KD1060K
1200 600
W mm
200
300 SRN3315K
400 SRN3415K
300 150 SRN4315K
300
400 SRN4420K
600 SRN4620K
300
400 SRN5420K SRN5420VK KC5040K PF5040 2 14 28 KD5040K
400 250 SRN5425K SRN5425VK KC5040K PF5040 2 14 28 KD5040K
400
600 SRN6625K
500 250 SRN7525K SRN7525VK KC7050K PF7050
600
800 SRN8830K
600
800 SRN10830K SRN10830VK KC1080K PF1080 5 36 180 KD1080K
800 SRN12830K SRN12830VK KC1280K PF1280 6 36 216 KD1280K
D mm
150
200
200
250
300
300
300
Enclosures with blind door + back plate
SRN3215K
SRN4320K
SRN5320K
SRN6425K SRN6425VK KC6040K PF6040 3 14 42 KD6040K
SRN8630K SRN8630VK KC8060K PF8060 4 25 100 KD8060K
SRN10630K SRN10630VK KC1060K PF1060 5 25 125 KD1060K
SRN12630K SRN12630VK KC1260K PF1260 6 25 150 KD1260K
with glazed door *
Blind counterdoor
Back plate
Kit for distribution Supports for mounting modular panels
No. vertical mod. H=185mm
DIN mod.
No. DIN mod. per row
Total modules
185
185
DIN Supports
3
* The mounting plate must be ordered separately.
> Selection by components page 3/6 > In-depth technical information page 8/1 > Overall dimensions page 9/1
ABB Technical catalogue STC804013D0203 3/5
SR2 Enclosures

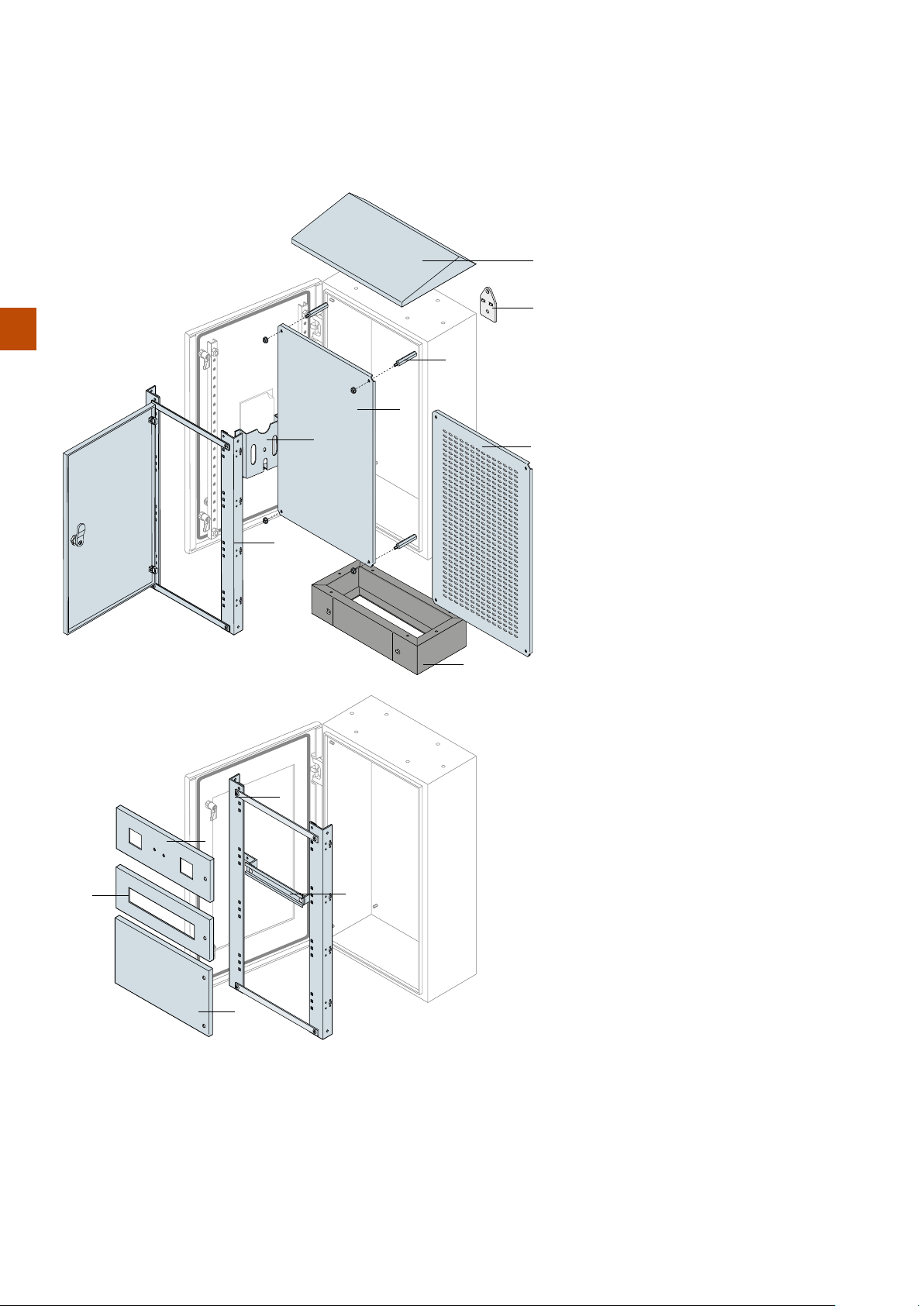

Ordering codes
1
Spray protection roof
Page ....................................................................... 3/6
1
2
Wall-mounting brackets
2
Page ..................................................................... 3/11
3
3
4
6
5
7
8
3
Spacers for back plates
Page ..................................................................... 3/10
4

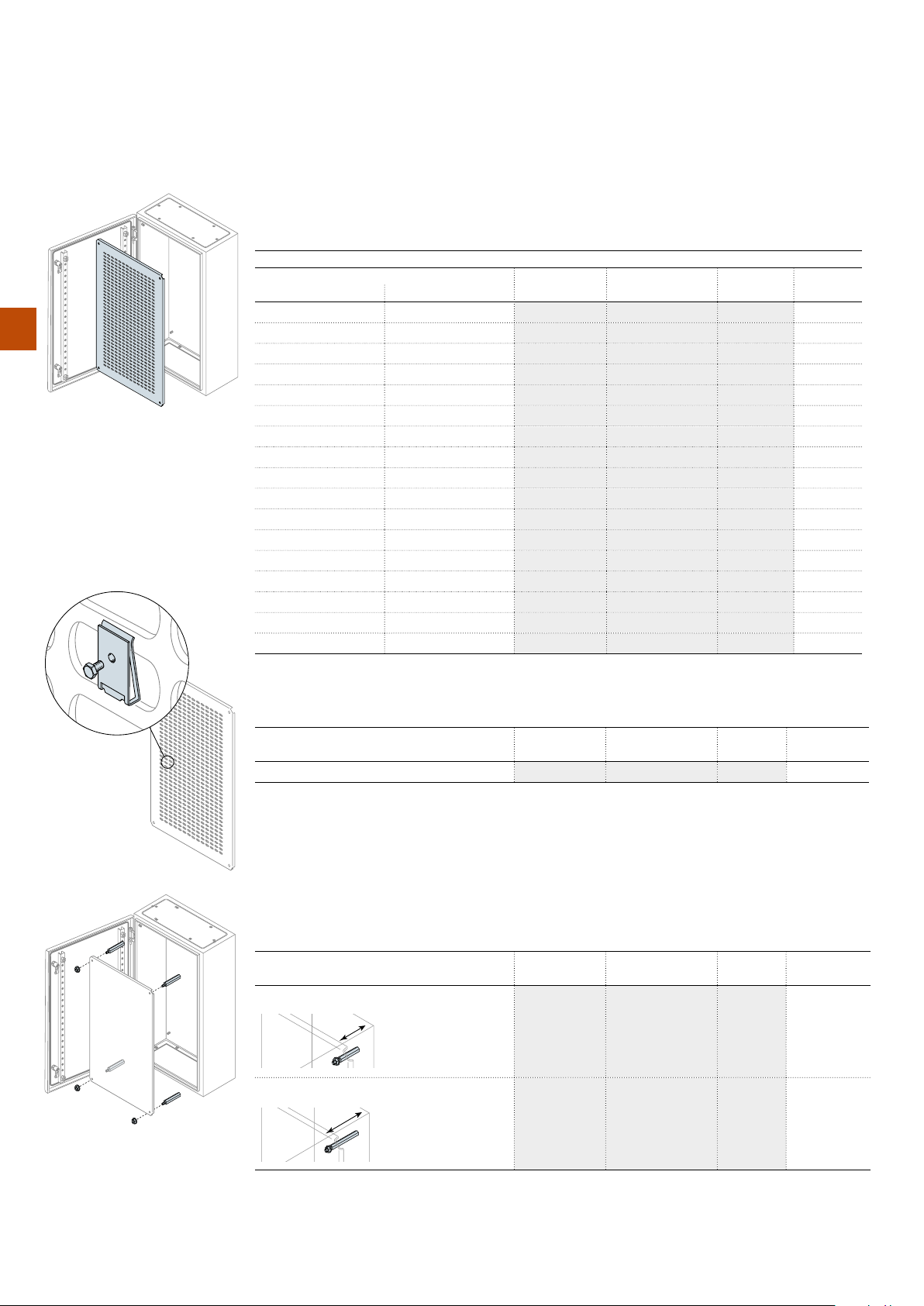

Blind internal plate
Page ....................................................................... 3/9
5
Slotted internal plate
Page ..................................................................... 3/10
6
Document pocket
Page ..................................................................... 3/16
7
Counterdoor
Page ....................................................................... 3/9
8
Plinth
Page ..................................................................... 3/11
13
10
12
9
Frame for DIN rail
9
Page ..................................................................... 3/13
10

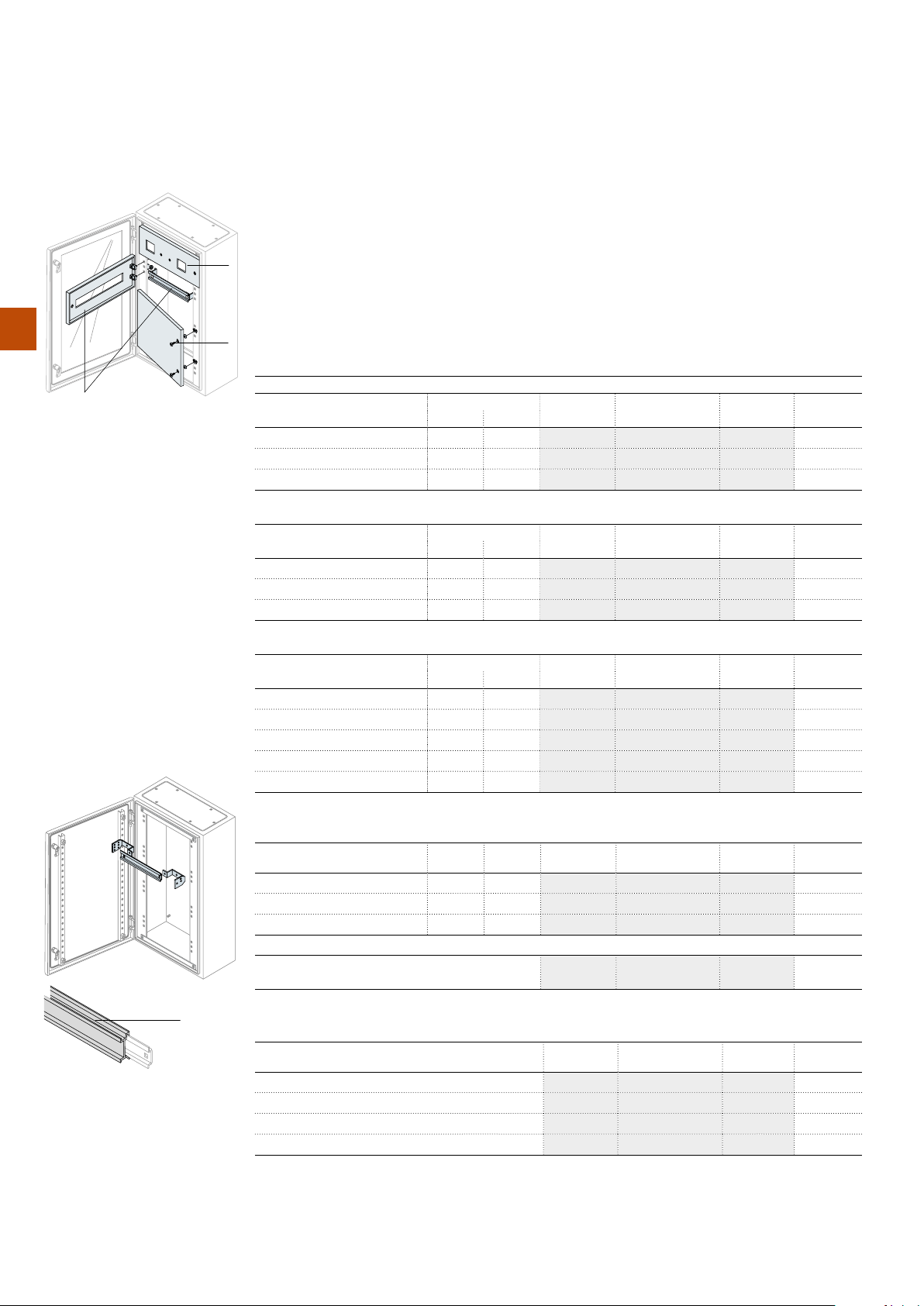

Modular panels for apparateus
Page ..................................................................... 3/14
11
11
DIN rail
Page ..................................................................... 3/14
12
Blind modular panels
Page ..................................................................... 3/14
13
Modular panel for DIN rail
Page ..................................................................... 3/14
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
3/6 1STC804013D0203 | ABB Technical catalogue
120°
SR2 Enclosures with blind door (internal plate included)

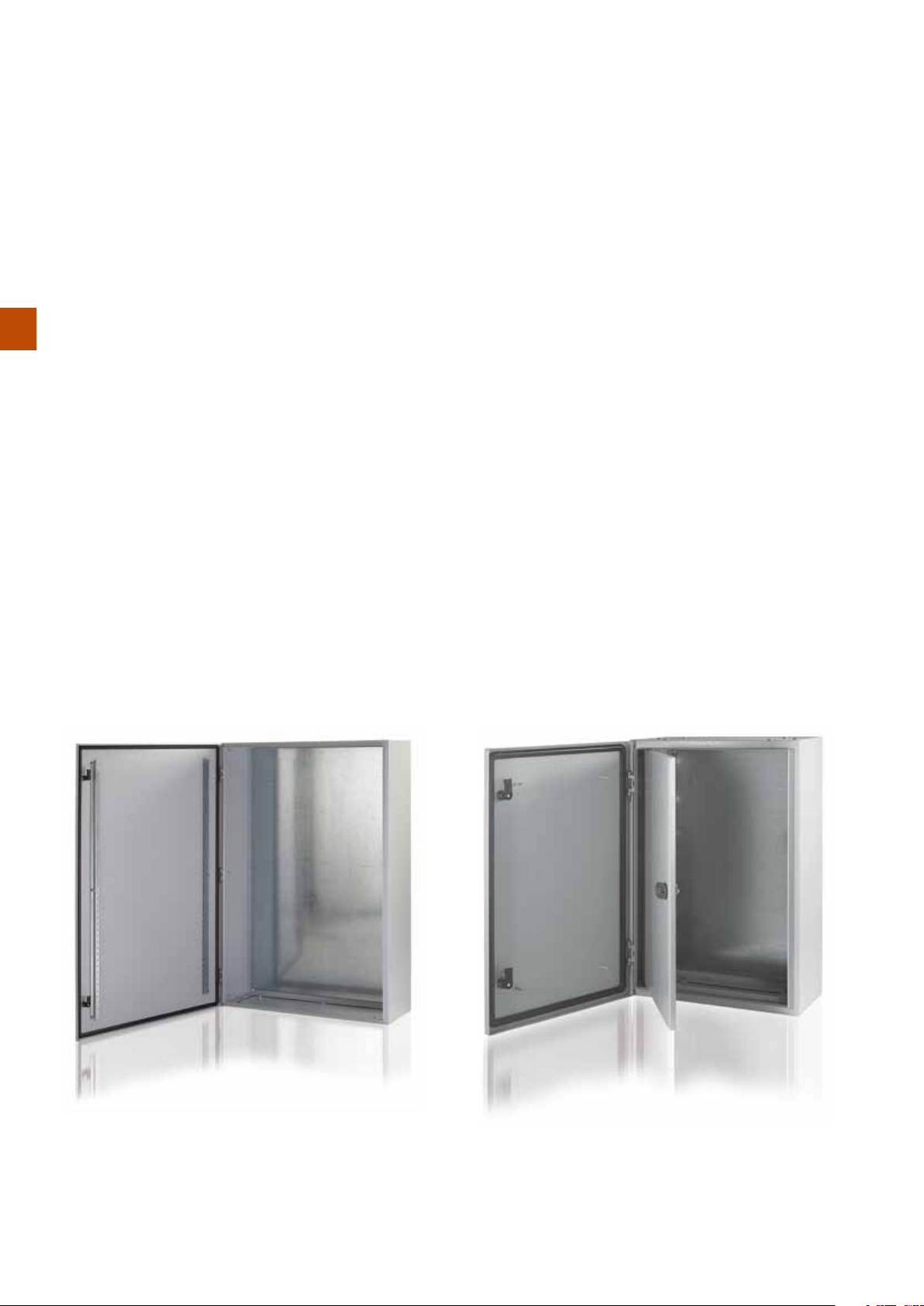

The enclosures with blind door, typically for making automation switchgear, are already fitted with the internal galvanised sheet mounting plate.
Enclosures with blind door (internal plate included)
Dimensions (mm)
Code Article
200 150 SRN3215K 1/1
(1)
300
300 150 SRN3315K 1/1
400 150 SRN3415K 1/1
300 150 SRN4315K 1/1
400
400 200 SRN4420K 1/1
300 200 SRN4320K 1/1
(1)
600 200 SRN4620K 1/1
300 200 SRN5320K 1/1
(1)
500
400 200 SRN5420K 1/1
400 250 SRN5425K 1/1
400 200 SRN6420K 1/1
600
400 250 SRN6425K 1/1
600 250 SRN6625K 1/1
700
500 200 SRN7520K 1/1
500 250 SRN7525K 1/1
600 250 SRN8625K 1/1
800
600 300 SRN8630K 1/1
800 300 SRN8830K 1/1
600 250 SRN10625K 1/1
1000
600 300 SRN10630K 1/1
800 300 SRN10830K 1/1
1200
(1)
The enclosures with height less or egual to 500mm hare only a closing box.
600 300 SRN12630K 1/1
800 300 SRN12830K 1/1
Price EUR
Package/ No. of piecesH W D
3
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
ABB Technical catalogue STC804013D0203 3/7
SR2 Enclosures
Ordering codes
Enclosures with glazed door

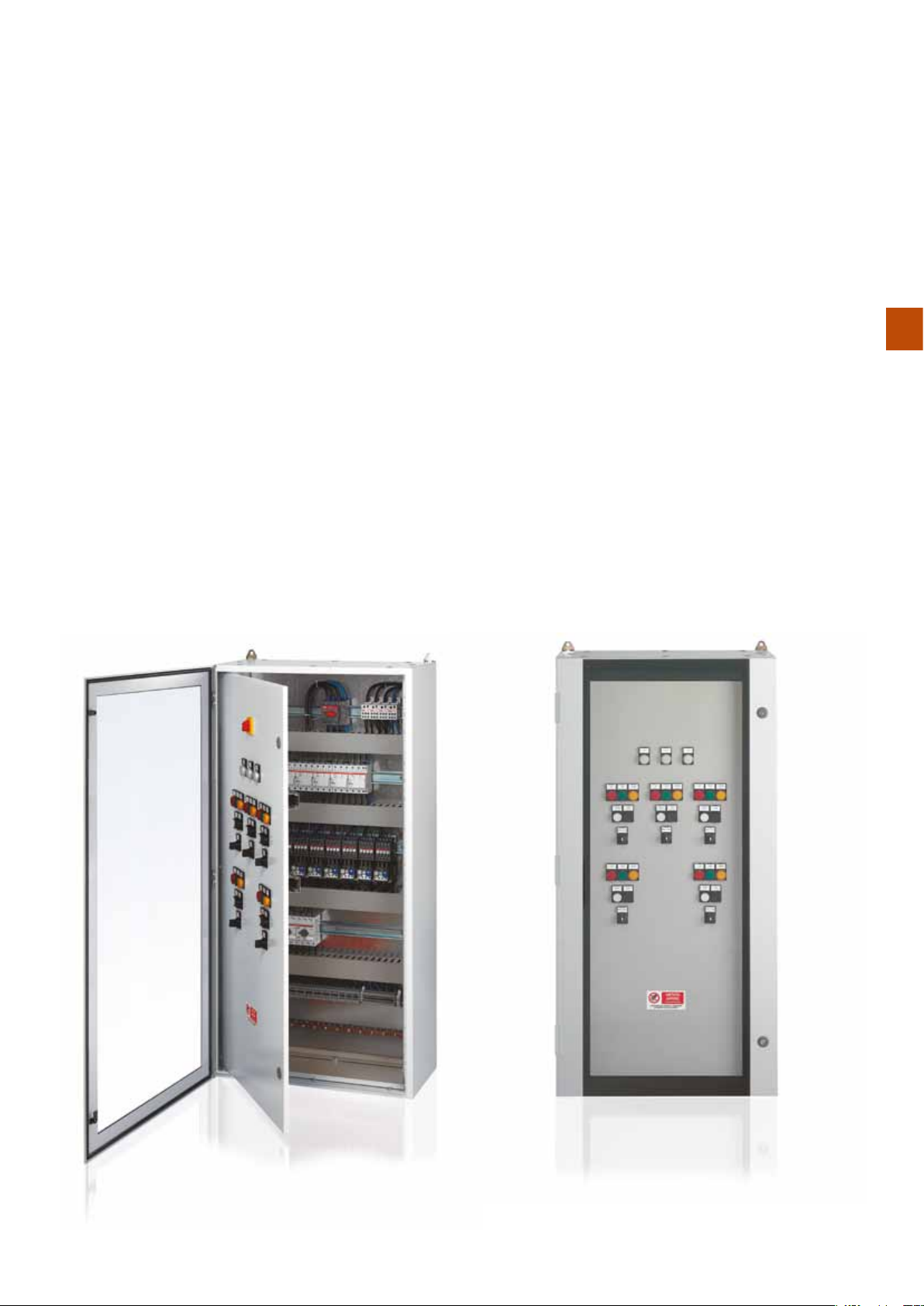

The enclosures with glazed door are also used for distribution configurations. The internal equipment is made, alternatively, by selecting the special kits:
- KD... (Distribution Kit) consisting of a pair of functional uprights for assembly of the modular panels (to be ordered separately) and of any compensation panel (see page 2/8).
The modular panels, which can also be installed on the enclosures with blind door with the help of the KD.. kit itself, are all hinged and have vertical modularity of 185 mm.
3
120°
Enclosures with glazed door
Dimensions (mm)
Code Article
400 200 SRN5420VK 1/1
(1)
500
600
700
800
1000
1200
(1)
The enclosures with height less or egual to 500mm hare only a closing box.
400 250 SRN5425VK 1/1
400 200 SRN6420VK 1/1
400 250 SRN6425VK 1/1
500 200 SRN7520VK 1/1
500 250 SRN7525VK 1/1
600 250 SRN8625VK 1/1
600 300 SRN8630VK 1/1
600 250 SRN10625VK 1/1
600 300 SRN10630VK 1/1
800 300 SRN10830VK 1/1
600 300 SRN12630VK 1/1
800 300 SRN12830VK 1/1
Price EUR
Package/ No. of piecesH W D
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
3/8 1STC804013D0203 | ABB Technical catalogue
EV1008
Blind counterdoor
The internal counterdoor guarantees IP20 degree of protection. Made of steel sheet 15/10mm thick, galvanized and painted orange peel RAL 7035 colour, complete with the EV1008 ergonomic box and insert with double tongue.
Blind counterdoor
Dimensions (mm)
Code
500 400 KC5040K 1/1
600 400 KC6040K 1/1
700 500 KC7050K 1/1
800 600 KC8060K 1/1
1000 600 KC1060K 1/1
1000 800 KC1080K 1/1
1200 600 KC1260K 1/1
1200 800 KC1280K 1/1
Package/ No. of piecesH W
3
Blind internal mounting plate
Internal galvanised sheet mounting plate 20/10mm thick complete with fixing with small items provided. Possibility of adjusting the depth with the help of a special spacer kit (to be ordered separately).
Blind back plate for enclosure
Dimensions (mm)
Code
300 200 PF3020 1/1
300 300 PF3030 1/1
300 400 PF3040 1/1
400 300 PF4030 1/1
400 400 PF4040 1/1
400 600 PF4060 1/1
500 300 PF5030 1/1
500 400 PF5040 1/1
600 400 PF6040 1/1
600 600 PF6060 1/1
700 500 PF7050 1/1
800 600 PF8060 1/1
800 800 PF8080 1/1
1000 600 PF1060 1/1
1000 800 PF1080 1/1
1200 600 PF1260 1/1
1200 800 PF1280 1/1
Package/ No. of piecesH W
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
ABB Technical catalogue STC804013D0203 3/9
SR2 Enclosures
Ordering codes
3
Slotted internal mounting plate
Fixing with small items provided. Possibility of adjusting the depth with the help of a special spacer kit (to be ordered separately).
Back plate for enclosure
Dimensions (mm)
Code
200 300 TQ3020 1/1
300 300 TQ3030 1/1
400 300 TQ3040 1/1
300 400 TQ4030 1/1
400 400 TQ4040 1/1
600 400 TQ4060 1/1
300 500 TQ5030 1/1
400 500 TQ5040 1/1
400 600 TQ6040 1/1
600 600 TQ6060 1/1
500 700 TQ7050 1/1
600 800 TQ8060 1/1
800 800 TQ8080 1/1
600 1000 TQ1060 1/1
800 1000 TQ1080 1/1
600 1200 TQ1260 1/1
800 1200 TQ1280 1/1
Package/ No. of piecesW H
Clip nuts
For slotted plates with M6x10mm hexagonal head screws.
Package/ No. of piecesDescription
1/20
No.20 clip nuts
Code
TQ6610
Spacer Kit for adjusting the depth of the back plates
Kit consisting of 12 spacers for fixing the back plate with the possibility of adjusting the depth with 25 mm pitch.
Package/ No. of piecesDescription
1/12
1/12
Spacers 25mm long
25 mm
Spacers 50mm long
50 mm
Code
AA8025
AA8050
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
3/10 1STC804013D0203 | ABB Technical catalogue
SR2 - SR2 EMC Enclosures
SR2 Enclosures
General characteristics 3/2
Selection table 3/5
Ordering codes 3/6
SR2 EMC Enclosures
3
ABB Technical catalogue STC804013D0203 3/1
SR2 Enclosures
General characteristics
The range of SR2 enclosures is a complete offer of monobloc enclosures for constructing small and medium-sized electric automation, switching and control switchboards.
The SR2 enclosures come from the experience ABB has gained
3
over the years in building IP65 metal structures (in accordance with the IEC 60529 Standard), together with the innovative new production process used for construction and patented by ABB. The typical use of SR2 Enclosures is to make switchgear and controlgear switchboards for a very wide variety of industrial machines: from large machinery with automated production lines or parts of these, down to the typical installations of on-board machine switchboards, boilers, heating plants and so on.
They conform to the EN 62208 Standard “Empty enclosures for low voltage protection switchgear and controlgear assemblies” and allow realization of electrical equipment conforming to the prescriptions of the IEC 60204-1 Standard “Safety of machinery. Electrical equipment of machines” and of the EN 60439- 1 Standard and the new EN 61439-1-2 Standard “Low voltage protection switchgear and controlgear for assemblies”. The degree of protection, in accordance with the IEC 60529 Standard
“Degrees of protection of enclosures (IP Code)”, is IP65. The SR2 enclosures have also passed the control required to obtain the UL (Underwriters Laboratories) and CSA (Canadian Standards Association) Type 12 marks.
The SR2 enclosures also allow secondary distribution switchboards to be made, thanks to the possibility, in the 400, 600 and 800 mm widths, of installing the whole range of apparatus and modular circuit-breakers on DIN rails combined with special pre-drilled and hinged modular front panels, thereby allowing construction of AS/ANS type electrical switchgear conforming to the IEC 60439-1 Standard and the new EN 61439-1-2 Standard. A single line of metalwork structures therefore allows construction of automation and secondary and end distribution electrical switchboards thanks to the availability of a series of accessories (modular panels, DIN rails) and to the possibility of stacking the enclosures.
3/2 1STC804013D0203 | ABB Technical catalogue
The SR2 enclosures are available in two versions (blind door or glazed door) and in 23 different dimensions, as well as a further 19 combinations obtained by stacking the enclosures, up to a maximum height of 2000 mm, which guarantee ample selection possibilities for the various end applications.
The SR2 enclosures have been designed to fulfil all the typical needs of the builder or installer of switchgear in the best way possible and the user is presented with a unique ensemble of functional characteristics:
• wide dimensional range
• certied IP65 degree of protection
• internal galvanised sheet mounting plate with 20/10 thickness
(made to allow threaded holes to be made easily), adjustable in depth by using a special accessory
• fairlead plate screwed on (at top and bottom) made of 15/10
thick galvanised sheet, with a sealing gasket applied inside
• complete reversibility of the enclosure, so the door can open
either on the right or on the lefthand side
• possibility of installing all the apparatus and modular circuit-
breakers on a DIN rail combined with a hinged modular panel.
The standard colour is RAL 7035 orange peel. On request, the SR2 enclosures can be ordered in a wide range of RAL colours (see page 7/12).
Both the enclosures with glazed door or blind door can be stacked: stacking is done simply by removing the fairlead plates and
inserting the IP65 sealing gasket (GZ....), made of neoprene with
closed cells.
Assembly of the stacked enclosures is carried out by means of the same holes used for the fairlead plates. The door is supplied with the enclosure (single code) so as to reduce the number of articles and assembly times.
3
ABB Technical catalogue STC804013D0203 3/3
SR2 Enclosures
General characteristics
The range is completed with a series of accessories: brackets for wall assembly, rain shield top cover, locks of various types, internal document pocket, spacers, and spray paint for touching up. It is possible floor fixing by means plinth.
3
Many closure systems can Plastic document pocket, RAL 7035, size A4, the pocket is apply within the solid doors wider than 400 mm, with stickers provided.
replace the standard closures
of the external doors.
The inserts are interchangeable
and easily replaced by
loosening a nut.
The brackets for wall mounting allows installation of the boxes on the wall using the holes located on the back of the enclosure.
Technical characteristics
Conformity with Standard IEC 62208, IEC 60439-1, IEC 61439-1-2
Degree of protection IP65 (IEC 60529)
TYPE 12 (Normativa UL)
Degree of mechanical strength IK10 blind door
IK09 glazed door
(IEC 62262)
Certifications
Type of material Metallic
Installation site Indoors
Fixing method floor/wall
Normal service conditions
- ambient temperature da –5 a +40°C
Operating climate (t°/Ur%) costant 23°C/83% - 40°C/93%
variable 23°C/98% - 40°C/98%
II 3 G D
The bars, made of electrolytic copper with M6 threaded holes in 25 mm, can be mounted on mounting plates using the appropriate supports.
3/4 1STC804013D0203 | ABB Technical catalogue
SR2 Enclosures
Selection table
Rapid selection table
W D
H
Overall dimensions Enclosures Kit for automation
H mm
300
400
500
600 400 200 SRN6420K SRN6420VK KC6040K PF6040 3 14 42 KD6040K
700 500 200 SRN7520K SRN7520VK KC7050K PF7050
800 600 250 SRN8625K SRN8625VK KC8060K PF8060 4 25 100 KD8060K
1000 600 250 SRN10625K SRN10625VK KC1060K PF1060 5 25 125 KD1060K
1200 600
W mm
200
300 SRN3315K
400 SRN3415K
300 150 SRN4315K
300
400 SRN4420K
600 SRN4620K
300
400 SRN5420K SRN5420VK KC5040K PF5040 2 14 28 KD5040K
400 250 SRN5425K SRN5425VK KC5040K PF5040 2 14 28 KD5040K
400
600 SRN6625K
500 250 SRN7525K SRN7525VK KC7050K PF7050
600
800 SRN8830K
600
800 SRN10830K SRN10830VK KC1080K PF1080 5 36 180 KD1080K
800 SRN12830K SRN12830VK KC1280K PF1280 6 36 216 KD1280K
D mm
150
200
200
250
300
300
300
Enclosures with blind door + back plate
SRN3215K
SRN4320K
SRN5320K
SRN6425K SRN6425VK KC6040K PF6040 3 14 42 KD6040K
SRN8630K SRN8630VK KC8060K PF8060 4 25 100 KD8060K
SRN10630K SRN10630VK KC1060K PF1060 5 25 125 KD1060K
SRN12630K SRN12630VK KC1260K PF1260 6 25 150 KD1260K
with glazed door *
Blind counterdoor
Back plate
Kit for distribution Supports for mounting modular panels
No. vertical mod. H=185mm
DIN mod.
No. DIN mod. per row
Total modules
185
185
DIN Supports
3
* The mounting plate must be ordered separately.
> Selection by components page 3/6 > In-depth technical information page 8/1 > Overall dimensions page 9/1
ABB Technical catalogue STC804013D0203 3/5
SR2 Enclosures
Ordering codes
1
Spray protection roof
Page ....................................................................... 3/6
1
2
Wall-mounting brackets
2
Page ..................................................................... 3/11
3
3
4
6
5
7
8
3
Spacers for back plates
Page ..................................................................... 3/10
4
Blind internal plate
Page ....................................................................... 3/9
5
Slotted internal plate
Page ..................................................................... 3/10
6
Document pocket
Page ..................................................................... 3/16
7
Counterdoor
Page ....................................................................... 3/9
8
Plinth
Page ..................................................................... 3/11
13
10
12
9
Frame for DIN rail
9
Page ..................................................................... 3/13
10
Modular panels for apparateus
Page ..................................................................... 3/14
11
11
DIN rail
Page ..................................................................... 3/14
12
Blind modular panels
Page ..................................................................... 3/14
13
Modular panel for DIN rail
Page ..................................................................... 3/14
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
3/6 1STC804013D0203 | ABB Technical catalogue

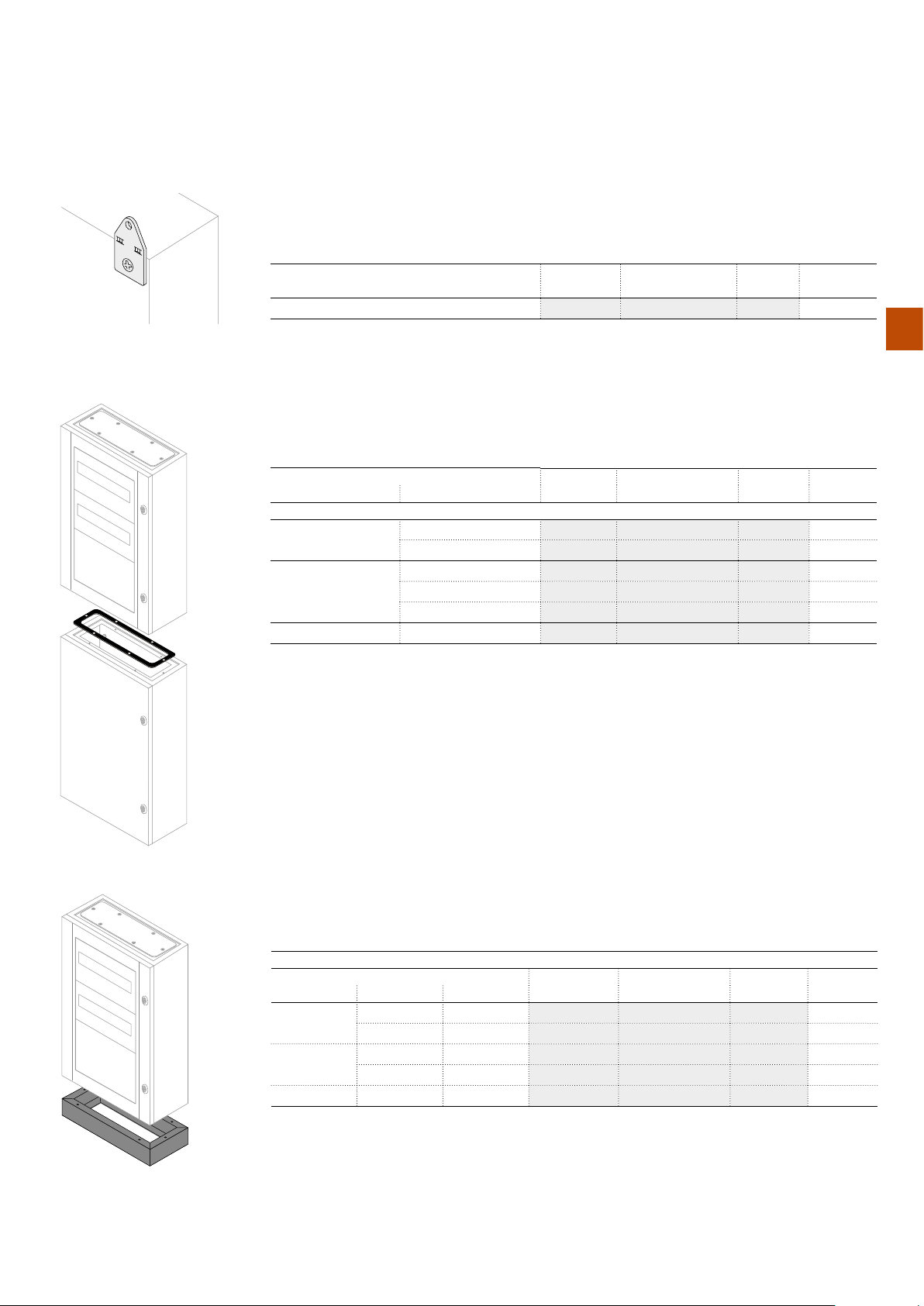

Brackets for wall fixing
These allow wall installation of the enclosures and are mounted by using the special holes positioned on the rear of the enclosures.
Package/ No. of piecesDescription
1/4
Brackets for wall fixing
Code
AA1206
Accessories for stacking
Dimensions (mm)
Code
IP65 gasket
400
600
800 300 GZ8030 1/1
200 GZ4020 1/1
250 GZ4025 1/1
200 GZ6020 1/1
250 GZ6025 1/1
300 GZ6030 1/1
3
Package/ No. of piecesW D
Plinth
Steel plinth 25/10 thick grey RAL7012 color.
Plinth
Dimensioni (mm)
400
600
800 300 100 ZA8030 1/1
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
200 100 ZA4020 1/1
250 100 ZA4025 1/1
250 100 ZA6025 1/1
300 100 ZA6030 1/1
Code
Package/ No. of piecesH W D
ABB Technical catalogue STC804013D0203 3/11
SR2 Enclosures
Ordering codes
3

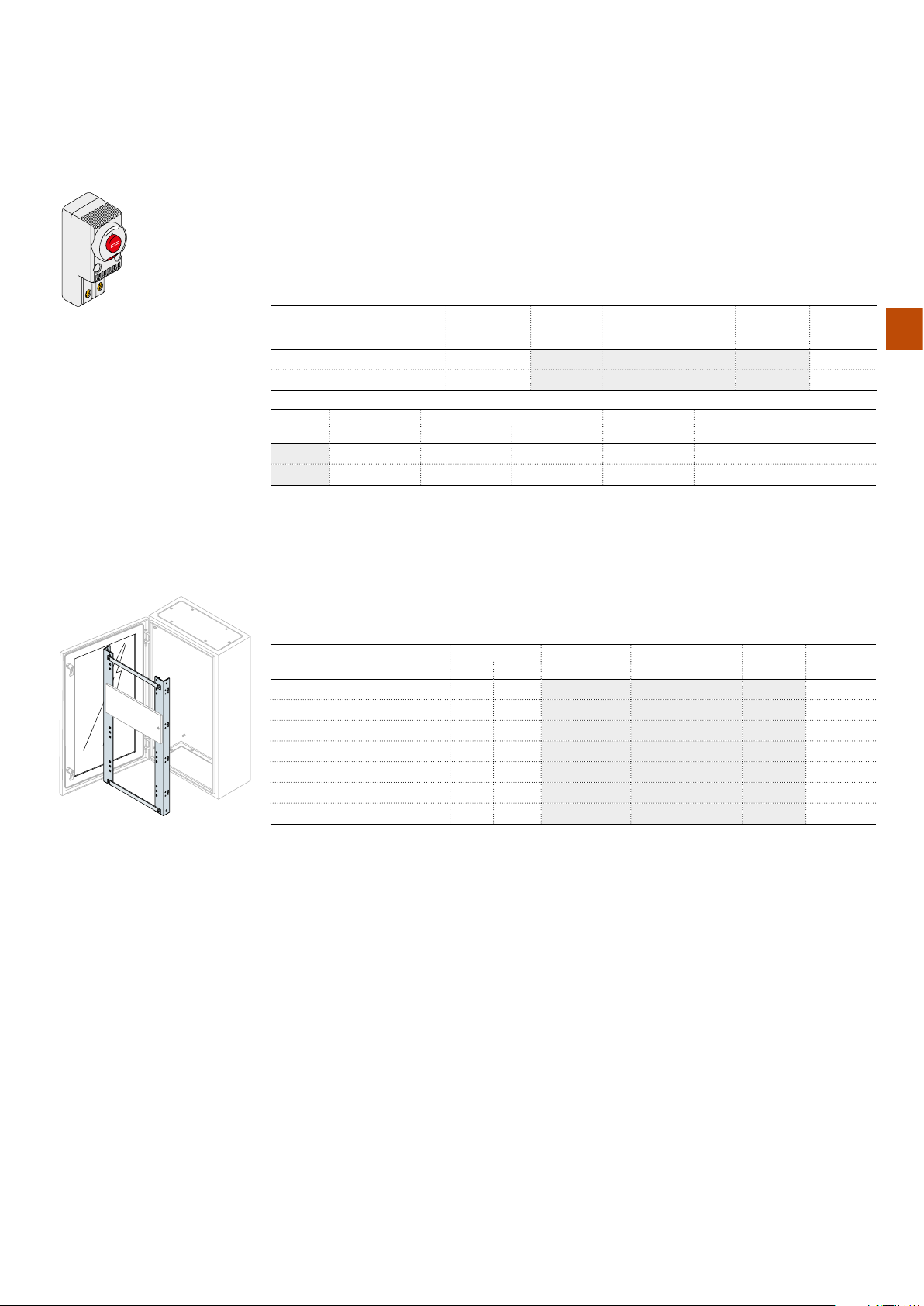

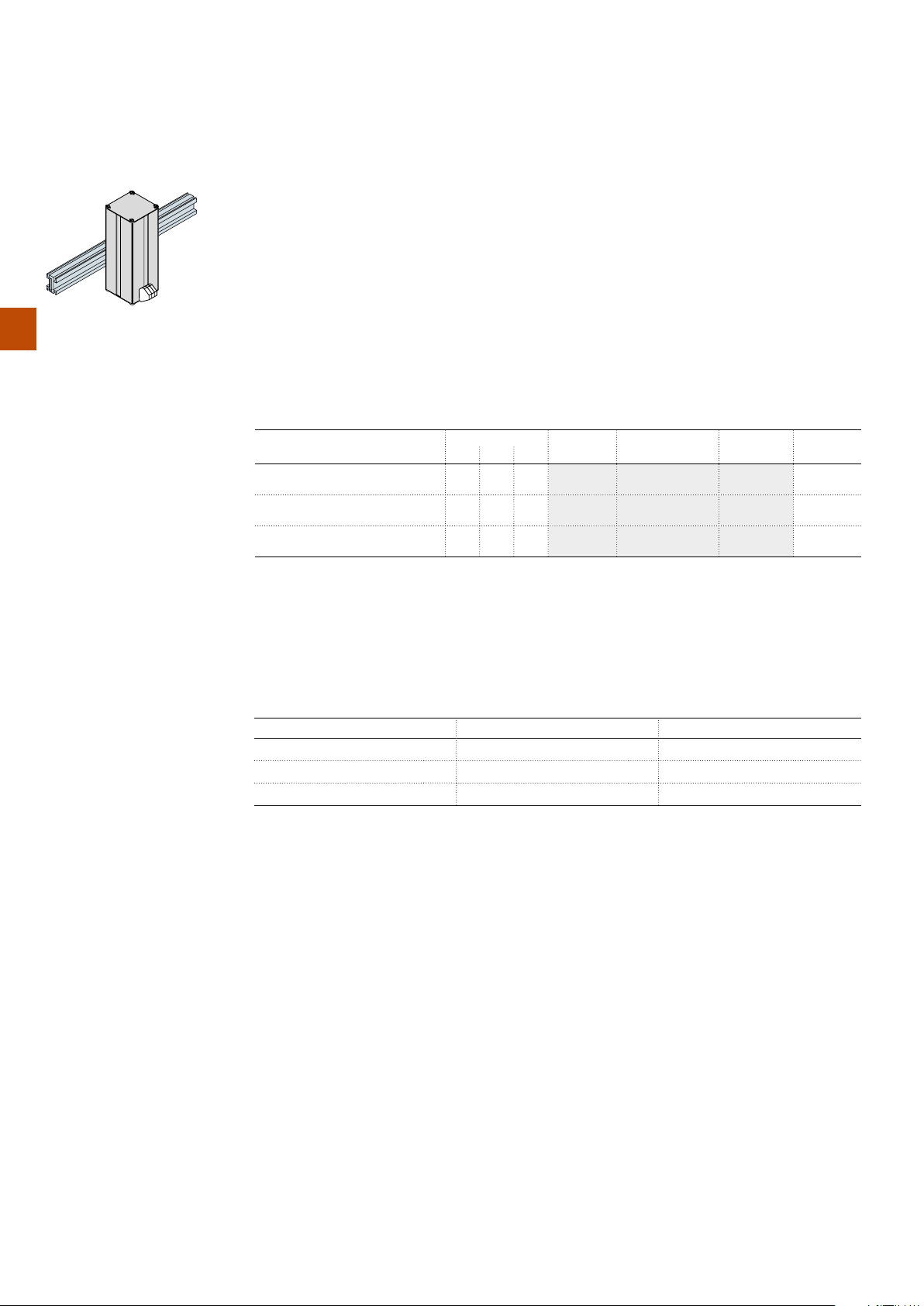

Heater for IP20 electrical switchboards
Their use prevents condensation in the electric cabinets. They consist of a heating element (PTC thermistor) inserted in an aluminium alloy ground plate. The PTC thermistor is a component which modifies its impedance according to the operating temperature. It is intrinsically stable and ensures primary safety features for the heater and service stability. The main qualities of the heaters using PTC are:
- electrical absorption (or dissipated power) which is almost constant in the range of power supply voltage between 100 and 250V;
- electrical absorption bound by inverse law to the trend of the ambient temperature. The special tubular geometry of the ground plate allows efficient thermal exchange with the heating element. This allows high powers and limited overall dimensions (especially in width and depth); Snap-on assembly on 35 mm DIN rail. Requires a thermostat.
Description
Anti-condensation heater 30W, 110-240 Vac-dc
Anti-condensation heater 50W, 110-240 Vac-dcc
Anti-condensation heater 75W, 110-240 Vac-dc
Dimensions (mm)
Code
115 42 42 VA7930 1/1
165 42 42 VA7950 1/1
210 42 42 VA7975 1/1
Package/ No. of piecesH W D
All the heaters with PTC absorb a higher power than the rated one on inrush according to a transitory which lasts a few tenths of a second. If the heaters are to be supplied by means of an auxiliary transformer, its apparent power must be sized taking 1.5 times the rated power of the heaters with natural aeration and twice those with forced ventilation into consideration.
Pe = (L + P)x H x K1 x K2 x K3.
Selection of heater
K1 K2 K3
Internal 7 10 °C 5 damp 1,3
Externa 8 5 °C 10 normal 1
External exp 10 0 °C 15 dry 0,9
Example
Pe = Electric power required H, W, D = Cabinet dimensions K1 = Cabinet position K2 = Cabinet external temperature K3 = Type of climate
SRN12830K cabinet, outside temperature 10°C, normal climate.
H=1,2m / L=0,8m / P=0,3m
K1 =7
K2 =5
K3 =1
Pe = 46 W
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
3/12 1STC804013D0203 | ABB Technical catalogue
Heater recommended: VA7950 (50W)
IP20 Thermostat
Conforms to EN 60730-1, EN 60730-2-9 Standards, UL approval and cURus, IP20 degree of protection. Grey RAL 7035 colour; electrical life 100,000 cycles. Dimensions (hxwxd) 68x29x45mm, can be mounted on all the types of DIN rail. The version with NO (normally open) contact allows closure of a circuit activating ventilation, air conditioning, or alarms. The version with NC (normally closed) contact allows opening of a circuit, disconnecting any anti-condensation resistances.
Standard power supply V~/50-
Description
NO ventilation thermostat 110/250 EN0101K 1/1
NC heating thermostat 110/250 EN0102K 1/1
60Hz Code
Package/ No. of pieces
3
Contact capacity
Code Power supply
EN0101K 110/250~ 10A 2A -10 +80 °C N0 48g
EN0102K 110/250~ 10A 2A -10 +80 °C N0 48g
Temperature scale Type of contact WeightLoad Ω Load L
Frame for DIN rail
Internal supports for fixing modular panels and DIN rails, colour RAL 7035 orange peel.
Dimensions (mm)
Description
Supports 14 mod. DIN x 2 rows
Supports 14 mod. DIN x 3 rows 600 400 KD6040K 1/1
Supports 25 mod. DIN x 4
Supports 25 mod. DIN x 5
Supports 36 mod. DIN x 5
Supports 25 mod. DIN x 6
Supports 36 mod. DIN x 6
500 400 KD5040K 1/1
rows
800 600 KD8060K 1/1
rows
1000 600 KD1060K 1/1
rows
1000 800 KD1080K 1/1
rows
1200 600 KD1260K 1/1
rows
12 00 800 KD1280K 1/1
Code
Package/ No. of piecesH W
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
ABB Technical catalogue STC804013D0203 3/13
SR2 Enclosures
Ordering codes
3
PS….
PC….
Modular panels
Modular panels made of 12/10mm thick sheet steel painted RAL 7035 colour orange peel. The modular hinged panels can be mounted on the enclosures by using the special kit (KD…) consisting of functional uprights and compensation panel. The hinges patented by ABB, allow automatic earthing for panel contact when it is closed and are also prepared for conventional earthing (with a cable). Each modular panel (PM) has a DIN rail provided (adjustable in depth), the fixing brackets and the relative small items. Modular and circuit-breakers and Tmax moulded-case circuit-breakers up to T3 can be placed side by side on the same DIN rail using the special depth adapter AP6001. To install moulded-case circuit-breakers, it is necessary to fix the DIN rail in a position towards the back. The fixing brackets of the DIN rail allow the wiring duct to be mounted up to a maximum size of 60 x 60 mm.
PM….
Modular hinged panels for modular apparatus (DIN rail and fixing brackets included)
Dimensions (mm)
Code
14 mod. DIN + fixing bracket 185 400 PM1414K 1/1
25 mod. DIN + fixing bracket 185 600 PM1625K 1/1
36 mod. DIN + fixing bracket 185 800 PM1836K 1/1
Modular hinged panels for measuring instruments
Dimensions (mm)
Code
2 instruments 72 x 72mm 185 400 PS2476K 1/1
2 instruments 72 x 72mm 185 600 PS2676K 1/1
2 instruments 72 x 72mm 185 800 PS2876K 1/1
Modular hinged blind panels
Dimensions (mm)
Code
Blind panel 185 400 PC1406K 1/1
Blind panel 185 600 PC1606K 1/1
Blind panel 185 800 PC1806K 1/1
Blind panel 370 600 PC2606K 1/1
Blind panel 370 800 PC2806K 1/1
DIN rail and fixing brackets
Description
DIN rail and fixing brackets 14 400 GD4006 1/1
DIN rail and fixing brackets 25 600 GD6006 1/1
DIN rail and fixing brackets 36 800 GD8006 1/1
Depth adapter
No.1 depth adapter for Tmax T1-T2-T3-XT1-XT3 W=600mm
No. of modulesW (mm) Code
AP6001 1/4
Package/ No. of pieces Description H W
Package/ No. of pieces Description H W
Package/ No. of pieces Description H W
Package/ No. of pieces
AP6001
Polished flange for DIN-Rail mounting
Description Code
Polished flange for XT1 3P mounted on DIN rail AD3301 1/1
Polished flange for XT1 4P mounted on DIN rail AD3302 1/1
Polished flange for XT3 3P mounted on DIN rail AD3303 1/1
Polished flange for XT3 4P mounted on DIN rail AD3304 1/1
Already supplied in the DIN-Rail mounting kit for breakers in MCCBs catalogue
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
3/14 1STC804013D0203 | ABB Technical catalogue
Package/ No. of pieces
Door anti-closure device
It can’t be mounted with the inner-door or with modular/blind panels mounted down in structure and hinged.
AA8010
AA8011
Description Code
Door anti-closure device EV0015 1/4
Package/ No. of pieces
3
Neutral or earthing busbars

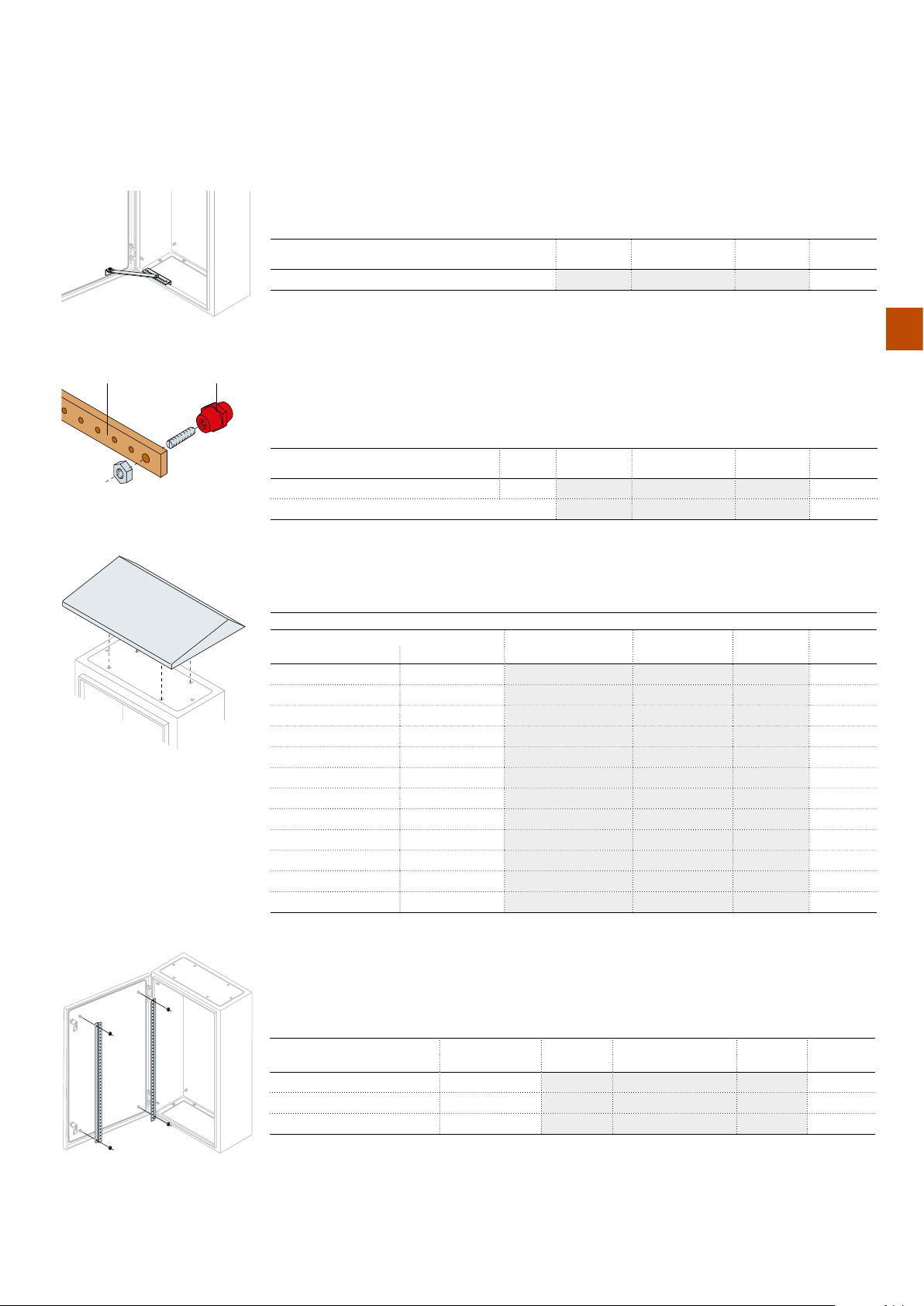

The busbars, made of electrolytic copper with M6 threaded holes with 25 mm pitch, can be mounted on the back plates by means of the special supports. They must be sized according to the enclosure and the position
they are installed in.
Description
No. 4 busbars sect. 20x5mm 1000 AA8010 1/4
No.5 support for busbar AA8011 1/5
W (mm) Code
Spray protection roofs
To improve protection against entry of liquids and rain. Made of 15/10mm thick sheet steel, painted RAL 7035 colour orange peel.
Spray protection roof
Dimensions (mm)
Code
200 150 TT2015K 1/1
300 150 TT3015K 1/1
400 150 TT4015K 1/1
300 200 TT3020K 1/1
400 200 TT4020K 1/1
500 200 TT5020K 1/1
600 200 TT6020K 1/1
400 250 TT4025K 1/1
500 250 TT5025K 1/1
600 250 TT6025K 1/1
600 300 TT6030K 1/1
800 300 TT8030K 1/1
Package/ No. of pieces
Package/ No. of piecesW D
Shaped sections for accessories
These allow fixing of accessories (e.g. wiring ducts) inside the blind doors. They consist of a pair of vertical cross­pieces made of 15/10mm thick white galvanised sheet, pre-drilled with 2.5 mm pitch. In the enclosures with 1000 and 1200 mm height with blind door, the shaped sections are already provided.
Dimensions (mm)
Description
No. 2 shaped sections for door 600 TS6009 1/2
No. 2 shaped sections for door 700 TS7009 1/2
No. 2 shaped sections for door 800 TS8009 1/2
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
Code
Package/ No. of piecesH
ABB Technical catalogue STC804013D0203 3/15
SR2 Enclosures
Ordering codes
AA8001
3
AA8002
AA8003
EV1008

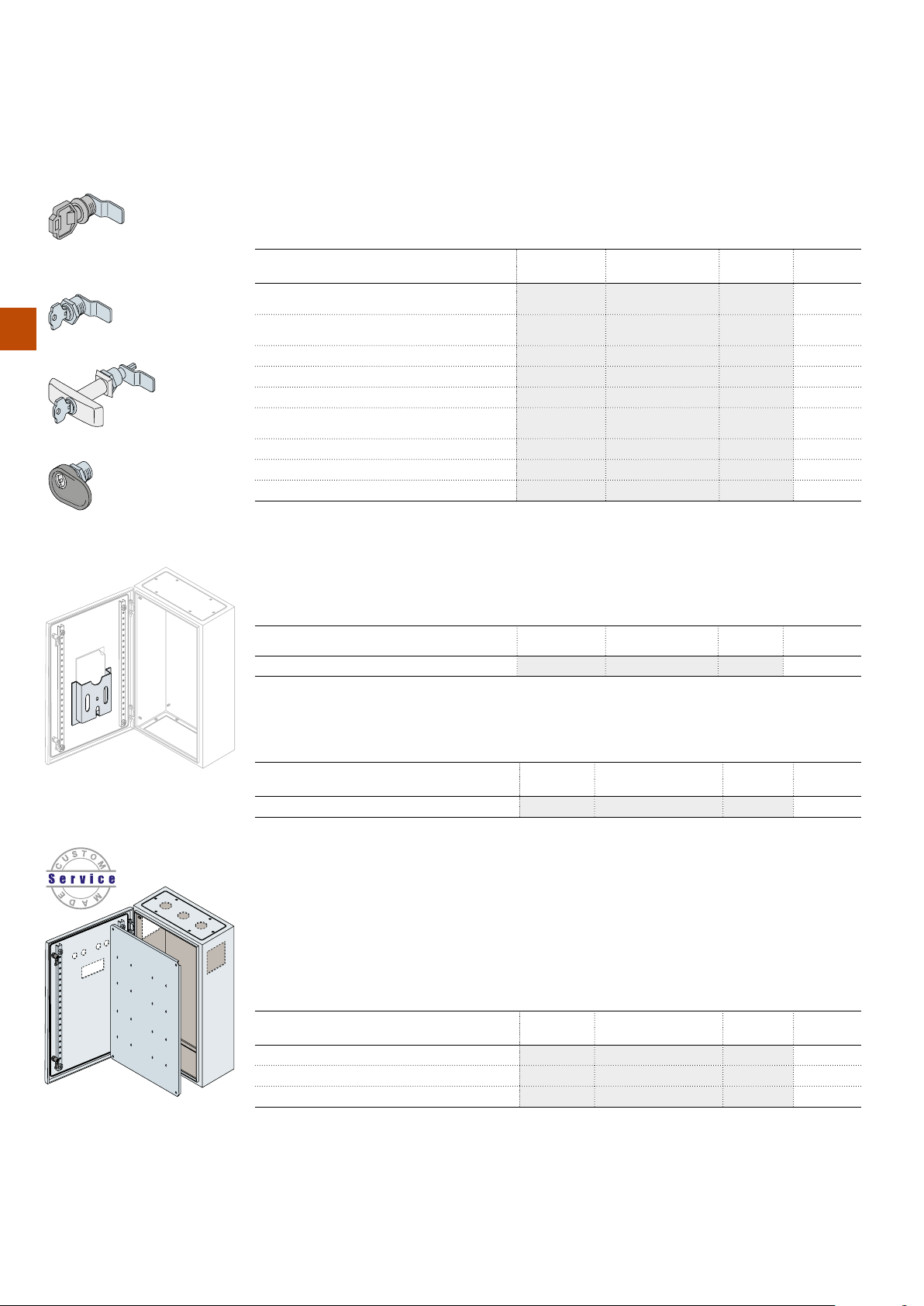

Closing systems
These can replace the standard closures of the external doors. The inserts are interchangeable and easily replaced by loosening a single nut.
Code
Box Ø 19 mm double tongue and plastic key (spare part)
Box Ø 19 mm with security insert and Yale type key
Box Ø 19 mm with handle and Yale type key AA8003 1/1
Box Ø 19 mm with triangular insert
Plastic key for triangular insert AA5200 AA5190 1/1
Ergonomic box complete with double tongue insert
Single code Yale insert EV1036 1/1
Ronis 455 insert for EV1037 1/1
3mm Double tongue insert EV1039 1/1
AA8001
AA8002
AA5200 1/1
EV1008
Package/ No. of piecesDescription
1/1
1/1
1/1
Document pocket RAL 7035
Made of plastic, RAL 7035 colour, A4 size. The pocket can be glued inside the blind door with a width of more than 400 mm, using the adhesives provided.
Description Code
Plastic document pocket for A4 EV1075K 1/1
Package/ No. of pieces
Special Painting Service
Special painting service has to manage with code of enclosure SRN....SPEC ( e.g. SRN4320SPEC VERNSR +
note about color required ). It is necessary specify the color required in the order.
Code
Extra cost for special SR painting VERNSR
See page 8/13 for the colours available.
D
C
A
Special Drilling service
The price increase depends depends on the number of individual drilled parts of the enclosure, and not on the
number of holes to be drilled. For single parts it means: A-door, B-plate, C-sides, D-top / bottom.
C
The special drilling service has to be managed by code SRN ...SPEC code + number of boxes to be drilled (eg
B
SRN4320SPEC FORSR2). You must include the layout of the holes (see p. 9/49 useful drilling areas).
Code
Overprice for each single part drilled (A-B-C-D) FORSR1 4-5-6
Overprice for each single part drilled (A-B-C-D) FORSR2 7-8-9
Overprice for each single part drilled (A-B-C-D) FORSR ≥ 10
Package/ No. of piecesDescription
No. boxesDescription
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
3/16 1STC804013D0203 | ABB Technical catalogue
EV1137
EV1135 EV1136

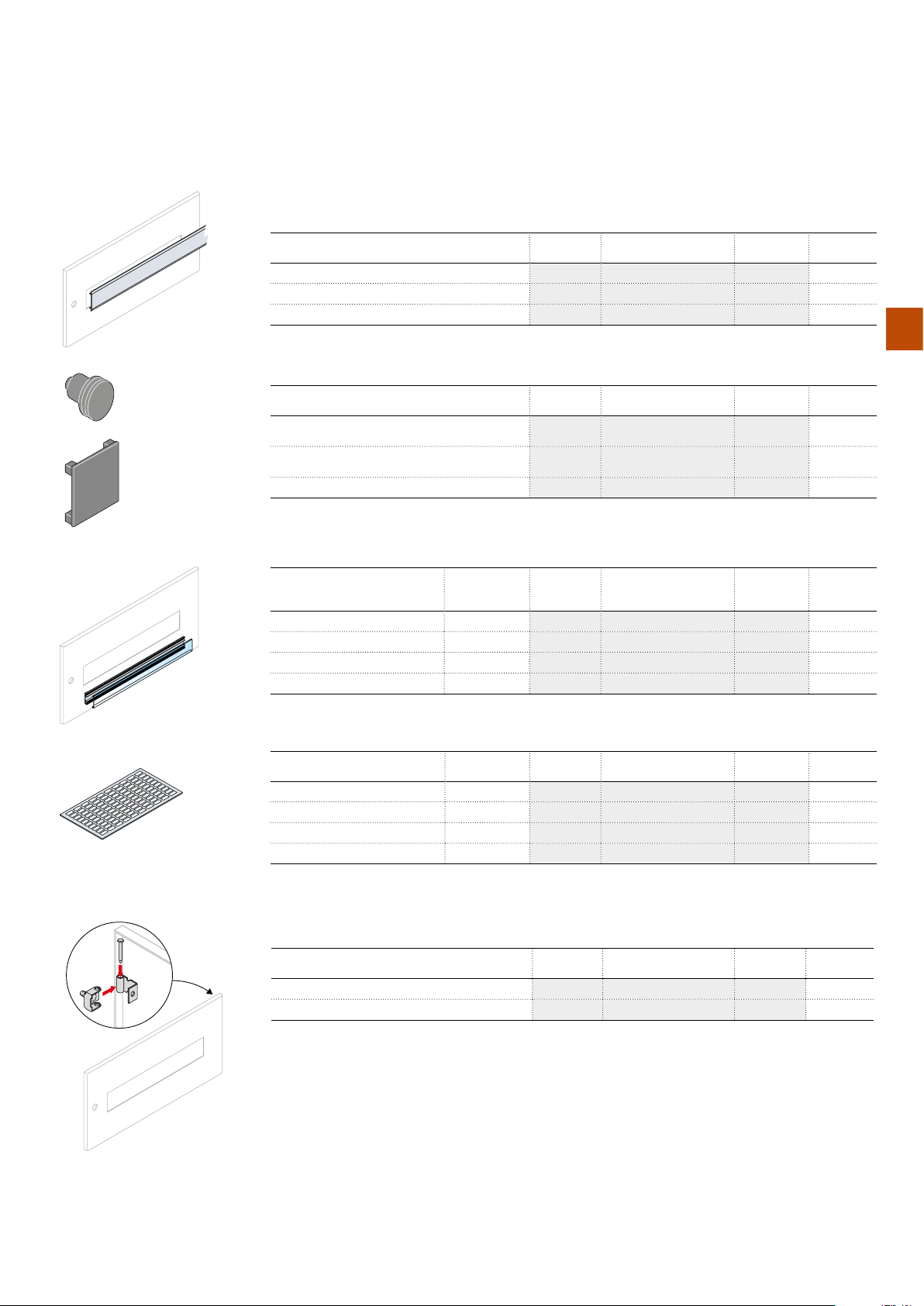

Accessories for DIN panel
Hole covering strip RAL7035 colour
Description Code
No.10 hole covers W=2000mm, grey AD1086 1/10
No.3 hole covers 24 DIN modules W=600mm AD1088 1/3
No.3 hole covers 36 DIN modules W=800mm AD1089 1/3
Closing plug for instrument holder panels
Description Code
No.10 closing plug for instrument holder panels 72x72mm
No.5 closing plug for instrument holder panels 96x96mm
EV1135 1/10
EV1136 1/5
No.50 tappi di chiusura per pulsanti Ø22mm EV1137 1/50
Adhesive name label holders
Dimensions (mm)
Description
W Code
No. 20 label holders 18 DIN mod 325 EH2118 1/20
No. 20 label holders 29 DIN mod 525 EH2129 1/20
No. 20 label holders 24 DIN mod 432 AD1600 1/20
No. 20 label holders 36 DIN mod 634 AD1800 1/20
Package/ No. of pieces
Package/ No. of pieces
Package/ No. of pieces
3
AD1101-AD1102 AD1103-AD1104
EH2118-EH2129 AD1600-AD1800
Etichette scrivibili con sistema Grafoplast compatibile
Description
No. of DIN mod. Code
Package/ No. of pieces
No. 288 labels 1 DIN mod. 1 AD1101 1/288
No. 192 labels 2 DIN mod. 2 AD1102 1/192
No. 96 labels 3 DIN mod. 3 AD1103 1/96
No. 96 labels 4 DIN mod. 4 AD1104 1/96
Hinges and rapid closures for panels
Description Code
No. 10 hinges for panels EH1889
(1)
No. 5 rapid closures for front panels EH1890 1/5
(1)
Use No.2 hinges for panel H=150/200/300/400mm, No.3 hinges for panel H=500/600mm.
Package/ No. of pieces
1/10
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
ABB Technical catalogue STC804013D0203 3/17
SR2 Enclosures
Ordering codes
N
N
N
L1
N
N
L1
N
L1
N
N
L1
L1
L1
L
L2
L2
L
2
L
L1
L1
L1
N
L1
L1
L1
L2
L1
L1
L
L1
1
1
L2
L
L3
1
L
1
L2
L3
2
T
L3
3
400 VOLT

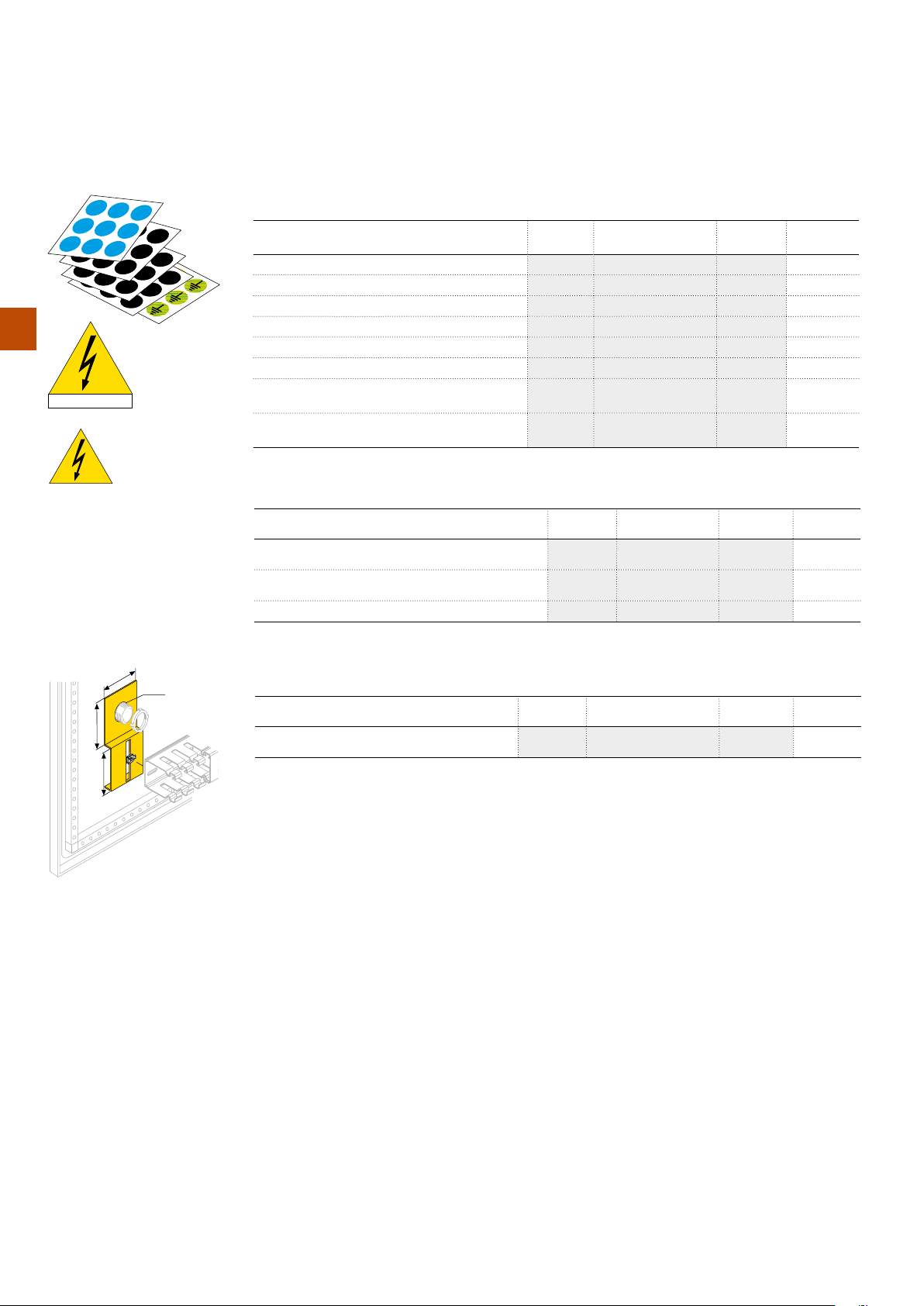

Marking
Description Code
No.5 adhesive labels ABB-IS2 W=1000mm EV1157 1/5
No.490 adhesive labels Ø 12mm N symbol EV1150 1/490
No.490 adhesive labels Ø 12mm L1symbol EV1151 1/490
No.490 adhesive labels Ø 12mm L2 symbol EV1152 1/490
No.490 adhesive labels Ø 12mm L3 symbol EV1153 1/490
No.490 adhesive labels Ø 12mm T symbol EV1154 1/490
No.10 triangular adhesive labels 125mm with 400V lightning arrow symbol
No.100 triangular adhesive labels 50mm with light­ning arrow symbol
EV1155 1/10
EV1156 1/100
Package/ No. of pieces
Screws for apparatus
Description Code
No.1000 perforating screws 4.2x13mm cross slotted head
No.1000 perforating screws 4.2x19mm cross slotted head
No.50 trilobed screws M6 L=10mm AD1033 1/50
EV1100
EV1101
Package/ No. of pieces
1/1000
1/1000
30
Ø22
47
7
42
Wiring duct support brackets
Description Code
No. 100 wiring duct support brackets on upright structure
EV1131
Package/ No. of pieces
1/100
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
3/18 1STC804013D0203 | ABB Technical catalogue
Spare parts
Code
Ergonomic box complete with double tongue insert (without tongue)
N. 10 hings for SR2 enclosures + countersunk rivets AA1204 1/1
N. 16 screws and nuts M6x14 for flange AA1203 1/2
N. 2 fairlead plates for SRN3215K FLN3215K 1/2
N. 2 fairlead plates for SRN3315K-SRN4315K FLN3315K 1/2
N. 2 fairlead plates for SRN3415K FLN3415K 1/2
N. 2 fairlead plates for SRN4320K-SRN5320K FLN4320K 1/2
N. 2 fairlead plates for SRN4420K-SRN5420K-SRN6420K FLN4420K 1/2
N. 2 fairlead plates for SRN5425K-SRN6425K FLN4425K 1/2
N. 2 fairlead plates for SRN4620K FLN4620K 1/2
N. 2 fairlead plates for SRN6625K-SRN8625K-SRN10625K FLN6625K 1/2
N. 2 fairlead plates for SRN7520K FLN7520K 1/2
N. 2 fairlead plates forr SRN7525K FLN7525K 1/2
N. 2 fairlead plates for SRN8630K-SRN10630K-SRN12630K FLN8630K 1/2
N. 2 fairlead plates for SRN8830K-SRN10830-SRN12830K FLN8830K 1/2
Blind door 1000x600mm (hxl) PRN1066K 1/1
Blind door 1000x800mm (hxl) PRN1086K 1/1
Blind door 1200x600mm (hxl) PRN1266K 1/1
Blind door 1200x800mm (hxl) PRN1286K 1/1
Blind door 300x200mm (hxl) PRN3026K 1/1
Blind door 300x300mm (hxl) PRN3006K 1/1
Blind door 300x400mm (hxl) PRN3046K 1/1
Blind door 400x300mm (hxl) PRN4036K 1/1
Blind door 400x400mm (hxl) PRN4046K 1/1
Blind door 400x600mm (hxl) PRN4066K 1/1
Blind door 500x300mm (hxl) PRN5036K 1/1
Blind door 500x400mm (hxl) PRN5046K 1/1
Blind door 600x400mm (hxl) PRN6046K 1/1
Blind door 600x600mm (hxl) PRN6066K 1/1
Blind door 700x500mm (hxl) PRN7056K 1/1
Blind door 800x600mm (hxl) PRN8066K 1/1
Blind door 800x800mm (hxl) PRN8086K 1/1
Glazed door 1000x600mm (hxl) PTN1066K 1/1
Glazed door 1000x800mm (hxl) PTN1086K 1/1
Glazed door 1200x600mm (hxl) PTN1266K 1/1
Glazed door 1200x800mm (hxl) PTN1286K 1/1
Glazed door 500x400mm (hxl) PTN5046K 1/1
Glazed door 600x400mm (hxl) PTN6046K 1/1
Glazed door 700x500mm (hxl) PTN7056K 1/1
Glazed door 800x600mm (hxl) PTN8066K 1/1
Spray paint color grey RAL7035 for structure VB7035 1/1
Spray paint color grey RAL7012 for plinth VB7012 1/1
EV1008
Package/ No. of piecesDescription
1/1
3
> Rapid selection table page 3/5 > In-depth technical information page 7/1 > Overall dimensions page 9/1
ABB Technical catalogue STC804013D0203 3/19
SR2 EMC Enclosures
General characteristics and ordering codes
The range of SR2 Enclosures EMC (Electromagnetic Compatibility) version has undergone shielding efficiency tests with success according to the MIL STD 285: 1956 Standard.
This series of products is suitable for making small and medium­sized electric switchboards for automation, operation and control. The electromagnetic compatibility problem also requires attention
3
when selecting enclosures and cabinets. The increased number of components in the operation and regulation electronics and the high processing speeds of signals increasingly often leave a possibility of introducing errors which can be attributed to electromagnetic interference. These interferences may be caused continuously, periodically or at random, from internal or external sources, which generate electric, magnetic or electromagnetic fields.
The suitability tests according to MIL STD 285: 1956 (“Attenuation measurements for enclosures, electromagnetic shielding, for electronic test purposes, method of”) have confirmed conformity of the SR2 EMC enclosure with the requirements of the standard. The attenuation level (measured in dB) remains at high levels for a wide spectrum of frequencies (from 30MHz to 10GHz).
The SR2 galvanized sheet enclosures are painted externally with orange peel RAL 7035 colour. Furthermore, they do not have cable entry flanges on the roof and on the base.
Technical characteristics
Conformity with the Standard IEC 62208
Degree of protection IP54 (IEC 60529)
Degree of mechanical strength IK10 blind door
(IEC 62262)
Certifications
TUV
Rheinland
Product Safety
Type of material Metallic
Installation site Indoors
Fixing method floor/wall
Normal service conditions ambient temperature from –5 to +40°C
Operating climate (t°/Ur%) costant 23°C/83% - 40°C/93%
variable 23°C/98% - 40°C/98%
> In-depth technical information page 7/1 > Overall dimensions page 9/1
3/20 1STC804013D0203 | ABB Technical catalogue
Ordering codes
120°

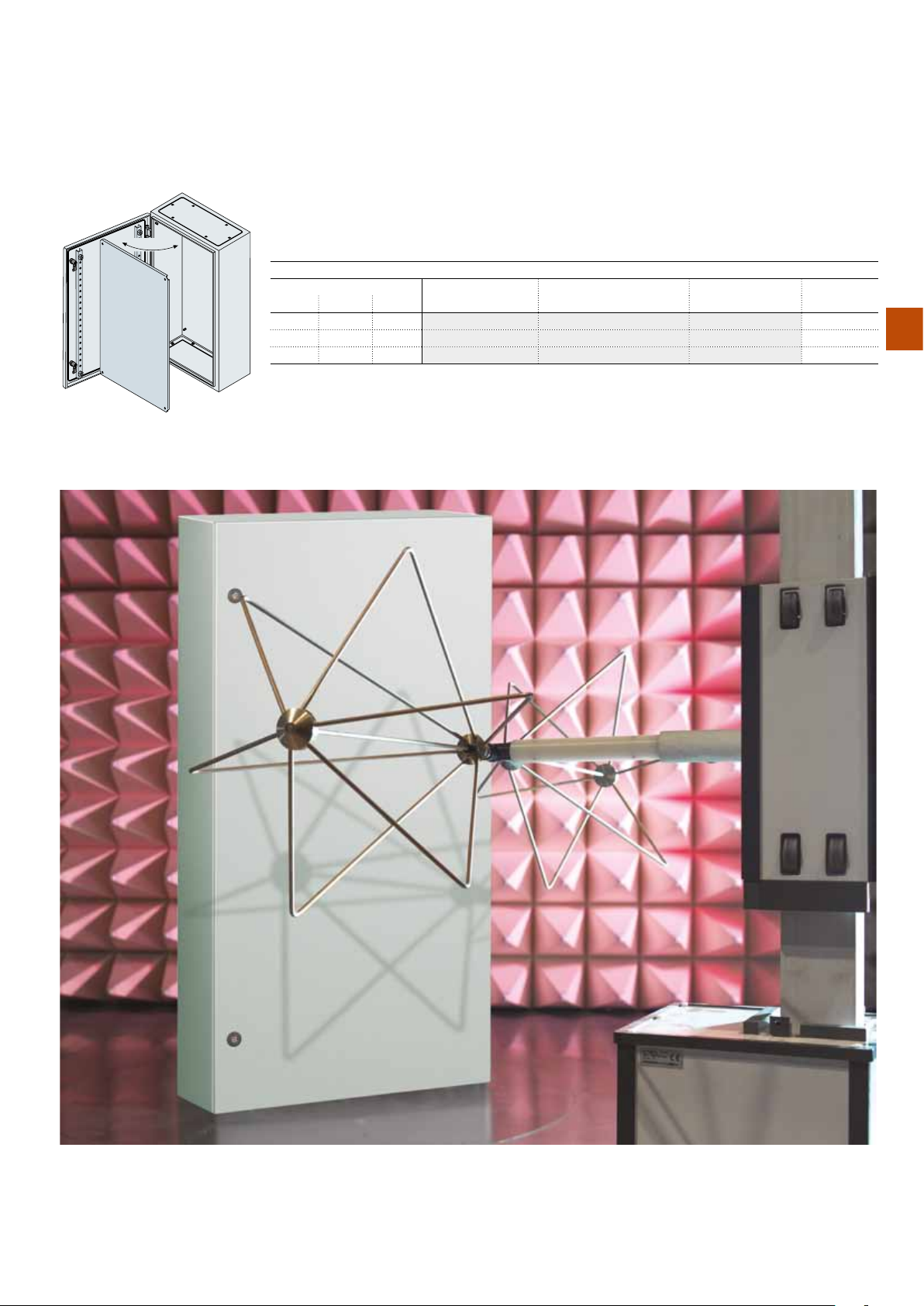

IP54 - EMC Enclosures with blind door
The enclosures with blind door, typically destined for making automation switchboards, are already provided with the internal galvanized sheet plate.
Enclosures with blind door and mounting plate
Dimensions (mm)
Code
400 600 200 SR4620EMCK 1/1
600 600 250 SR6625EMCK 1/1
1000 800 300 SR10830EMCK 1/1
For completion of the structure, see accessories on page 3/6
Package/ No. of piecesH W D
3
> In-depth technical information page 7/1 > Overall dimensions page 9/1
ABB Technical catalogue STC804013D0203 3/21
Loading...
