ABB SM3000 Operating Manual

Download

User Guide IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder

The Company

0255

We are an established world force in the design and manufacture of measurement products for industrial process control, flow measurement, gas and liquid analysis and environmental applications.

As a part of ABB, a world leader in process automation technology, we offer customers application expertise, service and support worldwide.

We are committed to teamwork, high quality manufacturing, advanced technology and unrivalled service and support.

The quality, accuracy and performance of the Company’s products result from over 100 years experience, combined with a continuous program of innovative design and development to incorporate the latest technology.

Lenno, Italy – Cert. No. 9/90A

EN ISO 9001:2008

Cert. No. Q 05907

EN 29001 (ISO 9001)

Stonehouse, U.K.

Electrical Safety

This equipment complies with the requirements of CEI/IEC 61010-1:2001-2 'Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use'. If the equipment is used in a manner NOT specified by the Company, the protection provided by the equipment may be impaired.

Symbols

One or more of the following symbols may appear on the equipment labelling:

Warning – Refer to the manual for instructions Direct current supply only

Caution – Risk of electric shock Alternating current supply only

Protective earth (ground) terminal Both direct and alternating current supply

Earth (ground) terminal

Information in this manual is intended only to assist our customers in the efficient operation of our equipment. Use of this manual for any other purpose is specifically prohibited and its contents are not to be reproduced in full or part without prior approval of the Technical Publications Department.

Health and Safety

To ensure that our products are safe and without risk to health, the following points must be noted:

1. The relevant sections of these instructions must be read carefully before proceeding.

2. Warning labels on containers and packages must be observed.

3. Installation, operation, maintenance and servicing must only be carried out by suitably trained personnel and in accordance with the information given.

4. Normal safety precautions must be taken to avoid the possibility of an accident occurring when operating in conditions of high pressure and/or temperature.

5. Chemicals must be stored away from heat, protected from temperature extremes and powders kept dry. Normal safe handling procedures must be used.

6. When disposing of chemicals ensure that no two chemicals are mixed.

The equipment is protected through double insulation

Safety advice concerning the use of the equipment described in this manual or any relevant hazard data sheets (where applicable) may be obtained from the Company address on the back cover, together with servicing and spares information.

SM3000

Multipoint Videographic Recorder Contents

Contents

1 Product Identification .....................................................3

2 Getting Started ................................................................4

3 Introduction ..................................................................... 6

4 Operation .........................................................................8

4.1 Powering up the Instrument .....................................8

4.2 Displays and Controls ..............................................8

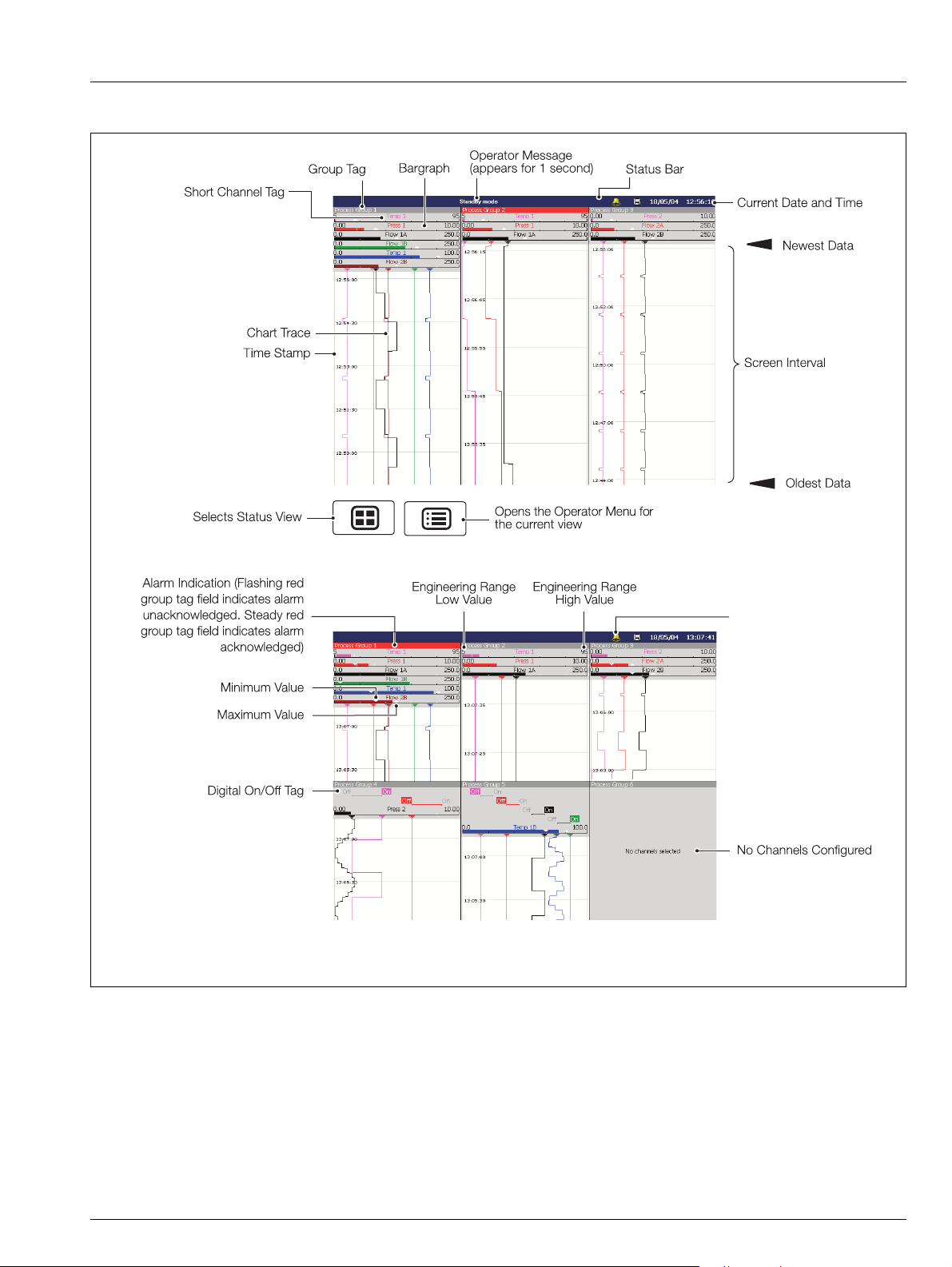

4.3 Chart Views ...........................................................10

4.3.1 Electronic Signatures ..................................20

4.4 Bargraph Views ......................................................21

4.5 Digital Indicator View ..............................................24

4.6 Process View .........................................................28

4.7 Group Overview .....................................................31

4.8 Instrument Status / Audit Log View ........................34

4.8.1 Instrument Status View ...............................35

4.8.2 Audit Log View ...........................................36

4.9 Alarm Event Log .....................................................37

4.10 Totalizer Log ..........................................................39

5 Setup .............................................................................41

5.1 Introduction ............................................................41

5.2 Accessing the Setup Level .....................................41

5.3 Password Entry ...................................................... 42

5.4 Setup Menu ...........................................................43

5.5 Archiving ................................................................45

5.5.1 Card Compatibility ......................................45

5.5.2 Media Status ..............................................45

5.5.3 Inserting and Removing Media .................... 46

5.5.4 Archive File Types .......................................47

5.5.5 Archive Filenames .......................................47

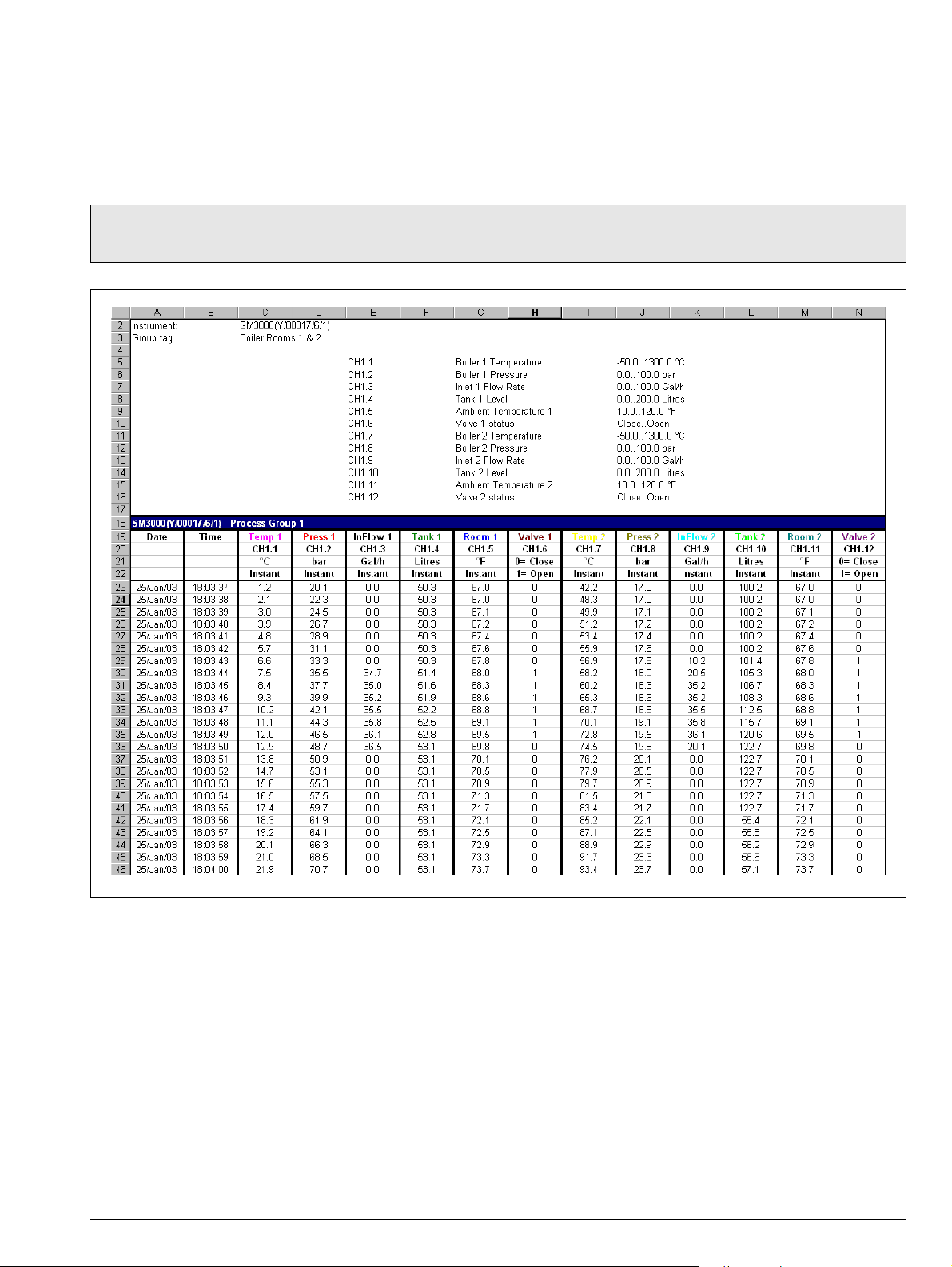

5.5.6 Channel Data Files ......................................47

5.5.7 Log files ......................................................48

5.5.8 On-line/Off-line ...........................................48

5.5.9 Data Verification and Integrity ......................48

5.5.10 Backing Up Archived Data .........................48

5.5.11 Archive Wrap ..............................................48

5.5.12 File Formats ...............................................49

6 Configuration ................................................................ 51

6.1 Introduction ........................................................... 51

6.1.1 Configuration Level Security ....................... 51

6.1.2 Configuration Level Access ........................ 51

6.2 Overview of Configuration ...................................... 54

6.3 Making Changes to Parameters ............................. 55

6.4 Common Configuration ......................................... 61

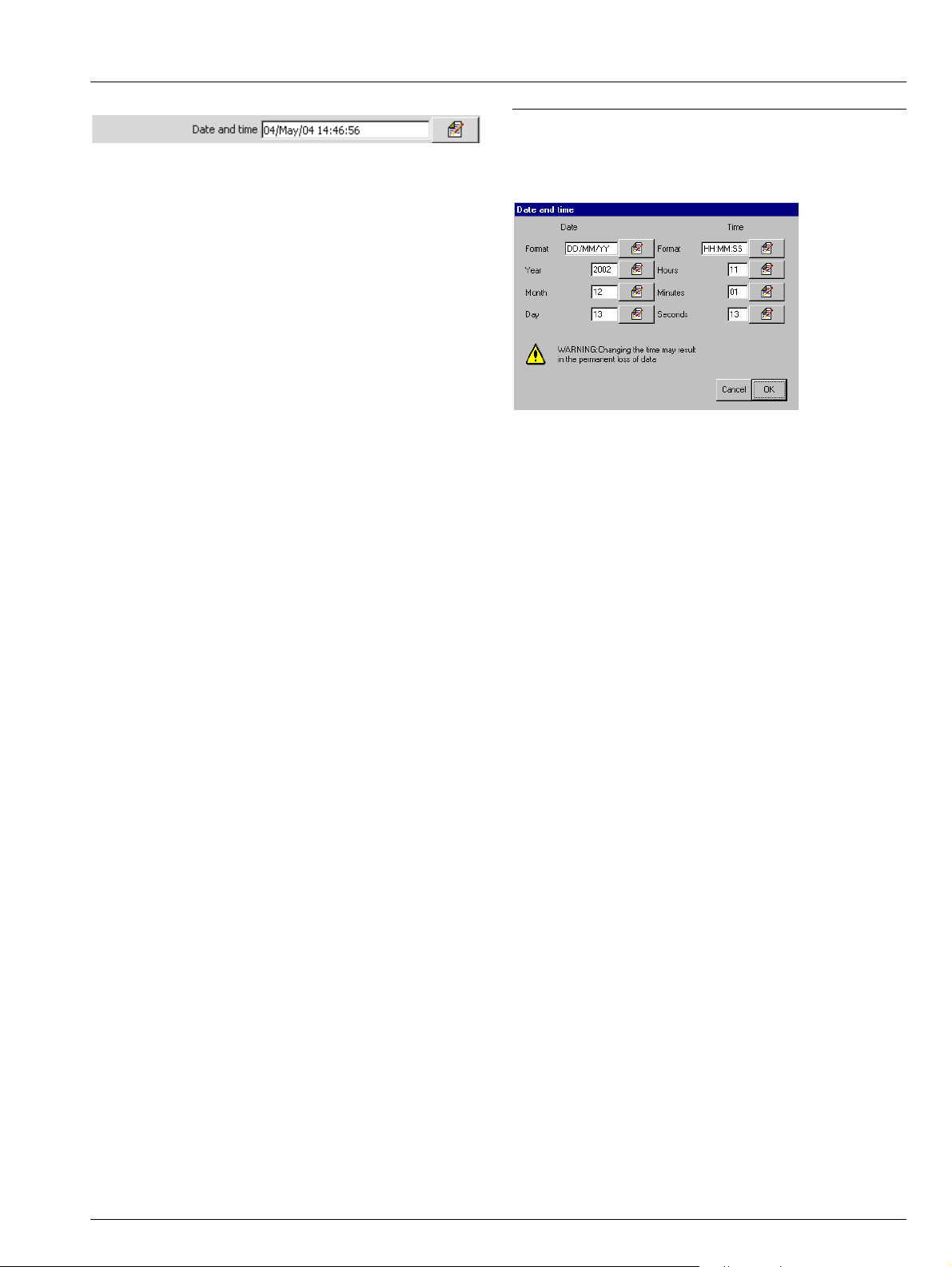

6.4.1 Setup ......................................................... 61

6.4.2 Security ...................................................... 65

6.4.3 Logs ........................................................... 67

6.4.4 Operator Messages .................................... 68

6.4.5 Ethernet ..................................................... 69

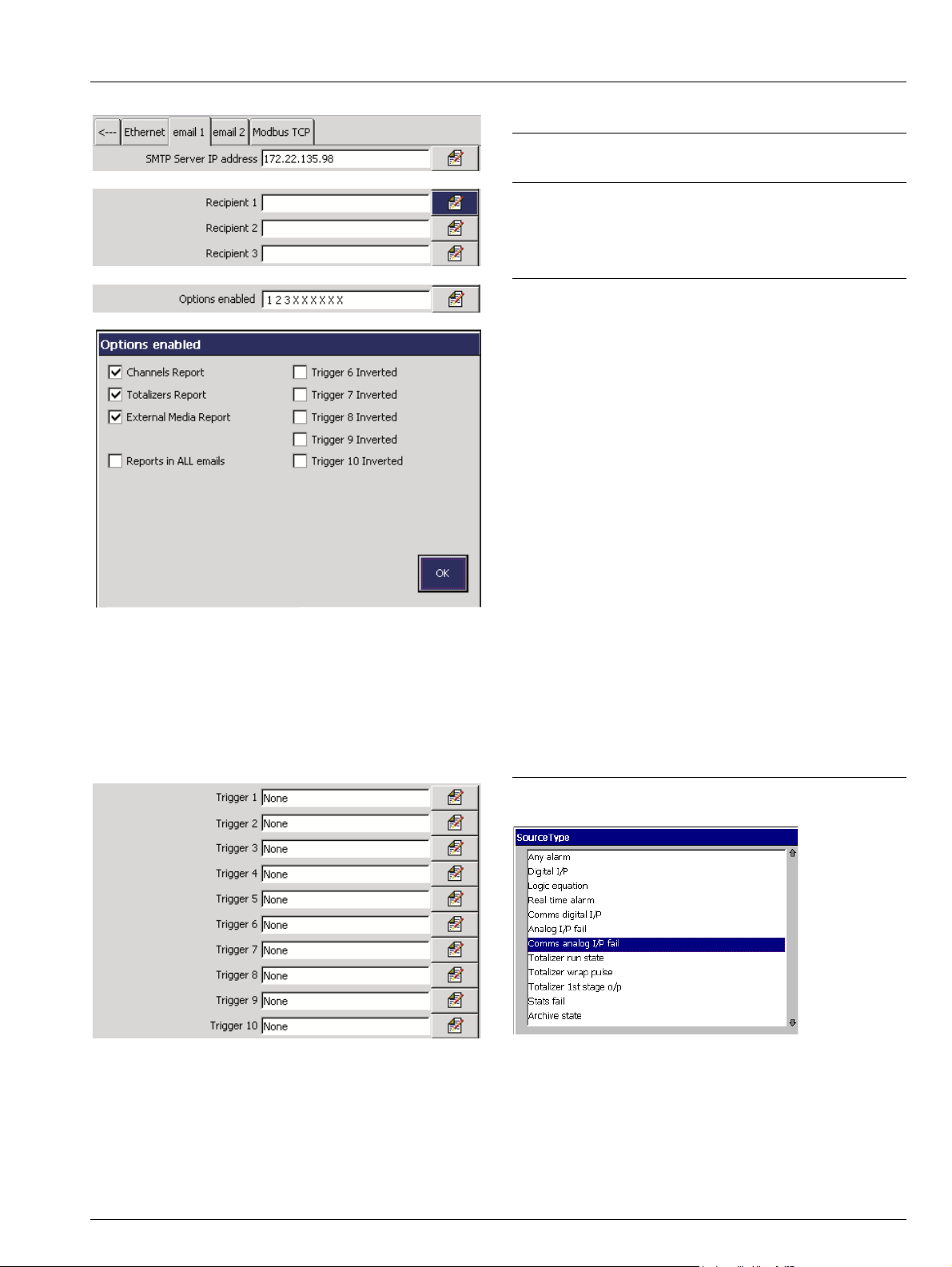

6.4.6 email .......................................................... 70

6.4.7 Modbus TCP .............................................. 72

6.5 Process Group Configuration ................................. 76

6.5.1 Setting the Recording Parameters .............. 76

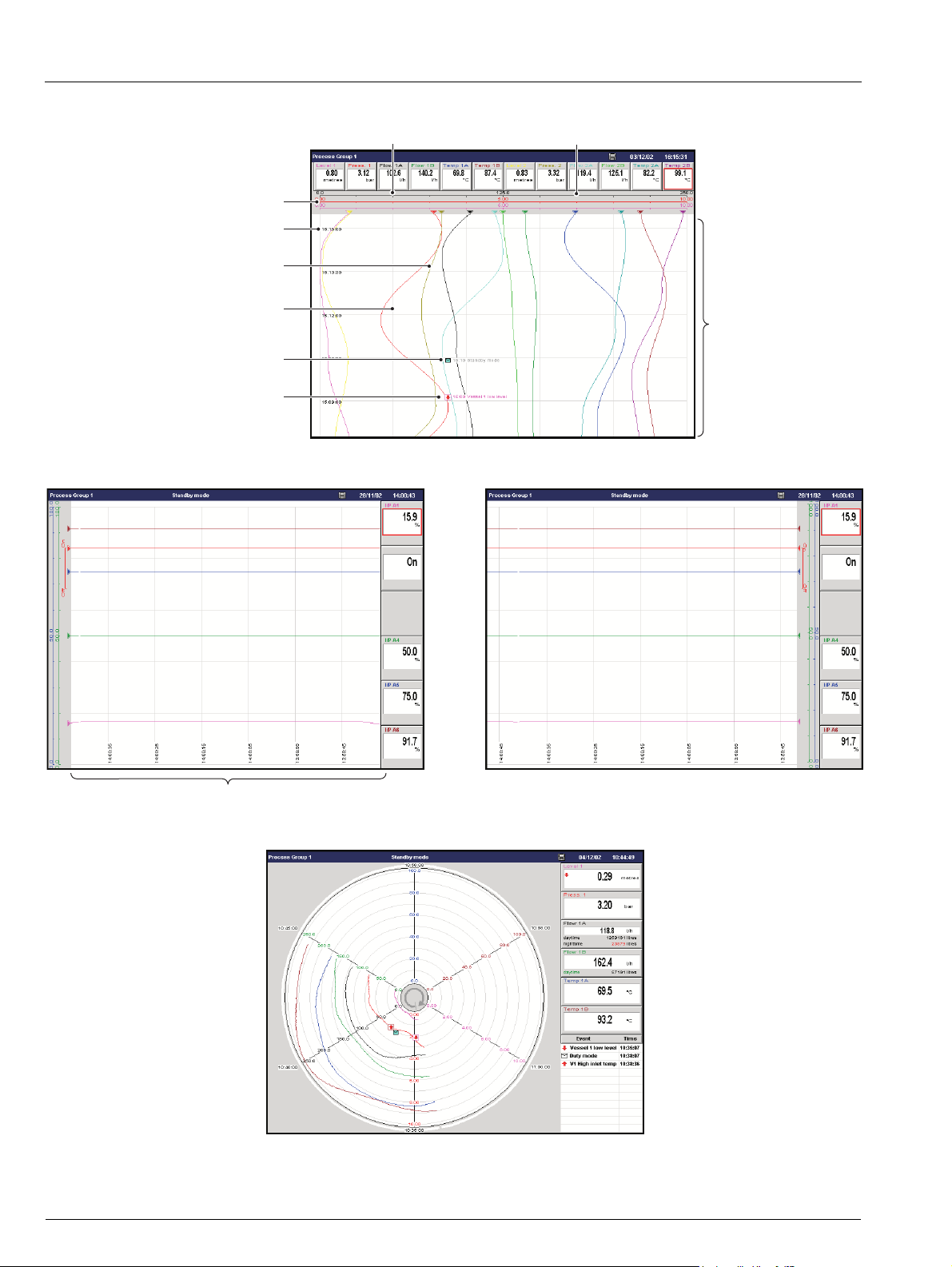

6.5.2 Configuring the Chart View ......................... 78

6.5.3 Configuring the Bargraph View ................... 81

6.5.4 Configuring the Process View ..................... 82

6.5.5 Configuring the Digital Indicator View .......... 83

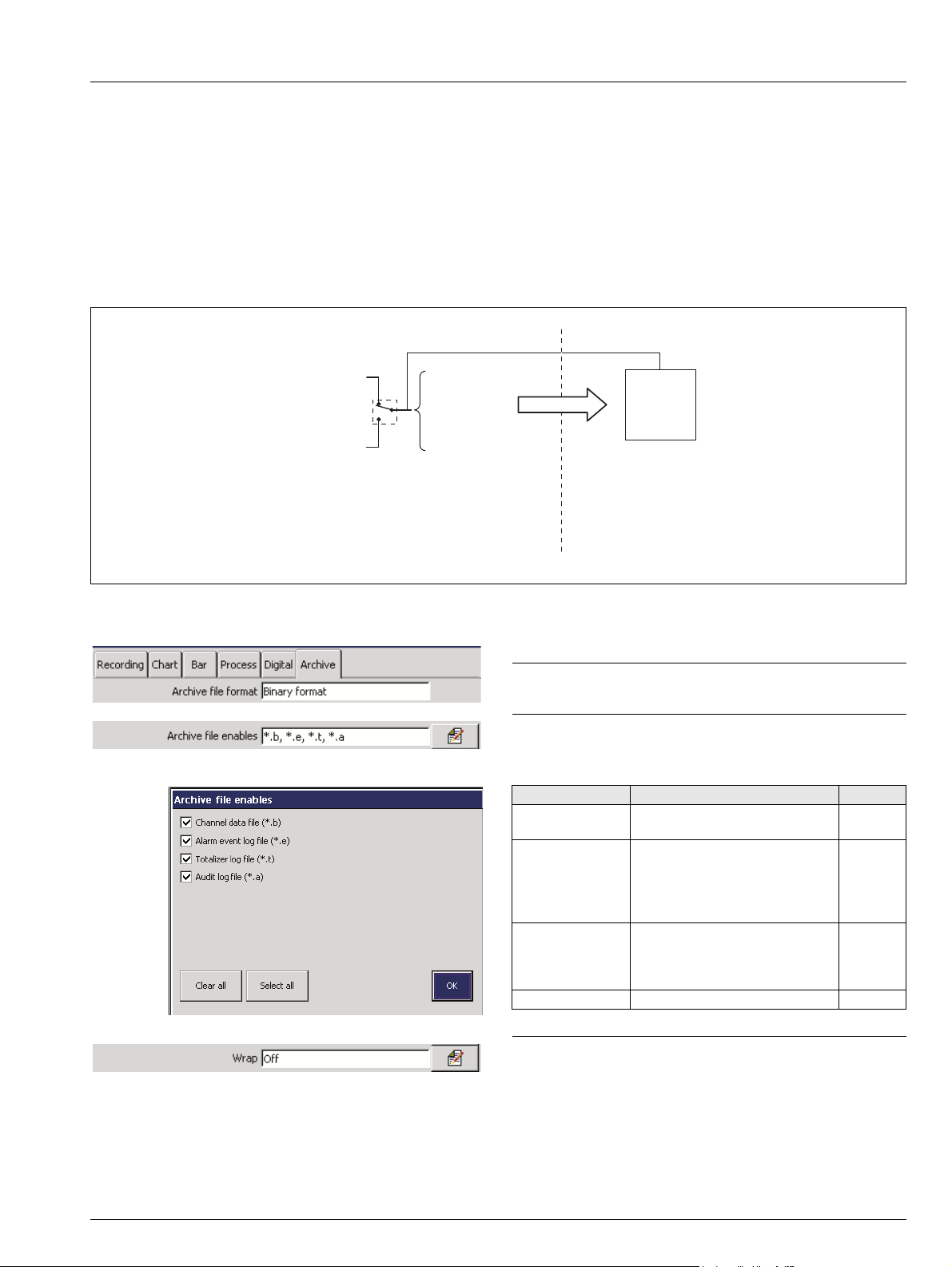

6.5.6 Archiving .................................................... 85

6.6 Channel Configuration ........................................... 86

6.6.1 Recording Channel Setup .......................... 87

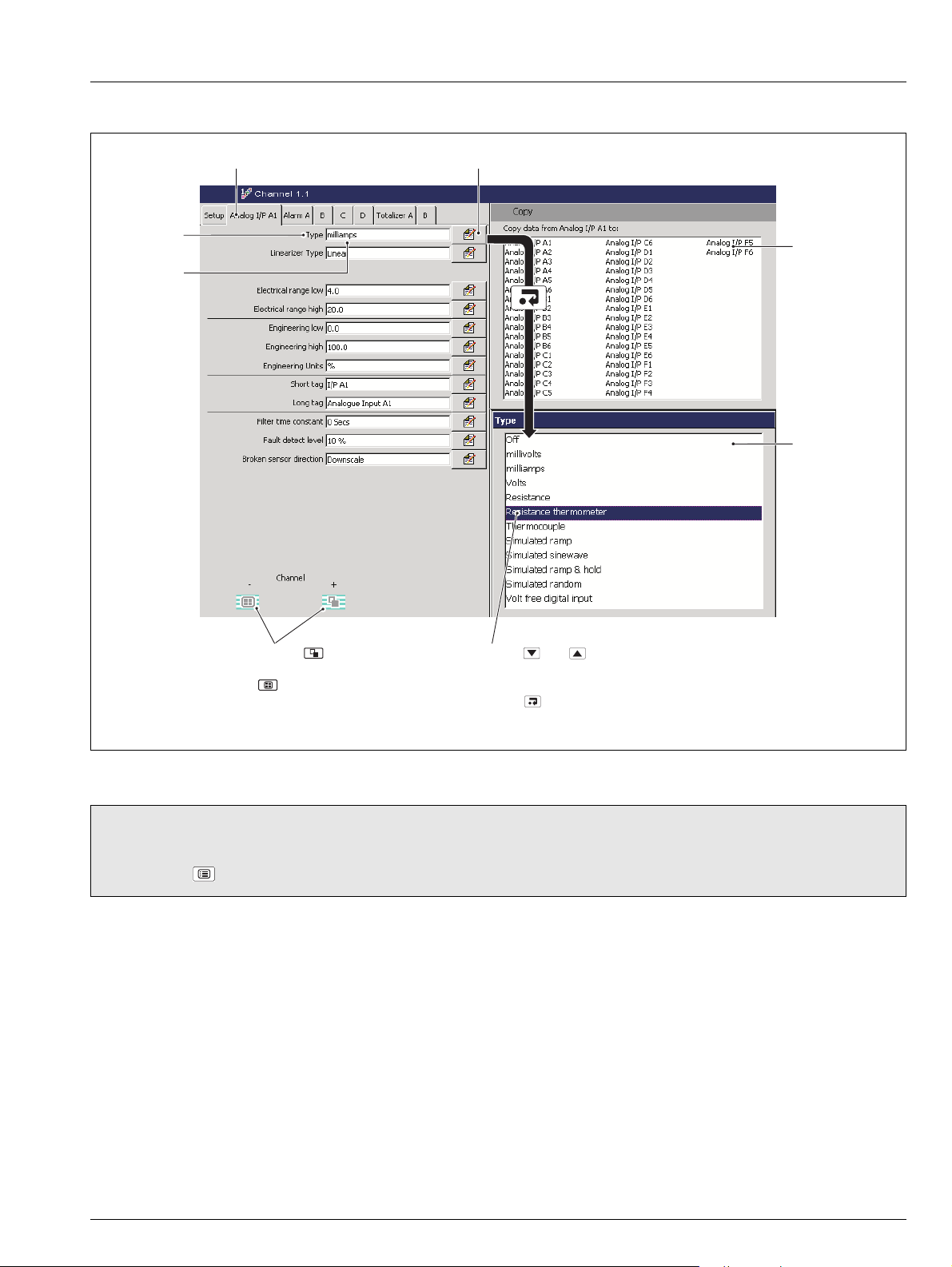

6.6.2 Analog Input Configuration ......................... 89

6.6.3 Digital Input Configuration .......................... 92

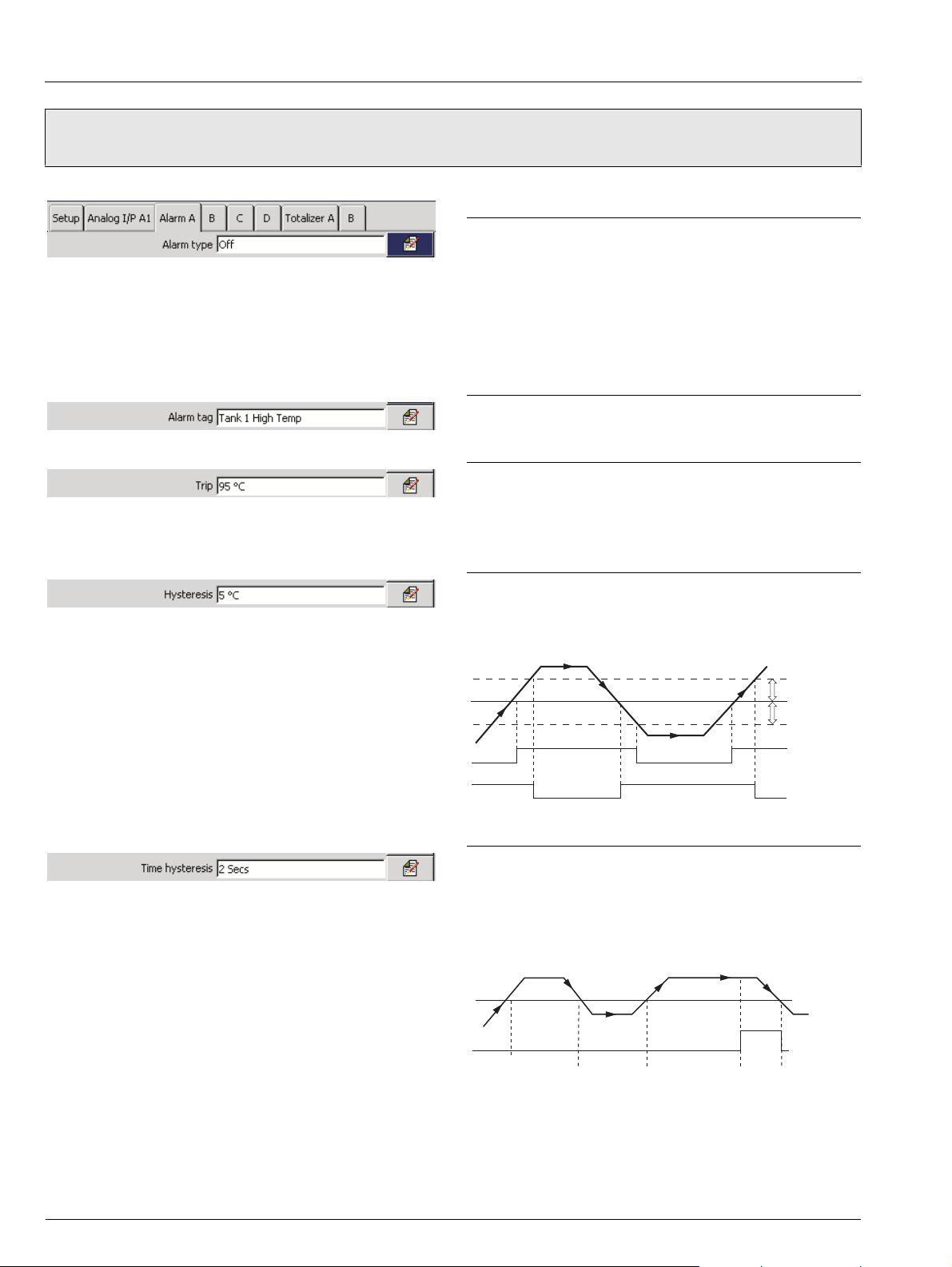

6.6.4 Alarm Configuration .................................... 93

6.6.5 Totalizer Configuration ................................ 98

6.7 I/O Module Configuration ..................................... 101

6.7.1 Analog Inputs ........................................... 101

6.7.2 Relay Modules ......................................... 102

6.7.3 Hybrid Modules ........................................ 103

6.7.4 RS485 (Modbus™)

Serial Communications Module ................ 105

6.8 Functions ............................................................ 107

6.8.1 Custom Linearizers .................................. 107

6.8.2 Custom Chart Zones ................................ 108

6.8.3 Real-time Alarms ...................................... 108

IM/SM3000–EN Rev. L 1

SM3000

Multipoint Videographic Recorder Contents

7 Installation ...................................................................109

7.1 Siting ....................................................................109

7.2 Mounting ..............................................................110

7.3 Electrical Connections ..........................................112

7.4 Analog Inputs .......................................................114

7.4.1 Current and Voltage .................................114

7.4.2 Thermocouple ...........................................114

7.4.3 Resistance Thermometer (RTD) .................114

7.4.4 Transmitter Power Supply .........................114

7.5 RS422/485 Serial Communications ......................116

7.5.1 Host Computer Serial Communications ....116

7.5.2 Two-wire and Four-wire Connection .........116

7.5.3 Pull-up and Pull-down Resistors ...............117

7.5.4 Termination Resistor .................................117

7.5.5 Serial Connections ....................................117

7.6 Mains Power Connections ....................................118

7.7 Relay Output Board Connections .........................118

7.8 Hybrid I/O Module Connections ............................119

7.8.1 Digital Output Connections .......................119

7.8.2 Digital Input Connections ..........................119

7.8.3 Analog Output Connections ......................119

7.9 Ethernet Network Connections .............................120

7.9.1 Direct Connection to a Computer ..............120

7.9.2 Connection to a Network Hub ...................121

7.9.3 Connection to a Dial-Up Router ................121

7.9.4 Connection to an Internet Gateway ...........121

8 Specification ................................................................122

Appendix A – Signal Sources ..........................................129

Appendix B – Modbus Guide ..........................................131

B.1 Introduction ..........................................................131

B.2 Setting Up ............................................................131

B.3 Modbus Protocol ..................................................131

B.3.1 Modbus Commands Supported ................131

B.3.2 Modbus Exception Responses ..................132

B.4 Operating Mode ...................................................132

B.4.1 Operating Mode Modbus Coils .................132

B.4.2 Operating Mode Modbus Registers ...........146

B.4.3 Communications –

Analog and Digital Inputs ...........................169

Appendix C – Storage Capacity .....................................170

C.1 Internal Storage Capacity .....................................170

C.2 Archive Storage Capacity .....................................171

Appendix D – Default Settings ....................................... 172

D.1 Company Standard .............................................. 172

D.1.1 Common Configuration ............................ 172

D.1.2 Process Groups 1 to 6 ............................. 172

D.1.3 Recording Channels ................................. 173

D.1.4 I/O Modules .............................................. 173

D.1.5 Functions .................................................174

D.2 QuickStart Templates ..........................................174

D.2.1 QSMilliAmp ...............................................174

D.2.2 QSFlow ....................................................174

D.2.3 QSTHC_C ................................................174

D.2.4 QSTHC_F .................................................174

D.2.5 QSRTD_C ................................................175

D.2.6 QSRTD_F .................................................175

D.2.7 QSDEMO .................................................175

Appendix E – Ethernet .................................................... 176

E.1 Introduction .........................................................176

E.1.1 Ethernet Communications ........................176

E.1.2 Higher Level Protocols ..............................176

E.2 Testing a Network Connection ............................. 177

E.3 Configuring FTP Access ....................................... 177

E.3.1 FTP Access via MS-DOS .......................... 178

E.3.2 FTP Access via Internet Explorer ..............179

E.3.3 Using FTP Access with DataManager ....... 180

E.3.4 Using the Recorder's Web Server ............. 181

E.3.5 Glossary of Terms ....................................187

Appendix F – Spare Parts and Accessories .................. 188

Appendix G – Error & Diagnostics Information ..............189

Appendix H – Symbols and Icons .................................. 190

Appendix I – End User License Agreement ................... 191

Index .................................................................................192

Acknowledgements and Trademarks ...........................196

2 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 1 Product Identification

1 Product Identification

Check the product code on the serial number label to ensure the correct recorder has been received.

Multipoint Videographic Recorder SM30 XX X XXXXXXXXXXXXXX XXX

Analog Inputs

None 6 inputs 12 inputs 18 inputs 24 inputs 30 inputs 36 inputs

Universal Inputs

Standard High Specification

Build Option

Standard cCSAus* UL*

Archive Media

None — (8 Mb internal flash memory only) Compact flash drive

Software Option

None Advanced Math & Logic Batch Recording Advanced Math & Logic & Batch Recording

Option Modules

Position A Reserved for analog inputs 0 Position B Reserved for analog inputs 0 Position C Reserved for analog inputs 0 Position D Reserved for analog inputs 0 Position E None (only option available if 30 or more analog inputs or a 24 V DC powered instrument is specified)

Position F None (only option available if 36 analog inputs or a 24 V DC powered instrument is specified)

Position G None

Position H None

Mechanical Build

Without rear terminal cover With rear terminal cover

Power Supply

100 to 240 V AC ±10 % (90 min. to 264 V max.) 50/60 Hz 24 V DC

Language

English French German Italian Spanish

Special Features

Standard Custom configuration (customer to complete and supply SM3000 custom configuration sheet – INF08/035) GAMP validation compatible instrument** Engineered configuration (customer to supply configuration details required)

***Not available in conjunction with 24 V DC power supply

Instrument supplied preconfigured to customer's requirements, together with calibration and conformity certificates. Configuration must be supplied using custom configuration sheet – INF08/035

3 relays 6 relays Hybrid

3 relays 6 relays Hybrid 2-wire transmitter power supply RS485 serial communications

3 relays 6 relays Hybrid 2-wire transmitter power supply

00 06 12 18 24 30 36

S H

B C U

0 2

0 1 4 5

0 3 6 H

0 3 6 H T S

0 3 6

1 2

2 3

E F D

STD CUS VAL ENG

IM/SM3000–EN Rev. L 3

SM3000

Connection

Details

Main

Configuration

 Select the archive file enables

(the files to be archived)

 Select a channel source

Select the input filter type: instantanteous or max. and min. values during the sample interval.

 Select the input type, linearizer, ranges

and tag name

 Select the alarm type, set the alarm trip

points, the tag and the hysteresis.

 Set the count rate, preset &

predetermined count values

Multipoint Videographic Recorder 2 Getting Started

2 Getting Started

1. Make connections and power-up the recorder.

Note. For detailed electrical connection information, refer to Section 7.3, page 112.

2. Select the configuration level and a quick start template.

4. Set the sample rate.

Chart Speed Sample Rate Internal Storage

10 mm/h 72s 13.2 months

20 mm/h 36s 6.6 months 6

60 mm/h 12s 2.2 months Channels 120 mm/h 6s 1.1 months Enabled 240 mm/h 3s 16.4 days 720 mm/h 1s 5.5 days

5. Select the views required and the operator menu choices.

Note. For detailed configuration information, refer to Section 6, page 51.

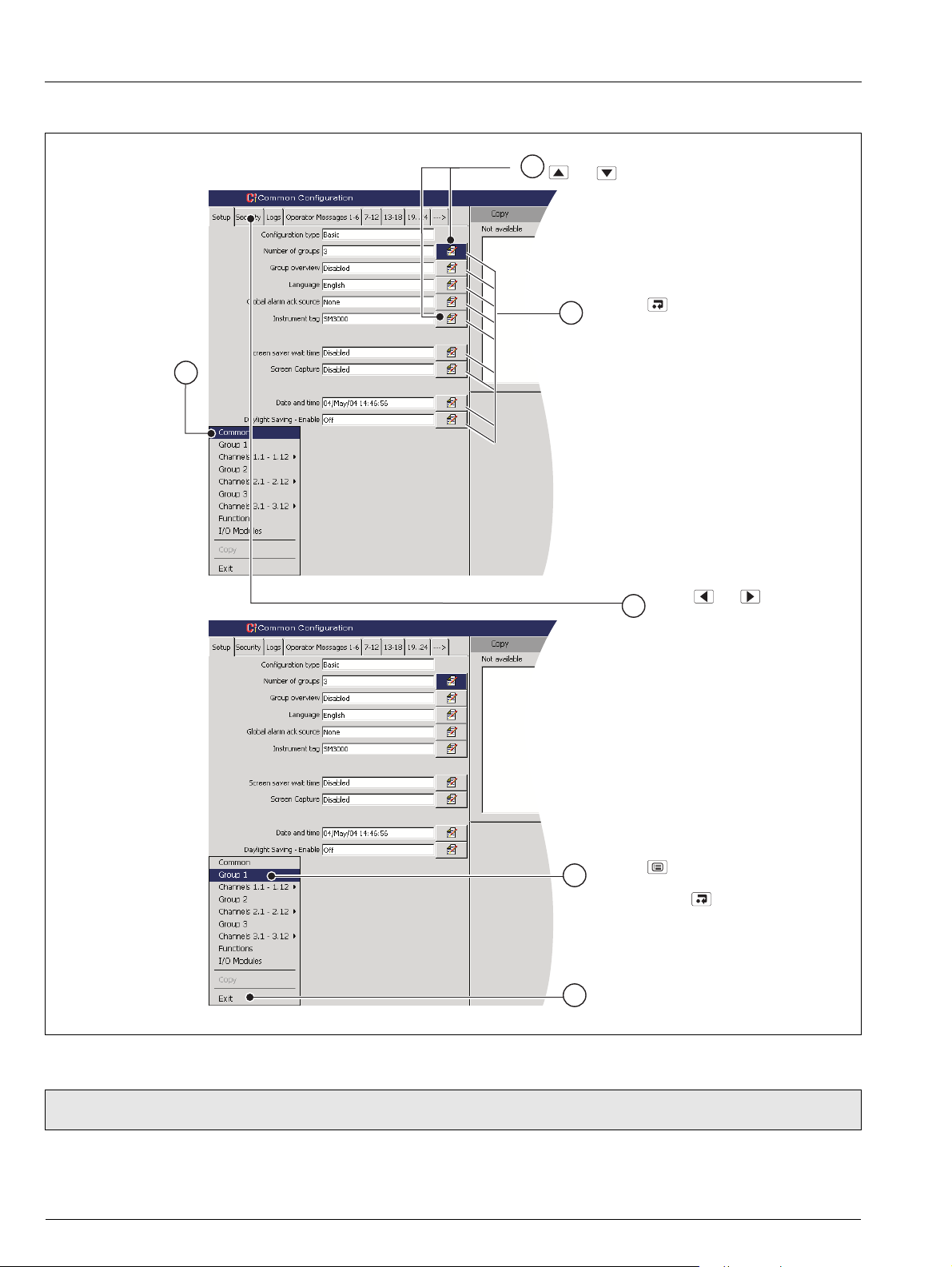

Configuration

Operator 1

Operator 2 Operator 3 Operator 14 Operator 15

QuickStart Template

QSMilliAmp

QS THC_C

or QSTHC_F

QS RTD_C

or QSRTD_F

QS Flow

Summary

Channels 1.1 to 1.6

4 to 20mA inputs,

0 to 100.0 units

Thermocouple type K

0 to 100°C or 0 to 212°F

Pt100 inputs

0 to 100°C or 0 to 212°F

4 to 20mA, 0 to 2000 l/hr,

Totalizer enabled

3. Set the time and date.

6. Configure the archive files.

7. Change the channel configurations.

4 IM/SM3000–EN Rev. L

SM3000

 Set the mains rejection frequency

 Select the relay source and the relay

polarity

 Select the analog output source &

ranges

 Select the digital output sources &

polarity

Multipoint Videographic Recorder 2 Getting Started

8. Set up I/O.

Note. Modules fitted are detected automatically.

9. Exit configuration and save changes.

10. Start recording!

Insert media to start the archiving process automatically.

IM/SM3000–EN Rev. L 5

SM3000

Keys

Mounting Clamps

Shunt Resistors

(1 per analog input)

Compact Flash Card

(If fitted with a compact flash drive)

Multipoint Videographic Recorder 3Introduction

3 Introduction

Functional Overview

 36 Recording Channels as standard, equally divided into up to 6 Process Groups, each with up to a maximum of 12 Recording

Channels.

 Four Alarms and two Totalizers are assigned to each Recording Channel.

 Signal sources derived from universal analog inputs, the optional Modbus serial link, optional digital inputs or internal analog

and digital signals.

 Any source can be assigned to any recording channel.

 Data from assigned sources can be displayed in:

– Vertical-, Horizontal- or Circular-Chart view format

– Vertical or Horizontal Bargraph view format

– Digital Indicator view format

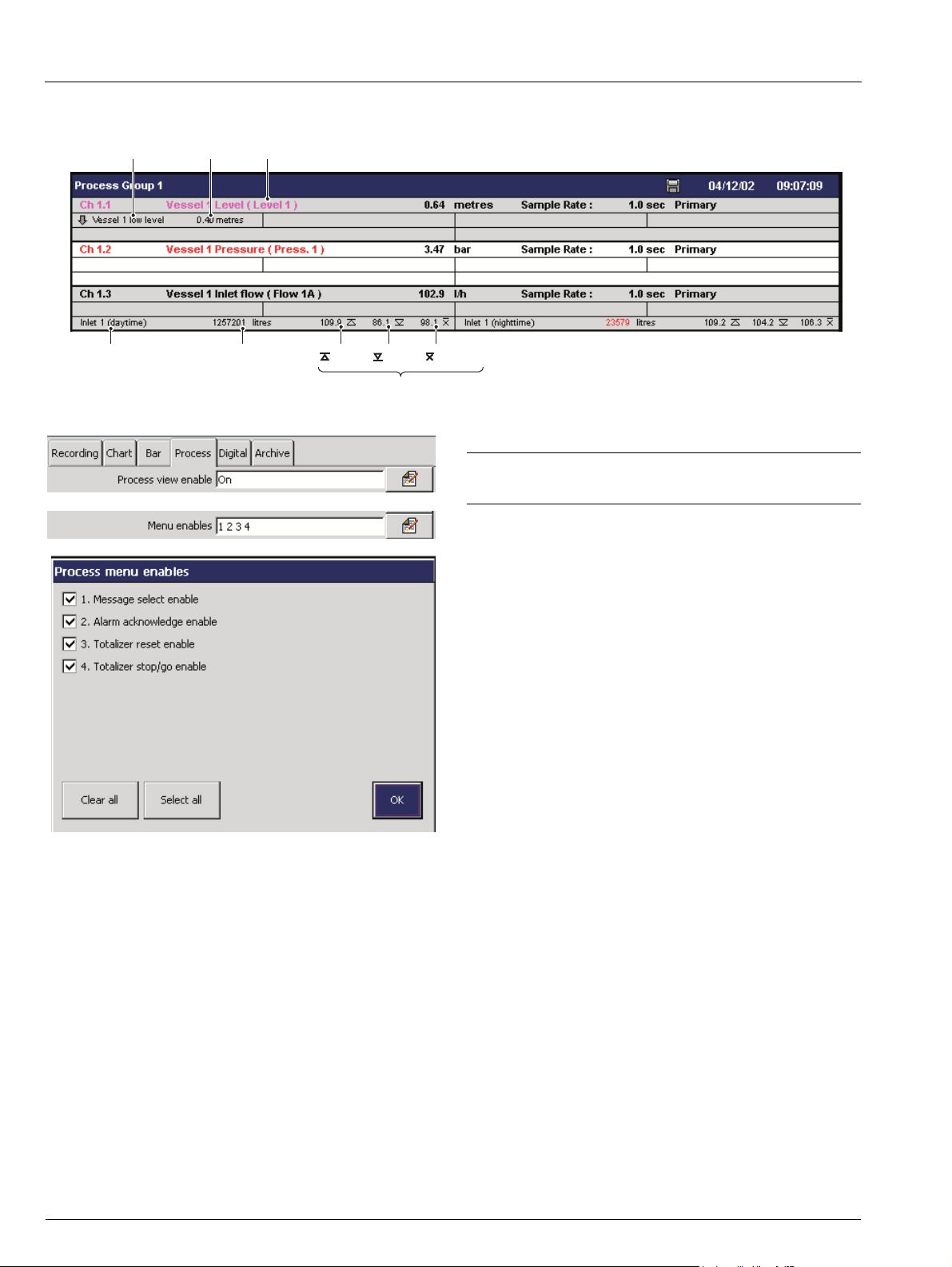

– Process view format

 Group Overview display – each enabled process group's vertical-chart view can be displayed together on one screen.

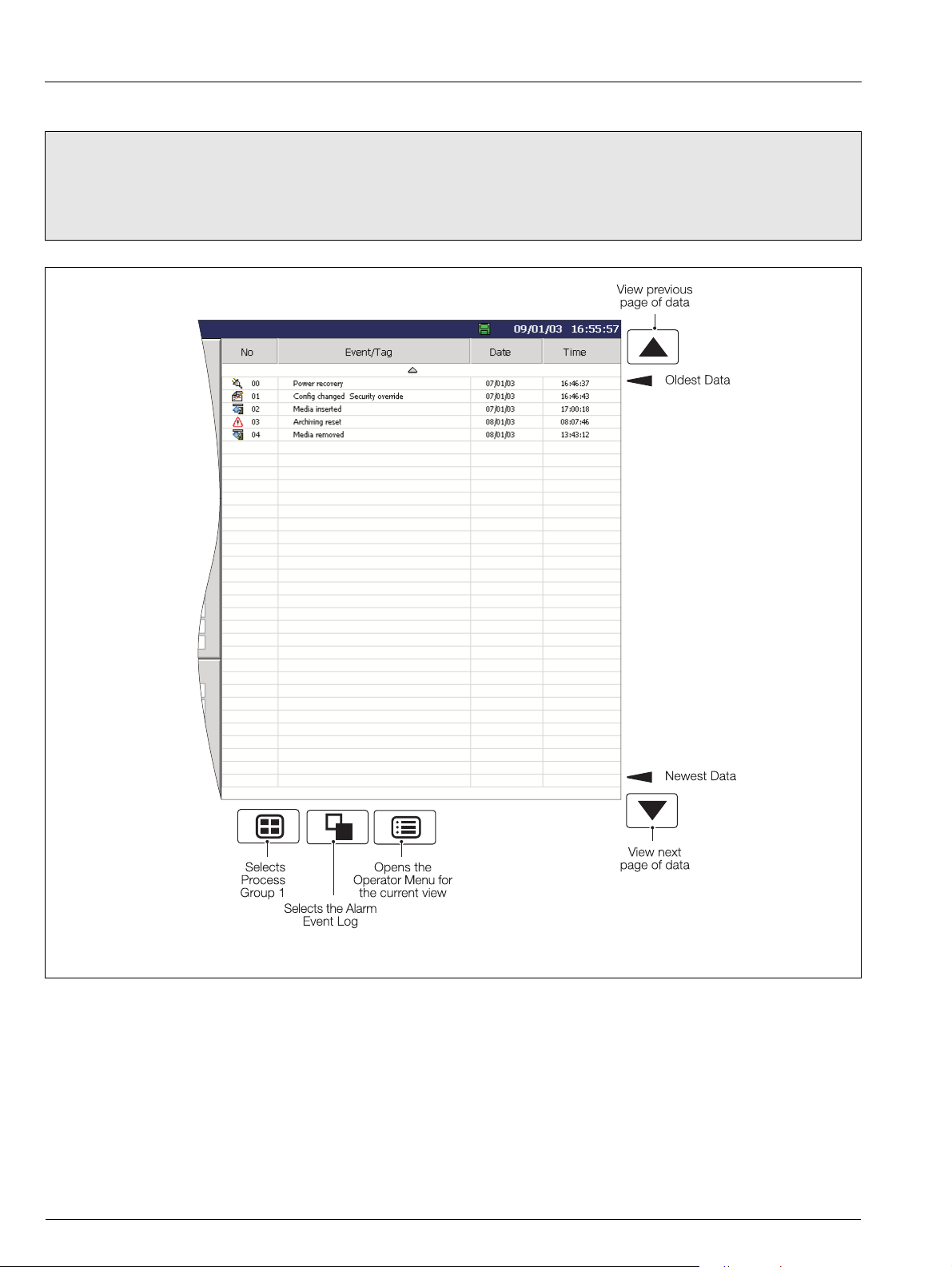

 Three instrument logs record alarm events, totalizer values and system/configuration changes.

 Screen Capture facility – Saves an image of any of the operator views to external archive media provided external archive media

with sufficient free space is inserted in the instrument. It is not necessary for archiving to be 'online'.

Fig. 3.1 Standard Accessories

Note. For optional accessories, refer to Appendix F on page 188.

6 IM/SM3000–EN Rev. L

SM3000

Signal Sources – see

Appendix A, page 129

Chart View (Section 4.3) Bargraph View (Section 4.4)

Digital Indicator View (Section 4.5) Process View (Section 4.6)

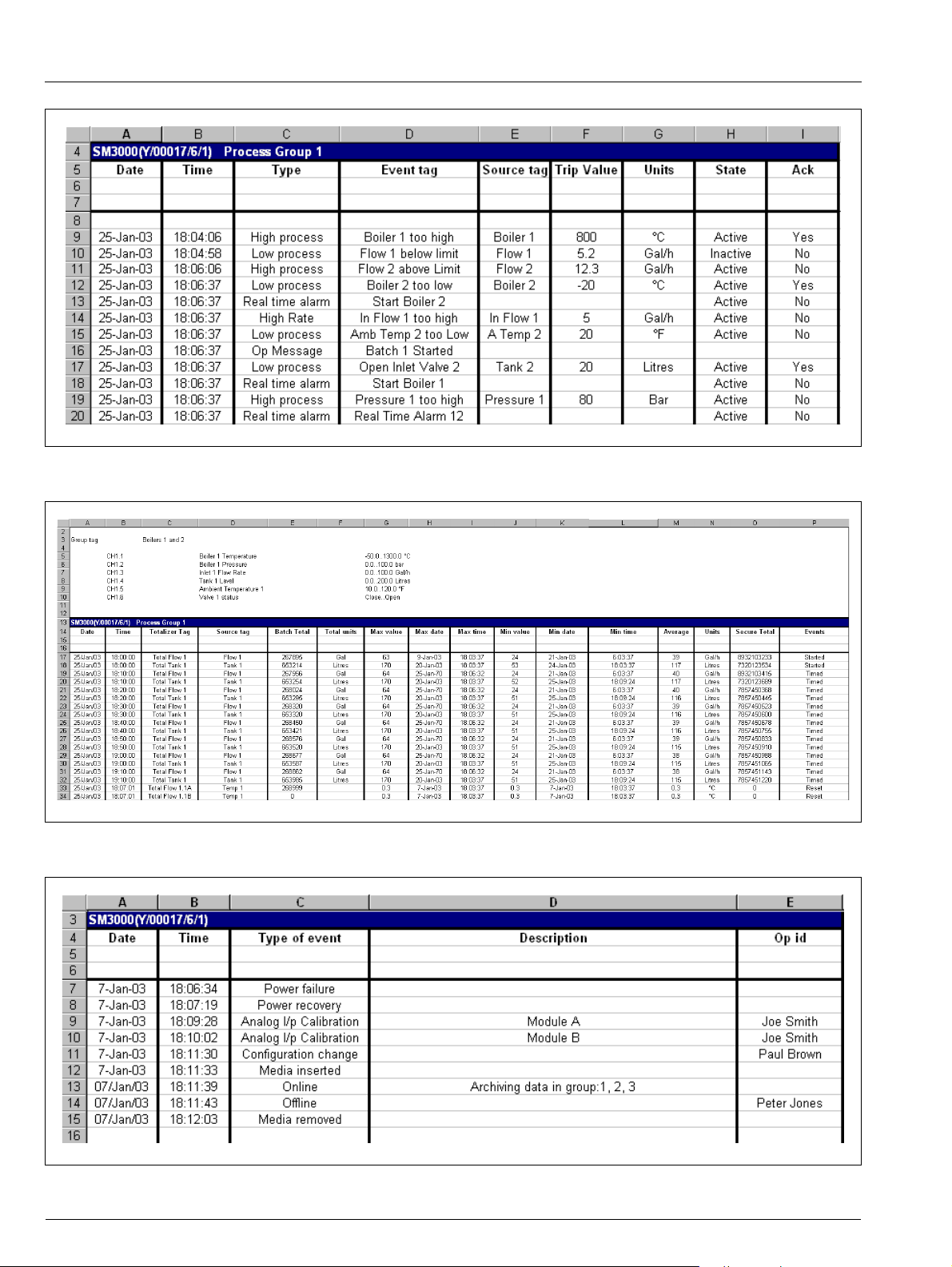

Alarm Event Log (Section 4.9) Totalizer Log (Section 4.10)

Status and Audit Log (Section 4.8)

Multipoint Videographic Recorder 3Introduction

Fig. 3.2 Functional Overview

IM/SM3000–EN Rev. L 7

SM3000

Status Icons – see Appendix H, page 190

Enter Key

Selects the highlighted menu item. If 'Screen capture' is set to 'Enabled' (see Section 6.4.1, page 61) and external archive media is inserted in the instrument, enables the operator to save a snapshot of any operator view to the external media if pressed when the menu is not open.

Chart View – see Section 4.3

Bargraph View – see Section 4.4

Digital Indicator View – see Section 4.5

Process View – see Section 4.6

Multipoint Videographic Recorder 4 Operation

4Operation

4.1 Powering up the Instrument

When power is first applied to the instrument, its processor carries out a number of self-tests and displays the start-up screen. At the end of the start up sequence the instrument displays the last Operator View that was displayed when the instrument was powered down.

4.2 Displays and Controls

In normal day-to-day use, the instrument is operated via the Operator Keys located along the bottom of the screen.

Fig. 4.1 Displays and Controls

8 IM/SM3000–EN Rev. L

SM3000

Process Group 1

Instrument Status & Logs

Process Group 2

Process Group 3

Process Group 4

Process Group 5

Process Group 6

Group Overview

Multipoint Videographic Recorder 4 Operation

Fig. 4.2 Overview of Operator Displays

Note.

 Only process groups and views that have been enabled are displayed – see Section 6.5, page 76.

 Group Overview is displayed only if more than one process group has been configured and group overview display has

been enabled – see Section 6.4.1, page 61.

IM/SM3000–EN Rev. L 9

SM3000

Scale bar

('Horizontal -->' selected in

the 'Chart view enable'

menu – see Section 6.5.2,

page 78).

Alarm Event Annotation

(see Note 3 on Page 12)

Operator Message Annotation

(see Note 3 on Page 12)

Current Value

(see Note 1 on Page 12)

Global Alarm Status Icon (see Note 1 on Page 12)

Alarm Event Icon (see Note 2 on Page 12)

Multipoint Videographic Recorder 4 Operation

4.3 Chart Views

For a description of the Status Icons (displayed in the Status Bar) and Alarm Event Icons (displayed in the Bargraph, Digital Indicators, Process and Chart Views), see Appendix H, page 190.

Fig. 4.3 Horizontal and Vertical Chart Views

Note. Do not remove media while either of the media update in progress status icons ( or ) are displayed.

10 IM/SM3000–EN Rev. L

SM3000

Alarm Event Icon (see Note 2 on Page 12)

Current Value (see Note 1 on Page 12)

Alarm Event

and

Operator

Message

Annotation

(see Event Log

and Note 3

on Page 12)

Multipoint Videographic Recorder 4 Operation

For a description of the Status Icons (displayed in the Status Bar) and Alarm Event Icons (displayed in the Bargraph, Digital Indicators, Process and Chart Views), see Appendix H, page 190.

Fig. 4.4 Circular Chart View

IM/SM3000–EN Rev. L 11

SM3000

11:58:00 1.1A High Level

Multipoint Videographic Recorder 4 Operation

Note.

1. Current Values

The Current Value, shown on the digital indicators at either the top (vertical chart view) or right hand side (horizontal chart view) of the screen, is the latest instantaneous value and its update rate is not affected by the recording sample rate.

If the current value in the digital indicator is displayed in red, recording has been stopped for that channel – see Section 5.4, page 43 and see Section 6.6.1, page 87.

Traces are shown only when that particular channel is being recorded. When a channel is set to Stop, its trace continues to be shown for up to one sample period.

2. Alarm Status

– Flashing red border around channel indicator alternating with flashing red alarm event icon – alarm active and

unacknowledged

– Continuous red alarm event icon – alarm active and acknowledged

If any alarm in any process group is active, the Global Alarm status icon ( ) is displayed in the status bar – Fig. 4.3. If any active alarm in any process group is unacknowledged, the icon is surrounded by a red flashing border ( ).

3. Alarm Event and Operator Message Annotations

Alarm Event and Operator Message annotations are not shown on the chart unless enabled – see 'Chart Annotation' on page 16 and see Section 6.5.2, page 78.

If Alarm event annotation is enabled and an alarm becomes active, a red alarm event icon surrounded by a channel colored box is displayed at the point at which the alarm occurred, together with the alarm time and tag, for example:

If more than one alarm occurs in the same sample period:

– and the second alarm on a channel becomes active, its icon is added behind the first.

– and more than one operator message is active (max. six), a second icon is added behind the first.

– the new alarm event icons appear to the left of earlier icons.

– the time and tag of the oldest alarm (right-most icon) only is displayed.

4. Screen Capture

If 'Screen capture' is set to 'Enabled' in Common Configuration (see Section 6.4.1, page 61) and an external archive media card is inserted in the instrument, an image of any Chart, Bargraph, Digital Indicator, Process, Instrument Status/Audit Log, Alarm Log or Totalizer Log view can be saved to the external media by pressing the key whenever the Operator Menu is not open.

12 IM/SM3000–EN Rev. L

SM3000

Values displayed indicate the process status at the cursor position

Cursor

Historical Review Active Invalid data  e.g. recording disabled

Digital

Indicators

11:57:30 High Level

11:58:23 Duty/Standby Pumps Switched

Multipoint Videographic Recorder 4 Operation

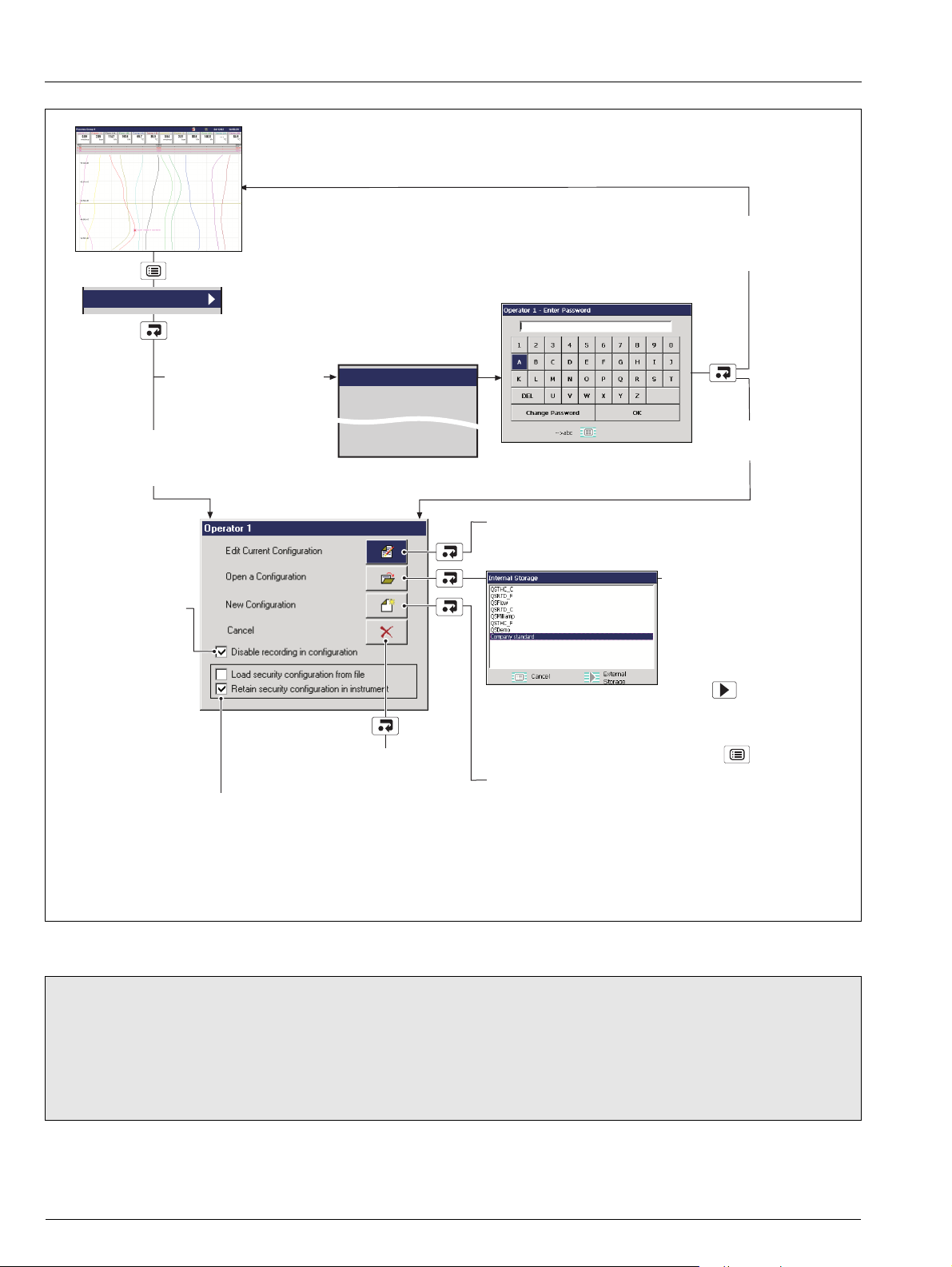

Select the Configuration Level – see Section 6, page 51.

Select the Setup Level – see Section 5, page 41.

Sign the chart electronically – see Section 4.3.1, page 20.

Select Historical Review to view previously recorded data stored in the instrument's onboard memory.

Note. Use the and keys (Horizontal and Vertical Chart view) or and keys (Circular Chart view) to move backwards and forwards through the recorded data.

IM/SM3000–EN Rev. L 13

SM3000

Oldest data in

internal memory

Newest data in internal memory

'Goto' target date

'Goto' target time

Returns to

the chart view

Goes to the chart view at the selected 'goto' target date and time

Moves cursor between 'goto' target date and time boxes. Use

and keys to

change selected date or time

Selected 'goto' target

date/time is within

daylight saving period

Multipoint Videographic Recorder 4 Operation

Note.

While in Historical Review mode:

 Recording of new data continues unless stopped from the Setup Menu – see

Section 5.4, page 43.

 Invalid historical data (for example, when recording has stopped) is denoted by

'– – –' in the digital indicator.

 Where the trace at the cursor position represents more than one sample, the

indicators flash between the maximum and minimum values of those samples.

 Menu options remain active – allowing the screen interval to be changed, different

scales and channels to be selected, etc.

 Operator messages generated are added to the alarm event log at the present

time, not the time indicated by the cursor.

 All data stored in the instrument's internal memory can be viewed.

 The display can be scrolled back to the start of the oldest data.

 Archiving to removable media does not occur but all data recorded in the internal

memory buffer during this time is archived on exiting Historical Review mode.

Select 'Goto' to move to data stored in the instrument's onboard memory that was recorded at a specific date and time.

Note.

 If daylight saving is enabled (see Section 6.4.1, page 61) and the selected 'Goto'

target date/time is within the daylight saving period, 'Daylight Saving' is displayed on the dialog box.

 Once internal memory becomes full, oldest data is overwritten by newest data. If

historical review has been selected for some time, the oldest data present may no longer be available.

 The instrument exits Historical Review mode automatically after 15 minutes if no

14 IM/SM3000–EN Rev. L

key is pressed.

Select Exit to return to the real-time recording display.

Note. Pressing the or key also exits Historical Review mode and displays the next enabled view.

SM3000

Multipoint Videographic Recorder 4 Operation

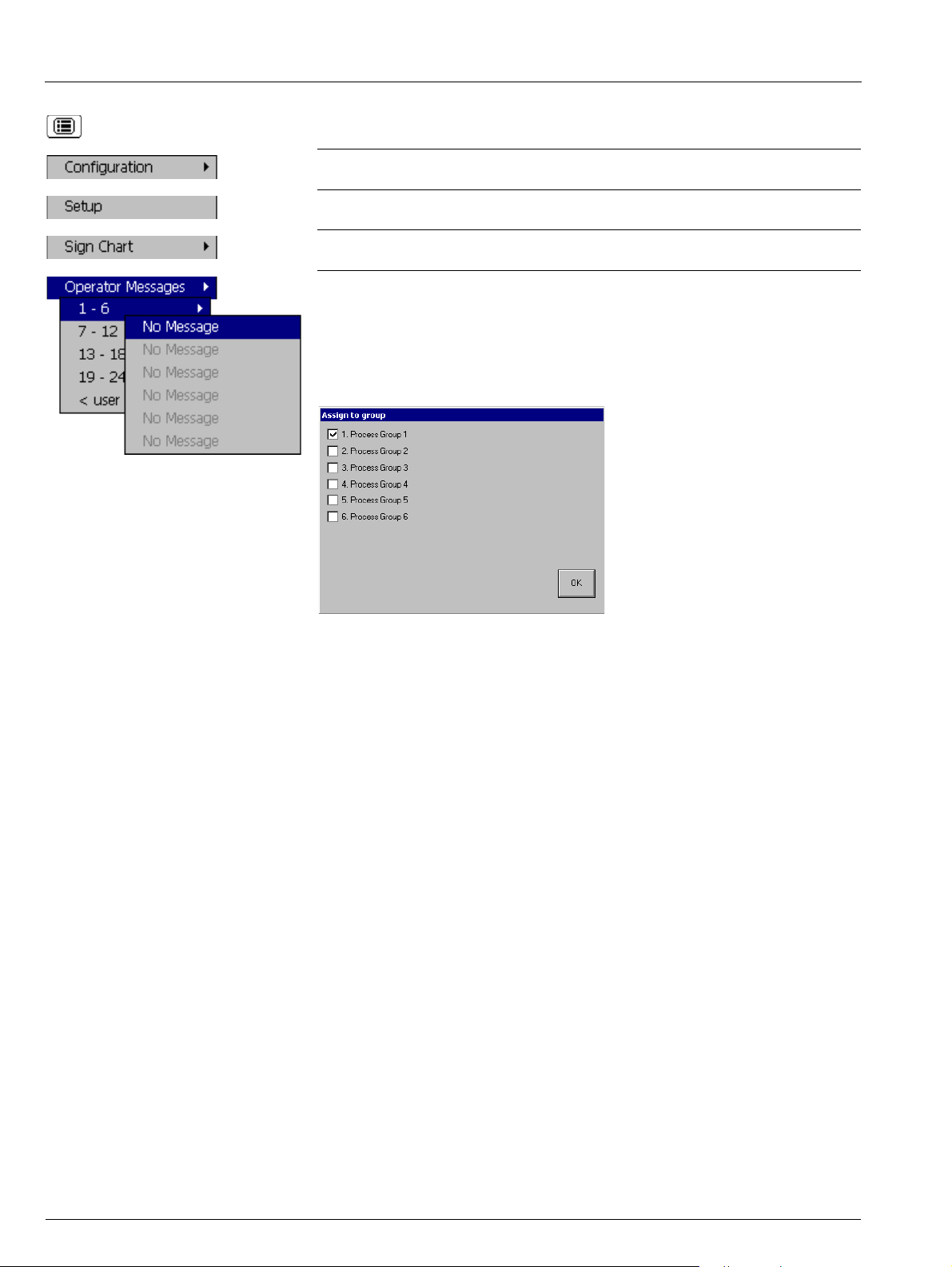

Add one of 24 predefined Operator Messages (see Section 6.4.4, page 68) or one User-Defined Message to the alarm event log.

If '< user defined >' is selected, a data entry keyboard first appears to enable the message to be entered (see Fig. 6.5, page 56).

An 'Assign to group' dialog box then appears to enable the message to be assigned to one or more Process Groups.

The selected or user-defined message is displayed briefly in the status bar. If Operator Message annotation is selected (see 'Chart Annotation' on page 16) the message is also added to the chart.

Note. When the instrument is in Historical Review mode, Operator Messages generated are added at the current time, not the time indicated by the cursor.

IM/SM3000–EN Rev. L 15

SM3000

Multipoint Videographic Recorder 4 Operation

If an alarm or operator message is obscuring part of a chart trace, use the Chart Annotation option to hide or display alarms and messages on the screen. Select the annotation required.  indicates the annotations selected.

The possible combinations are:

 No annotation (Alarms and Operator Messages both disabled)

 Alarm annotation only

 Alarms and Operator Message annotation

Operator Message annotation cannot be enabled unless Alarm annotation is also enabled.

Note.

 If more than 40 icons are present on the screen, chart annotation is disabled

automatically.

 When chart annotation is disabled, new operator messages and alarms are still

added to the Alarm Event log – see Section 4.9, page 37.

Note. Applicable only to Circular Chart view in Historical Review mode and is greyed-out in the menu until 'Historical review' is selected.

Use 'Chart Duration' to change the amount of data displayed on the screen in historical review mode. A longer chart duration displays more data, a shorter chart duration displays data over a shorter time period, but in more detail. In both cases, the full trace is preserved by plotting the maximum and minimum samples for each display point. Unavailable chart durations are greyed-out.

The chart durations available in the menu are determined by the faster of the primary and secondary sample rates set for the process group during configuration – see Section 6.5.1, page 76. Unavailable chart durations are greyed-out.

Table 4.1 on page 17 shows the relationship between sample rate and chart duration for the Circular Chart view.

Note.

 A 'Please Wait' message appears in the status bar while the instrument retrieves

data from storage.

 Selecting a different chart duration does not affect the rate at which data is

sampled.

 Changing the chart duration causes the time at the cursor position to change.

 If the chart duration is changed when in historical review mode, it reverts to that set

during configuration (see Section 6.5.1, page 76) upon exiting historical review mode.

16 IM/SM3000–EN Rev. L

SM3000

Shorter interval

= more detail

Longer interval =

better overview

Multipoint Videographic Recorder 4 Operation

Note. Applicable only to Vertical and Horizontal Chart views.

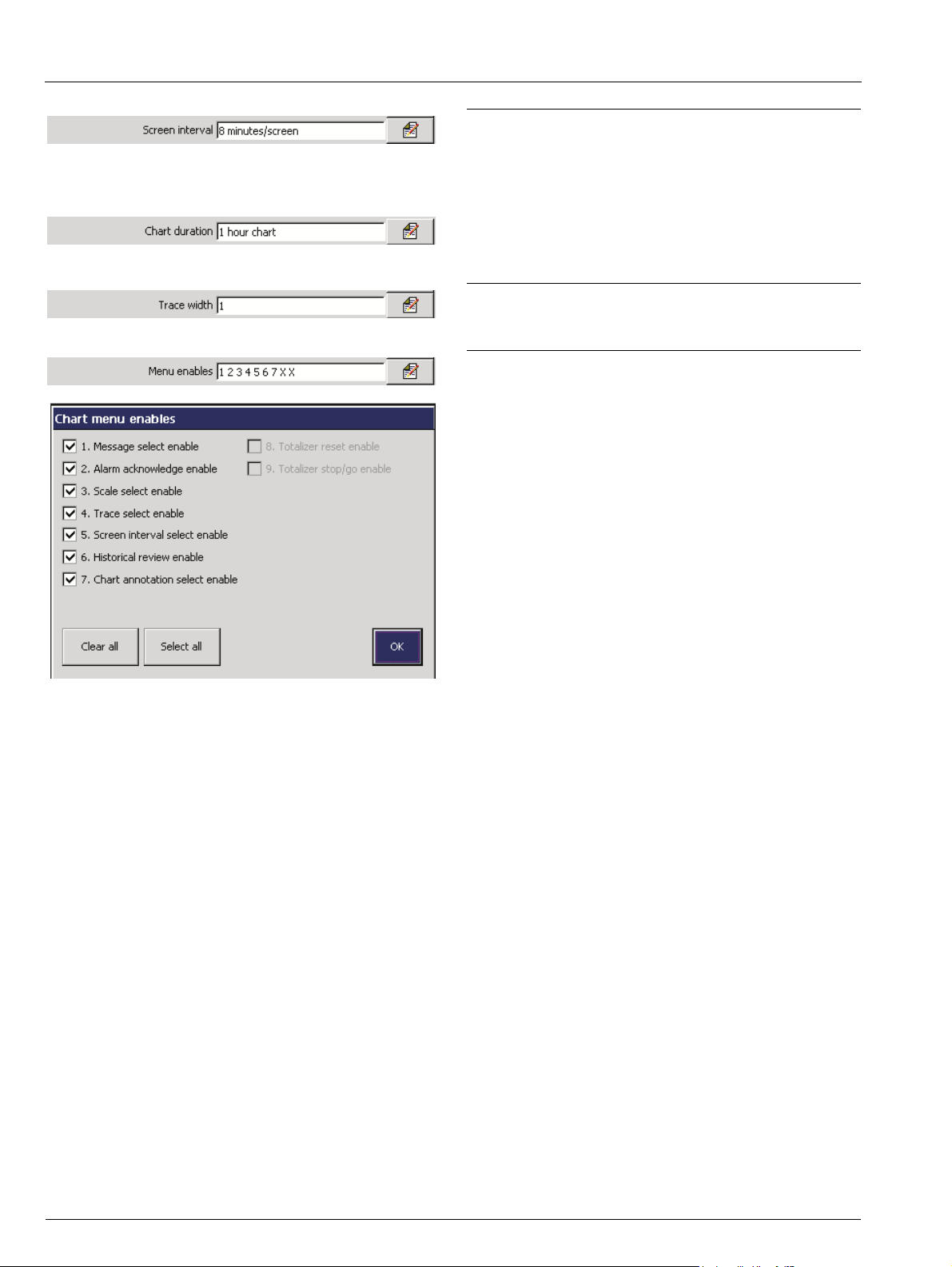

Use the 'Screen Interval' to change the amount of data displayed on the screen. A longer screen interval displays more data, a shorter screen interval displays data over a shorter time period, but in more detail. In both cases, the full trace is preserved by plotting the maximum and minimum samples for each display point.

The screen intervals available in the menu are determined by the faster of the primary and secondary sample rates set for the process group during configuration – see Section 6.5.1, page 76. Unavailable screen intervals are greyed-out.

Table 4.1 shows the relationship between sample rate and screen interval for the Vertical and Horizontal Chart views.

Note.

 A 'Please Wait' message appears in the status bar while the instrument retrieves

data from storage.

 Selecting a different screen interval does not affect the rate at which data is

sampled.

 When in historical review mode, changing the screen interval causes the time at

the cursor position to change.

Circular Chart View Vertical Chart View Horizontal Chart View

Chart Duration Fastest Sample Rate Screen Interval Fastest Sample Rate Screen Interval Fastest Sample Rate

9 minutes 0.1 seconds 48 seconds 0.1 seconds 70 seconds 0.1 seconds

30 minutes 0.1 seconds 4 minutes 0.1 seconds 6 minutes 0.1 seconds

1 hour 1 second 8 minutes 0.1 seconds 12 minutes 0.1 seconds

2 hours 1 second 12 minutes 0.1 seconds 17 minutes 0.1 seconds

3 hours 1 second 20 minutes 0.1 seconds 30 minutes 0.1 seconds

4 hours 1 second 30 minutes 1 second 45 minutes 1 second

6 hours 1 second 1 hour 1 second 1.5 hours 1 second

8 hours 1 second 2 hours 1 second 3 hours 1 second

12 hours 1 second 4 hours 10 seconds 6 hours 10 seconds

15 hours 1 second 8 hours 10 seconds 12 hours 10 seconds

16 hours 1 second 12 hours 10 seconds 18 hours 10 seconds

1 day 1 second 16 hours 10 seconds 1 day 10 seconds

2 days 10 seconds 1 day 20 seconds 1.5 days 20 seconds

4 days 20 seconds 2 days 40 seconds 3 days 40 seconds

8 days 40 seconds 6 days 60 seconds 9 days 60 seconds

32 days 140 seconds 14 days 140 seconds 21 days 140 seconds

Table 4.1 Sample Rates and Screen Intervals

IM/SM3000–EN Rev. L 17

SM3000

Multipoint Videographic Recorder 4 Operation

Note. Applicable only to Vertical and Horizontal Chart views.

Select the scale(s) to be displayed in the scale bar at the top of the chart window. For digital channels, the On and Off tags are displayed at the corresponding position on the scale bar. A maximum of 3 scales can be selected for display at any one time.

Select 'Auto Scroll Enabled' to display the scale for each enabled channel in turn for 36 seconds in groups of 3.

Hide individual channel traces to improve chart clarity.

Select the channel trace(s) to be displayed in the chart view:

Select…

– 'Clear All' to clear all check boxes and hide all channel traces – 'Select All' to select all configured channel traces for viewing – individual check boxes to select that channel trace for viewing

Select 'OK' to exit.

Note. The recording of a channel's data is not affected by this operation and the instantaneous channel values are still shown on the indicators at the top of the screen.

18 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 4 Operation

Note. Applicable only to Circular Chart view.

Stop and start individual totalizers.

Channel totalizers that have not been enabled in the Configuration level are greyed-out.

Note. When a totalizer is not running (i.e. 'Stop' is selected), the corresponding totalizer value is shown in red.

Note. Applicable only to Circular Chart view.

Reset the totalizer value to the totalizer preset value.

Channel totalizers that have not been enabled in the Configuration level are greyed-out.

To acknowledge a particular alarm, use the and keys to highlight it in the menu and press the key.

Note. Active unacknowledged alarms in the current process group are identified by a red border around the value in the associated channel indicator, alternating with a red Alarm Event icon in the bottom left hand corner of the same indicator. Active acknowledged alarms are identified by a continuous red Alarm Event icon in the bottom left hand corner of the indicator – see Fig. 4.3, page 10.

To acknowledge all active alarms in the current process group simultaneously, select 'All' and press the key.

Note. If an alarm in another process group is active, the Global Alarm status icon ( ) continues to be displayed in the status bar. If an active alarm in another process group is unacknowledged, the icon is surrounded by a red flashing border ( ).

The short channel tags of individual alarms that have not been configured are greyed-out in the menu.

Select 'AutoView Scroll' to display the enabled chart view for each configured process group in turn for 40 seconds. The AutoView Scroll status icon ( ) is displayed in the status bar when AutoView Scroll is active. Press any key to cancel AutoView Scroll.

Note. Applicable only to Circular Chart view.

Select to start a new circular chart.

IM/SM3000–EN Rev. L 19

SM3000

Valid Password

Entered

Sign Chart

Create a new signature

or

Select one of 7

previously

defined signatures

(see

Note below)

Operator 1

Operator 2 Operator 3 Operator 14 Operator 15

Create new signature or

edit an existing one.

Invalid Password

Entered

(see Note in Fig. 5.1, page 41)

Enter Password

(see Section 5.3, page 42)

If more than one process group is

enabled (see Section 6.4.1, page 61),

assign the signature to one or more

groups

Electronic signature is entered into alarm log.

If Operator Message annotation is enabled (see Page 16), the electronic signature is also displayed on the chart.

Multipoint Videographic Recorder 4 Operation

4.3.1 Electronic Signatures

Entering an electronic signature is the equivalent to signing the chart of a conventional paper recorder. Local procedures may require the approval of a record by an authorized signatory; for this reason, an electronic signature is password protected.

Fig. 4.5 Entering an Electronic Signature

Note. Up to 7 electronic signatures can be stored in the instrument's memory. If 7 signatures exist and a new one is created, the oldest is overwritten.

20 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 4 Operation

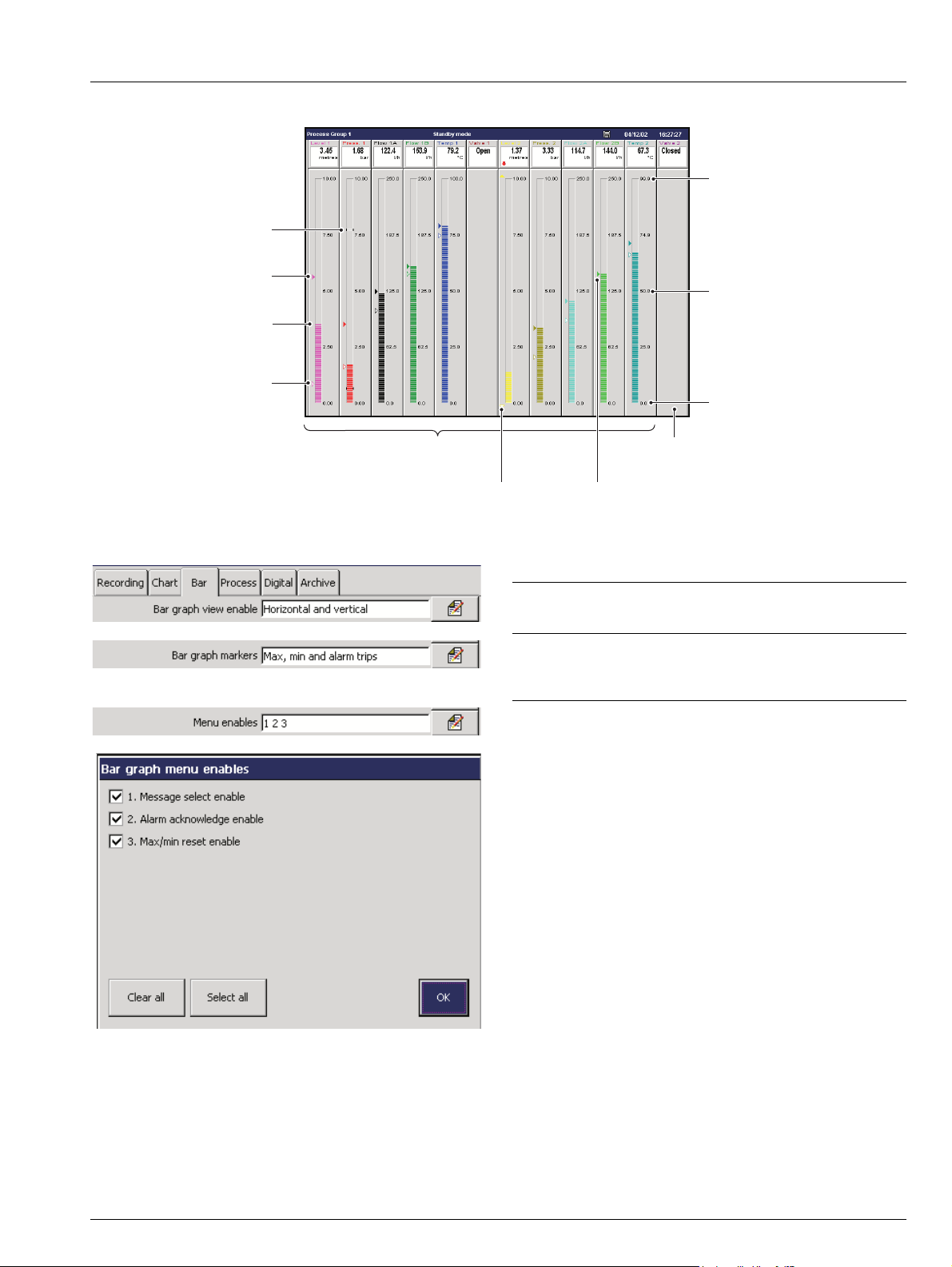

4.4 Bargraph Views

For a description of the Status Icons (displayed in the Status Bar) and Alarm Event Icons (displayed in the Bargraph, Digital Indicators, Process and Chart Views), see Appendix H, page 190.

Fig. 4.6 Bargraph Views

IM/SM3000–EN Rev. L 21

SM3000

Multipoint Videographic Recorder 4 Operation

Select the Configuration Level – see Section 6, page 51.

Select the Setup Level – see Section 5, page 41.

Add one of 24 predefined Operator Messages (see Section 6.4.4, page 68) or one User-Defined Message to the alarm event log.

If '< user defined >' is selected, a data entry keyboard first appears to enable the message to be entered (see Fig. 6.5, page 56).

An 'Assign to group' dialog box then appears to enable the message to be assigned to one or more Process Groups.

22 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 4 Operation

Reset the Maximum and Minimum value markers on one or all channels to the current value.

Notes.

 These Maximum and Minimum values are for display purposes only. They are not

saved or archived and are not connected to the Totalizer Maximum and Minimum Values displayed in the Process View.

 These Maximum and Minimum values are reset whenever the current configuration

has been changed or is re-saved.

To acknowledge a particular alarm, use the and keys to highlight it in the menu and press the key.

To acknowledge all active alarms in the current process group simultaneously, select 'All' and press the key.

The short channel tags of individual alarms that have not been configured are greyed-out in the menu.

Select 'AutoView Scroll' to display the enabled bargraph for each configured process group in turn for 40 seconds. The AutoView Scroll status icon ( ) is displayed in the status bar when AutoView Scroll is active. Press any key to cancel AutoView Scroll.

IM/SM3000–EN Rev. L 23

SM3000

Multipoint Videographic Recorder 4 Operation

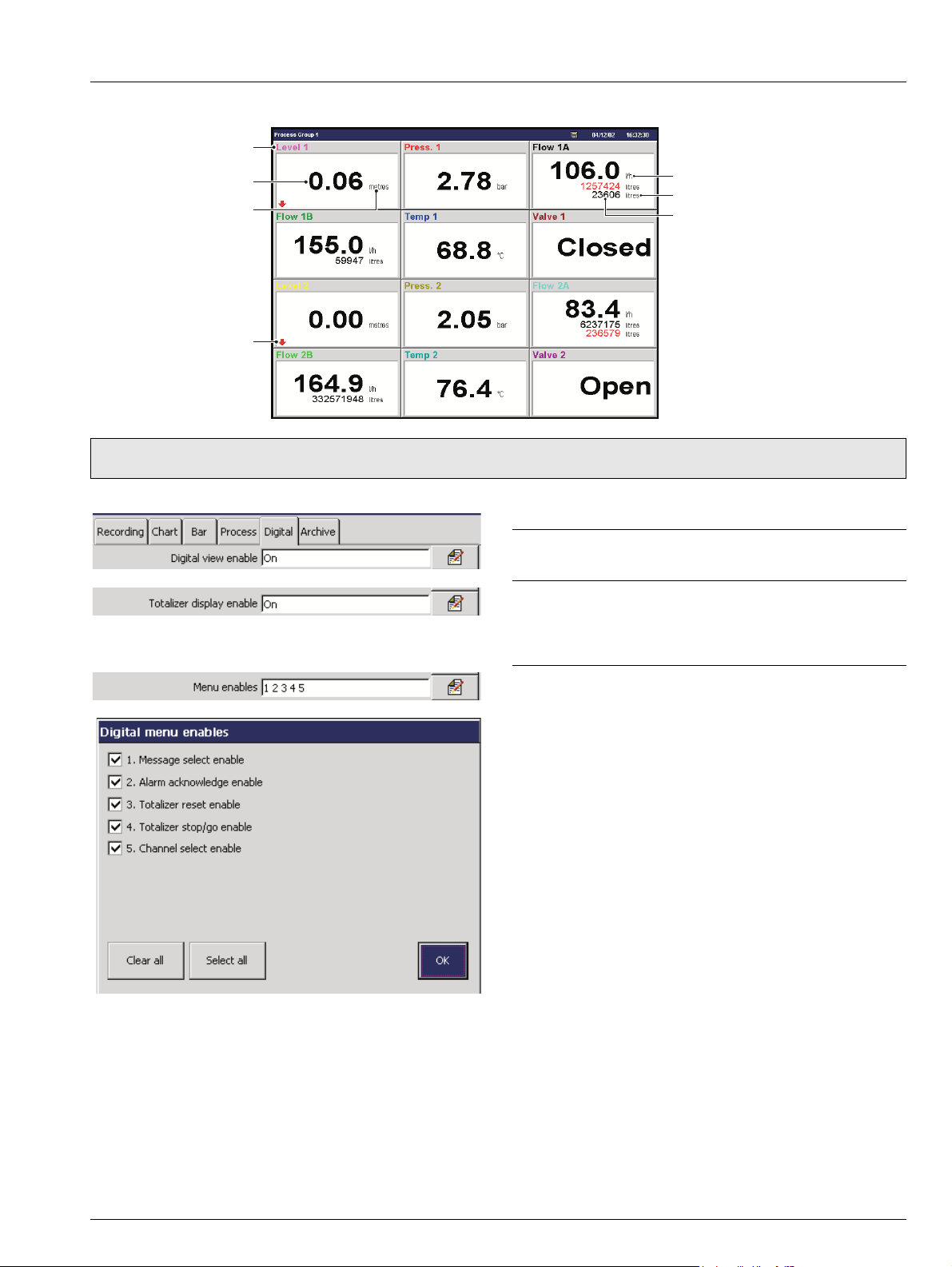

4.5 Digital Indicator View

For a description of the Status Icons (displayed in the Status Bar) and Alarm Event Icons (displayed in the Bargraph, Digital Indicators, Process and Chart Views), see Appendix H, page 190.

Fig. 4.7 Digital Indicator View

Note.

 Digital indicators resize automatically according to the number of channels displayed.

 Totalizers must be configured and enabled before they are displayed – see Section 6.6.5, page 98.

 When a totalizer is not running (i.e. 'Stop' is selected), the corresponding totalizer value is shown in red.

24 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 4 Operation

Select the Configuration Level – see Section 6, page 51.

Select the Setup Level – see Section 5, page 41.

Add one of 24 predefined Operator Messages (see Section 6.4.4, page 68) or one User-Defined Message to the alarm event log.

If '< user defined >' is selected, a data entry keyboard first appears to enable the message to be entered (see Fig. 6.5, page 56).

An 'Assign to group' dialog box then appears to enable the message to be assigned to one or more Process Groups.

IM/SM3000–EN Rev. L 25

SM3000

Twelve Channels Selected Six Channels Selected

Multipoint Videographic Recorder 4 Operation

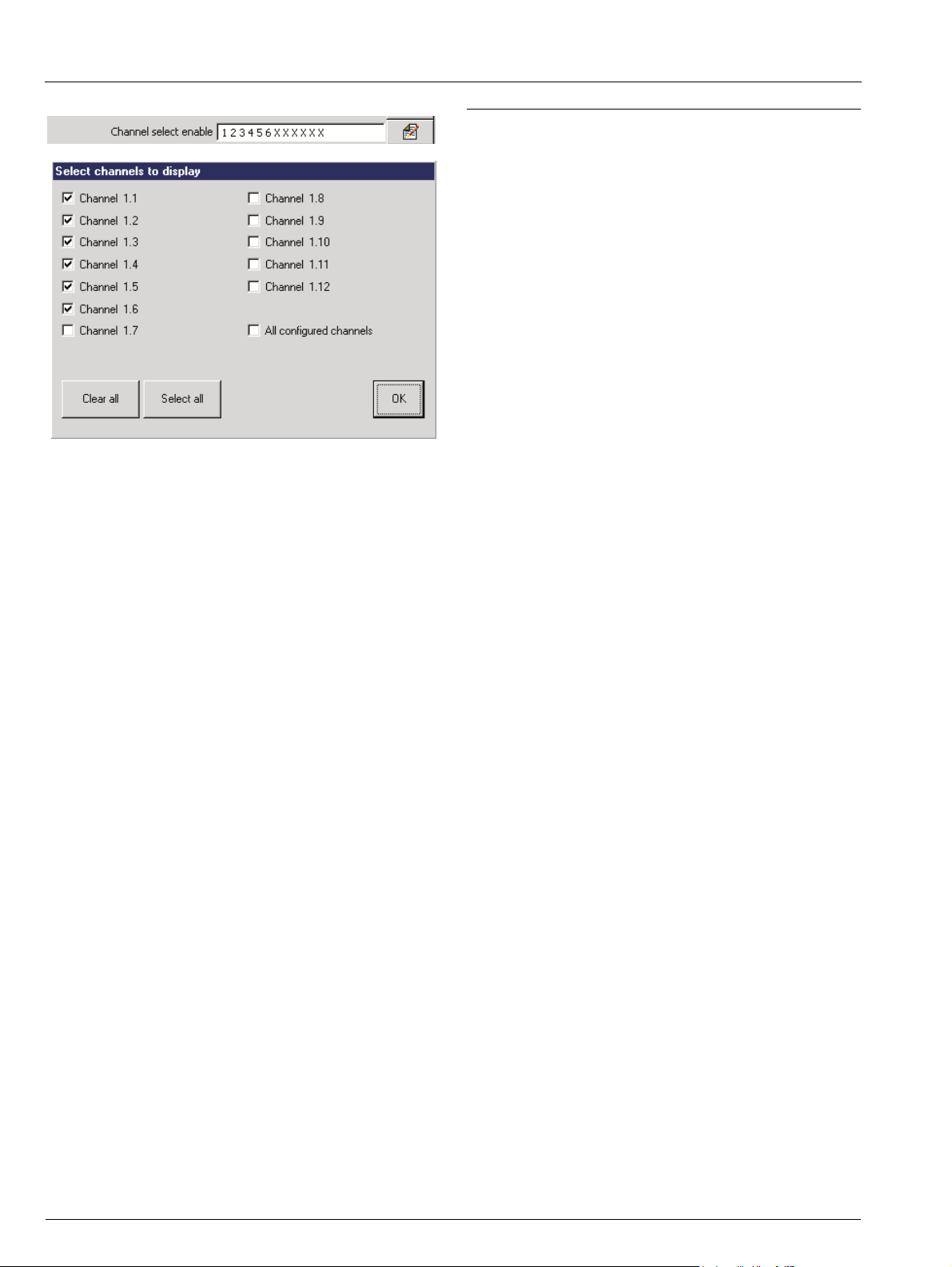

Hide or display individual channel indicators for the process group currently displayed.

Select the channel digital indicator(s) to be displayed in the digital indicator view:

Select…

– 'Clear All' to clear all check boxes and hide all channels – 'Select All' to select all configured channels for viewing – individual check boxes to select that channel for viewing

Select 'OK' to exit.

Notes.

 The digital indicators displayed are sized equally depending on the number of

channels selected. This has no effect on the recording of the channel.

 The number of channels available for display depends on the number of Process

Groups enabled, for example, if 5 Process Groups are enabled, each group has up to 7 channels available for display.

 Channels that have not been configured are greyed-out in the menu.

26 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 4 Operation

Display all configured channel indicators for the process group currently selected for display.

Display all configured channel indicators for all process groups.

Note. Selecting this option enables up to 36 channels to be displayed if all 36 channels are configured.

Stop and start individual totalizers.

Channel totalizers that have not been enabled in the Configuration level are greyed-out.

Note.

 When a totalizer is not running (i.e. 'Stop' is selected), the corresponding totalizer

value is shown in red.

 When 'Show All Configured Channels' is selected above, this menu changes to

show Group followed by Channel followed by Totalizer.

Reset the totalizer value to the totalizer preset value.

Channel totalizers that have not been enabled in the Configuration level are greyed-out.

Note. When 'Show All Configured Channels' is selected above, this menu changes to show Group followed by Channel followed by Totalizer.

To acknowledge a particular alarm, use the and keys to highlight it in the menu and press the key.

Note.

 Active unacknowledged alarms in the current process group are identified by a red

border around the value in the associated channel indicator, alternating with a red Alarm Event icon in the bottom left hand corner of the same indicator. Active acknowledged alarms are identified by a continuous red Alarm Event icon in the bottom left hand corner of the indicator – see Fig. 4.7, page 24.

 When 'Show All Configured Channels' is selected above, this menu changes to

show Group followed by Channel.

To acknowledge all active alarms in the current process group simultaneously, select 'All' and press the key.

The short channel tags of individual alarms that have not been configured are greyed-out in the menu.

Select 'AutoView Scroll' to display the enabled digital indicator for each configured process group in turn for 40 seconds. The AutoView Scroll status icon ( ) is displayed in the status bar when AutoView Scroll is active. Press any key to cancel AutoView Scroll.

IM/SM3000–EN Rev. L 27

SM3000

Multipoint Videographic Recorder 4 Operation

4.6 Process View

For a description of the Status Icons (displayed in the Status Bar) and Alarm Event Icons (displayed in the Bargraph, Digital Indicators, Process and Chart Views), see Appendix H, page 190.

Fig. 4.8 Process View

Note.

 Only totalizers that have been enabled in the Configuration level are displayed.

 When a totalizer is not running (i.e. 'Stop' is selected), the corresponding totalizer value is shown in red.

28 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 4 Operation

Select the Configuration Level – see Section 6, page 51.

Select the Setup Level – see Section 5, page 41.

Add one of 24 predefined Operator Messages (see Section 6.4.4, page 68) or one User-Defined Message to the alarm event log.

If '< user defined >' is selected, a data entry keyboard first appears to enable the message to be entered (see Fig. 6.5, page 56).

An 'Assign to group' dialog box then appears to enable the message to be assigned to one or more Process Groups.

IM/SM3000–EN Rev. L 29

SM3000

Multipoint Videographic Recorder 4 Operation

Stop and start individual totalizers.

Channel totalizers that have not been enabled in the Configuration level are greyed-out.

Note. When a totalizer is not running (i.e. 'Stop' is selected), the corresponding totalizer value is shown in red.

Reset the totalizer value to the totalizer preset value.

Channel totalizers that have not been enabled in the Configuration level are greyed-out.

To acknowledge a particular alarm, use the and keys to highlight it in the menu and press the key.

Note. In Process View, inactive alarms in the current process group are indicated by a grey Alarm Event icon next to the Alarm Tag. Active alarms are identified by a red Alarm Event icon next to the Alarm Tag. Acknowledged alarms are identified by a red Alarm Acknowledged icon next to the Alarm Trip Level – see Fig. 4.8, page 28.

To acknowledge all active alarms in the current process group simultaneously, select 'All' and press the key.

The short channel tags of individual alarms that have not been configured are greyed-out in the menu.

Select 'AutoView Scroll' to display the enabled process view for each configured process group in turn for 40 seconds. The AutoView Scroll status icon ( ) is displayed in the status bar when AutoView Scroll is active. Press any key to cancel AutoView Scroll.

30 IM/SM3000–EN Rev. L

SM3000

Global Alarm Status Icon (see Note 1 on Page 12)

Multipoint Videographic Recorder 4 Operation

4.7 Group Overview

For a description of the Status Icons (displayed in the Status Bar) and Alarm Event Icons (displayed in the Bargraph, Digital Indicators, Process and Chart Views), see Appendix H, page 190.

Fig. 4.9 Group Overview

IM/SM3000–EN Rev. L 31

SM3000

Multipoint Videographic Recorder 4 Operation

Select the Configuration Level – see Section 6, page 51.

Select the Setup Level – see Section 5, page 41.

Sign the chart electronically – see Section 4.3.1, page 20.

Add one of 24 predefined Operator Messages (see Section 6.4.4, page 68) or one User-Defined Message to the alarm event log.

If '< user defined >' is selected, a data entry keyboard first appears to enable the message to be entered (see Fig. 6.5, page 56).

An 'Assign to group' dialog box then appears to enable the message to be assigned to one or more Process Groups.

32 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 4 Operation

Reset the Maximum and Minimum value markers on one or all channels to the current value.

Notes.

 These Maximum and Minimum values are for display purposes only. They are not

saved or archived and are not connected to the Totalizer Maximum and Minimum Values displayed in the Process View.

 These Maximum and Minimum values are reset whenever the current configuration

has been changed or is re-saved.

Group Overview is not group specific therefore to acknowledge a particular alarm, use the , and keys to select the group, highlight the alarm in the sub-sub-menu and press the key.

Note. In Group Overview, active alarms are identified by a flashing red group tag field. Acknowledged alarms are identified by a steady red group tag field – see Fig. 4.9, page

31.

To acknowledge all active alarms in all process groups simultaneously, select 'All' and press the key.

To acknowledge all active alarms in the selected process group simultaneously, select 'All' and press the key.

The short channel tags of individual alarms that have not been configured are greyed-out in the menu.

IM/SM3000–EN Rev. L 33

SM3000

Instrument Status – see Fig. 4.11, page 35.

Audit Log – See Fig. 4.12.

Multipoint Videographic Recorder 4 Operation

4.8 Instrument Status / Audit Log View

Note.

 The combined Instrument Status and Audit log view provides an overview of the instrument's status together with an

historical log of system activity.

 The two views are described separately in Sections 4.8.1 and 4.8.2.

Fig. 4.10 Instrument Status / Audit Log

Select the Configuration Level – see Section 6, page 51.

Select the Setup Level – see Section 5, page 41.

34 IM/SM3000–EN Rev. L

SM3000

Cold junction temperatures for Modules A to F; measured by the built-in cold junction circuitry.

'Not Used' is displayed if none of the inputs on the modules are thermocouples.

Amount of memory used

on the archive media

currently installed

Approximate time left before the current archive media is full, assuming the amount of data recorded remains the same

Instrument Software Version

Operating System Version

Instrument Serial Number

Instrument Tag

Modules fitted to the instrument

Time Left Display Format

>=1 Day: Days, e.g. '5 Days' >=1 Hour, <1 Day: Hours, e.g. '10 hours' <1 Hour: Minutes, e.g. '25 minutes'

Selects Process Group 1

Selects the Alarm Event Log

Opens the Operator Menu for

the current view

Multipoint Videographic Recorder 4 Operation

4.8.1 Instrument Status View

Note. The Instrument Status view provides an overview of the instrument's status.

Fig. 4.11 Instrument Status

IM/SM3000–EN Rev. L 35

SM3000

Multipoint Videographic Recorder 4 Operation

4.8.2 Audit Log View

Note.

 The Audit log view provides an historical log of system activity.

 When the number of entries in the Audit log has reached that defined in 'Audit log size' (see Section 6.4.3, page 67), the

oldest data is overwritten by the newest. Entries are renumbered so that the number of the oldest entry is always 00.

For a description of the Audit Log Icons (displayed in the Audit Log) see Appendix H, page 190.

Fig. 4.12 Audit Log

36 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 4 Operation

4.9 Alarm Event Log

Note. The Alarm Event log view provides an historical log of all alarm events in the sequence in which they occurred. To view the

current status of all alarms, choose the Process View – see Section 4.6, page 28.

For a description of the Alarm Event Icons (displayed in the Alarm Event Log and in the Bargraph, Digital Indicators, Process and Chart Views), see Appendix H, page 190.

Fig. 4.13 Alarm Event Log

Note. When the number of entries in the Alarm Event log has reached that defined in 'Alarm log size' (see Section 6.4.3, page 67), the oldest data is overwritten by the newest. Entries are renumbered so that the number of the oldest entry is always

00.

IM/SM3000–EN Rev. L 37

SM3000

Multipoint Videographic Recorder 4 Operation

Select the Configuration Level – see Section 6, page 51.

Select the Setup Level – see Section 5, page 41.

Select the entries to be displayed in the log.  Indicates entries currently displayed.

Note.

 Hiding and displaying log entries does not affect the recording of events in the log.

 All selected alarm event transitions (from inactive to active, from active to

acknowledged, from acknowledged to inactive, from active to inactive) appear in the sequence in which they occurred.

 Selecting 'All Data' displays entries for all enabled group alarms and operator

messages.

 Selecting 'Active Transitions Only' displays entries for alarms when made active

and hides all acknowledged & inactive transitions.

The Alarm Event log is not group specific therefore to acknowledge a particular alarm, use the , and keys to select the relevant process group, followed by the alarm to be acknowledged from the sub-sub-menu.

To acknowledge all active alarms in all process groups simultaneously, select 'All Groups' and press the key.

To acknowledge all active alarms in the selected process group simultaneously, select 'All' and press the key.

The short channel tags of individual alarms that have not been configured are greyed-out in the menu.

38 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 4 Operation

4.10 Totalizer Log

Note.

 The Totalizer log view provides an historical log of totalizer activity. To view the current totalizer status, choose the Process

or Digital View.

 When the number of entries in the Totalizer log has reached that defined in 'Totalizer log size' (see Section 6.4.3, page 67),

the oldest data is overwritten by the newest. Entries are renumbered so that the number of the oldest entry is always 00.

 The logging of totalizer values can be triggered at pre-determined intervals and/or by digital signal – see 'Log update time'

and 'Log update source' on page 99.

For a description of the Totalizer Log Icons (displayed in the Totalizer Log and the Process View), see Appendix H, page 190.

Fig. 4.14 Totalizer Log

IM/SM3000–EN Rev. L 39

SM3000

Multipoint Videographic Recorder 4 Operation

Select the Configuration Level – see Section 6, page 51.

Select the Setup Level – see Section 5, page 41.

Select the entries to be displayed in the log.  Indicates entries currently displayed.

Note.

 This selection does not affect which events are recorded in the log.

 Totalizer groups that have not been configured are greyed-out in the menu.

Select 'All Data' to select all enabled totalizers for display.

Selecting 'Max / Min Details' changes the totalizer log view to show the dates and times at which the maximum and minimum values occurred:

40 IM/SM3000–EN Rev. L

SM3000

Invalid Password

Entered

(see Note Below)

Valid Password

Entered

Setup Security

Not Enabled

Setup

Security

Enabled

Setup

Operator 1

Enter Password

(see Section 5.3, page 42)

Multipoint Videographic Recorder 5Setup

5Setup

5.1 Introduction

Note. Users with Setup access can:

 Start/Stop recording.

 Switch between primary and secondary recording rates.

 Set archiving 'on-line' and 'off-line'.

 View internal and external archive media file directories and delete external archive media files.

5.2 Accessing the Setup Level

Fig. 5.1 Accessing the Setup Level

Note. If an incorrect password is entered the display returns to the Operating view. However, if the maximum number of consecutive incorrect password entries is exceeded, the user's access privileges are removed and the following message is displayed:

If this occurs, access privileges can be reinstated only by the system administrator (User 1). If the system administrator's access privileges have been removed, the security system must be disabled using the configuration security switch (Yellow switch) to gain access to the configuration – see Section 6.1.2, page 51.

IM/SM3000–EN Rev. L 41

SM3000

Multipoint Videographic Recorder 5Setup

5.3 Password Entry

Enter Password

1. Select the required character using the , , , and keys.

2. Add the selected character to the password string using the key.

Note. For security, all characters are displayed as ''.

3. Repeat 1 and 2 until all characters have been entered.

4. Highlight the 'OK' button using the , , , and keys and press .

Change Password

Select 'Change Password' using the , , , and keys and press .

1. Highlight the Edit Button ( ) using the and keys and press to display the character entry box.

2. Enter the old password using the , , , and keys. Highlight the 'OK' button and press .

3. Enter the new password using the same procedure as for the old password.

4. Enter the new password again to confirm it.

5. Highlight the 'OK' button and press .

Password change successful.

Note. If the key is pressed at any stage or 'OK' is selected before the new password is confirmed, the password change operation is cancelled and the following message is displayed:

Password Expired

Passwords can be configured to expire at pre-determined intervals. If a password is time expired, this screen is displayed automatically. Enter a new password as described above.

42 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 5Setup

5.4 Setup Menu

Use this menu to stop and start recording or change the sample rate for the channels in the current Process Group.

The Primary sample rate is set typically to a relatively slow rate (depending upon process recording requirements) and is active during normal process operating conditions in order to maximize internal memory and external archive media.

The Secondary sample rate is set typically to a faster rate than the Primary sample rate and may be selected manually in order to record the maximum amount of detail during, for example, an alarm condition.

The rates are set during configuration – see Section 6.5.1, page 76.

Note.

 Switching between the primary and secondary sample rates does not affect the

screen interval in the Vertical and Horizontal Chart views or the screen duration in the Circular Chart view.

 When the channels are set to 'Stop' the instantaneous values in the associated

indicator are displayed in red and, after the end of the next sample period, no further samples are plotted on the associated traces.

 Digital recording channels can only be set to 'Stop' or 'Go'.

 Recording control can also be implemented using digital sources – see

Section 6.5.1, page 76.

If selected, the date of the oldest unarchived data is set to that of the oldest data in the internal flash memory. This allows all data in the internal memory to be re-archived to external media.

Note. Ideally, a blank media storage card should be inserted prior to selecting this function.

To re-archive data:

1. Insert archive media, with sufficient free space, into the instrument.

2. Select 'Stay Offline' from the 'Select data to be archived' box that appears.

3. Select 'Reset archiving' in the Setup Menu.

4. Select 'On-line' in the Setup Menu.

5. Select data to be archived (if >1 day of data in internal memory) and press .

IM/SM3000–EN Rev. L 43

SM3000

Multipoint Videographic Recorder 5Setup

Places the archive media on-line, starting the archiving process.

Note.

 The On-line function is disabled (greyed-out in the Setup Menu) if no archive media

card is inserted or the instrument has been placed in Historical Review mode.

 When an archive media card is inserted and there is <1 day of data in internal

memory, the 'Select Line Status' dialog box (left) is displayed, giving the user the choice of placing archiving on-line or remaining off-line. Archiving is placed automatically on-line in 10 seconds unless 'Stay Offline' is selected.

 When an archive media card is inserted and there is >1 day of data in internal

memory, the 'Select data to be archived' dialog box (above left) is displayed. Select data to be archived and press .

Once selected, all data within the selected time frame is archived. Older unarchived data remains in the internal memory buffer until overwritten by newer data but is not available for archiving unless 'Reset archiving' is selected.

Places the archive media off-line. Recording of channel data into internal memory continues uninterrupted but archiving to the removable media is suspended until it is put on-line again.

Note.

 Always set the external media Off-line before removing it.

 The Off-line function is disabled (greyed-out in the Setup Menu) when in Historical

Review mode.

Use the file viewer to view a list of the files stored in internal memory and on external archive media.

Note. Files stored in internal memory cannot be deleted.

The diagnostics features are available only on instruments with the Advanced Software option enabled. To use the diagnostics features, refer to the Advanced Software Options User Guide Supplement, IM/SM3000ADV.

44 IM/SM3000–EN Rev. L

SM3000

Time Left Display Format ³1 Day: Days, e.g. '5 days'

1 Hour, <1 Day: Hours, e.g. '10 hours' <1 Hour: Minutes, e.g. '25 minutes'

Amount of memory used on the external archive media currently installed

Approximate time left before the current external archive media is full, assuming the amount of data recorded remains the same.

External archive media not inserted (yellow flashing exclamation mark)

External archive media on-line (green icon, shaded area indicates % used)

External archive media off-line (grey icon, shaded area indicates % used)

External archive media update in progress (see

Note below)

External media 100% full, archiving stopped (green/red icon, flashing white cross)

Warning! Too many files (green icon  media online, grey icon  media offline)

Too many files, archiving stopped (red icon, flashing yellow cross)

Multipoint Videographic Recorder 5Setup

5.5 Archiving

Recorded data, logs and configuration files stored on the instrument's internal memory can be archived to files created on removable media. Parameters for archiving each process groups' data are configured independently.

Note. To configure Archiving, refer to Section 6.5.6, page 85.

5.5.1 Card Compatibility

Our recorders comply with approved industry standards for memory cards. SanDisk Standard Grade memory cards have been fully tested and are recommended for use with our recorders. Other brands may not be fully compatible with this device and therefore may not function correctly.

5.5.2 Media Status

Fig. 5.2 Media Status Icons

Note. Do not remove media while either of the media update in progress status icons ( or ) are displayed.

IM/SM3000–EN Rev. L 45

SM3000

Unlock the media door with the key supplied and press the release catch to open the door

Withdraw the media

Compact Flash Media

Press the eject button

SmartMedia

Set the archive media off-line – see Section 5.4, page 43

Note. When inserting the media into the instrument:

 Ensure the media is the correct type for the instrument.

 If SmartMedia option is fitted, ensure only 3.3 V

SmartMedia cards used.

 Do not use excessive force.

Multipoint Videographic Recorder 5Setup

5.5.3 Inserting and Removing Media

Fig. 5.3 Inserting and Removing External Media

46 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 5Setup

5.5.4 Archive File Types

Archive files created by the instrument are given filenames automatically. Each type of archived file is given a different filename extension as shown in Table 5.1.

Ty pe Extension No. of

Files

Channel data files

Alarm event log files

To ta l iz e r log files

Audit log files

Batch data files

Batch log files

*.B00

*.EE0

*.TE0

*.AE0

*.V**

*.X**

One per channel

One per process group

One per instrument

One per process group

One per instrument

Contents

Analog or digital recording channel data

The historical record of the alarm events related to a particular process group's channels plus the history of any operator messages, electronic signatures or real time alarms.

The historical record of all totalizer and associated statistical values relating to a particular group's recording channels.

The historical entries from the audit log.

Analog or digital recording channels in the current process group when the batch function is active

Historical record of the batches recorded.

Table 5.1 Archive File Types

5.5.5 Archive Filenames

Archive filenames are formatted as shown in Table 5.2.

Ty pe Format

Channel data files

Alarm event log files

To ta l iz e r log files

Audit log files

<Start Time HHMMSS><Start Date DDMMMYY>Ch<Group>_<Channel><Instrument tag> for example, 14322719Dec03Ch1_2Boiler room3

<Start Time HH_MM><Start Date DDMMMYY><Process Group Tag> for example, 14_3219Dec03Boiler5

<Start Time HH_MM><Start Date DDMMMYY><Instrument Tag> for example, 14_3219Dec03Boiler room 3

5.5.6 Channel Data Files

A new channel data file is created under the following conditions:

 On power up.

 When the current file for a channel does not exist on the

media card.

 When the maximum size (5Mb) of the existing data file is

exceeded.

 When the recording channel's configuration is changed.

 When the daylight saving period starts or ends.

Note. The instrument's internal clock can be configured to adjust automatically at the start and end of Daylight Saving Time (Summertime) periods – see Section 6.4.1, page 61.

Files containing channel data generated during the daylight saving period have “~DS” appended to the filename.

Example 1 – Start of daylight saving period: Archiving is started at 01:45:00 on 30th March 2003 – filename: 01450030Mar03Ch1_1AnlgSM3000.B00.

Summertime starts at 2:00am on 30th March 2003. The clock changes automatically to 3:00am. The existing file is closed and a new file is created – filename: 03000030Mar03Ch1_1AnlgSM3000~DS.B00.

The file '01450330Mar03Ch1_1AnlgSM3000.B00' contains data generated from 01:45:00 to 01:59:59 (before summertime starts).

The file '03000030Mar03Ch1_1AnlgSM3000~DS.B00' contains data generated from 03:00:00 (after summertime starts).

Example 2 – End of daylight saving period: Archiving is started at 00:15:00 on 26th October 2003 – filename: 00150026Oct03Ch1_1AnlgSM3000~DS.B00.

Summertime ends at 3:00am on 26th October 2003. The clock changes automatically to 2:00am. The existing file is closed and a new file is created – filename: 02000026Oct03Ch1_1AnlgSM3000.B00.

The file '00150026Oct03Ch1_1AnlgSM3000~DS.B00' contains data generated from 00:15:00 to 02:59:59 (before summertime ends).

The file '02000026Oct03Ch1_1AnlgSM3000.B00' contains data generated from 02:00:00 (after summertime ends).

Table 5.2 Archive Filenames

IM/SM3000–EN Rev. L 47

SM3000

Multipoint Videographic Recorder 5Setup

5.5.7 Log files

A new log file is created under the following conditions:

 When an existing valid log file does not exist on an

external archive media card inserted in the instrument.

 When the maximum size (64,000 entries) is exceeded.

 When the daylight saving period starts or ends.

Files containing log data generated during the daylight saving period (summertime) have “~DS” appended to the filename.

5.5.8 On-line/Off-line

Before data can be archived to external media, the external media must be placed on-line and one or more archive file enables set.

 When an external archive media card is inserted and there

is <1 day of data in internal memory, a dialog box is displayed giving the user the choice of putting the media on-line or remaining off-line. If no selection is made within 10 seconds, the media card is placed on-line automatically:

5.5.9 Data Verification and Integrity

When data is saved to the archive media it is checked automatically to verify that the data stored on the media matches exactly what is stored in the internal memory.

Each block of data in the channel data files has its own data integrity check. This enables the integrity of the data stored on the external media card to be verified when it is viewed using the DataManager software package.

The log files also contain built-in integrity checks enabling the integrity of the data to be verified by the DataManager software.

5.5.10 Backing Up Archived Data

It is advisable to back-up critical data stored on SmartMedia or Compact Flash cards on a regular basis. The instrument's internal memory provides a buffer for the most recent data so if data stored on archive media is lost, it can be re-archived – see 'Reset archiving' on page 43.

To ensure that all required data is available for re-archiving, it is recommended that data archived on archive media is removed and backed-up before the instrument's internal buffer overwrites that data. The length of time for which data remains in the instrument's internal memory depends on the sample rate and the number of channels selected – see Table C.1 on page 170 for details.

5.5.11 Archive Wrap

Archiving can be configured to delete the oldest archived data file from the external media automatically when the media approaches its maximum capacity – see 'Wrap' on page 85.

 When an external archive media card is inserted and there

is >1 day of data in internal memory, a dialog box is displayed prompting the user to select either the data to be archived or remain off-line:

 External archive media can be set on-line (if a media card

is inserted) or off-line in the setup menu.

 Set archiving off-line before removing external media to

prevent loss of data and possible damage to the media card.

 When external archive media contains approximately 250

files, its read/write performance begins to degrade and either of the 'Warning – Too Many Files' icons ( or ) are displayed. Change the media as soon as possible.

 When external archive media contains approximately 300

files, its read/write performance becomes too slow, Archiving is stopped automatically and the 'Too Many Files – Archiving Stopped' icons ( alternating with ) are displayed. Change the media immediately to prevent loss of data.

48 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 5Setup

5.5.12 File Formats

The archived data is stored in a secure binary encoded format. A separate file is created for each recording channel. The log data is stored in an encrypted text format. The files can be read on a PC using the Company's DataManager data analysis software package.

Note. Archive files created during the daylight saving period (summertime) are compatible with the database feature of Version

5.8 (or later) only of the Company's DataManager data analysis software package.

Fig. 5.4 Channel Data File Sample

IM/SM3000–EN Rev. L 49

SM3000

Multipoint Videographic Recorder 5Setup

Fig. 5.5 Alarm Event Log Sample

Fig. 5.6 Totalizer Log Sample

Fig. 5.7 Audit Log Sample

50 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 6 Configuration

6 Configuration

6.1 Introduction

This section details the configuration of the instrument locally using the front panel membrane switches. A configuration file can also be created on a PC and transferred to the instrument via one of the archive media options.

In addition, up to 5 different configurations can be stored in internal memory and restored when required.

6.1.1 Configuration Level Security

Two methods of configuration access protection are available:

1. Password protection (Factory Default). The Configuration level cannot be accessed until the correct password has been entered – see Fig. 6.1, page

52.

2. Internal switch protection. The Configuration level cannot be accessed until the instrument is withdrawn from its case and the internal switch set to the 'Configuration Level Not Protected' position – see Fig. 6.2, page 53.

'Configuration security type'

Parameter Setting

(see Section 6.4.2, page 65)

Internal Security Switch

Setting

(see Fig. 6.2, page 53)

Configuration Level

Protected

(Factory Default)

Configuration Level Not

Protected

'Password protected'

(Factory Default)

Password Access No Access

Free Access Free Access

'Internal switch

protected'

(Alternative)

6.1.2 Configuration Level Access – Figs. 6.1 and 6.2

To configure an instrument when 'Configuration security type' is set to the factory default setting of 'Password protected':

 Access the Configuration Level – see Fig. 6.1, page 52.

 Make changes to parameters as detailed in Figs. 6.1

and 6.3.

To configure an instrument when 'Configuration security type' is set to 'Internal switch protected':

 Set the internal security switch to the 'Configuration Level

Not Protected' position – see Fig. 6.2, page 53.

 Access the Configuration Level – see Fig. 6.1, page 52.

 Make changes to parameters as detailed in Figs. 6.1

and 6.3.

IM/SM3000–EN Rev. L 51

SM3000

Valid Password

Entered

Configuration

Check this box to

stop recording whilst

in configuration mode.

Edit the current configuration. Changes are not implemented until saved on exit from the Configuration level.

Cancel and return

to the Operator level.

The existing security configuration parameters are retained (i.e. the security configuration remains as currently configured) when a configuration is opened from file or when a new configuration is loaded. Check 'Load security configuration from file' to overwrite the current security configuration with data from the file to be loaded  see

Note 2 below.

Operator 1

Operator 2 Operator 3 Operator 14 Operator 15

Use the key to toggle between internal and external storage.

Press the key to cancel.

Enter Password

(see Section 5.3, page 42)

Open a configuration saved previously to internal or external storage – see

Note 1 below.

Alternatively, open one of the QuickStart templates – see Appendix D.2, page 174.

Open a new configuration with the default settings detailed in Appendix D.2, page 174 – see

Note 1 below.

Invalid Password Entered

(see

Note in Fig. 5.1 on page 41)

Configuration Level

Protected

see Section 6.1.1, page 51)

Configuration Level

Unprotected

(see Section 6.1.1, page 51)

Multipoint Videographic Recorder 6 Configuration

Fig. 6.1 Accessing the Configuration Level

Note.

1. If 'New Configuration' or 'Open a Configuration' is selected and the modified configuration file is saved later as the current configuration, new internal data files for all enabled recording channels are created and any unarchived data is lost.

2. The option to load or retain the security configuration is available only to the System Administrator (User 1). If a new or existing configuration file is opened by a user other than the System Administrator, the instrument's existing security settings are retained.

52 IM/SM3000–EN Rev. L

SM3000

Withdraw the instrument from the case

Remove tamper-proof seal (if fitted)

Switch off the power to the instrument and unscrew the jacking screw securing the instrument to the case

Set the yellow Security switch to the 'Configuration Level Not Protected' position

Refit the instrument to the case and secure with the jacking screw

Configuration Level Not Protected

Configuration Level Protected

Re-apply power and wait for the Operator level to display

Red Switch

(see Note below)

Access the Configuration level as shown in Fig. 6.1, page 52

Multipoint Videographic Recorder 6 Configuration

Note. The Internal Security Switch is used to access the Configuration level when 'Configuration security type' is set to 'Internal switch protected' – see Section 6.4.2, page 65. Do Not use the switch to access the Configuration level when 'Configuration security type' is set to 'Password protected' (default setting) unless the Password has been forgotten. The switch overrides Password protection, enabling free access to the Configuration level.

Fig. 6.2 Setting the Security Switch

Note. The red switch is for factory use only. Ensure it remains in the position closest to the rear of the instrument.

IM/SM3000–EN Rev. L 53

SM3000

Select 'Common'

from the

Configuration menu

Select the required parameter using the and keys.

Press the key to edit selected parameter.

Use the and keys to select

the next required tab

When all configuration changes are complete, select Exit to save or cancel changes.

Press the key to display the menu. Select the next item required and activate using the key.

Multipoint Videographic Recorder 6 Configuration

6.2 Overview of Configuration

Fig. 6.3 Overview of Configuration Steps

Note. Only enabled Process Groups (and their associated Channel Options) are visible in the menu.

54 IM/SM3000–EN Rev. L

SM3000

Parameter

Value

Edit ButtonConfiguration Tab

Parameter

Copy Window

Parameter Selection Window  see

Note 1

below

Use the and keys to highlight a different selection.

Use the key to accept the selection.

Use the key to advance to the next channel and the key to go back to the last channel.

Multipoint Videographic Recorder 6 Configuration

6.3 Making Changes to Parameters

Fig. 6.4 Locating Parameter Settings

Note.

1. The appropriate parameter selection window or data entry dialog box is displayed automatically – see Fig. 6.5, page 56.

2. Use the key to open the Configuration menu in order to select a different channel – see Fig. 6.13, page 86.

IM/SM3000–EN Rev. L 55

SM3000

1 2 3 4 X X X X X X X X

Cursor

Parameter Limits

623.45

Use and keys to highlight an item and press

to select it.

Spacebar

Highlight text box and use and keys to position cursor to edit text as required.

Use , , and keys to highlight a character and press to select it.

Note. Values outside the preset parameter limits or with too many decimal places are highlighted when the OK button is selected.

Use the key to toggle keyboard

between upper case, lower case

and symbol characters.

Note. Items not selected are indicated by an X in the parameter value window.

Multipoint Videographic Recorder 6 Configuration

Fig. 6.5 Parameter Selection Windows/Data Entry Dialog Boxes

Note. Tags with a high percentage of capital letters and wide characters such as 'W' or 'M' may appear truncated in some Operator Views. In such cases, use lower case letters or fewer characters.

56 IM/SM3000–EN Rev. L

SM3000

Select the tab appropriate

to the data to be copied.

Source of copied data

Press the key to open the menu and use the , and keys to copy the source settings to the selected destinations.

Press the key to open the menu and use the , and keys to exit the copy facility.

Press the

key to open

the menu and use the

and keys to select

the copy facility.

Use the

, , ,

and keys to select

copy destinations.

Multipoint Videographic Recorder 6 Configuration

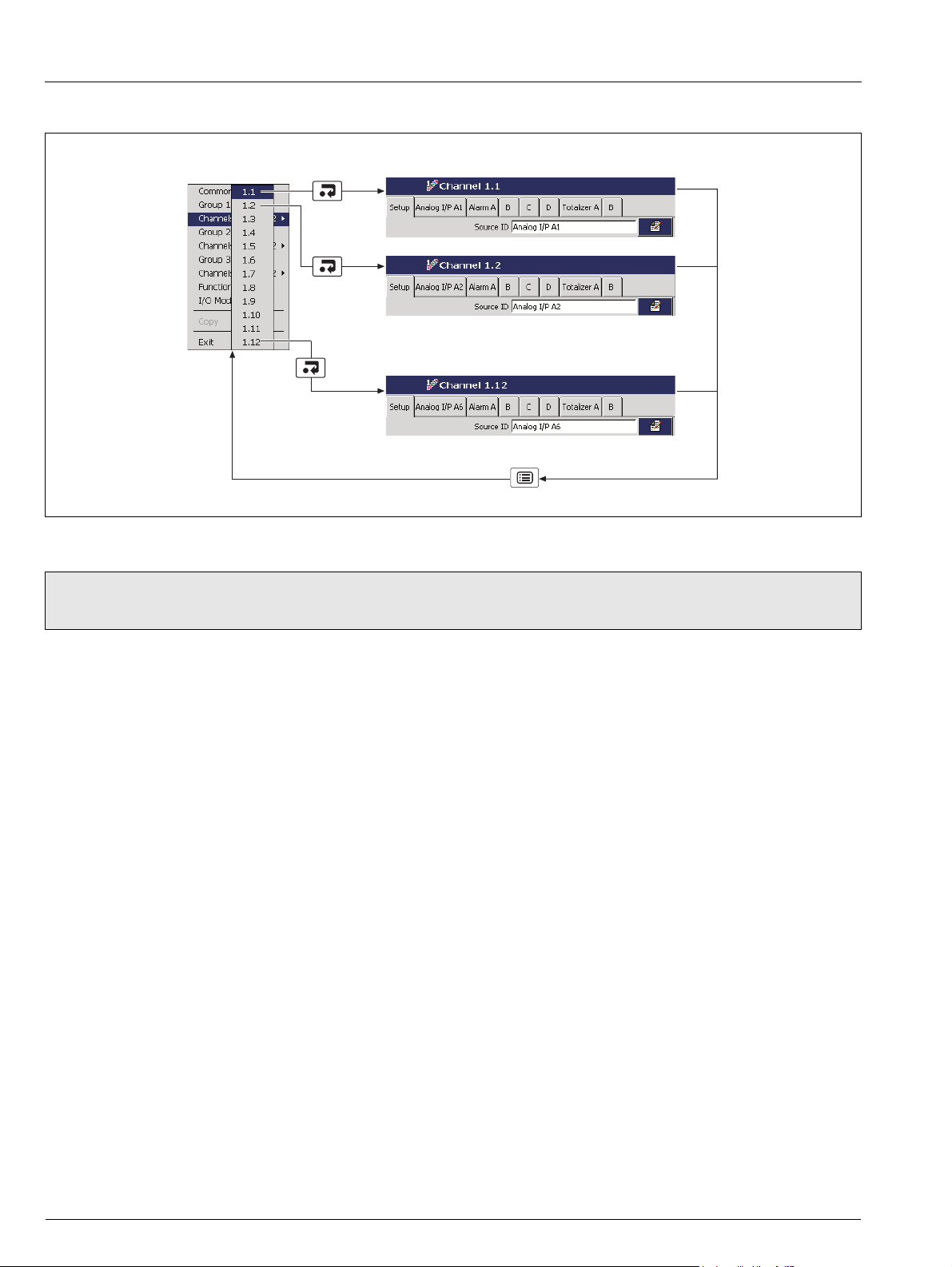

Fig. 6.6 Copy Facility

Note. The copy facility enables the settings from a feature configured previously to be copied to other, identical features; for example, from one analog input to another, one operator message to another, etc.

IM/SM3000–EN Rev. L 57

SM3000

Multipoint Videographic Recorder 6 Configuration

Parameter Copy?

Common Configuration

Operator Messages

Message tag 

Source ID 

Group Configuration

Recording

Ta g 

Recording enable source 

Primary sample rate 

Secondary sample rate 

Sample rate select source 

Chart View

Chart view enable 

Chart annotation 

Major chart divisions/Chart divisions 

Minor chart divisions 

Screen interval/Chart duration 

Menu enables (All) 

Bargraph View

Bargraph view enable 

Bargraph markers 

Menu enables (All) 

Process View

Process view enable 

Menu enables (All) 

Digital Indicator View

Digital view enable 

Totalizer display enable 

Menu enables (All) 

Channel select enable (All) 

6.4 Common Configuration

Fig. 6.8 Selecting Common Configuration

6.4.1 Setup

Configuration type is fixed as 'Basic'.

Enter the number of process groups required.

The number of channels assigned to each process group is dependent upon the number of groups selected – see Table 6.2 below.

Note. If the 'Number of groups' setting is increased, the channel source IDs of all new channels are set to 'None' and their alarms and totalizers are set to 'Off'.

No. of

Groups

No. of Channels

per Group

1 12 Ch1.1 to Ch1.12 12 5 7 Ch1.1 to Ch1.7

2 12 Ch1.1 to Ch1.12

3 12 Ch1.1 to Ch1.12

4 9 Ch1.1 to Ch1.9

Channel IDs Tot a l N o . o f

Channels

Ch2.1 to Ch2.12

Ch3.1 to Ch3.12

Ch2.1 to Ch2.9

Ch3.1 to Ch3.9

Ch4.1 to Ch4.9

No. of

Groups

No. of Channels

per Group

6 6 Ch1.1 to Ch1.6

Channel IDs To t a l N o . o f

Ch2.1 to Ch2.7

Ch3.1 to Ch3.7

Ch4.1 to Ch4.7

Ch5.1 to Ch5.7

Ch2.1 to Ch2.6

Ch3.1 to Ch3.6

Ch4.1 to Ch4.6

Ch5.1 to Ch5.6

Ch6.1 to Ch6.6

Table 6.2 Channels and Groups

Channels

IM/SM3000–EN Rev. L 61

SM3000

1

Multipoint Videographic Recorder 6 Configuration

Enable or disable the process group overview display.

Note. If 'Number of groups' is set to 1, group overview is not available.

Select 'Enable' to enable group overview. Select 'Max and Min' and 'Alarms' to enable maximum and minimum markers and alarms for display as required.

Select the language to be used to display standard user prompts and menu items.

A digital signal source can be used to acknowledge active alarms in all Process Groups simultaneously. Refer to Appendix A on page 129 for a full list of sources available.

Enter the tag to be used to identify the instrument on configuration and audit log files.

Note. When reviewing data, the instrument tag is used to identify the source of the data, therefore it is important to ensure that the instrument tag is unique to each recorder.

Select the waiting time between the last key press and activation of the screen saver.

When set to 'Enabled', the user can save an image of any Operator screen to external archive media by pressing the key when an Operator Menu is not open.

Note.

 All images are saved to a folder on the archive media

named 'BMP'.

 The images are saved even if archiving is set to 'Offline'.

 If external archive media is not inserted, or is full, the

screen capture facility is disabled automatically.

•1 A new internal data file for all the recording channels in this group is created if this parameter is changed. All historical data stored internally for these channels is lost.

62 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 6 Configuration

Set the current date and time.

Note. If daylight saving is required, enter the settings (see next page) before setting the time and date as the operation of the internal clock is affected by the daylight saving settings.

Note.

 The date and time cannot be adjusted if recording is

enabled during configuration, i.e the 'Disable recording in configuration' check box is not ticked on entry to the Configuration level – see Fig. 6.1, page 52.

 Changes to the date and time are effective immediately

upon selecting 'OK' in the dialog box above. Selecting 'Cancel' upon exiting Configuration Mode (see Fig. 6.7, page 60) does not reset the clock to its previous setting. Select 'Cancel' in the dialog box above to exit date and time setup without saving changes.

 Setting an earlier date or time results in the loss of all data

currently in the internal buffer memory past that date. Data archived to external media is unaffected. If an earlier time must be set, change the Instrument Tag (see page 62). This causes new archive files to be created and the duplicated hour of data is then saved to the new files.

 Time changes due to automatic daylight saving do not

affect the recorded data.

 Archive files created during the daylight saving period (see

Section 6.5.6, page 85) are compatible with the database feature of Version 5.8 (or later) only of the Company's DataManager data analysis software package.

IM/SM3000–EN Rev. L 63

SM3000

Multipoint Videographic Recorder 6 Configuration

Select the daylight saving method.

Note. Changes to daylight saving are effective immediately a method is selected. However, if 'Cancel' is selected upon exiting Configuration Mode (see Fig. 6.7, page 60), the last saved daylight saving settings are restored.

Off Daylight saving is disabled.

Auto - USA The start and end of the daylight saving period in the

USA is calculated automatically.

The clock is incremented automatically by 1 hour at 2:00am on the first Sunday in April and decremented automatically by 1 hour at 2:00am on the last Sunday in October.

Auto - Europe The start and end of the daylight saving period in

Auto - Custom The start and end of the daylight saving period can be

Central Europe is calculated automatically.

The clock is incremented automatically by 1 hour at 2:00am on the last Sunday in March and decremented automatically by 1 hour at 2:00am on the last Sunday in October.

configured manually for regions that do not follow either the USA or Europe conventions.

The clock is incremented automatically by 1 hour at the manually selected start time and decremented automatically by 1 hour at the manually selected end time.

Note. Displayed only if 'Daylight Saving - Enable' is set to 'Auto - USA'.

Note. Displayed only if 'Daylight Saving - Enable' is set to 'Auto - Europe'.

Note. Displayed only if 'Daylight Saving - Enable' is set to 'Auto - Custom'.

Set the start and end of the daylight saving period.

64 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 6 Configuration

6.4.2 Security

Change user names, access privileges and passwords.

Note.

 User 1 is the System Administrator and is able to change user names/access privileges and enter initial passwords for all

users. Other users cannot change their user names and access privileges once set by User 1. All users may change their own passwords.

 All other parameters can be changed only by the System Administrator (User 1).

Set the method of access to the Configuration level. If 'Password protected' is selected, access is by means of the password set above.

Note. If 'Internal switch protected' is selected, access to the Configuration level for all users is prohibited once the changes have been saved and made active. Access to the configuration level is then achieved only by setting the internal security switch to the 'Configuration Level Not Protected' position – see Fig. 6.2, page 53.

When set to 'On', access to the Setup level is password protected and restricted to users with setup access privileges. Each user must enter their own unique password.

Passwords are entered initially by the System Administrator but, subsequently, any user can change their own password. When this parameter is set to 'Yes', each user must change their password after it is used for the first time following initial configuration – see also 'User 2 Password' on page 66.

Enter the time period after which all passwords will expire. After this period of time, all users have to change their passwords.

Enter the time period after which an inactive user's access privileges are de-activated. A user is considered inactive if their password has not been used. A user is de-activated by removal of their access privileges and can be re-activated only by the System Administrator (User 1).

IM/SM3000–EN Rev. L 65

SM3000

Multipoint Videographic Recorder 6 Configuration

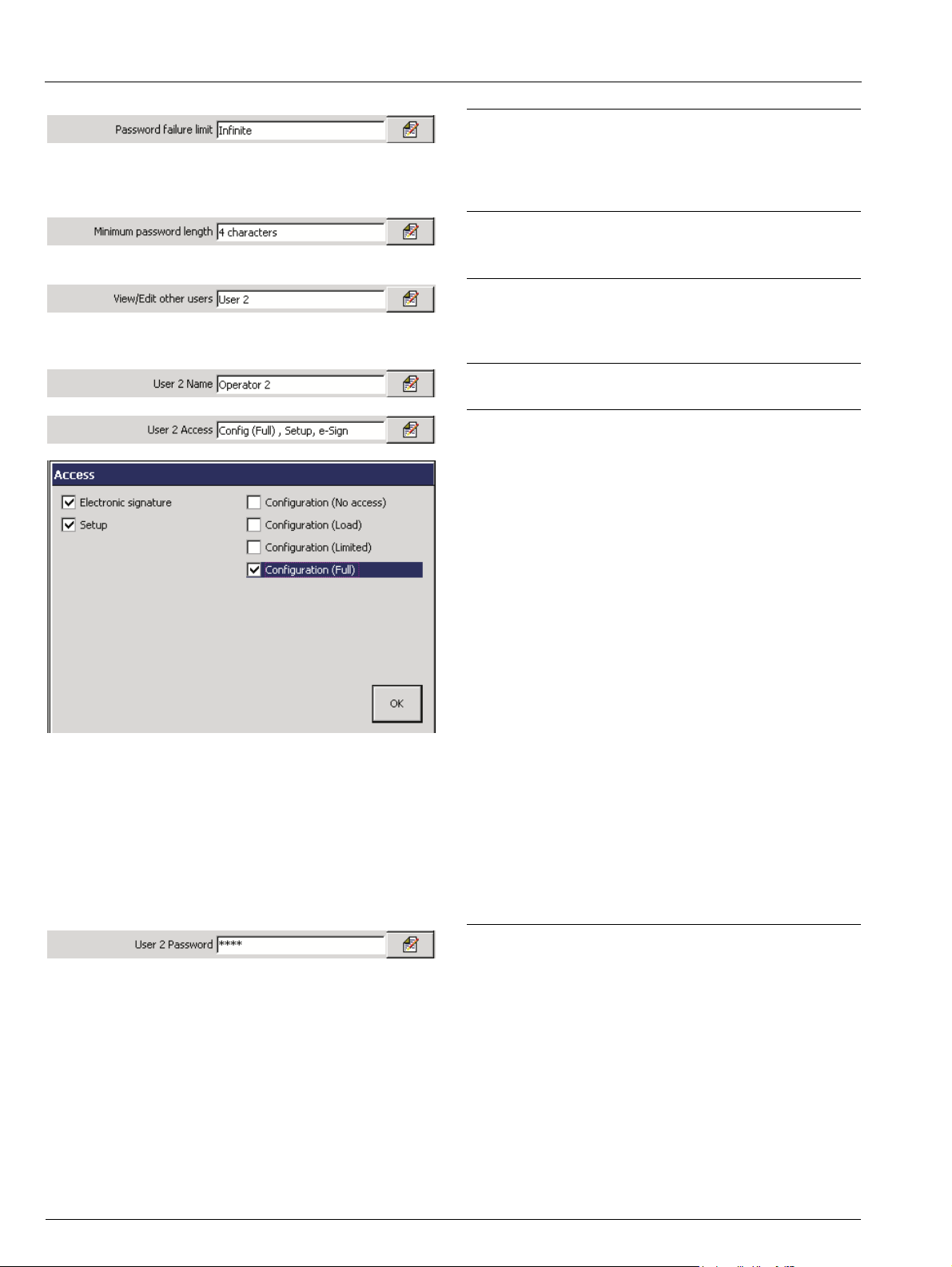

Enter the number of consecutive incorrect password entries allowed by a user. If the number of incorrect entries exceeds this limit, the user's access privileges are de-activated and can be reinstated only by the System Administrator (User 1).

Passwords have a maximum length of 20 characters. Enter the minimum length required for all new passwords.

The System Administrator (User 1) can view and/or change the user name, access privileges and password for any other user. Select the user to be viewed/edited.

Enter a name for the selected user.

Set access privileges for selected user.

Disabled – The selected user is unable to access the

Configuration and Setup levels or enter electronic signatures.

Setup – The selected user is able to access the

Setup level.

e-Sign – The selected user is able to enter an

electronic signature.

Config (Full) – The selected user is allowed full

configuration access with the exception of access to the Audit Log size setting and the Security Settings.

Note. The System Administrator (User 1) only is able to change the Audit Log size and the Security Settings.

Config (Ltd) – The selected user is able to:

• Change alarm trip points, hysteresis and time hysteresis settings.

• Make input adjustments for analog input boards.

• Load configurations from external media only.

Config (Load) – The selected user is unable to make any

configuration changes but can load configurations from external media.

Enter an initial password for the selected user.

Note. The user may subsequently change this password.

66 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 6 Configuration

6.4.3 Logs

Set the maximum number of entries in each instrument log.

Note. Changing the log size deletes the current log entries.

The Alarm Event log records all process alarm transitions (inactive to active, unacknowledged to acknowledged or active to inactive), real-time events and Operator Messages – see Section 4.9, page 37.

The Totalizer log records all activity associated with the totalizers: start, stop, reset, wrap, current total and intermediate totals – see Section 4.10, page 39.

The Audit log records all system changes and events – see Section 4.8.2, page 36.

Note. The size of the Audit log can be changed only by the System Administrator (User 1).

Log sizes must be set in the range 10 to 200. The size of the logs has no effect on the amount of memory available for storing channel data.

IM/SM3000–EN Rev. L 67

SM3000

Multipoint Videographic Recorder 6 Configuration

6.4.4 Operator Messages

Operator messages can be triggered via the Operator Menus or a digital signal.

Message Tag

Enter the message text – 20 characters maximum.

Group

Select the group(s) to which the message is to apply.

Source ID

Select the internal or external signal source used to add the tag to the Alarm Event log. Refer to Appendix A on page 129 for a full list of sources available.

68 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 6 Configuration

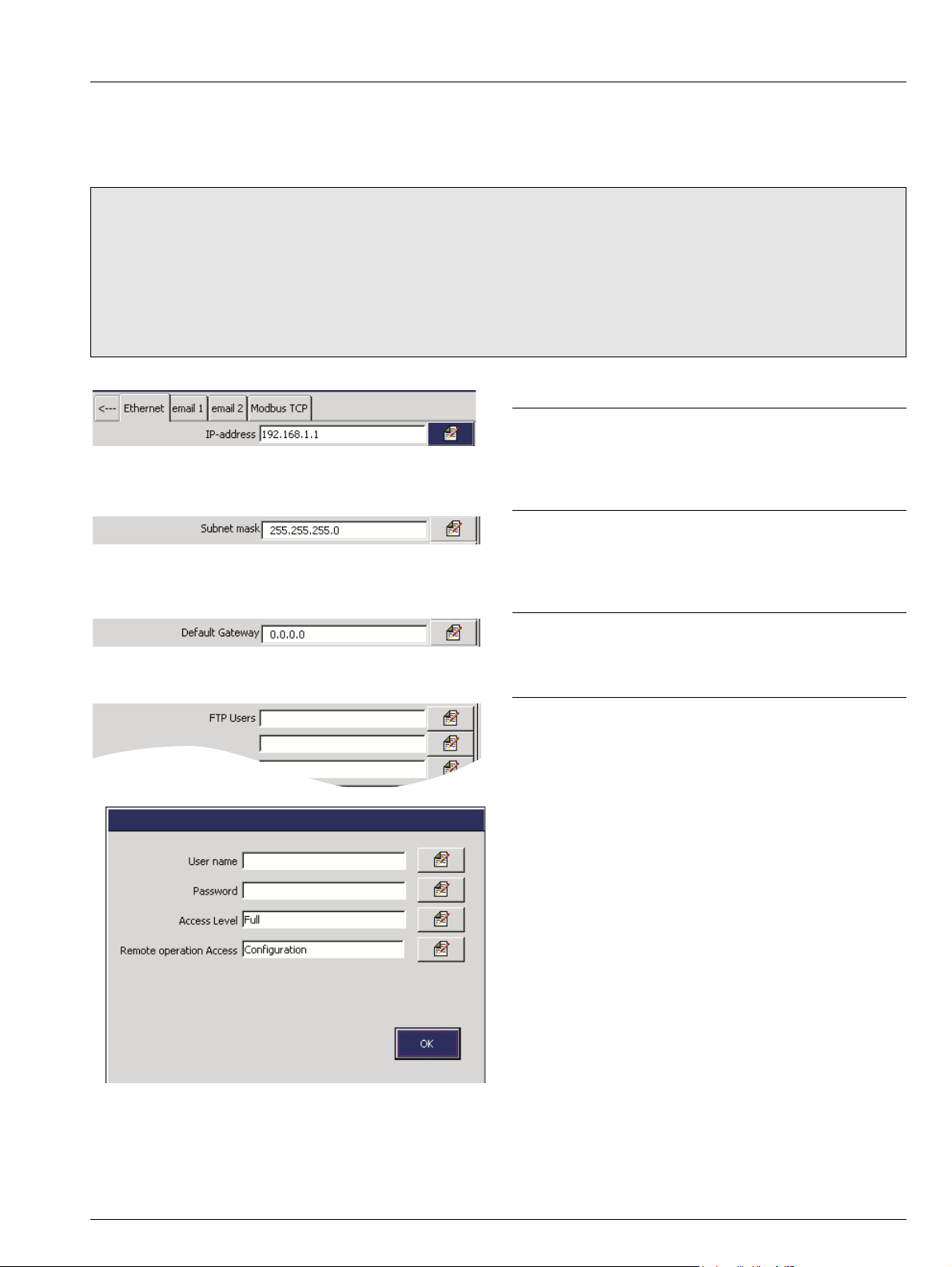

6.4.5 Ethernet

The Ethernet module fitted to the instrument contains an embedded web server enabling the instrument's data and status to be viewed remotely using an internet browser on a PC. The web server supports up to eight independent connections.

Note.

 To connect the instrument to an Ethernet network, see Section 7.9, page 120.

 For an overview of Ethernet Communications and information on testing, FTP access and a operation of the instrument's

embedded web server – see Appendix E, page 176.

 Changes to the IP address, subnet mask and default gateway are implemented only after the instrument has been

restarted. Change the addressing parameters, exit and save the configuration, wait until the 'Please Wait' message disappears then power down and restart the instrument.

Set the IP address to be assigned to the instrument. The IP address is used by the TCP/IP protocol to distinguish between different devices. The address is a 32 bit value expressed with four values (0 to 255), each separated by a period (.).

The subnet mask is used to indicate which part of the IP address is for the network ID and which is for the host ID. Set as '1's each bit that is part of the network ID, for example,

255.255.255.0 indicates first 24 bits are for the network ID.

Set the IP address for the gateway (router, switch etc.) required to communicate with other networks. This setting may not be required. The default setting is 0.0.0.0

The FTP user name and password are used during logon to enable the FTP server. Access for up to 11 different users is provided. These passwords can also be used to allow access to some functionality provided by the web server.

Enter the name of the user granted FTP access.

Enter the password of the user granted FTP access.

Select whether this FTP user has full access (i.e. the ability to read, write and delete files) or read-only access.

Note. If a user is given full access via FTP, that user is able to delete both data and configuration files. This could result in erroneous operation of the instrument.

Select the level of remote operation access granted to this user:

None – the user is unable to log on to the instrument

remotely using a web browser

Operator – the user can acknowledge alarms and

start/stop totalizers using a web browser

Configuration – in addition to operator functions, the user can

load configurations and change the instrument's internal clock using a web browser

IM/SM3000–EN Rev. L 69

SM3000

Multipoint Videographic Recorder 6 Configuration

6.4.6 email

The instrument can be configured to send emails to a maximum of 6 recipients in response to certain events. The addressees can all subscribe to the same SMTP server or the instrument can be configured to send emails via 2 different SMTP servers to a maximum of 3 addressees per server.

Up to 10, independently configurable triggers can be enabled to generate an email when the selected source becomes active.

When a trigger source becomes active, an internal 1 minute delay timer is started. At the end of that minute, an email is generated that includes, not only the event that initiated the delay timer, but every other event that occurred during the delay period together with any enabled reports. The data returned in the email therefore reflects the real-time alarm state at the time the email was generated, not the state when the first trigger source became active.

Each email includes a link to the instrument's embedded web server enabling the instrument's data and status to be viewed remotely using an internet browser on a PC – see Section 6.4.5, page 69 and see Appendix E, page 176.

SMTP Authentication

SMTP messages are sent without authentication, meaning they are sent without a name and password to identify the originator of the email. This may cause an email server to reject a recorder's request to send an email.

To prevent this, allocate a fixed IP address to the recorder and ensure this IP address is explicitly allowed as valid in the configuration of the email server (and any intervening firewalls).

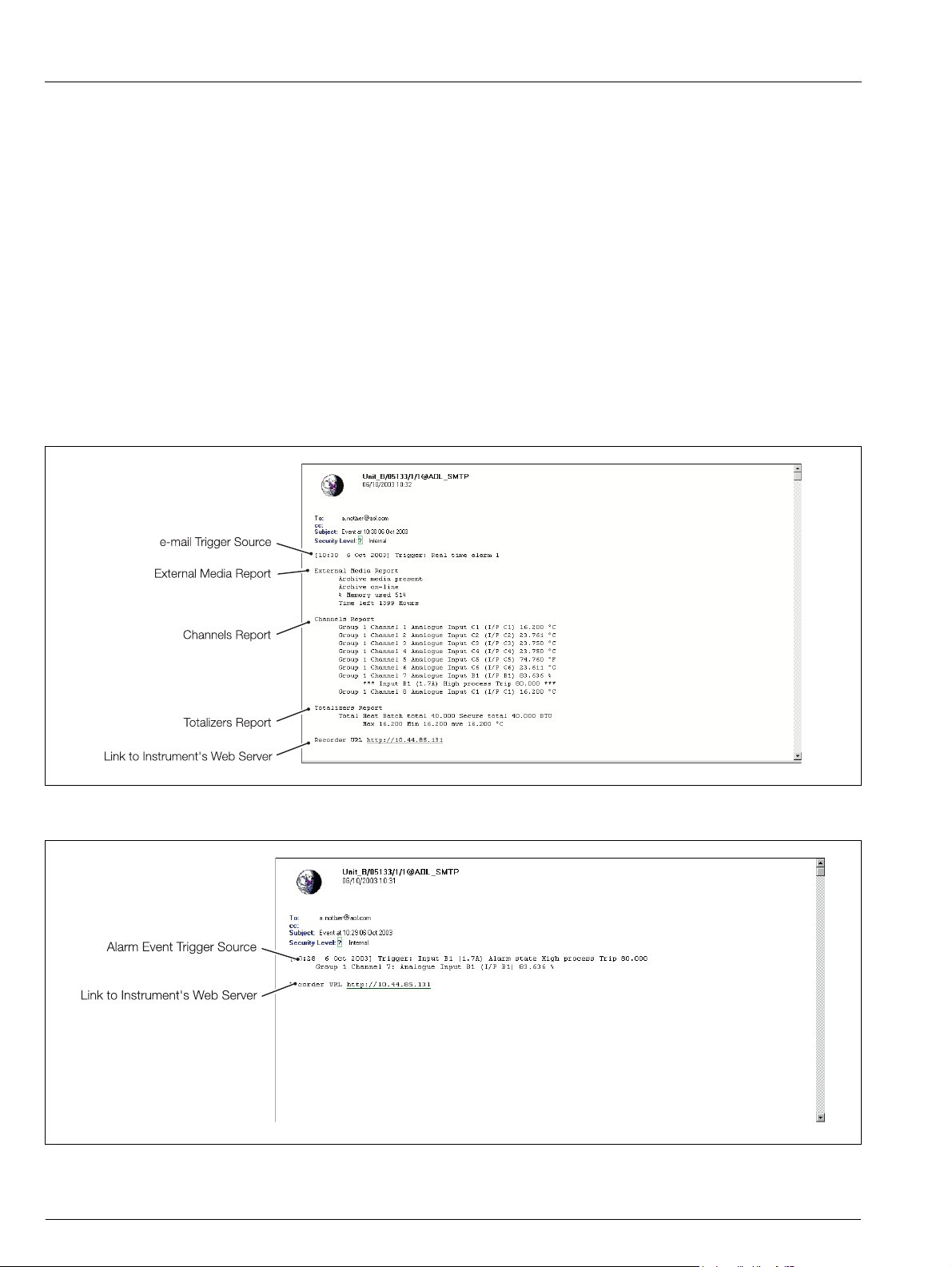

Fig. 6.9 Reports email Example

Fig. 6.10 Event Trigger email Example

70 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 6 Configuration

Enter the IP address of the SMTP server through which emails are to be routed.

Enter the address(es) of the email recipient(s).

Select the options to enable:

Channels Report

A summary of all enabled channels is included in the email, together with their instantaneous values.

Totalizers Report

A summary of all enabled totalizers is included in the email, together with their instantaneous values.

External Media Report

A summary of the condition of the external media (if any) and archiving status is included in the email. Fig. 6.9 on page 70 is an example of a reports email.

Notes.

 Reports, when enabled, are included only on an email

generated as a result of a real-time alarm event unless the 'Reports in ALL emails' box is ticked, in which case enabled reports are included on every email generated.

 Triggers 6 to 10, if enabled ('Source Type' set to anything

other than 'None' – see below), may be 'inverted', i.e. an email is generated when the trigger source becomes inactive instead of active. Event trigger source types that cannot be inverted are: Alarm acknowledge, Any alarm and New alarm.

Select up to 10 event source types to generate an e-mail. Fig. 6.10 on page 70 is an example of an event-triggered e-mail.

IM/SM3000–EN Rev. L 71

SM3000

Multipoint Videographic Recorder 6 Configuration

6.4.7 Modbus TCP

Modbus TCP enables Modbus TCP devices to communicate via an ethernet network transferring Modbus messages via TCP/IP. Communication with standard, serially connected, Modbus RTU devices is also possible through a Modbus TCP Gateway.

The instrument can be configured to act as either a Modbus TCP Server (Slave) or a Modbus TCP Client (Master) device on a Modbus TCP network.

If configured as a Server, the recorder responds to Modbus queries transferred via the Modbus TCP protocol for the registers described in Appendix B, page 131. The recorder can be configured for unrestricted access or access can be restricted to a maximum of 6 Modbus TCP Clients, from defined IP addresses.

If configured as a Client, the recorder collects data from Modbus TCP Servers (or RTUs via a gateway) into its 36 Comms Analog and 36 Comms Digital Channels. Each analog and digital input can be individually configured to any register within any slave device. The configuration allows for receipt of data in most commonly used data formats

Select the required Modbus TCP configuration.

Disabled – Modbus TCP disabled.

Modbus TCP Server– instrument acts as a Modbus Slave

Modbus TCP Client – instrument acts as a Modbus Master

Note. Displayed only if 'Implementation'

is not set to 'Disabled'.

Set the TCP/IP port-through used by the Modbus TCP network – normally port 502.

Note. The remaining parameters on this page are displayed only if 'Implementation' (above) is set to 'Modbus TCP Server', i.e. the instrument is configured to act as a Modbus slave on a Modbus TCP network.

Select the maximum number of simultaneous TCP/IP connections permitted:

Unrestricted – any Modbus TCP Client device is permitted to

poll the instrument.

1 (to 6) – only the Modbus TCP client device(s) whose

IP address(es) is(are) entered in the 'Authorized IP 1' (to 'Authorized IP 6') parameter(s) (below) is(are) permitted to poll the instrument.

Note. Displayed only if 'TCP Client Access'

is not set to

'Unrestricted'.

Enter the IP address(es) of the Modbus TCP Client (Modbus Master) device(s) that is(are) permitted to poll the instrument for data.

All analog data is read from the instrument in IEEE format contained in adjacent registers representing the data in high word, low word order.

Select 'Yes' to reverse the IEEE data, otherwise select 'No'.

72 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 6 Configuration

Note. The parameters on this and the next two pages are displayed only if 'Implementation' (see page 72) is set to 'Modbus TCP Client', i.e. the instrument is configured to act as a Modbus master on a Modbus TCP network.

Select the maximum number of simultaneous TCP/IP connections permitted, min. 1, max. 9.

Set the poll rate in milliseconds – min. 0, max. 3600000.

Set the number of successive polls permitted to fail before the data is marked as a failed input – min. 0, max. 4.

Set the timeout time in milliseconds for a single poll – min. 0, max. 60000.

Note. If any RTU devices connected through a gateway are polled, set a response time that is long enough to allow for the normal turn around time from these devices. The configuration allows for only one setting for all devices connected to the network.

Select the comms analog input to hold the data from the nominated slave device.

Select the communications protocol to be used by the instrument to communicate with the nominated slave device:

None – comms analog channel unused

TCP – Modbus Transmission Control Protocol

RTU – access a Remote Terminal Unit (RTU) via Modbus

TCP gateway

Note. Displayed only if 'Protocol' is set to 'RTU'.

Enter the RTU address assigned to the remote unit (1 to 247).

Notes.

 Displayed only if 'Protocol' is set to 'RTU'.

 This setting is always required to access a RTU via

Ethernet.

Set the IP address for the Modbus TCP gateway required to communicate with the RTU.

IM/SM3000–EN Rev. L 73

SM3000

Multipoint Videographic Recorder 6 Configuration

Note. Displayed only if 'Protocol' is set to 'TCP'.

Enter the IP address assigned to the slave device.

Note. Displayed only if 'Protocol' is set to 'TCP' or 'RTU'.

Enter the register number to be read in the slave device.

Note. Displayed only if 'Protocol' is set to 'TCP' or 'RTU'.

Select the register type, 'Holding Register' or 'Input Register'.

Note. Displayed only if 'Protocol' is set to 'TCP' or 'RTU'.

Select the format of the data to be read from the slave device:

Sint16 – signed, 16 bit integer

Sint32 – signed, 32 bit integer, transmitted in high/low

order

rev. Sint32 – signed, 32 bit integer, transmitted in low/high

order

IEEE – 32 bit floating point number, transmitted in

high/low order

Rev. IEEE – 32 bit floating point number, transmitted in

low/high order

Select the comms digital input to hold the data from the nominated slave device.

Select the communications protocol to be used by the instrument to communicate with the nominated slave device:

None – comms digital channel unused

TCP – Modbus Transmission Control Protocol

RTU – access a Remote Terminal Unit (RTU) via Modbus

TCP gateway

74 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 6 Configuration

Note. Displayed only if 'Protocol' is set to 'RTU'.

Enter the RTU address assigned to the remote unit (1 to 247).

Notes.

 Displayed only if 'Protocol' is set to 'RTU'.

 This setting is always required to access a RTU via

Ethernet.

Set the IP address for the Modbus TCP gateway required to communicate with the RTU.

Note. Displayed only if 'Protocol' is set to 'TCP'.

Enter the IP address assigned to the slave device.

Note. Displayed only if 'Protocol' is set to 'TCP' or 'RTU'.

Enter the register number to be read or written to in the slave device.

Note. Displayed only if 'Protocol' is set to 'TCP' or 'RTU'.

Select the register type, 'Input Status' or 'Coil Status'.

IM/SM3000–EN Rev. L 75

SM3000

Process Group 1

Process Group 2

Process Group 3 (see Note below)

Disabled

Enabled

Multipoint Videographic Recorder 6 Configuration

6.5 Process Group Configuration

Fig. 6.11 Selecting Process Group Configuration

Note. The number of Process Groups and associated channel options displayed depend on the number of Process Groups selected during common configuration setup – see Section 6.4.1, page 61.

6.5.1 Setting the Recording Parameters

Enter the process group tag (maximum 20 characters) that appears in the title bar when any operator views from that group are displayed.

Note. Each process group tag must be unique.

Select a signal source to enable/disable recording of all channels in the current Process Group. Refer to Appendix A on page 129 for a description of the available sources.

Note. This signal is edge-triggered. A rising edge (inactive to active) enables recording. A falling edge (active to inactive) disables recording.

76 IM/SM3000–EN Rev. L

SM3000

1

Primary

Secondary

Multipoint Videographic Recorder 6 Configuration

The instrument can be configured to sample all recording channels in the group and store the data in internal memory and external archive media (if archiving is enabled) at two rates, Primary and Secondary.

The Primary sample rate is active during normal process operating conditions and is set typically to a relatively slow rate (depending upon process recording requirements) in order to maximize internal memory and external archive media capacity.

The instrument can be configured to switch to a faster, Secondary sample rate when a selected digital source becomes active in order to record the maximum amount of detail for the period in which that source is active, or may be switched manually – see Section 5.4, page 43.

Set the Primary sample rate to between 0.1 seconds and 720 minutes (12 hours). The table below compares example sample rates with the equivalent chart speeds of a traditional chart recorder together with the storage capacity of internal memory. Refer to Appendix C on page 170 for full details of internal memory and external archive media storage capacity.

Sample Rate

1 second 720mm/h 5.5 days 3 seconds 240mm/h 16.4 days 6 seconds 120mm/h 1.1 months

12 seconds 60mm/h 2.2 months 36 seconds 20mm/h 6.6 months 72 seconds 10mm/h 13.2 months

Equivalent Chart

Speed

On-board Storage Time (6 Channels)

Notes.

 Sample rates are set using one of the following

combinations of units:

– Minutes or minutes and seconds

– Seconds

– Tenths of seconds (minutes and seconds must first be

set to zero).

 The rate at which data is displayed in the Chart View

(screen interval [Horizontal and Vertical Chart View] or chart duration [Circular Chart View]) is set separately – see Section 6.5.2, page 78.

 The sample rate determines the maximum screen interval/

chart duration that can be selected – see Table 4.1 on page 17.

Set the Secondary sample rate to between 0.1 seconds and 720 minutes (12 hours).

Select a signal source to enable switching between the primary and secondary sample rates. Refer to Appendix A on page 129 for a description of the available sources.

Note. This signal is edge-triggered. A rising edge (inactive to active) switches to the secondary sampling rate. A falling edge (active to inactive) switches to the primary sampling rate.

•1 A new internal data file for all the recording channels in this group is created if this parameter is changed. All historical data stored internally for these channels is lost.

IM/SM3000–EN Rev. L 77

SM3000

Major Chart Divisions Minor Chart Divisions

Scale Bar

Chart Trace

Time Stamp

Alarm Event Annotation

Operator Message Annotation

Chart Divisions

Screen Interval

Vertical Chart

Horizontal --> Chart Horizontal <-- Chart

Circular Chart

Multipoint Videographic Recorder 6 Configuration

6.5.2 Configuring the Chart View

78 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 6 Configuration

Select Horizontal --> (Chart runs left to right with scale bar on left), Horizontal <--(chart runs right to left with scale bar on right), Vertical or Circular chart view.

Select the annotations to be displayed on the chart. Alarm events and operator messages are displayed on the chart adjacent to the point at which the alarm occurred – see Section 4.3, page 10.

This initial setting can be changed by the operator if 'Chart annotation select enable' is enabled in the Chart view menu enables – see 'Menu Enables' on page 80.

Set the number of major vertical divisions to be displayed on the scale bar and the chart.

Set the number of minor vertical divisions to appear between the major chart divisions on the scale bar.

Vertical and Horizontal Chart Views only

Set the number of divisions to appear on the chart.

Circular Chart View only

IM/SM3000–EN Rev. L 79

SM3000

Multipoint Videographic Recorder 6 Configuration

Select the amount of historical data to be displayed on the screen. Available selections are limited by the sample rate selected – see 'Primary sample rate' and 'Secondary sample

Vertical and Horizontal Chart Views only

rate' on page 77 and Table 4.1 on page 17.

Circular Chart View only

Select the required trace width in pixels (Vertical and Horizontal Chart views only).

Select the menu items to be accessible from the Chart View.

Message select enable

Enables the operator to activate one of 24 pre-configured messages or a user-defined message.

Alarm acknowledge enable

Enables the Operator to acknowledge any alarms associated with the current group.

Scale select enable (Vertical and Horizontal Chart views only)

Enables the operator to select which scales are displayed on the scale bar at the top of the screen.

Trace select enable

Enables individual chart traces to be displayed or hidden.

Screen interval select enable

Enables the Operator to change the amount of data displayed on the screen at one time.

Historical review enable

Enables the Operator to scroll back through data recorded previously that is no longer visible on screen.

Chart annotation select enable

Enables the display of Alarm events and Operator messages on the chart to be enabled or disabled by the operator.

Totalizer reset enable (Circular Chart view only)

Enables the Operator to reset the totalizers on any or all channels.

Totalizer stop/go enable (Circular Chart view only)

Enables the Operator to stop and start totalizers on any or all channels.

Note. Menu items that are not enabled are greyed-out in the relevant Chart View menu.

80 IM/SM3000–EN Rev. L

SM3000

Analog Channels Digital

Channel

Identical Maximum and Minimum Values

Minimum below engineering limit, maximum above

engineering limit

Maximum Value

(solid color)

Minimum Value

(white fill)

Alarm Trip Level

(

not shown for slow and

fast rate alarms)

Instantaneous Value

Engineering Range Middle Value

Engineering Range High Value

Engineering Range Low Value

Multipoint Videographic Recorder 6 Configuration

6.5.3 Configuring the Bargraph View

Select the Bargraph views to be displayed in the current Process Group.

Select the markers (channel-colored max./min. indicators and alarm trip points) to be displayed on the bargraph.

Select the menu items to be accessible from the Bargraph views.

Message select enable

Enables the operator to activate one of 24 pre-configured messages or a user-defined message.

Alarm acknowledge enable

Enables the Operator to acknowledge any alarms associated with the current group.

Max/min reset enable

Enables the operator to reset the maximum and minimum values of one or more channels to the current value.

Note. Menu items that are not enabled are greyed-out in the Bargraph menu.

IM/SM3000–EN Rev. L 81

SM3000

Channel Long Tag Name (Short Tag Name)

Values since last Totalizer Reset or Totalizer wrap.

Updated only if the Totalizer is Enabled and Running.

Alarm

Ta g

Totalizer Tag

Name

Totalizer

Value

Alarm Trip

Level

Max

Min

Average

Multipoint Videographic Recorder 6 Configuration

6.5.4 Configuring the Process View

Set to 'On' to enable the operator to display the Process view.

Select the menu items to be accessible from the Process view.

Message select enable

Enables the operator to activate one of 24 pre-configured messages or a user-defined message.

Alarm acknowledge enable

Enables the Operator to acknowledge any alarms associated with the current group.

Totalizer reset enable

Enables the Operator to reset the totalizers on any or all channels.

Totalizer stop/go enable

Enables the Operator to stop and start totalizers on any or all channels.

Note. Menu items that are not enabled are greyed-out in the Process view menu.

82 IM/SM3000–EN Rev. L

SM3000

Channel Units

Totalizer Value  see

Note below

Totalizer Units  see

Note below

Short Channel Tag

Current Value

Alarm Status

Units

Multipoint Videographic Recorder 6 Configuration

6.5.5 Configuring the Digital Indicator View

Note. Displayed only if the totalizer is enabled for that channel (see Section 6.6.5, page 98) and for display (see below).

Set to 'On' to enable the operator to display the Digital Indicator view.

Set to 'On' to add the channel totalizer value and units to the indicator displays (if the totalizer for that channel is enabled – see Section 6.6.5, page 98).

Select the menu items to be accessible from the Digital Indicator view.

Message select enable

Enables the Operator to activate one of 24 pre-configured messages or a user-defined message.

Alarm acknowledge enable

Enables the Operator to acknowledge any alarms associated with the current group.

Totalizer reset enable

Enables the Operator to reset the totalizer value to the preset totalizer value on any or all channels.

Totalizer stop/go enable

Enables the Operator to start and stop the totalizer.

Channel select enable

Enables the Operator to display or hide individual channels.

Note. Menu items that are not enabled are greyed-out in the Digital Indicator View menu.

IM/SM3000–EN Rev. L 83

SM3000

Multipoint Videographic Recorder 6 Configuration

Select the channels to be accessible from the Digital Indicator view.

Note. Channels that are not enabled are greyed-out in the Digital Indicator view menu.

84 IM/SM3000–EN Rev. L

SM3000

6.5.6 Archiving Introduction

Recorded data, logs and configuration files stored in the instrument's internal memory can be archived to files created in removable media. Parameters for archiving data in each process group are set up independently.

For a full description of archiving and archive file formats, see Section 5.5, page 45.

Sample Rates

Data is saved to the archive file at the same rate as it is saved to internal memory, i.e. at either the group's primary or secondary recording sample rate.

Fig. 6.12 Archiving Sample Rates

Archive file format is fixed as 'Binary format'

Select the data types that are to be archived to the storage media: Channel Data; Alarm Event log; Totalizer log; Audit log.

Note. The Audit log is archived only with Process Group 1 files.

File Type Contents Extension

Channel data files

Alarm event log files

Totalizer log files

Audit log files The historical entries in the audit log. *.AE0

Analog or digital recording channel data

The historical record of the alarm events related to the group's channels plus the history of any operator messages, electronic signatures or real time alarms.

The historical record of all totalizer and associated statistical values relating to the group's recording channels.

When set to 'On', archive wrap deletes the oldest archived data

*.B00

*.EE0

*.TE0

file from external archive media automatically when the media

IM/SM3000–EN Rev. L 85

approaches its maximum capacity.

When set to 'Off', archiving stops automatically when external archive media is full. No files are deleted.

SM3000

Process Group 1, Channels 1.1 to 1.12

Multipoint Videographic Recorder 6 Configuration

6.6 Channel Configuration

Fig. 6.13 Recording Channel Configuration

Note. The number of Process Groups and associated channel options displayed depend on the number of Process Groups selected during common configuration setup – see Section 6.4.1, page 61.

86 IM/SM3000–EN Rev. L

SM3000

1

Multipoint Videographic Recorder 6 Configuration

6.6.1 Recording Channel Setup

Select the signal source for the selected channel. This can be any external analog or digital signal – Refer to Appendix A, page 129 for full list.

Note.

 The input source for Channel 1 in any process group

must

be an analog input to ensure correct operation of the recorder.

 The tabs change according to the selection made.

Analog Source

Digital Source

 Setting a channel source to 'None' does not switch off the

analog input to which the channel was assigned previously – i.e. the analog input continues to be monitored. To switch off an analog input, set Analog I/P 'Type' for the required channel to 'Off' – see Section 6.6.2, page 89.

The trace color cannot be changed. The trace colors are:

1st 2nd 3rd 4th 5th 6th

Magenta Red Black Green Blue Brown

7th 8th 9th 10th 11th 12th

Yell ow

Dark

Yellow

Cyan

Light

Green

Dark

Cyan

Dark

Magenta

•1 If this parameter is changed from any previous setting other than 'None', a new internal data file for this recording channel is created. All historical data stored internally for this channel is lost. If this parameter is changed from a previous setting of 'None' new internal data files for all enabled recording channels are created. Any unarchived data is lost.

IM/SM3000–EN Rev. L 87

SM3000

1

Raw Input Value

Instantaneous Value at time of sample

Sample Interval

Minimum Value over sample interval

Average Value over sample interval

Maximum Value over sample interval

12:00:00 (Previous

Sample)

12:00:01

(Current Sample)

100

Multipoint Videographic Recorder 6 Configuration

Each recording channel can be configured to position its trace in a specific zone in the vertical or horizontal chart views in order to

'Chart view enable' set to 'Vertical', 'Horizontal -->' or 'Horizontal <--'

separate traces that would otherwise be very close to each other.

Select one of the 15 pre-defined or 10 custom zones available – see Section 6.8.2, page 108 for custom zone configuration details.

'Chart view enable' set to 'Circular'

Select the filter to be applied to the electrical input prior to sampling.

Notes.

 Applicable to analog sources only.

 Filters are applied to the recorded values shown on the

chart view only, not to instantaneous values displayed on the channel indicators or bargraphs.

Instantaneous – A single value based on process conditions at

the time of sampling.

Average – The average value of the analog signal since

the previous sample.

Minimum – The minimum value of the analog signal since

the previous sample.

Maximum – The maximum value of the analog signal since

the previous sample.

Max & min – Two values are recorded to capture the

maximum & minimum signal values since the previous sample. This allows the memory use to be extended by permitting a slower sample rate to be selected without losing the transient behavior of the signal.

•1 If this parameter is changed, a new internal data file for this recording channel is created. All historical data stored internally for this channel is lost.

88 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 6 Configuration

6.6.2 Analog Input Configuration

Note.

 The 'Analog I/P' tab is displayed only if 'Source ID' for the Recording Channel is set to an analog signal source – see

Section 6.6.1, page 87.

 If an analog input is assigned to more than one recording channel, changes to any of its parameters and tags are applied to

each channel the input is assigned to.

 If an analog input is already assigned to another channel, the edit keys ( ) are not available.

Select the electrical characteristics of the input.

Note.

 Simulated input types are available for evaluating

instrument features without the need for process connections.

 If a standard analog input module is fitted and 'Volt free

digital input' is selected, the input channel becomes a digital input channel – see Section 6.6.3, page 92.

 Select 'Off' to disable an analog input.

Warning.

 Ensure that the appropriate electrical connections have

been made – see Section 7.4, page 114.

 When 'Type' is set to 'Volts', input signals with voltages

greater than 2 V (standard inputs) or 1 V (high specification inputs) must be connected through an external voltage divider (part no. GR2000/0375) – see Section 7.4.1, page 114.

 Input signals with voltages up to 2 V (2000 mV – standard

inputs) or 1 V (1000 mV – high specification inputs) may be measured without the need for the voltage divider by setting 'Type' to 'millivolts'.

 An external 10  shunt resistor is required for current

ranges – see Section 7.4.1, page 114.

Select the linearizer type and the units used to condition the input signal before it is sampled.

Note.

 For thermocouple applications using an external fixed cold

junction, set 'Type' to 'millivolts' and select the appropriate linearizer type.

 Linearizer units are displayed only if a temperature

linearizer type (Thermocouple or RTD) is selected.

IM/SM3000–EN Rev. L 89

SM3000

1

Multipoint Videographic Recorder 6 Configuration

Set the required electrical range.

Notes.

 Applicable only to mA, mV, V and Resistance input types.

 When an input is connected through an external voltage

divider (see Warnings on page 89), set the electrical range low and high values to the actual voltage applied to the divider, not the voltage after it has been divided down. The range of the electrical input signal is determined by the input type – see Table 6.3:

Input Standard Inputs High Specification Inputs

Ty pe mV V mA  mV V mA 

Min. 0 0 0 0 –1000 –50 –100 0

Max. 2000 20 50 5000 1000 50 100 2000

Table 6.3 Limits of Electrical Ranges

Specify the display range and units of the engineering value corresponding to the electrical high and low values, within the limits defined in Table 6.4:

THC/RTD °C °F

Ty pe Min. Max. Min. Max.

Type B –18 1800 0 3270 Type E –100 900 –140 1650

Type J –100 900 –140 1650 Typ e K –100 1300 –140 2350 Ty p e L –100 900 –140 1650 Type N –200 1300 –325 2350

Ty p e R & S –18 1700 0 3090

Typ e T –250 300 –400 570

Pt100 –200 600 –325 1100

Power 5/2

Power 3/2

Square Root

Custom Linearizer 1

Custom Linearizer 2

Custom Linearizer 3

Custom Linearizer 4

Linear

–999 to +9999

Table 6.4 Limits of Engineering Ranges

Example – for an electrical input range of 4.0 to 20.0 mA, representing a pressure range of 50 to 250 bar, set the 'Engineering low' value to 50.0 and the 'Engineering high' value to 250.0.

•1 If this parameter is changed, a new internal data file for this recording channel is created. All historical data stored internally for this channel is lost.

90 IM/SM3000–EN Rev. L

SM3000

1

Multipoint Videographic Recorder 6 Configuration

Enter the tag name to be displayed on channel indicators and used to identify the channel in archive files (8 characters max.).

Note. Tags with a high percentage of capital letters and wide characters such as 'W' or 'M' may appear truncated in some Operator Views. In such cases, use lower case letters or fewer characters.

Enter the tag name to be displayed in the Process view and used in the archive files (20 characters max.).

Set the time period over which the process variable is to be filtered prior to being sampled (0 to 60 seconds).

Set a tolerance level (between 0 and 100 % of the engineering range) to allow for deviation of the input signal above or below the input span before an input failure is detected.

Example – setting the fault detection level to 10 % on an input range of 50 to 250 bar causes an 'Analog Input Failure' fault to be detected below 30 bar and above 270 bar.

In the event of an input failure, recorder channels can be set to drive upscale, downscale or in the direction of failure.

Upscale – channel value driven beyond full scale.

None – driven in direction of failure.

Downscale – channel value driven below zero.

•1 If this parameter is changed, a new internal data file for this recording channel is created. All historical data stored internally for this channel is lost.

IM/SM3000–EN Rev. L 91

SM3000

1

Multipoint Videographic Recorder 6 Configuration

6.6.3 Digital Input Configuration

Note. The 'Digital I/P' tab is displayed only if 'Source ID' for the Recording Channel is set to a digital signal source – see

Section 6.6.1, page 87.

Note. This parameter is displayed only if a standard analog input module is fitted and 'Input type' on the 'Analog I/P' tab is set to 'Volt free digital input'. If this parameter is changed to anything other than 'Volt free digital input', the input channel reverts to an analog input channel – see Section 6.6.2, page 89.

Enter the tag to be displayed on channel indicators when the digital signal is active (6 characters max.).

Note. Tags with a high percentage of capital letters and wide characters such as 'W' or 'M' may appear truncated in some Operator views. In such cases, use lower case letters or fewer characters.

Enter the tag to be displayed on channel indicators when the digital signal is inactive (6 characters max.).

Enter the tag name to be displayed on channel indicators and used to identify the channel in archive files (8 characters max.).

Note. Tags with a high percentage of capital letters and wide characters such as 'W' or 'M' may appear truncated in some Operator views. In such cases, use lower case letters or fewer characters.

Enter the tag name to be displayed in the Process view and used in the archive files (20 characters max.).

•1 If this parameter is changed, a new internal data file for this recording channel is created. All historical data stored internally for this channel is lost.

92 IM/SM3000–EN Rev. L

SM3000

Trip Point

Alarm On

Alarm Off

Alarm On

Alarm Off

High Process

Low Process

Hysteresis

Process

Variable

Trip Point

Alarm On

Alarm Off

Alarm Latched

Alarm acknowledged

by operator

Hysteresis

Process Variable

Trip Point

Alarm On

Alarm Off

Alarm Latched

Alarm acknowledged

by operator

Hysteresis

Process

Variable

High Latch Alarm Action

Low Latch Alarm Action

Multipoint Videographic Recorder 6 Configuration

6.6.4 Alarm Configuration

Fig. 6.14 High/Low Process Alarms

Fig. 6.15 High/Low Latch Alarms

IM/SM3000–EN Rev. L 93

SM3000

High Annunciate Alarm Action Low Annunciate Alarm Action

Alarm On

Alarm acknowledged

by operator

Hysteresis

Process

Variable

Alarm Off

Trip Point

Alarm Off

Hysteresis

Process

Variable

Alarm On

Alarm acknowledged

by operator

Deviation exceeded  fast rate alarm becomes active, slow rate alarm becomes inactive, new period starts.

Deviation below limit at end of time period  fast rate alarm becomes inactive, slow rate alarm becomes active.

Deviation below limit at end of time period  alarm becomes inactive.

Alarm On

Alarm Off

Fast Rate Alarm

Period

Deviation

Deviation exceeded  fast rate alarm becomes active, slow rate alarm becomes inactive, new period starts.

Deviation below limit at end of time period  slow rate alarm becomes active, new period starts.

Alarm On

Alarm Off

Slow Rate Alarm

Multipoint Videographic Recorder 6 Configuration

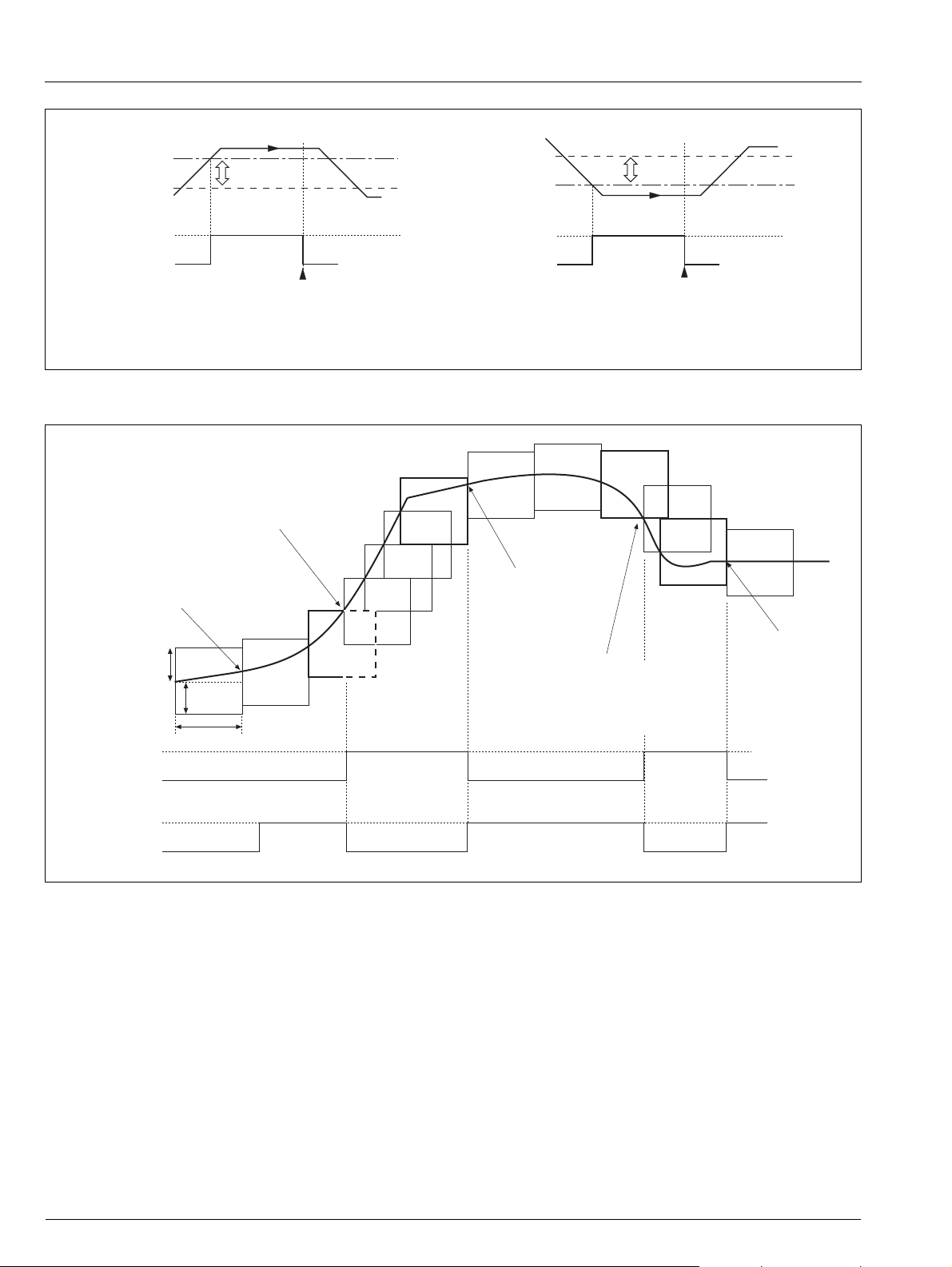

Fig. 6.16 High/Low Annunciate Alarms

Fig. 6.17 Fast-/Slow-Rate Alarms

94 IM/SM3000–EN Rev. L

SM3000

Hysteresis

Alarm On

Alarm Disabled

Alarm Enabled

Trip Point

Alarm Off

Delay Time

Process

Variable

Process variable goes above trip point but alarm is not activated because enable signal is low (Alarm Disable).

Process variable goes below trip (hysteresis) point therefore alarm is de-activated.

Alarm Enable signal is switched On. Alarm delay timer is started.

Process variable goes above trip point but alarm is not activated because alarm delay time has not expired.

Alarm delay timer expires, alarm is now enabled. Alarm is activated because process variable is above trip point.

Process variable goes above trip point, alarm is activated (alarm is enabled and delay time has expired).

Alarm Enable signal is switched Off. Alarm is disabled immediately. Alarm de-activates.

Multipoint Videographic Recorder 6 Configuration

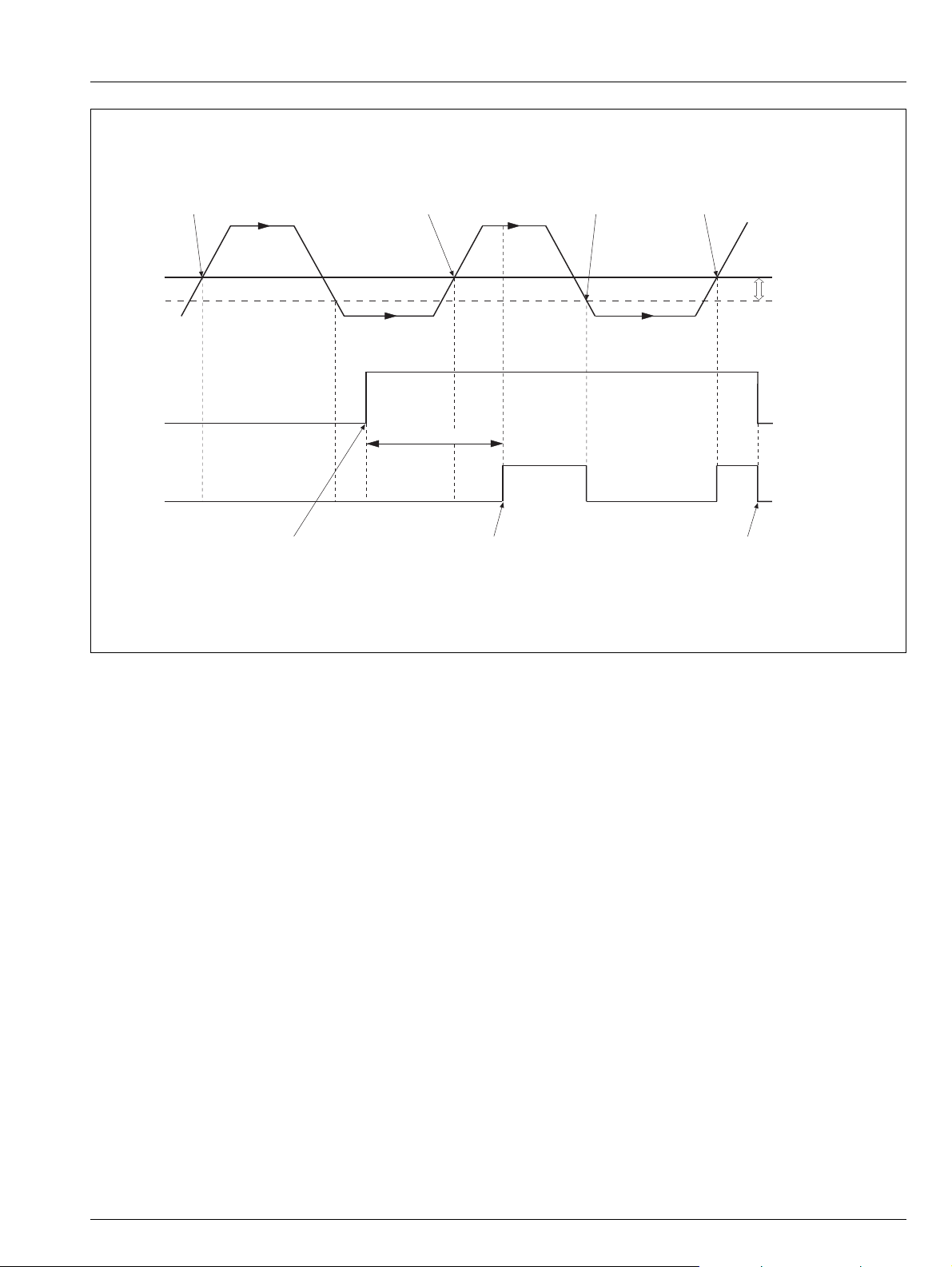

Fig. 6.18 Delayed High/Low Process Alarms

IM/SM3000–EN Rev. L 95

SM3000

High Trip

Low Trip

Process Variable

Hysteresis

Trip Point

Alarm On Alarm Off

Output

Alarm Trip Point

Alarm On

Alarm Off

Time in seconds (s)

Timer

Started

Timer Reset

Timer

Started

Hysteresis

Time

Elapsed

Timer Reset

40 00

70 130

Multipoint Videographic Recorder 6 Configuration

Note. The Alarm Configuration tabs are displayed only if 'Source ID' for the Recording Channel is set to an analog signal source – see Section 6.6.1, page 87.

Set the alarm type:

High/Low process – see Fig. 6.14, page 93

High/Low latch – see Fig. 6.15, page 93

High/Low annunciate – see Fig. 6.16, page 94

Fast/Slow rate – see Fig. 6.17, page 94

Delayed high/low process – see Fig. 6.18, page 95

Enter an Alarm Tag to identify the alarm when it is displayed in the Chart, Process and Alarm Event views (20 characters max.).

Set the value, in engineering units, at which the alarm is to activate.

Note. Process, Delayed process, Latch and Annunciate alarms only.

Set the hysteresis value, in engineering units.

Note. Process, Delayed process, Latch and Annunciate alarms only.

Set the time hysteresis value, in seconds. When an alarm trip value is exceeded, the alarm does not become active until the time hysteresis value has expired. If the signal goes out of the alarm condition before the time hysteresis has expired, the hysteresis value is reset.

Note. Process, Latch and Annunciate alarms only.

96 IM/SM3000–EN Rev. L

SM3000

Multipoint Videographic Recorder 6 Configuration

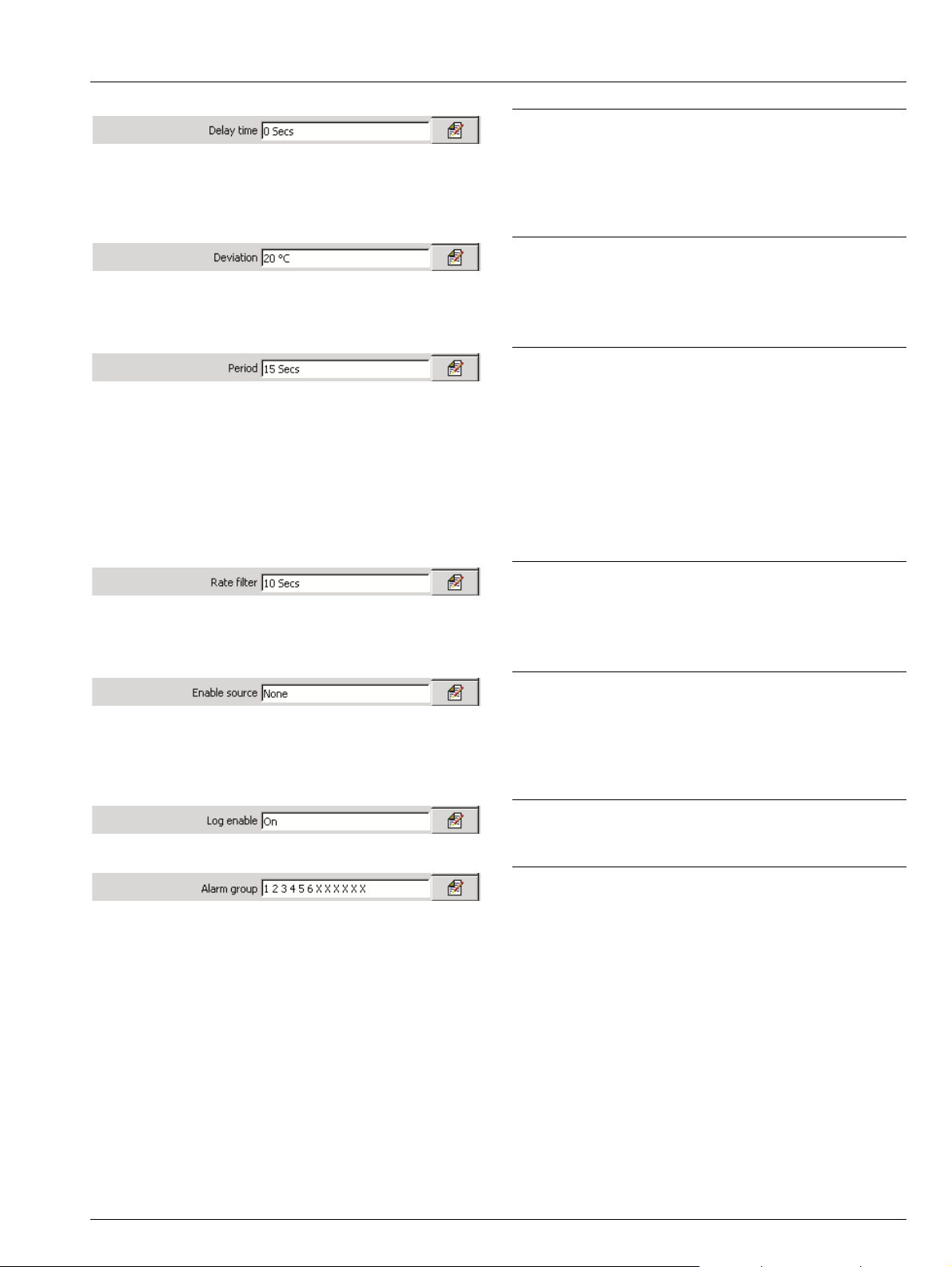

Set the period of time for which to delay alarm activation after the enable signal is switched on. Once the delay time has expired, the alarm operates in the same way as a standard process alarm.

Note. Delayed process alarms only.

Set the minimum or maximum amount of deviation allowed within the alarm 'Period' (see below) before the alarm is activated.

Note. Rate alarms only – see Fig. 6.17, page 94.

Set the time period over which the deviation is measured. For fast rate alarms, the alarm becomes active if the value changes by more than the deviation value within the alarm period. For slow rate alarms, the alarm becomes active if the channel value changes by less than the deviation within the alarm period.

Note.

 Rate alarms only – see Fig. 6.17, page 94.

 A rate alarm remains active until the rate has been within

limits for at least one complete alarm 'Period'.

Set the filter time to be used to reduce the number of spurious alarm trips. The source signal is averaged over the filter period prior to the rate alarm being determined.

Note. Rate alarms only – see Fig. 6.17, page 94.

Select an alarm Enable source. When the 'Enable source' is active, the alarm is enabled. When the source is inactive the alarm is disabled. If set to 'None' the alarm is always enabled.

Note. For Delayed Process alarm operation, see Fig. 6.18, page 95.

Set to 'On' to record all changes in the alarm state in the Alarm event log – see Section 4.8, page 34.

Assign the alarm to one or more of 12 groups. The alarm states assigned to each group are 'ORed' together to create an internal digital signal that may be assigned to relays, digital outputs or internal digital controls.

IM/SM3000–EN Rev. L 97

SM3000

Stop

Start

Multipoint Videographic Recorder 6 Configuration

6.6.5 Totalizer Configuration

Note.

 Current totalizer values are displayed in the Circular Chart, Digital Indicator and Process Views – see Sections 4.3, 4.5 and

4.6 (Operation), and Sections 6.5.2, 6.5.5 and 6.5.4 (Configuration) respectively.

 For analog sources, the total value of a signal is calculated by counting pulses produced at a rate proportional to the input.

For digital sources, off/on transitions are counted and scaled to produce a batch total.

Select the totalizer Count direction and Wrap action.

When the count direction is set to 'Up', the totalizer counts up from the 'Preset count' value to the 'Predetermined count' value – see next page.

If 'Wrap enable' is set to 'On', the total is reset automatically to the 'Preset count' value once the 'Predetermined count' value is reached.

If 'Wrap enable' is set to 'Off', the count stops when the 'Predetermined count' value is reached.

Note. A wrap pulse, with a duration of 2s, occurs if the total reaches the 'Predetermined count' value and 'Wrap enable' is set to 'On'. If 'Wrap enable' is set to 'Off', the wrap pulse becomes active when the 'Predetermined count' value is reached and remains active until the totalizer is reset. The pulse can be assigned to a relay, digital output or digital counter.

Enter the totalizer tag to be displayed in the Process view and the Totalizer log (20 characters max).

Enter the totalizer units to be displayed in Operator views.

Select the totalizer action following a power failure:

Last – On power recovery, the totalizer continues in the

same state as before the failure, i.e. stopped or running.

Stop – Totalizer stops counting.

Go – Totalizer starts counting from the last recorded value.

Select a signal source to stop and start the totalizer. Refer to Appendix A on page 129 for a description of the available sources.

Note. This signal is edge-triggered. A rising edge (inactive to active) starts the totalizer. A falling edge (active to inactive) stops the totalizer.
