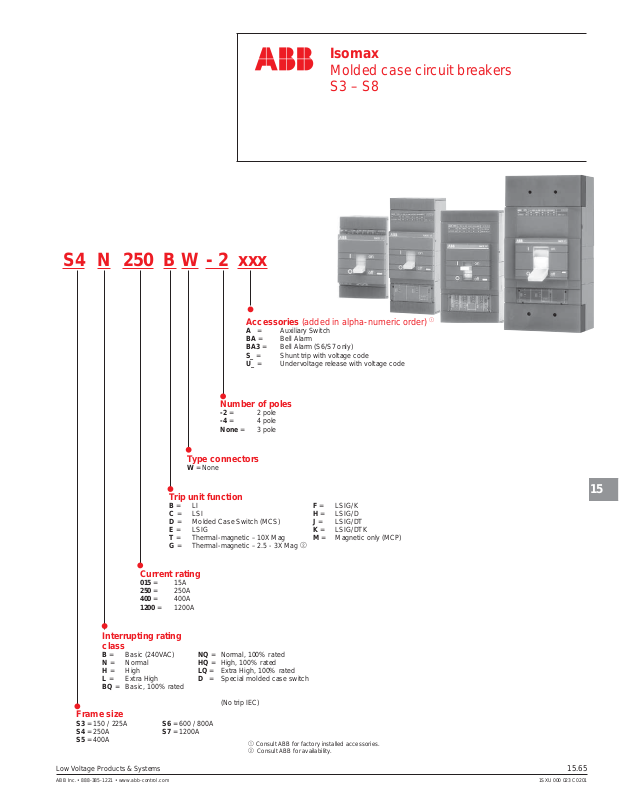

Page 1
S4 N 250 B W - 2 xxx
Isomax
Molded case circuit breakers
S3 – S8
Isomax
MCCBs
15
Accessories (added in alpha-numeric order)
A = Auxiliary Switch
BA = Bell Alarm
BA3 = Bell Alarm (S6/S7 only)
S_ = Shunt trip with voltage code
U_ = Undervoltage release with voltage code
Number of poles
-2 = 2 pole
-4 = 4 pole
None = 3 pole
Type connectors
W = None
Trip unit function
B = LI F = LSIG/K
C = LSI H = LSIG/D
D = Molded Case Switch (MCS) J = LSIG/DT
E = LSIG K = LSIG/DTK
T = Thermal-magnetic – 10X Mag M = Magnetic only (MCP)
G = Thermal-magnetic – 2.5 - 3X Mag 2
Current rating
015 = 15A
250 = 250A
400 = 400A
1200 = 1200A
1
15
Interrupting rating
class
B = Basic (240VAC)
N = Normal
H = High
L = Extra High
BQ = Basic, 100% rated
NQ = Normal, 100% rated
HQ = High, 100% rated
LQ = Extra High, 100% rated
D = Special molded case switch
(No trip IEC)
Frame size
S3 = 150 / 225A S6 = 600 / 800A
S4 = 250A S7 = 1200A
S5 = 400A
Low Voltage Products & Systems 15.65
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
1 Consult ABB for factory installed accessories.
2 Consult ABB for availability.
Page 2
Isomax
MCCBs
15
S7
1200A, 600 VAC
Electronic trip type
Standard S7 package includes com plete cir cuit breaker and mount ing hard ware.
Order cable lugs or other connection scheme as a sep a rate item.
H x W x D
15.98" x 8.27" x 5.45"
S7
General
The S7 breaker family is a 1200A frame utilizing a mi cro pro ces sor based
overcurrent pro tec tive trip sys tem. In the 1200A version, the trip unit is adjustable
from 480A up to 1200A without the addition of any parts or rating plugs. As
standard, the S7 includes adjustable long time func tion for overload protection
and ad just able in stan ta neous func tion for short circuit protection.
Versions
To meet all application needs, the S7 is available in various versions:
B = Adjustment LI
C = Adjustment LSI
E = Adjustment LSIG
Q = 100% UL rated
D = Molded case switch
M = Magnetic only (MCP)
Trip functions
These tripping functions are avail able:
L = Long time I = In stan ta neous
S = Short time G = Ground fault
Performance level
Each version is also avail able in different maximum fault in ter rupt ing levels
H = High
L = Extra high (IEC only)
Number of poles
15
In UL/CSA version, the S7 is available as in two pole or three pole version, both
with the same dimensions. A four pole version is also avail able in a UL/IEC form.
For price estimate, add 35% to list price of selected three pole, contact ABB
Control.
Accessory mounting
Internal ac ces so ries are UL/CSA approved for both factory or fi eld in stal la tion.
Accessories require control ca ble con nec tors. Shunt trips or UVR's mount in the
left cavity. Auxiliary or bell alarm switches mount in the right cavity.
UL/CSA Interrupting capacity (kA RMS)
UL489 / CSA C22.2
Voltage H
240VAC 100
480VAC 65
600VAC 50
IEC-947 Interrupting capacity (kA RMS)
Voltage H L
230VAC 100 200
380/400/415VAC 65 100
440VAC 55 80
500VAC 45 70
690VAC 25 35
Reverse feeding
All versions of the S7 family are suitable for reverse feed ap pli ca tions.
Molded case switches
UL489 switches in clude no overcurrent protection except for a high in stan ta neous
trip mechanism for self pro tec tion. IEC type molded case switches with no trip
pro tec tion are also avail able.
1 Consult factory
15.82 Low Voltage Products & Systems
1SXU 000 023 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
Discount schedule S7
Page 3
S7
1200A, 600 VAC
Electronic trip type
Isomax
MCCBs
15
The S7 breaker family uses two available mi cro pro ces sor based internal trip units.
The standard PR211 trip unit in cludes ad just ments for long time current pick-up
and in stan ta neous current trip point.
The optional PR212 trip unit includes ad just ments for long time current pick-up/
delay, short time pick-up/delay, I
further optional ground fault protection.
2
t (on/off), instantaneous current trip point and
1000A Frame (400 – 1000A adjustable continuous range)
Breaker IC at 480VAC
type catalog number price catalog number price
PR211 LI S7H1000BW-2 $ 6959 S7H1000BW $ 7724
S7H 65kA PR212 LSI S7H1000CW-2 8039 S7H1000CW 8804
PR212 LSIG — — S7H1000EW 10,604
Trip
Adjustment
2 pole, 600VAC List 3 pole, 600VAC List
1200A Frame (480 – 1200A adjustable continuous range)
Breaker IC at 480VAC
type catalog number price catalog number price
PR211 LI S7H1200BW-2 $ 6959 S7H1200BW $ 7724
S7H 65kA PR212 LSI S7H1200CW-2 8039 S7H1200CW 8804
PR212 LSIG — — S7H1200EW 10,604
Trip
Adjustment
2 pole, 600VAC List 3 pole, 600VAC List
Trip settings
Adjustment
function settings
L Long time pick-up 0.4 – 1.0 0.4-0.5-0.55-0.6-0.65-0.7-0.75-0.8-0.85-0.875-0.9-0.925-0.95-0.975-1.0 x Frame rating PR212
Long time delay 3.0 – 18 sec. A - B - C - D
S Short time pick-up 1.0 – 10.0 Off-1.0-2.0-3.0-4.0-6.0-8.0-10.0 x Frame rating
Short time delay 0.05 – 0.5 sec. A - B - C - D (I
I Instantaneous trip 1.5 – 12.0 1.5-2.0-4.0-6.0-8.0-10.0-12.0 x Frame rating
Ground fault delay 0.1 – 0.8 sec. A - B - C - D
Trip
Ground fault 0.2 – 1.0 Off-0.2-0.3-0.4-0.6-0.8-0.9-1.0 x Frame rating
G
Individual
Range
2
t On-Off)
Continuous amperage settings (long time adjustment) – PR211
Frame Set points
0.4 0.5 0.6 0.7 0.8 0.9 0.95 1.0 Setting
1000A 400 500 600 700 800 900 950 1000 Amps
1200A 480 600 720 840 960 1080 1140 1200 Amps
15
1 Consult factory.
Low Voltage Products & Systems 15.83
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
Discount schedule S7
Page 4
Isomax
MCCBs
15
S7
1200A, 600VAC
UL 100% rated
When applied correctly, UL tested 100% equipment rated breakers may be
applied at full rating rather than on the sizing rules of the NEC where breakers and
cable are sized based on actual continuous load current divided by 80%. This
100% rating can save the user the cost of larger cable or bus bar. Please consult
the NEC for details and other design factors needed for this application.
1000A Frame (400 – 1000A adjustable continuous range)
480VAC type catalog number price
PR211 LI S7HQ1000BW $ 8495
S7H 65kA PR212 LSI S7HQ1000CW 9684
PR212 LSIG S7HQ1000EW 11,664
IC at Trip
Breaker
Adjustment
3 pole List
1200A Frame (480 – 1200A adjustable continuous range)
480VAC type catalog number price
PR211 LI S7HQ1200BW $ 8495
S7H 65kA PR212 LSI S7HQ1200CW 9684
PR212 LSIG S7HQ1200EW 11,664
IC at Trip
Breaker
Adjustment
3 pole List
Trip settings
function settings
L Long time pick-up 0.4 – 1.0 0.4-0.5-0.55-0.6-0.65-0.7-0.75-0.8-0.85-0.875-0.9-0.925-0.95-0.975-1.0 x Frame rating PR212
Long time delay 3.0 – 18 sec. A - B - C - D
S Short time pick-up 1.0 – 10.0 Off-1.0-2.0-3.0-4.0-6.0-8.0-10.0 x Frame rating
Short time delay 0.05 – 0.5 sec. A - B - C - D (I
I Instantaneous trip 1.5 – 12.0 1.5-2.0-4.0-6.0-8.0-10.0-12.0 x Frame rating
G Ground fault 0.2 – 1.0 Off-0.2-0.3-0.4-0.6-0.8-0.9-1.0 x Frame rating
Ground fault delay 0.1 – 0.8 sec. A - B - C - D
Trip
Adjustment
Individual
Range
2
t On-Off)
15
1 Consult factory.
15.84 Low Voltage Products & Systems
1SXU 000 023 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
Discount schedule S7
Page 5
S7
1200A, 600V
Magnetic only (MCP)
All S7 magnetic only breakers utilize the electronic PR211 trip unit with an
adjustable range of 1.5 to 12 times frame rating. Both two and three pole MCPs
are 600VAC rated.
Isomax
MCCBs
15
Typ e Amps
capacity range catalog number price catalog number price
240VAC 100kA
S7H
Interruption Adjustment 2 pole List 3 pole List
1000
480VAC 65kA
1200
600VAC 50kA
1500 – 12,000A S7H1000MW-2
1800 – 14,400A S7H1200MW-2
$ 6959
S7H1000MW
S7H1200MW
$ 7724
Molded case switches
capacity 2 trip catalog number price
240VAC 100kA
S7H-D 480VAC 65kA 1000 20,000A S7H1000DW
600VAC 50kA 1200 20,000A S7H1200DW
600VDC 12kA
Non-UL, switches without
overcurrent protection 600VAC 25kA 1250 — S7D1250W
Typ e
Interruption
Withstand rating
Amps
1000 — S7D1000W
Magnetic 3 pole List
$ 7300
Neutral current transformer (required for 4 wire GF sys tems)
number price
1000 K7NCT-1000
1200 K7NCT-1200
Catalog List
Amps
$ 250
Connection options
range 1 catalog number price catalog number price
CU/AL front lugs (4) 4/0 – 500kcmil 1200 K7TK-2 $ 120 K7TK $ 180
Extended front bar — 1200 — — K7ET-1250 240
Wire Amps Set of 2 List Set of 3 List
Type
Set of 6
catalog number
1 Suggested lugs for a circuit breaker up to amps shown. Cable size and type determine maximum amperage.
2 With fuse or MCCB protected circuit.
Low Voltage Products & Systems 15.85
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
Discount schedule S7 – Circuit breakers
Discount schedule SA – Lugs
