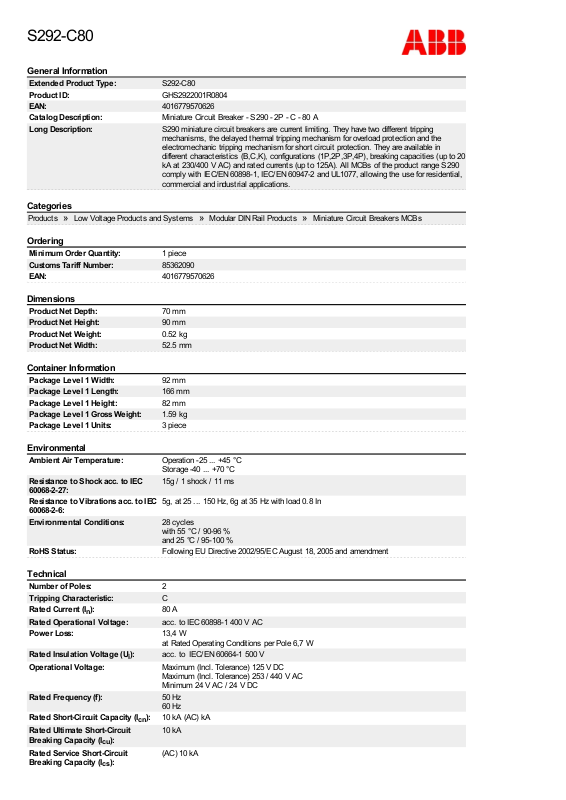

S292-C80
General Information
Extended Product Type: |
S292-C80 |
Product ID: |
GHS2922001R0804 |
EAN: |
4016779570626 |
Catalog Description: |

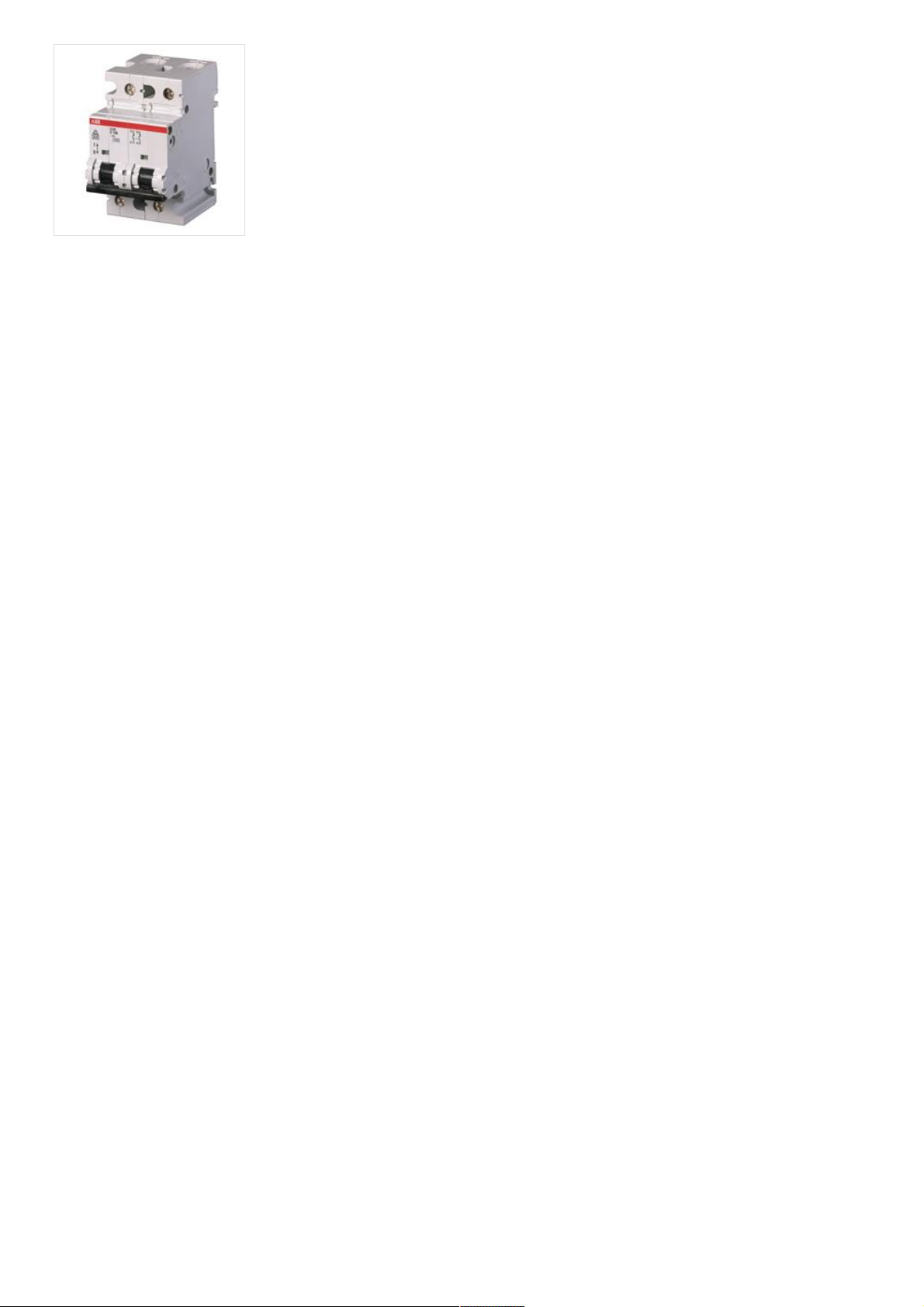

Miniature Circuit Breaker - S290 - 2P - C - 80 A |
Long Description: |
S290 miniature circuit breakers are current limiting. They have two different tripping |
|
mechanisms, the delayed thermal tripping mechanism for overload protection and the |
|
electromechanic tripping mechanism for short circuit protection. They are available in |
|
different characteristics (B,C,K), configurations (1P,2P,3P,4P), breaking capacities (up to 20 |
|
kA at 230/400 V AC) and rated currents (up to 125A). All MCBs of the product range S290 |
|
comply with IEC/EN 60898-1, IEC/EN 60947-2 and UL1077, allowing the use for residential, |
|
commercial and industrial applications. |
Categories
Products » Low Voltage Products and Systems » Modular DIN Rail Products » Miniature Circuit Breakers MCBs
Ordering
Minimum Order Quantity: |
1 piece |
Customs Tariff Number: |
85362090 |
EAN: |
4016779570626 |
Dimensions
Product Net Depth: |
70 mm |
Product Net Height: |
90 mm |
Product Net Weight: |
0.52 kg |
Product Net Width: |
52.5 mm |
Container Information
Package Level 1 Width: |
92 mm |
Package Level 1 Length: |
166 mm |
Package Level 1 Height: |
82 mm |
Package Level 1 Gross Weight: |
1.59 kg |
Package Level 1 Units: |
3 piece |
Environmental
Ambient Air Temperature: |
Operation -25 ... +45 °C |
|
Storage -40 ... +70 °C |
Resistance to Shock acc. to IEC |
15g / 1 shock / 11 ms |
60068-2-27: |
|
Resistance to Vibrations acc. to IEC 5g, at 25 ... 150 Hz, 6g at 35 Hz with load 0.8 In |
|
60068-2-6: |
|
Environmental Conditions: |
28 cycles |
|
with 55 °C / 90-96 % |
|
and 25 °C / 95-100 % |
RoHS Status: |
Following EU Directive 2002/95/EC August 18, 2005 and amendment |
Technical
Number of Poles: |
2 |
Tripping Characteristic: |
C |
Rated Current (In): |
80 A |
Rated Operational Voltage: |
acc. to IEC 60898-1 400 V AC |
Power Loss: |
13,4 W |
|
at Rated Operating Conditions per Pole 6,7 W |
Rated Insulation Voltage (Ui): |
acc. to IEC/EN 60664-1 500 V |
Operational Voltage: |
Maximum (Incl. Tolerance) 125 V DC |
|
Maximum (Incl. Tolerance) 253 / 440 V AC |
|
Minimum 24 V AC / 24 V DC |
Rated Frequency (f): |
50 Hz |
|
60 Hz |
Rated Short-Circuit Capacity (Icn): |
10 kA (AC) kA |
Rated Ultimate Short-Circuit |
10 kA |
Breaking Capacity (Icu): |
|
Rated Service Short-Circuit |
(AC) 10 kA |
Breaking Capacity (Ics): |
|
Overvoltage Category: |
III |
Pollution Degree: |
3 |
Rated Impulse Withstand Voltage |
4 kV |
(Uimp): |
(6.2 kV @ sea level) |
|
(5.0 kV @ 2000 m) |
Dielectric Test Voltage: |
50 / 60 Hz, 1 min: 2 kV |
Actuator Type: |
Toggle |
Contact Position Indication: |
ON / OFF |
Degree of Protection: |
IP20 |
Remarks: |
IP40 in enclosure with cover |
Electrical Endurance: |
10000 AC cycle |
Mechanical Endurance: |
20000 cycle |
Terminal Type: |
Screw Terminals |
Screw Terminal Type: |
Cable Clamp |
Connecting Capacity: |
Conductor 50 / 50 mm² |
Tightening Torque: |
2.5 ... 3.5 N·m |
Recommended Screw Driver: |
Pozidriv 2 |
Mounting on DIN Rail: |
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
|
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
Mounting Position: |
Any |
Standards: |
IEC/EN 60947-1 |
|
IEC/EN 60947-2 |
|
UL 1077 |
Technical UL/CSA
Connecting Capacity UL/CSA: |
Busbar 14-2 AWG |
Tightening Torque UL/CSA: |
Main Circuit 22 ... 31 in·lb |
Interrupting Rating acc. to UL1077: |
5 kA |
Maximum Operating Voltage |
480Y / 277 V AC |
UL/CSA: |
|
Certificates and Declarations (Document Number)
Instructions and Manuals: |
2CSC400002D0208 |
Data Sheet, Technical Information: |
2CSC400002D0208 |
Declaration of Conformity - CE: |
2CDK400013D0602 |
RoHS Information: |
2CDK400007K0201 |
Classifications
ETIM 4: |
EC000042 - Miniature circuit breaker (MCB) |
ETIM 5: |
EC000042 - Miniature circuit breaker (MCB) |
ETIM 6: |
EC000042 - Miniature circuit breaker (MCB) |
eClass: |
7.0 27141901 |
UNSPSC: |
39121614 |
Object Classification Code: |
F |
Accessories
8 Products
Identifier |
Description |
Type |
Qty |
Unit Of Measure |
|
GHS2201904R0003 |
S220-H11 |
- Auxiliary Contact |
S220-H11 |
1 |
piece |
GHS2901902R0018 |
S290-S11 |
- Signal Contact |
S290-S11 |
1 |
piece |
GHS2901909R0011 |
S290-A1 - Shunt Trip |
S290-A1 |
1 |
piece |
|
GHS2901909R0012 |
S290-A2 - Shunt Trip |
S290-A2 |
1 |
piece |
|
GHS2901911R0012 |
S290-UA24 - Undervoltage Release |
S290-UA24 |
1 |
piece |
|
GHS2901911R0014 |
S290-UA110 - Undervoltage Release |
S290-UA110 |
1 |
piece |
|
GHS2901911R0015 |
S290-UA230 - Undervoltage Release |
S290-UA230 |
1 |
piece |
|
GHS2901916R0011 |
S290-H11 |
- Auxiliary Contact |
S290-H11 |
1 |
piece |
