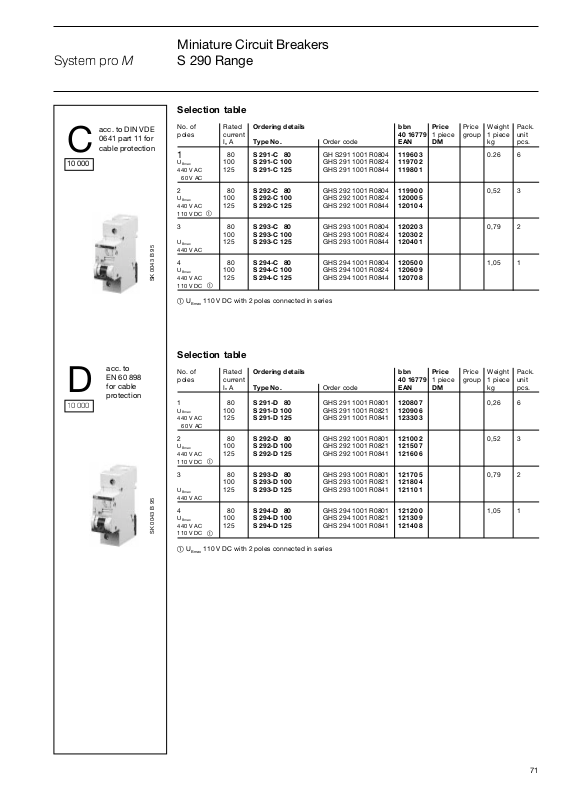

ABB S290 Range Catalog Page
Miniature Circuit Breakers
System pro
acc. to DIN VDE
0641 part 11 for
C
10 000
cable protection
M
S 290 Range
Selection table
No. of Rated Ordering details bbn Price Price Weight Pack.
poles current 40 16779 1 piece group 1 piece unit
1
U
Bmax
440 V AC 125 S 291-C 125 GHS 291 1001 R0844 11980 1
60 V AC
2 80S 292-C 80 GHS 292 1001 R0804 11990 0 0,52 3
U
Bmax
440 V AC 125 S 292-C 125 GHS 292 1001 R0844 12010 4
110 V DC
3 80S 293-C 80 GHS 293 1001 R0804 12020 3 0,79 2
U
Bmax
440 V AC
4 80S 294-C 80 GHS 294 1001 R0804 12050 0 1,05 1
U
Bmax
440 V AC 125 S 294-C 125 GHS 294 1001 R0844 12070 8
SK 0043 B 95
110 V DC
U
Bmax
In A Type No. Order code EAN DM kg pcs.
80 S 291-C 80 GH S291 1001 R0804 11960 3 0.26 6
100 S 291-C 100 GHS 291 1001 R0824 11970 2
100 S 292-C 100 GHS 292 1001 R0824 12000 5
100 S 293-C 100 GHS 293 1001 R0824 12030 2
125 S 293-C 125 GHS 293 1001 R0844 12040 1
100 S 294-C 100 GHS 294 1001 R0824 12060 9
110 V DC with 2 poles connected in series
D
acc. to
EN 60 898
for cable
protection
Selection table
No. of Rated Ordering details bbn Price Price Weight Pack.
poles current 40 16779 1 piece group 1 piece unit
180S 291-D 80 GHS 291 1001 R0801 12080 7 0,26 6
U
Bmax
440 V AC 125 S 291-D 125 GHS 291 1001 R0841 12330 3
60 V AC
280S 292-D 80 GHS 292 1001 R0801 12100 2 0,52 3
U
Bmax
440 V AC 125 S 292-D 125 GHS 292 1001 R0841 12160 6
110 V DC
380S 293-D 80 GHS 293 1001 R0801 12170 5 0,79 2
U
Bmax
440 V AC
480S 294-D 80 GHS 294 1001 R0801 12120 0 1,05 1
U
Bmax
440 V AC 125 S 294-D 125 GHS 294 1001 R0841 12140 8
SK 0043 B 95
110 V DC
U
Bmax
In A Type No. Order code EAN DM kg pcs.
100 S 291-D 100 GHS 291 1001 R0821 12090 6
100 S 292-D 100 GHS 292 1001 R0821 12150 7
100 S 293-D 100 GHS 293 1001 R0821 12180 4
125 S 293-D 125 GHS 293 1001 R0841 12110 1
100 S 294-D 100 GHS 294 1001 R0821 12130 9
110 V DC with 2 poles connected in series
71
System pro
M
Miniature Circuit Breakers
S 290 Range
and supplementary devices
Selection table
K
K
10 000
acc. to DIN VDE
0660 part 101 for
the protection of
devices such as
motors, transformers, lamps etc.
and for cable
protection
No. of Rated Ordering details bbn Price Price Weight Pack.
poles current 40 16779 1 piece group 1 piece unit
180S 291-K 80 GHS 291 1001 R0807 30880 9 0,26 6
U
Bmax
440 V AC 125 S 291-K 125 GHS 291 1001 R0847 30900 4
60 V AC
280S 292-K 80 GHS 292 1001 R0807 30910 3 0,52 3
U
Bmax
440 V AC 125 S 292-K 125 GHS 292 1001 R0847 30930 1
110 V DC
380S 293-K 80 GHS 293 1001 R0807 30940 0 0,79 2
U
Bmax
440 V AC
480S 294-K 80 GHS 294 1001 R0807 30970 7 1,05 1
U
Bmax
440 V AC 125 S 294-K 125 GHS 294 1001 R0847 30990 5
110 V DC
SK 0070 B 98
U
Bmax
In A Type No. Order code EAN DM kg pcs.
100 S 291-K 100 GHS 291 1001 R0827 30890 8
100 S 292-K 100 GHS 292 1001 R0827 30920 2
100 S 293-K 100 GHS 293 1001 R0827 30950 9
125 S 293-K 125 GHS 293 1001 R0847 30960 8
100 S 294-K 100 GHS 294 1001 R0827 30980 6
110 V DC with 2 poles connected in series
Selection table
Description Ordering details bbn Price Price Weight Pack.
Type No. Order code EAN DM kg pcs.
Auxiliary contact
Auxiliary contact S 290-H 11 G HS 290 1916 R0001 12200 9 0,05 1
40 16779 1 piece group 1 piece unit
Signal contact
SK 0039 B 95
Signal contact S 290-S G HS 290 1902 R0008 12210 8 0,05 1
Shunt trip
AC 110 - 415V S 290-A1 G HS 290 1909 R0001 30030 8 0,09 1
DC 24 - 48V S 290-A2 G HS 290 1909 R0002 30040 7 0,09 1
Untervoltage release
DC 24V S 290-UA 24 G HS 290 1911 R0002 30050 6 0,10 1
DC 110V S 290-UA 110 G HS 290 1911 R0004 30060 5 0,10 1
SK 0040 B 95
AC 230V S 290-UA 230 G HS 2901911 R0005 30070 4 0,10 1
