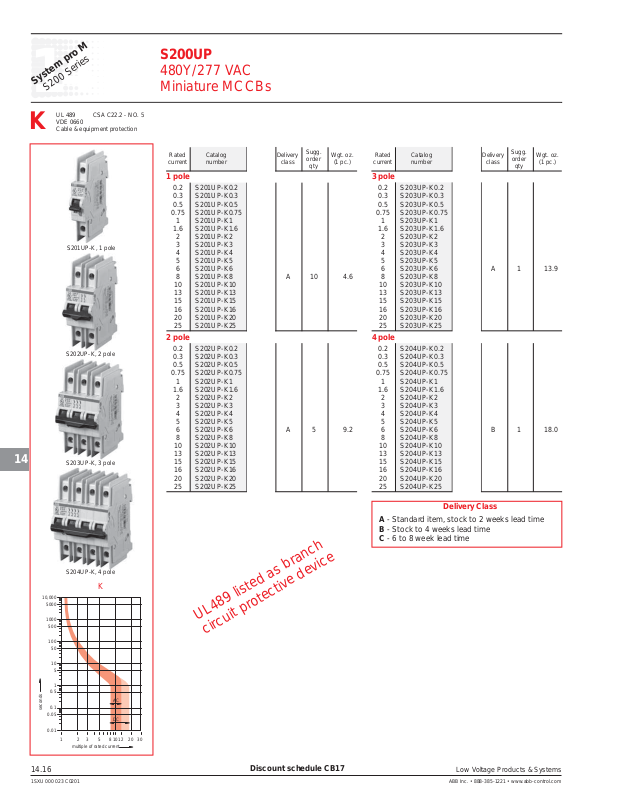

ABB S200UP Catalog Page

System pro M
S200 Series
14
UL 489 CSA C22.2 - NO. 5 VDE 0660
K
Cable & equipment protection
S200UP
480Y/277 VAC Miniature MCCBs
14
S201UP-K, 1 pole
S202UP-K, 2 pole
S203UP-K, 3 pole
Rated Catalog List Delivery current number price class
qty
Sugg.
order
Wgt. oz.
(1 pc.)
1 pole
0.2 S201UP-K0.2 $ 90
0.3 S201UP-K0.3 90
0.5 S201UP-K0.5 90
0.75 S201UP-K0.75 90 1 S201UP-K1 90
1.6 S201UP-K1.6 90 2 S201UP-K2 90 3 S201UP-K3 90 4 S201UP-K4 90 5 S201UP-K5 90 6 S201UP-K6 90 8 S201UP-K8 90 A 10 4.6 10 S201UP-K10 90 13 S201UP-K13 90 15 S201UP-K15 90 16 S201UP-K16 90 20 S201UP-K20 90 25 S201UP-K25 90
2 pole
0.2 S202UP-K0.2 210
0.3 S202UP-K0.3 210
0.5 S202UP-K0.5 210
0.75 S202UP-K0.75 210 1 S202UP-K1 210
1.6 S202UP-K1.6 210 2 S202UP-K2 210 3 S202UP-K3 210 4 S202UP-K4 210 5 S202UP-K5 210 6 S202UP-K6 210 A 5 9.2 8 S202UP-K8 210 10 S202UP-K10 210 13 S202UP-K13 210 15 S202UP-K15 210 16 S202UP-K16 210 20 S202UP-K20 210 25 S202UP-K25 210
Rated Catalog List Delivery current number price class
qty
Sugg.
order
Wgt. oz.
(1 pc.)
3 pole
0.2 S203UP-K0.2 $ 320
0.3 S203UP-K0.3 320
0.5 S203UP-K0.5 320
0.75 S203UP-K0.75 320 1 S203UP-K1 320
1.6 S203UP-K1.6 320 2 S203UP-K2 320 3 S203UP-K3 320 4 S203UP-K4 320 5 S203UP-K5 320 6 S203UP-K6 320 A 1 13.9 8 S203UP-K8 320 10 S203UP-K10 320 13 S203UP-K13 320 15 S203UP-K15 320 16 S203UP-K16 320 20 S203UP-K20 320 25 S203UP-K25 320
4 pole
0.2 S204UP-K0.2 440
0.3 S204UP-K0.3 440
0.5 S204UP-K0.5 440
0.75 S204UP-K0.75 440 1 S204UP-K1 440
1.6 S204UP-K1.6 440 2 S204UP-K2 440 3 S204UP-K3 440 4 S204UP-K4 440 5 S204UP-K5 440 6 S204UP-K6 440 B 1 18.0 8 S204UP-K8 440 10 S204UP-K10 440 13 S204UP-K13 440 15 S204UP-K15 440 16 S204UP-K16 440 20 S204UP-K20 440 25 S204UP-K25 440
Delivery Class
A - Standard item, stock to 2 weeks lead time B - Stock to 4 weeks lead time C - 6 to 8 week lead time
S204UP-K, 4 pole
K
10,000
5000
1000
500
100
50
10
5
1
0.5
0.1
seconds
0.05
0.01 1 2 3 5 10 20 30
multiple of rated current
AC
DC
12
8
14.16 Low Voltage Products & Systems
1SXU 000 023 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
UL489 listed as branch
circuit protective device
Discount schedule CB17
