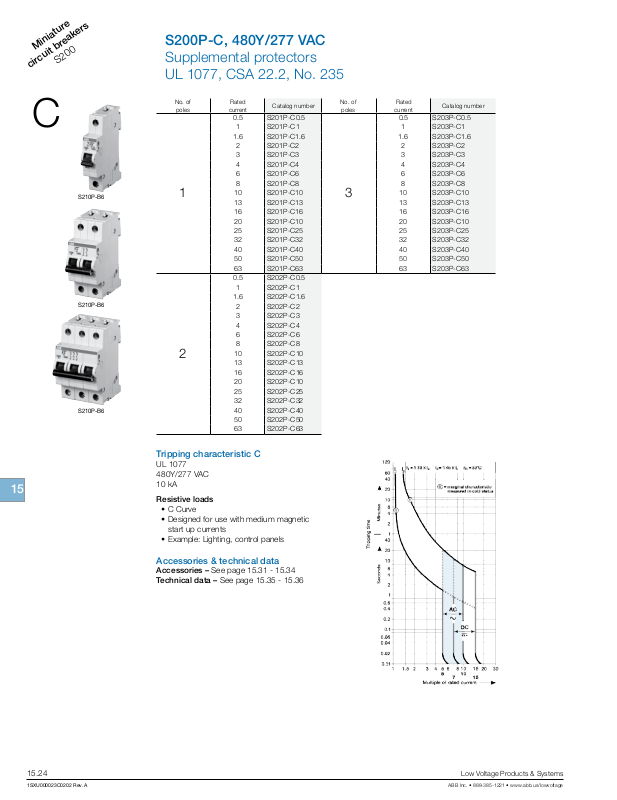

ABB S200P-C Catalog Page

Miniature

S200

circuit breakers

S200P-C, 480Y/277 VAC

Supplemental protectors

UL 1077, CSA 22.2, No. 235

S210P-B6

No. of

poles

Rated

current

0.5 S201P-C0.5 1 S201P-C1 1 S203P-C1

1.6 S201P-C1.6 1.6 S203P-C1.6 2 S201P-C2 2 S203P-C2 3 S201P-C3 3 S203P-C3 4 S201P-C4 4 S203P-C4 6 S201P-C6 6 S203P-C6 8 S201P-C8 8 S203P-C8

10 S201P-C10 10 S203P-C10 13 S201P-C13 13 S203P-C13 16 S201P-C16 16 S203P-C16

20 S201P-C10 20 S203P-C10 25 S201P-C25 25 S203P-C25

32 S201P-C32 32 S203P-C32

40 S201P-C40 40 S203P-C40 50 S201P-C50 50 S203P-C50

63 S201P-C63 63 S203P-C63

0.5 S202P-C0.5 1 S202P-C1

1.6 S202P-C1.6 2 S202P-C2 3 S202P-C3 4 S202P-C4 6 S202P-C6 8 S202P-C8

10 S202P-C10 13 S202P-C13 16 S202P-C16

20 S202P-C10 25 S202P-C25

32 S202P-C32

40 S202P-C40 50 S202P-C50

63 S202P-C63

Catalog number

No. of

poles

Rated

current

0.5 S203P-C0.5

Catalog number

Tripping characteristic C

UL 1077 480Y/277 VAC 10 kA

Resistive loads

• C Curve

• Designed for use with medium magnetic

start up currents

• Example: Lighting, control panels

Accessories & technical data

Accessories – See page 15.31 - 15.34 Technical data – See page 15.35 - 15.36

15.24 Low Voltage Products & Systems

1SXU000023C0202 Rev. A ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage
