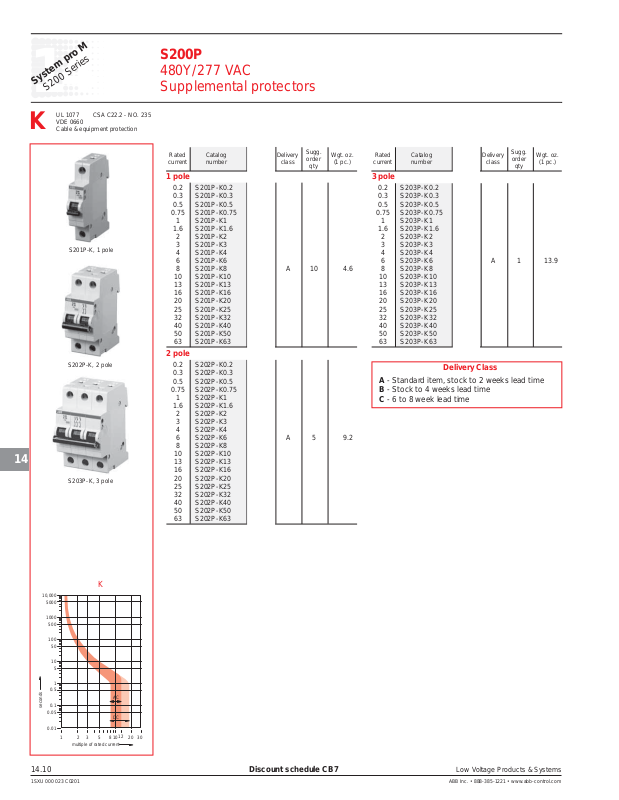

ABB S200P Catalog Page

System pro M
S200 Series
14
UL 1077 CSA C22.2 - NO. 235 VDE 0660
K
Cable & equipment protection
S200P
480Y/277 VAC Supplemental protectors
14
14
S201P-K, 1 pole
S202P-K, 2 pole
S203P-K, 3 pole
Rated Catalog List Delivery current number price class
qty
Sugg.
order
Wgt. oz.
(1 pc.)
1 pole
0.2 S201P-K0.2 $ 54
0.3 S201P-K0.3 54
0.5 S201P-K0.5 54
0.75 S201P-K0.75 54 1 S201P-K1 54
1.6 S201P-K1.6 54 2 S201P-K2 54 3 S201P-K3 54 4 S201P-K4 54 6 S201P-K6 54 8 S201P-K8 54 A 10 4.6 10 S201P-K10 54 13 S201P-K13 54 16 S201P-K16 54 20 S201P-K20 54 25 S201P-K25 56 32 S201P-K32 58 40 S201P-K40 64 50 S201P-K50 70 63 S201P-K63 80
2 pole
0.2 S202P-K0.2 128
0.3 S202P-K0.3 128
0.5 S202P-K0.5 128
0.75 S202P-K0.75 128 1 S202P-K1 128
1.6 S202P-K1.6 128 2 S202P-K2 128 3 S202P-K3 128 4 S202P-K4 128 6 S202P-K6 128 A 5 9.2 8 S202P-K8 128 10 S202P-K10 128 13 S202P-K13 128 16 S202P-K16 128 20 S202P-K20 128 25 S202P-K25 130 32 S202P-K32 134 40 S202P-K40 134 50 S202P-K50 162 63 S202P-K63 182
Rated Catalog List Delivery current number price class
qty
Sugg.
order
Wgt. oz.
(1 pc.)
3 pole
0.2 S203P-K0.2 $ 194
0.3 S203P-K0.3 194
0.5 S203P-K0.5 194
0.75 S203P-K0.75 194 1 S203P-K1 194
1.6 S203P-K1.6 194 2 S203P-K2 194 3 S203P-K3 194 4 S203P-K4 194 6 S203P-K6 194 A 1 13.9 8 S203P-K8 194 10 S203P-K10 194 13 S203P-K13 194 16 S203P-K16 194 20 S203P-K20 194 25 S203P-K25 196 32 S203P-K32 200 40 S203P-K40 214 50 S203P-K50 246 63 S203P-K63 280
Delivery Class
A - Standard item, stock to 2 weeks lead time B - Stock to 4 weeks lead time C - 6 to 8 week lead time
10,000
K
5000
1000
500
100
50
10
5
1
0.5
0.1
seconds
0.05
0.01 1 2 3 5 10 20 30
multiple ofrated current
14.10 Low Voltage Products & Systems
1SXU 000 023 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
AC
DC
12
8
Discount schedule CB7
