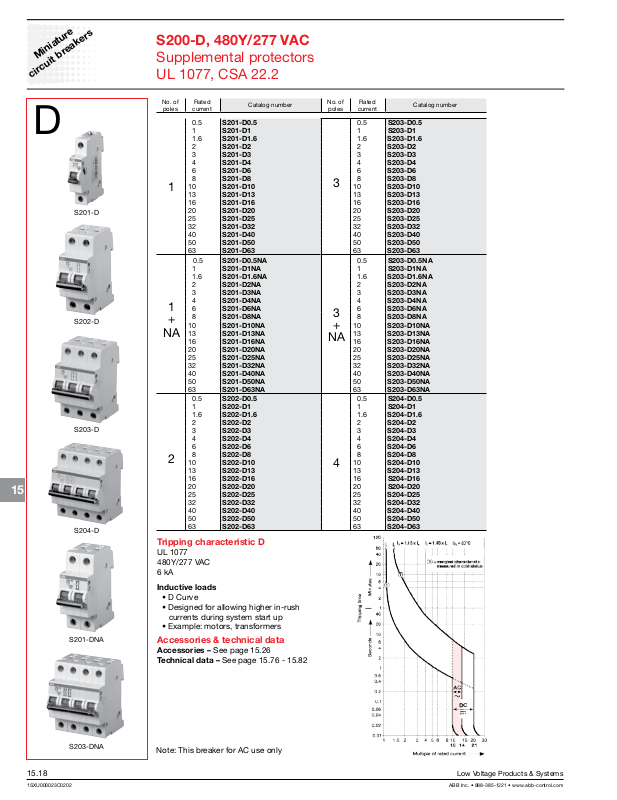

ABB S200-D Catalog Page
Miniature
circuit breakers
S200-D, 480Y/277 VAC
Supplemental protectors
UL 1077, CSA 22.2
15
D
S201-D
S202-D
S203-D
S204-D
S201-DNA
No. of
poles
NA
Rated
current
0.5 S201-D0.5
1 S201-D1 1 S203-D1
1.6 S201-D1.6 1.6 S203-D1.6
2 S201-D2 2 S203-D2
3 S201-D3 3 S203-D3
4 S201-D4 4 S203-D4
6 S201-D6 6 S203-D6
8 S201-D8 8 S203-D8
10 S201-D10 10 S203-D10
1
13 S201-D13 13 S203-D13
16 S201-D16 16 S203-D16
20 S201-D20 20 S203-D20
25 S201-D25 25 S203-D25
32 S201-D32 32 S203-D32
40 S201-D40 40 S203-D40
50 S201-D50 50 S203-D50
63 S201-D63 63 S203-D63
0.5 S201-D0.5NA
1 S201-D1NA 1 S203-D1NA
1.6 S201-D1.6NA 1.6 S203-D1.6NA
2 S201-D2NA 2 S203-D2NA
3 S201-D3NA 3 S203-D3NA
4 S201-D4NA 4 S203-D4NA
6 S201-D6NA 6 S203-D6NA
1
8 S201-D8NA 8 S203-D8NA
+
10 S201-D10NA 10 S203-D10NA
13 S201-D13NA 13 S203-D13NA
16 S201-D16NA 16 S203-D16NA
20 S201-D20NA 20 S203-D20NA
25 S201-D25NA 25 S203-D25NA
32 S201-D32NA 32 S203-D32NA
40 S201-D40NA 40 S203-D40NA
50 S201-D50NA 50 S203-D50NA
63 S201-D63NA 63 S203-D63NA
0.5 S202-D0.5
1 S202-D1 1 S204-D1
1.6 S202-D1.6 1.6 S204-D1.6
2 S202-D2 2 S204-D2
3 S202-D3 3 S204-D3
4 S202-D4 4 S204-D4
6 S202-D6 6 S204-D6
8 S202-D8 8 S204-D8
2
10 S202-D10 10 S204-D10
13 S202-D13 13 S204-D13
16
20 S202-D20 20 S204-D20
25 S202-D25 25 S204-D25
32 S202-D32 32 S204-D32
40 S202-D40 40 S204-D40
50 S202-D50 50 S204-D50
63 S202-D63 63 S204-D63
Catalog number
S202-D16 16 S204-D16
Tripping characteristic D
UL 1077
480Y/277 VAC
6 kA
Inductive loads
• D Curve
• Designed for allowing higher in-rush
currents during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.26
Technical data – See page 15.76 - 15.82
No. of
poles
Rated
current
0.5 S203-D0.5
3
0.5 S203-D0.5NA
3
+
NA
0.5 S204-D0.5
4
Catalog number
S203-DNA
15.18 Low Voltage Products & Systems
1SXU000023C0202 ABB Inc. • 888-385-1221 • www.abb-control.com
Note: This breaker for AC use only
