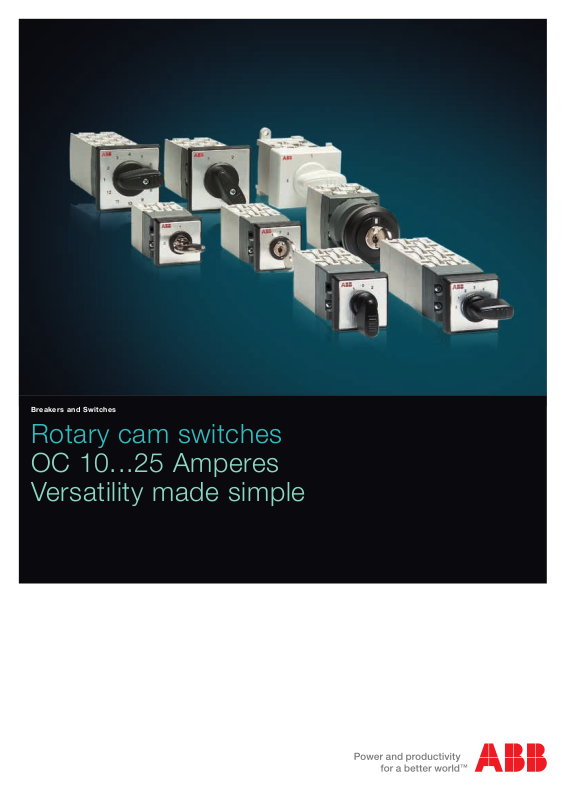

Breakers and Switches
Rotary cam switches OC 10...25 Amperes Versatility made simple
Rotary cam switches
OC10...25
Product overview, features |
|
Features |
4 |
Technical data |
|
Rotary cam switches OC, 10...25 Amperes |
11 |
Ordering information, standard cam switches, the most |
|
common applications |
|
ON-OFF switches |
14 |
Change-over switches |
17 |
Bypass switches |
20 |
Multistep switches |
21 |
Motor control switches: Ventilation, reversing, star-delta, |
|
pole-change, pumpstart, stop and start switches |
28 |
Voltmeter switches |
30 |
Ammeter switches |
31 |
Volt-ammeter switches |
31 |
Binarycode switches |
32 |
Ordering information, accessories |
|
Handles |
34 |
Plates |
38 |
Protective rear cover, nut spanner tool, adaptor ring, spare key |
39 |
Order code configuration, standard cam switches |
|
Options for Standard cam switch configuration |
40 |
Standard cam switch configuration |
41 |
Type designation |
|
Rotary cam switches OC10...25, standard and customized |
57 |
Dimension drawings |
|
Rotary cam switches OC10 and handles |
61 |
Rotary cam switches OC25 and handles |
64 |
Lockable handles, OC25 |
69 |
Gang drive handles, OC25 |
71 |
Front plates, OC10...25 |
72 |
Order form |
|
ABB customized cam switch |
73 |
Index |
|
List of products with page number in alphabetical order |
75 |
Rotary cam switches | 1SCC302009C0201 | 3
Versatility made simple OC10...25 Amperes
CamWeb2 – Best configuration tool It’s powerful, it’s fast, it’s user-friendly
Configuration tool CamWeb2 is designed to allow customers to custom-configure cam switches according their needs.
High performance cam switches
––New patent-pending contact design guarantees consistent opening times between moving and fixed contacts. This results in higher current performances and a longer life span.
––Gold-plated contacts are available, for reliable low voltage switching
––High quality, flame-resistant materials
––Laser-printed text for life-long visibility, even in harsh environments
––Configurable switch body offers horizontal or vertical access to terminals
Designed for safety
––Finger-proof tunnel terminals with IP20 protection eliminate the risk of touching live parts without adding any protective covers. This ensures safe operation, protecting people and equipment.
––Versatile selection of high protection degree handles. The standard handle is IP66. There are also handles available with increased protection up to IP67. See pages 6...9 for more details.
4 | 1SCC302009C0201 | Rotary cam switches
Versatile mounting options
Door Mounting available in 2 versions
––Screw Mounting: multiple fixing points with screws.
––Snap-on Mounting: quick and easy installation which can reduce labor time by up to 5 times.
Base Mounting versions are equipped with features that allow screw or DIN rail mounting.
ABB’s complete offering
ABB offers a wide variety of switches, breakers, control gear, wiring accessories, DIN-rail components and much more
A wide range of LV products available from one supplier
Rotary cam switches | 1SCC302009C0201 | 5
Customized cam switches
Design your own cam switch with CamWeb2
CamWeb2 – Best configuration tool |
How to use it? |
|
It’s powerful, it’s fast, it’s user-friendly |
1 |
Go to https://camweb2.com and login |
Configuration tool CamWeb2 is designed to allow customers |
2 |
Select ampere, poles and handle type |
to custom-configure cam switches according their needs. |
3 |
Select angle system and design front plate |
|
4 |
Specify contacts |
–– Configuration of non-standard switches |
5 |
Make jumper connection |
–– No need to do specifications manually |
6 |
Save and Send |
–– Browser application, no installed software needed |
7 |
Information output |
–– With a broad selection of accessories and contact |
|
|
configurations in CamWeb2, there is always a switch |
|
|
suitable for your application |
|
|
Custom-made cam switches designed specifically for you
6 | 1SCC302009C0201 | Rotary cam switches
Standard and customized cam switches OC Versatile handle selection
Suitable Standard handle types according to the ordering code configuration tables. Special handles, gang drive and additional lettering plate selection configurable with Cam-Web2.
Nose handles (_N or _M)
Nose handles have a degree of protection IP66. Door mounted versions can be snap-on or screw mounted. Snap-on mounted switches are suitable for 22.5 mm door drilling and screw mounted switches have a two (OC10) or four (OC25) hole mounting pattern. For base mounting, the handle can be fixed directly on the switch or on the enclosure door via shaft.
The standard front plate sizes are 32x32 mm for OC10 and 51x51 mm for OC25. Nose handles are available in black or gray color.
Extended nose handle (_E or _F)
Extended nose handles are available only for OC25 switches and are available in black or gray color. The handle has IP66 protection.
Extended nose handles can be snap-on or screw mounted. For base mounting, the handle can be fixed directly on the switch or on the enclosure door via shaft. Snap-on mounted switches are suitable for 22.5 mm door drilling and screw mounted switches are mounted with a four hole pattern. The standard front plate size is 51x51 mm.
Nose handle, round front ring (PX)
The round front ring replaces the square escutcheon plate with legend. These types of handles are used in applications where position indication or engraving is not needed on the switch.
Round front ring handles are available in black and gray colors and have a degree of protection IP66. The ring diameters are 32 mm for OC10 and 39 mm for OC25. These handles are snap-on mounted, which are for use with 22.5 mm door drilling.
FAN CONTROL
LOW MED
OFF HIGH
Key operated switches (K_)
The switches are operated with a key instead of a handle. The degree of protection is IP54. Key operation is available with 60° spacing, starting at 0° and onwards. They are also available with 90° spacings, starting at 0° and onwards. It is possible to idenitfy the positions for key removal in CamWeb2 or standard key-operated switches have the possibility to remove the key in all positions. Key operated switches are available only with snap-on mounting, which is for use in a
22.5 mm mounting hole. The standard front plate sizes are 32x32 mm for OC10 and 51x51 mm for OC25.
Key operated switches, round front ring (KX)
The switches are operated with a key instead of a handle and the round front ring replaces the square escutcheon plate with legend. These types of handles are used in applications where position indication or engraving is not needed on the switch.
There are round front rings in black and gray color, with a diameter of 30 mm (OC10) and 39 mm (OC25). The degree of protection is IP54.
Rotary cam switches | 1SCC302009C0201 | 7
Standard and customized cam switches OC Versatile handle selection
Modular switch handle with front cover (MN)
This handle is available only for base-mounted OC25 switches and the handle is mounted directly to the switch. It is light gray and the degree of protection is IP20. The handle can
be used with standard 45 mm door or cover cutouts and is suitable for 35 mm dinrail mounting. If 6 contacts or less are used, the switch depth is consistent with other standard
45 mm components, such as miniature circuit breakers.
|
1 |
|
0 |
35 mm |
45 |
DIN-rail |
mm |
Round padlockable handle (_3)
Round padlockable handles are available for OC25 switches and replace the standard nose handle. They can be snap-on
(22.5 mm hole) or screw mounted (four hole pattern) and are suitable for use with door or base mounted versions. These handles are available for use with On-Off switches and allow the switch to be padlocked in the OFF position.
The handles are available in black, gray or red-yellow. They can be used with up to 3 padlocks. The degree of protection is IP67.
Padlockable nose handle (_1 )
Padlockable nose handles are available for OC25 switches and replace the standard nose handle. They can be snap-on
(22.5 mm hole) or screw mounted (four hole pattern) and are suitable for use with door or base mounted versions. The handles are available in black, gray or red-yellow. If the red-yellow version is selected, the handle will be red and the legend plate will be yellow. They can be used with up to 2 padlocks.
Padlocking is possible every 45° and the padlockable positions can be specified in CamWeb2. The degree of protection is IP66.
Extended padlockable nose handle (_2)
Extended padlockable nose handles are available for OC25 switches and replace the standard nose handle. They can be snap-on (22.5 mm hole) or screw mounted (four hole pattern) and are suitable for use with door or base mounted versions.
The handles are available in black, gray or red-yellow. If the red-yellow version is selected, the handle will be red and the legend plate will be yellow. They can be used with up to 3 padlocks. Padlocking is possible every 45° and the padlockable positions can be specified in CamWeb2. The standard legend plate size with this option is 66x66 mm and the degree of protection is IP66.
Key interlocked nose handle (QN)
Key interlocked handles are available on the OC25 with screw mounting and require an additional clearance hole for the lock. The operation of the cam switch is interlocked with a cylinder lock that is available to be located to the right or below the switch handle. The key can be removed in the lockable positions, which can be configured with 30° or 45° spacings in CamWeb2. The standard legend plate size with this option is 51x51 mm and the degree of protection is IP65.
Key interlocked extended nose handle (QM)
Key interlocked handles are available on the OC25 with screw mounting and require an additional clearance hole for the lock. The operation of the cam switch is interlocked with a cylinder lock that is available to be located to the right or below the switch handle. The key can be removed in the lockable positions, which can be configured with 30° or 45° spacings in CamWeb2. The standard legend plate size with this option is 66x66 mm and the degree of protection is IP65.
8 | 1SCC302009C0201 | Rotary cam switches
Standard and customized cam switches OC Versatile handle selection
Double or triple gang drive
These options are available for OC25 and allow a larger number of contacts to be used: up to 2x24 contacts for double (tandem) and up to 3x24 contacts for triple gang drive.
Double or triple gang drive switches include an extended nose handle or have the option of an extended padlockable nose handle. The switches can be screw mounted on door or base mounted. For base mounting, the handle is fixed directly on the switch. The front plate size is 66X66 mm and the degree of protection is IP66.
Front Plate Options
The standard front plates are 32x32 mm for OC10 and 51x51 mm for OC25. Larger front plates (66X66 mm) are available for
OC25 switches (_2). It also possible to include an additional front plate at the top of the OC10 and OC25 switches in order to identify a switch name. The text that should be included on the additional front plates can be specified in CamWeb2.
Spring return
The spring return movement is available with 30° spacing between momentary and maintained positions.
Gold contacts (_ G _)
Available for all OC switches. Gold contacts are recommended for low energy applications, especially for circuits with
12 Vdc and 10 mA or less.
Rotary cam switches | 1SCC302009C0201 | 9
Standard and customized cam switches OC
How to read contact diagrams
Symbol key |
|
|
|
Contact closed |
|
Contact closed without |
Contact closed with |
|
|||
|
|
interruption between switch |
interruption between switch |
|
|
positions |
position |
Early make, late break |
|
|
Spring return |
|
|
||
contact |
|
|
|
|
|
|
|
Example
Switch with 3 postitions and 2 contacts. Spring return option between “START” and “1”.
|
|
|
|
|
|
|
|
1 pole |
There is a jumper installed between terminals 1 and 3 |
|||
|
1 START |
|
No contacts are closed in the position”0” |
|||||||||
|
|
|
|
|
||||||||
0 |
|
|
|
|
|
|
1 |
3 |
||||
|
|
|
|
|
|
Contact 1-2 is closed in position ”1” |
||||||
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
Contact 1-2 remains closed when moving switch to ”START” position. Contact 3-4 also closes when switch is in |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
”START” position. |
|
|
|
|
|
|
|
|
|
|
|
|
The switch will automatically spring return from ”START” to ”1”. |
|
|
2 |
4 |
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|||||
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
START |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Certifications list
––IEC 60947-3, EN 60947-3
––IEC 60947-1
––IEC 60947-4-1
––IEC 60947-5-1, EN 60947-3
––CQC (CCC): China Quality Certification
––CE
––UL 60947-1
––UL 60947-4-1
––CSA C22.2 no. 60947-1-13
––CSA C22.2 no. 60947-4-1-14
10 | 1SCC302009C0201 | Rotary cam switches
Technical data
Rotary cam switches OC 10...25 Amperes
Ratings according to IEC60947-3
|
|
|
|
OC10 |
OC25 |
|
|
|
|
|
|
Rated insulation voltage |
Ui |
Pollution degree 3 |
V |
500 |
690 |
Rated impulse withstand voltage |
Uimp |
|
kV |
2.5 |
4 |
Rated thermal current |
Ith |
|
A |
10 |
25 |
Rated conditional short circuit current |
Ip (r.m.s.) |
|
kA |
11) |
71) |
Max back-up fuse link |
|
|
A |
10 |
25 |
Rated short time withstand current |
r.m.s. -value Icw |
1s |
A |
120 |
300 |
|
|
3s |
A |
70 |
173 |
Conditional short circuit current |
Iq |
500 V |
kA |
3 |
- |
|
|
690 V |
kA |
- |
7 |
Rated operational current |
AC-21A 1 and 3-phase |
400 V |
A |
10 |
25 |
|
AC-22A 1 and 3-phase |
Up to 500V |
A |
10 |
20 |
|
|
500…690 V |
A |
- |
20 |
|
AC-23A 3-phase |
230 V |
A |
7.6 |
15 |
|
|
400 V |
A |
6.5 |
15 |
|
|
500 V |
A |
- |
8.1 |
|
|
690 V |
A |
- |
5.9 |
|
AC-23A 1-phase |
230 V |
A |
7.2 |
8.7 |
|
|
400 V |
A |
6.1 |
8.3 |
|
AC-3 3-phase |
230 V |
A |
7.6 |
12 |
|
|
400 V |
A |
4.9 |
12 |
|
|
500 V |
A |
- |
6.8 |
|
|
690 V |
A |
- |
4.9 |
|
AC-3 1-phase |
230 V |
A |
5.3 |
7.2 |
|
|
400 V |
A |
4.2 |
7.2 |
|
AC-4 3-phase |
380…440 V |
A |
1.4 |
7.7 |
|
|
660…690 V |
A |
- |
3.8 |
Rated operational current, DC-21A |
1-contact in series |
48 V |
A |
10 |
25 |
Time constant 0...1ms |
1-contact in series |
110 V |
A |
0.7 |
1.5 |
|
1-contact in series |
220 V |
A |
0.3 |
0.5 |
|
2-contact in series |
60 V |
A |
10 |
20 |
|
3-contact in series |
110 V |
A |
10 |
20 |
|
5-contact in series |
220 V |
A |
10 |
20 |
|
9-contact in series |
440 V |
A |
10 |
20 |
|
10-contact in series |
600 V |
A |
- |
16 |
Rated operational current, DC-22A |
1-contact in series |
24 V |
A |
6 |
10 |
Time constant 1...50ms |
1-contact in series |
30 V |
A |
3 |
4.5 |
|
1-contact in series |
40 V |
A |
3 |
4.5 |
|
2-contact in series |
60 V |
A |
3 |
4.5 |
|
3-contact in series |
110 V |
A |
3 |
4.5 |
|
5-contact in series |
220 V |
A |
3 |
4.5 |
Rated operational current, DC-13 |
1 contact in series |
48 V |
A |
- |
3 |
|
1 contact in series |
110 V |
A |
- |
0.8 |
|
1 contact in series |
220 V |
A |
- |
0.4 |
Rated operational current, |
AC-15 |
220…240 V |
A |
2.5 |
5.5 |
according to IEC60947-5-1 |
|
380…440 V |
A |
1.5 |
3.5 |
|
|
|
|
|
|
1) 400 V |
|
|
|
|
|
Rotary cam switches | 1SCC302009C0201 | 11
Technical data
Rotary cam switches OC 10...25 Amperes
Ratings according to IEC60947-3
|
|
|
|
OC10 |
OC25 |
Rated operational power4) |
AC-23A 3-phase |
230 V |
kW |
1.8 |
2.6 |
|
|
400 V |
kW |
3 |
7.5 |
|
|
500 V |
kW |
- |
4.8 |
|
|
690 V |
kW |
- |
4.8 |
|
AC-23A 1-phase |
230 V |
kW |
0.8 |
0.9 |
|
|
400 V |
kW |
1.1 |
1.5 |
|
AC-3 3-phase |
230 V |
kW |
1.8 |
2.2 |
|
|
400 V |
kW |
2.2 |
5.5 |
|
|
500 V |
kW |
- |
4 |
|
|
690 V |
kW |
- |
4 |
|
AC-3 1-phase |
230 V |
kW |
0.6 |
0.8 |
|
|
400 V |
kW |
0.8 |
1.3 |
|
AC-4 3-phase |
380…440 V |
kW |
0.55 |
4 |
|
|
660…690 V |
kW |
- |
3 |
Power loss per contact - at rated Ith |
Standard contacts |
|
W |
≤ 0.6 |
≤ 1.8 |
Contact resistance |
Standard contacts |
|
Ohms |
≤ 0.004 |
≤ 0.003 |
Power loss per contact - at rated Ith |
Gold contacts |
|
W |
0.4 |
≤ 1.8 |
Contact resistance |
Gold contacts |
|
Ohms |
≤ 0.006 |
≤ 0.003 |
Minimum switching capacity |
Gold contacts |
|
mA |
5 |
5 |
|
Gold contacts |
|
V AC/DC |
5 |
5 |
Terminals |
Max cable cross section, solid/ |
|
mm2 |
0.5...1.5 |
1.5...4 |
|
stranded3) |
|
|
|
|
Mechanical endurance5) |
8 Contacts and less |
|
Number |
500 000 |
500 000 |
|
9 to 14 Contacts |
|
of |
300 000 |
300 000 |
|
15-24 Contacts |
|
operations |
100 000 |
100 000 |
|
|
|
|||
Temperature |
Storing and operational2) temperature |
|
°C |
-40...+80 |
-40...+85 |
2)At 40°C, derating 0%. Current peaks up to 60°C, derating 0%. For higher temperatures, see derating curve below.
3)Use copper wire only.
4)These values are given for guidance and may vary acc. to the motor manufacturer.
5)The mechanical endurance ratings are dependent on the switching angles and the number of contacts. The ratings shown represent the minimum values achieved. Higher ratings may be available upon request.
Derating for ambient temperature
|
1.05 |
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>(n×In) |
0.95 |
|
|
|
|
|
|
|
|
|
|
0.9 |
|
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>factor |
|
|
|
|
|
|
|
|
|
|
|
0.85 |
|
|
|
|
|
|
|
|
|
|
|
0.8 |
|
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>derating |
|
|
|
|
|
|
|
|
|
|
|
0.75 |
|
|
|
|
|
|
|
|
|
|
|
0.7 |
|
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>Current |
0.65 |
|
|
|
|
|
|
|
|
|
|
0.6 |
|
|
|
|
|
|
|
|
|
|
|
|
0.55 |
|
|
|
|
|
|
|
|
|
|
|
0.5 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
|
35 |
Ambient temperature (°C)
12 | 1SCC302009C0201 | Rotary cam switches
Technical data
Rotary cam switches OC 10...25 Amperes
Ratings according to UL 60947-4-1
Standards UL 60947-1, UL 60947-4-1, CSA C22.2 no. 60947-1-13, CSA C22.2 no. 60947-4-1-14.
Model designation |
|
|
OC10 |
OC25 |
Maximum general use ratings: |
|
|
|
|
Pilot duty, V ac |
|
V ac |
A300 |
A600 |
General rating, A |
|
A |
10 |
25 |
Voltage rating, 50/60 Hz, V ac |
|
V ac |
300 |
600 |
Single phase horsepower ratings |
|
|
|
|
Voltage, V ac, 50/60 Hz |
120 V |
HP |
0.33 |
0.75 |
|
|
FLA |
7.2 |
13.8 |
|
240 V |
HP |
1 |
2 |
|
|
FLA |
8.0 |
12.0 |
|
480 V |
HP |
- |
3 |
|
|
FLA |
- |
8.5 |
|
600 V |
HP |
- |
3 |
|
|
FLA |
- |
6.8 |
Three phase horsepower ratings |
|
|
|
|
Voltage, V ac, 50/60 Hz |
120 V |
HP |
1 |
2 |
|
|
FLA |
8.4 |
13.6 |
|
240 V |
HP |
1.0 |
3 |
|
|
FLA |
4.2 |
9.6 |
|
480 V |
HP |
- |
5 |
|
|
FLA |
- |
7.6 |
|
600 V |
HP |
- |
7.5 |
|
|
FLA |
- |
9.0 |
Short circuit ratings, manual motor controllers |
|
|
|
|
Short circuit ratings |
|
|
1 kA rms, 300 Vac |
5 kA rms, 600 Vac |
Maximum fuse size (Fuse class) |
|
|
30 A (RK5) |
35 A (RK5) |
Cabling |
|
|
|
|
Wire range |
|
AWG |
14** |
14-10** |
** Solid or stranded copper conductors only.
The standard for Industrial Control Equipement UL 508 has been harmonized with the relevant product standards of the IEC standard for Low-Voltage Switchgear and Controlgear
IEC 60947.
Rotary cam switches | 1SCC302009C0201 | 13
Ordering information
Rotary cam switches, standard
OC_A1
OC_A2 |
OC_A3
OC_A4
OC_A5 |
OC_A6 |
OC_A8 |
ON - OFF switches
The handle and front plate with position indication are included according to the table below. Key operated cam switches: the key can be removed in both positions, includes two keys. The round front ring: to be used in situations when position indications are on the door of the enclosure.
|
|
Number |
Rated |
|
|
|
|
|
of |
thermal |
|
|
Weight/ |
|
|
poles/ |
current |
|
|
unit |
Function |
contacts |
Ith [A] |
Type |
Order number |
[kg] |
|
O-position: 9 o´clock, step angle 90°, door mounted |
|
|
||||
|
|
|
||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
0 |
- 1 |
1 / 1 |
10 |
OC10G01PNBN00NA1 |
1SCA126421R1001 |
0.034 |
0 |
- 1 |
2 / 2 |
10 |
OC10G02PNBN00NA2 |
1SCA126423R1001 |
0.036 |
0 |
- 1 |
3 / 3 |
10 |
OC10G03PNBN00NA3 |
1SCA126426R1001 |
0.043 |
0 |
- 1 |
4 / 4 |
10 |
OC10G04PNBN00NA4 |
1SCA126427R1001 |
0.045 |
0 |
- 1 |
5 / 5 |
10 |
OC10G05PNBN00NA5 |
1SCA126428R1001 |
0.052 |
0 |
- 1 |
6 / 6 |
10 |
OC10G06PNBN00NA6 |
1SCA126429R1001 |
0.054 |
0 |
OFF- 1 ON |
1 / 1 |
10 |
OC10G01PNBN00NB1 |
1SCA134986R1001 |
0.034 |
0 |
OFF- 1 ON |
2 / 2 |
10 |
OC10G02PNBN00NB2 |
1SCA134993R1001 |
0.036 |
0 |
OFF- 1 ON |
3 / 3 |
10 |
OC10G03PNBN00NB3 |
1SCA134996R1001 |
0.043 |
0 |
OFF- 1 ON |
4 / 4 |
10 |
OC10G04PNBN00NB4 |
1SCA135000R1001 |
0.045 |
0 |
OFF- 1 ON |
5 / 5 |
10 |
OC10G05PNBN00NB5 |
1SCA135003R1001 |
0.052 |
0 |
OFF- 1 ON |
6 / 6 |
10 |
OC10G06PNBN00NB6 |
1SCA135005R1001 |
0.054 |
0 |
- 1 |
1 / 1 |
25 |
OC25G01PNBN00NA1 |
1SCA126433R1001 |
0.081 |
0 |
- 1 |
2 / 2 |
25 |
OC25G02PNBN00NA2 |
1SCA126440R1001 |
0.086 |
0 |
- 1 |
3 / 3 |
25 |
OC25G03PNBN00NA3 |
1SCA126448R1001 |
0.102 |
0 |
- 1 |
4 / 4 |
25 |
OC25G04PNBN00NA4 |
1SCA126452R1001 |
0.108 |
0 |
- 1 |
5 / 5 |
25 |
OC25G05PNBN00NA5 |
1SCA126456R1001 |
0.124 |
0 |
- 1 |
6 / 6 |
25 |
OC25G06PNBN00NA6 |
1SCA126459R1001 |
0.129 |
0 |
- 1 |
8 / 8 |
25 |
OC25G08PNBN00NA8 |
1SCA126461R1001 |
0.153 |
0 |
OFF- 1 ON |
1 / 1 |
25 |
OC25G01PNBN00NB1 |
1SCA134987R1001 |
0.081 |
0 |
OFF- 1 ON |
2 / 2 |
25 |
OC25G02PNBN00NB2 |
1SCA134994R1001 |
0.086 |
0 |
OFF- 1 ON |
3 / 3 |
25 |
OC25G03PNBN00NB3 |
1SCA134998R1001 |
0.102 |
0 |
OFF- 1 ON |
4 / 4 |
25 |
OC25G04PNBN00NB4 |
1SCA135001R1001 |
0.108 |
0 |
OFF- 1 ON |
5 / 5 |
25 |
OC25G05PNBN00NB5 |
1SCA135004R1001 |
0.124 |
0 |
OFF- 1 ON |
6 / 6 |
25 |
OC25G06PNBN00NB6 |
1SCA135006R1001 |
0.129 |
0 |
OFF- 1 ON |
8 / 8 |
25 |
OC25G08PNBN00NB8 |
1SCA135007R1001 |
0.153 |
|
|
|
|
|
|
|
For more options of standard cam switches, see Order code configuration, pages 40...56.
14 | 1SCC302009C0201 | Rotary cam switches
Ordering information
Rotary cam switches, standard
OC_A1
OC_A2 |
OC_A3
OC_A4
OC_A5 |
OC_A6 |
OC_A8 |
ON - OFF switches
The handle and front plate with position indication are included according to the table below. Key operated cam switches: the key can be removed in both positions, includes two keys. The round front ring: to be used in situations when position indications are on the door of the enclosure.
|
|
Number |
Rated |
|
|
|
|
|
of |
thermal |
|
|
Weight/ |
|
|
poles/ |
current |
|
|
unit |
Function |
contacts |
Ith [A] |
Type |
Order number |
[kg] |
|
O-position: 9 o´clock, step angle 90°, door mounted |
|
|
||||
|
|
|
||||
Screw mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
0 |
- 1 |
1 / 1 |
25 |
OC25G01RNBN00NA1 |
1SCA126436R1001 |
0.152 |
0 |
- 1 |
2 / 2 |
25 |
OC25G02RNBN00NA2 |
1SCA126442R1001 |
0.157 |
0 |
- 1 |
3 / 3 |
25 |
OC25G03RNBN00NA3 |
1SCA126451R1001 |
0.174 |
0 |
- 1 |
4 / 4 |
25 |
OC25G04RNBN00NA4 |
1SCA126455R1001 |
0.179 |
0 |
OFF- 1 ON |
1 / 1 |
25 |
OC25G01RNBN00NB1 |
1SCA134988R1001 |
0.152 |
0 |
OFF- 1 ON |
2 / 2 |
25 |
OC25G02RNBN00NB2 |
1SCA134995R1001 |
0.157 |
0 |
OFF- 1 ON |
3 / 3 |
25 |
OC25G03RNBN00NB3 |
1SCA134999R1001 |
0.174 |
0 |
OFF- 1 ON |
4 / 4 |
25 |
OC25G04RNBN00NB4 |
1SCA135002R1001 |
0.179 |
|
|
|
||||
Snap-on mounted key operated, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
0 |
- 1 |
1 / 1 |
10 |
OC10G01KNBN00NA1 |
1SCA126420R1001 |
0.049 |
0 |
- 1 |
3 / 3 |
10 |
OC10G03KNBN00NA3 |
1SCA126425R1001 |
0.058 |
0 |
- 1 |
1 / 1 |
25 |
OC25G01KNBN00NA1 |
1SCA126430R1001 |
0.100 |
0 |
- 1 |
3 / 3 |
25 |
OC25G03KNBN00NA3 |
1SCA126444R1001 |
0.122 |
0 |
OFF- 1 ON |
1 / 1 |
25 |
OC25G01KNBN00NB1 |
1SCA134989R1001 |
0.100 |
0 |
OFF- 1 ON |
3 / 3 |
25 |
OC25G03KNBN00NB3 |
1SCA134997R1001 |
0.122 |
|
|
|||||
Snap-on mounted black nose handle with round black front ring, no engraving |
|
|||||
|
|
|
|
|
|
|
0 |
- 1 |
1 / 1 |
25 |
OC25G01PXBN00NA1 |
1SCA126435R1001 |
0.075 |
0 |
- 1 |
2 / 2 |
25 |
OC25G02PXBN00NA2 |
1SCA126441R1001 |
0.080 |
0 |
- 1 |
3 / 3 |
25 |
OC25G03PXBN00NA3 |
1SCA126450R1001 |
0.097 |
0 |
- 1 |
4 / 4 |
25 |
OC25G04PXBN00NA4 |
1SCA126454R1001 |
0.102 |
|
|
|
||||
Snap-on mounted key operated, round front ring, no engraving |
|
|
||||
|
|
|
|
|
|
|
0 |
- 1 |
1 / 1 |
25 |
OC25G01KXBN00NA1 |
1SCA126431R1001 |
0.094 |
0 |
- 1 |
2 / 2 |
25 |
OC25G02KXBN00NA2 |
1SCA126437R1001 |
0.099 |
0 |
- 1 |
3 / 3 |
25 |
OC25G03KXBN00NA3 |
1SCA126446R1001 |
0.116 |
|
|
|
||||
O-position: 9 o´clock, step angle 90°, DIN-rail base mounted |
|
|
||||
|
|
|
|
|
||
Modular type, grey handle |
|
|
|
|
||
|
|
|
|
|
|
|
0 - 1 |
1 / 1 |
25 |
OC25G01MNGN00NA1 |
1SCA126432R1001 |
0.084 |
|
0 - 1 |
2 / 2 |
25 |
OC25G02MNGN00NA2 |
1SCA126439R1001 |
0.089 |
|
0 - 1 |
3 / 3 |
25 |
OC25G03MNGN00NA3 |
1SCA126447R1001 |
0.095 |
|
0 - 1 |
6 / 6 |
25 |
OC25G06MNGN00NA6 |
1SCA126458R1001 |
0.112 |
|
|
|
|
|
|
|
|
For more options of standard cam switches, see Order code configuration, pages 40...56.
Rotary cam switches | 1SCC302009C0201 | 15
Ordering information
Rotary cam switches, standard
OC_A01
OC_A02 |
OC_A03 |
OC_A04 |
OC_A05 |
OC_A06 |
ON - OFF switches
The handle and front plate with position indication are included according to the table below, with simultaneous contacts. Key operated cam switches: the key can be removed in both positions, includes two keys.
|
|
Number |
Rated |
|
|
|
|
|
of |
thermal |
|
|
Weight/ |
|
|
poles/ |
current |
|
|
unit |
Function |
contacts |
Ith [A] |
Type |
Order number |
[kg] |
|
O-position: 12 o´clock, step angle 90°, door mounted |
|
|
||||
|
|
|
||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
0 |
- 1 |
1 / 1 |
10 |
OC10G01PNBN00NA01 |
1SCA126467R1001 |
0.034 |
0 |
- 1 |
2 / 2 |
10 |
OC10G02PNBN00NA02 |
1SCA126468R1001 |
0.036 |
0 |
- 1 |
3 / 3 |
10 |
OC10G03PNBN00NA03 |
1SCA126470R1001 |
0.043 |
0 |
- 1 |
4 / 4 |
10 |
OC10G04PNBN00NA04 |
1SCA126471R1001 |
0.045 |
0 |
- 1 |
5 / 5 |
10 |
OC10G05PNBN00NA05 |
1SCA126472R1001 |
0.052 |
0 |
- 1 |
6 / 6 |
10 |
OC10G06PNBN00NA06 |
1SCA126473R1001 |
0.054 |
0 |
OFF- 1 ON |
1 / 1 |
10 |
OC10G01PNBN00NB01 |
1SCA135569R1001 |
0.034 |
0 |
OFF- 1 ON |
2 / 2 |
10 |
OC10G02PNBN00NB02 |
1SCA135578R1001 |
0.036 |
0 |
OFF- 1 ON |
3 / 3 |
10 |
OC10G03PNBN00NB03 |
1SCA135582R1001 |
0.043 |
0 |
OFF- 1 ON |
4 / 4 |
10 |
OC10G04PNBN00NB04 |
1SCA135585R1001 |
0.045 |
0 |
OFF- 1 ON |
5 / 5 |
10 |
OC10G05PNBN00NB05 |
1SCA135588R1001 |
0.052 |
0 |
OFF- 1 ON |
6 / 6 |
10 |
OC10G06PNBN00NB06 |
1SCA135590R1001 |
0.054 |
0 |
- 1 |
1 / 1 |
25 |
OC25G01PNBN00NA01 |
1SCA126476R1001 |
0.081 |
0 |
- 1 |
2 / 2 |
25 |
OC25G02PNBN00NA02 |
1SCA126478R1001 |
0.086 |
0 |
- 1 |
3 / 3 |
25 |
OC25G03PNBN00NA03 |
1SCA126481R1001 |
0.102 |
0 |
- 1 |
4 / 4 |
25 |
OC25G04PNBN00NA04 |
1SCA126482R1001 |
0.108 |
0 |
- 1 |
5 / 5 |
25 |
OC25G05PNBN00NA05 |
1SCA126483R1001 |
0.124 |
0 |
- 1 |
6 / 6 |
25 |
OC25G06PNBN00NA06 |
1SCA126485R1001 |
0.129 |
0 |
OFF- 1 ON |
1 / 1 |
25 |
OC25G01PNBN00NB01 |
1SCA135572R1001 |
0.081 |
0 |
OFF- 1 ON |
2 / 2 |
25 |
OC25G02PNBN00NB02 |
1SCA135580R1001 |
0.086 |
0 |
OFF- 1 ON |
3 / 3 |
25 |
OC25G03PNBN00NB03 |
1SCA135583R1001 |
0.102 |
0 |
OFF- 1 ON |
4 / 4 |
25 |
OC25G04PNBN00NB04 |
1SCA135587R1001 |
0.108 |
0 |
OFF- 1 ON |
5 / 5 |
25 |
OC25G05PNBN00NB05 |
1SCA135589R1001 |
0.124 |
0 |
OFF- 1 ON |
6 / 6 |
25 |
OC25G06PNBN00NB06 |
1SCA135591R1001 |
0.129 |
|
|
|
||||
Screw mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
0 |
OFF- 1 ON |
1 / 1 |
10 |
OC10G01RNBN00NB01 |
1SCA135571R1001 |
0.034 |
0 |
OFF- 1 ON |
2 / 2 |
10 |
OC10G02RNBN00NB02 |
1SCA135579R1001 |
0.036 |
0 |
OFF- 1 ON |
4 / 4 |
10 |
OC10G04RNBN00NB04 |
1SCA135586R1001 |
0.045 |
0 |
OFF- 1 ON |
1 / 1 |
25 |
OC25G01RNBN00NB01 |
1SCA135575R1001 |
0.152 |
0 |
OFF- 1 ON |
2 / 2 |
25 |
OC25G02RNBN00NB02 |
1SCA135581R1001 |
0.157 |
0 |
OFF- 1 ON |
3 / 3 |
25 |
OC25G03RNBN00NB03 |
1SCA135584R1001 |
0.174 |
|
|
|
||||
Snap-on mounted key operated, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
0 |
- 1 |
1 / 1 |
10 |
OC10G01KNBN00NA01 |
1SCA126466R1001 |
0.049 |
0 |
- 1 |
3 / 3 |
10 |
OC10G03KNBN00NA03 |
1SCA126469R1001 |
0.058 |
0 |
- 1 |
1 / 1 |
25 |
OC25G01KNBN00NA01 |
1SCA126474R1001 |
0.100 |
0 |
- 1 |
3 / 3 |
25 |
OC25G03KNBN00NA03 |
1SCA126479R1001 |
0.122 |
|
|
|
||||
O-position: 12 o´clock, step angle 90°, DIN-rail base mounted |
|
|
||||
|
|
|
|
|
||
Modular type, grey handle |
|
|
|
|
||
|
|
|
|
|
|
|
0 |
- 1 |
1 / 1 |
25 |
OC25G01MNGN00NA01 |
1SCA126475R1001 |
0.084 |
0 |
- 1 |
2 / 2 |
25 |
OC25G02MNGN00NA02 |
1SCA126477R1001 |
0.089 |
0 |
- 1 |
3 / 3 |
25 |
OC25G03MNGN00NA03 |
1SCA126480R1001 |
0.095 |
0 - 1 |
6 / 6 |
25 |
OC25G06MNGN00NA06 |
1SCA126484R1001 |
0.112 |
|
|
|
|
|
|
|
|
For more options of standard cam switches, see Order code configuration, pages 40...56.
16 | 1SCC302009C0201 | Rotary cam switches
Ordering information
Rotary cam switches, standard
OC_U1
OC_U2 |
OC_U3 |
OC_U4
Change-over switches
The handle and front plate with position indication are included according to the table below. Key operated cam switches: the key can be removed in all positions, includes two keys. The round front ring: to be used in situations when position indications are on the door of the enclosure.
|
|
Number |
Rated |
|
|
|
|
|
of |
thermal |
|
|
Weight/ |
|
|
poles/ |
current |
|
|
unit |
Function |
contacts |
Ith [A] |
Type |
Order number |
[kg] |
|
With 0-position, step angle 60°, door mounted |
|
|
||||
|
|
|
||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
1 - 0 - 2 |
1 / 2 |
10 |
OC10G02PNBN00NU1 |
1SCA126487R1001 |
0.036 |
|
1 - 0 - 2 |
2 / 4 |
10 |
OC10G04PNBN00NU2 |
1SCA126488R1001 |
0.045 |
|
1 - 0 - 2 |
3 / 6 |
10 |
OC10G06PNBN00NU3 |
1SCA126490R1001 |
0.055 |
|
1 - 0 - 2 |
4 / 8 |
10 |
OC10G08PNBN00NU4 |
1SCA126491R1001 |
0.065 |
|
1 - 0 - 2 |
1 / 2 |
25 |
OC25G02PNBN00NU1 |
1SCA126494R1001 |
0.086 |
|
1 - 0 - 2 |
2 / 4 |
25 |
OC25G04PNBN00NU2 |
1SCA126498R1001 |
0.108 |
|
1 - 0 - 2 |
3 / 6 |
25 |
OC25G06PNBN00NU3 |
1SCA126503R1001 |
0.130 |
|
1 - 0 - 2 |
4 / 8 |
25 |
OC25G08PNBN00NU4 |
1SCA126506R1001 |
0.155 |
|
|
|
|
||||
Screw mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
1 - 0 - 2 |
1 / 2 |
25 |
OC25G02RNBN00NU1 |
1SCA126496R1001 |
0.158 |
|
1 - 0 - 2 |
2 / 4 |
25 |
OC25G04RNBN00NU2 |
1SCA126500R1001 |
0.180 |
|
1 - 0 - 2 |
3 / 6 |
25 |
OC25G06RNBN00NU3 |
1SCA126505R1001 |
0.202 |
|
1 - 0 - |
2 |
4 / 8 |
25 |
OC25G08RNBN00NU4 |
1SCA126508R1001 |
0.227 |
|
|
|
||||
Snap-on mounted key operated, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
1 - 0 - |
2 |
1 / 2 |
10 |
OC10G02KNBN00NU1 |
1SCA126486R1001 |
0.051 |
1 - 0 - |
2 |
3 / 6 |
10 |
OC10G06KNBN00NU3 |
1SCA126489R1001 |
0.070 |
1 - 0 - |
2 |
1 / 2 |
25 |
OC25G02KNBN00NU1 |
1SCA126492R1001 |
0.105 |
1 - 0 - |
2 |
3 / 6 |
25 |
OC25G06KNBN00NU3 |
1SCA126501R1001 |
0.149 |
|
|
|||||
Snap-on mounted black nose handle with round black front ring, no engraving |
|
|||||
|
|
|
|
|
|
|
1 - 0 - |
2 |
1 / 2 |
25 |
OC25G02PXBN00NU1 |
1SCA126495R1001 |
0.081 |
1 - 0 - |
2 |
2 / 4 |
25 |
OC25G04PXBN00NU2 |
1SCA126499R1001 |
0.103 |
1 - 0 - |
2 |
3 / 6 |
25 |
OC25G06PXBN00NU3 |
1SCA126504R1001 |
0.125 |
1 - 0 - |
2 |
4 / 8 |
25 |
OC25G08PXBN00NU4 |
1SCA126507R1001 |
0.149 |
|
|
|
|
|||
With 0 |
-position, step angle 60°, DIN-rail base mounted |
|
|
|||
|
|
|
|
|
||
Modular type, grey handle |
|
|
|
|
||
|
|
|
|
|
|
|
1 - 0 - |
2 |
1 / 2 |
25 |
OC25G02MNGN00NU1 |
1SCA126493R1001 |
0.090 |
1 - 0 - |
2 |
2 / 4 |
25 |
OC25G04MNGN00NU2 |
1SCA126497R1001 |
0.101 |
1 - 0 - |
2 |
3 / 6 |
25 |
OC25G06MNGN00NU3 |
1SCA126502R1001 |
0.113 |
|
|
|
|
|
|
|
For more options of standard cam switches, see Order code configuration, pages 40...56.
Rotary cam switches | 1SCC302009C0201 | 17
Ordering information
Rotary cam switches, standard
OC_URR1 |
OC_URR2 |
OC_URR3 |
OC_WS1 |
OC_WS2
OC_WS3 |
OC_WS4 |
OC_WS5
Change-over switches
The handle and front plate with position indication are included according to the table below. The round front ring: to be used in situations when position indications are on the door of the enclosure.
|
Number |
Rated |
|
|
|
|
|
of |
thermal |
|
|
Weight/ |
|
|
poles/ |
current |
|
|
unit |
|
Function |
contacts |
Ith [A] |
Type |
Order number |
[kg] |
|
With 0-position, with two sided spring return, step angle 30°, door mounted |
|
|||||
|
|
|
||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
1R - 0 - 2R |
1 / 2 |
10 |
OC10G02PNBN00NURR1 |
1SCA126509R1001 |
0.036 |
|
1R - 0 - 2R |
3 / 6 |
10 |
OC10G06PNBN00NURR3 |
1SCA126510R1001 |
0.054 |
|
1R - 0 - 2R |
1 / 2 |
25 |
OC25G02PNBN00NURR1 |
1SCA126512R1001 |
0.086 |
|
1R - 0 - 2R |
2 / 4 |
25 |
OC25G04PNBN00NURR2 |
1SCA126513R1001 |
0.108 |
|
1R - 0 - 2R |
3 / 6 |
25 |
OC25G06PNBN00NURR3 |
1SCA126516R1001 |
0.130 |
|
Screw mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
1R - 0 - 2R |
2 / 4 |
25 |
OC25G04RNBN00NURR2 |
1SCA126515R1001 |
0.180 |
|
Snap-on mounted black nose handle with round black front ring, no engraving |
|
|||||
|
|
|
|
|
|
|
1R - 0 - 2R |
2 / 4 |
25 |
OC25G04PXBN00NURR2 |
1SCA126514R1001 |
0.103 |
|
With 0-position, with two sided spring return, step angle 30°, DIN-rail base mounted |
|
|||||
|
|
|
|
|
||
Modular type, grey handle |
|
|
|
|
||
|
|
|
|
|
|
|
1R - 0 - 2R |
1 / 2 |
25 |
OC25G02MNGN00NURR1 |
1SCA126511R1001 |
0.090 |
|
Without 0-position, step angle 60°, door mounted |
|
|
||||
|
|
|
||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
1 - 2 |
1 / 2 |
10 |
OC10G02PNBN00NWS1 |
1SCA126517R1001 |
0.036 |
|
1 - 2 |
2 |
/ 4 |
10 |
OC10G04PNBN00NWS2 |
1SCA126518R1001 |
0.045 |
1 - 2 |
3 |
/ 6 |
10 |
OC10G06PNBN00NWS3 |
1SCA126519R1001 |
0.055 |
1 - 2 |
4 |
/ 8 |
10 |
OC10G08PNBN00NWS4 |
1SCA126520R1001 |
0.065 |
1 - 2 |
1 |
/ 2 |
25 |
OC25G02PNBN00NWS1 |
1SCA126522R1001 |
0.086 |
1 - 2 |
2 |
/ 4 |
25 |
OC25G04PNBN00NWS2 |
1SCA126526R1001 |
0.108 |
1 - 2 |
3 |
/ 6 |
25 |
OC25G06PNBN00NWS3 |
1SCA126530R1001 |
0.130 |
1 - 2 |
4 |
/ 8 |
25 |
OC25G08PNBN00NWS4 |
1SCA126533R1001 |
0.155 |
1 - 2 |
5 |
/ 10 |
25 |
OC25G10PNBN00NWS5 |
1SCA126536R1001 |
0.177 |
|
|
|
||||
Screw mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
1 - 2 |
1 |
/ 2 |
25 |
OC25G02RNBN00NWS1 |
1SCA126524R1001 |
0.158 |
1 - 2 |
2 |
/ 4 |
25 |
OC25G04RNBN00NWS2 |
1SCA126528R1001 |
0.180 |
1 - 2 |
3 |
/ 6 |
25 |
OC25G06RNBN00NWS3 |
1SCA126532R1001 |
0.202 |
1 - 2 |
4 |
/ 8 |
25 |
OC25G08RNBN00NWS4 |
1SCA126535R1001 |
0.227 |
|
|
|||||
Snap-on mounted black nose handle with round black front ring, no engraving |
|
|||||
|
|
|
|
|
|
|
1 - 2 |
1 |
/ 2 |
25 |
OC25G02PXBN00NWS1 |
1SCA126523R1001 |
0.081 |
1 - 2 |
2 |
/ 4 |
25 |
OC25G04PXBN00NWS2 |
1SCA126527R1001 |
0.103 |
1 - 2 |
3 |
/ 6 |
25 |
OC25G06PXBN00NWS3 |
1SCA126531R1001 |
0.125 |
1 - 2 |
4 / 8 |
25 |
OC25G08PXBN00NWS4 |
1SCA126534R1001 |
0.149 |
|
|
|
|
||||
Without 0-position, step angle 60°, DIN-rail base mounted |
|
|
||||
|
|
|
|
|
||
Modular type, grey handle |
|
|
|
|
||
|
|
|
|
|
|
|
1 - 2 |
1 / 2 |
25 |
OC25G02MNGN00NWS1 |
1SCA126521R1001 |
0.090 |
|
1 - 2 |
2 / 4 |
25 |
OC25G04MNGN00NWS2 |
1SCA126525R1001 |
0.101 |
|
1 - 2 |
3 / 6 |
25 |
OC25G06MNGN00NWS3 |
1SCA126529R1001 |
0.113 |
|
|
|
|
|
|
|
|
For more options of standard cam switches, see Order code configuration, pages 40...56.
Connection diagram (OC_WS_)
18 | 1SCC302009C0201 | Rotary cam switches
Ordering information
Rotary cam switches, standard
OC_WC1
OC_WC2 |
OC_WC3
OC_WC4
OC_UC3
OC_UC4
Connection diagram (OC_WC_, OC_UC_)
Change-over switches
The handle and front plate with position indication are included according to the table below. The round front ring: to be used in situations when position indications are on the door of the enclosure.
|
Number |
Rated |
|
|
|
|
of |
thermal |
|
|
Weight/ |
|
poles/ |
current |
|
|
unit |
Function |
contacts |
Ith [A] |
Type |
Order number |
[kg] |
With overlapping contacts, step angle 60°, door mounted |
|
|
|||
|
|
|
|||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
|||
|
|
|
|
|
|
1 - 2 |
1 / 2 |
10 |
OC10G02PNBN00NWC1 |
1SCA126537R1001 |
0.036 |
1 - 2 |
2 / 4 |
10 |
OC10G04PNBN00NWC2 |
1SCA126538R1001 |
0.045 |
1 - 2 |
3 / 6 |
10 |
OC10G06PNBN00NWC3 |
1SCA126539R1001 |
0.055 |
1 - 2 |
4 / 8 |
10 |
OC10G08PNBN00NWC4 |
1SCA126540R1001 |
0.065 |
1 - 2 |
1 / 2 |
25 |
OC25G02PNBN00NWC1 |
1SCA126541R1001 |
0.086 |
1 - 2 |
2 / 4 |
25 |
OC25G04PNBN00NWC2 |
1SCA126542R1001 |
0.108 |
1 - 2 |
3 / 6 |
25 |
OC25G06PNBN00NWC3 |
1SCA126543R1001 |
0.130 |
1 - 2 |
4 / 8 |
25 |
OC25G08PNBN00NWC4 |
1SCA126544R1001 |
0.155 |
|
|
||||
With common center position and with overlapping contacts, step angle 60°, door mounted |
|
||||
|
|
|
|||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
|||
|
|
|
|
|
|
1 - (1 + 2) - 2 |
3 / 6 |
25 |
OC25G06PNBN00NUC3 |
1SCA126545R1001 |
0.130 |
1 - (1 + 2) - 2 |
4 / 8 |
25 |
OC25G08PNBN00NUC4 |
1SCA126546R1001 |
0.155 |
|
|
|
|
|
|
For more options of standard cam switches, see Order code configuration, pages 40...56.
Rotary cam switches | 1SCC302009C0201 | 19
Ordering information
Rotary cam switches, standard
OC_WS36
OC_WS48
Bypass
OC_PW36
Bypass
OC_PW48
Bypass switches
The handle and front plate with position indication are included according to the table below.
|
|
Number |
Rated |
|
|
|
|
|
of |
thermal |
|
|
Weight/ |
|
|
poles/ |
current |
|
|
unit |
Function |
contacts |
Ith [A] |
Type |
Order number |
[kg] |
|
With 0-position, step angle 60°, without overlapping, 3 and 4- pole network, door mounted |
|
|||||
|
|
|
||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
1 |
- 0 - Bypass |
3;6 / 9 |
25 |
OC25G09PNBN00NWS36 |
1SCA126547R1001 |
0.172 |
1 |
- 0 - Bypass |
4;8 / 12 |
25 |
OC25G12PNBN00NWS48 |
1SCA126548R1001 |
0.200 |
|
|
|||||
Without 0-position, step angle 60°, with overlapping, 3 and 4- pole network, door mounted |
|
|||||
|
|
|
||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
1 |
- Bypass |
3;6 / 9 |
25 |
OC25G09PNBN00NPW36 |
1SCA126549R1001 |
0.172 |
1 |
- Bypass |
4;8 / 12 |
25 |
OC25G12PNBN00NPW48 |
1SCA126550R1001 |
0.200 |
|
|
|
|
|
|
|
For more options of standard cam switches, see Order code configuration, pages 40...56.
State 1 |
State 2 |
State 3 |
State 4 |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OC_WS36_, OC_PW36_
OC_WS48_, OC_PW48_
20 | 1SCC302009C0201 | Rotary cam switches
Ordering information
Rotary cam switches, standard
OC_SO21
OC_SO22
OC_SO23
OC_SO24
Multistep switches
The handle and front plate with position indication are included according to the table below. The round front ring: to be used in situations when position indications are on the door of the enclosure. Step angle 30°.
|
Number |
Rated |
|
|
|
|
of |
thermal |
|
|
Weight/ |
|
poles/ |
current |
|
|
unit |
Function |
contacts |
Ith [A] |
Type |
Order number |
[kg] |
2- step, with 0-position, door mounted |
|
|
|
||
|
|
|
|||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
|||
|
|
|
|
|
|
0 - 1 - 2 |
1 / 2 |
10 |
OC10G02PNBN00NSO21 |
1SCA126551R1001 |
0.036 |
0 - 1 - 2 |
2 / 4 |
10 |
OC10G04PNBN00NSO22 |
1SCA126552R1001 |
0.045 |
0 - 1 - 2 |
3 / 6 |
10 |
OC10G06PNBN00NSO23 |
1SCA126553R1001 |
0.055 |
0 - 1 - 2 |
4 / 8 |
10 |
OC10G08PNBN00NSO24 |
1SCA126554R1001 |
0.065 |
0 - 1 - 2 |
1 / 2 |
25 |
OC25G02PNBN00NSO21 |
1SCA126556R1001 |
0.087 |
0 - 1 - 2 |
2 / 4 |
25 |
OC25G04PNBN00NSO22 |
1SCA126559R1001 |
0.109 |
0 - 1 - 2 |
3 / 6 |
25 |
OC25G06PNBN00NSO23 |
1SCA126562R1001 |
0.131 |
0 - 1 - 2 |
4 / 8 |
25 |
OC25G08PNBN00NSO24 |
1SCA126563R1001 |
0.155 |
|
|
|
|||
Screw mounted black nose handle, black front frame and silver front plate |
|
|
|||
|
|
|
|
|
|
0 - 1 - 2 |
1 / 2 |
25 |
OC25G02RNBN00NSO21 |
1SCA126558R1001 |
0.158 |
0 - 1 - 2 |
2 / 4 |
25 |
OC25G04RNBN00NSO22 |
1SCA126561R1001 |
0.180 |
|
|
||||
Snap-on mounted black nose handle with round black front ring, no engraving |
|
||||
|
|
|
|
|
|
0 - 1 - 2 |
1 / 2 |
25 |
OC25G02PXBN00NSO21 |
1SCA126557R1001 |
0.081 |
0 - 1 - 2 |
2 / 4 |
25 |
OC25G04PXBN00NSO22 |
1SCA126560R1001 |
0.103 |
|
|
|
|||
2- step, with 0-position, DIN-rail base mounted |
|
|
|||
|
|
|
|
|
|
Modular type, grey handle |
|
|
|
|
|
|
|
|
|
|
|
0 - 1 - 2 |
1 / 2 |
25 |
OC25G02MNGN00NSO21 |
1SCA126555R1001 |
0.090 |
|
|
|
|
|
|
For more options of standard cam switches, see Order code configuration, pages 40...56.
Rotary cam switches | 1SCC302009C0201 | 21
Ordering information
Rotary cam switches, standard
Multistep switches
The handle and front plate with position indication are included according to the table below. The round front ring: to be used in situations when position indications are on the door of the enclosure. Step angle 30°.
OC_SO31
OC_SO32
OC_SO33
OC_SO34
OC_ST31 |
OC_ST32
|
|
|
Number |
Rated |
|
|
|
|
|
|
|
of |
thermal |
|
|
Weight/ |
|
|
|
|
poles/ |
current |
|
|
unit |
|
Function |
contacts |
Ith [A] |
Type |
Order number |
[kg] |
|||
3- step, with 0-position, door mounted |
|
|
|
|||||
|
|
|
||||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
||||||
|
|
|
|
|
|
|
||
0 - 1 - 2 - 3 |
1 |
/ 3 |
10 |
OC10G03PNBN00NSO31 |
1SCA126564R1001 |
0.043 |
||
0 - 1 - 2 - 3 |
2 |
/ 6 |
10 |
OC10G06PNBN00NSO32 |
1SCA126565R1001 |
0.055 |
||
0 - 1 - 2 - 3 |
3 |
/ 9 |
10 |
OC10G09PNBN00NSO33 |
1SCA126566R1001 |
0.073 |
||
0 - 1 - 2 - 3 |
4 |
/ 12 |
10 |
OC10G12PNBN00NSO34 |
1SCA126567R1001 |
0.084 |
||
0 - 1 |
- 2 - 3 |
1 |
/ 3 |
25 |
OC25G03PNBN00NSO31 |
1SCA126569R1001 |
0.103 |
|
0 |
- 1 |
- 2 - 3 |
2 |
/ 6 |
25 |
OC25G06PNBN00NSO32 |
1SCA126572R1001 |
0.131 |
0 |
- 1 |
- 2 - 3 |
3 |
/ 9 |
25 |
OC25G09PNBN00NSO33 |
1SCA126573R1001 |
0.172 |
0 |
- 1 |
- 2 - 3 |
4 |
/ 12 |
25 |
OC25G12PNBN00NSO34 |
1SCA126574R1001 |
0.200 |
|
|
|
||||||
Screw mounted black nose handle, black front frame and silver front plate |
|
|
||||||
|
|
|
|
|
|
|
|
|
0 |
- 1 |
- 2 - 3 |
1 |
/ 3 |
25 |
OC25G03RNBN00NSO31 |
1SCA126571R1001 |
0.175 |
|
|
|||||||
Snap-on mounted black nose handle with round black front ring, no engraving |
|
|||||||
|
|
|
|
|
|
|
|
|
0 |
- 1 |
- 2 - 3 |
1 |
/ 3 |
25 |
OC25G03PXBN00NSO31 |
1SCA126570R1001 |
0.098 |
|
|
|
|
|||||
3 |
- step, with 0-position, DIN-rail base mounted |
|
|
|||||
|
|
|
|
|
||||
Modular type, grey handle |
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
0 |
- 1 |
- 2 - 3 |
1 |
/ 3 |
25 |
OC25G03MNGN00NSO31 |
1SCA126568R1001 |
0.096 |
|
|
|
|
|
||||
3 |
- step, without 0-position, door mounted |
|
|
|
||||
|
|
|
||||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
||||||
|
|
|
|
|
|
|
|
|
1 |
- 2 |
- 3 |
1 |
/ 3 |
10 |
OC10G03PNBN00NST31 |
1SCA126575R1001 |
0.043 |
1 |
- 2 |
- 3 |
2 |
/ 6 |
10 |
OC10G06PNBN00NST32 |
1SCA126576R1001 |
0.055 |
1 |
- 2 |
- 3 |
3 |
/ 9 |
10 |
OC10G09PNBN00NST33 |
1SCA126577R1001 |
0.073 |
1 |
- 2 |
- 3 |
4 |
/ 12 |
10 |
OC10G12PNBN00NST34 |
1SCA126578R1001 |
0.084 |
1 |
- 2 |
- 3 |
1 |
/ 3 |
25 |
OC25G03PNBN00NST31 |
1SCA126580R1001 |
0.103 |
1 |
- 2 |
- 3 |
2 |
/ 6 |
25 |
OC25G06PNBN00NST32 |
1SCA126583R1001 |
0.131 |
1 |
- 2 - 3 |
3 |
/ 9 |
25 |
OC25G09PNBN00NST33 |
1SCA126584R1001 |
0.172 |
|
1 - 2 - 3 |
4 |
/ 12 |
25 |
OC25G12PNBN00NST34 |
1SCA126585R1001 |
0.200 |
||
|
|
|
||||||
Screw mounted black nose handle, black front frame and silver front plate |
|
|
||||||
|
|
|
|
|
|
|
||
1 - 2 - 3 |
1 |
/ 3 |
25 |
OC25G03RNBN00NST31 |
1SCA126582R1001 |
0.175 |
||
|
|
|||||||
Snap-on mounted black nose handle with round black front ring, no engraving |
|
|||||||
|
|
|
|
|
|
|
||
1 - 2 - 3 |
1 |
/ 3 |
25 |
OC25G03PXBN00NST31 |
1SCA126581R1001 |
0.098 |
||
|
|
|
||||||
3- step, without 0-position, DIN-rail base mounted |
|
|
||||||
|
|
|
|
|
||||
Modular type, grey handle |
|
|
|
|
||||
|
|
|
|
|
|
|
||
1 - 2 - 3 |
1 |
/ 3 |
25 |
OC25G03MNGN00NST31 |
1SCA126579R1001 |
0.096 |
||
|
|
|
|
|
|
|
|
|
For more options of standard cam switches, see Order code configuration, pages 40...56.
OC_ST33 |
OC_ST34 |
22 | 1SCC302009C0201 | Rotary cam switches |
Ordering information
Rotary cam switches, standard
OC_SO41
OC_SO42
OC_SO43
OC_ST41
OC_ST42
OC_ST43
Multistep switches
The handle and front plate with position indication are included according to the table below. The round front ring: to be used in situations when position indications are on the door of the enclosure. Step angle 30°
|
|
Number |
Rated |
|
|
|
|
|
|
of |
thermal |
|
|
Weight/ |
|
|
|
poles/ |
current |
|
|
unit |
|
Function |
contacts |
Ith [A] |
Type |
Order number |
[kg] |
||
4 |
- step, with 0-position, door mounted |
|
|
|
|||
|
|
|
|||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
|||||
|
|
|
|
|
|
|
|
0 |
-1-2-3-4 |
1 |
/ 4 |
10 |
OC10G04PNBN00NSO41 |
1SCA126586R1001 |
0.045 |
0-1-2-3-4 |
2 |
/ 8 |
10 |
OC10G08PNBN00NSO42 |
1SCA126587R1001 |
0.065 |
|
0 |
-1-2-3-4 |
3 |
/ 12 |
10 |
OC10G12PNBN00NSO43 |
1SCA126588R1001 |
0.084 |
0 |
-1-2-3-4 |
1 |
/ 4 |
25 |
OC25G04PNBN00NSO41 |
1SCA126589R1001 |
0.109 |
0 |
-1-2-3-4 |
2 |
/ 8 |
25 |
OC25G08PNBN00NSO42 |
1SCA126590R1001 |
0.155 |
0-1-2-3-4 |
3 |
/ 12 |
25 |
OC25G12PNBN00NSO43 |
1SCA126591R1001 |
0.201 |
|
|
|
|
|
|
|||
4 |
- step, without 0-position, door mounted |
|
|
|
|||
|
|
|
|||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
|||||
|
|
|
|
|
|
|
|
1-2-3-4 |
1 |
/ 4 |
10 |
OC10G04PNBN00NST41 |
1SCA126592R1001 |
0.045 |
|
1-2-3-4 |
2 |
/ 8 |
10 |
OC10G08PNBN00NST42 |
1SCA126593R1001 |
0.065 |
|
1-2-3-4 |
3 |
/ 12 |
10 |
OC10G12PNBN00NST43 |
1SCA126594R1001 |
0.084 |
|
1-2-3-4 |
1 |
/ 4 |
25 |
OC25G04PNBN00NST41 |
1SCA126595R1001 |
0.109 |
|
1-2-3-4 |
2 |
/ 8 |
25 |
OC25G08PNBN00NST42 |
1SCA126598R1001 |
0.155 |
|
1-2-3-4 |
3 |
/ 12 |
25 |
OC25G12PNBN00NST43 |
1SCA126599R1001 |
0.201 |
|
|
|
|
|||||
Screw mounted black nose handle, black front frame and silver front plate |
|
|
|||||
|
|
|
|
|
|
|
|
1-2-3-4 |
1 |
/ 4 |
25 |
OC25G04RNBN00NST41 |
1SCA126597R1001 |
0.180 |
|
|
|
||||||
Snap-on mounted black nose handle with round black front ring, no engraving |
|
||||||
|
|
|
|
|
|
|
|
1-2-3-4 |
1 |
/ 4 |
25 |
OC25G04PXBN00NST41 |
1SCA126596R1001 |
0.103 |
|
|
|
|
|
|
|
|
|
For more options of standard cam switches, see Order code configuration, pages 40...56.
Rotary cam switches | 1SCC302009C0201 | 23
Ordering information
Rotary cam switches, standard
OC_SO51
OC_SO52
OC_ST51
Multistep switches
The handle and front plate with position indication are included according to the table below. The round front ring: to be used in situations when position indications are on the door of the enclosure. Step angle 30°
|
Number |
Rated |
|
|
|
|
|
of |
thermal |
|
|
Weight/ |
|
|
poles/ |
current |
|
|
unit |
|
Function |
contacts |
Ith [A] |
Type |
Order number |
[kg] |
|
5- step, with 0-position, door mounted |
|
|
|
|||
|
|
|
||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
0-1-2-3-4-5 |
1 |
/ 5 |
10 |
OC10G05PNBN00NSO51 |
1SCA126600R1001 |
0.053 |
0-1-2-3-4-5 |
2 |
/ 10 |
10 |
OC10G10PNBN00NSO52 |
1SCA126601R1001 |
0.075 |
0-1-2-3-4-5 |
1 |
/ 5 |
25 |
OC25G05PNBN00NSO51 |
1SCA126602R1001 |
0.126 |
0-1-2-3-4-5 |
2 |
/ 10 |
25 |
OC25G10PNBN00NSO52 |
1SCA126603R1001 |
0.178 |
|
|
|
|
|||
5- step, without 0-position, door mounted |
|
|
|
|||
|
|
|
||||
Snap-on mounted black nose handle, black front frame and silver front plate |
|
|
||||
|
|
|
|
|
|
|
1-2-3-4-5 |
1 |
/ 5 |
10 |
OC10G05PNBN00NST51 |
1SCA126604R1001 |
0.053 |
1-2-3-4-5 |
2 |
/ 10 |
10 |
OC10G10PNBN00NST52 |
1SCA126605R1001 |
0.075 |
1-2-3-4-5 |
1 |
/ 5 |
25 |
OC25G05PNBN00NST51 |
1SCA126606R1001 |
0.126 |
1-2-3-4-5 |
2 |
/ 10 |
25 |
OC25G10PNBN00NST52 |
1SCA126607R1001 |
0.178 |
|
|
|
|
|
|
|
For more options of standard cam switches, see Order code configuration, pages 40...56.
OC_ST52
24 | 1SCC302009C0201 | Rotary cam switches
