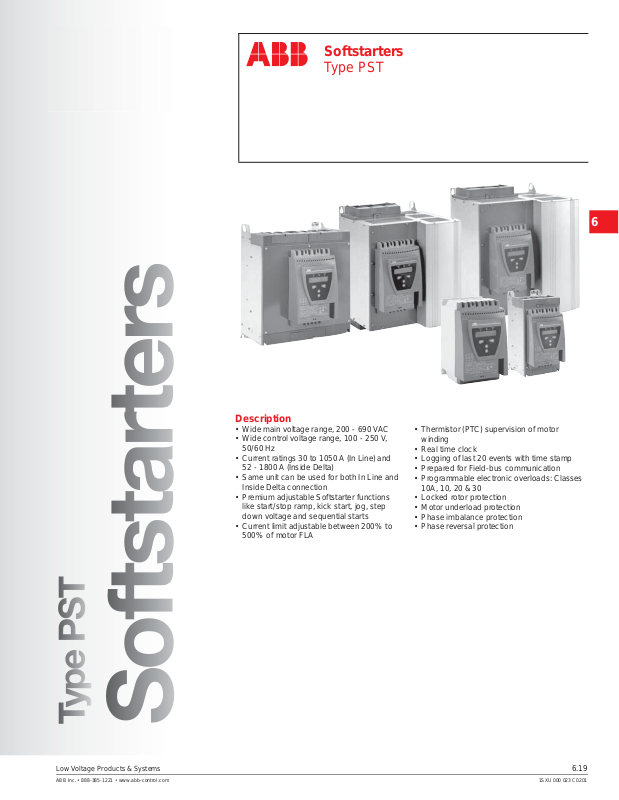

Softstarters
Type PST
Softstarters
Type PST
6
6
Description
• Wide main voltage range, 200 - 690 VAC
• Wide control voltage range, 100 - 250 V,
50/60 Hz
• Current ratings 30 to 1050 A (In Line) and
52 - 1800 A (Inside Delta)
• Same unit can be used for both In Line and
Inside Delta connection
• Premium adjustable Softstarter functions
like start/stop ramp, kick start, jog, step
down voltage and sequential starts
• Current limit adjustable between 200% to
500% of motor FLA
• Thermistor (PTC) supervision of motor
winding
• Real time clock
• Logging of last 20 events with time stamp
• Prepared for Field-bus communication
• Programmable electronic overloads: Classes
10A, 10, 20 & 30
• Locked rotor protection
• Motor underload protection
• Phase imbalance protection
• Phase reversal protection
Low Voltage Products & Systems 6.19
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
Softstarters
6
Type PST
Open
Softstarter
Type PST
Bypass
No digit – No integrated bypass
B – Integrated bypass
Current rating
6
UL / IEC
30 – 28/30
37 – 34/37
44 – 42/44
50 – 54/50
72 – 68/72
85 – 80/85
105 – 104/105
142 – 130/142
175 – 156/175
Enclosed
General information
Catalog number explanation
Open & enclosed
PST B 370 600 - 70
Control voltage
70 – 100 - 250 V, 50/60 Hz
Line voltage
600 – 208/230/480/600 V
690 – 690 V 3
UL / IEC
210 – 192/210
250 – 248/250
300 – 302/300
370 – 361/370
470 – 480/470
570 – 590/570
720 – 720/720
840 – 840/840
1050 – 1062/1050
T 100 D F 1 – 48 D A
Soft starter settings
T – Type PST Enclosed
Horsepower
010 – 10
015 – 15
020 – 20
025 – 25
030 – 30
040 – 40
050 – 50
060 – 60
075 – 75
100 – 100
Connection type
L – Inline
D – Inside Delta
Combination type
No digit – non-combination
F – fusible disconnect
B – thermal magnetic circuit breaker
M – magnetic only breaker
N – non-fusible disconnect
Enclosure
1 – NEMA 1
2 – NEMA 12
3 – NEMA 3R
4 – NEMA 4
X – NEMA 4x stainless steel
1 For more options, see page 6.27
2 Bypass contactor required when integrated bypass is not included.
3 Add 30% to the list price.
125 – 125
150 – 150
200 – 200
250 – 250
300 – 300
350 – 350
400 – 400
450 – 450
500 – 500
600 – 600
2
2
2
800 – 800
900 – 900
1000 – 1000
1200 – 1200
1400 – 1400
1500 – 1500
1600 – 1600
1700 – 1700
1800 – 1800
2
6.20 Low Voltage Products & Systems
1SXU 000 023 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
Options 1
A – Start-stop pushbutton
B – Across the line rated (AC3) contactor with
emergency bypass control
C – 2 position selector switch
D – 3 position selector switch
E – Pilot light
F – Start-stop pushbutton and pilot light
H – 2 position selector switch and pilot light
J – 3 position selector switch and pilot light
M – Shunt rated (AC1) bypass contactor
W – Isolation contactor
Fuse clip
A – 30A, 600V, Class J
B – 60A, 600V, Class J
C – 100A, 600V, Class J
D – 200A, 600V, Class J
E – 400A, 600V, Class J
F – 600A, 600V, Class J
G – 800A, 600V, Class L
Circuit Breaker Amp Ratings
D – 15 M – 70 W – 225 E – 700 N – 3000
E – 20 N – 80 X – 250 F – 800
F – 25 P – 90 Y – 300 G – 900
G – 30 R – 100 Z – 350 H – 1000
H – 35 S – 125 A – 400 J – 1200
J – 40 T – 150 B – 450 K – 1600
K – 50 U – 175 C – 500 L – 2000
L – 60 V – 200 D – 600 M – 2500
MCP/MAG Only Rating
A – 3 E – 50 J – 400
B – 5 F – 100 K – 600
C – 10 G – 150 L – 800
D – 25 H – 225 M – 1200
Line voltage
20: 208V 120V control voltage
23: 230V 120V control voltage
38: 380V 220V control voltage
41: 415V 220V control voltage
48: 480V 120V control voltage
60: 600V 120V control voltage
H – 1200A, 600V, Class L
J – 1600A, 600V, Class L
K – 2000A, 600V, Class L
L – 2500A, 600V, Class L
M – 3000A, 600V, Class L
N – 4000A, 600V, Class L
General information
Application and description
Three separate terminals
prepared for external by-pass
Programmable
inputs
Softstarters
Type PST
6
Programmable
signal relays
Display with
plain words in
your language
Clear
information
FieldBus communication
Application
The PST range is a microprocessor based softstarter designed with the latest
technology for soft start and soft stop of motors. The PST Softstarter has several
advanced motor protection features as standard. The four button key pad and the
logic structure of the menu makes the installation, commissioning and operation
easy. It is possible to choose between 12 different languages.
The PST Softstarter can be used with or without a by-pass contactor. The larger
sizes, PSTB370 – PSTB1050, include a built-in by-pass contactor.
The PST Softstarter can be selected according to the rated motor power in
normal duty applications like pumps, compressors, elevators, escalators, short
conveyor belts and bow thrusters.
Digital key-pad
Digital display
Your business is going global. Shouldn't your motor control go global, too? The
PST display gives you information presented in plain words — in your language.
You can choose between almost a dozen languages including English, German,
Italian, Chinese, Finnish, Swedish, French, Spanish, Dutch, Russian, Turkish
and Portuguese. On the PST display, you get all the information you need to set
up, adjust and trouble-shoot. This makes the PST extremely easy to handle and
reduces the risk of misinterpretations.
At any time, you can read output current, output voltage, number of starts, total
run time and motor temperature on the display. If a fault should occur, this is also
indicated on the display. The fault messages are presented in clear text in the
selected language.
6
)N,INE
!
!
In-Line and Inside Delta connection of PST30 - 1050
Low Voltage Products & Systems 6.21
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
)NSIDE$ELTA
!
!
General information
Application and description
Softstarters
6
Type PST
Four button keypad
The PST employs the same basic user concept as today’s advanced mobile
telephones. Using the four buttons on the keypad, you can easily adjust your own
start and stop profi le and motor protection functions for any type of application.
There are standard settings for many common applications including pumps,
conveyors, fans, mixers and compressors for quick and easy set up.
You can also set the advanced warning parameters to allow potential problems to
be identifi ed before real problems occur. A password protection function is available to prevent unauthorized changes to the programming.
Remote four button keypad
This optional remote keypad is an extended HMI (human-machine interface) for
6
all PST(B) softstarters. The remote keypad allows you to access all functions from
the PST(B) on the outside of the enclosure door.
The interface/display is exactly the same as the one on the softstarter (working
in parallel with the one on the product). Used as a handheld device, it is easy to
set up parallel softstarter units as you can copy data from one softstarter unit and
download to another.
The keypad kit includes all necessary details for assembling: 3 screws, 10 ft.
communication cable, installation instructions and a drilling plan.
The keypad has the following approvals: UL Type 1, 12, Indoor 4/4X.
Starting several motors
You can store as many as three different starting parameter sets for optimal
sequence start of three different motors. You can use this function for two or three
speed motors as well.
Integrated advanced motor protection
Inside the PST Softstarter, you will fi nd useful features for advanced motor and
softstarter protection, including: programmable overload protection, high current,
underload, phase imbalance, phase reversal, thyristor overload protection, and
bypass monitoring to ensure proper by-pass operation.
Programmable signal relays
All PST units have three programmable signal relays where each relay can signal
Run, Top of Ramp or Event. The Event setting can be used to signal fault protections or warnings. The supervisory functions monitor not only software and critical
softstarter functionality but also phase loss and out of frequency range.
Integrated by-pass contactor
On the larger sizes (PSTB370 – PSTB1050), there is an integrated ABB AF
contactor. This gives you advantages in terms of cost-saving, (less investment in
fans, cables, time), space saving (more compact soft starter; no fan that takes up
space), and last but not least, energy saving. With a by-pass contactor you can
reduce the power losses during normal run by 90% or more.
For the smaller PST below 370A, which are not equipped with built-in contactors,
the units have double connections for the main terminals on the line side. The extra terminals are used to connect an external by-pass contactor in order to enable
the integrated protection functions.

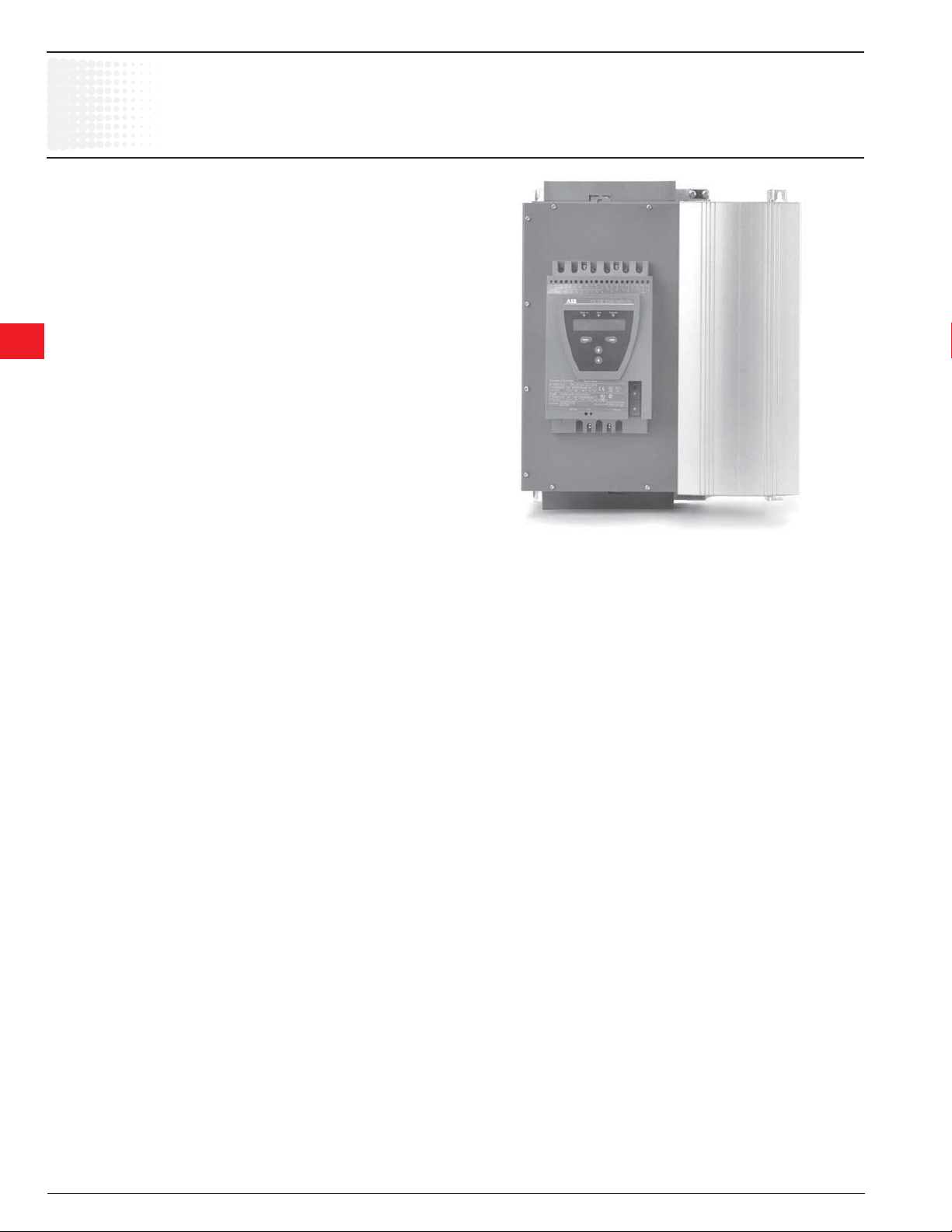

PSTB1050 with integrated by-pass contactor.
Fieldbus communication
The PST Softstarter has a built-in interface on the front for connection of the ABB
FieldBusPlug used for fi eldbus communication. Through this interface, it is possible to control the softstarter, achieve status information, upload and download
parameters. The interface between the softstarter and the FieldBusPlug is always
the same. Independently of PST Softstarter size or delivery date, it is possible
to connect to any fi eldbus protocol later on since this is defi ned in the FieldBusPlug itself. The following protocols are currently available: AS-I, DeviceNet
and Profi bus DP. To connect the PST Softstarter to a fi eldbus system, you need
the accessories described on pages 6.33 to 6.34 as well as specifi c software for
PLC set-up, which is available on the ABB web site; see the Resources section
at the bottom of the Softstarter product page at www.abb-control.com/products/
softstarters.htm.
6.22 Low Voltage Products & Systems
1SXU 000 023 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com

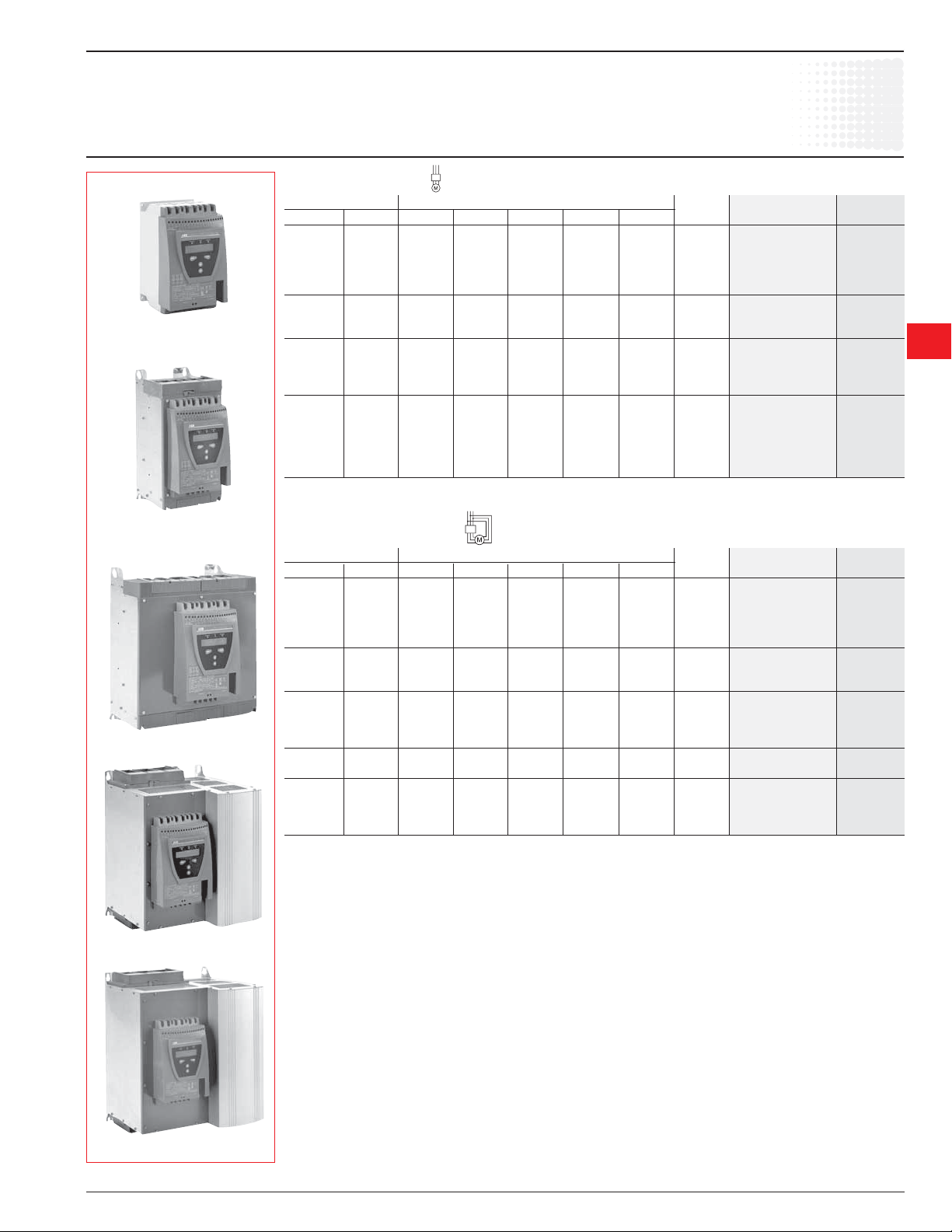

PST72-600-70
Open
Softstarters
Type PST
In-Line, Inside Delta
7.5 – 1800 HP
Connected In-Line 1
Maximum motor current Maximum horsepower
UL IEC 208V 240V 380V 480V 600V (lbs.) number price
28 30 7.5 10 15 20 25 9 PST30-600-70 $ 1330
34 37 10 10 20 25 30 9 PST37-600-70 1360
42 44 10 15 25 30 40 11 PST44-600-70 1390
54 50 15 20 30 40 50 11 PST50-600-70 1730
68 72 20 25 40 50 60 22 PST72-600-70 1755
80 85 25 30 50 60 75 22 PST85-600-70 2380
104 105 30 40 60 75 100 27 PST105-600-70 2410
130 142 40 50 75 100 125 33 PST142-600-70 3375
156 175 50 60 100 125 150 44 PST175-600-70 3420
192 210 60 75 125 150 200 49 PST210-600-70 3870
248 250 75 100 150 200 250 49 PST250-600-70 4350
302 300 100 100 150 250 300 53 PST300-600-70 4480
361 370 125 150 200 300 350 84 PSTB370-600-70 5660
480 470 150 200 300 400 500 93 PSTB470-600-70 7000
590 570 200 250 350 500 600 97 PSTB570-600-70 8550
720 720 250 300 450 600 700 119 PSTB720-600-70 9630
840 840 300 350 500 700 800 124 PSTB840-600-70 10,900
1062 1050 400 450 600 900 1000 137 PSTB1050-600-70 18,000
Weight Catalog List
6
6
PST142-600-70
PST175-600-70
PSTB370-600-70
Connected Inside Delta 1
Maximum motor current Maximum horsepower
UL IEC 208V 240V 380V 480V 600V (lbs.) number price
42 51 10 15 30 30 40 9 PST30-600-70 $ 1330
54 64 15 20 40 40 50 9 PST37-600-70 1360
72 76 20 25 50 50 60 11 PST44-600-70 1390
80 86 25 30 50 60 75 11 PST50-600-70 1730
104 124 30 40 75 75 100 22 PST72-600-70 1755
130 148 40 50 75 100 125 22 PST85-600-70 2380
156 181 50 60 100 125 150 27 PST105-600-70 2410
192 245 60 75 150 150 200 33 PST142-600-70 3375
248 303 75 100 200 200 250 44 PST175-600-70 3420
302 363 100 100 200 250 300 49 PST210-600-70 3870
361 433 125 150 250 300 350 49 PST250-600-70 4350
480 519 150 200 300 400 500 53 PST300-600-70 4480
590 640 200 250 400 500 600 84 PSTB370-600-70 5660
720 814 250 300 500 600 700 93 PSTB470-600-70 7000
840 987 300 350 600 700 800 97 PSTB570-600-70 8550
1247 1247 400 500 800 1000 1200 119 PSTB720-600-70 9630
1454 1454 500 600 900 1200 1500 124 PSTB840-600-70 10,900
1839 1818 600 700 1000 1500 1800 137 PSTB1050-600-70 18,000
Weight Catalog List
PSTB570-600-70
Low Voltage Products & Systems 6.23
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
1 Different frame sizes are separated by rules.
Discount schedule PST
Enclosed
NEMA 1, 12
Softstarters
6
Type PST
Connected In-Line
NEMA1, 480V NEMA1, 600V NEMA12, 480V NEMA12, 600V
Max. motor current Maximum horsepower
UL IEC 208V 240V 380V 480V 600V Number Number Price Number Number Price
18 18
— — — — 15 — T015L1-60 — T015L2-60M
28 30
— — — — 25 — T025L1-60 — T025L2-60M
34 37
— — — — 30 — T030L1-60 — T030L2-60M
6
42 44
— — — — 40 — T040L1-60 — T040L2-60M
54 50
— — — — 50 — T050L1-60 — T050L2-60M
68 72
— — — — 60 — T060L1-60 — T060L2-60M
80 85
— — — — 75 — T075L1-60 — T075L2-60M
104 105
— — — — 100 — T100L1-60 — T100L2-60M
130 142
— — — — 125 — T125L1-60 — T125L2-60M
156 175
— — — — 150 — T150L1-60 — T150L2-60M
192 210
— — — — 200 — T200L1-60 — T200L2-60M
248 250
— — — — 250 — T250L1-60 — T250L2-60M
302 300
— — — — 300 — T300L1-60 — T300L2-60M
361 370
— — — — 350 — T350L1-60M1 — T350L2-60M1
414 400
— — — — 400 — T400L1-60M1 — T400L2-60M1
480 470
— — — — 500 — T500L1-60M1 — T500L2-60M1
590 570
— — — — 600 — T600L1-60M1 — T600L2-60M1
720 720
— — — — 700 — T700L1-60M1 — T700L2-60M1
840 840
— — — — 800 — T800L1-60M1 — T800L2-60M1
960 —
— — — — 900 — T900L1-60M1 — T900L2-60M1
1062 1050
— — — — 1000 — T1000L1-60M1
5 5 10 10 — T010L1-48 —
7.5 10 15 20 — T020L1-48 —
10 10 20 25 — T025L1-48 —
10 15 25 30 — T030L1-48 —
15 20 30 40 — T040L1-48 —
20 25 40 50 — T050L1-48 —
25 30 50 60 — T060L1-48 —
30 40 60 75 — T075L1-48 —
40 50 75 100 — T100L1-48 —
50 60 100 125 — T125L1-48 —
60 75 125 150 — T150L1-48 —
75 100 150 200 — T200L1-48 —
100 100 150 250 — T250L1-48 —
125 150 200 300 — T300L1-48M1 —
— — 250 350 — T350L1-48M1 —
150 200 300 400 — T400L1-48M1 —
200 250 350 500 — T500L1-48M1 —
250 300 450 600 — T600L1-48M1 —
300 350 500 700 — T700L1-48M1 —
350 400 — 800 — T800L1-48M1 —
400 450 600 900 — T900L1-48M1 —
In-Line, 5 – 1000 HP
Catalog Catalog List Catalog Catalog List
T010L2-48M —
$ 1655
T020L2-48M —
1655
T025L2-48M —
1685
T030L2-48M —
1715
T040L2-48M —
2055
T050L2-48M —
2080
T060L2-48M —
2705
T075L2-48M —
2735
T100L2-48M —
3875
T125L2-48M —
3920
T150L2-48M —
4370
T200L2-48M —
4850
T250L2-48M —
5080
T300L2-48M1 —
6260
T350L2-48M1 —
7700
T400L2-48M1 —
7700
T500L2-48M1 —
9350
T600L2-48M1 —
10,830
T700L2-48M1 —
12,900
T800L2-48M1 —
21,000
T900L2-48M1 —
21,000
— T1000L2-60M1
$ 1905
1930
2085
2165
2555
2630
3355
3460
4775
5170
5770
6550
7830
6910
8450
8550
10,350
11,830
14,000
22,300
22,300
1 Includes integrated shunt rated (AC1) bypass contactor as standard. For across the line rated (AC3) bypass contactors, see page 6.30.
6.24 Low Voltage Products & Systems
1SXU 000 023 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
Discount schedule PSTE
Enclosed
Softstarters
Type PST
NEMA 1, 12
Inside Delta, 7.5 – 1800 HP
Connected Inside Delta
NEMA1, 480V NEMA1, 600V NEMA12, 480V NEMA12, 600V
Max. motor current Maximum horsepower
UL IEC 208V 240V 380V 480V 600V Number Number Price Number Number Price
28 30
— — — — 25 — T025D1-60 — T025D2-60M
34 37
— — — — 30 — T030D1-60 — T030D2-60M
42 44
— — — — 40 — T040D1-60 — T040D2-60M
54 50
— — — — 50 — T050D1-60 — T050D2-60M
68 72
— — — — 60 — T060D1-60 — T060D2-60M
80 85
— — — — 75 — T075D1-60 — T075D2-60M
104 105
— — — — 100 — T100D1-60 — T100D2-60M
130 142
— — — — 125 — T125D1-60 — T125D2-60M
156 175
— — — — 150 — T150D1-60 — T150D2-60M
192 210
— — — — 200 — T200D1-60 — T200D2-60M
248 250
— — — — 250 — T250D1-60 — T250D2-60M
302 300
— — — — 300 — T300D1-60 — T300D2-60M
361 370
— — — — 350 — T350D1-60 — T350D2-60M
414 400
— — — — 400 — T400D1-60 — T400D2-60M
480 470
— — — — 500 — T500D1-60 — T500D2-60M
590 570
— — — — 600 — T600D1-60M1 — T600D2-60M1
720 720
— — — — 700 — T700D1-60M1 — T700D2-60M1
840 840
— — — — 800 — T800D1-60M1 — T800D2-60M1
960 —
— — — — 900 — T900D1-60M1 — T900D2-60M1
1062 1050
— — — — 1000 — T1000D1-60M1 — T1000D2-60M1
1247 1215
— — — — 1200 — T1200D1-60M1 — T1200D2-60M1
1454 1370
— — — — 1500 — T1500D1-60M1 — T1500D2-60M1
1839 1823
— — — — 1800 — T1800D1-60M1 — T1800D2-60M1
7.5 10 15 20 — T020D1-48 —
10 10 20 25 — T025D1-48 —
10 15 25 30 — T030D1-48 —
15 20 30 40 — T040D1-48 —
20 25 40 50 — T050D1-48 —
25 30 50 60 — T060D1-48 —
30 40 60 75 — T075D1-48 —
40 50 75 100 — T100D1-48 —
50 60 100 125 — T125D1-48 —
60 75 125 150 — T150D1-48 —
75 100 150 200 — T200D1-48 —
100 100 150 250 — T250D1-48 —
125 150 200 300 — T300D1-48 —
— — 250 350 — T350D1-48 —
150 200 300 400 — T400D1-48 —
200 250 350 500 — T500D1-48M1 —
250 300 450 600 — T600D1-48M1 —
300 350 500 700 — T700D1-48M1 —
350 400 — 800 — T800D1-48M1 —
400 450 600 900 — T900D1-48M1 —
400 500 800 1000 — T1000D1-48M1 —
500 600 900 1200 — T1200D1-48M1 —
600 700 1200 1500 — T1500D1-48M1 —
Catalog Catalog List Catalog Catalog List
T020D2-48M —
$ 1655
T025D2-48M —
1655
T030D2-48M —
1655
T040D2-48M —
1685
T050D2-48M —
1715
T060D2-48M —
2055
T075D2-48M —
2080
T100D2-48M —
2705
T125D2-48M —
2735
T150D2-48M —
3875
T200D2-48M —
3920
T250D2-48M —
4370
T300D2-48M —
4850
T350D2-48M —
5080
T400D2-48M —
5080
T500D2-48M1 —
6260
T600D2-48M1 —
7700
T700D2-48M1 —
9350
T800D2-48M1 —
10,830
T900D2-48M1 —
10,830
T1000D2-48M1 —
10,830
T1200D2-48M1 —
12,900
T1500D2-48M1 —
21,000
6
$ 1905
1905
1930
2085
2165
2555
2630
3355
3460
4775
5120
5770
6550
7830
7830
6910
8550
10,350
12,130
12,130
12,130
14,650
22,750
6
1 Includes integrated shunt rated (AC1) bypass contactor as standard. For across the line rated (AC3) bypass contactors, see page 6.30.
Low Voltage Products & Systems 6.25
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
Discount schedule PSTE
Enclosed
NEMA 1, Combination
Softstarters
6
Type PST
Connected In-Line
NEMA1, 480V NEMA1, 600V NEMA1, 480V NEMA 1, 600V
Cir cuit breaker Circuit breaker Fused disconnect Fused disconnect
Max. motor current Maximum horsepower
UL IEC 208V 240V 380V 480V 600V Number Number Price Number Number Price
18 18
— — — — 15 — T015LB1-60E — T015LF1-60A
28 30
— — — — 25 — T025LB1-60J — T025LF1-60B
34 37
— — — — 30 — T030LB1-60K — T030LF1-60B
6
42 44
— — — — 40 — T040LB1-60L — T040LF1-60C
54 50
— — — — 50 — T050LB1-60N — T050LF1-60C
68 72
— — — — 60 — T060LB1-60R — T060LF1-60C
80 85
— — — — 75 — T075LB1-60S — T075LF1-60D
104 105
— — — — 100 — T100LB1-60T — T100LF1-60D
130 142
— — — — 125 — T125LB1-60V — T125LF1-60D
156 175
— — — — 150 — T150LB1-60X — T150LF1-60E
192 210
— — — — 200 — T200LB1-60Y — T200LF1-60E
248 250
— — — — 250 — T250LB1-60Z — T250LF1-60E
302 300
— — — — 300 — T300LB1-60B — T300LF1-60F
361 370
— — — — 350 — T350LB1-60CM1 — T350LF1-60FM1
414 400
— — — — 400 — T400LB1-60DM1 — T400LF1-60FM1
480 470
— — — — 500 — T500LB1-60EM1 — T500LF1-60GM1
590 570
— — — — 600 — T600LB1-60GM1 — T600LF1-60H1
720 720
— — — — 700 — T700LB1-60JM1 — T700LF1-60H1
840 840
— — — — 800 — T800LB1-60JM1 — T800LF1-60J1
960 —
— — — — 900 — T900LB1-60KM1 — T900LF1-60J1
1062 1050
— — — — 1000 —
5 5 10 10 — T010LB1-48E —
7.5 10 15 20 — T020LB1-48J —
10 10 20 25 — T025LB1-48K —
10 15 25 30 — T030LB1-48L —
15 20 30 40 — T040LB1-48N —
20 25 40 50 — T050LB1-48R —
25 30 50 60 — T060LB1-48S —
30 40 60 75 — T075LB1-48T —
40 50 75 100 — T100LB1-48V —
50 60 100 125 — T125LB1-48X —
60 75 125 150 — T150LB1-48Y —
75 100 150 200 — T200LB1-48A —
100 100 150 250 — T250LB1-48B —
125 150 200 300 — T300LB1-48DM1 —
— — 250 350 — T350LB1-48EM1 —
150 200 300 400 — T400LB1-48FM1 —
200 250 350 500 — T500LB1-48GM1 —
250 300 450 600 — T600LB1-48JM1 —
300 350 500 700 — T700LB1-48KM1 —
350 400 — 800 — T800LB1-48KM1 —
400 450 600 900 — T900LB1-48KM1 —
In-Line, 5 – 1000 HP
Catalog Catalog List Catalog Catalog List
T1000LB1-60KM1
T010LF1-48A —
$ 2055
T020LF1-48B —
2065
T025LF1-48B —
2110
T030LF1-48C —
2315
T040LF1-48C —
2655
T050LF1-48C —
2680
T060LF1-48D —
3705
T075LF1-48D —
3735
T100LF1-48D —
5075
T125LF1-48E —
5720
T150LF1-48E —
6170
T200LF1-48E —
6650
T250LF1-48F —
7580
T300LF1-48FM
8860
T350LF1-48FM1 —
11,300
T400LF1-48GM1 —
11,800
T500LF1-48HM1 —
14,550
T600LF1-48HM1 —
16,030
T700LF1-48JM1 —
19,400
T800LF1-48JM1 —
27,500
T900LF1-48KM1 —
28,200
— T1000LF1-60K1
1 —
$ 2055
2065
2110
2315
2655
2680
3705
3735
5075
5720
6170
6650
7580
8860
11,300
11,800
14,550
16,030
19,400
27,500
28,200
1 Includes integrated shunt rated (AC1) bypass contactor as standard. For across the line rated (AC3) bypass contactors, see page 6.30.
6.26 Low Voltage Products & Systems
1SXU 000 023 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
Discount schedule PSTE
Enclosed
Softstarters
Type PST
NEMA 1, Combination
Inside Delta, 7.5 – 1900 HP
Connected Inside Delta
NEMA1, 480V NEMA1, 600V NEMA1, 480V NEMA 1, 600V
Cir cuit breaker Circuit breaker Fused disconnect Fused disconnect
Max. motor current Maximum horsepower
UL IEC 208V 240V 380V 480V 600V Number Number Price Number Number Price
28 30
— — — — 25 — T025DB1-60J — T025DF1-60B
34 37
— — — — 30 — T030DB1-60K — T030DF1-60B
42 44
— — — — 40 — T040DB1-60L — T040DF1-60C
54 50
— — — — 50 — T050DB1-60N — T050DF1-60C
68 72
— — — — 60 — T060DB1-60R — T060DF1-60C
80 85
— — — — 75 — T075DB1-60S — T075DF1-60D
104 105
— — — — 100 — T100DB1-60T — T100DF1-60D
130 142
— — — — 125 — T125DB1-60V — T125DF1-60D
156 175
— — — — 150 — T150DB1-60X — T150DF1-60E
192 210
— — — — 200 — T200DB1-60Y — T200DF1-60E
248 250
— — — — 250 — T250DB1-60Z — T250DF1-60E
302 300
— — — — 300 — T300DB1-60B — T300DF1-60F
361 370
— — — — 350 — T350DB1-60C — T350DF1-60F
414 400
— — — — 400 — T400DB1-60D — T400DF1-60F
480 470
— — — — 500 — T500DB1-60E — T500DF1-60G
590 570
— — — — 600 — T600DB1-60GM1 — T600DF1-60HM1
720 720
— — — — 700 — T700DB1-60JM1 — T700DF1-60HM1
840 840
— — — — 800 — T800DB1-60JM1 — T800DF1-60JM1
960 —
— — — — 900 — T900DB1-60KM1 — T900DF1-60JM1
1062 1050
— — — — 1000 — T1000DB1-60KM1 — T1000DF1-60KM1
1247 1215
— — — — 1200 — T1200DB1-60LM1 — T1200DF1-60KM1
1454 1370
— — — — 1500 — T1500DB1-60MM1 — T1500DF1-60LM1
1839 1823
— — — — 1800 — T1800DB1-60NM1 — T1800DF1-60NM1
7.5 10 15 20 — T020DB1-48J —
10 10 20 25 — T025DB1-48K —
10 15 25 30 — T030DB1-48L —
15 20 30 40 — T040DB1-48N —
20 25 40 50 — T050DB1-48R —
25 30 50 60 — T060DB1-48S —
30 40 60 75 — T075DB1-48T —
40 50 75 100 — T100DB1-48V —
50 60 100 125 — T125DB1-48X —
60 75 125 150 — T150DB1-48Y —
75 100 150 200 — T200DB1-48A —
100 100 150 250 — T250DB1-48B —
125 150 200 300 — T300DB1-48D —
— — 250 350 — T350DB1-48E —
150 200 300 400 — T400DB1-48F —
200 250 350 500 — T500DB1-48GM1 —
250 300 450 600 — T600DB1-48JM1 —
300 350 500 700 — T700DB1-48KM1 —
350 400 — 800 — T800DB1-48KM1 —
400 450 600 900 — T900DB1-48KM1 —
400 500 800 1000 — T1000DB1-48LM1 —
500 600 900 1200 — T1200DB1-48MM1 —
600 700 1200 1500 — T1500DB1-48NM1 —
Catalog Catalog List Catalog Catalog List
T020DF1-48B —
$ 2065
T025DF1-48B —
2080
T030DF1-48C —
2255
T040DF1-48C —
2285
T050DF1-48C —
2315
T060DF1-48D —
3055
T075DF1-48D —
3080
T100DF1-48D —
3905
T125DF1-48E —
4535
T150DF1-48E —
5675
T200DF1-48E —
5720
T250DF1-48F —
6870
T300DF1-48F —
7450
T350DF1-48F —
8680
T400DF1-48G —
9180
T500DF1-48HM1 —
11,460
T600DF1-48HM1 —
12,900
T700DF1-48JM1 —
15,850
T800DF1-48JM1 —
17,330
T900DF1-48KM1 —
18,030
T1000DF1-48KM1 —
20,830
T1200DF1-48LM1
22,900
T1500DF1-48NM1 —
33,500
—
6
$ 2065
2080
2255
2285
2315
3055
3080
3905
4535
5675
5720
6870
7450
8680
9180
11,460
12,900
15,850
17,330
18,030
20,830
22,900
33,500
6
1 Includes integrated shunt rated (AC1) bypass contactor as standard. For across the line rated (AC3) bypass contactors, see page 6.30.
Low Voltage Products & Systems 6.27
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
Discount schedule PSTE
Loading...
