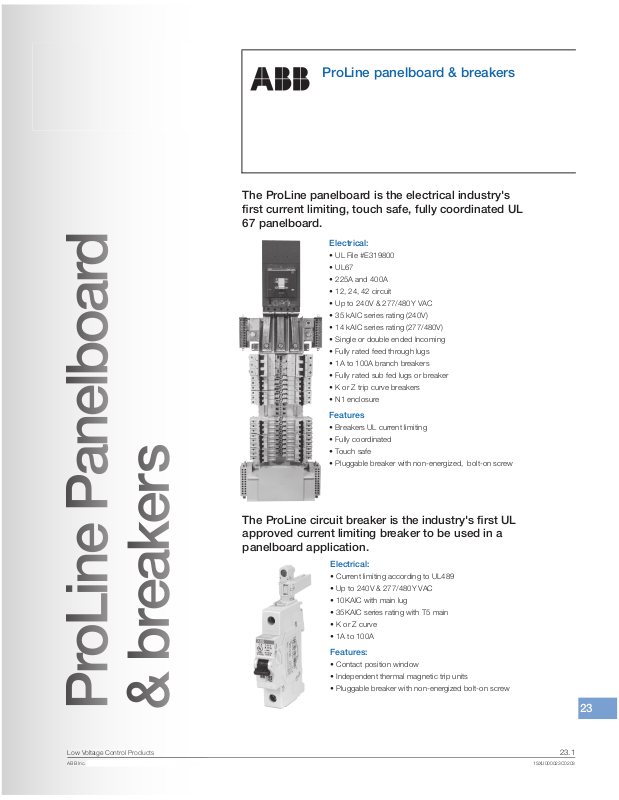

ABB ProLine panelboard & breakers Catalog Page

ProLine panelboard & breakers

lta

The ProLine panelboard is the electrical industry's ﬁ rst current limiting, touch safe, fully coordinated UL 67 panelboard.

Electrical:

• UL File #E319800

• UL67

• 225A and 400A

• 12, 24, 42 circuit

• Up to 240V & 277/480Y VAC

• 35 kAIC series rating (240V)

• 14 kAIC series rating (277/480V)

• Single or double ended Incoming

• Fully rated feed through lugs

• 1A to 100A branch breakers

• Fully rated sub fed lugs or breaker

• K or Z trip curve breakers

• N1 enclosure

Features

• Breakers UL current limiting

• Fully coordinated

• Touch safe

• Pluggable breaker with non-energized, bolt-on screw

ProLine

panelboard

The ProLine circuit breaker is the industry's ﬁ rst UL approved current limiting breaker to be used in a panelboard application.

Electrical:

• Current limiting according to UL489

• Up to 240V & 277/480Y VAC

• 10KAIC with main lug

• 35KAIC series rating with T5 main

• K or Z curve

• 1A to 100A

Features:

• Contact position window

• Independent thermal magnetic trip units

• Pluggable breaker with non-energized bolt-on screw

Low Voltage Control Products 23.1

Low Vo

ge Control Products

ABB Inc. 1SXU000023C0203

BB Inc.

ProLine

panelboard

ProLine features

Main breaker: T5

Neutral and ground:

• Assembly shown without touch safe cover

Main incoming connections:

• Lugs

• Breaker

• Studs (for wires with crimp connectors)

Branch breakers:

• 1A to 100A at 240VAC

• 1A to 25A at 277/480Y VAC

Touch safe main cover:

• Removable main cover with integrated neutral and ground

• Access to neutral and ground connections without removing cover

23.2 Low Voltage Control Products

1SXU000023C0203 ABB Inc.

ProLine features

ProLine

panelboard

Pluggable with non-energized bolt-on connection

Non-energized bolt-on point

Electrical plug-in connectionNon-energized mechanical bolt-on connection

Recessed touch-safe breaker connection

Breaker bus connection point

Insulating resin

Encased bus bar

Stable bus bar design for high withstand ratings

• Busbar designed with more surface area than typical panelboard bus bar

• Busbar encased in resin to aid stabilization in the case of a fault

Low Voltage Control Products 23.3

ABB Inc. 1SXU000023C0203

ProLine

ProLine features

panelboard

Catalog number explanation

PL 1 12 S B 225 S 1 NC

Product Phase Circuits Incoming Main Ampacity Type Neutral Enclosure

PL = ProLine 1 = Single Phase 12 Circuits S = Single B = Breaker 225 Amps S = Standard 1 = 100% NC = Open

3 = Three Phase 24 Circuits D = Double L = Lugs 400 Amps T = Touch Safe 2 = 200% N1 = N1

42 Circuits S = Studs

ProLine panelboards can be conﬁ gured with the above options using the ProLine panelboard conﬁ gurator.

The ProLine Panelboard Conﬁ gurator

Allows users 24 hour access to:

• Quotations

• Speciﬁ cations

• Dimensional drawings

• Literature

• URL: http://v6.webcomcpq.com/AbbLogin.aspx?cfdomain=abblp

23.4 Low Voltage Control Products

1SXU000023C0203 ABB Inc.

PL701U

Breaker placement

Breaker placement guide

K and Z Curve

ProLine

panelboard

PL702U

PL703UP

PL700U 1A-50A (1P/2P/3P) PL700UP 1A-25A (1P/2P/3P) PL700U"L" 60A/70A (1P/2P/3P)

PL700U 1A-50A (1P/2P/3P) PL700UP 1A-25A (1P/2P/3P)

PL700U 1A-50A (1P/2P/3P) PL700UP 1A-25A (1P/2P/3P) PL700U"R" 60A/70A (1P/2P/3P) PL700U"R" 80A/90A/100A (1P/2P/3P)

PL700U 1A-50A (1P/2P/3P) PL700UP 1A-25A (1P/2P/3P)

PL700U 1A-50A (1P/2P/3P) PL700UP 1A-25A (1P/2P/3P) PL700U"L" 60A/70A (1P/2P/3P)

PL702U-K60L

NOTES

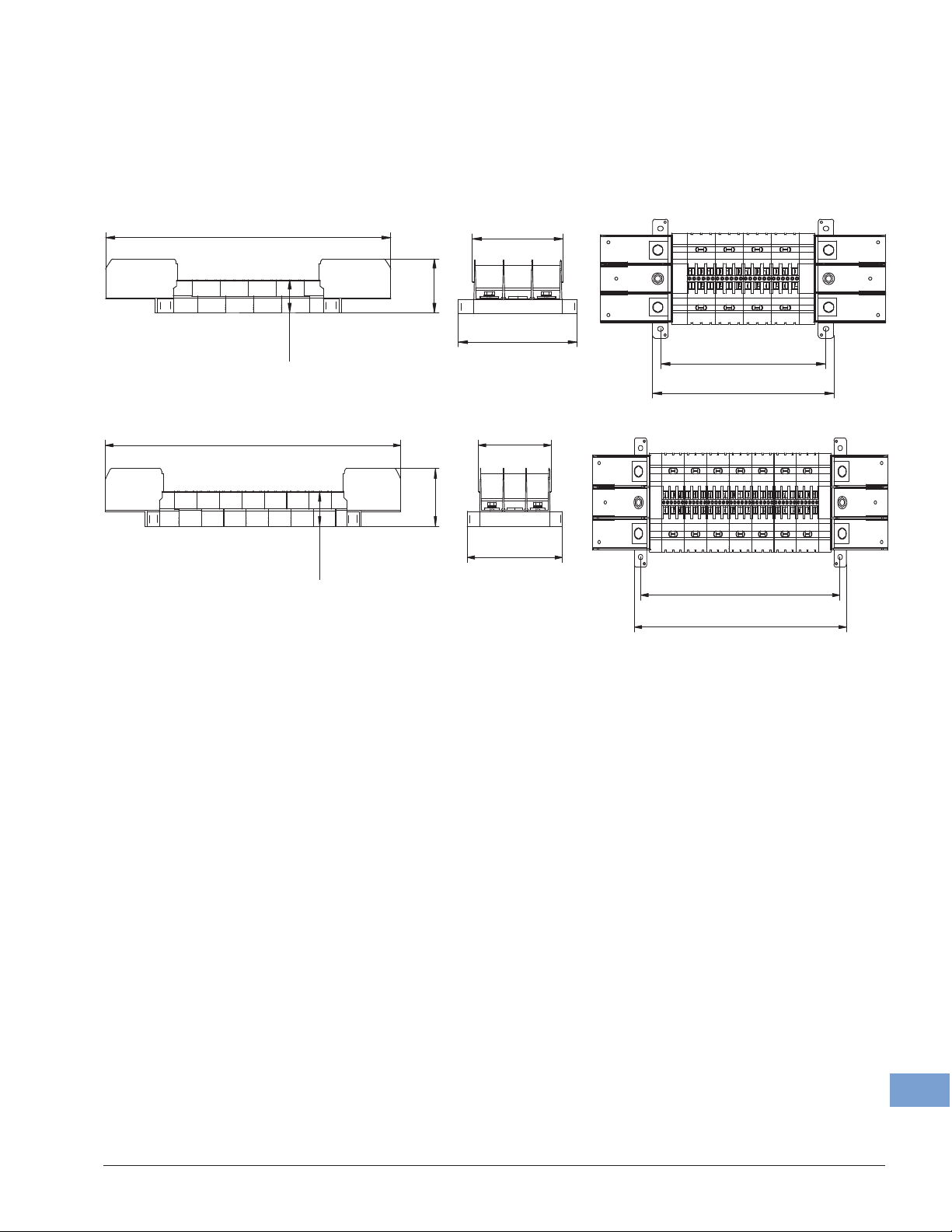

1. PL70xU-"R" & "L" have different dimensions (see dimension drawings)

2. PL70xU-"R" 80A/90A/100A

PL703U-K100R

Low Voltage Control Products 23.5

ABB Inc. 1SXU000023C0203

a. Have double stab adapters b. Are available as "R" only
