ABB OT Non-fusible Disconnect Switches Data Sheet

OT51GB 16-07 1SCC301023K0201

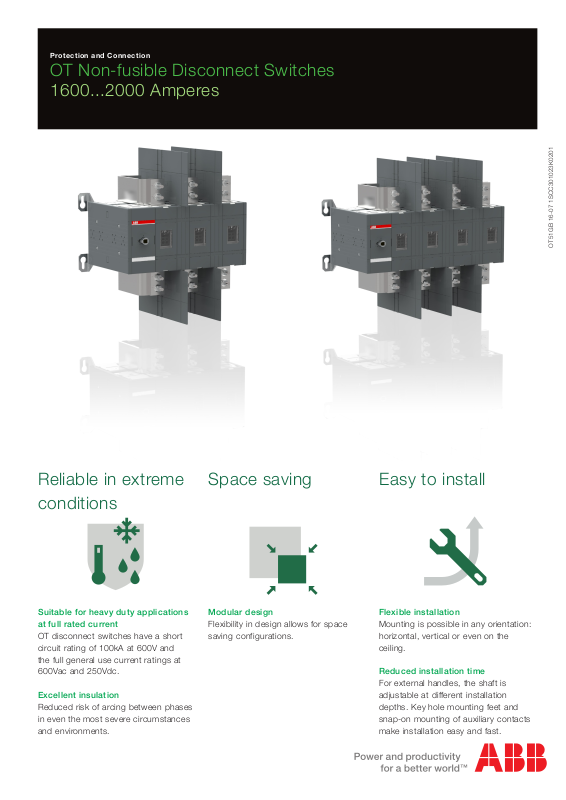

Protection and Connection
OT Non-fusible Disconnect Switches
1600...2000 Amperes
Reliable in extreme conditions
Suitable for heavy duty applications at full rated current
OT disconnect switches have a short circuit rating of 100kA at 600V and the full general use current ratings at 600Vac and 250Vdc.
Excellent insulation
Reduced risk of arcing between phases in even the most severe circumstances and environments.
Space saving Easy to install
Modular design
Flexibility in design allows for space saving configurations.
Flexible installation
Mounting is possible in any orientation: horizontal, vertical or even on the ceiling.
Reduced installation time
For external handles, the shaft is adjustable at different installation depths. Key hole mounting feet and snap-on mounting of auxiliary contacts make installation easy and fast.
Technical data
Non-fusible disconnect switches OT1600...2000U
Technical data according to UL98/CSA 22.2 No. 4, cULus Listed Open type switch, File E101914
Switch size OT16 00U OT2000U
General Use AC ratings -40 to +40°C
Voltage rating
Maximum General Use DC Ratings 250Vdc 160 0 2000
Short circuit raiting with fuse
Minimum electrical endurance pf. 0.75...0.8
Mechanical endurance Divide by two for operation cycles
Gross/ net weight without handle, shaft and
accessories
pf=0.7...0.8 Single and three phase A
Fuse type L
2-pole switch
3-pole switch
4-pole switch
V
kA
A
Oper.cycles
Op er.
kg - lb
kg - lb
kg -lb
160 0
600
100
2000
500
2500
37/34 - 81.6/75
52/49 - 114.6/108
69/65 - 152.1/143.3
2000
600
100
2000
500
2500
37/34 - 81.6/75
52/49 - 114.6/108
69/65 - 152.1/143.3
Standard shaft and mounting depth
Standard handle
Terminal bolt size
Terminal bolt tightening torque
Optional terminal lug kits (kit includes 6 lugs) Qty/ switch x type
Torque Wire tightening
Operating torque Typical for 2, 3 and 4-pole switches Nm / lb.in 75 / 663 75 / 663
Minimum enclosure
dimensions
Square dimension x lenght of shaft
Corresponding mounting depth
Metric thread diameter x lenght
Counter torque required
Lug mounting
Height x Width x Depth mm
mm / in
mm / in
Type
mm
Nm / lb.in
Wire range
Nm / lb.in
Nm / lb.in
in
12x185 / 0.47x7.3
358-4 44 / 13.6-16.8
OH B 274 J 12
M12x60 (included)
50 / 443
2x OZX A-120 0
2x 4x2-600MCM
56 / 500
50 / 443
1000x800x450
39.4 x3 1. 5x 17. 7
12x185 / 0.47x7.3
358-444 / 13.6-16.8
OH B 274J12
M12x60 (included)
50 / 443
2x OZX A-120 0
2x 4x2-600MCM
56 / 500
50 / 443
1000x800x450
39.4 x3 1. 5x 17. 7
Type designation key
Explanation of the types
OT 2000 U 03 P
1 2 3 4 5
1 Brand
OT: ABB non-fusible disconnect switch brand
2 Switch size / Ampere rating
160 0: 16 00 A
2000: 2000 A
3 Mounting / Construction/ Standard
U: Front operated, base mounting, UL /CSA
4 Number of poles and placing of the operating mechanism
03: 3-poles, operating mechanism at the left end of the switch
1 Disconnect switches | OT1600...2000
04: 4-poles, operating mechanism at the left end of the switch
12: 3-poles, operating mechanism between the poles
22: 4-poles, operating mechanism between the poles
5 Included handle and shaft
Blank_ No accessories included
P: External handle and shaft
K: Direct mount handle

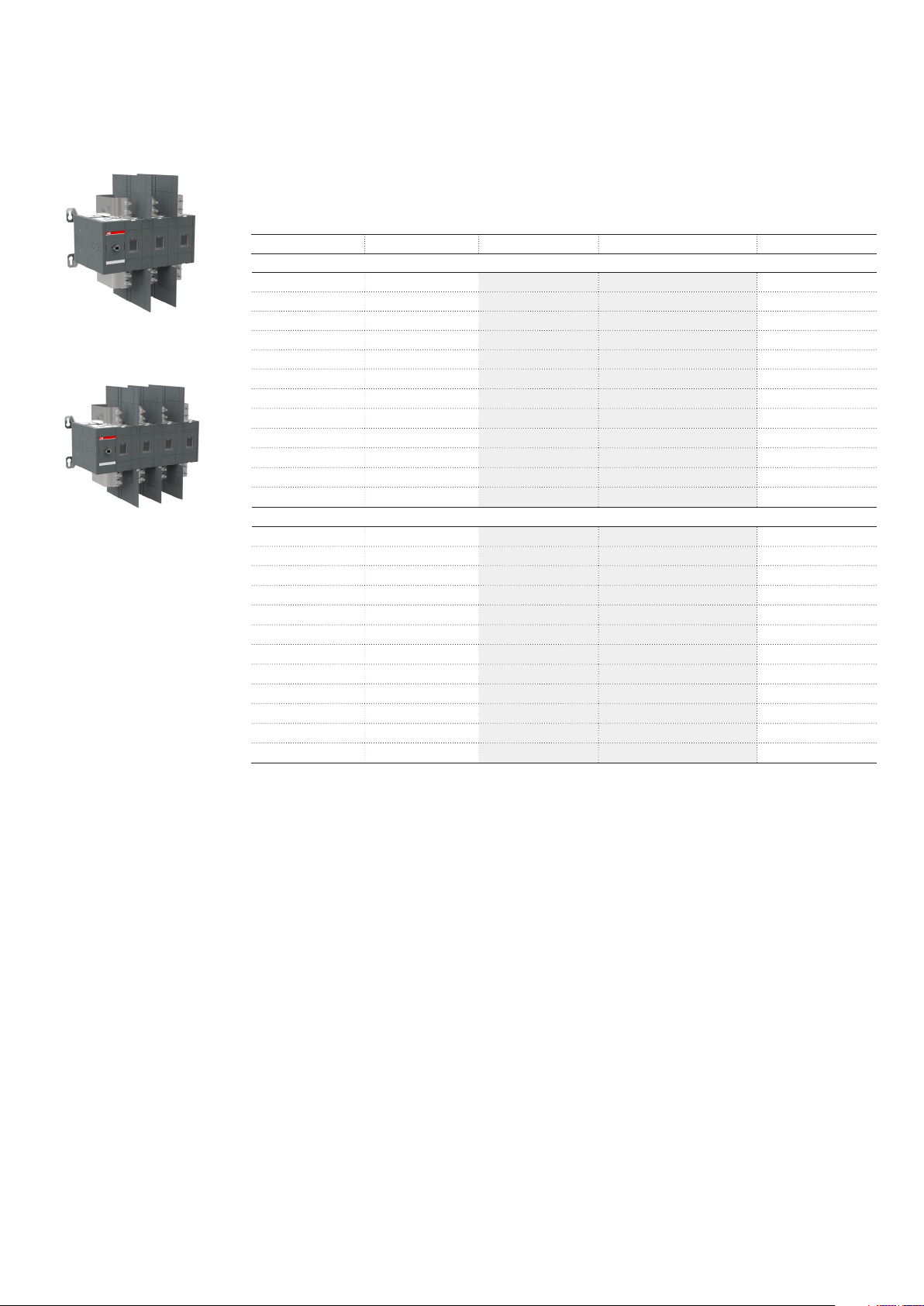

Ordering information
Non-fusible disconnect switches, base mounting, UL/CSA
Handle and shaft need to be ordered separately. Terminal bolts M12X60 included.
Number of poles Amp rating [A] Type Order number Weight/ unit [kg - lb]
Switch only
2 160 0 OT1600U02 1SC A144197 R1001 37 - 81.6
3 160 0 OT1600U03 1SCA144198R1001 52 - 114.6
4 160 0 OT1600U04 1SC A144199R 1001 69 - 152.1
OT1600...2000U03
OT1600...2000U04
3 160 0 OT160 0U12 1SCA144200R1001 52 - 114.6
4 160 0 OT160 0 U13 1SC A144201R 1001 69 - 152.1
4 160 0 OT16 00U22 1S CA144202R 1001 69 - 152.1
2 2000 OT2000U02 1SCA144203R1001 37 - 81.6
3 2000 OT2000U03 1SCA117313R1001 52 - 114.6
4 2000 OT2000U04 1SCA117316 R1001 69 - 152.1
3 2000 OT2000U12 1SCA117332R1001 52 - 114.6
4 2000 OT2000U13 1SCA117336R1001 69 - 152.1
4 2000 OT2000U22 1SCA117334R1001 69 - 152.1
Switch with handle and shaft
2 160 0 OT1600U02P 1SCA144 20 6R1001 38 - 83.8
3 160 0 OT1600U03P 1S CA144 20 7R 1001 53 - 116.9
4 160 0 OT1600U04P 1SCA144208R1001 70 - 154.3
3 160 0 OT160 0U12P 1SCA14 4209 R1001 53 - 116.9
4 160 0 OT160 0 U13 P 1SC A144 210 R1001 70 - 154.3
4 160 0 OT16 00U22P 1S CA144 211R100 1 70 - 154.3
2 2000 OT2000U02P 1SC A144212R100 1 38 - 83.8
3 2000 OT2000U03P 1S CA117314 R10 01 53 - 116.9
4 2000 OT2000U04P 1SC A117317R10 01 70 - 154.3
3 2000 OT2000U12P 1SCA117333R1001 53 - 116.9
4 2000 OT2000U13P 1SCA117337R1001 70 - 154.3
4 2000 OT2000U22P 1SCA117335R1001 70 - 154.3
OT1600...2000 | Disconnect switches 2

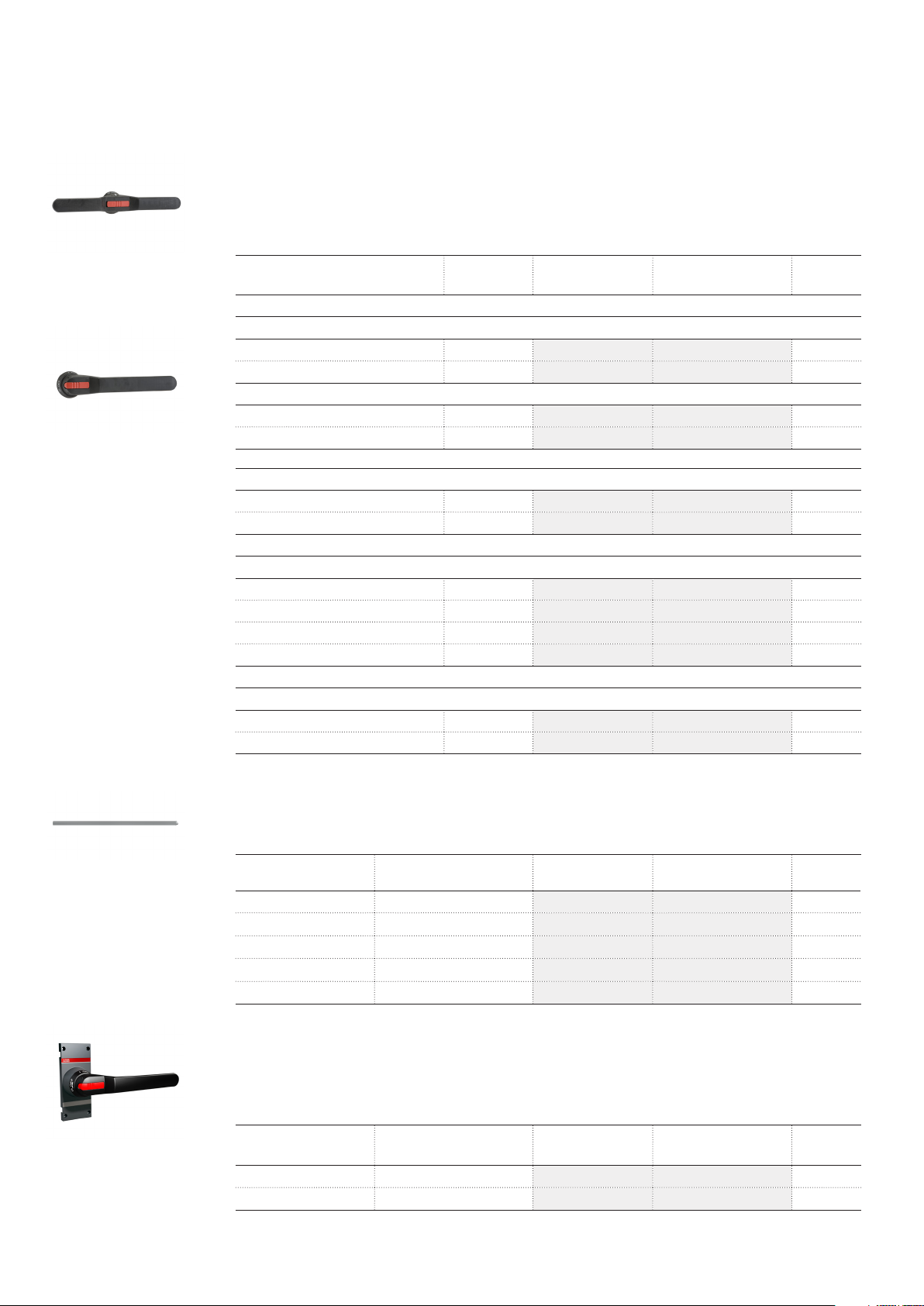

Ordering information
Pistol handles
Padlockable with three padlocks in OFF-position. Door interlock in ON-position. Door interlock in OFF-position when the handle is padlocked. Screw fixing from the back side of the handle. No screws on the front ensures double insulation.
OHB200J12P
OHB274J12
Handle lenght
Colour
Nema 1, 3R, 12
Indication OHB and OHY: l-0, ON-OFF
Black, double-grip 2x200 - 2x7.9 OH B20 0J12 P 1SCA022865R9510 0.40 - 0.88
Red-yellow, double-grip 2x20 0 - 2x7.9 OHY2 00J 12P 1SCA101587R1001 0.4 0 - 0.88
Indication: Test-OFF-ON/ Test-0-I
Black, double-grip 2x200 - 2x7.9 OH B20 0J12 PT 1SC A1116510 R10 01 0.40 - 0.88
Red-yellow, double-grip 2x20 0 - 2x7.9 OHY2 00J 12P T 1SCA111512 R1001 0.40 - 0.88
Nema 4X
Indication OHB and OHY: I-0, ON-OFF
Black, double-grip 2x200 - 2x7.9 OHB200L12P 1S CA1115 64R10 01 0.40 - 0.88
Red-yellow, double-grip 2x20 0 - 2x7.9 OHY200L12P 1S CA1115 69R 1001 0.40 - 0.88
IP65, NEMA 1, 3R, 12
Indication OHB and OHY: I-0, ON-OFF
Black 274 - 10.8 O HB274 J12 1SCA115920R1001 0.54 - 1.19
Red-yellow 274 - 10.8 O HY274 J12 1SC A115 919 R1001 0.54 - 1.19
Black 330 - 13 OHB 330 J12 1SCA115922R1001 0.58 - 1.28
Red-yeallow 330 - 13 OHY 330 J12 1S CA115921R 1001 0.5 8 - 1.28
IP65, NEMA 1, 3R, 12
Indication: Test-OFF-ON/ Test-0-I
Black 274 - 10.8 O HB274 J12 T 1SCA120250R1001 0.54 - 1.19
Black 330 - 13 OHB 330 J12T 1SC A1202 52 R100 1 0.58 - 1.28
Handles padlockable in ON and OFF positions are available on request.
[mm - inch] Type Order number
Weight/ unit
[kg - lb]
OXP12X
OTV1000
Shafts
Shaft diameter 12 mm.
Weight/unit
Shaft lenght [mm] Mounting depth [mm - inch] Type Order number
280 453...539 - 178...21.2 OX P12X 280 1SCA022137R5140 0.3 - 0.66
325 498...584 - 19.6...23 OXP 12 X3 25 1SCA022042R5810 0.36 - 0.79
395 568...6 54 - 22.4...25.8 OXP12X395 1SCA022042R5990 0.43 - 0.95
465 633...724 - 24.9...28.5 O X P12 X46 5 1SCA022042R6020 0.51 - 1.12
535 708...794 - 27.9...31.3 OXP12 X53 5 1SCA022042R6110 0.59 - 1.3
[kg - lb]
Direct mount handles
Includes a shaft and a mechanism cover. Indication Test-OFF-ON/ Test-O-I. Padlockable with three padlocks in OFF-position. UL requirements for spacings through air and protection of live parts must be taken into account in the installations.
Weight/ unit
Colour Handle lenght [mm - inch] Type Order number
Black 274 - 10.8 OTV1000EK 1SCA106608R1001 0.75 - 1.65
Black, double-grip 2x200 - 2x7.9 OTV1000EPK 1SCA1210 85R1001 0.90 - 1.98
[kg - lb]
3 Disconnect switches | OT1600...2000
