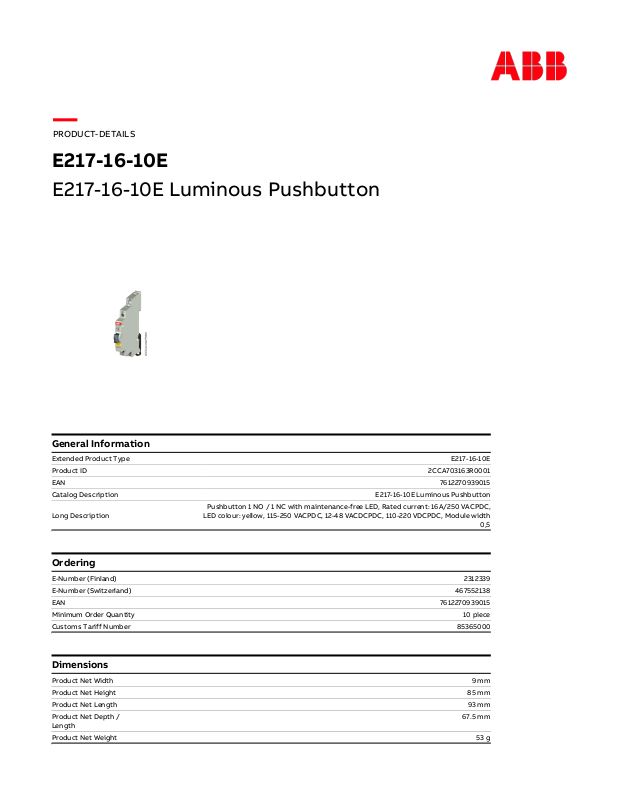

PRODUCT-DETAILS
Minimum Order Quantity
E217-16-10E
E217-16-10E Luminous Pushbutton
General Information
Extended Product Type
Product ID
EAN
Catalog Description
Pushbutton 1 NO / 1 NC with maintenance-free LED, Rated current: 16A/250 VACPDC,
Long Description
LED colour: yellow, 115-250 VACPDC, 12-48 VACDCPDC, 110-220 VDCPDC, Module width
E217-16-10E Luminous Pushbutton
E217-16-10E
2CCA703163R0001
7612270939015
0,5
Ordering
2312339 E-Number (Finland)
467552138 E-Number (Switzerland)
7612270939015 EAN
10 piece
85365000 Customs Tariff Number
Dimensions
9 mm Product Net Width
85 mm Product Net Height
93 mm Product Net Length
Length
67.5 mm Product Net Depth /
53 g Product Net Weight
Page 2
E217-16-10E
2
Container Information
box 10 piece Package Level 1 Units
96 mm Package Level 1 Width
76 mm Package Level 1 Height
Length
Weight
95 mm Package Level 1 Depth /
0.064 kg Package Level 1 Gross
7612270939015 Package Level 1 EAN
Environmental
Following EU Directive 2002/95/EC August 18, 2005 and amendment RoHS Status
Additional Information
Yellow Color
IP20 Degree of Protection
Contacts CO (SPDT)
Contacts NC
Contacts NO
Code
Luminous Pushbutton Product Name
)
n
Voltage
)
r
Lamp 230 ... 250 V Rated Voltage (U
EN60669-1 Standards
115 ... 250 V AC Voltage Range
0 Number of Auxiliary
1 Number of LEDs
0 Number of Main
1 Number of Main
1 Number of Poles
S Object Classification
1 NO Options Provided
1.1 W Power Loss
E217 Product Main Type
16 A Rated Current (I
250 V Rated Operational
20170426 RoHS Date
Certificates and Declarations (Document Number)
Information
Conformity - CE
Information
Manuals
2CCC441003C0101 Data Sheet, Technical
2CCC441014D0201 Declaration of
2CCC441003C0201 Environmental
2CCC441001C0201 Instructions and
2CCC413008D0206 RoHS Information
Classifications
EC001546 - Push button for distribution board ETIM 4
Page 3
E217-16-10E
Code
5. Small Equipment (No External Dimension More Than 50 cm) WEEE Category
Categories
Low Voltage Products and Systems → Modular DIN Rail Products → Command and Signalling Devices → Control Switches,
Pushbuttons and Indicator Lights
3
EC001546 - Push button for distribution board ETIM 5
EC001546 - Push button for distribution board ETIM 6
EC001546 - Push button for distribution board ETIM 7
S Object Classification
