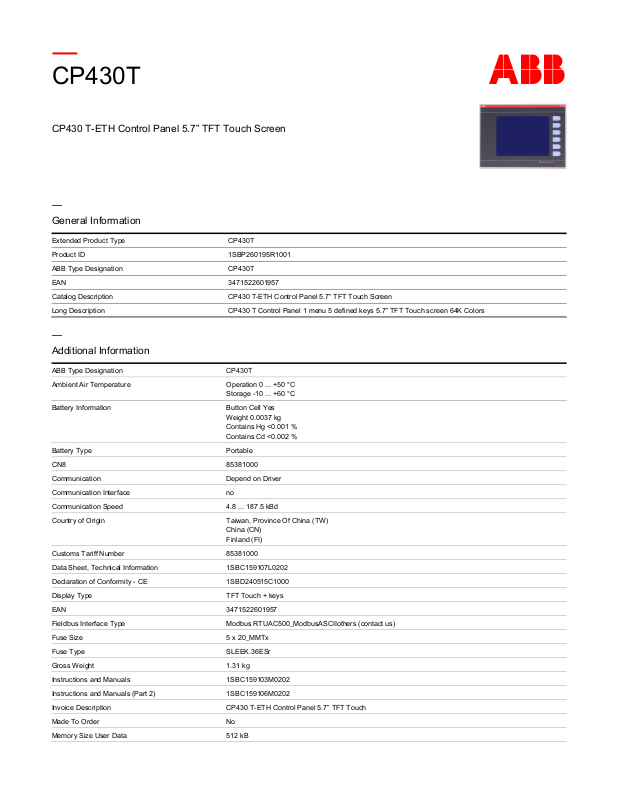

ABB 1SBP260195R1001 Data Sheet
|
|
|
CP430T |
||
CP430 T-ETH Control Panel 5.7” TFT Touch Screen |
|
|
—
General Information
Extended Product Type |
CP430T |
Product ID |
1SBP260195R1001 |
ABB Type Designation |
CP430T |
EAN |
3471522601957 |
Catalog Description |
CP430 T-ETH Control Panel 5.7” TFT Touch Screen |
Long Description |
CP430 T Control Panel 1 menu 5 defined keys 5.7” TFT Touch screen 64K Colors |
—
Additional Information
ABB Type Designation |
CP430T |
|
|
Ambient Air Temperature |
Operation 0 ... +50 °C |
|
Storage -10 ... +60 °C |
Battery Information |
Button Cell Yes |
|
Weight 0.0037 kg |
|
Contains Hg <0.001 % |
|
Contains Cd <0.002 % |
Battery Type |
Portable |
|
|
CN8 |
85381000 |
Communication |
Depend on Driver |
|
|
Communication Interface |
no |
Communication Speed |
4.8 ... 187.5 kBd |
Country of Origin |
Taiwan, Province Of China (TW) |
|
China (CN) |
|
Finland (FI) |
Customs Tariff Number |
85381000 |
|
|
Data Sheet, Technical Information |
1SBC159107L0202 |
Declaration of Conformity - CE |
1SBD240515C1000 |
Display Type |
TFT Touch + keys |
|
|
EAN |
3471522601957 |
Fieldbus Interface Type |
Modbus RTUAC500_ModbusASCIIothers (contact us) |
|
|
Fuse Size |
5 x 20_MMTx |
Fuse Type |
SLEEK.36ESr |
|
|
Gross Weight |
1.31 kg |
Instructions and Manuals |
1SBC159103M0202 |
Instructions and Manuals (Part 2) |
1SBC159106M0202 |
|
|
Invoice Description |
CP430 T-ETH Control Panel 5.7” TFT Touch |
Made To Order |
No |
|
|
Memory Size User Data |
512 kB |
|
|
CP430T |
2 |
Memory Size User Program |
4000 kB |
|
|
Memory Type User Data |
512 kilobyte RAM |
|
|
Memory Type User Program |
4 MB ROM |
Minimum Order Quantity |
1 piece |
|
|
Mounting Position |
0 to 135 ° |
Mounting Type |
Front face |
Mounting on DIN Rail |
No |
|
|
Number of Characters Per Line |
40 |
Number of Display Lines |
30 |
|
|
Number of Function Keys |
5 |
Number of LEDs |
0 |
|
|
Operating Mode |
off-lineon-line |
Order Multiple |
1 piece |
Package Level 1 Units |
0 carton |
|
|
Part Type |
New |
|
20 V·A |
|
|
Power Supply |
24 V DC |
Product Main Type |
CP430 |
Product Name |
"Color TFT-Touchscreen 5,7"",USB |
|
|
Product Net Height |
145 mm |
Product Net Length |
60 mm |
|
|
Product Net Weight |
0.86 kg |
Product Net Width |
195 mm |
|
|
Product Type |
PLC-CP400 |
Profibus |
No |
Programming Software |
CP400 Soft |
|
|
Quote Only |
No |
Real-time Clock |
Yes |
|
|
Release Type |
V11.11.10 |
RoHS Information |
1SBD340002R0202 |
Screen Color |
64k colors |
|
|
Screen Resolution |
320 x 240 pixel |
Screen Size |
4:3 screen 5.7 in |
|
|
Screen Type |
TFT color, CCFL backlight, touch screen |
Security |
password protection with 9 user levels |
|
|
Selling Unit of Measure |
piece |
Serial Port 1 Type |
RS232/RS485 |
Serial Port 2 Type |
RS232/RS422/RS485 |
|
|
Service Life |
60000 hour |
Short Description |
CP430 T Control Panel 5.7” TFT Touch screen 64KC |
|
|
Short-Circuit Protective Devices |
gG Type Fuses Integrated |
Software Function |
alarm managementrecipe managementtrendsmacro & laddersub-screen |
Stocked At (Warehouses) |
Central Stock Europe |
|
SGRL5499EXPU |
|
|
Supply Voltage |
20.4 ... 27.6 V DC |
UL Certificate |
NRAQ.E240320 |
USB Port 1 Type |
Host, version 2.0 |
|
|
USB Port 2 Type |
1 Device Ver. 2.0 |
Viewing Area Height |
88.4 mm |
|
|
Viewing Area Length |
117.2 mm |
|
|
