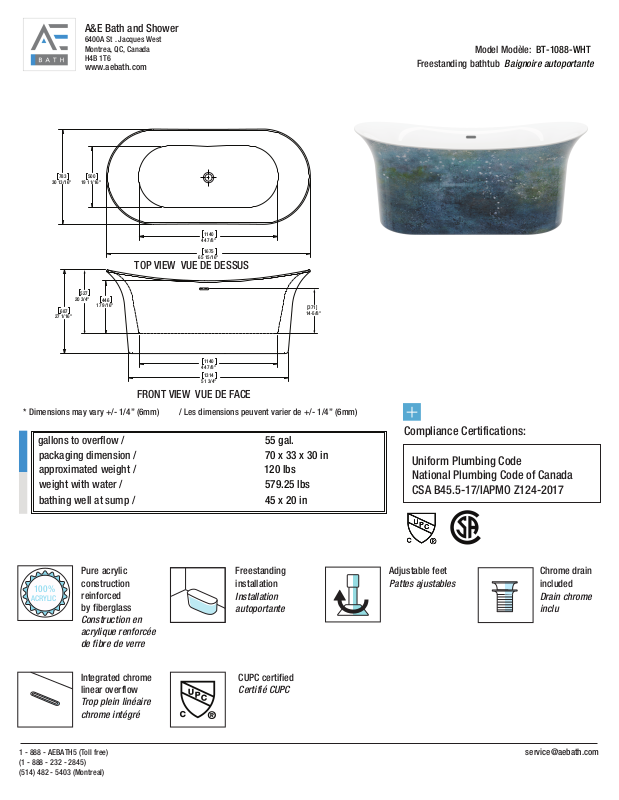

A and E BT1088PNT Specifications
783
30 13/16"
A&E Bath and Shower
6400A St . Jacques West
Montrea, QC, Canada
H4B 1T6
www.aebath.com
500
19 11/16"
TOP VIEW VUE DE DESSUS
1140
44 7/8"
1675
65 15/16"
BT-1088-WHTModel Modèle:
Freestanding bathtub Baignoire autoportante
687
27 1/16"
527
20 3/4"
446
17 9/16"
[371]
14-5/8"
1140
44 7/8"
1314
51 3/4"
FRONT VIEW VUE DE FACE
* Dimensions may vary +/- 1/4” (6mm) / Les dimensions peuvent varier de +/- 1/4” (6mm)
gallons to overflow / 55 gal.
packaging dimension /
approximated weight /
weight with water /
bathing well at sump /
Pure acrylic
100%
ACRYLIC
construction
reinforced
by fiberglass
Construction en
acrylique renforcée
de fibre de verre
70 x 33 x 30 in
120 lbs
579.25 lbs
45 x 20 in
Freestanding
installation
Installation
autoportante
Compliance Certifications:
Uniform Plumbing Code
National Plumbing Code of Canada
CSA B45.5-17/IAPMO Z124-2017
Adjustable feet Chrome drain
Pattes ajustables
included
Drain chrome
inclu
Integrated chrome
linear overflow
Trop plein linéaire
chrome intégré
1 - 888 - AEBATH5 (Toll free)
(1 - 888 - 232 - 2845)
(514) 482 - 5403 (Montreal)
CUPC certified
Certifié CUPC
service@aebath.com
