AAEON PER-C31L User Manual
17
Network Appliances - Accessories

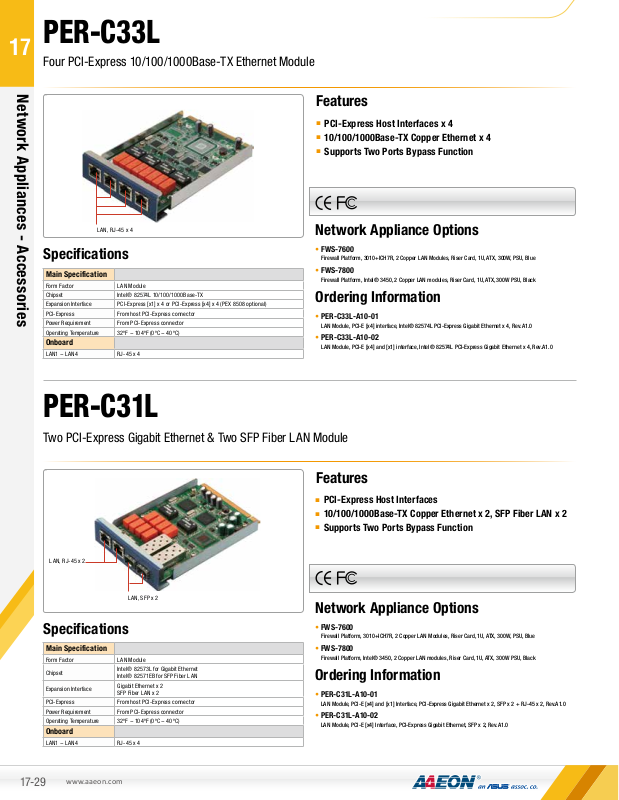

PER-C33L
Four PCI-Express 10/100/1000Base-TX Ethernet Module
Features
■■
PCI-Express Host Interfaces x 4
■■
10/100/1000Base-TX Copper Ethernet x 4
■■
Supports Two Ports Bypass Function
LA N, RJ- 45 x 4
Specifications
Main Specification
Form Factor LAN Module
Chipset Intel® 82574L 10/100/1000Base-TX
Expansion Interface PCI- Express [x1] x 4 or P CI-Expre ss [x4] x 4 (P EX 8508 opt ional)
PCI-Express From hos t PCI -Exp ress co nnecto r
Power Requirement F rom PCI-Express connector
Operating Temperature 32º F ~ 104ºF ( 0ºC ~ 4 0ºC )
Onboard
LA N1 ~ LA N4 RJ-4 5 x 4
Network Appliance Options
• FWS-7600
Firewall Platform, 3010+ICH7R, 2 Copper LAN Modules, Riser Card, 1U, ATX, 300W, PSU, Blue
• FWS-7800
Firewall Platform, Intel® 3450, 2 Copper LAN modules, Riser Card, 1U, ATX, 300W PSU, Black
Ordering Information
• PER-C33L-A10-01
LAN Module, PCI-E [x4] interface, Intel® 82574L PCI-Express Gigabit Ethernet x 4, Rev.A1.0
• PER-C33L-A10-02
LAN Module, PCI-E [x4] and [x1] interface, Intel® 82574L PCI-Express Gigabit Ethernet x 4, Rev.A1.0
PER-C31L
Two PCI-Express Gigabit Ethernet & Two SFP Fiber LAN Module
Features
■■
PCI-Express Host Interfaces
■■
10/100/1000Base-TX Copper Ethernet x 2, SFP Fiber LAN x 2
■■
Supports Two Ports Bypass Function
LA N, RJ- 45 x 2
LA N, SFP x 2
Specifications
Main Specification
Form Factor LAN Module
Chipset
Expansion Interface
PCI-Express From hos t PCI- Express conn ector
Power Requirement From PC I-Express c onnector
Operating Temperature 32º F ~ 104ºF ( 0ºC ~ 4 0ºC )
Onboard
LA N1 ~ LA N4 RJ-4 5 x 4
17-29
www.aaeon.com
Intel® 8 2573L f or Gigabit Ether net
Intel® 8 2571EB fo r SFP Fi ber LA N
Gigabit Etherne t x 2
SFP Fib er LA N x 2
Network Appliance Options
• FWS-7600
Firewall Platform, 3010+ICH7R, 2 Copper LAN Modules, Riser Card, 1U, ATX, 300W, PSU, Blue
• FWS-7800
Firewall Platform, Intel® 3450, 2 Copper LAN modules, Riser Card, 1U, ATX, 300W PSU, Black
Ordering Information
• PER-C31L-A10-01
LAN Module, PCI-E [x4] and [x1] Interface, PCI-Express Gigabit Ethernet x 2, SFP x 2 + RJ-45 x 2, Rev.A1.0
• PER-C31L-A10-02
LAN Module, PCI-E [x4] Interface, PCI-Express Gigabit Ethernet, SFP x 2, Rev.A1.0
