AAEON PCM-4897 User Manual

PCM-4897

All-in-One Media GXm CPU Card

with LCD, TV-Output, Audio, &

2 COMs

FCC STATEMENT

THIS DEVICE COMPLIES WITH P AR T 15 FCC RULES.

OPERA TION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MA Y NOT CAUSE HARM­FUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED INCLUDING INTERFERENCE
THA T MA Y CAUSE UNDESIRED OPERA TION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO

COMPL Y WITH THE LIMITS FOR A CLASS "A" DIGIT AL
DEVICE, PURSUANT TO P AR T 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASON­ABLE PROTECTION AGAINTST HARMFUL INTERFER­ENCE WHEN THE EQUIPMENT IS OPERA TED IN A
COMMERCIAL ENVIRONMENT . THIS EQUIPMENT
GENERA TES, USES, AND CAN RADIA TE RADIO FRE­QUENCY ENERGY AND , IF NOT INST A TLLED AND USED
IN ACCORDANCE WITH THE INSTRUCTION MANUAL,
MA Y CAUSE HARMFUL INTERFERENCE TO RADIO
COMMUNICA TIONS. OPERATION OF THIS EQUIPMENT
IN A RESIDENTIAL AREA IS LIKEL Y TO CAUSE HARM­FUL INTERFERENCE IN WHICH CASE THE USER WILL
BE REQUIRED TO CORRECT THE INTERFERENCE A T HIS
OWN EXPENSE.

Copyright Notice

This document is copyrighted, 1999. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties which may result
from its use.

Acknowledgements

AMI is a trademark of American Megatrends, Inc.
A ward is a trademark of A ward Software International, Inc.
Cyrix is a trademark of Cyrix Corporation.
IBM, PC/A T , PS/2, and VGA are trademarks of International
Business Machines Corporation.
Microsoft Windows® is a registered trademark of Microsoft Corp.
SMC is a trademark of Standard Microsystems Corporation.
UMC is a trademark of United Microelectronics Corporation.
NS is a trademark of National Semiconductor, Inc.

All other product names or trademarks are properties of their
respective owners.

Part No. 2047489700 Manual PCM-4897 1st Edition

Prepared in Taiwan July 1999

A Message to the Customer

Customer Services

Each and every product is built to the most exacting
specifications to ensure reliable performance in the harsh and
demanding conditions typical of industrial environments. Whether
your new equipment is destined for the laboratory or the
factory floor, you can be assured that your product will provide the
reliability and ease of operation for which the name has
come to be known.

Y our satisfaction is our primary concern. Here is a guide to
customer services. To ensure you get the full benefit of
our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products.
So if you run into technical difficulties, we are here to help. For the
most frequently asked questions, you can easily find answers in
your product documentation. These answers are normally a lot
more detailed than the ones we can give over the phone.

So please consult this manual first. If you still cannot find the
answer, gather all the information or questions that apply to your
problem, and with the product close at hand, call your dealer. Our
dealers are well trained and ready to give you the support you need
to get the most from your products. In fact, most problems
reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from
engineers every business day. We are always ready to give advice
on application requirements or specific information on the installa­tion and operation of any of our products.

Product Warranty

warrants to you, the original purchaser, that each of its
products will be free from defects in materials and workmanship for
one year from the date of purchase.

This warranty does not apply to any products which have been
repaired or altered by persons other than repair personnel autho­rized by, or which have been subject to misuse, abuse,
accident or improper installation. assumes no liability
under the terms of this warranty as a consequence of such events.

Because of high quality-control standards and rigorous
testing, most of our customers never need to use our repair service.
If an product is defective, it will be repaired or replaced at
no charge during the warranty period. For out-of-warranty repairs,
you will be billed according to the cost of replacement materials,
service time, and freight. Please consult your dealer for more
details.

If you think you have a defective product, follow these steps:
1 . Collect all the information about the problem encountered. (For

example, CPU type and speed, products used, other
hardware and software used, etc.) Note anything abnormal and
list any on-screen messages you get when the problem occurs.

2 . Call your dealer and describe the problem. Please have your

manual, product, and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA
(return material authorization) number from your dealer. This
allows us to process your return more quickly .

4 . Carefully pack the defective product, a fully-completed Repair

and Replacement Order Card and a photocopy proof of pur­chase date (such as your sales receipt) in a shippable container.
A product returned without proof of the purchase date is not
eligible for warranty service.

5. Write the RMA number visibly on the outside of the package
and ship it prepaid to your dealer.

Packing list

Before you begin installing your card, please make sure that the
following materials have been shipped:

• 1 PCM-4897 All-in-One MediaGXm CPU Card

• 1 Quick Installation Guide

• 1 Supporting CD-ROM contains the followings:

-- User's Manual (this manual in PDF file)

-- VGA drivers and utilities

-- Audio drivers and utilities

-- Latest BIOS (as of the CD-ROM was made)

• 1 hard disk drive (IDE) interface cable (44 pins)

• 1 floppy disk drive interface cable (34 pins)

• 1 6 pins mini-DIN dual outlet adapter for keyboard and PS/2
mouse

If any of these items are missing or damaged, contact your distribu­tor or sales representative immediately.

Notice

Dear Customer,
Thank you for purchasing the PCM-4897 board. This user's

manual is designed to help you to get the most out of the PCM­4897, please read it thoroughly before you install and use the
board. The product that you have purchased comes with two year
limited warranty, but will not be responsible for misuse of
the product. Therefore, we strongly urge you to first read the
manual before using the product.

To receive the lastest version of the user manual, please visit our
Web site

Contents

Chapter 1: General Information ....................... 1

Introduction ........................................................................... 2

Features.................................................................................. 3

Specifications ......................................................................... 4

Board layout........................................................................... 7

Board dimensions ................................................................. 8

Chapter 2: Installation ....................................... 9

Jumpers and connectors .................................................... 1 0

Locating jumpers ................................................................ 1 2

Locating connectors ........................................................... 1 3

Setting jumpers ................................................................... 1 4

CPU installing and upgrading............................................ 15

Installing DRAM (DIMMs) .............................................. 1 6

CPU frequency ratio select (JBFA1) ............................... 1 7

CPU clock select (JCLK1)................................................ 1 8

ATX power connector (PW1) ............................................ 1 9

IrDA connector (JSIR1) .................................................... 2 0

Wake up on modem connector (JWOM1) ...................... 2 1

LCD Backlight power connector (J1) .............................. 2 2

Composite video output connector (J2) .......................... 2 3

S-Video connector (J3) ....................................................... 24

Internal/external buzzer select (JP1) ............................... 2 5

Hardware reset (JP2) ......................................................... 2 6

ATX Soft-Power Switch connector (JP3) ......................... 2 7

Power on LED (JP4) ........................................................... 2 8

Suspend switch & LED (JP5, JP6) .................................. 2 9

IDE LED connector (JP7) ................................................. 3 0

DOC address select (JP8) ................................................. 31

CPU fan power connector (JP9) ....................................... 3 3

Wake On LAN connector (JP11) ...................................... 3 4

Clear CMOS (JP13) ........................................................... 35

LCD backlight voltage select (JP14) ............................... 3 6

Power LED and KB lock connector (JP15) .................... 3 7

LCD driving voltage select (JP16) .................................. 3 8

IDE hard drive connector (CN1) ...................................... 3 9

Connecting the hard drive .......................................................40

IDE hard drive connector (CN1) ............................................41

Game/Joystick/MIDI connector (CN2) ........................... 4 2

Floppy drive connector (CN3) .......................................... 4 3

Connecting the floppy drive.....................................................44

Floppy drive connector (CN3).................................................4 5

Display connector (CN8, CN4) ......................................... 46

LCD connector (CN4) ............................................................47

CD-ROM signal input connector (CN6) ......................... 4 8

Audio connector (for voice modem)(CN7) ...................... 4 9

Parallel port connector (CN9) ........................................... 5 0

USB connector (CN10) ...................................................... 5 1

Audio singal input connector (CN11) ............................... 5 2

MIC signal input connector (CN13) ................................ 53

Keyboard and PS/2 mouse connector (CN14) ................ 54

Serial ports (COM1/COM2, CN15/CN16) ..................... 5 5

COM 1-2 RS-232 serial ports (CN15/CN16) .........................55

DiskOnChip socket (U4) ................................................... 5 6

DiskOnChip (DOC) 2000 Installation ............................. 57

Chapter 3: Award BIOS Setup .......................... 59

Starting setup ....................................................................... 60

Setup keys ............................................................................ 61

Getting help ......................................................................... 6 2

In case of problem...................................................................62

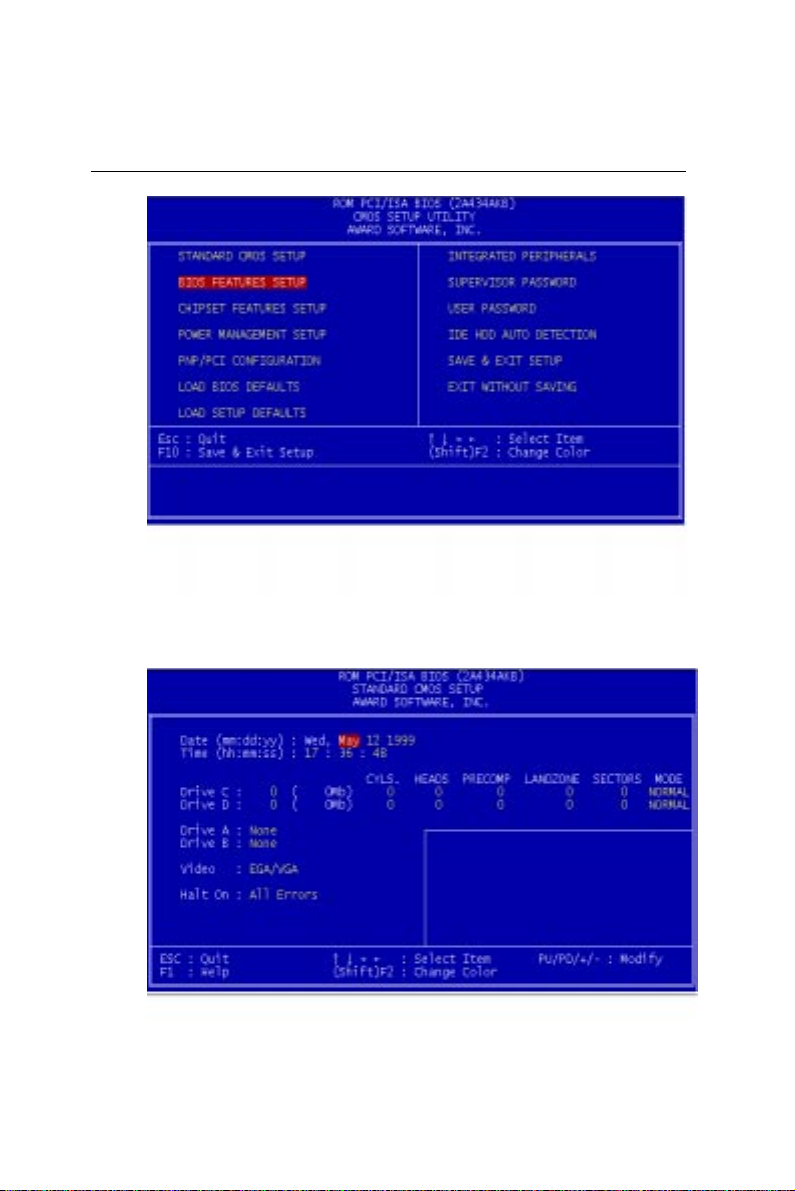

Main setup menu ................................................................ 6 3

Standard CMOS setup ....................................................... 6 5

BIOS features setup ........................................................... 7 1

CHIPSET features setup ................................................... 7 5

Power management setup .................................................. 77

PNP/PCI congfiguration setup .......................................... 8 0

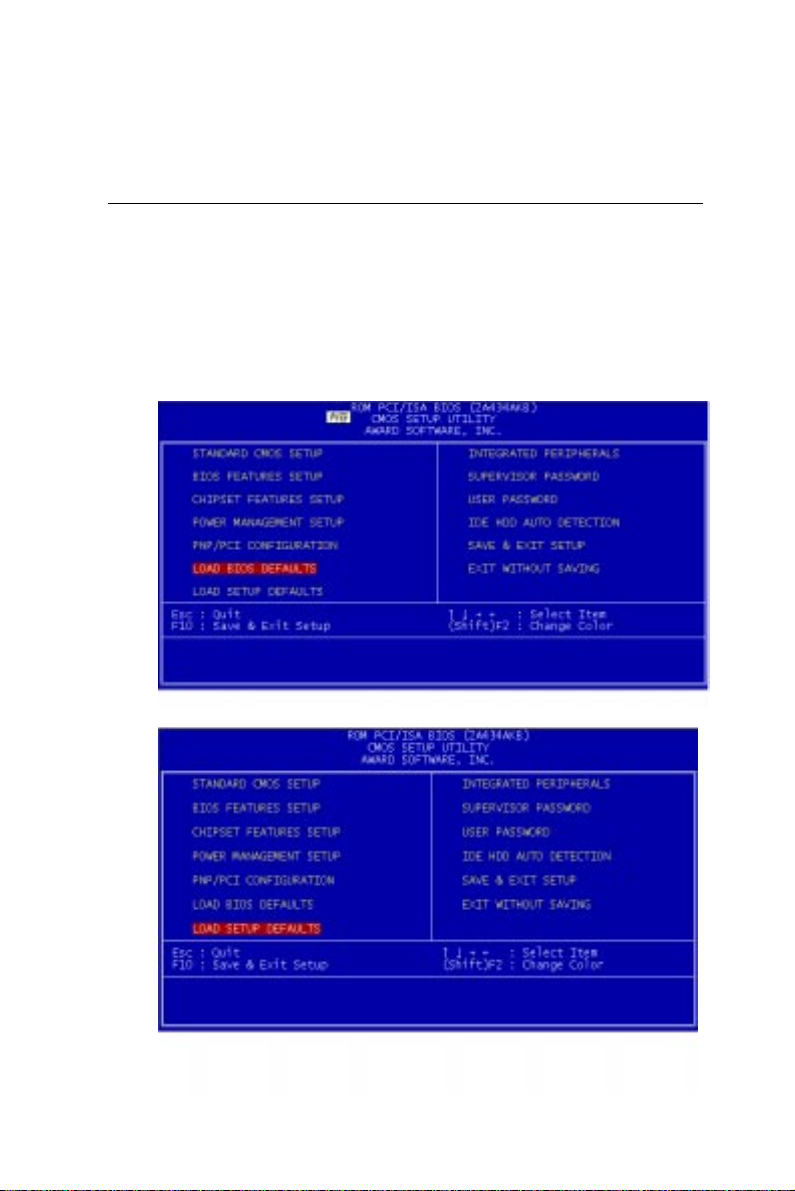

Load BIOS defaults/Load setup defaults ........................ 8 2

Integrated peripherals setup ............................................. 8 3

Supervisor/User password setting ................................... 8 4

IDE HDD auto detection ................................................... 8 8

Save & exit setup ................................................................ 8 9

Exit without saving ............................................................. 9 0

Chapter 4: C&T 69000 Flat Panel/CRT controller

Display Drivers and Utilities ......... 91

Software drives .................................................................... 9 2

Hardware configuration ..........................................................92

Necessary prerequisites .......................................................... 93

Before you begin .....................................................................93

Windows 95 .......................................................................... 9 4

Driver installation ....................................................................94

Windows 3.1 ....................................................................... 10 2

Driver installation ..................................................................102

OS/2.....................................................................................103

Windows NT 3.51 .............................................................. 10 5

Driver installation ..................................................................105

Windows NT 4.0 ................................................................ 1 06

Driver installation ..................................................................106

Chapter 5: Audio setup .................................. 107

Introduction ....................................................................... 10 8

Setting up in windows 95 .................................................. 1 0 8

Installing the drivers under Window 95 .................................109

1

CHAPTER

General

Information

This chapter gives background informa­tion on the mainboard.

Sections include:

• Board specifications

• Layout and dimensions

Chapter 1 General Information 1

Introduction

The PCM-4897 is an all-in-one multi-media Cyrix MediaGX MMX
(abbreviated as GXm) processor based single board computer
(SBC) with an integrated audio and video controller, a PCI Flat
Panel controller, and one PISA expansion slot. W ith ture Pentium
MMX capability , the PCM-4897 achieves outstanding performance
that surpasses other SBC in its class. In addition, the onboard SSD
interface supports M-Systems DiskOnChip 2000 series, memory
capacity from 2 MB to 144 MB. This compact (only 6.378" x 7.87")
unit offers all the functions of a single board industrial computer .

Onboard features include two serial ports, one multi-mode parallel
(ECP/EPP/SPP) port, connector for two USB (Universal Serial Bus)
connector, a floppy drive controller , and a keyboard/PS/2 mouse
interface. The built-in high speed PCI IDE controller supports Ultra
DMA/33 mode. Up to two IDE devices can be connected, including
large hard disks, CD-ROM drives, and tape backup drives, etc.

The PCM-4897 also features power management to minimize power
consumption. It complies with the ACPI standard and supports two
types of power saving features: Doze mode, Standby mode. In
addition, the board's watchdog timer can automatically reset the
system or generate an interrupt in case the system stops due to a
program bug or EMI.

Highly integrated multi-media SBC

The PCM-4897 is a highly integrated multi-media SBC that com­bines audio, video, and TV-Output functions on a CD-ROM drive
size single computer board. It provides, 16-bit full-duplex, integrat­ed 3D audio and up to 1024 x 768 resolution @ 64K colors. Major
onboard devices adopt PCI technology to achieve outstanding
computing performance.

2 PCM-4897 User Manual

Features

• Supports Cyrix MediaGX MMX CPU 200~300 MHz

• DiskOnChip (SSD) up to 144MB

• 18-bit PCI-bus SVGA/LCD controller supports LCD & CRT display

• AC-97 2.0 audio interface, Sound Blaster compatible

• Supports Bus Master and Ultra DMA/33 IDE devices

• T wo RS-232 serial ports

• USB interface & PISA slot for flexible expansion capabilities

Chapter 1 General Information 3

Specifications

Standard SBC Functions

• CPU: Cyrix MediaGX MMX 200~300MHz

• CPU socket: Socket 7

• BIOS: A ward 256KB Flash BIOS

• Chipset: Cyrix Media GX MMX/Cx5530

• I/O Chipset: NS97317

• Memory: Onboard one 168 pins DIMM socket supports up to
128Mbytes SDRAM

• Enhanced IDE: Support up to two IDE devices. Supports Ultra DMA/
33 mode with data transfer rate up to 33MB/sec.

• FDD interface: Supports up to two floppy disk drives, 5.25" (360KB
and 1.2MB) and /or 3.5" (720KB, 1.44MB, and 2.88MB)

• Parallel port: One bi-directional parallel port. Supports SPP , ECP and
EPP modes

• Serial ports: T wo RS-232 serial ports. Ports can be configured as COM1,
COM2, COM3, COM4, or disabled individually . (16C550 equivalent)

• IR interface: Supports one IrDA Tx/Rx header

• Keyboard/mouse connector: 6 pins mini-Din connector supports PC/A T
keyboard and PS/2 mouse

• USB connectors: T wo USB ports onbard

• Battery: Lithium battery for data retention of up to 10 years

• DMA: 7 DMA channels (8237 equivalent)

• Interrupt: 15 interrupt levels (8259 equivalent)

• Power management: Supports A TX power supply . Supports PC97,
LAN wake up, and modem ring-in functions. I/O peripheral devices
support power saving and doze/standby/suspend modes. APM 1.2
compliant

4 PCM-4897 User Manual

Flat Panel/CRT Interface

• Chipset: Cyrix Cx 5530

• Display memory: UMA

• Display type: Supports non-interlaced CRT and LCD (TFT) displays. Can
display both CRT and Flat Panel simultaneously

• Resolution: Up to 1024x768@64K colors

Sound Interface

• Chipset : Cyrix Cx5530

• 3D audio: Supports for Microsoft DirectSound and DirectSound 3D
audio technology in two-speaker mode (requires Microsoft Direct
Sound 3D supported software titles)

• 16-bit stereo digital audio : Full-duplex support enables simultaneous
record and playback for Internet communications software

TV-Output

• Chipset: Chrontel 7003 supports both P AL and NTSC system

SSD Interface

One 32-pin DIP socket supports M-systems DiskOnChip 2000 Series up
to 144MB

Expansion Slots

• PISA slot: One PISA slot onboard for expansion

Chapter 1 General Information 5

Mechanical and environmental

• Power supply voltage : +5V (4.75V to 5.25V),

+12V (11.4V to 12.6V)

• Power requirement: +5V@0.8A (Cyrix GXm 200MHz)

• Operating temperature: 32 to 140o F (0 to 60o C)

• Board size: 8"(L) x 5.75"(W) (203mm x 146mm)

• Weight: 1.2 lb. (0.5 Kg)

6 PCM-4897 User Manual

Board layout

Cyrix

CX5530

NS97317

CHRONTEL

CH7003

Chapter 1 General Information 7

Board dimensions

8 PCM-4897 User Manual

2

CHAPTER

Installation

This chapter describes how to set up the
main board hardware, including instruc­tions on setting jumpers and connecting
peripherals, switches, and indicators. Be
sure to read all the safety precautions
before you begin the installation proce­dure.

Chapter 2 Installation 9

Jumpers and connectors

Connectors on the board link it to external devices such as hard
disk drives, a keyboard, or floppy drives. In addition, the board
has a number of jumpers that allow you to configure your system
to suit your application.

The following tables list the function of each of the board's
jumpers and connectors.

Jumpers

Label Function

JCLK1 CPU clock select
JBFA1 CPU frequency ratio select
PW1 ATX power connector
JSIR1 IrDA connector
JWOM1 Wake up on modem connector
J1 Backlight power connector
J2 Composite video connector
J3 S-Video connector
JP1 Internal/external buzzer select
JP2 Hardware reset connector
JP3 ATX soft-power switch connector
JP4 Power on LED connector
JP5 Suspend Switch (Green mode)
JP6 Suspend LED connector
JP7 HDD LED connector
JP8 DOC address select
JP9 CPU fan power connector
JP11 Wake on LAN connector
JP13 Clear CMOS
JP14 LCD backlight voltage select
JP15 Power LED & KB lock connector
JP16 LCD driving voltage select

10 PCM-4897 User Manual

Connectors

Label Function

CN 1 IDE drive connector
CN 2 Game port connector
CN 3 Floppy drive connector
CN 4 LCD display connector
CN 6 CD-ROM signal input connector
CN 7 Audio connector (for voice modem)
CN 8 VGA Display connector
CN 9 Parallel port connector
CN10 USB connector
CN11 Audio signal output connector
CN12 Audio signal input connector
CN13 MIC signal input connector
CN14 KB & PS/2 mouse connector
CN15 COM1 connector
CN16 COM2 connector

Chapter 2 Installation 11

Locating jumpers

JP3
JP2

JP8

JCLK1

JBFA1

JP1

JP4

JP7

JP6

JP5

Cyrix

CX5530

JWOM1

NS97317

J1

JSIR1

JP14

JP15

JP16
JP13

JP11
JP12
JP10

J3

J2

JP9

12 PCM-4897 User Manual

Locating connectors

CN2

Cyrix

CX5530

CN4

CN3CN1

CN15(Up)
CN16(Down)

NS97317

CN10

CN14

CN8(Down)
CN9(Up)

CN13

CN12

CN11

CN6

CN7

Chapter 2 Installation 13

Setting jumpers

You can configure your card to match the needs of your application
by setting jumpers. A jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected
by a plastic cover) that slides over the pins to connect them. To
“close” a jumper you connect the pins with the clip. T o “open” a
jumper you remove the clip. Sometimes a jumper will have three
pins, labeled 1, 2, and 3. In this case you would connect either pins
1 and 2 or 2 and 3.

1

Open Closed Closed 2-3

The jumper settings are schematically depicted in this manual as
follows:

1 2 3

Open Closed Closed 2-3

A pair of needle-nose pliers may be helpful when working with
jumpers.

3

2

If you have any doubts about the best hardware configuration for
your application, contact your local distributor or sales representa­tive before you make any changes.

14 PCM-4897 User Manual

CPU installing and upgrading

Y ou can upgrade to a more powerful Cyrix GXm CPU at any time.
Simply remove the old CPU, install the new one, and set the
jumpers for the new CPU speed.

Warning! Always disconnect the power cord from your

chassis when you are working on it. Do not make
connections while the power is on as sensitive
electronic components can be damaged by the
sudden rush of power. Only experienced electron­ics personnel should open the PC chassis.

Caution! Always ground yourself to remove any static

charge before touching the PC board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis.

When you install a new CPU, be sure to adjust the board settings,
such as CPU frequency ratio. Improper settings may damage

the CPU.

Chapter 2 Installation 15

Installing DRAM (DIMMs)

System Memory

The PCM-4897 contains a socket for 168-pin dual inline memory
module (DIMM). The socket uses 3.3 V unbuffered synchronous
DRAM (SDRAM). DIMM is available in capacities of 16, 32, 64, or
128 MB. The socket can be filled in the DIMM of any size, giving
your PCM-4897 single board computer between 16 and 128 MB of
memory.

Supplementary information about DIMM

Y our PCM-4897 can accept both regular and PC-100 SDRAM
DIMM Module(with or without parity).

Single-sided modules are typically 16 or 64 MB; double-sided
modules are usually 32 or 128 MB.

Memory Installation Procedures

T o install DIMM, first make sure the two handles of the DIMM
socket are in the "open" position. i.e. The handles remain outward.
Slowly slide the DIMM module along the plastic guides on both
ends of the socket. Then press the DIMM module right down into
the socket, until you hear a click. This is when the two handles
have automatically locked the memory module into the correct
position of the DIMM socket. (See Figure below) T o take away the
memory module, just push both handles outward, and the memory
module will be ejected by the mechanism in the socket.

16 PCM-4897 User Manual

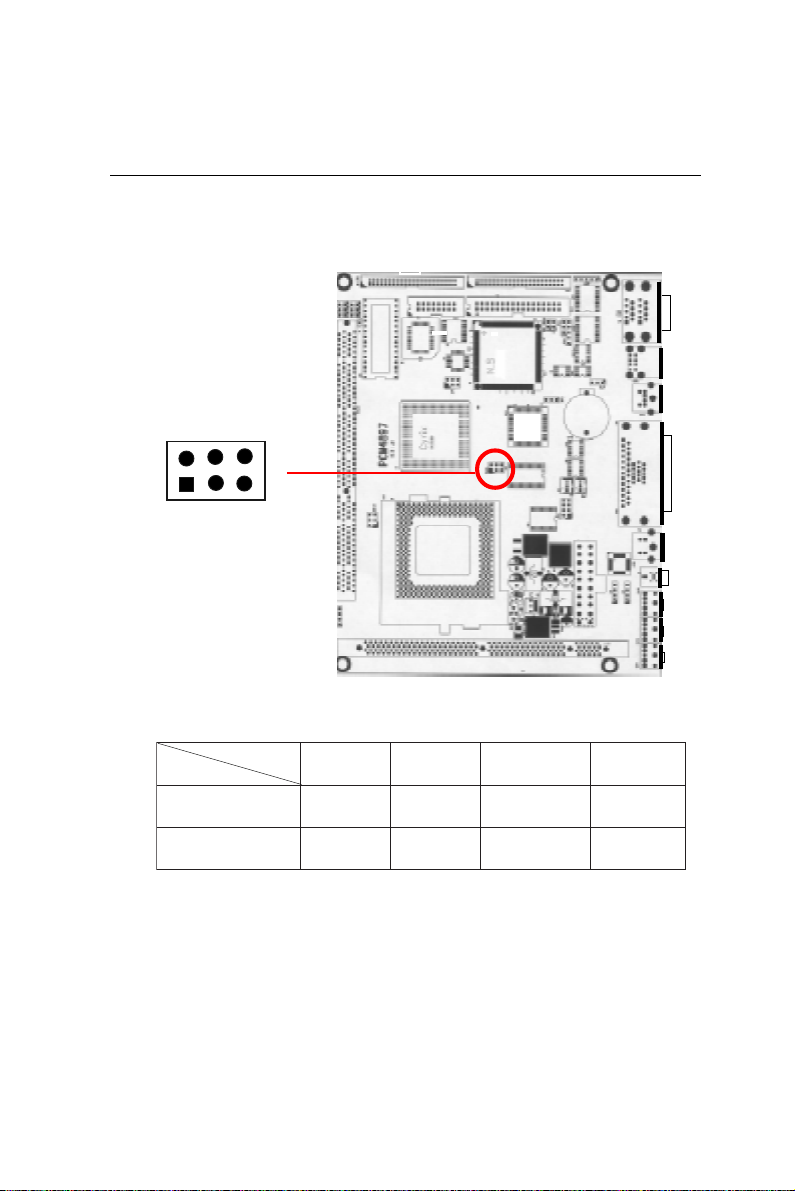

CPU frequency ratio select (JBFA1)

The GXm CPU core frequency = CPU frequency ratio (4~10X) *
External CPU clock (33 or 30MHz). The following table shows the
available configurations.

6 5
4 3
2 1

* For GXm >= 266MHz * For GXm = 233MHz, 200MHz

Ratio

JBFA1

X5NOFFOFFO
X6FFONOFFO

*

X7FFOFFONO
X8NONONO
X9NOFFONO

X01NONOFFO

2-14-36-5

2-14-36-5
X4XNONO
X6XNOFFO
X7X FFONO
X8X FFOFFO

* default
* ON : Short with the jumper cap

OFF: Open without the jumper cap

Chapter 2 Installation 17

CPU clock select (JCLK1)

Y ou can configure the CPU external clock to 33MHz or 30MHz by
setting JCLK1.

2 4 6

1 3 5

Freq.

JCLK1

zHM03FFOFFOFFONO

*

zHM33FFONOFFOFFO

* default
* ON : Short with the Jumper cap

OFF : Open without the jumper cap

18 PCM-4897 User Manual

3-14-25-36-4

ATX power connector (PW1)

The ATX power supply uses a 20-pin connector shown below.
Make sure you plug in the right direction.

ATX power connector (PW1)

Pin Signal Pin Signal

1 N/C 11 N / C
2 N/C 1 2 -12V
3 GND 13 GND
4 +5V 14 PON
5 GND 15 G N D
6 +5 V 16 GND
7 GND 17 G N D
8 N/C 18 -5V
9 5V SB 19 +5V
10 +12V 20 +5V

PW1

10 20

1 11

Chapter 2 Installation 19

IrDA connector (JSIR1)

The IrDA connector JSIR1 can be configured to support wireless
infrared module. With this module and application software such
as laplink or Win95 Direct Cable connection, user can transfer files
to or from laptops, notebooks, PDA and printers. This connector
supports HPSIR (115.2Kbps, 2 meters), ASK-IR (56Kbps) and Fast
IR (4Mbps, 2 meters).

Install infrared module onto IrDA connector and enable infrared
function from BIOS setup. Make sure to have correct orientation
when you plug onto IrDA connector JSIR1.

5 4 3 2 1

IrDA connector (JSIR1)

Pin Signal

1 +5V
2 N.C.
3 IrRxD
4 GND
5 IrTxD

20 PCM-4897 User Manual

Wake up on modem connector

(JWOM1)

Onboard implements special circuit to support W ake Up On
Modem, both internal Modem Card and external box Modem are
supported. Since internal Modem card consumes no power when
system power is off, it is recommended to use internal Modem. T o
use internal Modem card, connect 2-pin cable from RING connector
of the internal Modem card to the JWOM1 on the PCM-4897.

2
1

Wake up on modem connector (JWOM1)

Pin Signal

1 GND
2 RING

Chapter 2 Installation 21

LCD Backlight power connector (J1)

The PCM-4897 supports backlight power for LCD flat panels, and
the backlight voltage setting please refer to JP14.

2
1

LCD Backlight powr connector (J1)

Pin Signal

1 Vcc (Voltage setting please refer to JP14)
2 GND

22 PCM-4897 User Manual

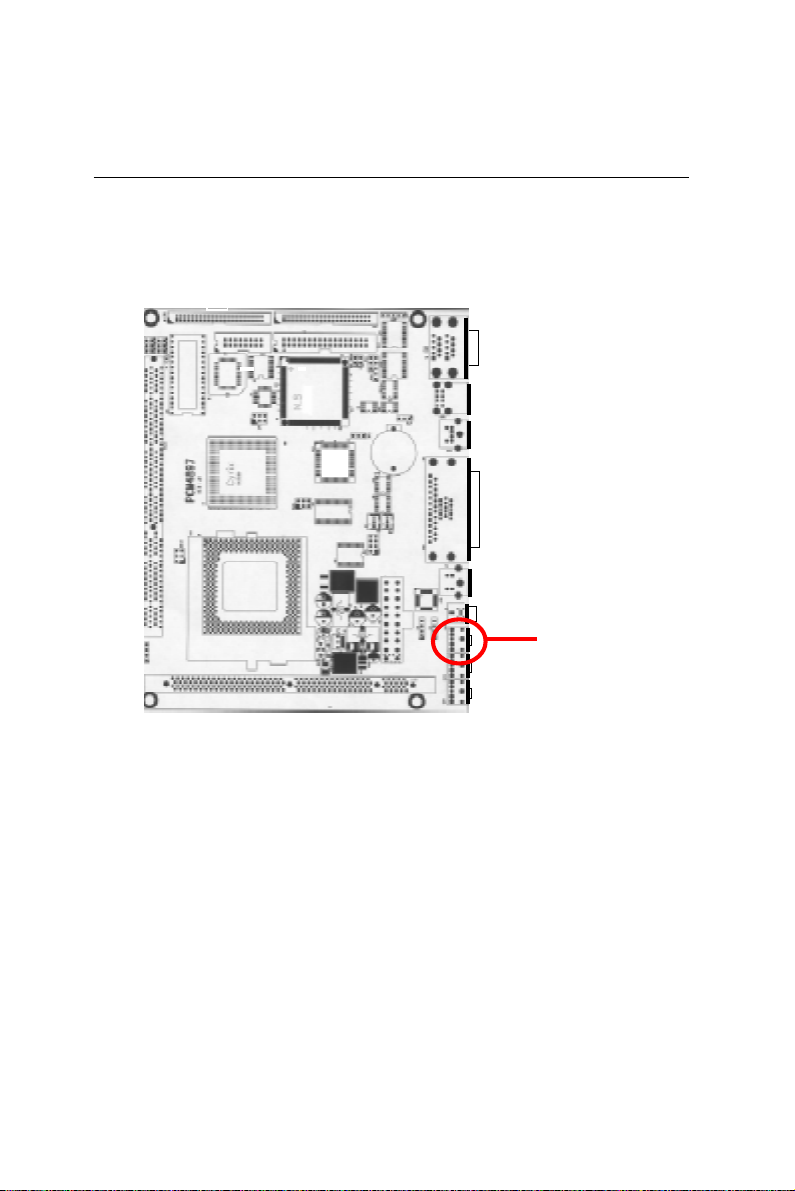

Composite video output connector

(J2)

The PCM-4897 has a RCA Jack for composite video signal output
to TV .

RCA JACK

Chapter 2 Installation 23

S-Video connector (J3)

The PCM-4897 has a standard S-V ideo Jack for video signal output
to TV .

S-Video connector (J3)

Pin Signal

1 GNDNTSC
2 GNDNTSC
3 LUMF
4 CHROMF

4
2

S Jack

3
1

24 PCM-4897 User Manual

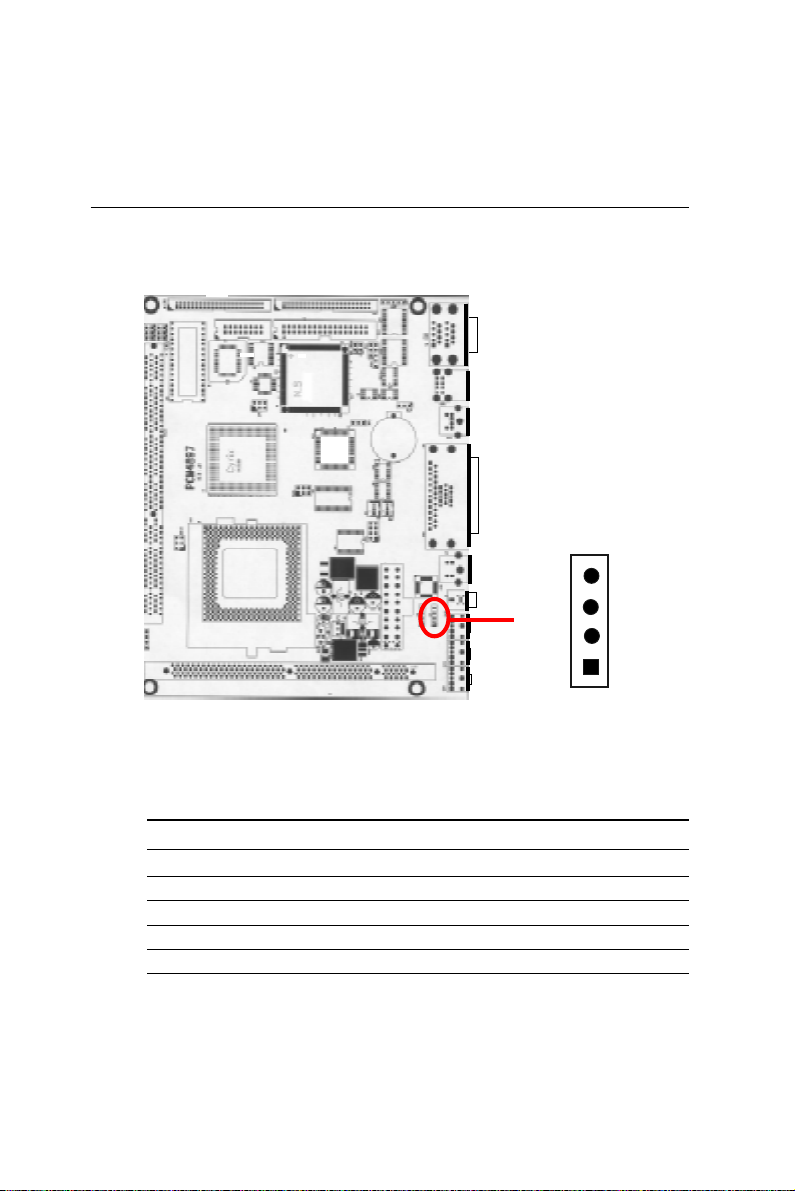

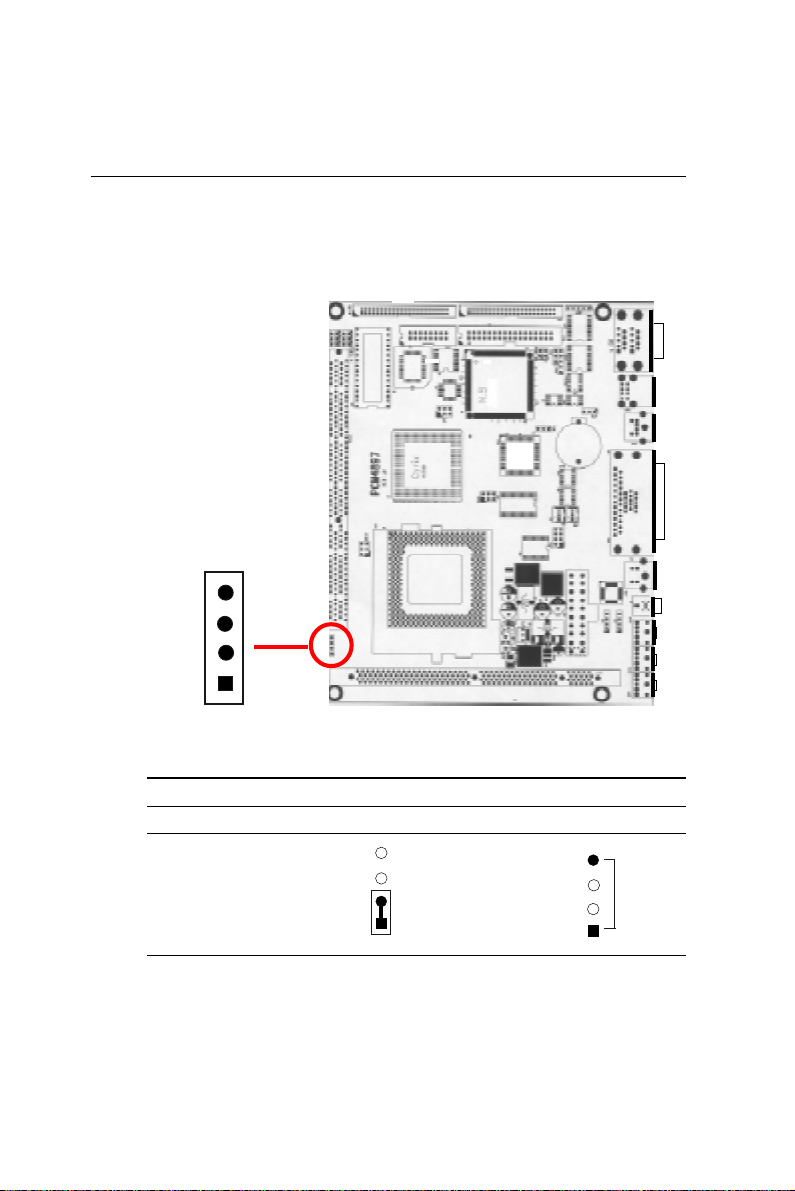

Internal/external buzzer select (JP1)

The CPU card has an onboard buzzer. You can disable the internal
buzzer and connect an external speaker to JP1. Enabling the
external speaker automatically disables the internal buzzer.

4
3
2
1

Internal/external buzzer select (JP1)

Internal buzzer* External speaker

4

JP1

3
2
1

* default

4
3
2
1

Chapter 2 Installation 25

(+)

(-)

Hardware reset (JP2)

You can connect an external switch to easily reset your computer.
This switch restarts your computer as if you turned off the power
then turned it back on. The following table shows the pin assign­ments for JP2.

2 1

Hardware reset (JP2)

Pin Signal

1 Reset
2 GND

26 PCM-4897 User Manual

ATX Soft-Power Switch connector

(JP3)

The ATX Soft-Power switch connector is a 2-pin header . Locate
the power switch cable from your system. It is a 2-pin female
connector. Plug this connector to the Soft-Power switch connector
marked JP3.

2 1

ATX Soft-Power Switch connector (JP3)

Pin Signal

1 Power
2 GND

Chapter 2 Installation 27

Power on LED (JP4)

The power LED indicates when the PCM-4897 board is on.

2 1

Power on LED (JP4)

Pin Signal

1 LED (+)
2 LED (-)

28 PCM-4897 User Manual

Suspend switch & LED (JP5, JP6)

After the selected period of system inactivity, the baord enters a
hardware supsend mode, stopping the CPU clock if possibly. The
JP6 indicates when the PCM-4897 board is enters a hard ware
suspend mode.

2 1

JP6
JP5

2 1

Suspend LED (JP6)

Pin Signal

1 LED (+)
2 LED (-)

Chapter 2 Installation 29

IDE LED connector (JP7)

Y ou can connect an LED to JP7 to indicate that an IDE device is in
use. The pin assignments for this connector are as follows:

2 1

IDE LED connector (JP7)

Pin Signal

1 Vcc (+5V)
2 - R/W IDE

30 PCM-4897 User Manual

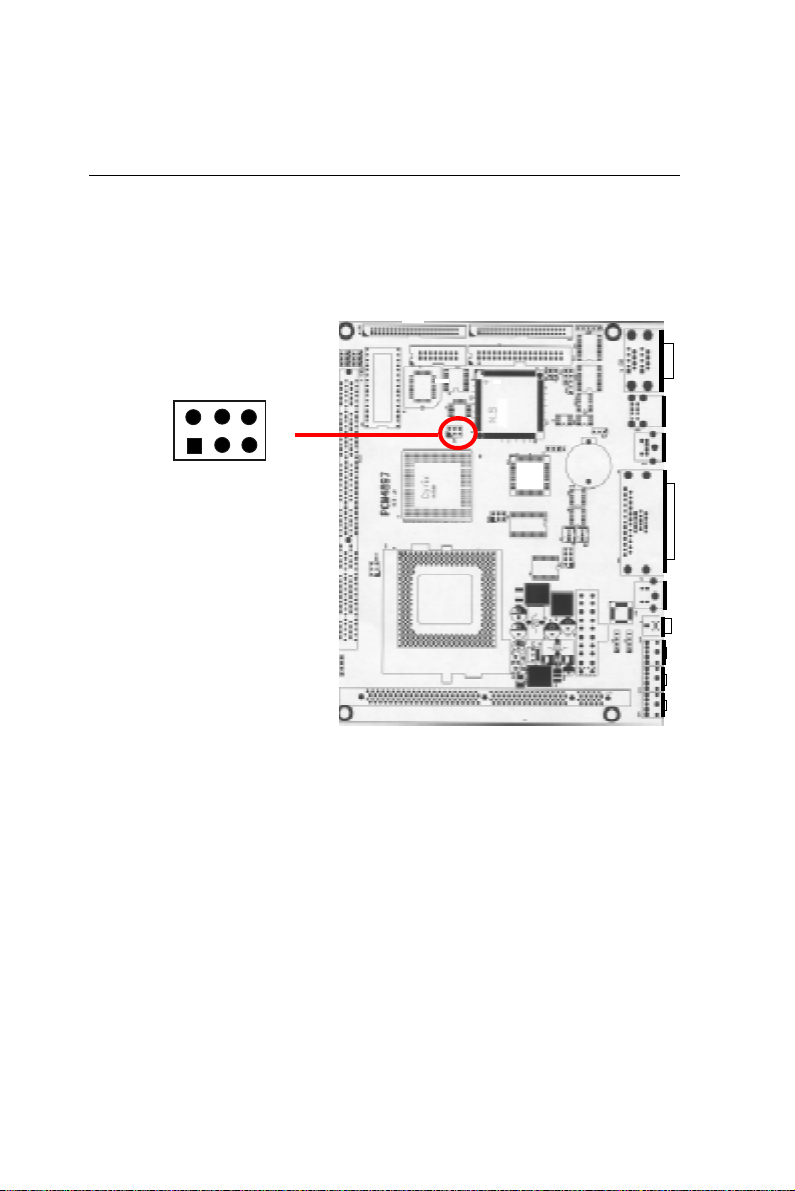

DOC address select (JP8)

The DiskOnChip 2000 occupies an 8 K byte window in the upper
memory address range of CC00 to DC00. Y ou should ensure this
does not conflict with any other device's memory address.

2 4 6

1 3 5

Chapter 2 Installation 31

The configuration are as follows:

Address CC00 D000 D400

1 3 5

2 4 6

1 3 5

2 4 6

1 3 5

2 4 6

Address D800* DC00

1 3 5

2 4 6

1 3 5

2 4 6

* default
These addresses might conflict with the ROM BIOS of other

peripheral boards. Please select the appropriate memory address to
avoid memory conflicts.

32 PCM-4897 User Manual

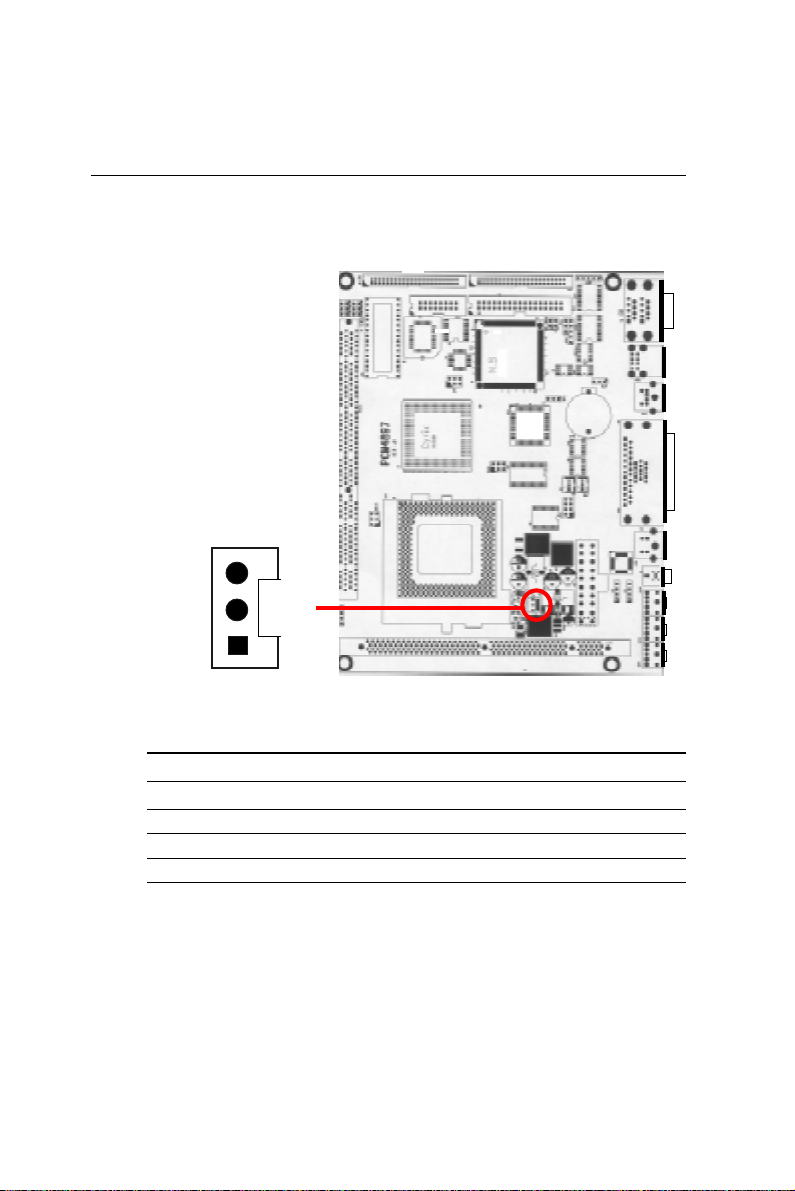

CPU fan power connector (JP9)

Plug in the fan cable to the 3-pin fan connector onboard. The fan
connector is marked JP9.

3
2
1

CPU fan power connector (JP9)

Pin Signal

1 Fan speed sense
2 +12V
3 GND

Chapter 2 Installation 33

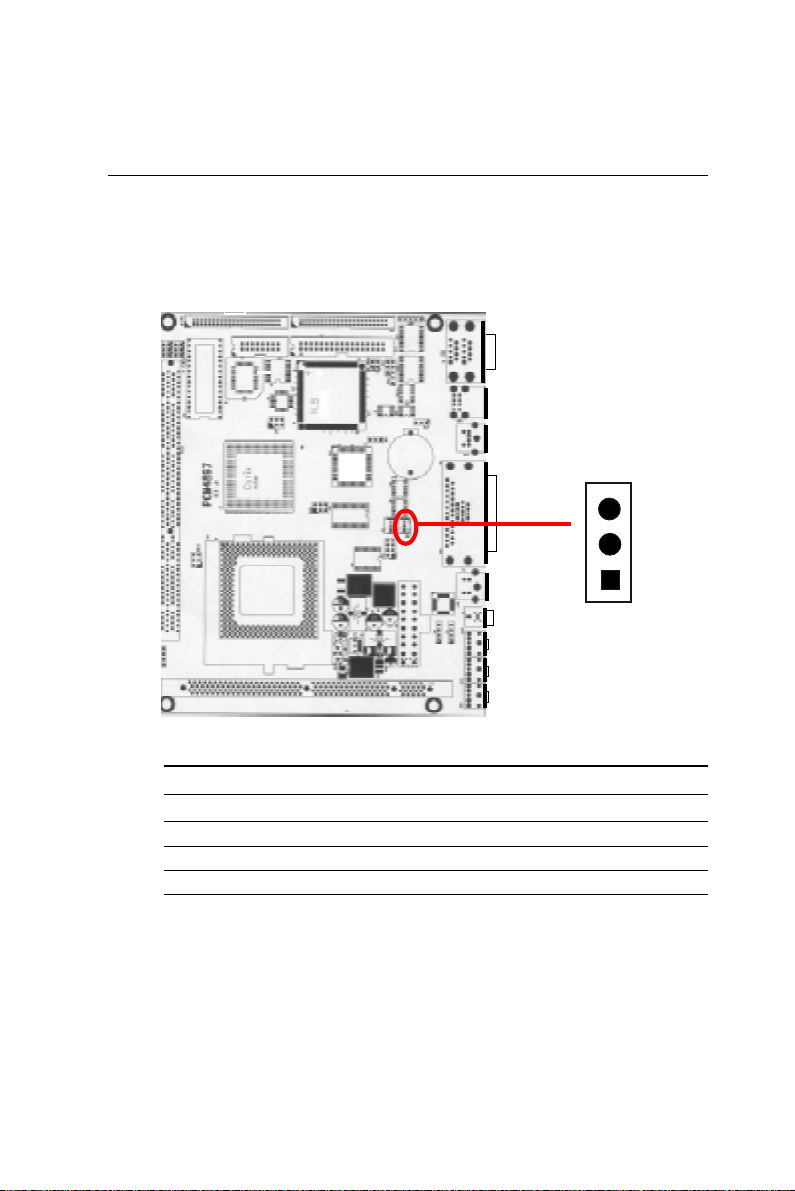

Wake On LAN connector (JP11)

The PCM-4897 implements a WOL connector. T o use Wake On
LAN function, you need a network card that supports this features.
In addtion, you also need to install a network management software,
such as ADM.

3
2

1

Wake on LAN connector (JP11)

Pin Signal

1 +5V SB
2 GND
3 LID

34 PCM-4897 User Manual

Clear CMOS (JP13)

You can use JP13 to clear the CMOS data if necessary . To reset the
CMOS data, set JP13 to 2-3 closed for just a few seconds, and then
move the jumper back to 1-2 closed.

3 2 1

Clear CMOS (JP13)

J13

*default

Protect* Clear CMOS

3 2 1

Chapter 2 Installation 35

3 2 1

LCD backlight voltage select (JP14)

The JP14 is a 2-pin connector which could provide the power for
LCD inverter.

3
2

1

LCD backlight voltage select (JP14)

5V 12V*

JP14

* default

36 PCM-4897 User Manual

3
2
1

3
2
1

Power LED and KB connector (JP15)

Y ou can connect an LED to indicate when the CPU card is on. Pin 1
of JP15 supplies power to the LED; Pin 3 is the ground.

You can use a switch (or a lock) to disable the keyboard. In this
state, the PC will not respond to any input. This is useful if you do
not want anyone to change or stop a running program. Simply
connect the switch between Pins 4 and 5. The pin assignments
appear in the following table:

5
4
3
2
1

Power LED and KB lock connector (JP15)

Pin Function

1 LED Power (+5V)
2 No Connector
3 Ground
4 Keyboard lock
5 Ground

Chapter 2 Installation 37

LCD driving voltage select (JP16)

Y ou can select the LCD connector CN4 (pin 5 and pin 6) driving
voltage by setting JP16. The configurations are as follows:

3 2 1

LCD driving voltage select (JP16)

3.3V * 5 V

JP16

*default

38 PCM-4897 User Manual

3 2 1

3 2 1

IDE hard drive connector (CN1)

You can attach one or two Enhanced Integrated Device Electronics
hard disk drives to the mainboard's internal controller. The
mainboard's IDE controller uses a PCI local-bus interface. This
advanced interface supports faster data transfer and allows the IDE
hard drive to exceed 528 MB.

CN1

2

1

44

43

Chapter 2 Installation 39

Connecting the hard drive

Connecting drives is done in a daisy-chain fashion and requires
one of two cables, depending on the drive size. 1.8" and 2.5"
drives need a 1 x 44-pin to 2 x 44-pin flat-cable connector. 3.5"
drives use a 1 x 44-pin to 2 x 40-pin connect.

Wire number 1 on the cable is normally red or blue, and the other
wires are usually gray.

1. Connect one end of the cable to CN1. Make sure that the red
(or blue) wire corresponds to pin 1 on the connector, which is
labeled on the board (on the right side).

2 . Plug the other end of the cable to the Enhanced IDE hard drive,

with pin 1 on the cable corresponding to pin 1 on the hard
drives. (see your hard drive's documentation for the location of
the connector).

Connect a second drive as described above.
Unlike floppy drives, IDE hard drives can connect to either end

of the cable. If you install two drives, you will need to set one
as the master and the other one as the slave by using jumpers
on the drives. If you install just one drive, set it as the master.

40 PCM-4897 User Manual

IDE hard drive connector (CN1)

IDE hard drive connector (CN1)

Pin Signal Pin Signal

1 IDE RESET 2 GND
3DATA 7 4 DATA 8
5DATA 6 6 DATA 9
7DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DA T A 3 12 DAT A 12
13 DA T A 2 14 DAT A 13
15 DA T A 1 16 DAT A 14
17 DA T A 0 18 DAT A 15
19 SIGNAL GND 20 N/C
21 N/C 22 GND
23 IO WRITE 24 GND
25 IO READ 26 GND
27 IO CHANNEL READY 28 ALE
29 N/C 30 GND
31 IRQ 14 32 IOCS16
33 ADDR 1 34 N/C
35 ADDR 0 36 ADDR 2
37 HARD DISK SELECT 0 38 HARD DISK SELECT 1
39 IDE ACTIVE 40 MGND
41 VCC 42 MVCC
43 GND 44 N/C

Chapter 2 Installation 41

Game/Joystick/MIDI connector (CN2)

The Game/Joystick/MIDI connector (15-pin D-sub) is used to
attach a joystick for game interface or to attach an external FM
synthesizer for playback, mixing or recording.

CN2

2

1

16

15

42 PCM-4897 User Manual

Floppy drive connector (CN3)

You can attach up to two floppy drives to the mainboard control­ler. You can use any combination of 5¼" (360 KB and 1.2 MB)
and/or 3½" (720 KB, 1.44 MB, and 2.88 MB) drives.

A 34-pin daisy-chain drive connector cable is required for a dual­drive system. On one end of the cable is a 34-pin flat-cable
connector. On the other end are two sets of floppy disk drive
connectors. Each set consists of a 34-pin flat-cable connector
(usually used for 3½" drives) and a printed-circuit board connec­tor (usually used for 5¼" drives).

Wire number 1 on the cable is normally red or blue, and the other
wires are usually gray.

CN3

2

1

34

33

Chapter 2 Installation 43

Connecting the floppy drive

1 . Plug the 34-pin flat-cable connector into CN3. Make sure that

the red or blue wire corresponds to pin 1 on the connector.

2. Attach the appropriate connector on the other end of the cable
to the floppy drive(s). You can use only one connector in the
set. The set on the end (after the twist in the cable) connects to
the A: drive. The set in the middle connects to the B: drive.

3 . If you are connecting a 5¼" floppy drive, line up the slot in the

printed circuit board with the blocked-off part of the cable
connector.

If you are connecting a 3½" floppy drive, you may have trouble
determining which pin is pin number 1. Look for a number
printed on the circuit board indicating pin number 1. Also,

the connector on the floppy drive connector may have a slot.

When the slot is up, pin number 1 should be on the right.

Check the documentation that came with the drive for more

information.

If you desire, connect the B: drive to the connectors in the
middle of the cable as described above.

44 PCM-4897 User Manual

Floppy drive connector (CN3)

Floppy drive connector (CN3)

Pin Signal Pin Signal

1 GND 2 DENSITY SELECT
3 GND 4 N/C
5 GND 6 DRIVE TYPE
7 GND 8 INDEX
9 GND 10 MOTOR 0
11 GND 12 DRIVE SELECT 1
13 GND 14 DRIVE SELECT 2
15 GND 16 MOTOR 1
17 GND 18 DIRECTION
19 GND 20 STEP
21 GND 22 WRITE DAT A
23 GND 24 WRITE GA TE
25 GND 26 TRACK 0
27 GND 28 WRITE PROTECT
29 GND 30 READ DAT A
31 GND 32 HEAD DELECT
33 GND 34 DISK CHANGE

Chapter 2 Installation 45

Display connectors (CN8, CN4)

The mainboard's PCI SVGA interface can drive conventional CR T
displays and is capable of driving a wide range of flat panel
displays, including electroluminescent (EL), gas plasma, passive
LCD, and active LCD displays. The board has two connectors to
support these displays, one for standard CRT VGA monitors and
one for flat panel displays.

CN4

2

1

44

43

CN8

5 1

10 6

15 11

46 PCM-4897 User Manual

LCD connector (CN4)

CN4 is a 44-pin, dual-in-line header used for flat panel displays.
When the mainboard's power is applied, the control signal is low

until just after the relevant flat panel signals are present.
Configuration of the VGA interface is done completely via the

software utility. You do not have to set any jumpers.

LCD connector (CN4)

Pin Signal Pin Signal

1 +12 V

DC

3 GND 4 GND
5 +5 V

DC

7 ENA VEE 8 GND
9P0 10 P1
11 P2 12 P3
13 P4 14 P5
15 P6 16 P7
17 P8 18 P9
19 P10 20 P11
21 P12 22 P13
23 P14 24 P15
25 P16 26 P17
27 P18 28 P19
29 P20 30 P21
31 P22 32 P23
33 GND 34 GND
35 SHF CLK 36 FLM (V SYS)
37 M 38 LP (H SYS)
39 GND 40 ENABKL
41 N/C 42 N/C
43 N/C 44 N/C

2 +12 V

6 +5 V

DC

DC

Chapter 2 Installation 47

CD-ROM signal input connector (CN6)

This connector is used to connect to a CD audio cable.

4
3
2
1

CD-ROM signal input connector (CN6)

Pin Signal

1 CDIN_L
2 GND
3 CDIN_R
4 GND

48 PCM-4897 User Manual

Audio connector (for voice modem)

(CN7)

This connector provide chip select signal (MCS) and IRQ input
(MIRQ) pins to control external devices such as modem.

4
3
2
1

Audio connector (for voice modem) (CN7)

Pin Signal

1 MIC (IN)
2 GND
3 GND
4 Speaker

Chapter 2 Installation 49

Parallel port connector (CN9)

Normally, the parallel port is used to connect the board to a
printer. The mainboard includes an onboard parallel port, accessed
through CN9.

13

25

Pin assignments

Parallel (printer) Connector (CN9)

Pin Signal Pin Signal

1 Strobe 2 Data 0
3 Data 1 4 Data 2
5 Data 3 6 Data 4
7 Data 5 8 Data 6
9 Data 7 10 -Acknowledge
11 Busy 12 Paper empty
13 +Select 14 -Auto feed
15 -Error 16 -Init printer
17 -Select input 18~25 GND

1

14

50 PCM-4897 User Manual

USB connector (CN10)

The PCM-4897 provides two USB (Universal Serial Bus) interfaces,
which give complete plug and play, hot attach/detach for up to 127
external devices. The USB interfaces comply with USB specifica­tion Rev. 1.0, and can be enable/disabled in the system BIOS setup.

CN10

USB conector (CN10)

Pin (set1) Signal Pin (set2) Signal

1 Vcc 1 1 Vcc2
2 D1F(-) 2 D2F(-)
3 D1F(+) 3 D2F(+)
4 GND 4 GND

Chapter 2 Installation 51

Audio signal input connector (CN11)

The Stereo Line-In phone-jack is used to attach stereo devices
such as cassette, digital audio tape, or minidisk players for paly­back, mixing, or recording.

CN1 1

52 PCM-4897 User Manual

MIC signal input connector (CN13)

The Microphone In phone-jack us used to a microphone for live
audio input for playback, mixing, orrecording. a 20dB gain can be
ontained internally . The microphone input independ will be around

1.8k ohm.

MIC signal
input
phone-jack

Chapter 2 Installation 53

Keyboard and PS/2 mouse connector

(CN14)

The PCM-4897 provides a keyboard connector which supports
both a keyboard and a PS/2 style mouse. In most cases, especially
in embedded applications, a keyboard is not used. The standard
PC/A T BIOS will report an error or fail during power-on-self-test
(POST) after a reset if the keyboard is not present. The main­board BIOS Advanced setup menu allows you to select "Present"
or "Absent" under the "System Keyboard" section. This allows
no-keyboard operation in embedded system applications without
the system halting under POST (power-on-self-test).

Keyboard and
PS/2 mouse
connector

Keyboard and PS/2 mouse connector (CN14)

Pin Signal Pin Signal

1 KB data 4 +5Vcc
2 PS/2 mouse data 5 KB clock
3 GN D 6 PS/2 mouse clock

54 PCM-4897 User Manual

Serial ports (COM1/COM2, CN15/CN16)

The PCM-4897 offers two serial ports, two RS-232. These ports
allow you to connect them to serial devices (mouse, printers, etc.).

COM1, COM2
serial connectors

1 5

6 9

COM 1-2 RS-232 serial ports (CN15/CN16)

COM1/COM2 RS-232 serial port (CN15/CN16)

PIN SIGNAL PIN SIGNAL

1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RIB
5 GND

Chapter 2 Installation 55

DiskOnChip socket (U4)

The DiskOnChip 2000 family of products provides a single chip
solid-state flash disk in a standard 32-pin DIP package. The
DiskOnChip 2000 is a solid-state disk with no moving parts,
resulting in a significant reduction in power consumption and an
increase in reliability . The DiskOnChip is a small plug and play
Flash disk. It is easy to use. And it saves integration overhead.

The DiskOnChip 2000 family of products is available in capacities
ranging from 2MB up to 144MB, unformatted. In order to manage
the disk, the DiskOnChip 2000 includes the TrueFFS, M-Systems
Flash File System proprietary software. The DiskOnChip 2000
package is pin-to-pin compatible with a standard 32-pin EPROM
device.

56 PCM-4897 User Manual

pin
Name

A0-A12 Address bus 4-12,23,25-27 Inputs

A13-A16 Address bus 2,3,28,29 Inputs 1

D0-D7 Data bus 13-15,17-21 I/O

CE/ C hip Enable 22 Input

OE /

OE/ Output Enable 24 Input

WE/ Write Enable 31 Input

NC Not connected 1.30 2

VCC Power 32

GND Ground 16

Description Pin Number Direction Note

Note 1: Pins A13 through A16 are not used
by the MD2200. They are kept for socket
backward compatibility with ED 1100
(DiskOnChip 1000)

Note 2: Pins 1 and 30 are not used by
MD2200

DiskOnChip (DOC) 2000 Installation

When the DOC is installed correctly, a DOC will work like an HDD
or an FDD. T o install the DOC on the mainboard, follow the
instructions below:

1 . Plug the DOC into the socket. Make sure pin 1 of the DOC is

aligned with pin 1 of the socket.

2. Push the DOC into the socket until it is firmly seated in the
socket.

Caution: the DOC may be permanently damage if it is installed
incorrectly .

3. Set the jumper for the memory address of the DOC.

Note:
The memory shadow function sometimes will create conflicts with

the memory window. You should disable the memory shadow from
the BIOS SETUP if the DOC cannot be accessed.

Configure DOC as a boot device

To configure a DOC as a boot drive, you should copy the operating
system files onto the DOC. The following procedure is an example
of the initialization process.

1 . Install a DOC into your system.

2. Insert a bootable floppy disk in drive A: and boot the system.
3 . At the DOS prompt, type SYS C: to transfer the DOS system

files to the DOC (assuming the DiskOnChip is installed as drive
C:). Reboot the system.

4 . Go to the BIOS Setup Utility by hitting the <DEL> key. Set the

type of Primary Master or C: Drive as Not Installed.

5 . Remove the floppy disk from the drive A: and leave the BIOS

Setup Utility. The system should boot from the DOC.

Chapter 2 Installation 57

58 PCM-4897 User Manual

3

CHAPTER

Award BIOS Setup

This chapter describes how to configure
the BIOS for the PCM-4897.

Chapter 3 Award BIOS Setup 59

Starting setup

The A ward BIOS is immediately activated when you first turn on
the computer. The BIOS reads system configuration information in
CMOS RAM and begins the process of checking out the system
and configuring it through the power-on self test (POST).

When these preliminaries are finished, the BIOS seeks an operating
system on one of the data storage devices (hard drive, floppy
drive, etc.). The BIOS launches the operating system and hands
control of system operations to it.

During POST , you can start the Setup program in one of two ways:

1.By pressing Del immediately after switching the system on, or

2.By pressing Del or pressing Ctrl-Alt-Esc when the following

message appears briefly at the bottom of the screen during POST:

TO ENTER SETUP BEFORE BOOT PRESS DEL KEY

If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then
ON or pressing the RESET button on the system case. You may
also restart by simultaneously pressing Ctr-Alt-Del. If you do not
press the keys at the correct time and the system does not boot, an
error message appears and you are again asked to

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

60 PCM-4897 User Manual

Setup keys

These keys helps you navigate in Setup:

Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item in the left hand
Right arrow Move to the item in the right hand
Es c Main Menu: Quit and not save changes into

CMOS RAM

Other pages: Exit current page and return to

Main Menu
PgDn/+ Increase the numeric value or make

changes

PgDn/- Decrease the numeric value or make

changes

F1 General help, only for Status Page Setup

Menu and Option Page Setup Menu

F2 Change color from total 16 colors. F2 to

select color forward, Shift-F2 to select color

backward
F3 Calendar, only for Status Page Setup Menu
F4 Reserved
F5 Restore the previous CMOS value from

CMOS, only for Option Page Setup Menu
F6 Load the default CMOS RAM value from

BIOS default table, only for Option Page

Setup Menu
F7 Load the default
F8 Reserved
F9 Reserved
F10 Save all the CMOS changes, only for Main

Menu

Chapter 3 Award BIOS Setup 61

Getting help

Press F1 to pop up a small help window that describes the appro­priate keys to use and the possible selections for the highlighted
item. T o exit the Help Window press Esc or the F1 key again.

In Case of Problems

If, after making and saving system changes with Setup, you
discover that your computer no longer is able to boot, the Award-
BIOS supports an override to the CMOS settings that resets your
system to its default configuration.

Y ou can invoke this override by immediately pressing Insert; when
you restart your computer. You can restart by either using the ON/
OFF switch, the RESET button or by pressing Ctrl-Alt-Delete.

The best advice is to alter only settings that you thoroughly
understand. In particular, do not change settings in the Chipset
screen without a good reason. The Chipset defaults have been
carefully chosen by A ward Software or your system manufacturer
for the best performance and reliability. Even a seemingly small
change to the Chipset setup may causing the system to become
unstable.

62 PCM-4897 User Manual

Main setup Menu

Standard CMOS Options in the original PC AT-compatible

BIOS.
BIOS Features Award Software enhanced BIOS options.
Chipset Features Options specific to your system chipset.
Power Advanced Power Management (APM)

Management options.
PnP/PCI Plug and Play standard and PCI Local Bus

Configuration configuration options.
Integrated I/O subsystems that depend on the inte-

Peripherals grated peripherals controller in your

system.
Supervisor/User Change, set, or disable a password. In

Password Setting BIOS versions that allow separate user and

supervisor passwords, only the supervisor

password permits access to Setup. The

user password generally allows only

power-on access.
IDE HDD Auto Automatically detect and configure IDE hard

Detection disk parameters.

Chapter 3 Award BIOS Setup 63

Load BIOS BIOS defaults are factory settings for the
Defaults most stable, minimal-performance system

operations.

Load Setup Setup defaults are factory settings for
Defaults optimal-performance system operations.

Save & Exit Save settings in nonvolatile CMOS
Setup RAM and exit Setup.

Exit Without Abandon all changes and exit Setup.
Save

64 PCM-4897 User Manual

Standard CMOS setup

When you choose the ST ANDARD CMOS SETUP option from the
INITIAL SETUP SCREEN menu, the screen below is displayed.

Chapter 3 Award BIOS Setup 65

This standard setup menu allows users to configure system
components such as the date, time, hard disk drive, floppy drive,
display, and memory. Online help for each field can be accessed by
pressing F1.

Date and Time Configuration

The BIOS determines the day of the week from the other date
information. This field is for information only .

Press the left or right arrow key to move to the desired field (date,
month, year). Press the PgUp/- or PgDn/+ key to increment the
setting, or type the desired value into the field.

The time format is based on the 24-hour military-time clock. For
example, 1 p.m. is 13:00:00. Press the left or right arrow key to move
to the desired field. Press the PgUp/- or PgDn/+ key to increment
the setting, or type the desired value into the field.

HARD DISKS

The BIOS supports up to four IDE drives. This section does not
show information about other IDE devices, such as a CD-ROM
drive, or about other hard drive types, such as SCSI drives.

NOTE: W e r ecommend that you select type AUT O for all drives.

The BIOS can automatically detect the specifications and optimal
operating mode of almost all IDE hard drives. When you select
type AUTO for a hard drive, the BIOS detects its specifications
during POST , every time the system boots.

66 PCM-4897 User Manual

If you do not want to select drive type AUTO, other methods of
selecting the drive type are available:

1.Match the specifications of your installed IDE hard drive(s) with
the preprogrammed values for drive types 1 through 45.

2.Select USER and enter values into each drive parameter field.

3.Use the IDE HDD AUTO DECTECTION function in Setup.
Here is a brief explanation of drive specifications:

•T ype: The BIOS contains a table of pre-defined drive types. Each

defined drive type has a specified number of cylinders,
number of heads, write precompensation factor, landing
zone, and number of sectors. Drives whose specifications
do not accommodate any pre-defined type are classified as
type USER.

•Size: Disk drive capacity (approximate). Note that this size is
usually slightly greater than the size of a formatted disk
given by a disk-checking program.

• Cyls: Number of cylinders

• Head: Number of heads

• Precomp: Write precompensation cylinder

• Landz: Landing zone

• Sector: Number of sectors

• Mode: Auto, Normal, Large, or LBA

- Auto: The BIOS automatically determines the optimal mode.

- Normal: Maximum number of cylinders, heads, and sectors

supported are 1024, 16, and 63.

- Large: For drives that do not support LBA and have more than
1024 cylinders.

Chapter 3 Award BIOS Setup 67

- LBA (Logical Block Addressing): During drive accesses, the
IDE controller transforms the data address described by

sector, head, and cylinder number into a physical block
address, significantly improving data transfer rates. For
drives with greater than 1024 cylinders.

Drive A
Drive B

Select the correct specifications for the diskette drive(s) installed in
the computer.

None No diskette drive installed
360K, 5.25 in 5-1/4 inch PC-type standard drive; 360

kilobyte capacity

1.2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2

megabyte capacity

720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte

capacity

1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 mega

byte capacity

2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 mega

byte capacity

68 PCM-4897 User Manual

Halt On

During the power-on-self-test (POST), the computer stops if the
BIOS detects a hardware error. You can tell the BIOS to ignore
certain errors during POST and continue the boot-up process.
These are the selections:

• No errors: POST does not stop for any errors.

• All errors If: the BIOS detects any non-fatal error, POST stops
and prompts you to take corrective action.

• All, But Keyboard: POST does not stop for a keyboard error , but
stops for all other errors

• All, But Diskette: POST does not stop for diskette drive errors,
but stops for all other errors.

• All, But Disk/Key: POST does not stop for a keyboard or disk
error, but stops for all other errors.

Memory

You cannot change any values in the Memory fields; they are only
for your information. The fields show the total installed random
access memory (RAM) and amounts allocated to base memory,
extended memory , and other (high) memory . RAM is counted in
kilobytes (KB: approximately one thousand bytes) and megabytes
(MB: approximately one million bytes).

RAM is the computer's working memory, where the computer
stores programs and data currently being used, so they are
accessible to the CPU. Modern personal computers may contain up
to 64 MB, 128 MB, or more.

•Base Memory

Typically 640 KB. Also called conventional memory . The DOS
operating system and conventional applications use this area.

Chapter 3 Award BIOS Setup 69

•Extended Memory

Above the 1-MB boundary. Early IBM personal computers could
not use memory above 1 MB, but current PCs and their software
can use extended memory.

•Other Memory

Between 640 KB and 1 MB; often called High memory. DOS may
load terminate-and-stay-resident (TSR) programs, such as device
drivers, in this area, to free as much conventional memory as
possible for applications. Lines in your CONFIG.SYS file that start
with LOADHIGH load programs into high memory.

70 PCM-4897 User Manual

BIOS features setup

By choosing the BIOS FEA TURES SETUP option from the INITIAL
SETUP SCREEN menu, the screen below is displayed.

Chapter 3 Award BIOS Setup 71

The displayed configuration is based on the manufacturer's SETUP
DEF AUL TS settings.

Virus Warning

When enabled, you receive a warning message if a program
(specifically , a virus) attempts to write to the boot sector or the
partition table of the hard disk drive. You should then run an anti­virus program. Keep in mind that this feature protects only the boot
sector, not the entire hard drive.

NOTE: Many disk diagnostic programs that access the boot
sector table can trigger the virus warning message. If you plan to
run such a program, we recommend that you first disable the virus
warning.

CPU Internal Cache/External Cache

Cache memory is additional memory that is much faster than
conventional DRAM (system memory). CPUs from 486-type on up
contain internal cache memory , and most, but not all, modern PCs
have additional (external) cache memory. When the CPU requests
data, the system transfers the requested data from the main DRAM
into cache memory , for even faster access by the CPU.

The External Cache field may not appear if your system does not
have external cache memory .

Quick Power On Self Test

Select Enabled to reduce the amount of time required to run the
power-on-self-test (POST). A quick POST skips certain steps. W e
recommend that you normally disable quick POST . Better to find a
problem during POST than lose data during your work.

Boot Sequence

The original IBM PCs loaded the DOS operating system from drive
A (floppy disk), so IBM PC-compatible systems are designed to
search for an operating system first on drive A, and then on drive C
(hard disk). However, the BIOS now offers many boot sequence
options.

72 PCM-4897 User Manual

Swap Floppy Drive

This field is effective only in systems with two floppy drives.
Selecting enabled assigns physical drive B to logical drive A, and
physical drive A to logical drive B.

Boot Up Floppy Seek

When Enabled, the BIOS tests (seeks) floppy drives to determine
whether they have 40 or 80 tracks. Only 360-KB floppy drives have
40 tracks; drives with 720 KB, 1.2 MB, and 1.44 MB capacity all
have 80 tracks. Because very few modern PCs have 40-track floppy
drives, we recommend that you set this field to Disabled to save
time.

Boot Up NumLock Status

T oggle between On or Off to control the state of the NumLock key
when the system boots. When toggled On, the numeric keypad
generates numbers instead of controlling cursor operations.

Gate A20 Option

Gate A20 refers to the way the system addresses memory above 1
MB (extended memory). When set to Fast, the system chipset
controls Gate A20. When set to Normal, a pin in the keyboard
controller controls Gate A20. Setting Gate A20 to Fast improves
system speed, particularly with OS/2 and Windows.

Security Option

If you have set a password, select whether the password is
required every time the System boots, or only when you enter
Setup.

Chapter 3 Award BIOS Setup 73

Shadow

Software that resides in a read-only memory (ROM) chip on a
device is called firmware. The A wardBIOS permits shadowing of
firmware such as the system BIOS, video BIOS, and similar operat­ing instructions that come with some expansion peripherals, such
as, for example, a SCSI adaptor.

Shadowing copies firmware from ROM into system RAM, where
the CPU can read it through the 16-bit or 32-bit DRAM bus.
Firmware not shadowed must be read by the system through the 8­bit X-bus. Shadowing improves the performance of the system
BIOS and similar ROM firmware for expansion peripherals, but it
also reduces the amount of high memory (640 KB to 1 MB) avail­able for loading device drivers, etc.

Enable shadowing into each section of memory separately . Many
system designers hardwire shadowing of the system BIOS and
eliminate a System BIOS Shadow option.

Video BIOS shadows into memory area C0000-C7FFF. The remain­ing areas shown on the BIOS Features Setup screen may be
occupied by other expansion card firmware. If an expansion
peripheral in your system contains ROM-based firmware, you need
to know the address range the ROM occupies to shadow it into the
correct area of RAM.

74 PCM-4897 User Manual

CHIPSET features setup

By choosing the CHIPSET FEA TURES SETUP option from the
INITIAL SETUP SCREEN menu, the screen below is displayed.

Chapter 3 Award BIOS Setup 75

The displayed configuration is based on the manufacturer's SETUP
DEF AUL TS settings.

This section allows you to configure the system based on the
specific features of the installed chipset. This chipset manages bus
speeds and access to system memory resources, such as SDRAM.
It also coordinates communications between the conventional ISA
bus and the PCI bus. It must be stated that these items should
never need to be altered. The default settings have been chosen
because they provide the best operating conditions for your
system. The only time you might consider making any changes
would be if you discovered that data was being lost while using
your system.

Because of the complexity and technical nature of some of the
options, not all of the options are described here.

SDRAM CAS Latency Time

When synchronous DRAM is installed, you can control the
number of CLKs between when the SDRAMs sample a read
command and when the contoller samples read data from the
SDRAMs. Do not reset this field from the default value specified
by the system designer.

8/16 Bit I/O Recovery Time

The I/O recovery mechanism adds bus clock cycles between PCI­originated I/O cycles to the ISA bus. This delay takes place
because the PCI bus is so much faster than the ISA bus.

These two fields let you add recovery time (in bus clock cycles) for
16-bit and 8-bit I/O.

76 PCM-4897 User Manual

Power management setup

By choosing the POWER MANAGEMENT option from the
INITIAL SETUP SCREEN menu, the screen below is displayed.

Chapter 3 Award BIOS Setup 77

Power Management

This option allows you to select the type (or degree) of power
saving for Doze, Standby, and Suspend modes.

This table describes each power management mode:

Max Saving Maximum power savings. Only Available for

SL CPUs. Inactivity period is 1 minute in
each mode.

User Define Set each mode individually. Select time-out

periods in the section for each mode,
below.

Min Saving Minimum power savings. Inactivity period is

1 hour in each mode (except the hard
drive).

78 PCM-4897 User Manual

Doze Mode

After the selected period of system inactivity, the CPU clock
throttles to a small percentage of its duty cycle — between 10
percent and 25 percent for most chipsets. All other devices still
operate at full speed.

Suspend Mode

After the selected period of system inactivity, the chipset enters a
hardware suspend mode, stopping the CPU clock and possibly
causing other system devices to enter power management modes.

HDD Power Down

After the selected period of drive inactivity , any system IDE
devices compatible with the ATA-2 specification or later power
manage themselves, putting themselves into an idle state after the
specified timeout and then waking themselves up when accessed.

MODEM Use IRQ

Name the interrupt request (IRQ) line assigned to the modem (if
any) on your system. Activity of the selected IRQ always awakens
the system.

Throttle Duty Cycle

When the system enters Doze mode, the CPU clock runs only part
of the time. Y ou may select the percent of time that the clock runs.

Soft-Off by PWR-BTTN

When you select Instant Off or Delay 4 Sec., turning the system off
with the on/off button places the system in a very low-power­usage state, either immediately or after 4 seconds, with only
enough circuitry receiving power to detect power button activity or
Resume by Ring activity .

Chapter 3 Award BIOS Setup 79

PNP/PCI configuration setup

By choosing the PNP/PCI CONFIGURA TION SETUP option from
the initial SETUP SCREEN menu, the screen below is displayed.

80 PCM-4897 User Manual

PNP OS Installed

Select Yes if the system operating environment is Plug-and-Play
aware (e.g., Windows 95).

Resources Controlled By

The Plug and Play A wardBIOS can automatically configure all the
boot and Plug and Play-compatible devices. If you select Auto, all
the interrupt request (IRQ) and DMA assignment fields disappear,
as the BIOS automatically assigns them.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit Setup if
you have installed a new add-on and the system reconfiguration
has caused such a serious conflict that the operating system
cannot boot.

PCI IRQ Activated by

Leave the IRQ trigger set at Level unless the PCI device assigned
to the interrupt specifies Edge-triggered interrupts.

Chapter 3 Award BIOS Setup 81

Load BIOS defaults/Load setup

defaults

LOAD BIOS DEF AUL TS loads the default system values directly
from ROM. The BIOS DEF AUL TS provides the most stable
settings, though they do not provide optimal performance. LOAD
SETUP DEF AUL TS, on the other hand, provides for maximum
system performance. If the stored record created by the setup
utility becomes corrupted (and therefore unusable), BIOS defaults
will load automatically when you turn the PCM-4897 on.

82 PCM-4897 User Manual

Integrated peripherals setup

By choosing the INTEGRA TD PERIPHERALS option from the
initial SETUP SCREEN menu, the screen below is displayed.

Chapter 3 Award BIOS Setup 83

IDE HDD Block Mode

Select Enabled only if your hard drives support block mode.

IDE PIO Modes (Primary Master/Slave)

The four IDE PIO (Programmed Input/Output) fields let you set a
PIO mode (0-4) for each of up to four IDE devices that the internal
PCI IDE interface supports. Modes 0 through 4 provide succes­sively increased performance. In Auto mode, the system automati­cally determines the best mode for each device.

IDE Primary Master/Slave UDMA

UDMA (Ultra DMA) is a DMA data transfer protocol that utilizes
ATA commands and the ATA bus to allow DMA commands to
transfer data at a maximum burst rate of 33 MB/s. When you select
Auto in the four IDE UDMA fields (for each of up to four IDE
devices that the internal PCI IDE interface supports), the system
automatically determines the optimal data transfer rate for each IDE
device.

RING POWER ON Controller
Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC)
installed on the system board and you wish to use it. If you install
an add-in FDC or the system has no floppy drive, select Disabled in
this field.

Onboard Serial Ports (1, 2)

Select a logical COM port address for the first and second serial
ports.

84 PCM-4897 User Manual

ECP Mode Use DMA

Select a DMA channel for the port.

Multiple Maitor Support

Choose priority of the VGA function from PCI slot or onboard.

Video Memory size

Share memory from DIMM, from 1.5MB to 4MB.

TV Output mode

Support NTSC or P AL system.

Flat Panel Resolution

Onboard support TFT LCD as below.

640x480
800x600
1024x768

Chapter 3 Award BIOS Setup 85

Supervisor/User password setting

Y ou can set either SUPER VISOR or USER P ASSWORD, or both of
them. The difference between the two is that the supervisor
password allows unrestricted access to enter and change the
options of the setup menus, while the user password only allows
entry to the program, but not modify options.

86 PCM-4897 User Manual

When you select this function, a message appears at the center of
the screen:

ENTER PASSWORD:

Type the password, up to eight characters, and press Enter. Typing
a password clears any previously entered password from CMOS
memory.

Now the message changes:

CONFIRM PASSWORD:

Again, type the password and press Enter.
To abort the process at any time, press Esc.
In the Security Option item in the BIOS Features Setup screen,

select System or Setup:
System Enter a password each time the system boots and when

ever you enter Setup.

Setup Enter a password when ever you enter Setup.

NOTE: To clear the password, simply press Enter when asked to
enter a password. Then the password function is disabled.

Chapter 3 Award BIOS Setup 87

IDE HDD auto detection

The IDE HDD AUTO DETECTION utility can automatically detect
the IDE hard disk installed in your system. You can use it to self­detect and/or correct the hard disk type configuration. You need to
repeat the setup for each of the IDE combinations:

88 PCM-4897 User Manual

Save & exit setup

If you select this option and press <ENTER>, the values entered in
the setup utility will be recorded in the chipset's CMOS memory .
The microprocessor will check this every time you turn your
system on and compare this to what it finds as it checks the
system. This record is required for the system to operate.

Chapter 3 Award BIOS Setup 89

Exit without saving

If you select this option and press <ENTER>, the values entered in
the setup utility will be recorded in the chipset's CMOS memory .
The microprocessor will check this every time you turn your
system on and compare this to what it finds as it checks the
system. This record is required for the system to operate.

90 PCM-4897 User Manual
