AAEON PCM-4894 User Manual

PCM-4894

All-in-One 486 single Board computer

with Flat Panel / CRT SVGA, Ethernet,

and 4 Serial Ports

Copyright Notice

This document is copyrighted, 1998, by AAEON Technology Inc.
All rights are reserved. AAEON T echnology Inc. reserves the right
to make improvements to the products described in this manual at
any time without notice.

No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of AAEON T echnology Inc. Information provided in
this manual is intended to be accurate and reliable. However,
AAEON Technology Inc. assumes no responsibility for its use, nor
for any infringements upon the rights of third parties which may
result from its use.

Acknowledgements

ALI is a trademark of Acer Laboratories, Inc.
AMD is a trademark of Advanced Micro Devices, Inc.
AMI is a trademark of American Megatrends, Inc.
AutoCAD and AutoShade are trademarks of Autodesk, Inc.
CHIPS Logotype is a registered trademark; Chips 65550 is a
trademark of Chip and T echnologies, Inc.
IBM, PC/A T , PS/2 and VGA are trademarks of International
Business Machines Corporation.
Lotus, 1-2-3, and Symphony are trademarks of Lotus Development
Corp.
Microsoft Windows® and MS-DOS, are registered trademarks of
Microsoft Corp.
SMC is a trademark of Standard Microsystems Corporation.
TurboDLD Classic is a trademark of Panacea Inc.
UMC is a trademark of United Microelectronics Corporation.
W ordPerfect is a trademark of W ordPerfect Corporation.
VESA® is a registered trademark of Video Electronics Standards
Association.
All other product names or trademarks are properties of their
respective owners.

Part No. 2047489400 PCM-4894 Rev.A2 1st Edition

Prepared in Taiwan, Oct. 1998

Packing list

Before you begin installing your card, please make sure that the
following materials have been shipped:

• 1 PCM-4894 Single board computer

• 1 Quick Installation Guide

• 1 User's Manual diskette (this manual in PDF file)

• 1 Utility disk with Ethernet driver

• 4 Utility disks with PCI SVGA utility programs and drivers for
DOS, Win 3.1, W in95, Win NT 3.51/4.0, and OS/2

• PC/104 Module mounting support kit

The PCM-4894 require several cables for operation. You can
make them yourself or purchase an optional cable kit, PCM­10489-1 (Part No : 9969048900).

If any of these items are missing or damaged, contact your
distributor or sales representative immediately.

Notice

Dear Customer,
Thank you for purchasing the PCM-4894 board. The user

manual is designed to help you get the most out of the PCM­4894, please read it thoroughly before you install and use the
board. The product that you have purchased comes with a one-year
limited warranty, but AAEON will not be responsible for any
misuse of the product. Therefore, we strongly urge that user first
read the manual before using the product.

To receive the lastest version of the user's manual, please visit our
Web site at:

T aiwan: www.aaeon.com.tw

U.S.A : www.aaeon.com

Contents

Chapter 1: General Information ................................ 1

Introduction ............................................................................ 2

Specifications .......................................................................... 3

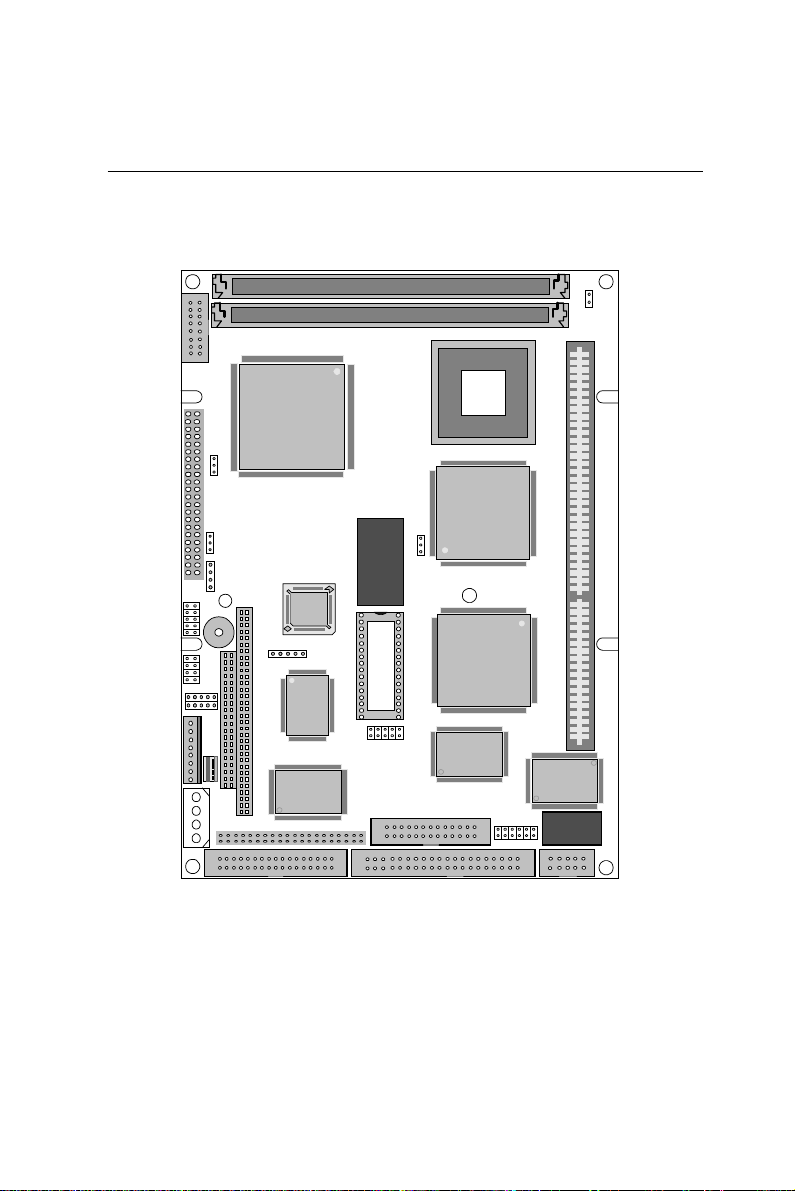

Board layout ........................................................................... 6

Dimensions.............................................................................. 7

Chapter 2: Installation ................................................ 9

Jumpers and connectors ...................................................... 10

Locating jumpers and connectors........................................11

Setting jumpers ..................................................................... 12

Safety precautions ................................................................ 13

Installing DRAM (SIMMs) .................................................. 14

Installing SIMMs .................................................................... 14

Removing SIMMs................................................................... 14

Ethernet connector (CN1).................................................... 15

Serial ports connector (CN2)............................................... 16

COM 1-4 RS-232/422/485 serial ports (CN2) ........................ 16

Parallel port connector (CN3) ............................................. 17

IDE hard drive connector (CN4) ......................................... 18

Floppy drive connector (CN5) ............................................. 20

Connecting the flopy drive ...................................................... 20

Power connector (CN6, CN17, CN18) ................................ 21

Keyboard and PS/2 mouse connectors (CN7).................... 22

Power LED and keylock (CN8) ........................................... 23

Reserved IR connector (CN9).............................................. 23

Digital I/O connector (CN10) .............................................. 24

LED indicators / Hardware reset (CN13)............................ 25

Buzzer or external speaker (CN14) ..................................... 26

LCD connector (CN15) ........................................................ 27

VGA connectors (CN16) ...................................................... 28

COM3/4 RI function selection (JP1) .................................. 29

DOC address setting (JP2, 1-6) ........................................... 30

COM2 RS-232/422/485 select (JP2, 7-10) ........................... 30

Clear CMOS (JP3) ............................................................... 31

LCD panel's voltage setting (JP4)....................................... 31

LCD SHF/ASHF clock select (JP5) ..................................... 31

DiskOnChip socket (U20) .................................................... 32

Chapter 3: Award Setup ........................................... 33

System test and initialization............................................... 34

System configuration verification............................................ 34

A ward BIOS setup ................................................................ 35

Entering setup ......................................................................... 35

Standard CMOS setup ......................................................... 36

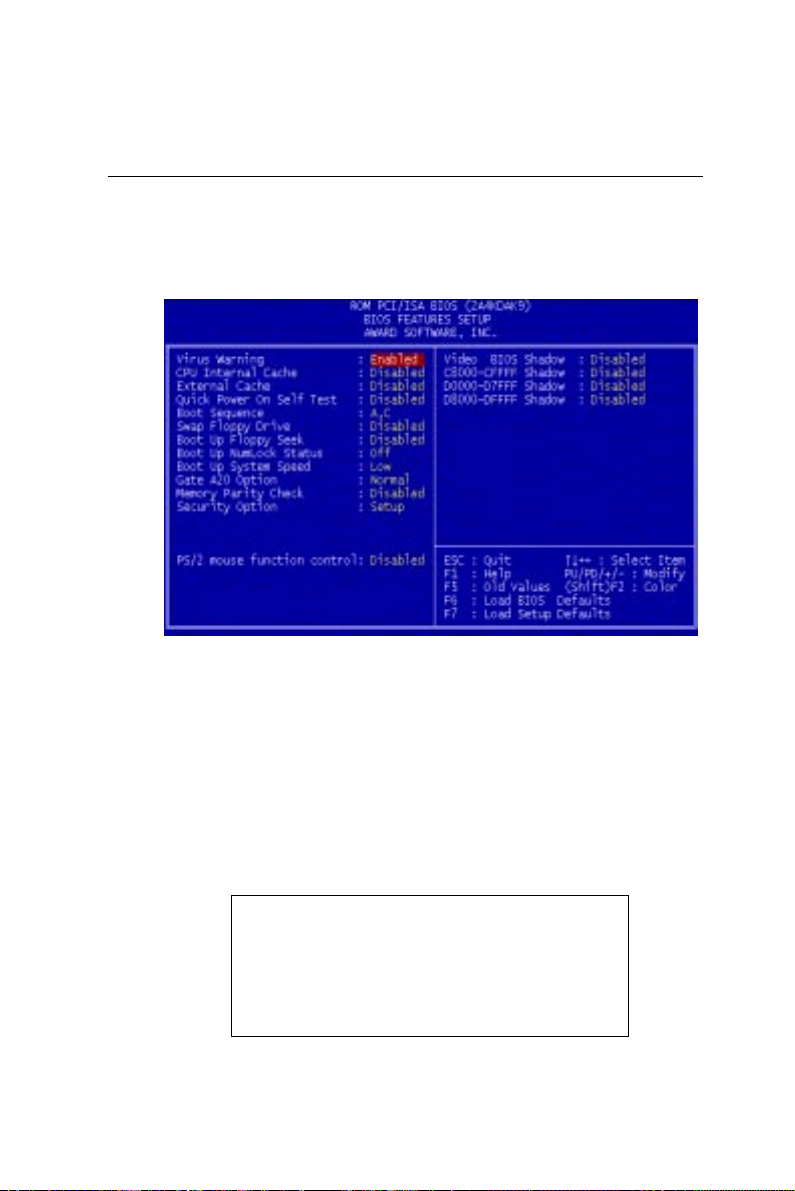

BIOS features setup.............................................................. 38

CHIPSET features setup ...................................................... 41

Power management setup .................................................... 42

PCI configuration setup....................................................... 47

Load BIOS defaults / Load setup defaults ......................... 49

Chpater 4: Flat Panel/CRT Controller Display Drivers

and Utilities ........................................... 51

Software drivers .................................................................... 52

Hardware configuration .......................................................... 52

Necessary prerequisites........................................................... 53

Before you begin .................................................................... 53

Windows
Windows

ÔÔ

Ô 95 ....................................................................... 54

ÔÔ

ÔÔ

Ô 3.1 ...................................................................... 54

ÔÔ

Changing color schemes.......................................................... 55

DOS ....................................................................................... 56

Driver installation - DOS Setup .............................................. 56

Changing display drivers from DOS ....................................... 57

OS/2 ....................................................................................... 57

Driver installation .................................................................... 57

WIN-OS/2 .............................................................................. 58

Driver diskette copy................................................................ 59

WindowsÔ NT3.51 ............................................................... 60

Driver installation .................................................................... 60

WindowsÔ NT4.0 ................................................................. 61

Driver installation .................................................................... 61

Software utilities ................................................................... 62

The CHIPSDSP utility program ............................................. 62

The CHIPSCPL utility program ............................................. 62

Installing the utility .................................................................. 62

How to use the utility.............................................................. 62

Chapter 5: Ethernet Software Configuration ........ 69

Ethernet software configuration.......................................... 70

Appendix A: Watchdog Timer Demo Program ....... 73

Appendix B: Installing PC/104 Modules ................... 74

Installing PC/104 modules ................................................... 75

Appendix C: Optional Extras .................................... 77

CHAPTER

General

Information

This chapter provides background
information for the PCM-4894.

Sections include:

• Specifications

• Board layout

• Dimensions

1

Chapter 1 General Information 1

Introduction

The PCM-4894 is an all-in-one single board 486 computer with
an onboard flat panel/CRT SVGA controller and PCI Ether-
net interface. It offers all the functions of an industrial comput­er and its display capabilities on a single board, but fits in the
space of a 5.25" floppy drive (only 5.75" x 8"). This means the
PCM-4894 is your absolute best solution for embedded applica­tions.

The onboard PCI-bus, flat panel/CRT SVGA controller uses the
CHIPS 65550 chipset with up to 2 MB of video memory (on­board 1MB). This chipset, used with the local PCI-bus, enables
32-bit graphic throughput at up to 33 MHz. Excellent for display­intensive applications, it supports various LCD types including
TFT , STN, B/W , and EL.

The onboard Ethernet Realtek RTL 8029AS PCI bus Ethernet
controller supports remote boot ROM functions.

The PCM-4894 supports the M-Systems DiskOnChip 2000
(optional) which is a new generation of high performance single­chip Flash Disk. It provides a Flash Disk (as a BIOS expansion)
which does not require any bus, slots, or connectors. It is also the
optimal solution for Single Board Computers because of its small
size, easy integration, plug-and-play functionality, and its low
power consumption. The DiskOnChip is available in capacities
from 2MB to 72MB and fits in a standard 32-pin DIP socket.

Another feature of the PCM-4894 is the inclusion of a high
speed, local bus IDE controller. This controller supports (through
ATA PIO) mode 3 and mode 4 hard disks, enabling data transfer
rates in excess of 11 MB/second. Up to two IDE devices can be
connected, including large hard disks, CD-ROM drives, tape
backup drives, or other IDE devices. The built-in, enhanced IDE
controller provides a 4-layer, 32-bit, posted write buffer and a 4­layer, 32-bit read-prefetch buffer to boost IDE performance.

2 PCM-4894 User Manual

Specifications

Standard SBC functions

CPU: AMD 5X86-P75 (486DX5-133) SQFP
BIOS: A ward 128KB FLASH BIOS
Chipset: ALI 1487/1489
Super I/O Chipset: WINBOND83877TF
2nd Level Cache: On board 128KB 2nd level cache. Could be

upgraded to 512KB by factory.
RAM memory: 4MB to 128MB. Two 72-pin SIMM sockets on

board.
Enhanced IDE hard disk drive interface: Support up to two

hard disk drives. BIOS auto-detect. Supports PIO mode 4 and Bus
Master. 22 x 2 header, pitch 2.00mm with housing.

Floppy disk drive interface: Supports up to two floppy disk
drives, 5.25" (360KB and 1.2MB) and /or 3.5" (720KB, 1.44MB
and 2.88MB). 17 x 2 header, pitch 2.54mm with housing.

Multi-mode parallel port: Configured to LPT1, LPT2, LPT3 or
disabled. Supports SPP, ECP and EPP. 13 x 2 header, pitch

2.54mm with housing.
Serial ports: Three RS-232 and one RS-232/422/485 serial

ports. Ports can be configured as COM1, COM2, COM3, COM4
or disabled individually. Four 16C550 serial UARTs. 20 x 2
header, pitch 2.54mm with housing for RS-232 x 4.

Keyboard/mouse connector: 8 pin connector supports standard
PC/AT keyboard and PS/2 mouse.

Real Time Clock/Calendar: Dallas DS-12887A or equivalent,
powered by lithium battery for data retention of up to 10 years.

Chapter 1 General Information 3

Watchdog Timer: Can generate a system reset, IRQ15. Support
Windows 3.1, Windows 95. Software selectable timeout interval.
(1 ~ 255 sec., 1 sec./step)

DMA channels: 7
Interrupt levels: 15
Power connector: 4 pin 3.5” HDD male power connector.

Power management: I/O peripheral devices support power saving
and doze/standby/suspend modes. APM 1.1 compliant.

Flat panel VGA interface

Chipset: C&T65550
Display memory: 1MB on board. Could be upgraded to 2MB by

factory.
Display type: Supports CR T and flat panel (TFT, DSTN, mono

and EL) display . Can display both CRT and flat panel simulta­neously .

Resolution: Up to 1024x768@64K colors.

Ethernet interface

Chipset: Realtek RTL8029AS PCI Ethernet controller.
Ethernet interface: On board RJ-45 connector. Software drivers

optional. Supports boot ROM function.

SSD interface

One 32-pin DIP socket supports M-system DiskOnChip 2000
series, memory capacity from 2MB to 72MB.

4 PCM-4894 User Manual

Digital I/O interface

4 TTL Digital Input bits & 4 Open Collect Digital Output bits.
(Port address : 294H, Bit : 0, 1, 2, 3)

Expansion Slots

PC/104 connector: 104 pin connector for a 16 bit bus expan­sion. One PCI/ISA bus slot.

Mechanical and environmental

Power supply voltage: +5V (4.75V to 5.25V)
Max. power requirements: +5V @ 4A
Operating temperature: 32 to 140° F (0 to 60° C)
Board Size: 8”(L) x 5.75”(W) (203mm x 146mm)
Weight: 1.32 lb. (0.6 Kg)

Chapter 1 General Information 5

Board layout

F65550

CHIPS

XC9572

XILINX

R T C

DiskOnChip

ALI

Winbond

AM486DX5

M1489 B1

ALI

M1487A1

Winbond

6 PCM-4894 User Manual

RTL8029AS

20F001N

Card dimensions

140 97

5.08

40.64

97.16

100.97

119.38

174.63

177.17

193.04

198.12

203.20

3.56

5.08

9.53

95.25

135.89

Chapter 1 General Information 7

8 PCM-4894 User Manual

2

CHAPTER

Installation

This chapter explains set up procedures
for the PCM-4894 hardware, including
instructions on setting jumpers and
connecting peripherals, switches and
indicators. Be sure to read all safety
precautions before you begin the installa­tion procedure.

Chapter 2 Installation 9

Jumpers and connectors

Connectors on the board link it to external devices such as hard
disk drives, a keyboard, or floppy drives. In addition, the board has
a number of jumpers that allow you to configure your system to
suit your application.

The table below lists the function of each of the board jumpers and
connectors:

Jumpers and connectors

Label Function

CN1 Ethernet connector
CN2 Serial ports connector
CN3 Parallel port connector
CN4 HDD connector
CN5 FDD connector
CN6 Main power connector
CN7 Keyboard / PS2 mouse connector
CN8 Power LED / Keyboard lock
CN9 Reserved IR connector
CN10 Digital I/O connector
CN13 LED indicators / Hardware reset
CN14 External speaker connector
CN15 LCD connector
CN16 VGA connector
CN17 Auxiliary power connector
CN18 CPU fan power connector
JP1 COM3/4 RI function selection
JP2 DOC address / COM2 mode setting
JP3 Clear CMOS
JP4 LCD voltage selection
JP5 LCD SHF/ASHF clock selection
U2 0 DiskOnChip socket

10 PCM-4894 User Manual

Locating jumpers and connectors

CN16

AM486DX5

F65550

CHIPS

JP4

CN18

PCI/ISA

Riser Card

Slot

CN15

JP5

CN14

CN13
CN12

CN10

CN9
CN8

CN7

CN17

CN6

CN5

XC9572

XILINX

Winbond

CN4

R T C

DiskOnChip

CN3

CN2

ALI

Winbond

M1489 B1

ALI

M1487A1

JP1

JP3

U20

JP2

RTL8029AS

20F001N

CN1

Chapter 2 Installation 11

Setting jumpers

You configure your card to match the needs of your application by
setting jumpers. A jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often
protected by a plastic cover) that slides over the pins to connect
them. To close a jumper you connect the pins with the clip. To
"open" a jumper you remove the clip. Sometimes a jumper will
have three pins, labeled 1, 2, and 3. In this case you would
connect either pins 1 and 2 or 2 and 3.

1

Open Closed Closed 2-3

The jumper settings are schematically depicted in this manual as
follows:

1 2 3

Open Closed Closed 2-3

A pair of needle-nose pliers may be helpful when working with
jumpers.

3

2

If you have any doubts about the best hardware configuration for
your application, contact your local distributor or sales represen­tative before you make any changes.

12 PCM-4894 User Manual

Safety precautions

Warning! Always completely disconnect the power cord

from your chassis whenever you are working on
it. Do not make connections while the power is
on because sensitive electronic components can
be damaged by the sudden rush of power. Only
experienced electronics personnel should open
the PC chassis.

Caution! Always ground yourself to remove any static

charge before touching the CPU card. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis.

Chapter 2 Installation 13

Installing DRAM (SIMMs)

The PCM-4894 CPU card provides two 72-pin SIMM (Single In­line Memory Module) sockets and supports between 4MB and
64MB.

When installing SIMMs, make sure that Bank 1 is filled first.

Installing SIMMs

Note: that the modules can only fit into a socket one way.

1. Insert the memory module into the socket at a moderate angle.

2. Push the module toward the vertical posts at both ends of the

socket until the module is upright and the retaining clips at
both ends of the module click into place. When positioned
correctly, the pins on top of the vertical posts should corre­spond to the circular holes on the ends of the module.

3. Repeat steps 1 and 2 for each module you install.

Removing SIMMs

If you need to remove a SIMM, follow the procedures below:

1. Supporting the SIMM with a finger, use a pen or a similarly

shaped object and press one retaining clip straight down.

2. Repeat for the other side. When released, the retaining clips

will push the SIMM up and out of its upright position.

3. Carefully pull the SIMM out of the socket with your fingers.

4. Repeat the above steps for each module you remove.

14 PCM-4894 User Manual

Ethernet connector (CN1)

The Ethernet connects to the PCM-4894 via an adapter cable to a
10-pin polarized header (CN1). For 10Base-T RJ-45 operation,
an adapter cable converting CN1 into a standard RJ-45 jack is
required.

Ethernet connector (CN1)

Pin Signal

1 +5V
2 Link LED
3 RX+
4 RX­5 RX LED
6 GND
7NC
8 GND
9 TX+
10 TX-

Chapter 2 Installation 15

Serial ports connector (CN2)

The mainboard offers four serial ports: three RS-232 and one RS­232/422/485. These ports allow you to connect them to serial
devices (mouse, printers, etc.).

COM 1-4 RS-232/422/485 serial ports (CN2)

COM1, COM2, COM3, COM4 RS-232/422/485 serial port (CN2)

PIN SIGNAL PIN SIGNAL

COM1 1 DCDA 2 DSRA

3 RXDA 4 RTSA
5 TXDA 6 CTSA
7 DTRA 8 RIA
9 GND 10 N.C.

COM2 11 DCDB 12 DSRB

(422TXD-/485DA TA-)
13 RXDB 14 RTSB
(422TXD+/485DA TA+)
15 TXDB 16 CTSB

(422RXD+)
17 DTRB 18 RIB

(422RXD-)
19 GND 20 N.C.

COM3 21 DCDC 22 DSRC

23 RXDC 24 RTSC
25 TXDC 26 CTSC
27 DTRC 28 RIC/+5V/+12V
29 GND 3 0 N.C.

COM4 3 1 DCDD 32 RSRD

33 RXDD 34 RTSD
35 TXDD 36 CTSD
3 7 DTRD 3 8 RID/+5V/+12V
39 GND 40 N.C.

16 PCM-4894 User Manual

Parallel port connector (CN3)

Normally, the parallel port is used to connect the card to a printer.
The PCM-4894 includes an onboard parallel port, accessed
through the CN3 connector, a 26-pin flat-cable connector. The
CPU card comes with an adapter cable, which lets you use a
traditional DB-25 connector. The cable has a 26-pin connector
on one end and a DB-25 connector on the other.

Pin assignments

Parallel port connector (CN3)

Pin Signal Pi n Signal

1 Strobe 14 -Auto feed
2 Data 0 15 -Error
3 Data 1 16 -Init printer
4 Data 2 17 -Select input
5 Data 3 18 GN D
6 Data 4 19 GN D
7 Data 5 20 GN D
8 Data 6 21 GN D
9 Data 7 22 GN D
10 -Acknowledge 23 GN D
11 Busy 2 4 GND
12 Paper empty 25 G ND
13 +Select

Chapter 2 Installation 17

IDE hard drive connector (CN4)

You can attach two Enhanced Integrated Device Electronics hard
disk drives to the PCM-4894's internal controller. The card
comes with a 40-pin flat piggyback cable. This cable has one 44­pin 2.0mm pitch and two identical 40-pin flat-cable connectors.

Connecting the hard drive

Usually, wire number 1 on the cable is red or blue, and the other
wires are gray.

1. Connect one end of the cable to the IDE connector. Make

sure that the red (or blue) wire corresponds to pin 1 on the
connector, which is labeled on the board.

2. Plug the other end of the cable to the Enhanced IDE hard

drive, with pin 1 on the cable corresponding to pin 1 on the
hard drive. (See your hard drive's documentation for the
location of the connector.)

Unlike floppy drives, you can make the connections with any of
the connectors on the cable. If you install two drives, you will
need to set one as the master and one as the slave. You do this
using jumpers on the drives. If you install just one drive, set it as
the master.

18 PCM-4894 User Manual

Pin assignments

The following table lists the pin numbers and their respective
signals:

IDE Connector (CN4)

Pin Signal Pin Signal

1 Reset 2 GN D
3D7 4D8
5D6 6D9
7 D5 8 D10
9D4 10D11
11 D3 12 D12
13 D2 14 D13
15 D1 16 D14
17 D0 18 D15
19 GND 20 N.C.
21 N.C. 22 GND
23 IOW 24 GND
25 IOR 26 GND
27 IORDY 28 NC
29 N.C. 30 GND
31 IRQ 14 3 2 -I/O CS16
33 A1 34 N.C.
35 A0 36 A2
37 CS0 38 CS1
39 -ACT 40 GND
41 +5V 42 +5V
43 NC 44 GND

Chapter 2 Installation 19

Floppy drive connector (CN5)

You can attach up to two floppy disks to the PCM-4894's on­board controller. You can use any combination of 5 1/4" (360 KB
and 1.2 MB) and/or 3 1/2" (720 KB, 1.44 MB, and 2.88 MB)
drives.

The PCM-4894 CPU card comes with a 34-pin daisy-chain drive
connector cable. On one end of the cable is a 34-pin flat-cable
connector. There are two sets of floppy disk drive connectors,
one in the middle, and one on the other end. Each set consists of
a 34-pin flat-cable connector (usually used for 3.5" drives) and a
printed-circuit board connector (usually used for 5.25" drives).

Connecting the floppy drive

1. Plug the 34-pin flat-cable connector into the CN5 connector.

2. Attach the appropriate connector on the other end of the cable

to the floppy drive(s). You can use only one connector in the
set. The set on the end (after the twist in the cable) connects
to the A: floppy. The set in the middle connects to the B:
floppy.

Pin assignments

The following table lists the pin assignments for the CN5 connec­tor:

FLOPPY drive connector (CN5)

Pin Signal Pin Signal

1~33 (odd) GND 2 High density

4 + 5V 6 High density
8 Index 10 Motor enable A
12 Driver select B 14 Driver select A
16 Motor enable B 1 8 Direction
20 Step pulse 2 2 Write data
24 Write enable 26 Track 0
28 Write protect 30 Read data
32 Select head 34 Disk change

20 PCM-4894 User Manual

Power connector (CN6, CN17, CN18)

Main power connector (CN6)

Main power conector (CN6)

Pin Signal

1 +12V
2 GND
3 GND
4 +5V

Auxiliary power connector (CN17)

Auxiliary power connector (CN17)

Pin Signal

1 -12V
2 GND
3 GND
4 -5V

CPU fan power connector (CN18)

CPU fan power connector (CN18)

Pin Signal

1 +5V
2 GND

Chapter 2 Installation 21

Keyboard and PS/2 mouse connectors

(CN7)

The mainboard provides a keyboard connector which supports
both a keyboard and a PS/2 style mouse. In most cases, especially
in embedded applications, a keyboard is not used. The standard
PC/AT BIOS will report an error or fail during power-on self-test
(POST) after a reset if the keyboard is not present. The mainboard
BIOS Advanced setup menu allows you to select "System Key­board" under the "Present" or "Absent" selection. This allows no­keyboard operation in embedded system applications without the
system halting under POST (power-on-self-test).

Keyboard and PS/2 mouse connector (CN7)

Pin Signal

1 GND
2 MS V
3 MS DA T A
4 MS CLOCK
5 GND
6 KB V
7 KB DA TA
8 KB CLOCK

CC

CC

22 PCM-4894 User Manual

Power LED and keylock (CN8)

You can connect an LED to indicate when the CPU card is on. Pin
1 of CN8 supplies power to the LED; Pin 3 is the ground.

You can use a switch (or a lock) to disable the keyboard. In this
state, the PC will not respond to any input. This is useful if you
do not want anyone to change or stop a running program. Simply
connect the switch between Pins 4 and 5. The pin assignments
appear in the following table:

Power LED and keylock (CN8)

Pin Function

1 LED Power (+5 V)
2NC
3 GND
4 Keyboard lock
5 GND

Reserved IR connector (CN9)

Reserved IR connector (CN9)

Pin Function

1 Vcc
2 FIR_RX
3 IR_RX
4 GND
5 IR_TX

Chapter 2 Installation 23

Digital I/O connector (CN10)

The digital I/O interface of PCM-4894 provides 4 TTL input bits
& 4 Open-Collect output bits. The following table lists the pin
assignment for CN10.

Digital I/O (DIO) connector (CN10)

Pin Function

1 TTL Input Bit 0
2 O.C. Output Bit 0
3 TTL Input Bit 1
4 O.C. Output Bit 1
5 TTL Input Bit 2
6 O.C. Output Bit 2
7 TTL Input Bit3
8 O.C. Output Bit3
9 +5V
10 GND

24 PCM-4894 User Manual

LED indicators / Hardware reset (CN13)

Ethernet link signal LED (CN13, 1-2)

A continuously lit LED indicates good linkage between the PCM­4894 and its supporting hub.

Ethernet active signal LED (CN13, 3-4)

A flashing LED indicates that the PCM-4894 is transmitting or
receiving data.

HDD LED (CN13, 5-6)

A flashing LED indicates that PCM-4894 is accessing the hard
drive.

Hardware reset (CN13, 9-10)

The following table lists the pin assignment of CN13:

LED indicators / Hardware reset (CN13)

Pin Signal

1 LAN Link
2 +5V
3 LAN Active
4 +5V
5 HDD LED
6 +5V
7 Reserved
8 GND
9 Reset
10 GND

Chapter 2 Installation 25

Buzzer or external speaker (CN14)

The CPU card has its own buzzer. You can disable the internal
buzzer and connect an external speaker to CN14. Enabling the
external speaker automatically disables the internal buzzer.

Buzzer or External Speaker

Buzzer External Speaker

1 2 3 4

Buzzer or External speaker (CN14)

Pin Function

1 Vcc
2 Speaker output
3 Buzzer in
4 Speaker output

1 2 3 41 2 3 4

OR

26 PCM-4894 User Manual

LCD connector (CN15)

The board also features an LCD connector (CN15), which allows
you to connect various flat panel displays. The following table
lists their pin assignments:

LCD connector (CN15)

Pin Signal Pin Signal

1 +12 V

DC

3 GND 4 GND
5 +5 VDC/+3.4V

DC

7 EN VEE 8 GND
9P0 10P1
1 1 P2 12 P3
13 P4 14 P5
15 P6 16 P7
17 P8 18 P9
19 P10 20 P11
21 P12 2 2 P13
23 P14 2 4 P15
25 P16 2 6 P17
27 P18 2 8 P19
29 P20 3 0 P21
31 P22 3 2 P23
33 GND 34 GND
35 SHFCLK/

SHGCLK

37 M 38 LP (H SYS)
39 GND 40 ENABKL
41 NC 42
43 NC 44 NC

2 +12 V

6 +5 VDC/+3.4V

36 FLM (V SYS)

SHGCLK

DC

DC

Chapter 2 Installation 27

VGA connectors (CN16)

The PCM-4894 CPU card's SVGA connector (CN16) with PCI
bus supports monochrome display as well as high resolution
color displays.

SVGA connector (CN16)

Pin Signal Pin Signal

1 Red video 9 Key (no pin)
2 Green video 10 Sync return (GND)
3 Blue video 11 Monitor ID (not used)
4 Not used 1 2 Monitor ID (not used)
5 GND 13 Horizontal sync
6 Red return (GND) 14 V ertical sync
7 Green return (GND) 15 Not used
8 Blue return (GND) 16 NC

28 PCM-4894 User Manual

COM3/4 RI function selection (JP1)

You can set the RI function mode of COM3/4 via JP1. The
available configurations are as follows:

COM3/COM4 RI function selection

2 4 6 8 10 12

*

1 3 5 7 9 11

1-2* COM3 RI = RI function
3-4 COM3 RI = +5V output
5-6 COM3 RI = +12V output
7-8* COM4 RI = RI function
9-10 COM4 RI = +5V output
1 1-12 COM4 RI = +12V output

* default

*

Chapter 2 Installation 29

DOC address setting (JP2, 1-6)

The DiskOnChip 2000 occupies a 8 KB window in the upper
memory address range of C800 to E000. You should ensure this
does not conflict with any other device's memory address. JP2
pin 1-6 controls the memory address of the Flash disk.

DOC address setting (JP2, 1-6)

CC00 D000 D400

2 4 6

2 4 6

2 4 6

1 3 5

D800 DC00 E000

2 4 6

1 3 5

1 3 5

2 4 6

1 3 5

*

1 3 5

2 4 6

1 3 5

* default

COM2 RS-232/422/485 select (JP2, 7-10)

The serial port COM2 of this board can be configured as RS-232,
RS-422, or RS-485.

The settings are as follows:

COM2 RS-232/422/485 select (JP2, 7-10)

RS-232 RS-422 RS-485

7 8
9 10

7 8
9 10

* default

7 8
9 10

*

30 PCM-4894 User Manual

Clear CMOS (JP3)

You can use JP3 to clear the CMOS data if necessary. To reset
the CMOS data, set JP3 to 2-3 closed for just a few seconds, and
then move the jumper back to 1-2 closed.

Clear CMOS (JP3)

Protect Clear CMOS

1 2 3

*

1 2 3

* default

LCD panel's voltage setting (JP4)

You can select the LCD connector (CN15) driving voltage by
setting JP4. The configuration is as follows:

LCD panel's voltage setting (JP4)

3.4 V 5 V

1 2 3

1 2 3

* default

LCD SHF/ASHF clock select (JP5)

You can select the LCD control signals by setting JP5. The
following charts show the available options.

LCD SHF/ASHF Clock select (JP5)

SHF CLK from C&T65550 ASHF CLK

*

* default

1 2 31 2 3

Chapter 2 Installation 31

*

DiskOnChip socket (U20)

The DiskOnChip 2000 family of products provides a single chip
solid-state flash disk in a standard 32-pin DIP package. The
DiskOnChip 2000 is a solid-state disk with no moving parts,
resulting in a significant reduction in power consumption and an
increase in reliability. The DiskOnChip is a small, plug and play
Flash disk. It is easy to use and saves integration overhead.

The DiskOnChip 2000 family of products is available in capaci­ties ranging from 2MB up to 72 MB, unformatted. In order to
manage the disk, the DiskOnChip 2000 includes the TrueFFS, M­Systems' Flash File System proprietary software. The DiskOn­Chip 2000 package is pin-to-pin compatible with standard 32-pin
EPROM devices.

Figure1-MD2200 Pin-out

32 PCM-4894 User Manual

pin
Name

A0-A12 Address bus 4-12,23,25-27 Inputs

A13-A16 Address bus 2,3,28,29 Inputs 1

D0-D7 Data bus 13-15,17-21 I/O

CE/ C hip Enable 22 Input

OE /

OE/ Output Enabl e 24 Input

WE/ Write Enable 31 Input

NC Not connected 1.30 2

VCC Power 32

GND Ground 16

Descr iption Pin Number Dir ection Note

Note 1: Pins A13 through A16 are not
used by the MD2200. They are kept for
socket backward compatibility with ED
1100 (DiskOnChip 1000)

Note 2: Pins 1 and 30 are not used by
MD2200

3

CHAPTER

Award BIOS Setup

This chapter describes how to configure
the BIOS for the PCM-4894.

Chapter 3 Award BIOS Setup 33

System test and initialization

These routines test and initialize board hardware. If the routines
encounter an error during the tests, you will either hear a few
short beeps or see an error message on the screen. There are two
kinds of errors: fatal and nonfatal. The system can usually
continue the boot up sequence with nonfatal errors. Nonfatal
error messages usually appear on the screen along with the
following instructions:

press <F1> to RESUME

Write down the message and press the F1 key to continue the
bootup sequence.

System configuration verification

These routines check the current system configuration against the
values stored in the card’s CMOS memory. If they don’t match,
the program outputs an error message. You will then need to run
the BIOS setup program to set the configuration information in
memory.

There are three situations in which you will need to change the
CMOS settings:

1. You are starting your system for the first time.

2. You have changed the hardware attached to your system.

3. The CMOS memory has lost power and the configuration

information has been erased.

34 PCM-4894 User Manual

Award BIOS setup

Entering setup

Power on the computer and press <DEL> immediately. This will
allow you to enter the utility and the utility screen should appear
(below).

Setup Utility Initial Screen

Award’s BIOS ROM has a built-in setup utility that allows users to
modify the basic system configuration. This type of information
is stored in a battery-backed CMOS RAM so that the information
is retained when the power is turned off.

Many fields in the setup screens have on-line help descriptions
available: press F1 to access this help.

Chapter 3 Award BIOS Setup 35

Standard CMOS setup

When you choose the STANDARD CMOS SETUP option from
the INITIAL SETUP SCREEN menu, the screen below is dis­played. This standard setup menu allows users to configure
system components such as the date, time, hard disk drive, floppy
drive, display, and memory. Online help for each field can be
accessed by pressing F1.

CMOS setup screen

Date and Time Configuration

Select the Date and Time in the Standard setup. The current values
for each category are displayed. Enter new values through the
keyboard.

Floppy A, Floppy B

Select these icons to configure the type of floppy drive that is
attached to the system: 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3
1/2", 1.44 MB 3 1/2", and/or 2.88 MB 3 1/2". The settings have
not been pre-installed.

36 PCM-4894 User Manual

LCD & CRT

In the display selection item, you can use PageUp/PageDown key
to select Both , LCD, CRT or Auto.

Pannel:

This selection item allow user to select LCD BIOS to match the
LCD types. There are eight LCD types available for users to
select as their LCD display modes as below:

dnarB

eman

prahS08X51XLNTSD867x4201
prahSP38146MLONOM084x046
prahSP53C46MLNTSD084x046
prahS04S21MLNTSD006x008

CEN01-33CA8446LN

abihsoTA902C01MTL

CEN40-62CA0608LNTFT006x008

prahS30x41

emanledoMtamroF

TFT084x046

)stib21(

084x046

TFT)stib81(

TFT867x4201

)stib63(

Chapter 3 Award BIOS Setup 37

BIOS features setup

By choosing the BIOS FEATURES SETUP option from the
INITIAL SETUP SCREEN menu, the screen below is displayed.
The displayed configuration is based on the manufacturer's
SETUP DEF AUL TS settings.

BIOS features setup

Virus Warning

When this item is enabled, the Award BIOS will monitor the boot
sector and partition table of the hard disk drive for any modifica­tion attempts. If an attempt is made, the BIOS will halt the system
and the following error message will appear. Afterwards, you can
run an anti-virus program to locate and remove the problem
before any damage is done.

Type "Y" to accept write or "N" to abort write

38 PCM-4894 User Manual

! WARNING !

Disk boot sector is to be modified

Award Software, Inc.

CPU Internal Cache/External Cache

These two categories, if enabled, can speed up memory access.
However, it depends on the CPU/chipset design.

Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you
power up the computer. If it is set to Enabled, BIOS will shorten
or skip some check items during POST.

Boot Sequence

This category determines which drive to search first for the
operating system.

Swap Floppy Drive

This item allows you to swap the floppy drive assignments so that
drive A is treated as drive B and drive B is treated as drive A under
DOS. The default setting is Disabled.

Boot Up Floppy Seek

During POST, the BIOS will determine if the floppy disk drive
installed is 40 or 80 tracks. 360KB type is 40 tracks while
760KB, 1.2MB, and 1.44MB are all 80 tracks.

Boot Up NumLock Status

This allows you to determine the default state of the numeric
keypad on an IBM-compatible extended keyboard.

Boot Up System Speed

This allows you to determine the Boot Up Speed. The choices are
High/Low.

Chapter 3 Award BIOS Setup 39

Gate A20 Option

This entry allows you to select how gate A20 is handled. Gate
A20 is a device used to address memory above 1 MB. Initially,
gate A20 was handled via a pin on the keyboard. Today keyboards
still provide this support, however it is more common and much
faster for the system chipset to provide support for gate A20.
The choices are thus: Normal and Fast.

Security Option

This category allows you to limit access to the system. The
choices are System: which requires a password at boot up and
Setup: which only requires a password to access the setup utility.

Video BIOS Shadow

Determines whether the video display card BIOS will be copied
into system DRAM in order to increase display speed and is
required for system performance. However, it is optional
depending on the chipset design. The default setting is Enabled.

Shadowing Address Ranges

The next 3 lines, from C8000-CBFFF Shadow to DC000-DFFFF
Shadow are address ranges for shadowing other expansion card
ROMs. If there are any expansion cards with ROMs installed in
your system, you have to know the address range they use in order
to shadow them specifically. The default setting for all of these is
Disabled.

40 PCM-4894 User Manual

CHIPSET features setup

By choosing the BIOS FEATURES SETUP option from the
INITIAL SETUP SCREEN menu, the screen below is displayed.
The displayed configuration is based on the manufacturer's
SETUP DEF AUL TS settings.

CHIPSET features setup

This section allows you to configure the system based on the
specific features of the installed chipset. This chipset manages
bus speeds and access to system memory resources, such as
DRAM and the external cache. It also coordinates communica­tions between the conventional ISA bus and the PCI bus. It must
be stated that these items should never need to be altered. The
default settings have been chosen because they provide the best
operating conditions for your system. The only time you might
consider making any changes would be if you discovered that data
was being lost while using your system.

Because of the complexity and technical nature of some of the
options, not all of the options are described here.

Chapter 3 Award BIOS Setup 41

Power management setup

By choosing the POWER MANAGEMENT SETUP option from
the initial SETUP SCREEN menu, the screen below is displayed.
The displayed configuration is based on the manufacturer's
SETUP DEF AUL TS settings.

Power management setup

Power Management

Power management lets you set up your computer to save
electricity when it is not actively in use by putting the system into
progressively greater power saving modes. In the power manage­ment scheme there are four system states which proceed in the
following sequence:

Normal à Doze à Standby à Suspend

42 PCM-4894 User Manual

There are four selections for Power Management (PM):

Disabled Turns off PM
Max Saving Maximized power saving by activating

maximum power saving settings after one
minute of system inactivity.

Min Saving Produces less power saving by activating

moderate power saving settings after one hour
of system inactivity.

User Defined You set the power saving options manually.

With the exception of Disabled, three of the above selections
have "fixed-mode" settings. Therefore, when PM is set to
Disabled, some items which are predefined will become unmodi­fiable.

PM Control by APM

When this is set to Yes, the Advanced Power Management feature
in Microsoft Windows controls power management operation.
The default setting is No.

Video Off Option

User can select 4 different modes for turning off the video. The
modes are a function of the PM mode of the computer. The
choices are All ModesàOff, Always On, SuspendàOff, and

Susp, StbyàOff.

The table below summarizes the behavior of the monitor in
relation to the four PM modes.

PM Mode Monitor Behavior

All Modes Off

- Always On

Suspend Off
Susp, Stby Off

For example, if you choose SuspendàOff, then the monitor will
turn off if the computer is in the Suspend PM mode.

Chapter 3 Award BIOS Setup 43

Video Off Method

This governs monitor power saving by controlling how power
management blanks the monitor screen. The default setting
blanks the screen and turns off vertical and horizontal scanning
and requires a monitor with "green" features. If you don't have
this type of monitor, use the Blank option. DPMS (Display
Power Management System) allows the BIOS to control the video
display card if the card has the DPMS feature.

V/H SYNC+Blank (Default)

BLANK (non-green monitor, less saving)
DPMS (Display card must support DPMS)

Modem Use IRQ

If you have a modem installed in your system, you can enter
which IRQ it is using so that APM can control it.

HDD Power Down

When enabled and after the selected time of system inactivity, the
hard disk drive will be powered down while all other devices will
remain active.

Doze Mode

This sets the period of system inactivity after which the system
goes into Doze mode, the most limited power saving state. The
settings range from 10 seconds to 1 hour and can be set manually
when power management is in User Define mode. The default
setting is Disabled. When the system goes into power saving
mode, power management will skip to the next mode in the
sequence if this is disabled.

44 PCM-4894 User Manual

Standby Mode

This sets the period of system inactivity after which the system
goes into Standby mode, the intermediate power saving state.
The settings range from 10 seconds to 1 hour and can be set
manually when power management is in User Define mode. The
default setting is Disabled. When the system goes into power
saving mode, power management will skip to the next mode in the
sequence if this is disabled.

Suspend Mode

This sets the period of system inactivity after which the system
goes into Suspend mode, the maximum power saving state. The
settings range from 10 seconds to 1 hour and can be set manually
when power management is in User Define mode. The default
setting is Disabled. When the system goes into power saving
mode, power management will skip to the next mode in the
sequence if this is disabled.

Chapter 3 Award BIOS Setup 45

PM Events

PM events are I/O events whose occurrence can prevent the
system from entering a power saving mode or can awaken the
system from such a mode. In effect, the system remains alert for
anything which occurs to a device which is configured as En-
abled, even when the system is in a power down mode.

When an I/O device wants to gain the attention of the operating
system, it signals this by causing an IRQ (Interrupt Request) to
occur. When the operating system is ready to respond to the
request, it interrupts itself and performs the service. The follow­ing is a list of IRQs, which can be disabled:

• COM Ports Activity

• LPT Ports Activity

• HDD Ports Activity

• VGA Activity

• IRQ3 (COM 2)

• IRQ4 (COM 1)

• IRQ5 (LPT 2)

• IRQ6 (Floppy Disk)

• IRQ7 (LPT 1)

• IRQ8 (RTC Alarm)

• IRQ9 (IRQ2 Redir)

• IRQ10 (Reserved)

• IRQ11 (Reserved)

• IRQ12 (PS/2 Mouse)

• IRQ13 (Coprocessor)

• IRQ14 (Hard Disk)

• IRQ15 (Reserved)

46 PCM-4894 User Manual

PCI configuration setup

By choosing the PCI CONFIGURATION SETUP option from the
initial SETUP SCREEN menu, the screen below is displayed.
The displayed configuration is based on the manufacturer's
SETUP DEF AUL TS settings.

PCI configuration setup

This section describes configuring the Peripheral Component
Interconnect (PCI) bus system which allows I/O devices to
operate at speeds nearing the speed of the CPU when communi­cating with its own special components. This section covers
some very technical items and it is strongly recommended that
only experienced users make any changes to the default settings.

PnP BIOS Auto-Config

The A ward Plug and Play BIOS has the capacity to automatically
configure all of the boot and Plug and Play compatible devices.

However, this will only work if you are running a Plug and Play

TM

operating system such as Windows

95.

Chapter 3 Award BIOS Setup 47

Reset Configuration Data

This item allows you to reset the configuration data.

PCI IRQ Activated By

This sets the method by which the PCI bus recognizes that an IRQ
service is being requested by a device. Under all circumstances,
you should retain the default configuration unless advised by your
system manufacturer. The choices are Level/Edge.

PCI IDE IRQ Map To

This allows you to configure your system to the type of IDE disk
controller in use. The more apparent difference is the type of
slot being used.

If you have equipped your system with a PCI controller, changing
this allows you to specify which slot has the controller and which
PCI interrupt (A, B, C, D) is associated with the connected hard
drives.

This setting refers to the hard disk drive itself, rather than
individual partitions.

Selecting PCI Auto allows the system to automatically determine
how your IDE disk system is configured.

48 PCM-4894 User Manual

Load BIOS defaults / Load setup

defaults

LOAD BIOS DEF AULTS loads the default system values directly
from ROM. The BIOS DEF AULTS provides the most stable
settings, though they do not provide optimal performance. LOAD
SETUP DEF AULTS, on the other hand, provides for maximum
system performance. If the stored record created by the setup
utility becomes corrupted (and therefore unusable), BIOS
defaults will load automatically when you turn the PCM-4894 on.

Load BIOS default / Load setup defaults

Chapter 3 Award BIOS Setup 49

50 PCM-4894 User Manual

4

CHAPTER

Flat Panel/CRT

Controller Display

Drivers and Utilities

This chapter provides information about:

• Driver types and installation

• Software utility installation and use

Chapter 4 Flat Panel/CRT Controller 51

Software drivers

This chapter describes the operation and installation of the software
drivers supplied on the Display Driver Diskettes that are shipped with
your VGA adapter.

Y our VGA adapter is based on the CHIPS VGA Flat Panel/CR T
controller and is fully IBM VGA compatible. This controller offers a
large set of extended functions and higher resolutions. If you intend
to use your VGA adapter in standard VGA modes only , you do not
need to install any of these drivers. Since your VGA adapter is fully
compatible, it does not require any special drivers to operate in
standard modes.

The purpose of the enclosed software drivers is to take advantage of
the extended features of the CHIPS VGA Flat Panel/CR T controller.

Hardware configuration

Some of the high-resolution drivers provided in this package will work
only in certain system configurations. If a driver does not display
correctly , try the following:

1 . Change the display controller to CRT-only mode, rather than flat

panel or simultaneous display mode. Some high-resolution drivers
will display correctly only in CRT mode.

2. If a high-resolution mode is not supported on your system, try
using a lower-resolution mode. For example, 1024 x 768 mode will
not work on some systems, but 800 x 600 mode is supported on
most.

52 PCM-4894 User Manual

Necessary prerequisites

The instructions in this manual assume that you understand elementa­ry concepts of MS-DOS and the IBM Personal Computer. Before you
attempt to install any driver or utility, you should:

• Know how to copy files from a floppy disk to a directory on the hard
disk

• Understand the MS-DOS directory structure

• Know how to format a floppy disk

If you are uncertain about any of these concepts, please refer to the
DOS or OS/2 user reference guides for more information, before you
proceed with the installation.

Before you begin

Before you begin the driver software installation, you should make
backup copies of the Display Driver Diskettes. Store the original
disks in a safe place.

Make sure you know the version of the application for which you are
installing drivers. Y our Display Driver Diskettes contain drivers for
several versions of certain applications. For your driver to operate
properly, you must install the driver for your version of the application
program.

Chapter 4 Flat Panel/CRT Controller 53

ÔÔ

Ô

Windows

These drivers are designed to work with MicrosoftÒ WindowsÔ. Y ou
just install these drivers through the WindowsÔ operating system.

ÔÔ

95

Driver installation

1 . Install WindowsÔ 95 as you normally would for a VGA display .

Click the Start button, go to Settings and click on Control Panel.
Choose the Display icon and double click on the icon. In the
Display Properties window, click on the Settings tab. Then click
on Change Display T ype. In the Change Display Type window ,
click on the Change button under Adapter Type. This will bring up
the Select Device window .

2 . Place the WindowsÔ 95 Display Driver Diskette in drive A. In the

Select Device window, click on Have Disk, Press <ENTER> and
the name of the Chips and Technologies, Inc. Video Controller
driver will appear highlighted in the Models list box. Select Chips
and T ech. 65550 PCI (new) and Click OK to install the selected
driver. Click OK to install the selected driver .

3 . Once the installation is complete, the Change Display Type

window will reappear. Click on Close to close the window . Then
the Display Properties window will reappear. Click on Apply.
Restart the system for the new settings to take effect.

54 PCM-4894 User Manual

ÔÔ

Ô

Windows

These drivers are designed to work with Microsoft Windows Version

3.1. Y ou may install these drivers either through WindowsÔ or in

DOS.

ÔÔ

3.1

Driver installation - Windows Setup

1 . Install Windows as you normally would for a VGA display. Run

Windows to make sure that it is working correctly.

2 . Place the Display Driver Diskette #1 in drive A. In the Windows

Program Manager, choose File from the Options Menu. Then from
the pull-down menu, choose Run. At the Command Line prompt,
type A:\WINSETUP . Press the <ENTER> key or click OK to begin
the installation.

At this point the setup program locates the directory where Windows
is installed. For proper operation, the drivers must be installed in the
Windows subdirectory.

3 . Press <ENTER> to complete the installation. Once completed, the

Display Driver Control Panel appears on the screen. This Control
Panel allows you to select and load the installed drivers.

Another method of installing these drivers is through the File Manag­er. Click on Drive A:, and then double-click on WINSETUP.EXE to
begin installation.

Changing Display Drivers from Windows

T o change display drivers from Windows, select the Windows Setup
icon from the Main window. You will be shown the current setup
configuration. Select Change System Settings from the Option menu.
Click on the arrow at the end of the Display line. Y ou will be shown a
list of display drivers. Click on the driver you want to select it. Then
click on the OK button. Follow the directions to complete the setup.

Chapter 4 Flat Panel/CRT Controller 55

Changing color schemes

After you change display drivers, you may notice that the color
scheme used by Windows looks strange. This is because different
drivers have different default colors. You can correct this by choosing
the same color scheme or a new color scheme. First select the Control
Panel from the Main window. Select the Color icon. You will be
shown the current color scheme. Choose a new color scheme and click
the OK button.

DOS

Driver installation - DOS setup

1. Install W indows as you normally would for a VGA display. Run
Windows to make sure that it is working correctly. Then exit from
Windows.

2 . Place the Display Driver Diskette #1 in drive A. T ype A: <ENTER>

to make this the default drive.

3 . Type SETUP <ENTER> to run the driver SETUP program. Press

any key to get to the applications list.

4. Using the arrow keys, select Windows Version 3.1 and press the
<ENTER> key . Press the <ENTER> key to select All Resolutions,
then press <END> to begin the installation.

5. At this point you will be asked for the path to your Windows
System directory (default C:\WINDOWS). When the installation is
complete, press any key to continue. Press <ESC> followed by Y
to exit to DOS.

6. Change to the directory where you installed Windows (usually
C:\WINDOWS).

7. Type SETUP <ENTER> to run the Windows Setup program. It will
show the current Windows configuration. Use the Up arrow key to
move to the Display line and press <ENTER>.

8 . A list of display drivers will be shown. Use the arrow keys to

select one of the drivers starting with an asterisk (*) and press
<ENTER>.

56 PCM-4894 User Manual

9. Follow the directions on the screen to complete the setup. In most
cases, you may press <ENTER> to accept the suggested option.
When Setup is done, it will return to DOS. T ype WIN <ENTER> to
start Windows with the new display driver.

Changing display drivers from DOS

T o change display drivers from DOS, change to the Windows directory
and run Setup, repeating steps 4 and 5 from the previous page.
Besides the special display drivers marked by an asterisk (*), you
should be able to use the following standard drivers:

V G A 640 x 480, 16 colors
Super VGA 800 x 600, 16 colors

Panning Drivers

Special panning drivers are provided to allow high-resolution modes to
be displayed on a flat panel or CRT. These drivers will show a section
of a larger screen, and will automatically pan or scroll the screen
horizontally and vertically when the mouse reaches the edge of the
display.

OS/2

These drivers are designed to function with the OS/2 Version 3 and 2.1
operating systems.

Driver installation

NOTE: Always use the INSTxx.CMD for the

installation of the video device drivers. T o change
video resolutions, follow

T o install the drivers, follow these instructions:
1 . The system display must be set to VGA mode before installing the

OS/2 SVGA drivers. Open an OS/2 full screen or windowed
session.

Step 3

Chapter 4 Flat Panel/CRT Controller 57

below.

FIRST

2 . Place the OS/2 Display Driver Diskette in drive A. Type

A:<ENTER> to make this the default drive. Then type INST2X
A: C: <ENTER> (for OS/2 2.1x systems) or INST30 A: C:

<ENTER> (for OS/2 Version 3 systems). Once the Install Program is
completed, do a system shutdown and reboot.

3. After the system has rebooted, follow these instructions:

A) OS/2 2.1x

Open an OS/2 full-screen or windowed session. At the OS/2
prompt, type DSPINSTL <ENTER> to install the new device
driver and configure the video system.

B) OS/2 Version 3

Go to the System Setup folder and run Selective Install to install the
new device driver and configure the video system.

Follow the instructions of the program to set up the OS/2 drivers in
your system. First, select Primary Display. From the list of Primary
Display Adapter Types, select Chips and Technologies 655XX.
From the list of available Display Resolutions, select a display
resolution. The correct source directory must be specified. Once
the installation is complete, the system must be shut down and
restarted for changes to take effect.

WIN-OS/2

Please note the following limitations regarding WIN-OS/2.

1. The WIN-OS/2 full screen session should be set to Enhanced
Capability . The default setting is Standard Mode. If this setting is
not changed, Windows will not run.

2 . WIN-OS/2 should be started by selecting the WIN-OS/2 Full

Screen Icon in the Command Prompts folder, or with the WIN
command in a DOS Full Screen or OS/2 Full Screen session.

3 . Do not start WIN-OS/2 in a DOS or OS/2 Window. The system

does not support the enhanced video mode being used in a
window , and therefore will not run.

58 PCM-4894 User Manual

4 . When running WIN-OS/2, DO NOT use <AL T>+<HOME> to

switch a DOS or OS/2 Full Screen session to Windows. If this
happens, do a system shutdown and reboot.

Driver diskette copy

NOTE: Diskette copies of the OS/2 drivers must have a

VOLUME LABEL that reads “DISP 1” in order to be
an installable diskette.

T o copy the OS/2 Display Driver Diskette, follow these instructions:
1 . Copy all files on the OS/2 Display Driver Diskette as you normally

would onto another diskette.

2 . Place the diskette copy in drive A. At the C prompt, type LABEL

A: DISP 1 to properly label your diskette. Then store your
diskette copy in a safe place.

For proper installation of OS/2 drivers, all diskette copies must be
properly labeled “DISP 1”.

Chapter 4 Flat Panel/CRT Controller 59

ÔÔ

Ô

Windows

These drivers are designed to work with MicrosoftÒ WindowsÔ.

ÔÔ

NT 3.51

Driver installation

1 . Install WindowsÔ NT 3.51 as you normally would for a VGA

display. Run W indowsÔ NT Control Panel from the Main Group.
Choose the Display option. In the Display Settings dialog box,
click on Change Display Type. Click on Change from the Adapter
T ype in the Display T ype dialog box. Click on Other in the Select
Device dialog box.

2. Place the WindowsÔ NT Display Driver Diskette in drive A. Press
<ENTER> and the following driver names will appear highlighted in
the Models list box:

CHIPS Video Accelerator (64310,65545,65548,65550)
CHIPS Video Accelerator (65510,65530,65535,65540)

Click on Install to Install the selected driver. Once the installation
is complete, shutdown and restart the system.

3. Upon restart, at the Invalid Display Selection message, click on
OK and select the desired display settings from the Display
Settings dialog box. Click on Test to test the newly selected
graphic mode. A color test screen should appear, followed by the
T esting Mode window. Click on Y es to contiune. The Display
Settings Change window will appear. Click on Restart Now for the
new settings to take effect.

60 PCM-4894 User Manual

ÔÔ

Ô

Windows

ÔÔ

NT 4.0

Driver Installation

1 . Install Windows NT4.0 as you normally would for a VGA display.

First click the Start button, go to Settings and click on Control
Panel. Choose the Display icon and click on the icon. In the
Display Properties window, click on the Settings tab. Then click
on Change Display T ype. In the Change Display T ype window,
click on the Change button under Adapter Type. This will bring up
the Select Device window.

2 . Place the WindowsÔ NT Display Driver Diskette in drive A. In

the Select Device window , click on Have Disk. Press <ENTER>
and the name of the Chips and Technologies, Inc. Video Control-
ler driver will appear highlighted in the Models list box. Select
Chips and T ech. 65550 PCI (new) and Click OK to install the
selected driver. Click OK to install the selected driver .

3 . Once the installation is complete, the Change Display Type

window will reappear. Click on Close to close the window . Then
the Display Properties window will reappear. Click on Apply.
Restart the system for new settings to take effect.

Chapter 4 Flat Panel/CRT Controller 61

SOFTWARE UTILITIES

This chapter describes the operation and installation of the following
software utilities supplied on the Display Driver Diskettes:

• CHIPSDSP

• CHIPSCPL

The CHIPSDSP utility program

This utility program is designed to work with MicrosoftÒ WindowsÔ

95.

Installing the utility

CHIPSDSP .DLL is located on the CHIPS W indowsÔ 95 driver disk. This
file is a WinsowsÔ 95 based utility for selecting display type and refresh
rate. It is a Display Properties Refresh window that is automatically
installed when installing CHIPS WindowsÔ 95 display drivers. The
Display icon is in the Control Panel group. T o invoke the Display icon,
simply click on the Start button, go to Settings, click on Control Panel,
and then double click on the Display icon. Click on the property sheet
with the heading Refresh.

How to use the utility

DISPLA Y DEVICE allows you to select the display type from the
following:

• CRT Only <AL T C>

• LCD (Flat Panel) only <ALT I >

• Both CR T and LCD (Flat Panel) <AL T B>

62 PCM-4894 User Manual

REFRESH RATE allows you to select the refresh rate from the
following:

• Interlaced

• 56 Hz

• 60 Hz

• 70 Hz

• 72 Hz

• 75 Hz

• 85 Hz

The refresh rate is available in CRT Mode only .

Note: 1.

The refresh rates that are supported by the selected mon­itor are the only refresh rates that will show and be se­lectable.

2.

The above refresh rates may not be supported by all
Chips products.

WINDOWSÔ DEF AUL T allows you to return to the default refresh

rate setting for the selected monitor in WindowsÔ 95.

Chapter 4 Flat Panel/CRT Controller 63

The CHIPSCPL utility program

This utility program is designed to work with MicrosoftÒ WindowsÔ
V ersion 3.1.

Installing the utility

CHIPSCPL.CPL is a WindowsÔ based utility to select resolutions and
color depth. It is a Control Panel Applet with its own icon that is auto­matically installed when installing CHIPS WindowsÔ 3.1 linear drivers.
The Control Panel icon is in the Main WindowsÔ group. To invoke the
control panel applet, simply click on the icon. The driver resolution and
color depth take effect only after WindowsÔ is rebooted with the new
driver.

How to use the utility

SCREEN SIZE <AL T S> allows you to select from the following
resolutions:

• 640 x 480

• 800 x 600

• 1024 x 786

• 1280 x 1024

By selecting the resoution first, it will determine the allowable selec­tions for color depth.

COLOR <AL T O> allows you to select the number of colors from the

following:

• 16 (4bits per pixel)

• 256 (8 bpp)

• 32K (15 bpp)

• 64K (16 bpp)

• 16M (24 bpp)

By selecting the color depth first, will be displayed the allowable
resolutions.

64 PCM-4894 User Manual

DPI<AL T P> allows you to select a large or small font.
DISPLA Y<AL T D> allows you to select the display type from the

following:

• CRT only

• LCD (Flat Panel) only

• Both CRT and LCD (Flat Panel)

MONITOR SELECTION <AL T M> allows you to select from the list
of monitors.

REFRESH<AL T R> allows you to select the refresh rate from the
following:

• Interlaced

• 56 Hz

• 60 Hz

• 70 Hz

• 72 Hz

• 75 Hz

The refresh rate is available on CTR Mode only. The refresh rates
supported by the selected monitor are the only available refresh rates
that can be selected.

CURSOR-ANIMA TION <AL T A> allows you to select an animated
cursor instead of the hour glass wait cursor.

BIG CURSOR <AL T G> allows you to select a big cursor for better
visibility on the Flat Panel.

V ersion <ALT V> displays version information about the current
driver.

HELP <AL T H> displays help information on how to use the Display
Driver Control Panel.

Chapter 4 Flat Panel/CRT Controller 65

66 PCM-4894 User Manual

5

CHAPTER

Ethernet Software

Configuration

This chapter describes how to configure
the Etherent Card to match your applica­tion requirements (PCM-4894).

Chapter 5 Software Configuration 67

Ethernet software configuration

The onboard Ethernet interface supports all major network
operating systems. I/O addresses and interrupts are easily
configured via the AMIBIOS Setup. To configure the medium
type, to view the current configuration, or to run diagnostics,
please refer to the following istructions:

1 . Power the mainboard on. Ensure that the RSET8029.EXE file

is located in the working drive.

2 . At the prompt, type RSET8029.EXE and press <ENTER>.

The Ethernet configuration program will then be displayed.

3 . This simple screen shows all the available options for the

Ethernet interface. Just highlight the option you wish to
change by using the Up and DOWN keys. To change a
selected item, press <ENTER>, and a screen will appear with
the available options. Highlight your option and press
<ENTER>. Each highlighted option has a helpful message
guide displayed at the bottom of the screen for additional
information.

4. After you have made your selections and the configuration
is what you want, press <ESC>. A prompt will appear
asking if you want to save the configuration. Press "Y" if
you want to save.

The Ethernet Setup Menu also offers three very useful diagnos­tic functions. These are:

1 . Run EEPROM test

2. Run Diagnostics on Board

3 . Run Diagnostics on Network
Each option has its own display screen which shows the format

and result of any diagnostic tests undertaken.

68 PCM-4894 User Manual

A

APPENDIX

Watchdog Timer

Demo Program

The following demo program illustrates
the programming steps required to
enable, set, and disable the watchdog
timer.

Watchdog timer demo program

How to program the WATCHDOG TIMER

1. To enable the time-out interval of watchdog timer:

-- output the desired value to port 0x443. The resolution of
watchdog timer is 1 sec. Since the data is of 1 byte, the time­out interval will be 1 sec ~ 255 sec.

Whenever the value of timer is not zero, the timer will
automatically count down

e.g. outportb(0x443, 30); // set interval to 30 sec and

count down

2. To set the time-out event:

-- output data to port 0x444. The default setting is “reset
system”.

· 0: reset system (default)

· 1, 2, 3: IRQ 10, 15, 11 respectively

· 4: NMI

e.g. outportb(0x444, 0); // set time-out event to
reset-system

3. To disable watchdog timer:

-- output value “0” to port 0x443.
e.g. outportb(0x443, 0); // disable watchdog timer

A-70 PCM-4894 User Manual

4. To refresh watchdog timer:

-- output the desired value to port 0x443. The timer will reset
to the new value and count down.

e.g. outportb(0x443,10); // set time-out interval to

10 sec

…

outportb(0x443,20); // reset watchdog timer to

20 sec

Demo porgram in C

outportb(0x444, 0); // set time-out event to reset-system
outportb(0x443, 10); // set time-out interval to 10 seconds
job1(); // execute your job here, be sure your job

will finished within 10 seconds

outputb(0x443,20); // set time-out interval to 20 seconds and

refresh watchdog timer, otherwise the

system will reset after time-out
job2(); // another job finished within 20 seconds
outportb(0x443, 0); // disable watchdog timer
…

Appendix A Watchdog Timer Demo Program A-71

A-72 PCM-4894 User Manual

B

APPENDIX

Installing PC/104

Modules

This appendix gives instructions for
installing PC/104 modules.

Appendix B Installing PC/104 Modules B-73

Installing PC/104 modules

The PCM-4894's PC/104 connectors give you the flexibility to
attach PC/104 expansion modules. These modules perform the
functions of traditional plug-in expansion cards, but save space
and valuable slots. Modules include:

• PCM-3110B PCMCIA Module (one-slot)

• PCM-3115B PCMCIA Module (two-slot)

• PCM-3200 PC/104 Sound Module

• PCM-3420 PC/104 Fast SCSI Module

• PCM-3521 Advanced Flat-Panel/CR T VGA Module

• PCM-3522 LCD Panel Adapter

• PCM-3600 PC/104 Fax/Modem Module

• PCM-3610 Isolated RS-232 and RS-422/485 Module

• PCM-3640 PC/104 4-port RS-232 Module

• PCM-P50 PC/104 Vehicle Power Supply

• PCM-3660 Ethernet Module

• PCM-3718 30 KHz A/D Module

• PCM-3724 48-channel DIO Module

• PCM-3910 Breadboard Module

• PCM-3810 Solid State Disk Module

• PCM-3820 High Density Flash Solid State Disk Module

B-74 PCM-4894 User Manual

Installing these modules on the PCM-4894 is a quick and simple
operation. The following steps show how to mount the PC/104
modules:

Step1 Remove the PCM-4894 from your system, paying

particular attention to the safety instructions already
mentioned above.

Step2 Make any jumper or link changes required to the CPU

card now. Once the PC/104 module is mounted, you
may have difficulty in accessing these.

Step3 Mount the PC/104 module onto the CPU card. Do this

by pressing the module firmly but carefully onto the
mounting connectors.

Step4 Secure the PC/104 module onto the CPU card using

the four mounting spacers and srews.

PC/104

Mounting Support

Female Male

PC/104 ModuleMain board

PC/104 Module Mounting Diagram

Appendix B Installing PC/104 Modules B-75

3.775

3.575

0.300

3.250

3.575

0.200
0

0.200

0

3.350

0.200

3.550

PC/104 module dimenstions (inches ±5%)

B-76 PCM-4894 User Manual

APPENDIX

Optional Extras

C

Appendix C Optional Extras C-77

PCM-10489-1 Cable kit for PCM-4894

(P/N : 9969048900)

The mainboard requires several cables for normal operation. You
can make them yourself or purchase an optional cable kit assem­bly which includes the following:

.oNtraP.oNtraP

.oNtraP.oNtraPnoitpircsedelbaCnoitpircsedelbaC

.oNtraP

0530441071EDI"8.1dna"5.2)mm053(CDIelamef,mm2,nip-44

0050441071)P04(EDI"5.3)mm005(CDIelamef,mm45.2,nip-04
0070431071

1030621071troplellaraPBUSDelamefnip-52
0510511071TRCAGVBUSDnip-51

0020600071

1030403071

0030801071lenaptnorFliatgiprotcudnoc-8

0220041071
0020011071T-ESAB01tenrehtE54-JR

noitpircsedelbaCnoitpircsedelbaCrotcennocnoitanimreTrotcennocnoitanimreT

noitpircsedelbaC

dna"5.3,yppolflauD

)P43("52.5

dnadraobyeK

esuom2/SP

rewoplarehpireP

)V21-dnaV5-(

,troPlaireS232-SR

troPMOC4

rotcennocnoitanimreTrotcennocnoitanimreT

rotcennocnoitanimreT

yppolflaudnip-43

NIDralucricnip-5
NIDralucricnip-6

rotcudnoc4

mm45.2,nip04

C-78 PCM-4894 User Manual
