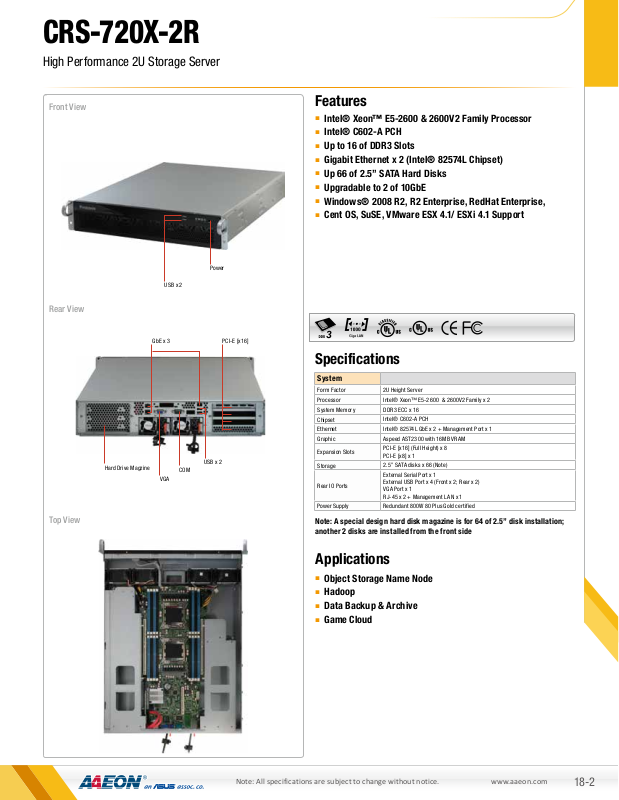

CRS-720X-2R

High Performance 2U Storage Server

Front View

Rear View

Top View

Hard Drive Magzine

Power

USB x 2

GbE x 3 PCI-E [x16]

USB x 2

COM

VGA

Features

■■

Intel® Xeon™ E5-2600 & 2600V2 Family Processor

■■

Intel® C602-A PCH

■■

Up to 16 of DDR3 Slots

■■

Gigabit Ethernet x 2 (Intel® 82574L Chipset)

■■

Up 66 of 2.5” SATA Hard Disks

■■

Upgradable to 2 of 10GbE

■■

Windows® 2008 R2, R2 Enterprise, RedHat Enterprise,

■■

Cent OS, SuSE, VMware ESX 4.1/ ESXi 4.1 Support

Specifications

System

Form Factor

Processor

System Memory

Chipset

Ethernet

Graphic

Expansion Slots

Stora ge

Rear IO P orts

Power Supply

Note: A special design hard disk magazine is for 64 of 2.5” disk installation;
another 2 disks are installed from the front side

2U Height Server

Intel® Xeon™ E5-26 00 & 2600V2 F amily x 2

DDR3 ECC x 16

Intel® C 602-A PCH

Intel® 8 2574L GbE x 2 + M anageme nt Por t x 1

Aspeed A ST2300 wi th 16MB V RAM

PCI- E [x16] (Full Heigh t) x 8
PCI- E [x8] x 1

2.5” SATA dis ks x 66 (N ote)

Exte rnal Serial Por t x 1
Exte rnal US B Port x 4 (Fron t x 2; Rear x 2)
VGA Po rt x 1
RJ-4 5 x 2 + Management L AN x 1

Redunda nt 800 W 80 Plus Gold cer tified

Applications

■■

Object Storage Name Node

■■

Hadoop

■■

Data Backup & Archive

■■

Game Cloud

www.aaeon.comNote: All specifications are subject to change without notice.
