BatteryFREE
2X Quick Wireless Optical Mouse
User’s Manual
Model：NB-30D
www.a4tech.com
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TOTHE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Federal Communications Commission Requirements
The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generate s, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction, may cause harmful interference to radio communication. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
z Reorient of relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
THE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1). this device may not cause harmful interference, and
(2). this device must accept any interference received, including interference that may cause undesired operation.
INTRODUCTION
Congratulations on your purchase.
Your new BatteryFREE 2X Click Wireless Optical Mouse will offer you wireless freedom, yet no battery i
Whilst saving you the cost of batteries, it assures wrist comfort, light, easy operation and no-RF interference. As
the Same time, Just one click on “2X Button” straightly open files and programs easily. Save times and improve
efficiency.

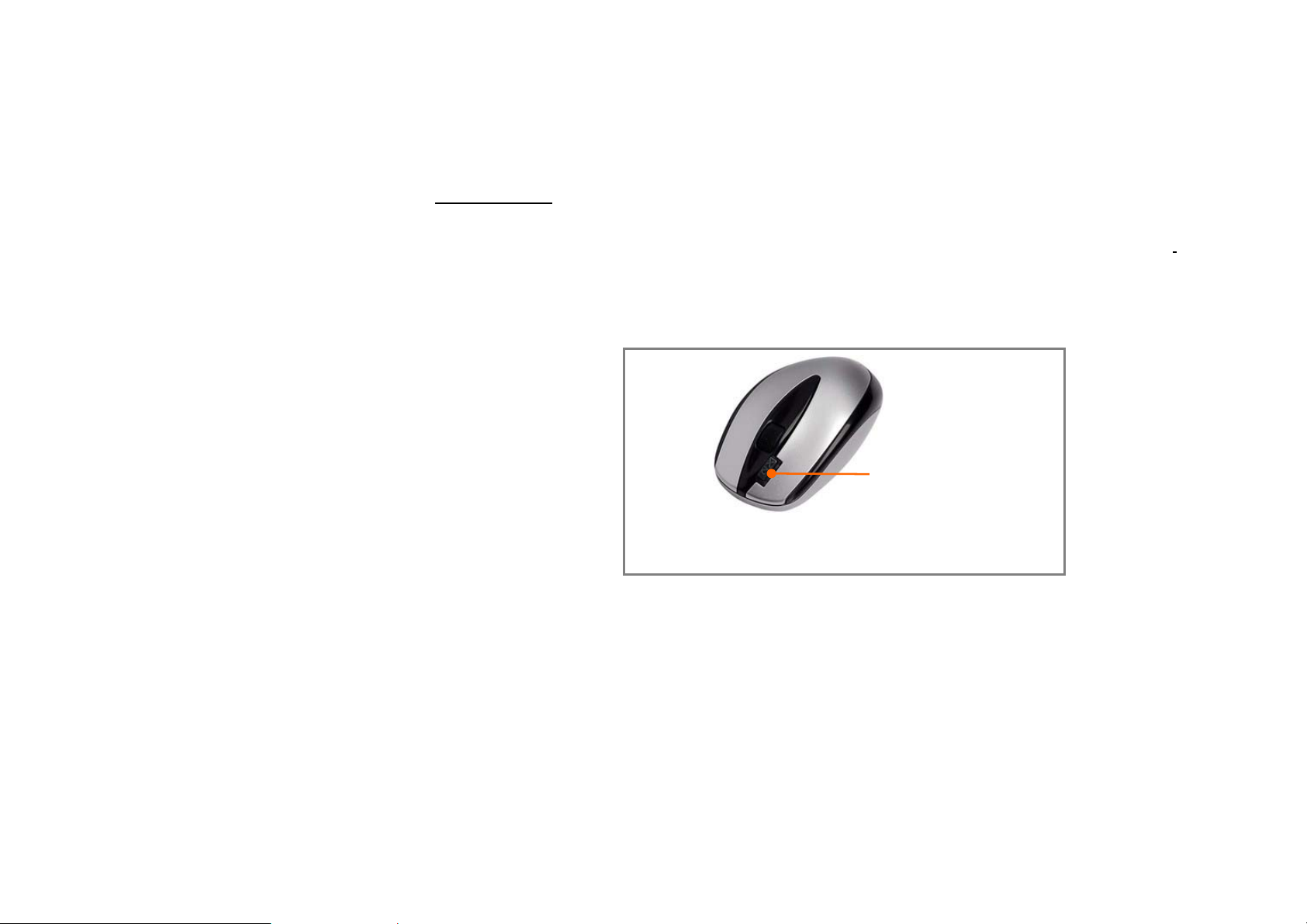

“2X Button”,
without any
driver.
NB-30D
s required.
SETTING UP YOUR MOUSE PAD AND MOUSE IS JUST A SECOND AWAY:
1. Plug the Mouse Pad’s USB plug to your computer’s
Run-Green LED
USB port.
2. PWR LED on the Mouse Pad will be flashing in
Power-Red LED
Tune Button
“RED”
3. Put the MOUSE onto the center of the MOUSE P AD.
4. PWR LED on the Mouse Pad will stop flashing
become steady “RED”
5. Press the button “TUNE” to obtain the frequency for best performance. Do not move the mouse while the RUN
LED is flashing in “GREEN”
6. You may move the mouse around once the RUN LED stopped flashing in “GREEN”
7. If the cursor doesn’t move smoothly, please repeat steps 5 to 7.
8. RUN LED should light up with steady “GREEN” while mouse is circulating on the mouse pad.
NOTE:
1. Do not use this product on any metal table or surface. The metal surface may interfere with the cross induction
and have an adverse effect on the mouse operation.
2. Keep working temperature under 0 to 50 degree Celsius (0°– 50°C).
3. Frequency: 121 KHz-128 KHz
4. Keep your credit cards and ATM cards away from RFID Mouse Pad to prevent the card’s magnetic stripe from
losing its efficiency.
5. Our RFID Mouse Pad will not erase any data in the memory stick. So don’t worry if your memory stick is close to
the inductive RFID mouse pad.
6. Do not place the mouse pad too close to CRT monitor, keep a distance of 20 cm
TECH SUPPORT
For tech support, please visit our website at http://support.a4tech.com/ or email us at support@a4tech.com
WARRANTY
All A4 Tech products come with 2 years limited warranty.
Product specification brief
Mouse
Model name: NB-30D
Microprocessor: SN8P2602AP
Operating voltage: 3.3+
Supply Power method: Electromagnetic Coupling
Current consumption:
(operating)
Communication mode :
Duty Cycle:
Dimension(outside): 113
weight: 77
Transmission distance : Max:50mm(To Mouse pad distance)
Modulation Method: ASK
Modulation degree: Max: 15%
The Tracking Resolution: 800CPI
Micro Switch:
Number of Button/Wheel: 4 Button ,1 Wheel
Running life: 500 Miles
5% V
MAX:25mA
Simplex
240uS
x 63 x 36 mm
gm
Chock-per:1,000,000 Cycles
ration force in any direction: Max:100gf
Non-operating Vibration
Operating Shock
Non-operating shock
Operating Vibration test passed (10 to 500Hz at 0.5G)
passed (10 to 300Hz at 2.0G)
5G 1/4 sine pulse, 11ms duration at any axis
(PASS)
60G 1/4 sine wave, 11ms duration at any axis
( PASS)
