Page 1

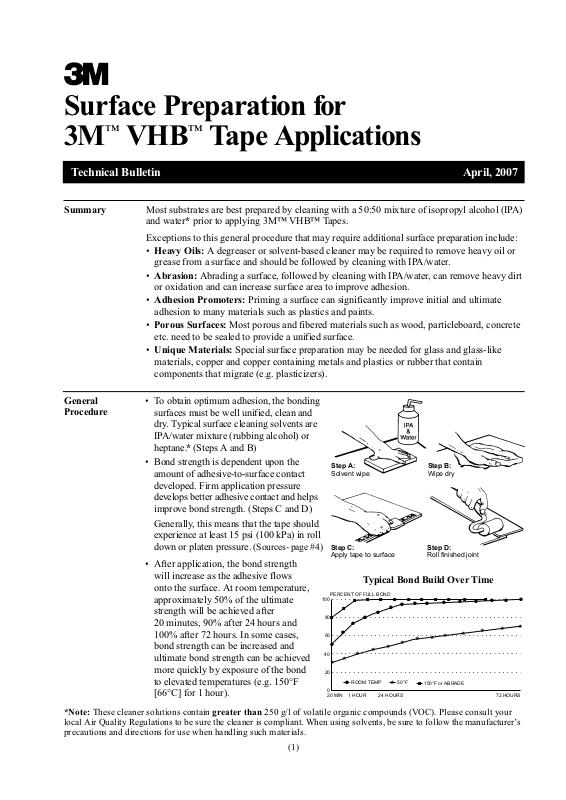

Technical Bulletin April, 2007

Surface Preparation for 3M

™

VHB

™

Tape Applications

Summary

Most substrates are best prepared by cleaning with a 50:50 mixture of isopropyl alcohol (IPA) and water* prior to applying 3M™ VHB™ Tapes.

Exceptions to this general procedure that may require additional surface preparation include:

• Heavy Oils: A degreaser or solvent-based cleaner may be required to remove heavy oil or grease from a surface and should be followed by cleaning with IPA/water.

• Abrasion: Abrading a surface, followed by cleaning with IPA/water, can remove heavy dirt or oxidation and can increase surface area to improve adhesion.

• Adhesion Promoters: Priming a surface can significantly improve initial and ultimate adhesion to many materials such as plastics and paints.

• Porous Surfaces: Most porous and fibered materials such as wood, particleboard, concrete etc. need to be sealed to provide a unified surface.

• Unique Materials: Special surface preparation may be needed for glass and glass-like materials, copper and copper containing metals and plastics or rubber that contain components that migrate (e.g. plasticizers).

*Note: These cleaner solutions contain greater than 250 g/l of volatile organic compounds (VOC). Please consult your local Air Quality Regulations to be sure the cleaner is compliant. When using solvents, be sure to follow the manufacturer’s precautions and directions for use when handling such materials.

General Procedure

• To obtain optimum adhesion, the bonding surfaces must be well unified, clean and dry. Typical surface cleaning solvents are IPA/water mixture (rubbing alcohol) or heptane.* (Steps A and B)

• Bond strength is dependent upon the amount of adhesive-to-surface contact developed. Firm application pressure develops better adhesive contact and helps improve bond strength. (Steps C and D)

Generally, this means that the tape should experience at least 15 psi (100 kPa) in roll down or platen pressure.

(Sources- page #4)

• After application, the bond strength will increase as the adhesive flows onto the surface. At room temperature, approximately 50% of the ultimate strength will be achieved after 20 minutes, 90% after 24 hours and 100% after 72 hours. In some cases, bond strength can be increased and ultimate bond strength can be achieved more quickly by exposure of the bond to elevated temperatures (e.g. 150°F [66°C] for 1 hour).

100

0 20 MIN

1 HOUR

24 HOURS

72 HOURS

★

●

■

■ ■

■

■ ■

■

■ 150°F or ABRADE

★ 50°F

● ROOM TEMP

PERCENT OF FULL BOND

Typical Bond Build Over Time

Step A:

Solvent wipe

Step B:

Wipe dry

Step C:

Apply tape to surface

Step D:

Roll finished joint

(1)

Page 2

Technical Bulletin

Surface Preparation for 3M™VHB™Tape Applications

Heavy Oils

On surfaces with a light oily film, or other light contamination, the 50:50 IPA/water solution is usually adequate. Where heavy oils or grease are present, a “degreasing” solvent such as 3M™ Prep Solvent 70, 3M™ Citrus Base Cleaner, mineral spirits, naphtha or similar solvents are suggested to cut the oil. This should always be followed with an IPA/water cleaning to help ensure that any residue or film is removed.*

Abrasion

Abrading a surface can serve several functions:

• Remove heavy levels of dirt or oxide from metals or paints (e.g. galvanized steel).

• Create additional surface area that can increase adhesion.

• Smooth a surface to obtain more flatness, allowing improved contact area.

Abrasion often helps adhesion to paints and plastics. When abrading, it is important for tapes to have a finely abraded surface. Very small scratches in the surface, generated with circular motion rather than straight-line motion, are most desirable. A surface with many micro-scratches in it can have up to 40% additional available surface area, translating to higher ultimate strength and greater initial adhesion. Scotch-Brite

Hand Pads (such as 7447 Maroon or Heavy Duty Green) are good for achieving the right level of abrasion. Tools such as a power palm sander will assist on large jobs. Avoid grinding a surface with coarse abrasive materials, since they may create too rough of a texture for the adhesive to adequately flow into the surface. Always clean the surface with the IPA/water solution or additional methods previously described, and be certain that all loose particles are removed prior to bonding.

Exceptions to these abrading guidelines are 3M™ VHB™ Tapes 4932 and 4952, as they typically perform best on smooth glossy surfaces and abrasion may reduce the bond strength.

Adhesion Promoters

Priming a surface can significantly improve initial and ultimate adhesion to many materials such as plastics and paints because of their low surface energy or the additives they may contain. A primer creates a new surface for 3M™ VHB™ Tape to adhere to and can also create a layer that may impede the migration of additives that may be present in a material. It is important for the user to determine the suitability of the 3M™ VHB™ Tape, the adhesion promoter and the application process.

Porous Surfaces

Rough, porous or fibered materials such as wood, particleboard, cement, etc., have an open surface and require sealing to provide a unified surface for tape bonding. Common sealing materials would include paint, varnish or other hard surface coatings. Fast drying 3M™ Rubber and Vinyl Spray 80 can also be used to unify the surface and improve the tape bond.

Unique Surfaces

Glass, stone, ceramic or other siliceous materials are hydrophilic (water-loving) by nature. Normally, the hydrophilic nature makes pressure sensitive adhesive bond durability susceptible to change under high humidity or exposure to moisture. In basic terms, water vapor can undercut the tape bond and interfere with the normal adhesion forces. Silane coupling agents, added to the IPA/water cleaning solution, can help reduce the “water-loving” tendency of these surfaces and enhance the tape bond in high moisture environments.

Copper, brass, and bronze are prone to oxidation even after the 3M™ VHB™ Tape is applied. To prevent a weakening of the bond, a lacquer or varnish should be applied to these surfaces. Be sure to test the tape bond to the sealer on a metal surface to verify good adhesion.

Flexible PVC (vinyl) contains plasticizers that can migrate into the tape and affect adhesion. There are several 3M™ VHB™ Tapes that are formulated to be resistant to plasticizer migration, or 3M™ Scotch-Grip™ Plastic Adhesive 2262, thinned, can serve as a barrier to migration. Rubber materials (e.g. EPDM, neoprene) can have low surface energy and may also contain plasticizers and oils. These require the use of an adhesion promoter for stable bond strength. Test for compatibility with flexible PVC and rubber materials by aging bonded samples for a week at 150°F (66°C) and check for softening of the adhesive, discoloration or reduction in bond strength.

(2)

Page 3

Technical Bulletin

Surface Preparation for 3M™VHB™Tape Applications

Suggested Primers

The table below offers suggested primers and alternative methods that commonly require primers, adhesion promoters or other surface treatments for successful use with 3M™ VHB™ Tapes. This list is not intended to be fully comprehensive but may be useful for many applications. It is very important for the user to determine the suitability of the

3M™ VHB™

Tape, primer and

application process and compliance with local Air Quality Regulations.

Primer Source and Description

• 3M™ Primer 94, 3M™ Adhesion Promoter 111 and 3M™ Silane Glass Treatment AP 115 are available through distributors that carry 3M™ VHB™ Tapes.

• 3M™ Scotch-Grip™ Plastic Adhesive 2262 must be thinned in acetone or MEK* in a 1:5 or 1:10 ratio (e.g., 1 part Scotch-Grip plastic adhesive 2262 to 5 parts acetone or MEK). The product is available premixed in either acetone or MEK from: PRC DeSoto at (317) 290-1600. 3M™ Scotch-Grip™ Plastic Adhesive 2262T, thinned in 10:1 MEK solution or 3M™ ScotchGrip™ Plastic Adhesive 2262TA, thinned in 10:1 acetone solution.* When diluted in acetone at this ratio, this material contains 196 g/l VOC.*

• Diluted 3M™ Scotch-Grip™ Plastic Adhesive 1099 must be thinned in acetone* in a 1:3 ratio (e.g., 1 part Scotch-Grip plastic adhesive 1099 to 3 parts acetone). This thinned material contains zero VOC’s when diluted in these ratios.

• 3M™ Adhesion Promoter N-200J is available from PRC DeSoto at (317) 290-1600.

• Silane Coupling Agent is also available premixed in a 91:9 IPA/water solution or as a concentrate. A 0.5 wt. % level of silane* adhesion promoter diluted in a 91:9 IPA/water cleaning solution has been found to be sufficient.

Suggested Sources for Silane Coupling Agents: Custom-Pak Products, Inc. (262) 251-6180 available premixed in IPA/water Lancaster Synthesis, Inc. (603) 889-3306 available 100% concentrated

*Note: Be sure to read and follow silane and solvent manufacturer’s precautions and directions

for use for proper handling and storage information.

Note: These primers contain greater than 250 g/l of volatile organic compounds (VOC). Please contact your local Air Quality Regulations

to be sure these primers are compliant.

(a)

3M™ Scotch-Grip™ Plastic Adhesive 2262 contains 196 g/l VOC.

(b)

See supplier information.

(3)

Surface Concern Suggested Primer Alternatives

Steel or Aluminum Surface must be clean None suggested Abrasion may clean surface, 3M™ Adhesion

Promoter 111 for increased adhesion.

Copper, Brass, Bronze Oxidation after bonding Lacquer or varnish

(b)

Architectural grade coatings

Concrete, Brick Non-unified or rough surface, 3M™ Rubber and Vinyl Spray 80 Concrete sealer, paint

moisture

Glass, Stone, Ceramic Tile High humidity, moisture 3M™ Silane Glass Treatment AP 115 or 3M™ Primer 94

similar silane coupling agent in IPA/water mixture

(b)

Wood (soft, hard Weak fiber layer on surface 3M™ Rubber and Vinyl Spray 80, Urethane paint, varnish particle board, etc.) (e.g., low surface strength) 3M™ Fastbond™ 30 Contact Adhesive

Plastics: Polyolefin Low adhesion 3M™ Primer 94 (additional surface Flame treatment, Corona treatment

preparation may be required)

Non-olefin Additives, low adhesion 3M™ Primer 94, 3M™ Scotch-Grip™ Abrade or

Plastic Adhesive 2262

(a)

3M™ VHB™ Tapes 4932/4952/5925/5952/5962

Polyurethane Mold release, low adhesion 3M™ Adhesion Promoter N-200J, Abrade and prime (Molded or Rubber) 3M™ Scotch-Grip™ Plastic Adhesive 1099

Rubber: Neoprene, Santoprene Migrating oils 3M™ Primer 94, 3M™ Scotch-Grip™ 3M™ Weather Strip Tapes

Plastic Adhesive 1099

EPDM Low adhesion 3M™ Primer 94 3M™ Weather Strip Tapes

Paints Low adhesion 3M™ Adhesion Promoter 111 Abrade or

3M™ VHB™ Tapes 4932/4952/5925/5952/5962, or 3M™ Primer 94, 3M™ Scotch-Grip™ Plastic Adhesive 2262

(a)

, 3M™ Adhesion Promoter N-200J

Coil Coated Aluminum Low adhesion 3M™ Adhesion Promoter 111 Abrade or

3M™ VHB™ Tapes 4932/4952/5925/5952/5962, or 3M™ Primer 94, 3M™ Scotch-Grip™ Plastic Adhesive 2262

(a)

, 3M™ Adhesion Promoter N-200J

Flexible PVC (Vinyl) Plasticizer migration 3M™ Scotch-Grip Plastic Adhesive 2262

(a)

, 3M™ VHB™ Tapes 4945 and 4941

3M™ Rubber and Vinyl Spray 80 (test for migration)

Page 4

Technical Bulletin

Surface Preparation for 3M™VHB™Tape Applications

Sources

Hand held J-Roller:

Rockler Woodworking and Hardware Phone: (800) 279-4441 Specify #39463 www.rockler.com

Scotch-Brite is a registered trademark of 3M Company.

3M, VHB and Scotch-Grip are trademarks of 3M Company.

Recycled Paper 40% pre-consumer 10% post-consumer

Run an Evaluation

Because 3M cannot anticipate all of the different possible surfaces and contaminants that may exist, it is imperative that the user conduct an evaluation to determine the suitability of 3M™ VHB™ Tapes, surface preparations procedures, and any other processes that may have an influence on the tape or the bonded parts. Likewise, where there are any changes in plastic or paint formulation, or suppliers of these materials, it is advisable to run evaluations to ensure that the change has not influenced the compatibility of the surface with 3M™ VHB™ Tapes.

(4)
