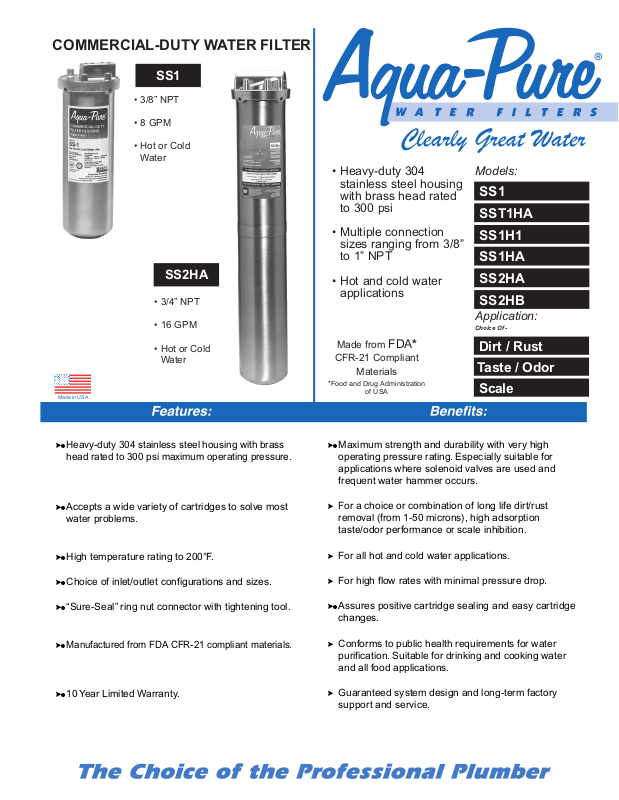

COMMERCIAL-DUTY WATER FILTER
SS1
• 3/8” NPT
• 8 GPM
• Hot or Cold
Water
• Heavy-duty 304
stainless steel housing
with brass head rated
to 300 psi
Models:
SS1
SST1HA
SS2HA
• 3/4” NPT
• 16 GPM
• Hot or Cold
Water
Made in USA
>
Heavy-duty 304 stainless steel housing with brass
head rated to 300 psi maximum operating pressure.
>Accepts a wide variety of cartridges to solve most
water problems.
• Multiple connection
SS1H1
sizes ranging from 3/8”
to 1” NPT
• Hot and cold water
applications
SS1HA
SS2HA
SS2HB
Application:
Choice Of -
Made from FDA*
CFR-21 Compliant
Materials
*Food and Drug Administration
>
operating pressure rating. Especially suitable for
applications where solenoid valves are used and
frequent water hammer occurs.
>
For a choice or combination of long life dirt/rust
removal (from 1-50 microns), high adsorption
taste/odor performance or scale inhibition.
of USA
Maximum strength and durability with very high
Dirt / Rust
Taste / Odor
Scale
>High temperature rating to 200°F.
>Choice of inlet/outlet configurations and sizes.
>“Sure-Seal” ring nut connector with tightening tool.
>Manufactured from FDA CFR-21 compliant materials.
>10 Year Limited Warranty.
>
For all hot and cold water applications.
>
For high flow rates with minimal pressure drop.
>Assures positive cartridge sealing and easy cartridge
changes.
>
Conforms to public health requirements for water
purification. Suitable for drinking and cooking water
and all food applications.
>
Guaranteed system design and long-term factory
support and service.
Specifications
L
O
N
G
-
L
I
F
E
G
R
A
D
E
D
D
E
N
S
I
T
Y
F
I
L
T
E
R
A
Q
U
A
-
P
U
R
E
®
Pipe SizeModel No.
SS1 3/8" NPT vertical
SST1HA 3/4" NPT vertical
SS1H1 1/2" NPT in-line
SS1HA 3/4" NPT in-line
SS2HA 3/4" NPT in-line
SS2HB 1" NPT in-line
Capacity: Cartridges should be replaced every 3 - 4 months or sooner when noticeable pressure drop occurs.
Dimensions
Height Diameter
12 1/32"
(30.6 cm)
12 1/32"
(30.6 cm)
12 3/16"
(31 cm)
12 3/16"
(31 cm)
22 1/32"
(56 cm)
22 5/16"
(56.7 cm)
4 5/32"
(10.6 cm)
4 5/32"
(10.6 cm)
4 5/32"
(10.6 cm)
4 5/32"
(10.6 cm)
4 5/32"
(10.6 cm)
4 5/32"
(10.6 cm)
Approx.
Weight
4.8 lbs
(2.2 kg)
4.8 lbs
(2.2 kg)
5.5 lbs
(2.5 kg)
5.5 lbs
(2.5 kg)
7.0 lbs
(3.1 kg)
7.0 lbs
(3.1 kg)
Maximum
Flow Rate
8 gpm
(30.3 lpm)
8 gpm
(30.3 lpm)
8 gpm
(30.3 lpm)
8 gpm
(30.3 lpm)
16 gpm
(60.6 lpm)
16 gpm
(60.6 lpm)
Clean
Pressure
Drop
N/A
N/A
N/A
N/A
N/A
N/A
Premium
Performance
Filtration
“Graded-Density
Cartridge
Construction for Longer Life!”
Aqua-Pure® Dirt & Rust Cartridges are made
from an exclusive process using pure white
cellulose fibers. As water enters the filter, it is
forced through filter pores that become
increasingly smaller to remove even
microscopic particles of dirt, rust, and
sediment. This unique process offers
unsurpassed filtration performance.
Dirt Model Load
AP1001 Extra Fine 1
AP1003 Fine 3
AP110 Normal 5
AP111 Medium 25
AP124 Heavy 50
AP117* Normal 5
APS117* Normal 5
AP420* Normal 5
Maximum
Water
Temp.
200° F
(93° C)
200° F
(93° C)
200° F
(93° C)
200° F
(93° C)
200° F
(93° C)
200° F
(93° C)
Maximum
Water
Pressure
300 psi
(2070 kPa)
300 psi
(2070 kPa)
300 psi
(2070 kPa)
300 psi
(2070 kPa)
300 psi
(2070 kPa)
300 psi
(2070 kPa)
Replacement
CTG No.
not included 1 1-50 microns
not included 1 1-50 microns
not included 1 1-50 microns
not included 1 1-50 microns
not included 2 1-50 microns
not included 2 1-50 microns
Replacement
CTG Qty.
Replacement Cartridge Options
Nominal
Micron
Rating
Application
Dirt/Rust Taste/Odor Scale
•
•
•
•
•
• •
• • •
• •
Easy Installation
Degree of
Filtration
Flow Rate
8 gpm (30.3 lpm)
8 gpm (30.3 lpm)
8 gpm (30.3 lpm)
8 gpm (30.3 lpm)
8 gpm (30.3 lpm)
3 gpm (11.4 lpm)
3 gpm (11.4 lpm)
8 gpm (30.3 lpm)
• Longer Life
• Higher Efficiency
“High Adsorption Activated Carbon Cartridges!”
After passing through a Graded-Density pre-filter, the water enters a
deep bed of specially formulated Activated Carbon. In this stage the
water comes into contact with hundreds of thousands of activated
sites which effectively reduce unwanted tastes, odors, and chlorine.
• Chlorine Reduction for 10,000 Gallons
• Sparkling Clean, Great Tasting Water
“Unique Scale Stopper™ Cartridges!”
Aqua-Pure Scale Stopper™ cartridges utilize two important
mechanisms to inhibit scale and corrosion: one that prevents scale
from forming, and one that treats the surface of the piping to prevent
the negative effects of hard water scaling or corrosive water. In
addition, Aqua-Pure Scale & Corrosion cartridges incorporate a
Graded-Density pre-filter for premium dirt/rust removal and long life.
• Rigid Construction
• Resists Water Hammer
LITSS1/SS2 0999
Your new Aqua-Pure Water Filter installs on the main cold water line
after entering the home. Complete installation instructions included for
your convenience.
Do not use with water is microbiologically unsafe or of unknown quality
without adequate disinfection before or after the system.
CUNO Incorporated
400 Research Parkway
Meriden, CT 06450 U.S.A.
Toll Free : 1-800-222-7880
Worldwide : 203-237-5541
Fax : 203-238-8701
www.aquapure.com • www.cuno.com
