3M Projection Systems

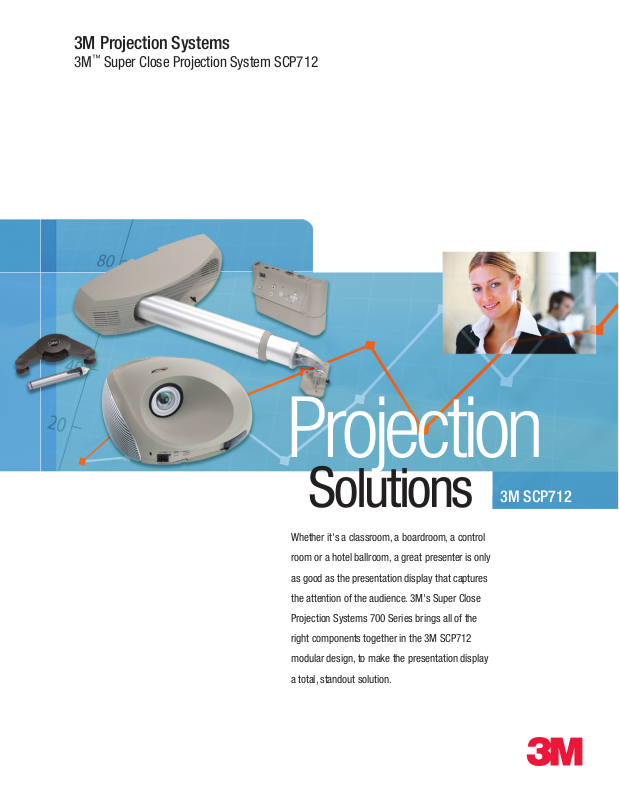

3M™ Super Close Projection System SCP712

Projection

Solutions

Whether it's a classroom, a boardroom, a control

room or a hotel ballroom, a great presenter is only

as good as the presentation display that captures

the attention of the audience. 3M's Super Close

Projection Systems 700 Series brings all of the

right components together in the 3M SCP712

modular design, to make the presentation display

a total, standout solution.

3M SCP712

Page 2

3M™ Super Close Projection System SCP712

the solutions

Flexibility and Performance to Meet Your Demands

Modular Presentation Solutions

• Designed with a modular “build-what-you-need”

concept, you can receive the benet of 3M's

Vikuiti™ Super Close Projection technology

with the 3M SCP712’s basic VGA and USB

connections, all the way up to a full connectivity

system that can turn even a standard dry erase board

into an interactive whiteboard system.

• The 3M SCP712 is designed to be simple and cost

effective with the exibility to buy a projection

system and additional modules that offer you the

functionality you need to best t your

environment and your AV budget.

Features for Your Environment

• 3M Vikuiti Super Close Projection patented technology

• 60" - 80" diagonal image with wall mount

• Folding wall mount options provide added safety

• Basic or full connectivity – your choice!

• Great for use with existing dry-erase boards

or interactive whiteboards

• XGA (1024 x 768) resolution

• 2000 lumens (maximum rating)

See additional specications on back cover

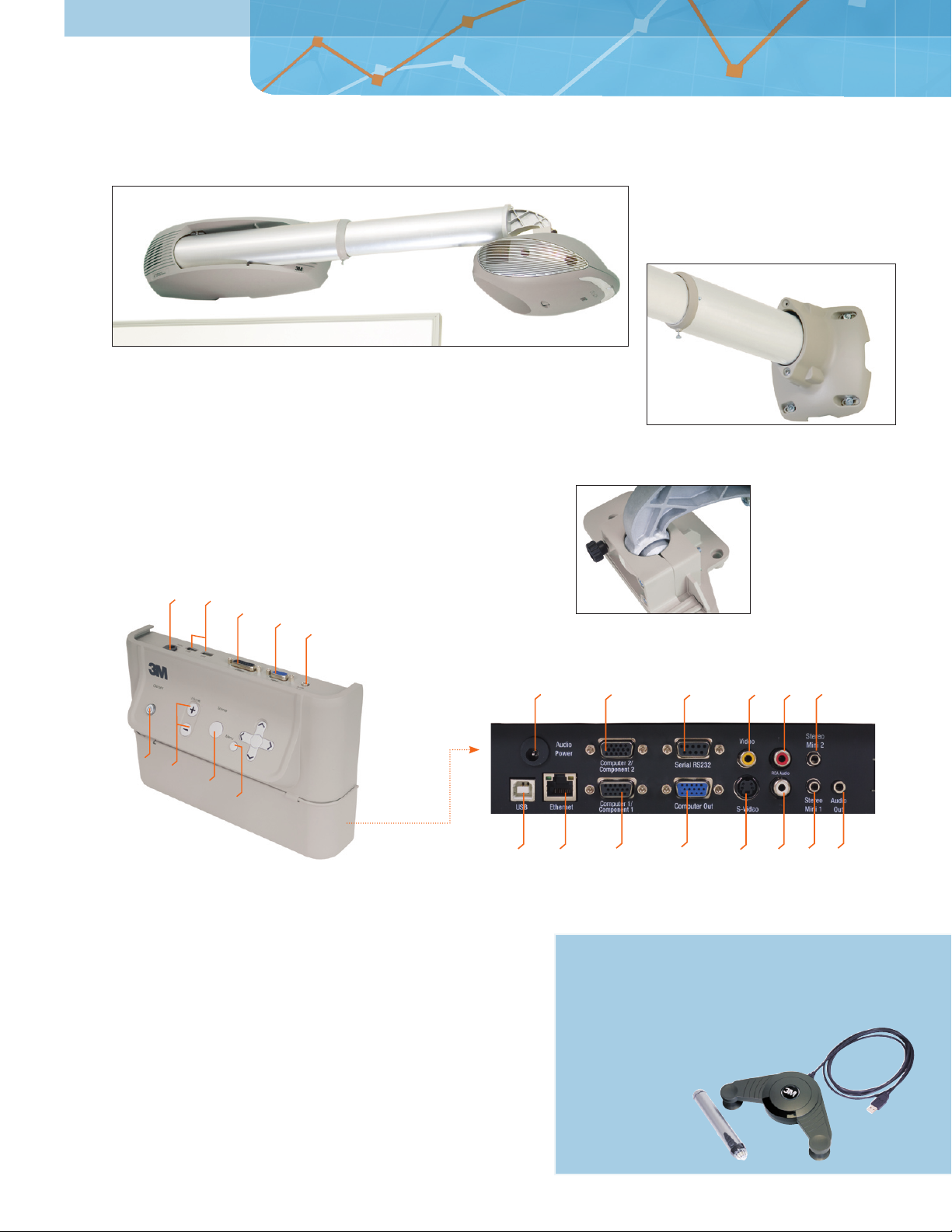

Wall Mount Options

Folding Wall Mount – Open Position

USB

Power

• The 3M SCP712 Projector can also stand alone as a

tabletop projector or can be ceiling-mounted if a

wall mount is not practical for your environment.

Telescoping Arm

for 60" - 80"

Computer

or component

diagonal image

15-pin Control

connection for

I/O Module

Two 20W Speakers

(mount without

speakers also

available)

Design

you need

Page 3

XGA Projector with 3M™ Vikuiti™ Super Close Projection delivers large images close to the screen and virtually eliminates distracting shadows while annotating .

USB

Audio Power

Pass Through

Computer 2

Component 2

Serial RS232

Video

RCA Audio R

Stereo Mini 2

Ethernet

Computer Out

Computer 1

Component 1

S-Video

RCA Audio L

Stereo Mini 1

Audio Out

Pass Through

XGA Projector with 3M™ Vikuiti™ Super Close Projection delivers large images close to t he screen and virtually eliminates distracting shadow s while annotating.

Audio Power

Control

from Projector

USB

Audio Out

Signal

to Projector

Input

Source

Control

Volume

Control

Power

Folding Wall Mount – Closed Position

Fixed Wall Mount

• Telescoping arm for 60" - 80" image

• Cost-effective option if folding arm

and speakers are not required

SCP I/O Module

• If your applications require more connectivity, simply

purchase the 3M SCP712 with the optional SCP I/O

Module. This input/output module easily attaches to the

wall and provides numerous connectivity options:

I/O Module Connectivity

• Second Computer/Component RGB input

• Computer RGB output – ideal for teacher’s monitor

• Two USB ports

• Ethernet connection provides network capabilities

and basic remote administration

• RS232 connection for basic remote control

• S-video input for connecting a DVD/analog video device

• RCA Audio/Video for camcorders, digital

cameras, gaming and more

• Audio power and audio output connections used with

Folding Wall Mount with speakers or personal speakers

Ball joint Mount

(allows for easy projector adjustment)

Connectivity

under

hinged door

Annotation Sensor Module

• Increase audience retention by digitally drawing

over key elements. The 3M™ Annotation Sensor

turns a standard whiteboard into an

interactive tool.

Page 4

3M™ Super Close Projection System SCP712

Product Speciﬁcations & Features

• Vikuiti™ Super Close Projection Technology by 3M

• DMD Panel: .7 in. DLP

• Resolution: XGA (1024 x 768)

• Brightness: 2000 lumens (maximum rating)

• Aspect ratio: native 4:3, 16:9 supported

• Contrast Ratio: 2100:1

• Digital Zoom: 100% to 200%

• Projection Lens: F2.9 (focal length= 8.9mm)

• Focus: Manual

• Throw Ratio: 0.62

• Image size: 30 - 180 in. (tabletop), 60 - 80 in. (wall mounted)

• Lamp Life: 2000 hours (n ormal), 3000 hours (e co)

• Lamp Power: 230W (nor mal), 200W (eco)

• Dimensions: 13.5W x 6.1H x 12.7D in. (343.5 x 155.3 x 321.6 mm)

• Weight (projector only): 9.9 lbs. (4.5 kg)

• Security: Integrated Kensington Slot

• Video Compatibility: NTSC, PAL, SECAM, 480i/p, 576i/p, 720p

• PC Compatibility: 640 x 480 ( VGA), 800 x 600 (SVGA), 102 4

x 768 (XGA), 1280 x 768* (SXGA), 1280 x 960 1152 x 882*, 1024 x 768 (MAC 19") *resolution digitally compressed

• Digital Keystone Correction: Vertical ±10°

• Sound: Two 20W speakers (only on Folding Wall Mount with speakers)

• Noise: 39dB (nor mal), 36dB (e co)

• Power Consumption: 310W (5W standby)

• Regulatory Approvals: FCC Class A, CE Class A, CCC

for China

Image Size

Screen Size Projection Distance Diagonal [inch (m)] Maximum [inch (m)]

40" (1.0) 20" (.51) 50" (1.3) 28" (.71) 60" (1.5) 30" (.76) 80" (2.0) 40" (1.0) 100" (2.5) 49" (1.2) 120" (3.0) 59" (1.5)

Note: These sizes are +10 percent. This is due to variations in the manufacture of the lens. If you are close to one of the endpoints you should verify with your unit that the image is the proper size at the proper distance.

, 1152 x 864*,

Projector Accessories Included

• Cables & Power Cord (US, UK and Europe specic)

• Remote Control with batteries

• Safety Guide

• Multi-language Operator’s Guide on CD

Optional Accessories

• SCP712 Lamp Replacement Kit 78-6969-9935-4

• C1 Universal Ceiling Mount –

• C1 Universal Extender Pole & Plate –

(Order if required to match SKU 78-6969-9928-9)

• P1 Universal Ceiling Mount –

• Protective Carrying Bag for Projector 78-6969-9900-8

(Backpack-Style)

Product Component/Modular Combination Stock #

SCP712 with Folding Wall Mount Solutions

SCP712.M6 78-9998-3395-3

SCP712. M4 78-9998-3393-8

SCP712. M2 78-9998-3391-2

Solut ions wit hout annotation

SCP712.M5 78-9998-3394-6

SCP712. M3 78-9998-3392-0

SC P712 .M11 78-9998-3400-1

SCP712. M1 78-9998-3390-4

SCP712 with Fixed Wall Mount Solutions

SCP712. M10 78-9998-3399-5

SCP712.M8 78-9998-3397-9

Solut ions wit hout annotation

SCP712.M9 78-9998-3398-7

SCP712. M7 78-9998-3396-1

SCP712 Projector (only)

SCP712 78-9236-6933-3

SCP712, Folding Wall Mount with Speakers, I/O Module & Annotation Pod SCP712, Folding Wall Mount, I/O Module & Annotation

SCP712, Folding Wall Mount & Annotation

SCP712, Folding Wall Mount with Speakers & I/O Module

SCP712, Folding Wall Mount & I/O Module

SCP712 & Folding Wall Mount with Speakers

SCP712 & Folding Wall Mount

SCP712, Fixed Wall Mount, I /O Module & Annotation

SCP712, Fixed Wall Mount & Annotation

SCP712, Fixed Wall Mount & I /O Module

SCP712 & Fixed Wall Mount

SCP712 (US Power)

black

78-6969-9928-9

black

78-6969-9927-1

white

78-6969-9874-5
