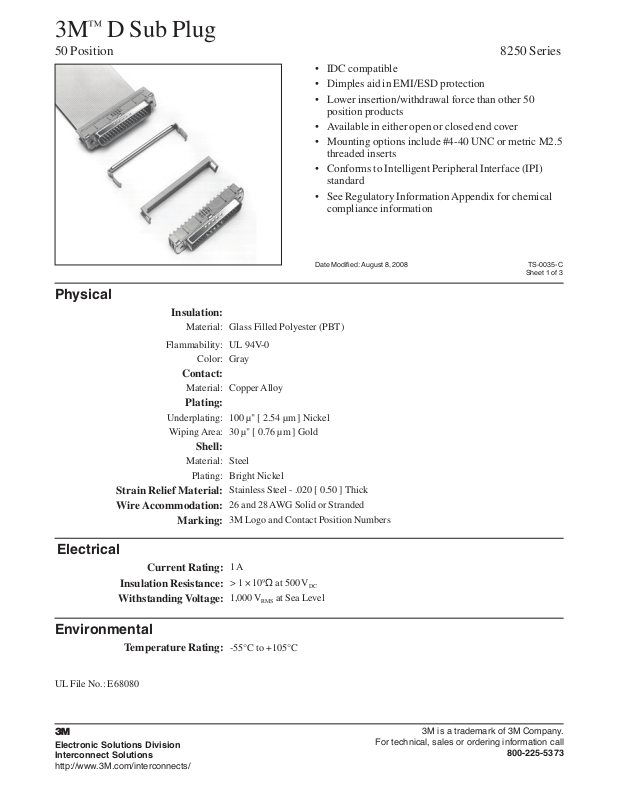

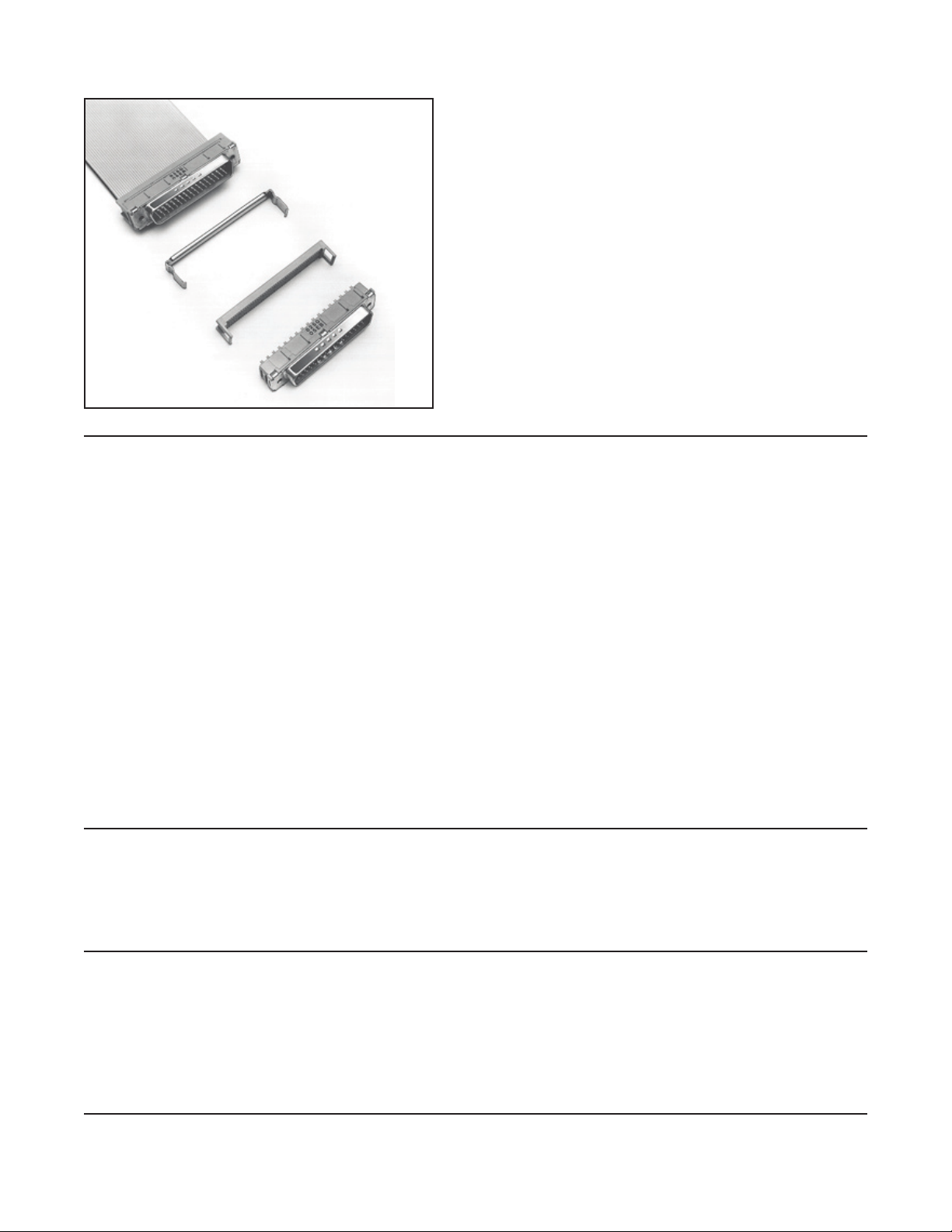

3M™ D Sub Plug
50 Position 8250 Series
IDC compatible•
Dimples aid in EMI/ESD protection•
Lower insertion/withdrawal force than other 50 •
position products
Available in either open or closed end cover•
Mounting options include #4-40 UNC or metric M2.5 •
threaded inserts
Conforms to Intelligent Peripheral Interface (IPI) •
standard
See Regulatory Information Appendix for chemical •
compliance information
Date Modifi ed: August 8, 2008 TS-0035-C
Sheet 1 of 3
Physical
Insulation:
Material: Glass Filled Polyester (PBT)
Strain Relief Material:
Wire Accommodation:
Electrical
Insulation Resistance:
Withstanding Voltage:
Environmental
Temperature Rating:
Flammability: UL 94V-0
Color: Gray
Contact:
Material: Copper Alloy
Plating:
Underplating: 100 µ" [ 2.54 µm ] Nickel
Wiping Area: 30 µ" [ 0.76 µm ] Gold
Shell:
Material: Steel
Plating: Bright Nickel
Stainless Steel - .020 [ 0.50 ] Thick
26 and 28 AWG Solid or Stranded
Marking:
Current Rating:
3M Logo and Contact Position Numbers
1 A
> 1 × 109Ω at 500 V
1,000 V
-55°C to +105°C
at Sea Level
RMS
DC
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Page 2

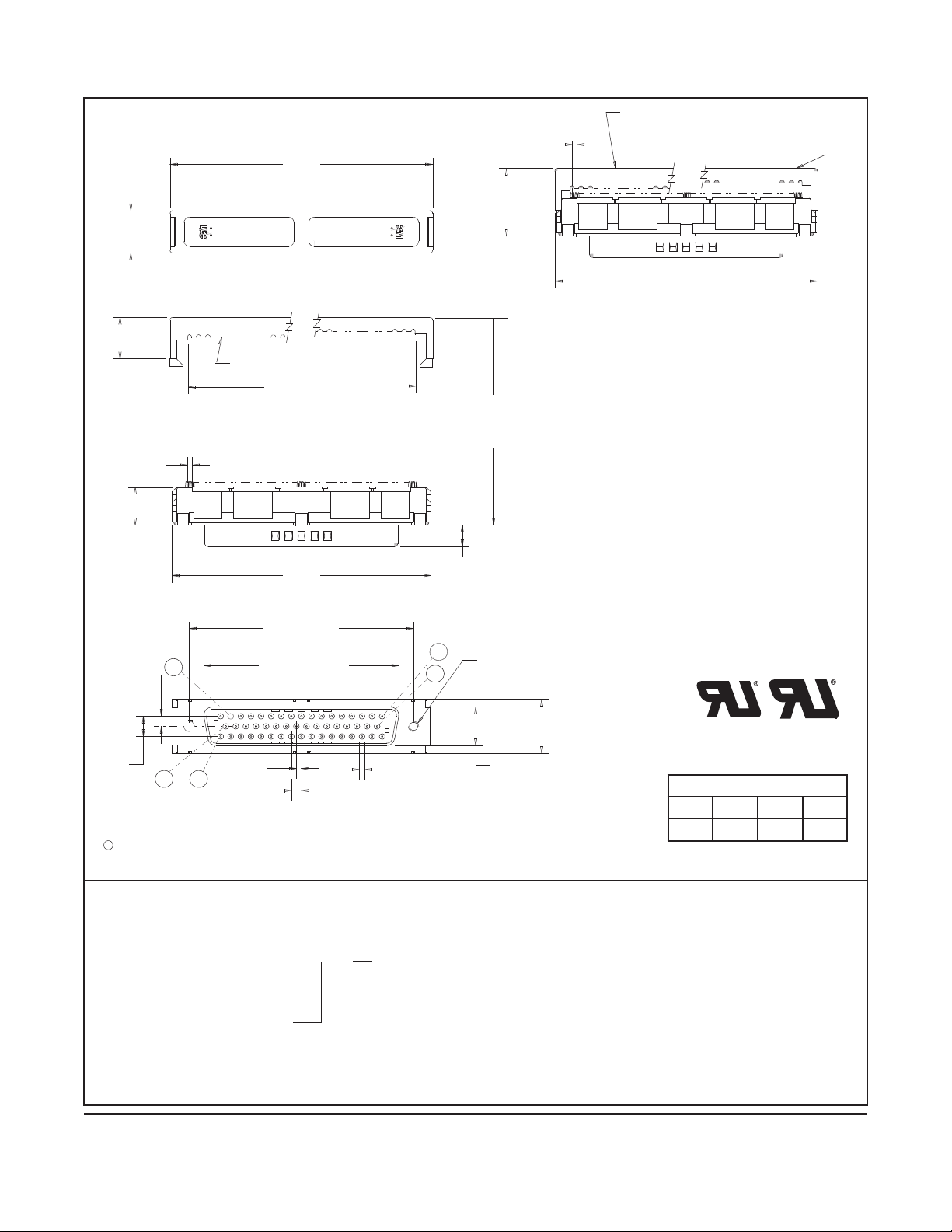

3M™ D Sub Plug
C
1
50
Preassembled
2.79
[ 70.9 ]
.73 Ref
[ 18.5 ]
.050 Ref
[ 1.27 ]
Closed End Cover
Open End Cover
.46 ± .004
[ 11.7 ]
2.53 ± .004
[ 64.3 ]
2.40 ± .004
[ 61.0 ]
2.074 ± .009
[ 52.68 ]
.62
[ 15.7 ]
Assembled
Thickness
Adhesive with Liner
.050 Ref
[ 1.27 ]
.236 + .000 -.010
[ 5.99 ]
2.77
[ 70.4 ]
.42
[ 10.7 ]
.112
[ 2.84 ]
.224
[ 5.69 ]
.054
[ 1.37 ]
.108
[ 2.74 ]
.04
[ 1.02 ]
.43
[ 10.9 ]
See Ordering Information
.281 [ 7.14 ] Max Screw Depth
.60
[ 15.2 ]
2.79
[ 70.9 ]
.47
[ 11.9 ]
49
48
4
23
50 Position 8250 Series
Notes:
XX
1. Circled Numbers represent cable conductor number.
2. Preassembled closed cover is on Pin #1 side.
Ordering Information
Connector
8250 - X00X
Cover Style:
6= Open Cover
7= Closed Cover
Assembly tools: 3M™ Press, 3640 (or equivalent), 3M™ Locator Plate, 3443-112, 3M™ Platen, 3442-44
Mounting Style:
5 = 4-40 UNC
6 = M2.5
Tolerance Unless Noted
.0 .00 .000
Inch ±.1 ±.01 ±.005
[ ] Dimensions for Reference Only
Strain Relief
(Order Separately)
3448 - 8D50
Inch
[mm]
TS-0035-C
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Page 3
3M™ D Sub Plug
.31
[ 7.9 ]
.65
[ 16.5 ]
2.81 [ 71.4 ]
.102
[ 2.6 ]

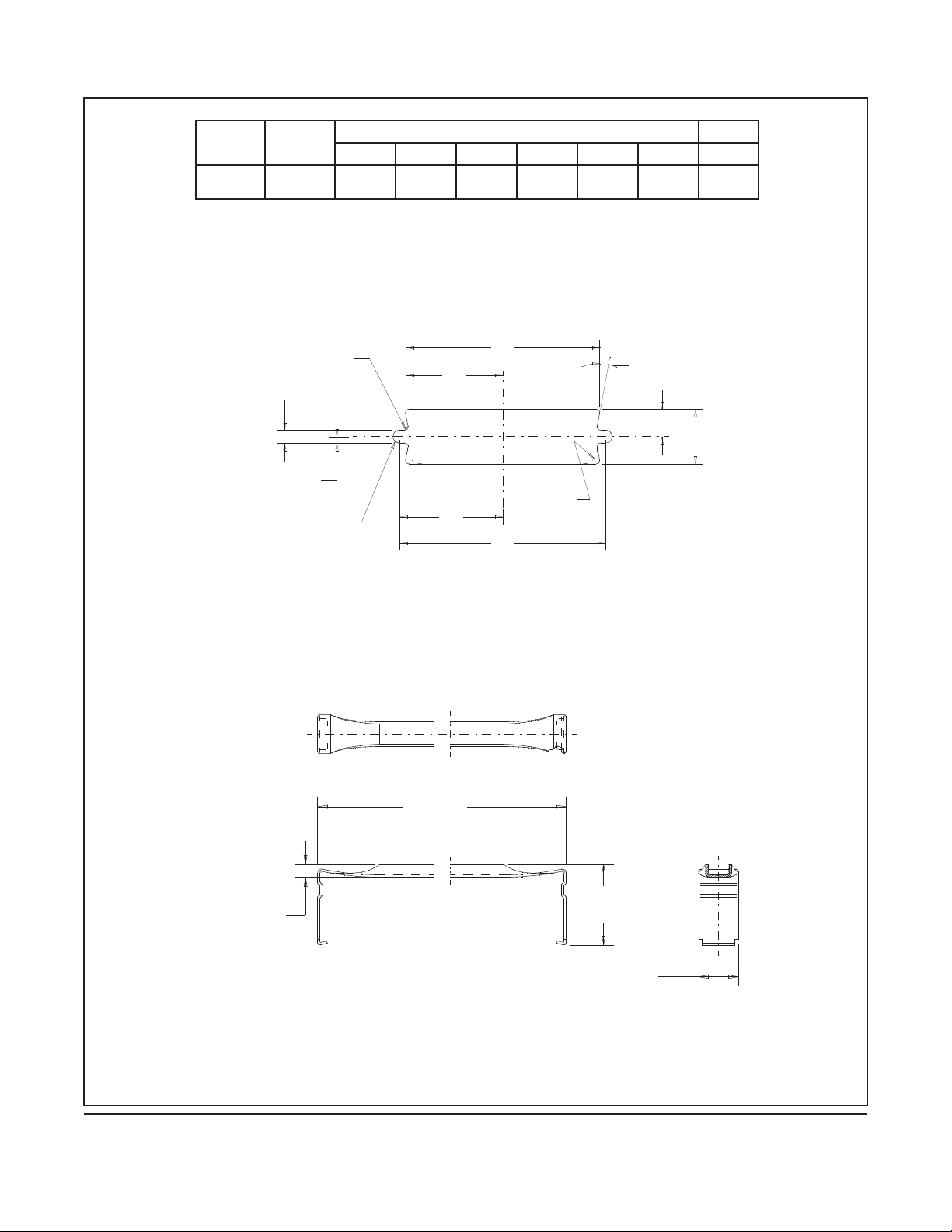

Strain Relief
(Order Separately or with Connector)
Material: Stainless Steel
10° 0° Typ
A1
B1
F1
E1
Alternate
GI Radius
Typ
C1
D1
Full Radius
.060
[ 1.52 ]
.120
[ 3.05 ]
R .032 Max. Typ
[ 0.81 ]
50 Position 8250 Series
Mounting
Method*
Rear 50
* Rear Mount - The connector is mounted behind the panel.
Contact
Quantity
A1 B1 C1 D1 E1 F1 G1
2.218
[56.34]
1.109
[28.17]
Dimensions
2.40
[61.0]
1.20
[30.48]
0.525
[13.34]
0.26
[6.60]
0.120
[3.05]
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
TS-0035-C
Sheet 3 of 3
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Page 4
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC, as amended by EU Commission Decision 2005/717/EC, as amended by
EU Court of Justice Decision 2008/C 116/04
This product contains decaBDE in the insulating material in excess of the maximum concentration allowed for finished
products subject to EU RoHS that are placed on the EU market after June 30, 2008.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
RIA-2217B-E
Page 5
Appendix E5: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in excess of the maximum concentration value allowed but is compliant by exemption under
Item 6 of the Annex to the Directive.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
CHINA
Appendix C1: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.

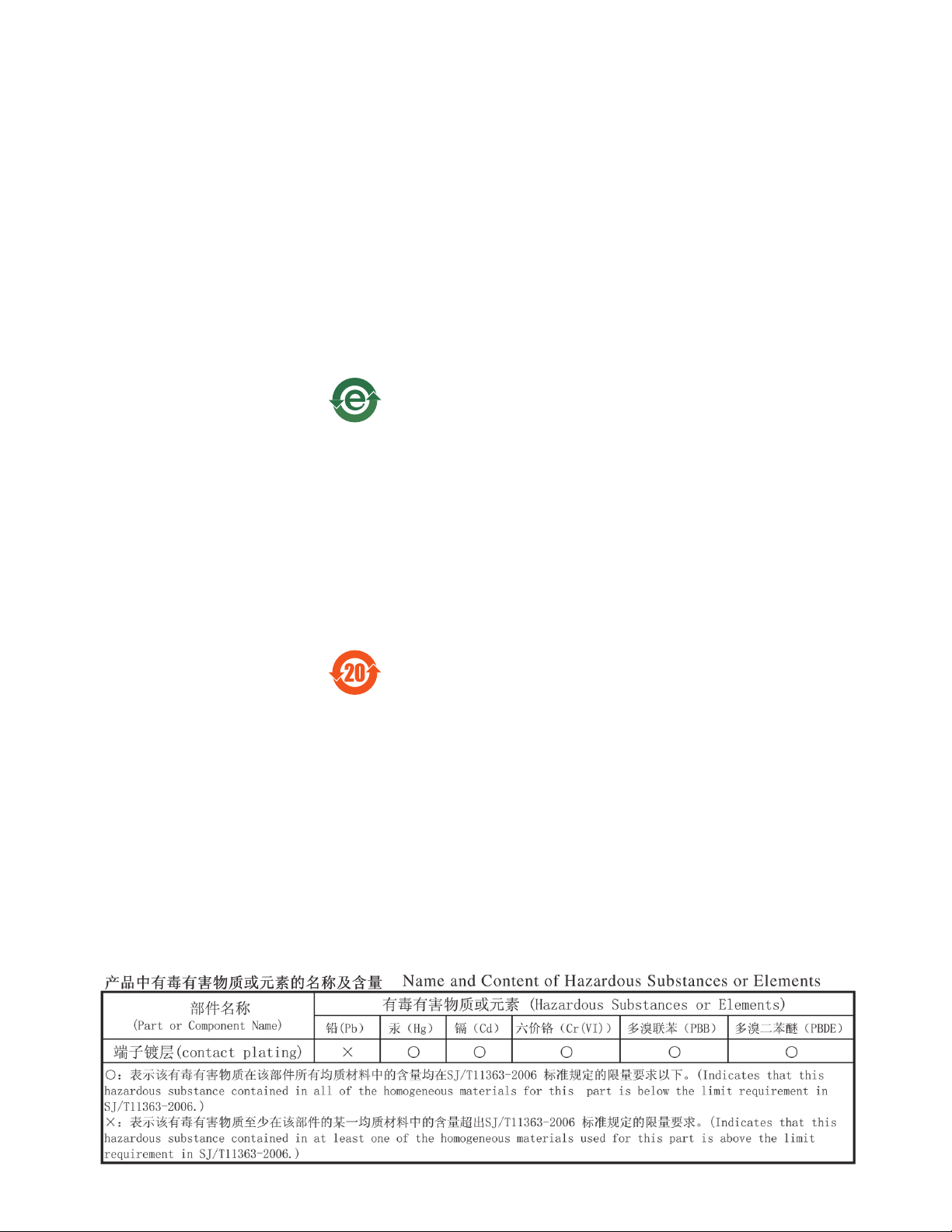

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that the
product or part does not contain any of the following substances in excess of the following maximum concentration values in any
homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated
diphenyl ethers (excluding decaBDE); or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix C2: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that

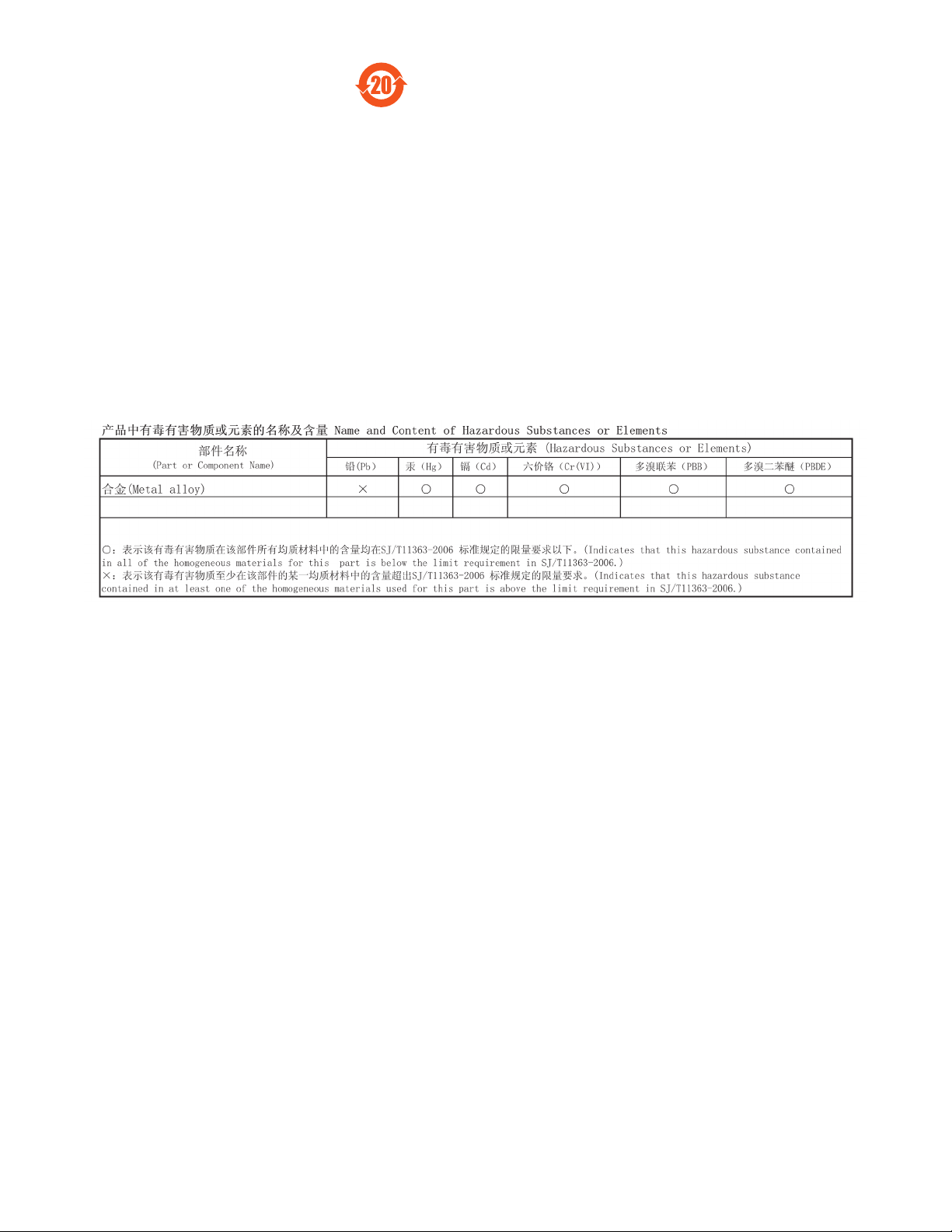

the product or part does contain a substance, as detailed in the chart below, in excess of the following maximum concentration
