3M 82376009 Datasheet

Page 1

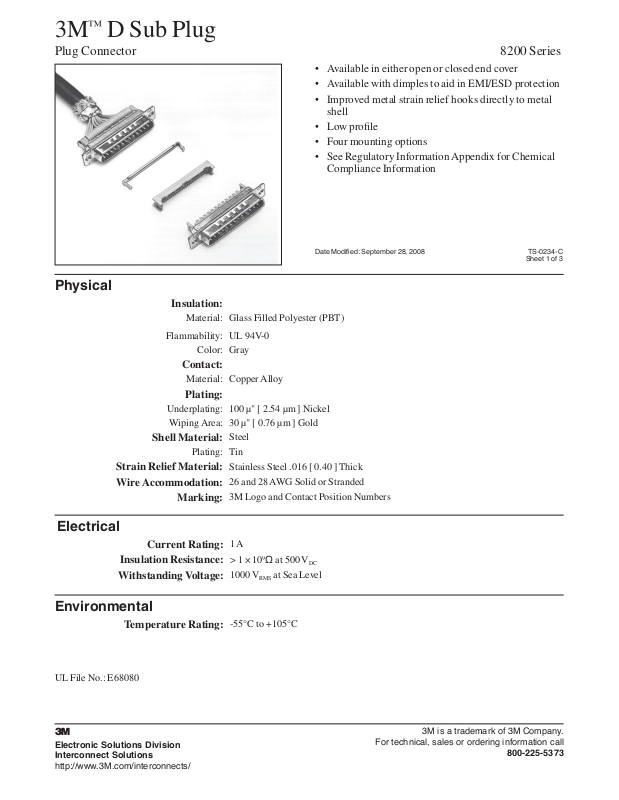

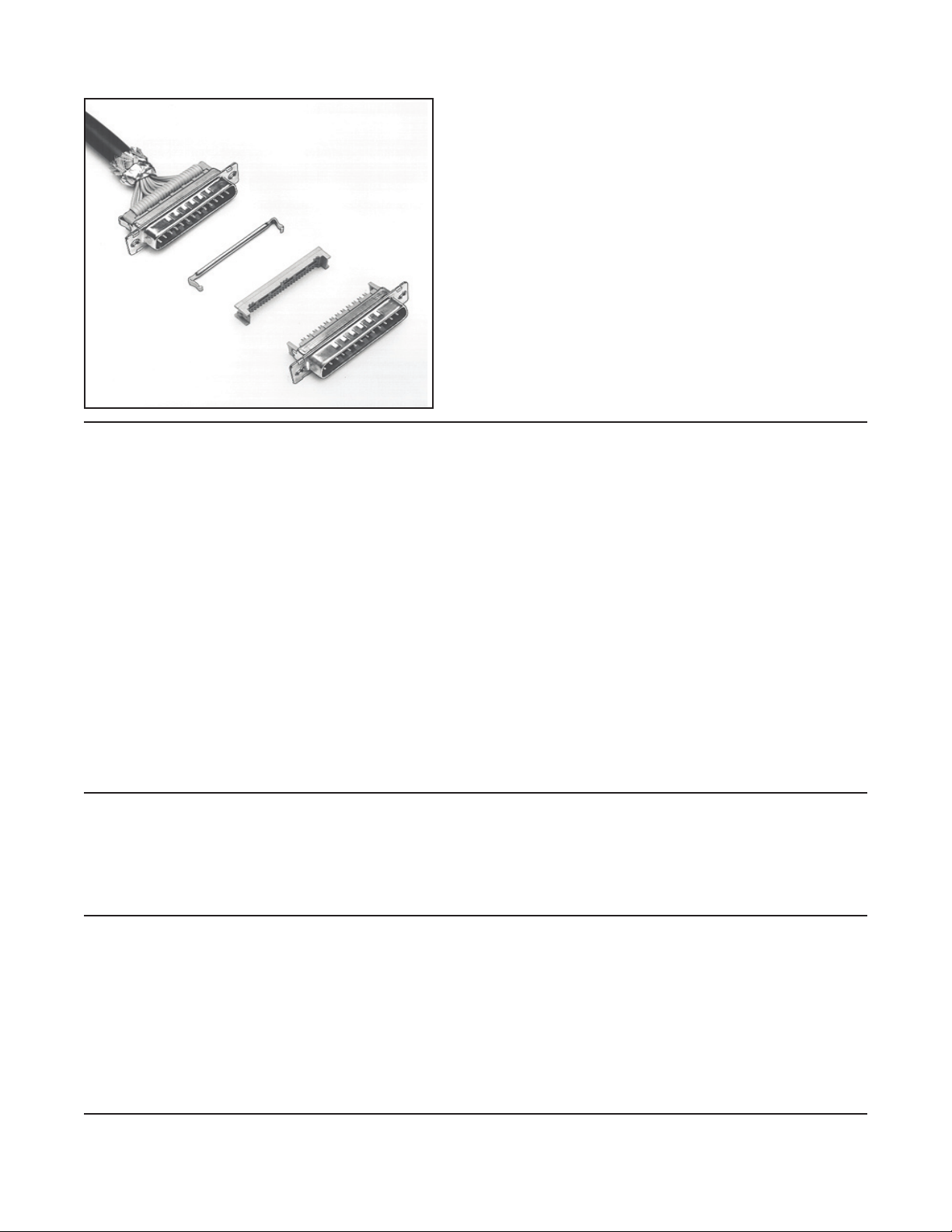

3M™ D Sub Plug

Plug Connector 8200 Series

Available in either open or closed end cover• Available with dimples to aid in EMI/ESD protection• Improved metal strain relief hooks directly to metal •

shell Low proﬁle• Four mounting options• See Regulatory Information Appendix for Chemical •

Compliance Information

Date Modied: September 28, 2008 TS-0234-C Sheet 1 of 3

Physical

Insulation:

Material: Glass Filled Polyester (PBT)

Strain Relief Material: Wire Accommodation:

Electrical

Insulation Resistance:

Withstanding Voltage:

Environmental

Temperature Rating:

Flammability: UL 94V-0

Color: Gray

Contact:

Material: Copper Alloy

Plating:

Underplating: 100 μ" [ 2.54 μm ] Nickel

Wiping Area: 30 μ" [ 0.76 μm ] Gold

Shell Material:

Plating: Tin

Marking:

Current Rating:

Steel

Stainless Steel .016 [ 0.40 ] Thick

26 and 28 AWG Solid or Stranded

3M Logo and Contact Position Numbers

1 A

> 1 × 109Ω at 500 V

1000 V

-55°C to +105°C

at Sea Level

RMS

UL File No.: E68080

Electronic Solutions Division Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

Page 2

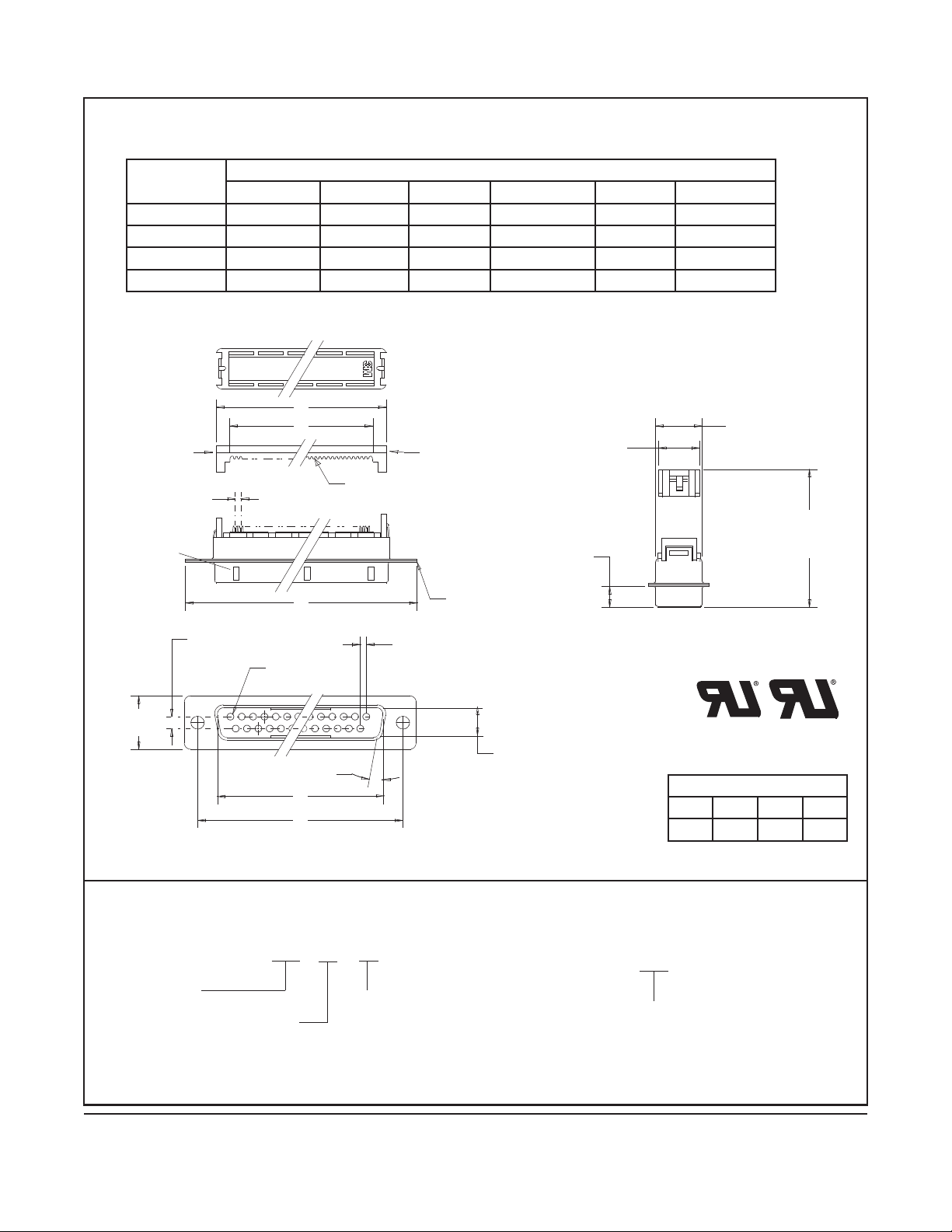

3M™ D Sub Plug

.24 [ 6.0 ]

+.00

-.01

.384

[ 9.75 ]

.42 Ref [ 10.7 ]

.65

[ 16.5 ]

Assembled

Thickness

1312111091 2 3 4 5 6 7

2524232 2212014 15 16 17 18

10° Typ

Open End

Cover 1

Closed End

Cover

Adhesive w/Liner

.050 Typ

[ 1.27 ]

See Page 3 Details

.11 Ref

[ 2.8 ]

.49

[ 12.4 ]

Position 1

.0545 Typ [ 1.384 ]

.295

[ 7.5 ] Note: dimension taken from inside of dimple on inside of

shell.

Note: Number and location of dimples varies by part size.

Plug Connector 8200 Series

Contact

Quantity

A B C D E F ± .008

Dimensions

9 1.22 [30.9] 0.67 [16.9] 0.98 [25.0] 0.46 [11.75] 0.67 [16.92] 0.70 [17.76]

15 1.54 [39.2] 1.00 [25.4] 1.31 [33.3] 0.76 [19.4] 0.99 [25.2] 1.03 [26.15]

25 2.09 [53.0] 1.54 [39.1] 1.85 [47.0] 1.27 [32.2] 1.54 [39.0] 1.58 [40.1]

37 2.73 [69.4] 2.18 [55.43] 2.50 [63.5] 1.87 [47.6] 2.19 [55.56] 2.22 [56.34]

Strain Relief

(Order Separately)

3448 - 8DXXA

For technical, sales or ordering information call

Ordering Information

Connector 82XX - X00X

Contact Quantity

Assembly tools: 3M™ Press, 3640 (or equivalent), 3M™ Locator Plate, 3443-106N, 3M™ Platen, 3442-39N for (9 & 15 pos.) or 3442-41N for (25 & 37 pos.)

Cover Style: 6= Open Cover 7= Closed Cover

Electronic Solutions Division Interconnect Solutions

http://www.3M.com/interconnects/

Mounting Style: 0 = Ø .120 [ 3.05 ] 3 = 4-40 UNC (E5 & C3 Apply) 4 = M3 (E5 & C3 Apply) 9 = Rivet Crimp (E1 & C1 Apply)

(E1 & C1 Apply)

Inch

[mm]

Tolerance Unless Noted

Inch .0 .00 .000

[ ] Dimensions for Reference Only

09 = 9 Position 15 = 15 Position 25 = 25 Position 37 = 37 Position

±.1 ±.01 ±.005

TS-0234-C

Sheet 2 of 3

3M is a trademark of 3M Company.

800-225-5373

Page 3

3M™ D Sub Plug

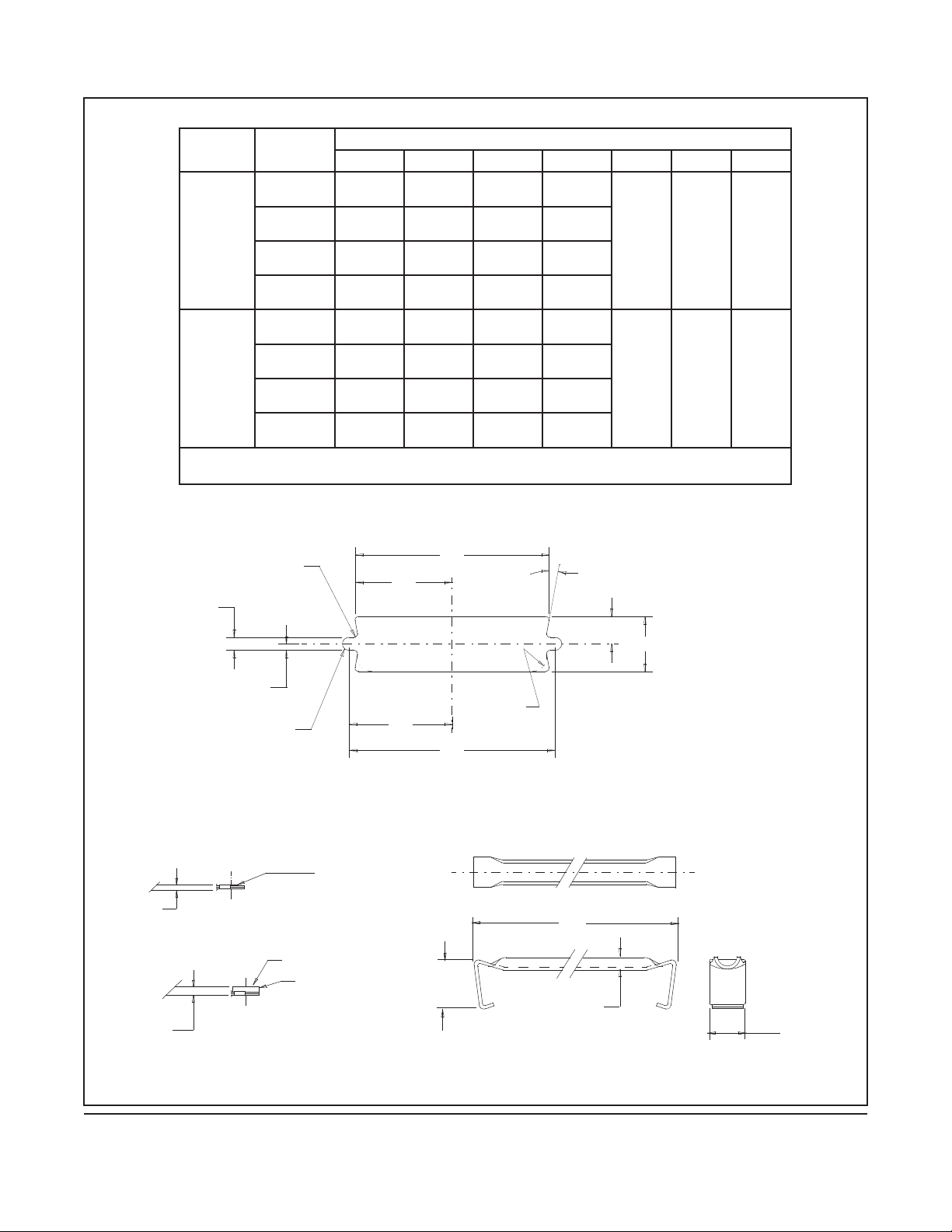

Mounting Styles

.12

[ 3.0 ]

Through Hole

Dia

Standard

.07 Max

[ 1.78 ]

#4-40 UNC

Threaded Inserts

.12

[ 3.0 ]

.16

[ 4.06 ]

Strain Relief

(Order Separately)

Material: Stainless Steel

.242

[ 6.15 ]

+.000

-.010

.06

[ 1.5 ]

10° 0° Typ

Panel Cutout

R .032 Max. Typ [ 0.81 ]

.120

[ 3.05 ]

Alternate GI Radius Typ

.060

[ 1.52 ]

Full Radius

Plug Connector 8200 Series

Mounting

Method*

Contact

Quantity

A1 B1 C1 D1 E1 F1 G1

9 .87

[ 22.1 ]

[ 11.2 ]

15 1.20

Front

[ 30.5 ]

25 1.74

[ 44.2 ]

[ 15.2 ]

[ 22.1 ]

37 2.39

[ 60.7 ]

[ 30.5 ]

9 0.81

[ 20.6 ]

[ 10.2 ]

15 1.13

Rear

[ 28.7 ]

25 1.67

[ 42.4 ]

[ 14.5 ]

[ 21.3 ]

37 2.33

[ 59.2 ]

Front Mount-The connector is mounted in front of the panel. Rear Mount-The connector is mounted behind the panel.

[ 29.5 ]

.44

.60

.87

1.20

.40

.57

.84

1.16

.98

[ 24.9 ]

1.31

[ 33.3 ]

1.85

[ 47.0 ]

2.50

[ 63.5 ]

.98

[ 25.0 ]

1.31

[ 33.3 ]

1.85

[ 47.0 ]

2.50

[ 63.5 ]

Dimensions

.49

[ 12.5 ]

.66

[ 16.8 ]

.93

[ 23.6 ]

1.25

[ 31.8 ]

.49

[ 12.5 ]

.66

[ 16.8 ]

.93

[ 23.6 ]

1.25

[ 31.8 ]

.51

[13.0]

0.45

[11.4]

.26

[6.6]

0.22 [5.6]

.12

[3.0]

.12

[3.0]

Electronic Solutions Division Interconnect Solutions

http://www.3M.com/interconnects/

TS-0234-C

Sheet 3 of 3

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

Page 4

Regulatory Information Appendix

3M Electronic Solutions Division/Interconnect

EUROPE Appendix E1: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as amended by EU Commission Decision 2005/618/EC.

This product is RoHS Compliant 2005/95/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E2: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as amended by EU Commission Decision 2005/618/EC.

This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is compliant by exemption under EU Commission Decision 2005/747/EC.

Appendix E3: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as amended by Commission Decision 2005/618/EC. This product contains lead in the solder tail area in excess of the maximum concentration value allowed. Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

Appendix E4: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as amended by EU Commission Decision 2005/618/EC, as amended by EU Commission Decision 2005/717/EC, as amended by EU Court of Justice Decision 2008/C 116/04

This product contains decaBDE in the insulating material in excess of the maximum concentration allowed for ﬁnished products subject to EU RoHS that are placed on the EU market after June 30, 2008.

Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

RIA-2217B-E

Page 5

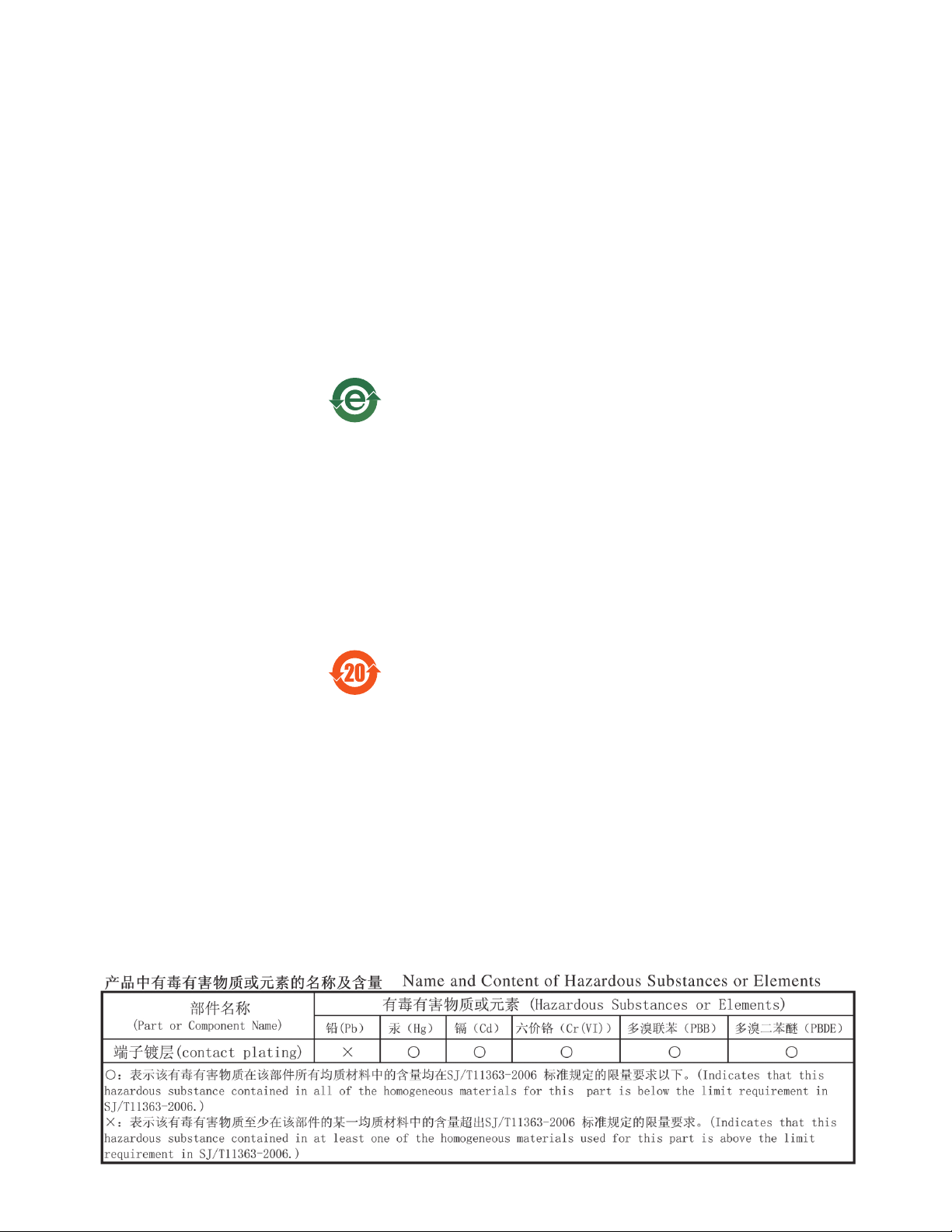

Appendix E5: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment, as amended by EU Commission Decision 2005/618/EC.

This product contains lead in excess of the maximum concentration value allowed but is compliant by exemption under Item 6 of the Annex to the Directive.

CHINA Appendix C1: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Information Products. This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that the product or part does not contain any of the following substances in excess of the following maximum concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers (excluding decaBDE); or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

Appendix C2: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Information Products. This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that the product or part does contain a substance, as detailed in the chart below, in excess of the following maximum concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers (excluding decaBDE); or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in accordance with the product Warranty stated below.

RIA-2217B-E

Page 6

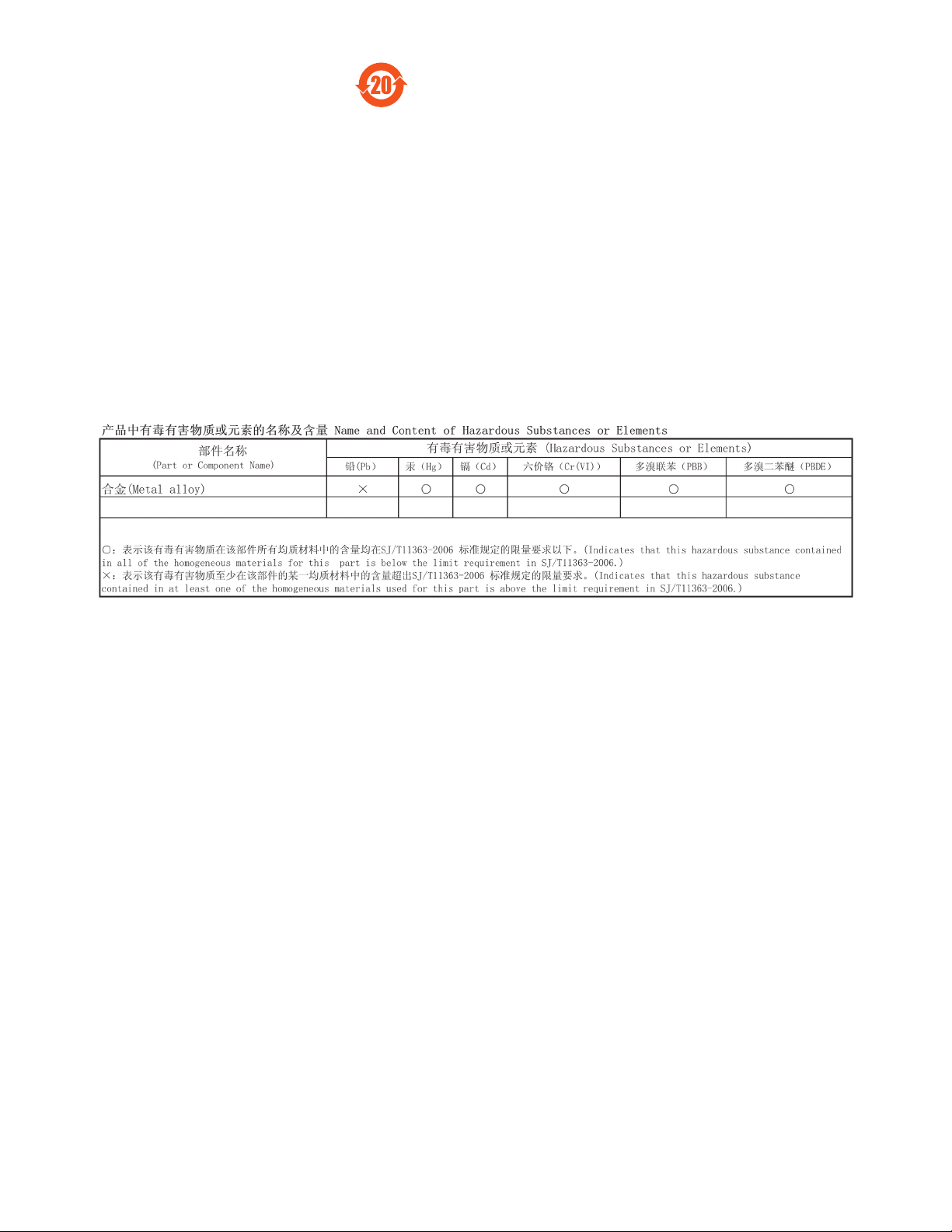

Appendix C3: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that the product or part does contain a substance, as detailed in the chart below, in excess of the following maximum concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers (excluding decaBDE); or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

Important Notice

All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in writing, by an authorized ofﬁcer of 3M.

Warranty; Limited Remedy; Limited Liability.

This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase. 3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.

3M Electronics Solutions Division

6801 River Place Blvd. Austin, T X 78726-9000 U.S.A. 1-800-225-5373 www.3m.com/interconnects 3M is a trademark of 3M Company.
