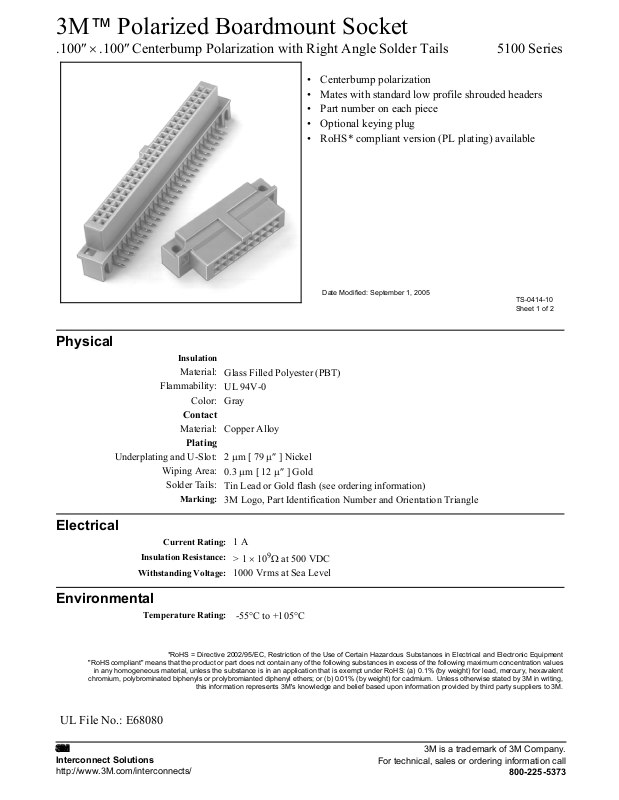

3M™ Polarized Boardmount Socket
.100″ × .100″ Centerbump Polarization with Right Angle Solder Tails 5100 Series
• Centerbump polarization
• Mates with standard low profile shrouded headers
• Part number on each piece
• Optional keying plug
• RoHS* compliant version (PL plating) available
Physical
Electrical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating and U-Slot:
Wiping Area:
Solder Tails:
Marking:
Current Rating:
Insulation Resistance:
Withstanding Voltage:
Date Modified: September 1, 2005
Glass Filled Polyester (PBT)
UL 94V-0
Gray
Copper Alloy
2 µm [ 79 µ″ ] Nickel
0.3 µm [ 12 µ″ ] Gold
Tin Lead or Gold flash (see ordering information)
3M Logo, Part Identification Number and Orientation Triangle
1 A
> 1 × 109Ω at 500 VDC
1000 Vrms at Sea Level
TS-0414-10
Sheet 1 of 2
Environmental
Temperature Rating:
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or prolybromianted diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
*RoHS = Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
-55°C to +105°C
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Page 2
3M™ Polarized Boardmount Socket
.100″ × .100″ Centerbump Polarization with Right Angle Solder Tails 5100 Series
14.6
[ .57 ]
11.3
[ .44 ]
8.9
[ .35 ]
2.54
[ .100 ]
7.6
[ .30 ]
2.54 ± .076
[ .100 ]
Triangle
Indicate
Position 1
Position 1
0.70 x 0.32
[ .028 x .013 ]
Position 2
A
B
C
Position 1
2X ∅ 2.54
[ .100 ]
3.4
[ .13 ]
2.54 Typ
[ .100 ]
51XX 3M
1.0
Centerbump (Standard)
[ .04 ]
2X ∅ 2.54
[ .100 ]
3.6
[ .14 ]
6.1
[ .24 ]
2.54 ± .076
[ .100 ]
Contact
Quantity
20 38.1 [ 1.50] 33.0 [ 1.30 ] 30.0 [ 1.18 ]
26 45.7 [ 1.80 ] 40.6 [ 1.60 ] 37.6 [ 1.48 ]
30 50.8 [ 2.00 ] 45.7 [ 1.80 ] 42.7 [ 1.68 ]
34 55.9 [ 2.20 ] 50.8 [ 2.00 ] 47.7 [ 1.88 ]
40 63.5 [ 2.50 ] 58.4 [ 2.30 ] 55.4 [ 2.18 ]
50 76.2 [ 3.00 ] 71.1 [ 2.80 ] 68.1 [ 2.68 ]
60 88.9 [ 3.50 ] 83.8 [ 3.30 ] 80.8 [ 3.18 ]
64 93.9 [ 3.70 ] 88.9 [ 3.50 ] 85.8 [ 3.38 ]
4.44
[ .175 ]
0.45
[ .018 ]
A B C
Dimensions
[ .146 ]
0.7
[ .028 ]
8.3
[ .327 ]
[ .33 ]
6.4
[ .25 ]
[ .102 ]
2.54 Ref
[ .100 ]
3.7
8.4
2.6
2.9
[ .114 ]
Position 2
∅ 0.90 ± .076 Typ
[ .035 ]
B
Recommended Mounting Hole Pattern
(Shown for top side of PC board)
mm
[Inch]
Tolerance Unless Noted
.0
mm
[ ] Dimensions for
Reference only
Note:
1. Recommended to be mated to the .100″ x .100″ low profile header and the 4600 series
plug connector. note the ejector latches cannot be used with the 4600 series plug.
.000.00
± .15 ± .3
Ordering Information
Sockets
51XX-B7A2XL
Contact Quantity:
See Table
3M
Interconnect Solutions
http://www.3M.com/interconnects/
Breakaway
Tab
3435
.24
[ 6.1 ]
.032
[ 0.81 ]
.026
[ 0.66 ]
.051
[ 1.30 ]
3435-0
Keying Plug
(Optional: Order Separately)
Tail plating:
J = Tin-lead
P = Gold flash (RoHS compliant)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
TS-0414-10
Sheet 2 of 2
800-225-5373
