32 Degrees Icon Z User Manual

user manual

WARNING: This is not a toy. Misuse may cause serious injury or death. Eye protection

designed specifically for paintball must be worn by the user and persons within range. Recommend
18 years of age or older to purchase. Persons under 18 years of age must have adult supervision.
READ OWNER’S MANUAL BEFORE USING.

Rules of Safe Marker Handling

1. Treat every marker as if it were loaded.

2. Never look down the barrel of a paintball marker.

3. Keep your finger off the trigger until ready to shoot.

4. Never point the marker at anything you don’t wish to shoot.

5. Keep the marker on “safe” until ready to shoot.

6. Keep the barrel blocking device in/on the marker’s muzzle when not shooting.

7. Always remove paintballs and propellant source before disassembly.

8. After removing propellant source, point marker in safe direction and discharge until
marker is degassed.

9. Store the marker unloaded and de-gassed in a secure place.

10. Follow warnings listed on propellant source for handling and storage.

11. Do not shoot at fragile objects such as windows.

12. Every person within range must wear eye, face and ear protection designed
specifically to stop paintballs and meeting ASTM standard F1776.

13. Always measure your marker’s velocity before playing paintball and never shoot at
velocities in excess of 91.44 meters (300 feet) per second.

TABLE OF CONTENTS:

Page Topic(s)

2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Welcome

Warranty Information

3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Initial Assembly

Attaching Propellant Source

Attaching Feeder/Hopper

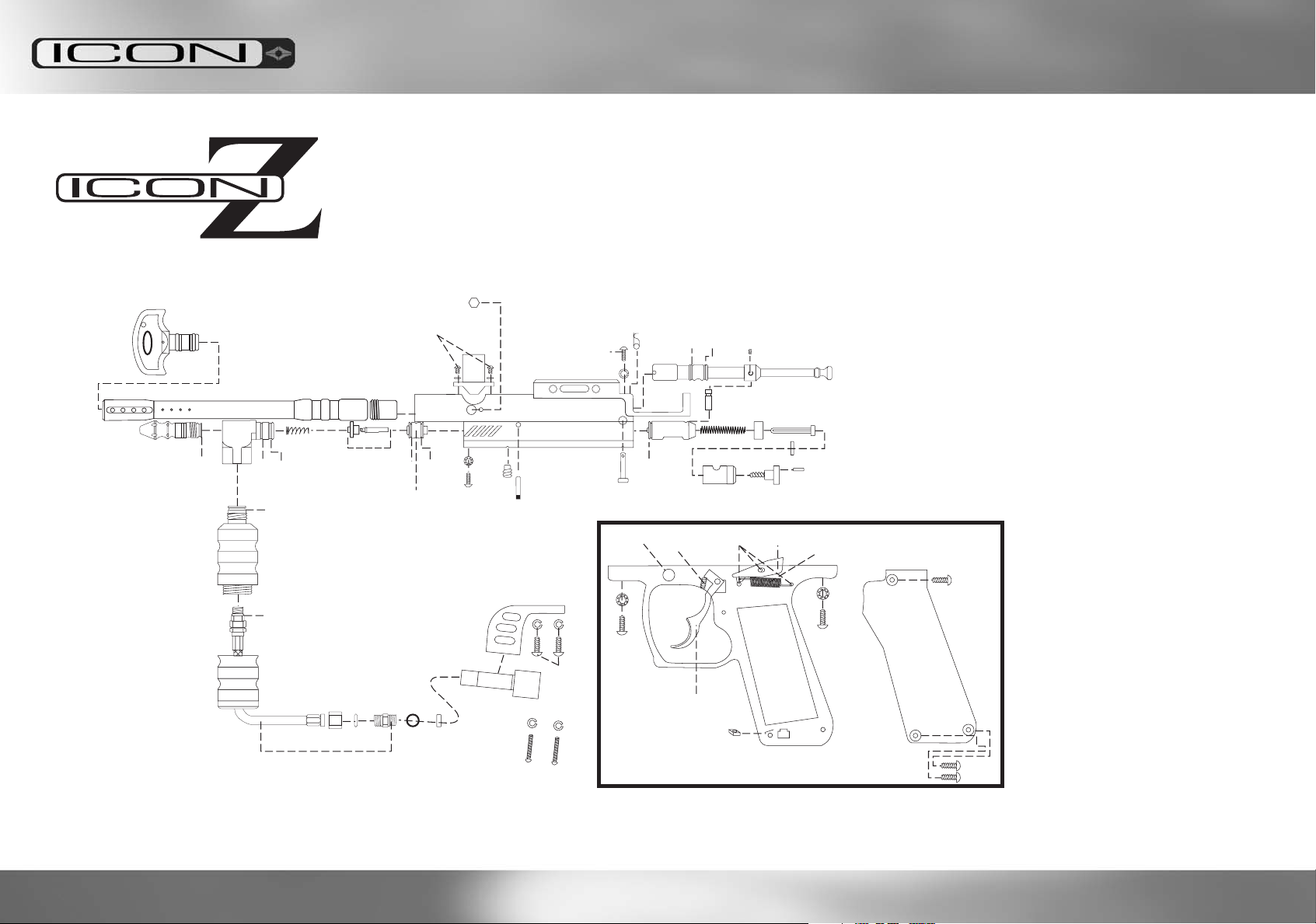

4-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Exploded Diagram

Parts Key

6-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Recommended Accessories

8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Loading Paintballs

Chronographing

De-Gassing

9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Maintenance

10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Storage

Trouble Shooting Guide

11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Warranty Registration

1

Welcome . . . Thank you, for purchasing this Icon Z Paintball marker. The Icon Z

represents the culmination of a great deal of research and development focused on
creating a marker with outstanding performance and durability at a reasonable price. The
aircraft grade aluminum upper receiver with a quick strip pin, ambidextrous cocking,
stainless steel hose, bottom line, drop forward and dual finger trigger are all features
usually available on much pricier markers or only through a great deal of after-market
expense. We believe that the affordability of a reliable, feature packed marker will
improve your playing experience.

Play hard, play safe, play to win!

W

ARRANTY INFORMATION

Standard Warranty:
The manufacturer warranties to the original customer that this product is free from
defects in material and workmanship under normal use and service for a period of 90
days from the original date of purchase by the initial owner/purchaser. The manufactur­er agrees to repair or replace (at its discretion) any product within a reasonable period
of time. This warranty does not cover: o-rings, scratches, nicks, normal wear and tear of
parts, any modifications or normal fading of anodizing or damage caused by dropping or
hitting of the product. This warranty shall not apply if it is shown by the manufacturer that
the consumer caused the defect or malfunction because of misuse. This warranty only
covers original factory parts. Any modifications or tampering of original factory parts will
not be covered by this warranty. Warranty work can only be conducted by the manufac­ture technicians and or authorized technicians. If product needs to be repair, package it
carefully and send it together with your name, address, phone number and a brief
description of the malfunction to:

Paintball Solutions
570 Mantua Blvd
Sewell, NJ 08080

Extended Warranty:

By returning the enclosed warranty registration card or registering your warranty on-line
at www.PaintballSolutions.com, within fifteen days of purchase the warranty will auto­matically be extended for an additional year.

Numbers shown in parentheses following part names correspond
to the numbers on the Parts key located on the centerfold pages
of this manual.

Initial

Assembly

1. Screw Barrel (23) hand tight into the Main Body (34).

2. Screw Velocity Adjuster (12) into the Rear Plug (24) approximately two complete turns.

3. Place Barrel Blocking Device on/into the end of the Barrel (23).

4. Push the safety (41) into the “safe” position (push from left to right when looking
down the sights).

Attaching Propellant Source

1. Confirm that Barrel Blocking Device is properly installed and the marker is on “Safe”.

2. Cock the marker by pulling the Bolt (28) in the rearward direction until it “clicks”
into place. This compresses the Main Spring (2) and allows the Cup Seal (7) to
properly seat.

3. Point the marker downward and in a safe direction.

4. Place the leading end of the propellant cylinder threads into the threaded interface
of the Tank Adapter (14).

5. Without pushing, twist the propellant cylinder in a clockwise direction and allow the
cylinder threads to “draw” the cylinder into the ASA. DO NOT force the cylinder
which could cause cross threading.

6. Screw the propellant cylinder completely in until it is firmly seated.

Attaching Feeder/Hopper

Due to the high rate of fire capability of this marker, we highly recommend the use of a
motorized hopper such as the Diablo TSA or Empire Reloader.

1. Confirm that Barrel Blocking Device is properly installed and the marker is on “Safe”.

2. Loosen both thumb screws on the Straight Elbow without removing them.

3. Place the smaller opening of the Straight Elbow over the top of the Vertical Feed
Tube (11) and tighten the lower thumb screw until tight.

4. Press neck of Feeder/Hopper into the top of the Straight Elbow until completely seated.

5. Orient the Feeder/Hopper so that the lid is facing the rear of the marker and the
Feeder/Hopper is parallel to the Main Body.

6. Tighten the upper thumb screw on the Straight Elbow until the Feeder/Hopper neck
is firmly held in place.
