Assembly Instructions
Instructions d’assemblage
Instrucciones de ensamblado
Page 2
Before beginning, review these instructions completely.
Always check local building codes.
Select roof and trim materials, and door hardware, (not included in Material List) if desired.
T-Hinge recommended for door. Other types of hinges may require modification to door width.
Avant de commencer, bien lire au complet ces instructions.
Toujours vérifier les codes locaux du bâtiment.
Sélectionner les matériaux de toit et de garniture, et la quincaillerie de porte, (non compris dans la
Liste des matériaux) si désiré.
Charnières en T recommandées pour la porte. D’autres types de charnières peuvent nécessiter une
modification à la largeur de la porte.
Antes de empezar, lea estas instrucciones completamente.
Siempre verifique los códigos de construcción locales.
Seleccione los materiales para el techo y el borde, y la herrajería para puertas (no incluida en la
lista de materiales), si lo desea.
Se recomienda bisagra en T para la puerta. Otros tipos de bisagra pueden requerir modificación del
ancho de la puerta.
始める前に、この説明書をすべてお読みください。
お住まいの地域の建築基準法を必ず確認してください。
材料リストには載っていない屋根材やトリム (装飾)、そしてドア金具などをお好みで選択してください。
ドアにはT型のちょうつがいをお勧めします。その他のちょうつがいは、
ドアの幅を調節する必要のあることがあります。
Page 3

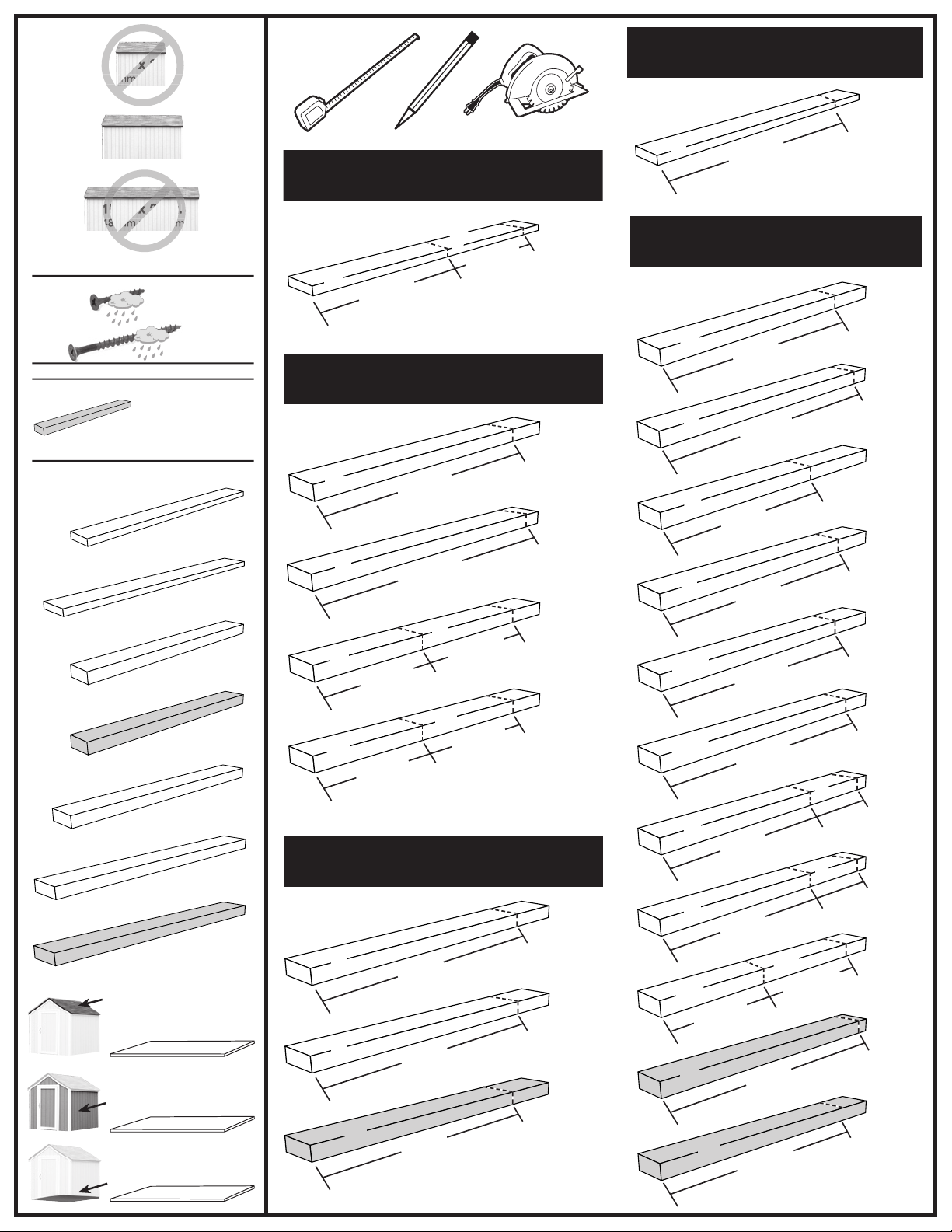

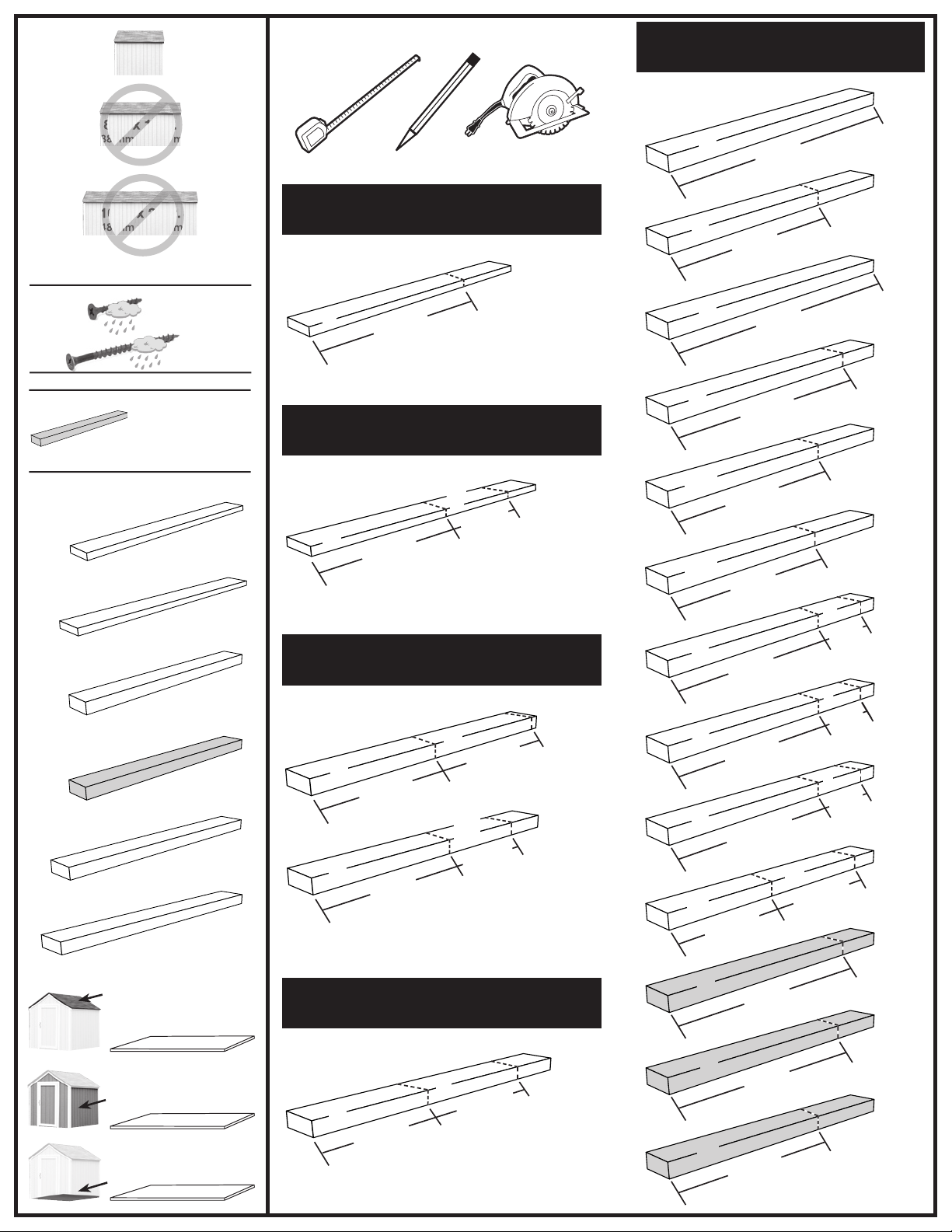

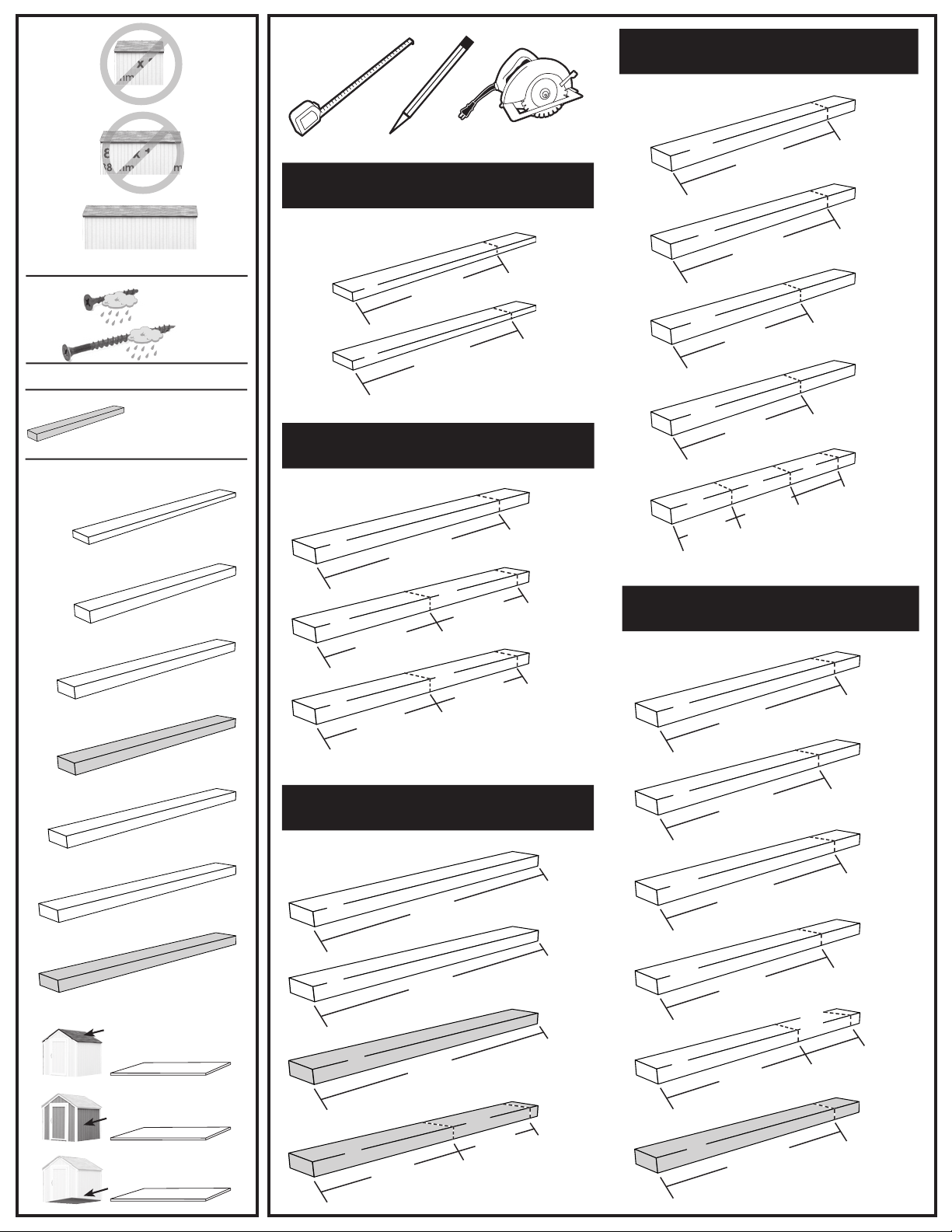

8 ft. x 14 ft.
1 1/4 in.
[32 mm]
2 1/2 in.
[64 mm]
7 ft. x 8 ft.
[2134 mm x 2438 mm]
8 ft. x 14 ft.
[2438 mm x 4267 mm]
10 ft. x 22 ft.
[3048 mm x 6706 mm]
3 lbs.
[1.4 kg]
3 lbs.
[1.4 kg]
1x4 x 8 ft.
[19 mm x 89 mm x 2438 mm]
Y
71 1/4 in.
[1810 mm]
x1
2x4 x 8 ft.
[38 mm x 89 mm x 2438 mm]
F
G
J
96 in.
[2438 mm]
76 in.
[1930 mm]
96 in.
[2438 mm]
x2
x1
x3
x1
Pressure-treated
Traité sous pression
=
Tratado de presión
加圧注入
1x4 x 8 ft.
[19 mm x 89 mm x 2438 mm]
1x4 x 10 ft.
[19 mm x 89 mm x 3048 mm]
2x4 x 8 ft.
[38 mm x 89 mm x 2438 mm]
2x4 x 8 ft.
[38 mm x 89 mm x 2438 mm]
2x4 x 10 ft.
[38 mm x 89 mm x 3048 mm]
2x4 x 12 ft.
[38 mm x 89 mm x 3658 mm]
x1
x1
x21
x7
x4
x5
1x4 x 10 ft.
[19 mm x 89 mm x 3048 mm]
V
38 1/4 in.
Y
71 1/4 in.
[1810 mm]
2x4 x 10 ft.
[38 mm x 89 mm x 3048 mm]
0
0
58 1/2 in.
[1486 mm]
ZZ
Z
33 1/2 in.
71 in.
[1803 mm]
[972 mm]
58 1/2 in.
[1486 mm]
[851 mm]
x1
x2
x2
R
HH
NN
G
N
N
M
87 1/4 in.
76 1/8 in.
[1934 mm]
72 in.
[1829 mm]
76 in.
[1930 mm]
75 1/2 in.
[1918 mm]
75 1/2 in.
[1918 mm]
42 1/4 in.
[1073 mm]
[2216 mm]
M
42 1/4 in.
[1073 mm]
S
L
14 1/2 in.
T
15 3/8 in.
[391 mm]
[368 mm]
17 3/8 in.
[441 mm]
x3
x2
x1
x2
x2
x4
x2
4 ft.x8 ft.
[1219 mm x 2438 mm]
4 ft.x8 ft.
[1219 mm x 2438 mm]
4 ft.x8 ft.
[1219 mm x 2438 mm]
x3
x9
x2
2x4 x 12 ft.
[38 mm x 89 mm x 3658 mm]
K
66 1/4 in.
K
66 1/4 in.
[1683 mm]
[1683 mm]
x5
P
E
H
89 in.
[2261 mm]
83 in.
[2108 mm]
76 1/8 in.
[1934 mm]
x2
x3
Page 4
[2134 mm x 2438 mm]
[2438 mm x 4267 mm]
[3048 mm x 6706 mm]
1 1/4 in.
[32 mm]
2 1/2 in.
[64 mm]
[19 mm x 89 mm x 3658 mm]
[38 mm x 89 mm x 3048 mm]
[38 mm x 89 mm x 4877 mm]
7 ft. x 8 ft.
8 ft. x 14 ft.
10 ft. x 22 ft.
Pressure-treated
Traité sous pression
=
Tratado de presión
加圧注入
1x4 x 8 ft.
[19 mm x 89 mm x 2438 mm]
1x4 x 12 ft.
2x4 x 8 ft.
[38 mm x 89 mm x 2438 mm]
2x4 x 8 ft.
[38 mm x 89 mm x 2438 mm]
2x4 x 10 ft.
2x4 x 16 ft.
2x4 x 16 ft.
[38 mm x 89 mm x 4877 mm]
4 ft.x8 ft.
[1219 mm x 2438 mm]
4 ft.x8 ft.
[1219 mm x 2438 mm]
4 ft.x8 ft.
[1219 mm x 2438 mm]
3 lbs.
[1.4 kg]
3 lbs.
[1.4 kg]
x37
x14
x1
x1
x8
x5
x2
x5
x14
x4
1x4 x 12 ft.
[19 mm x 89 mm x 3658 mm]
V
48 1/4 in.
Y
84 1/4 in.
[2140 mm]
2x4 x 10 ft.
[38 mm x 89 mm x 3048 mm]
N
R
U
M
[38 mm x 89 mm x 4877 mm]
F
J
P
99 1/4 in.
114 3/4 in.
48 1/4 in.
[1226 mm]
49 1/8 in.
[1248 mm]
2x4 x 16 ft.
168 in.
[2521 mm]
[2915 mm]
U
[4267 mm]
168 in.
[4267 mm]
161 in.
[4089 mm]
48 1/4 in.
[1226 mm]
M
49 1/8 in.
[1248 mm]
[1226 mm]
x1
x4
x1
x1
x8
x2
x3
x2
1x4 x 8 ft.
[19 mm x 89 mm x 2438 mm]
Y
84 1/4 in.
[2140 mm]
2x4 x 8 ft.
[38 mm x 89 mm x 2438 mm]
G
K
88 in.
[2235 mm]
90 1/4 in.
[2292 mm]
O
72 in.
[1829 mm]
Z
HH
NN
O
O
ZZ
43 1/2 in.
E
[1105 mm]
H
84 in.
[2134 mm]
88 1/8 in.
[2238 mm]
95 3/4 in.
[2432 mm]
72 in.
[1829 mm]
72 in.
[1829 mm]
95 in.
[2413 mm]
88 1/8 in.
[2238 mm]
ZZ
43 1/2 in.
[1105 mm]
S
T
19 1/8 in.
[486 mm]
22 1/16
[560 mm]
x1
x2
x16
x6
x2
x6
x2
x1
x1
in.
x1
x2
x6
Page 5
7 ft. x 8 ft.
8 ft. x 14 ft.
[2134 mm x 2438 mm]
2x4 x 8 ft.
[38 mm x 89 mm x 2438 mm]
x24
1 1/4 in.
[32 mm]
2 1/2 in.
[64 mm]
8 ft. x 14 ft.
[2438 mm x 4267 mm]
10 ft. x 22 ft.
[3048 mm x 6706 mm]
Pressure-treated
Traité sous pression
=
Tratado de presión
加圧注入
1x4 x 8 ft.
[19 mm x 89 mm x 2438 mm]
2x4 x 8 ft.
[38 mm x 89 mm x 2438 mm]
2x4 x 10 ft.
[38 mm x 89 mm x 3048 mm]
2x4 x 10 ft.
[38 mm x 89 mm x 3048 mm]
5 lbs.
[2.3 kg]
5 lbs.
[2.3 kg]
x42
x22
x10
x3
1x4 x 8 ft.
[19 mm x 89 mm x 2438 mm]
V
Y
69 1/2 in.
[1765 mm]
84 1/4 in.
[2140 mm]
2x4 x 12 ft.
[38 mm x 89 mm x 3658 mm]
R
121 1/8 in.
[3077 mm]
M
M
3 1/2 in.
6
[1613 mm]
6
U
U
69 1/2 in.
[1765 mm]
3 1/2 in.
[1613 mm]
69 1/2 in.
[1765 mm]
x1
x2
x1
x12
x1
K
90 1/4 in.
[2292 mm]
O
90 1/4 in.
[2292 mm]
FF
72 in.
[1829 mm]
JJ
72 in.
[1829 mm]
S
T
T
33 in.
[838 mm]
[38 mm x 89 mm x 3048 mm]
G
33 in.
[838 mm]
2x4 x 10 ft.
112 in.
[2845 mm]
24 1/8 in.
x12
x2
x3
x1
[613 mm]
x2
x4
2x4 x 12 ft.
[38 mm x 89 mm x 3658 mm]
2x4 x 16 ft.
[38 mm x 89 mm x 4877 mm]
2x4 x 16 ft.
[38 mm x 89 mm x 4877 mm]
4 ft.x8 ft.
[1219 mm x 2438 mm]
4 ft.x8 ft.
[1219 mm x 2438 mm]
4 ft.x8 ft.
[1219 mm x 2438 mm]
x14
x5
x4
x9
x17
x7
2x4 x 16 ft.
[38 mm x 89 mm x 4877 mm]
F
J
P
192 in.
[4877 mm]
192 in.
[4877 mm]
192 in.
[4877 mm]
E
119 in.
[3023 mm]
PP
65 in.
[1651 mm]
x2
x3
x2
x2
N
HH
NN
Z
H
100 1/2 in.
[2553 mm]
112 1/8 in.
[2848 mm]
97 in.
[2464 mm]
84 in.
[2134 mm]
112 1/8 in.
[2848 mm]
ZZ
30 3/4 in.
[781 mm]
x10
x2
x4
x10
