2N IP Handset User manual

Software Version: 1.4.1
Release Date：2020/11/01

User Manual

2N® IP Handset

I

Directory

Directory .............................................................................................................................................................. I

1 Picture ........................................................................................................................................................... IV

2 Table ................................................................................................................................................................. V

3 Safety Instruction ............................................................................................................................................. 1

4 Overview ........................................................................................................................................................... 2

4.1 Overview ............................................................................................................................................... 2

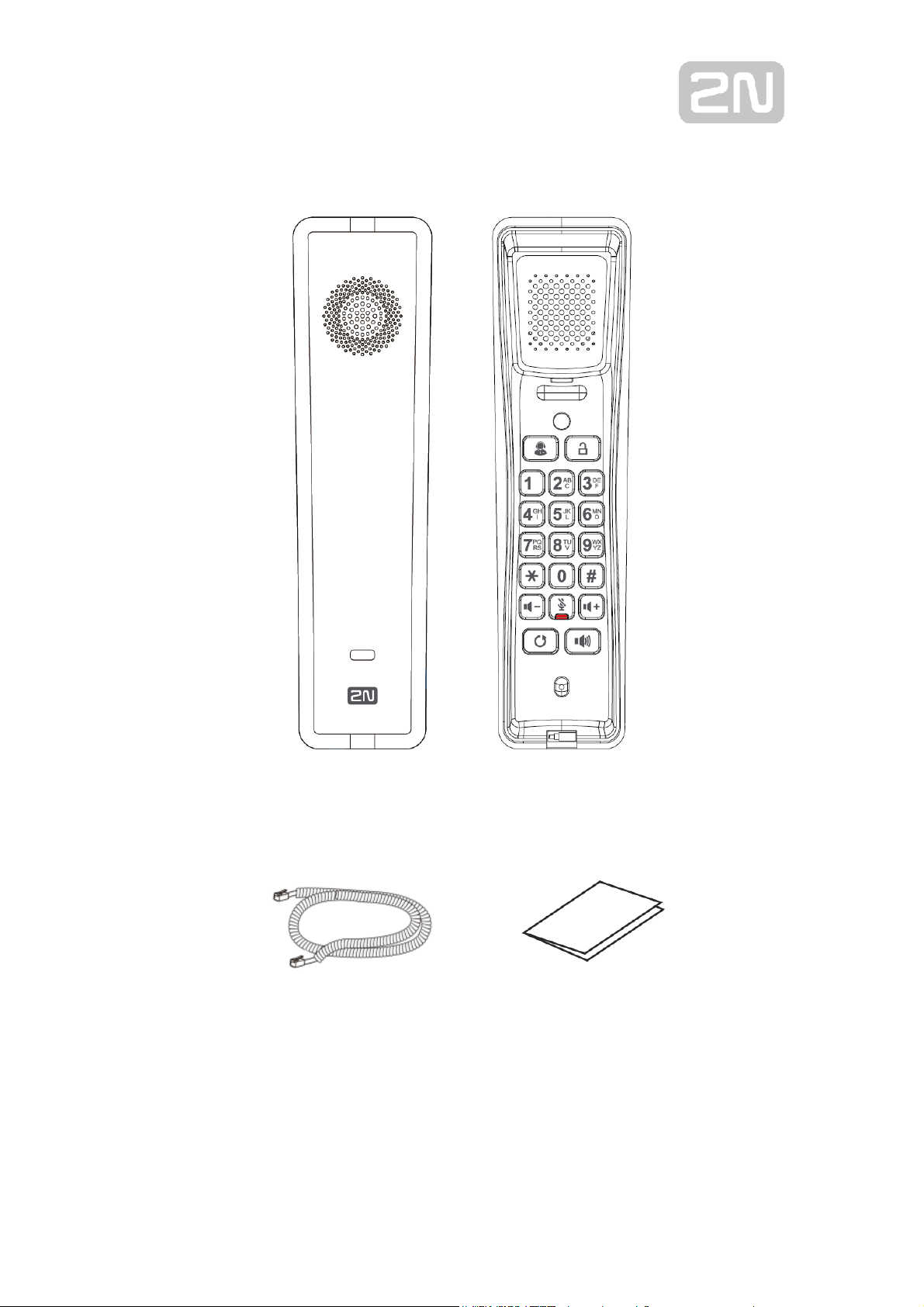

4.2 Packing Contents................................................................................................................................... 3

5 Desktop Installation ......................................................................................................................................... 4

5.1 PoE And the use of external power adapters......................................................................................... 4

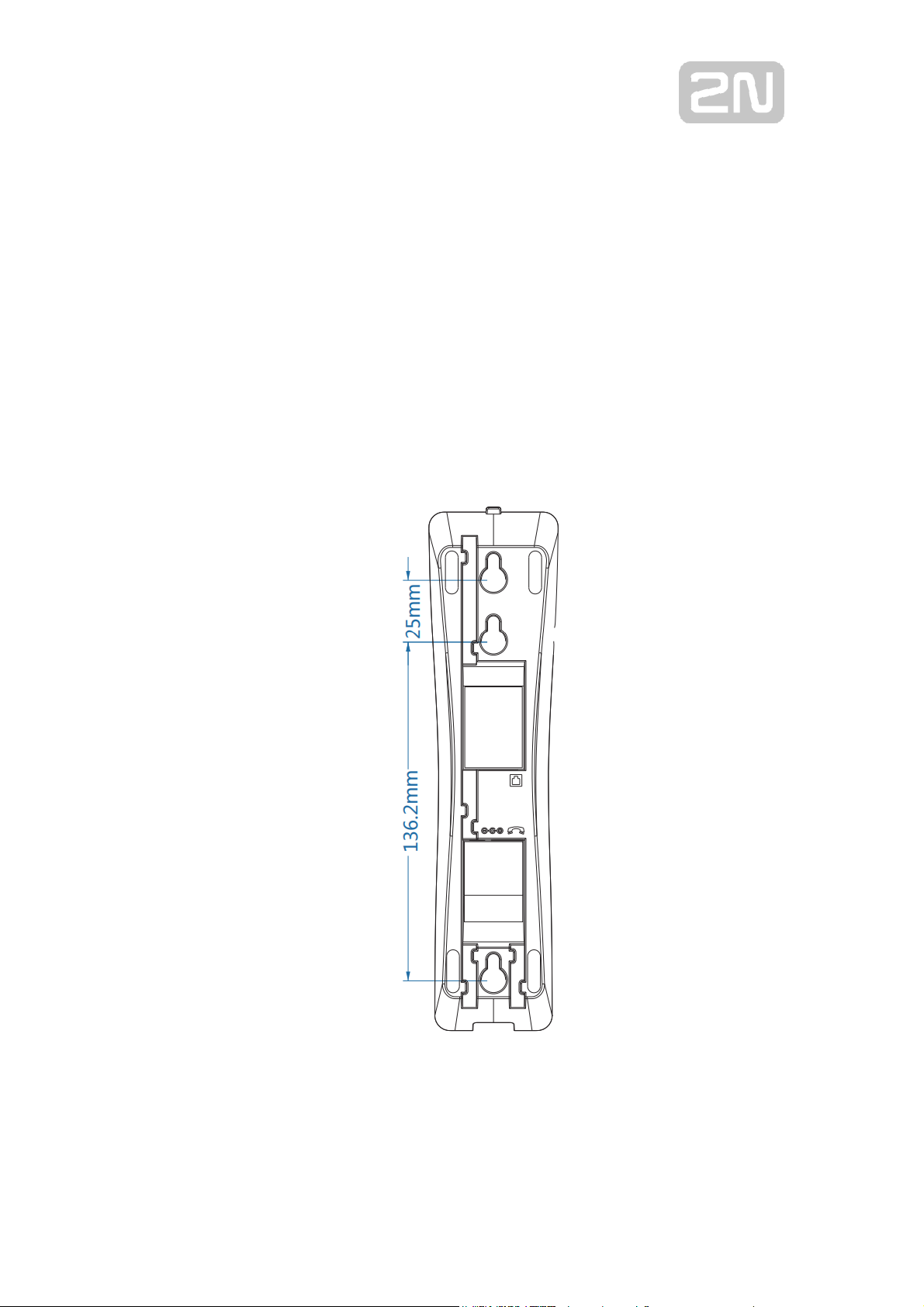

5.2 Wall mounted installation method ........................................................................................................ 5

6 Appendix Table ................................................................................................................................................ 7

6.1 Appendix I –LED Definition ................................................................................................................ 7

7 Introduction to the User .................................................................................................................................. 8

7.1 Instruction of Keypad .......................................................................................................................... 8

7.2 Using Handset / Hands-free Speaker .................................................................................................. 10

8 Basic Function ................................................................................................................................................ 11

8.1 Making Phone Calls ............................................................................................................................ 11

8.2 Answering Calls .................................................................................................................................. 11

8.3 End of the Call .................................................................................................................................... 11

8.4 Redial .................................................................................................................................................. 12

8.5 Auto-Answering .................................................................................................................................. 12

8.6 Mute .................................................................................................................................................... 13

8.6.1 Mute the Call ............................................................................................................................. 13

8.6.2 Ringing Mute ............................................................................................................................. 13

8.7 Call Hold/Resume ............................................................................................................................... 13

8.8 Call Waiting ........................................................................................................................................ 13

8.9 Conference .......................................................................................................................................... 14

8.9.1 Local Conference ...................................................................................................................... 14

8.9.2 Network Conference .................................................................................................................. 15

8.10 Hotline ............................................................................................................................................... 16

9 Advance Function .......................................................................................................................................... 18

9.1 Intercom .............................................................................................................................................. 18

9.2 MCAST ............................................................................................................................................... 19

II

9.3 Message ............................................................................................................................................... 19

9.3.1 MWI（Message Waiting Indicator） ....................................................................................... 19

10 Phone Settings .............................................................................................................................................. 20

10.1 Basic Settings .................................................................................................................................... 20

10.1.1 Language ................................................................................................................................. 20

10.2 Function Key ..................................................................................................................................... 20

11 Web Configurations..................................................................................................................................... 22

11.1 Web Page Authentication .................................................................................................................. 22

11.2 System >> Information ..................................................................................................................... 22

11.3 System >> Account ........................................................................................................................... 22

11.4 System >> Configurations ................................................................................................................ 22

11.5 System >> Upgrade ........................................................................................................................... 23

11.6 System >> Auto Provision ................................................................................................................ 25

11.7 System >> Tools ............................................................................................................................... 27

11.8 System >> Reboot Phone .................................................................................................................. 28

11.9 Network >> Basic ............................................................................................................................. 28

11.10 Network >> Service Port ................................................................................................................. 29

11.11 Network >> VPN ............................................................................................................................ 30

11.12 Network >> Advanced .................................................................................................................... 31

11.13 Line >> SIP ..................................................................................................................................... 32

11.14 Line >> SIP Hotspot ....................................................................................................................... 38

11.15 Line >> Dial Plan ............................................................................................................................ 41

11.16 Line >> Basic Settings .................................................................................................................... 44

11.17 Phone settings >> Features ............................................................................................................. 44

11.18 Phone settings >> Media Settings ................................................................................................... 48

11.19 Phone settings >> MCAST ............................................................................................................. 50

11.20 Phone settings >> Action ................................................................................................................ 51

11.21 Phone settings >> Time/Date .......................................................................................................... 51

11.22 Phone settings >> Tone ................................................................................................................... 52

11.23 Phonebook >> Call List .................................................................................................................. 53

11.24 Phonebook >> Web Dial ............................................................................................................ 53

11.25 CallLog ........................................................................................................................................... 54

11.26 Function Key >> Function Key ...................................................................................................... 54

11.27 Function Key >> Speed Dial List.................................................................................................... 54

11.28 Security >> Web Filter .................................................................................................................... 55

11.29 Security >> Trust Certificates ......................................................................................................... 56

11.30 Security >> Device Certificates ...................................................................................................... 56

III

11.31 Security >> Firewall........................................................................................................................ 57

11.32 Device Log >> Device Log ............................................................................................................. 59

12 Trouble Shooting ......................................................................................................................................... 60

12.1 Get Device System Information ........................................................................................................ 60

12.2 Reboot Device ................................................................................................................................... 60

12.3 Reset Device to Factory Default ....................................................................................................... 60

12.4 Network Packets Capture .................................................................................................................. 61

12.5 Get Log Information ......................................................................................................................... 62

12.6 Common Trouble Cases .................................................................................................................... 62

IV

1 Picture

Picture 1 - Device installation ............................................................................................................ 5

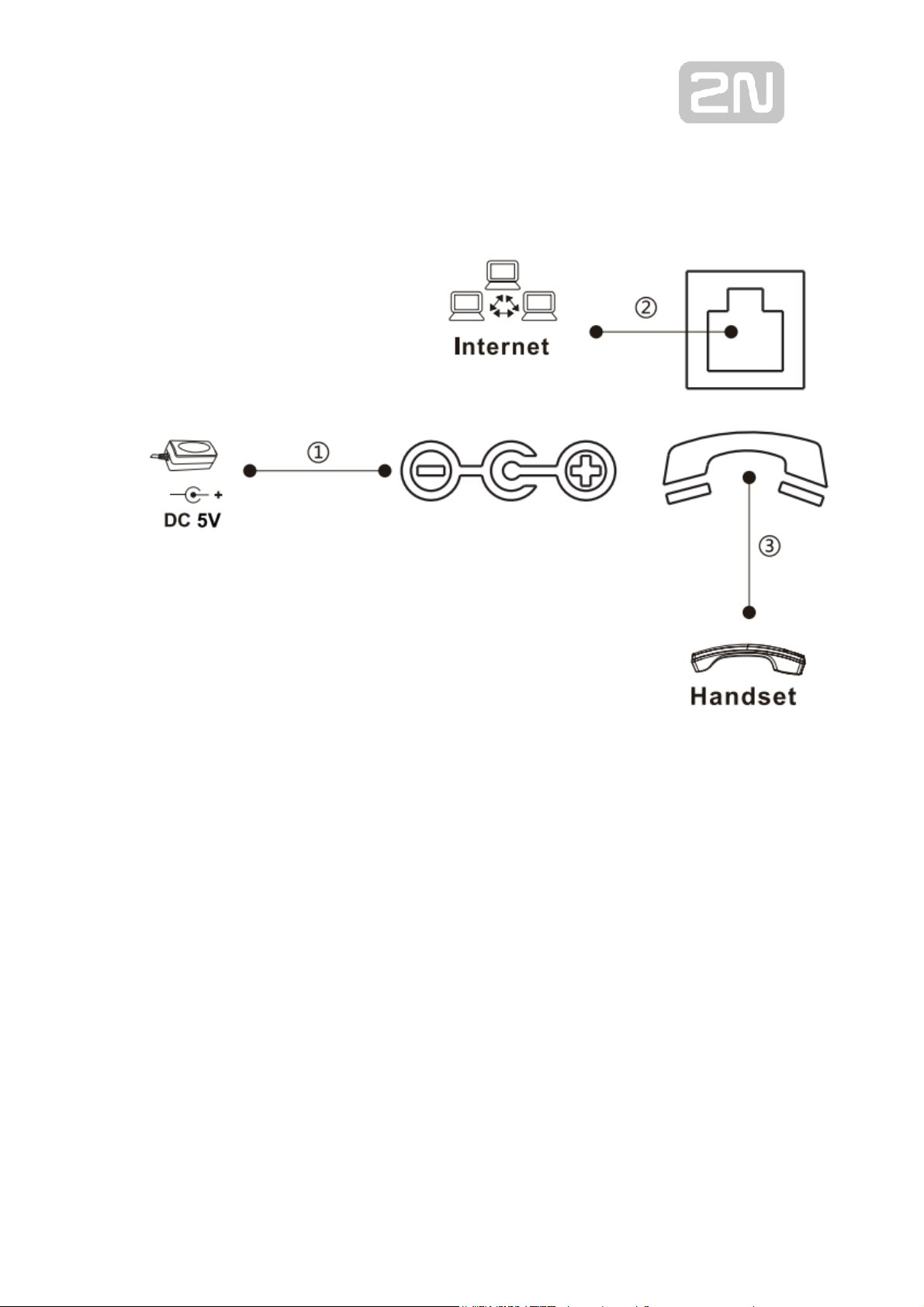

Picture 2 - Connecting to the Device .................................................................................................. 6

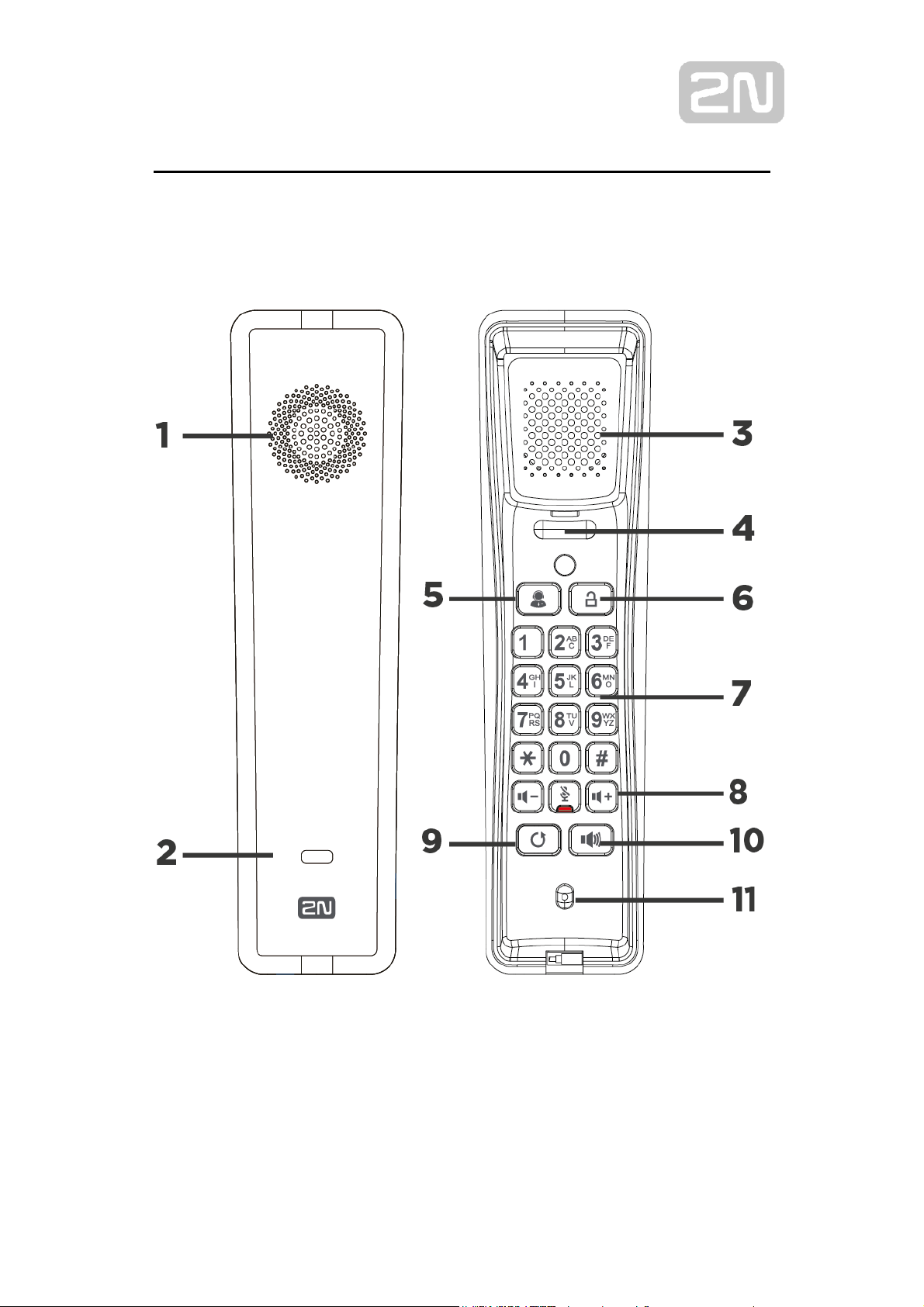

Picture 3 - Instruction of Keypad ....................................................................................................... 8

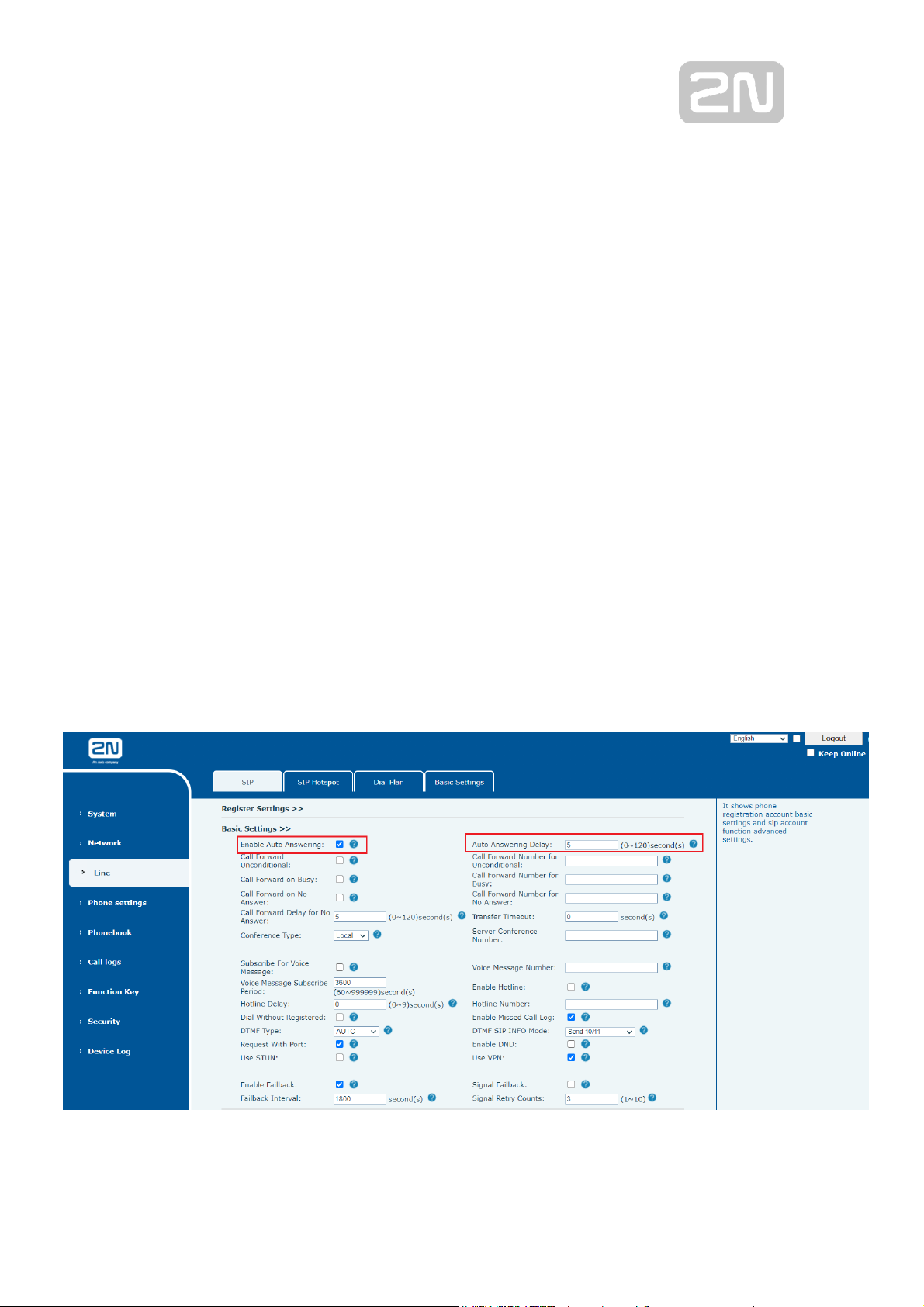

Picture 4 - Web page to start auto-answering ................................................................................... 12

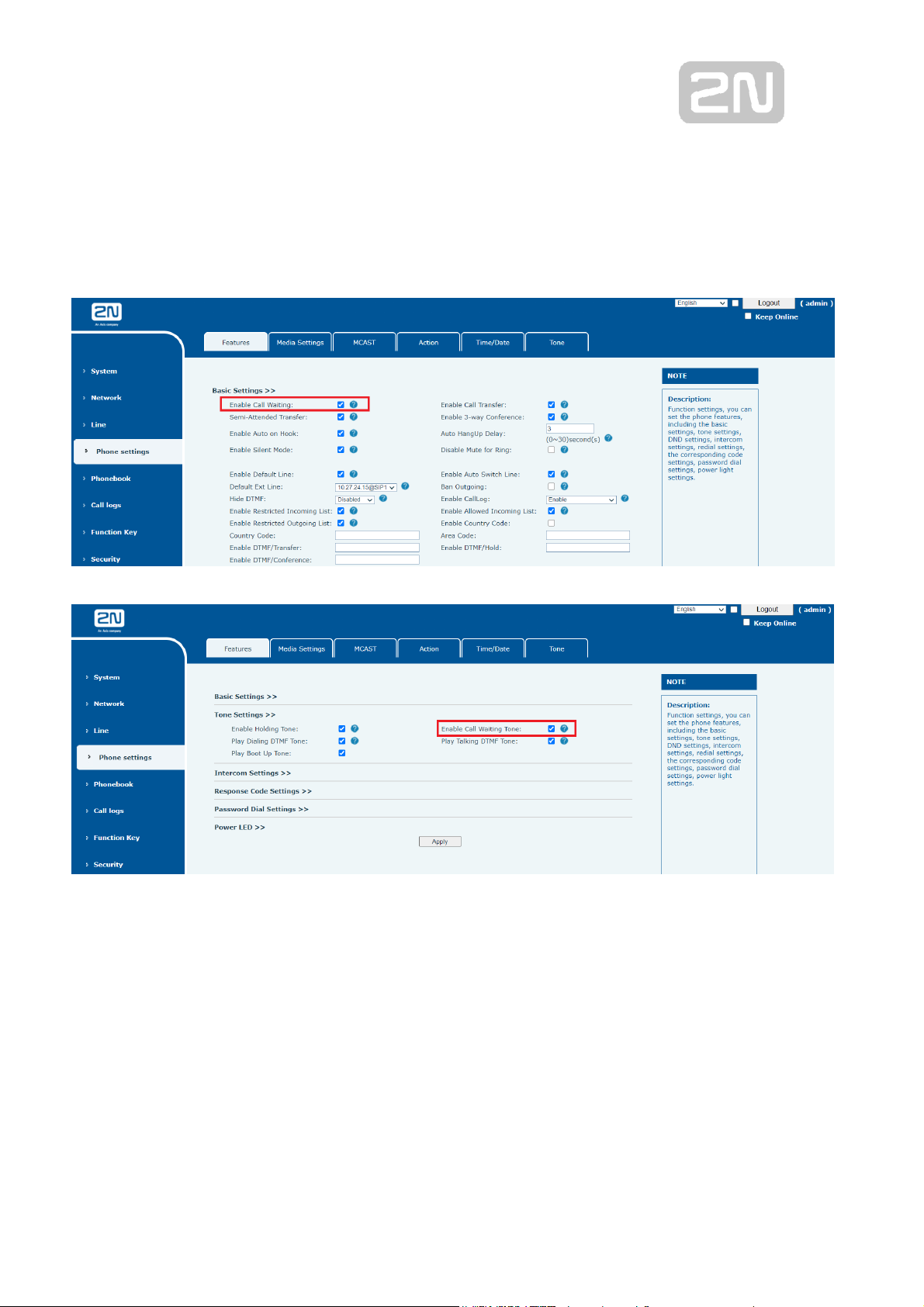

Picture 5 - Web call waiting tone setting .......................................................................................... 14

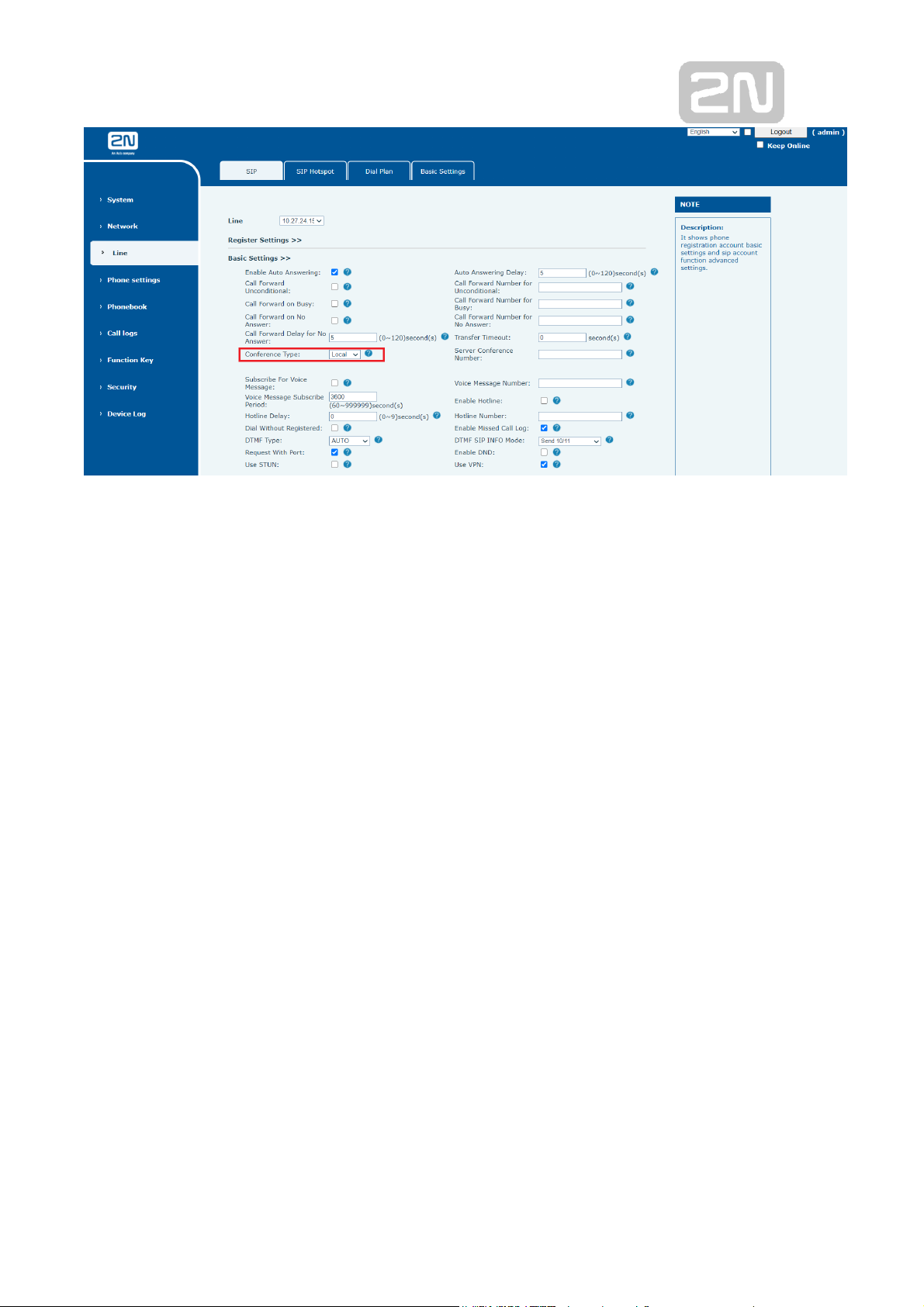

Picture 6 - Local conference setting ................................................................................................. 15

Picture 7 - Network conference ........................................................................................................ 16

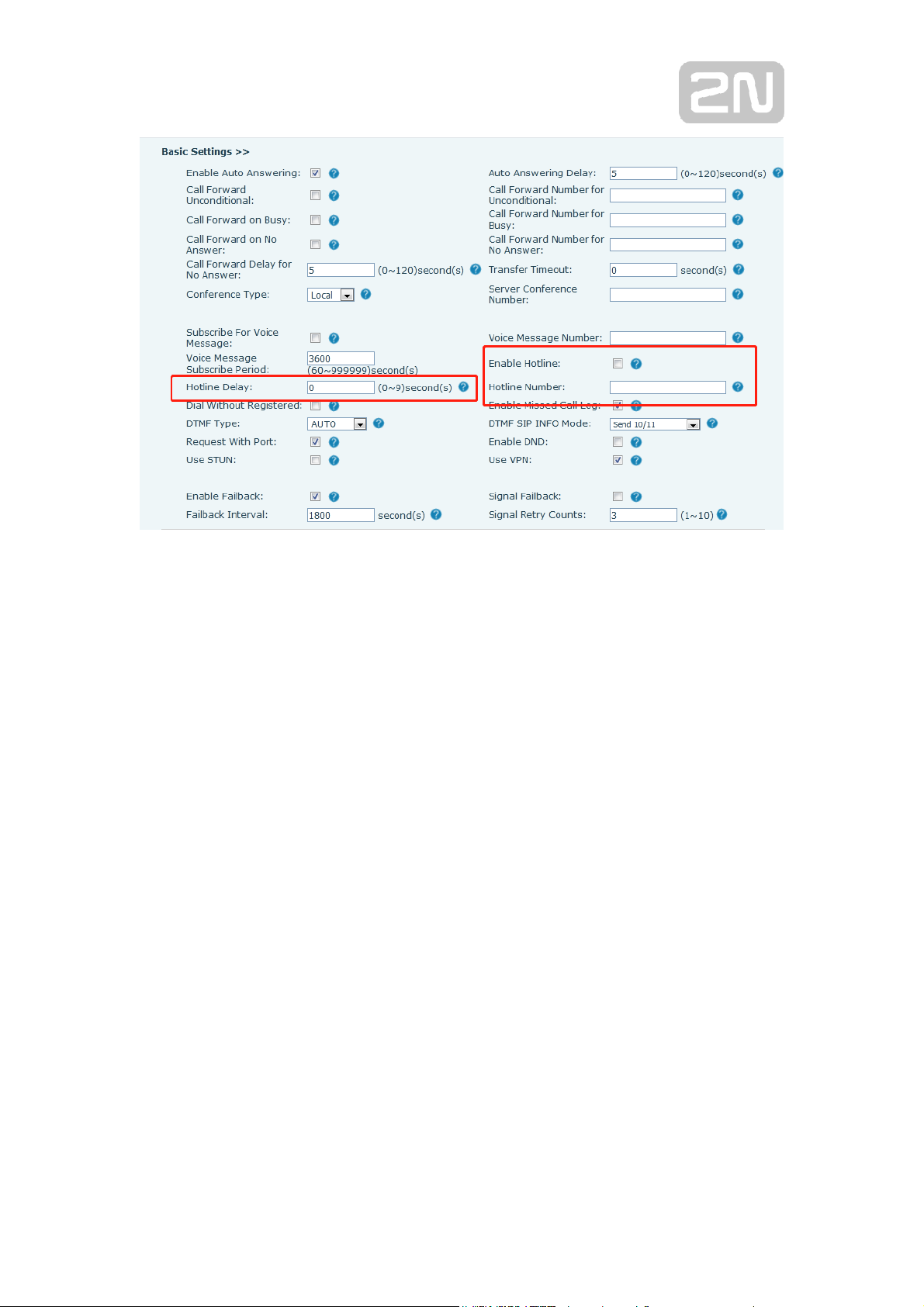

Picture 8 - Hotline set up on webpage .............................................................................................. 17

Picture 9 - Web Intercom configure.................................................................................................. 18

Picture 10 - New Voice Message Notofication ................................................................................. 19

Picture 11 - Language setting on Web page...................................................................................... 20

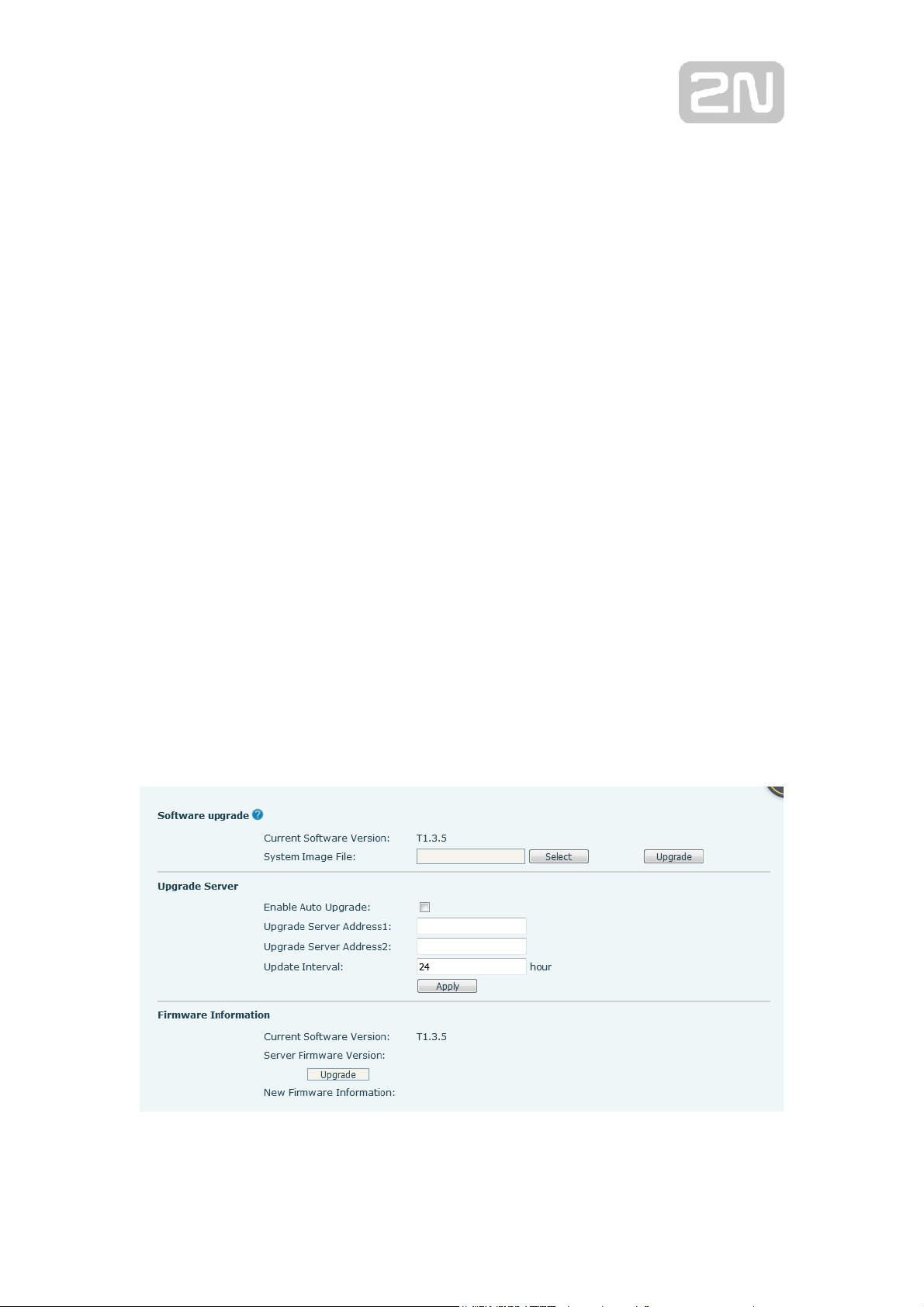

Picture 12 - Web page firmware upgrade ......................................................................................... 23

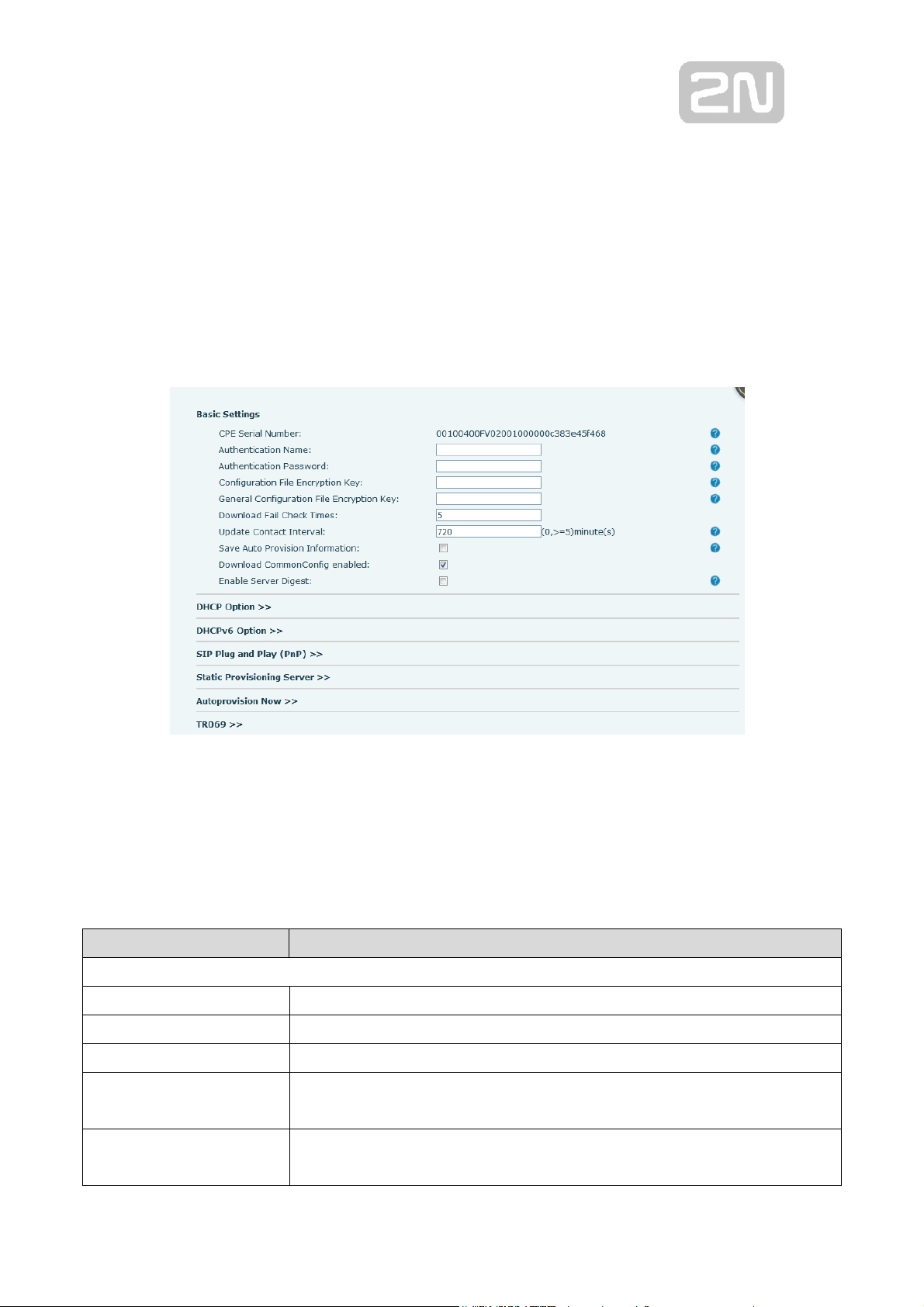

Picture 13 - Auto Provision settings ................................................................................................. 25

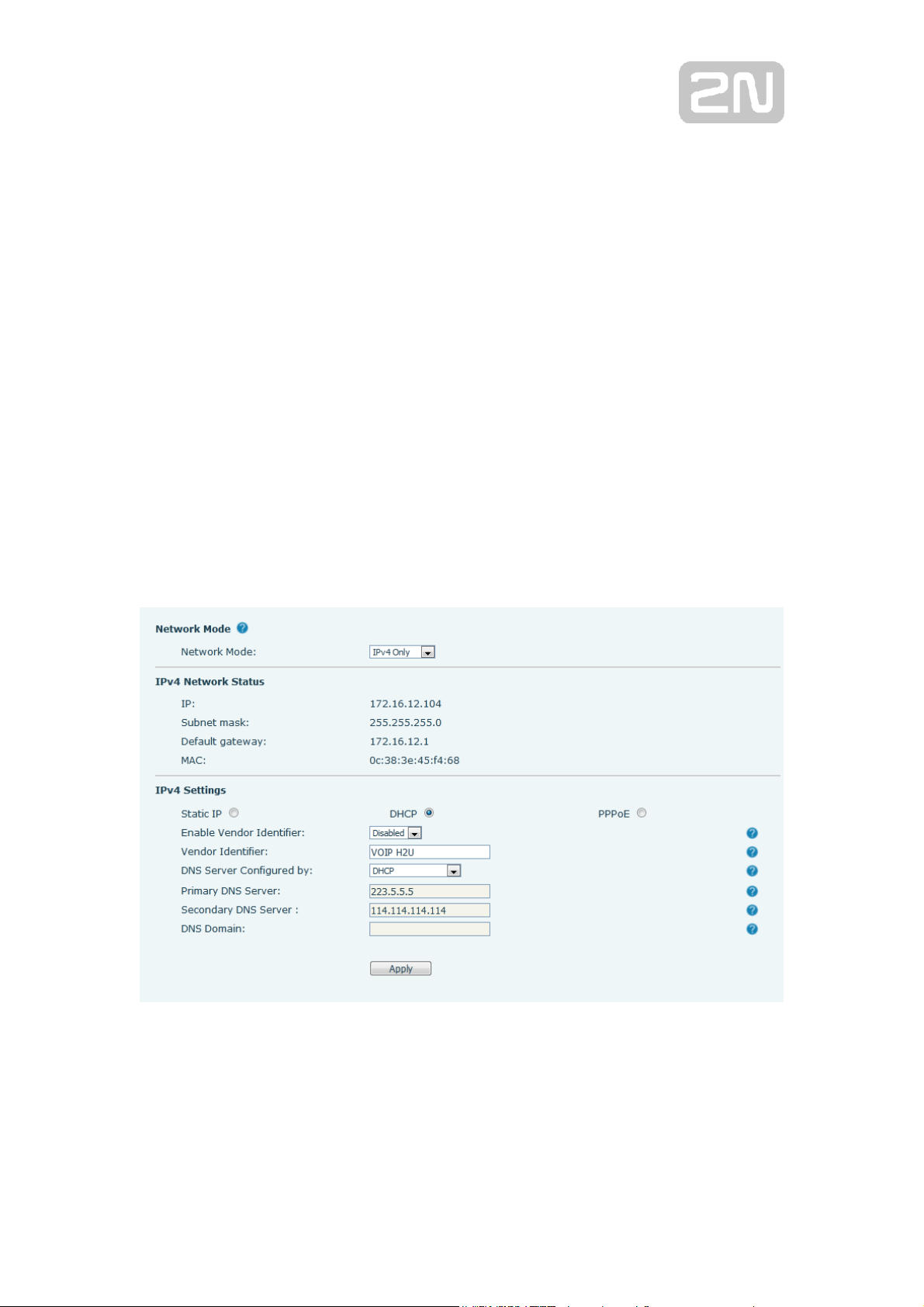

Picture 14 - Network mode Settings ................................................................................................. 28

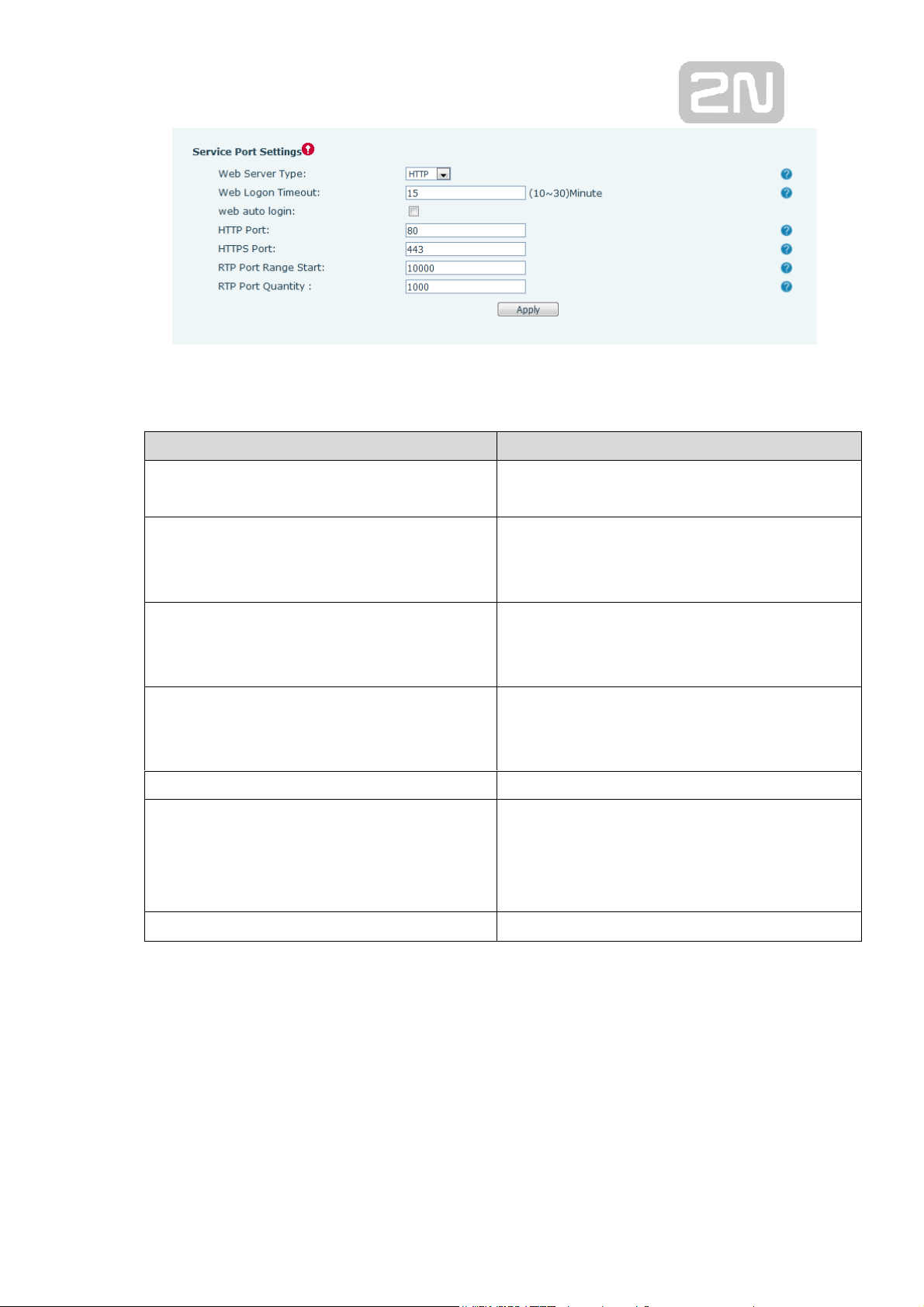

Picture 15 - Service Port Settings ..................................................................................................... 29

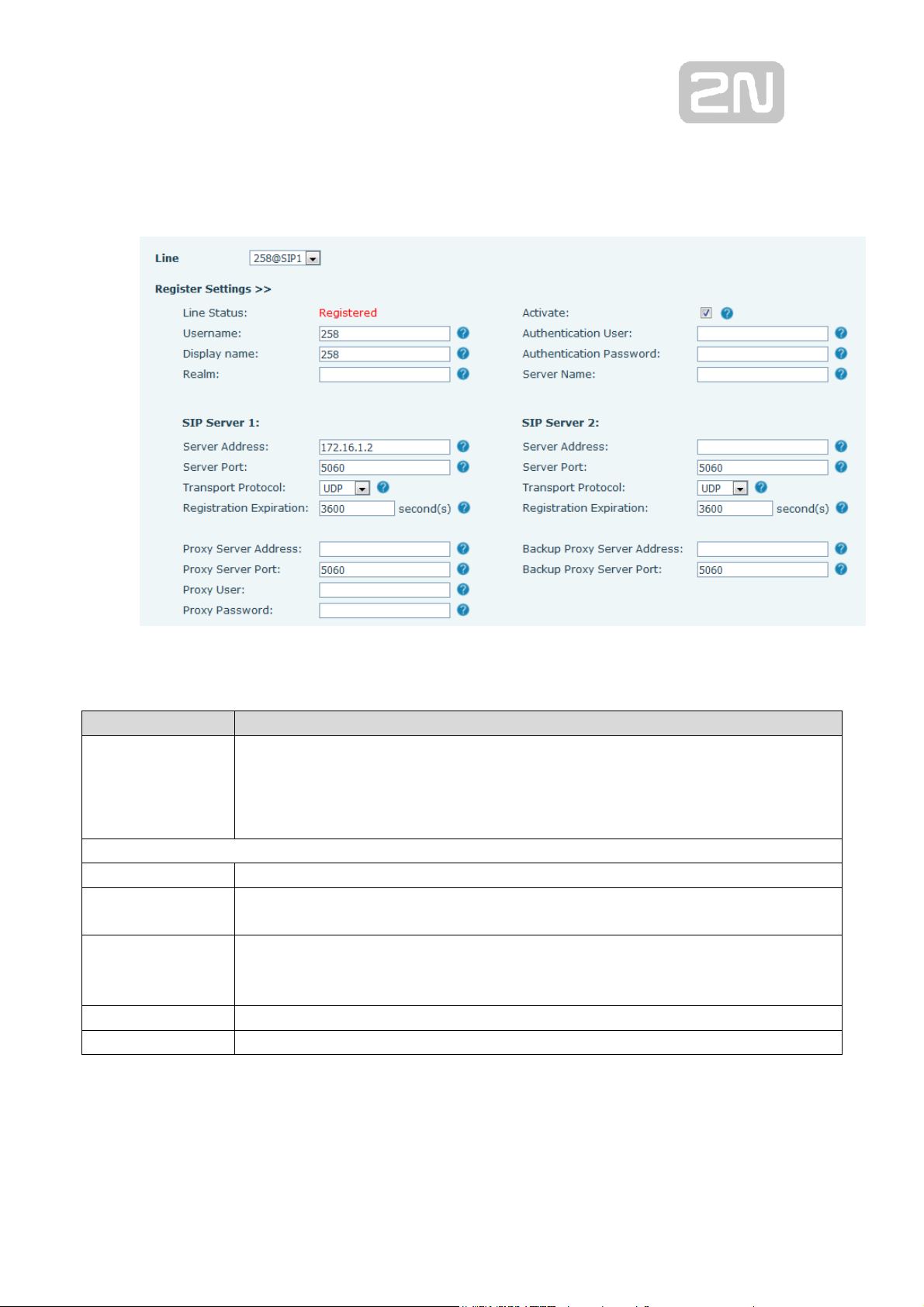

Picture 16 - Register SIP account ..................................................................................................... 39

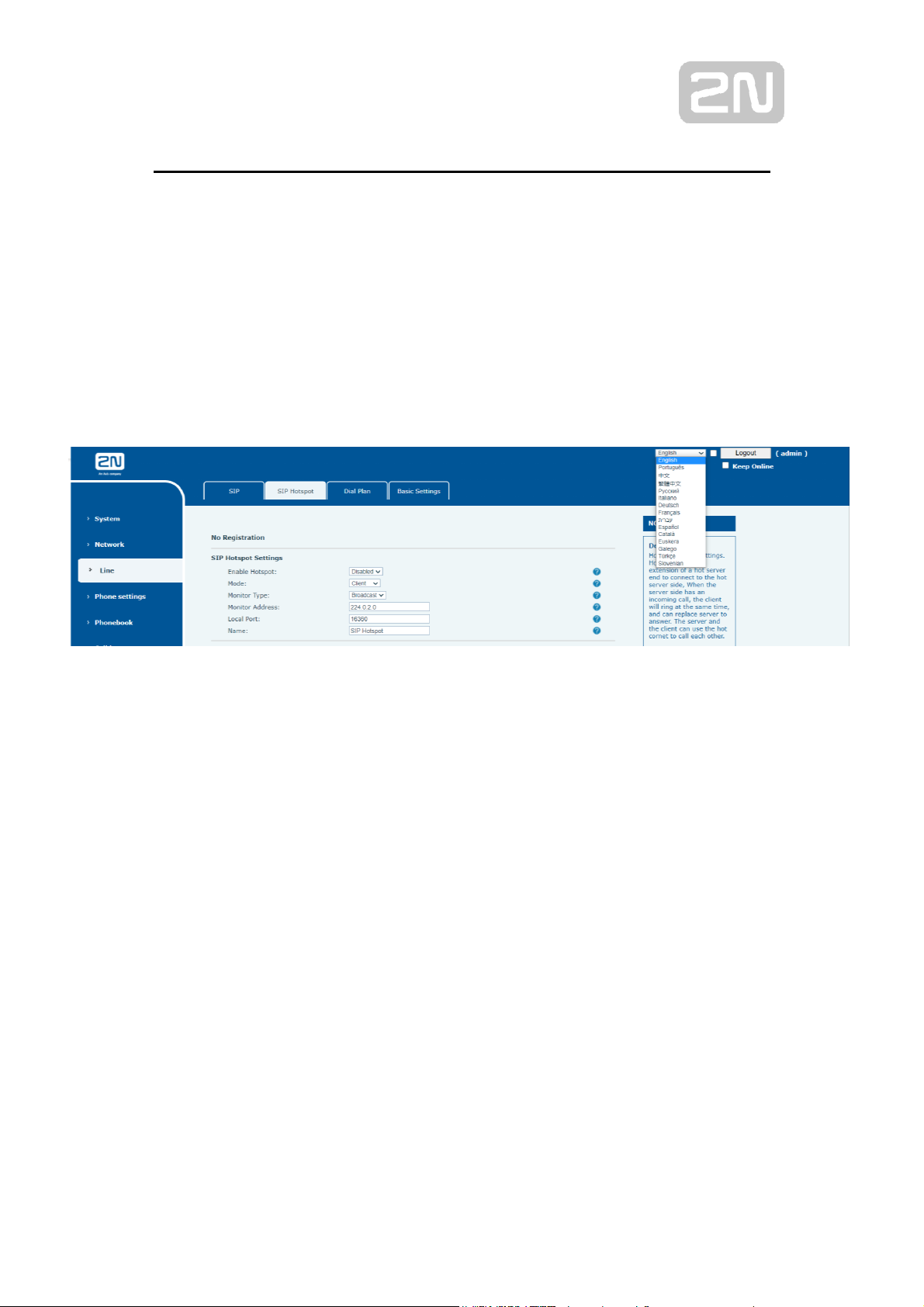

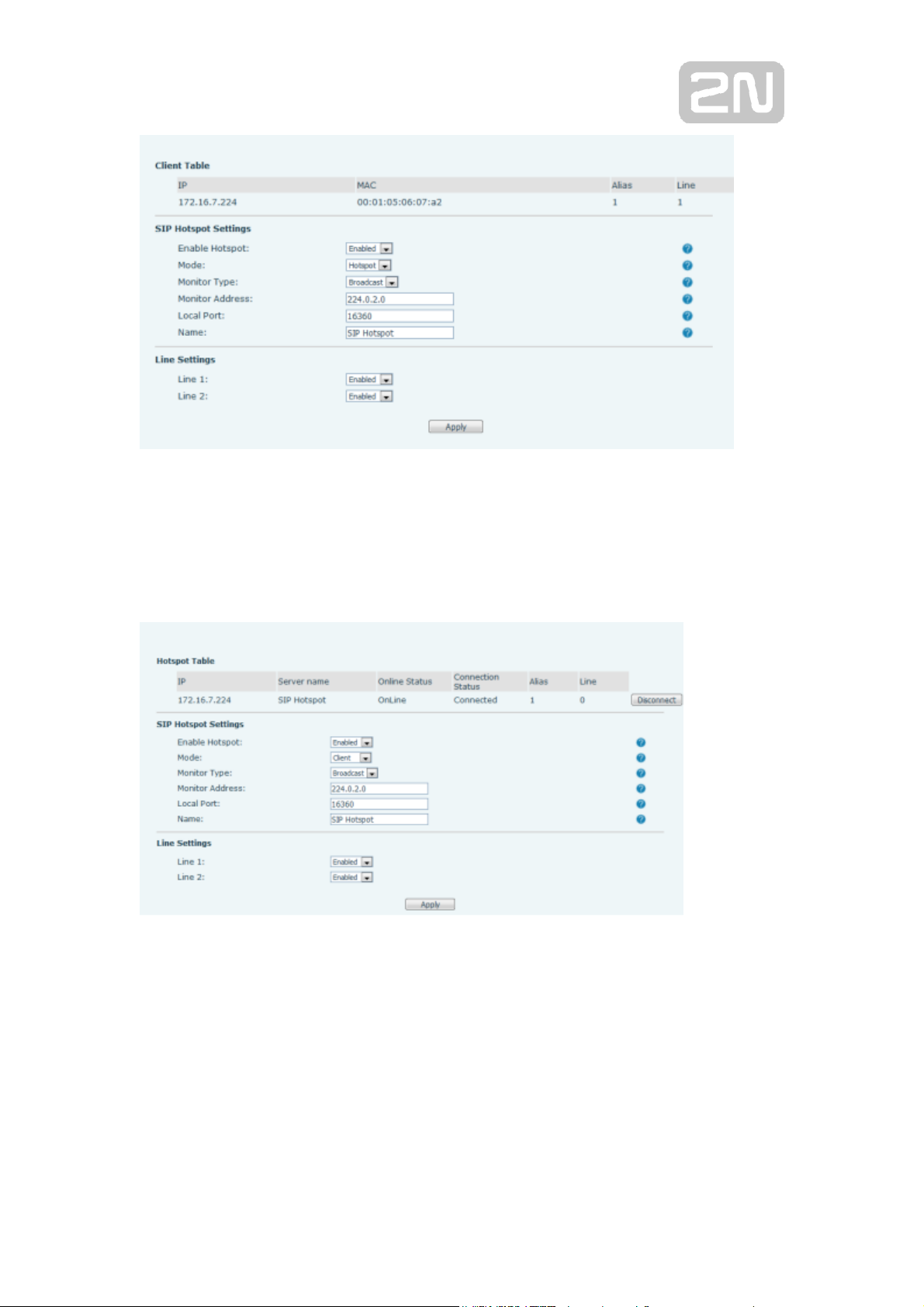

Picture 17 - SIP hotspot server configuration ................................................................................... 40

Picture 18 - SIP hotspot client configuration .................................................................................... 40

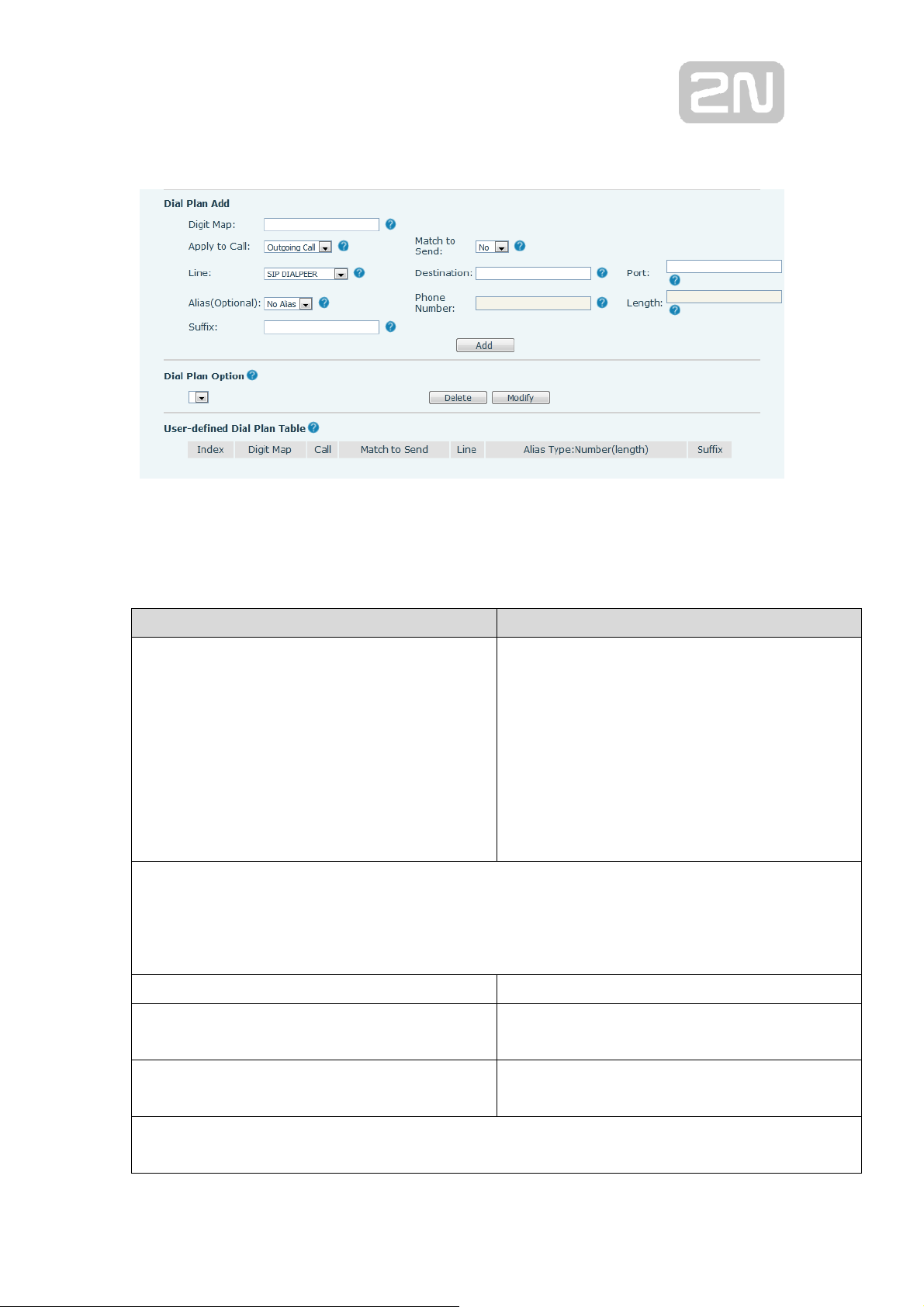

Picture 19 - Dial plan settings .......................................................................................................... 41

Picture 20 - Custom setting of dial - up rules ................................................................................... 42

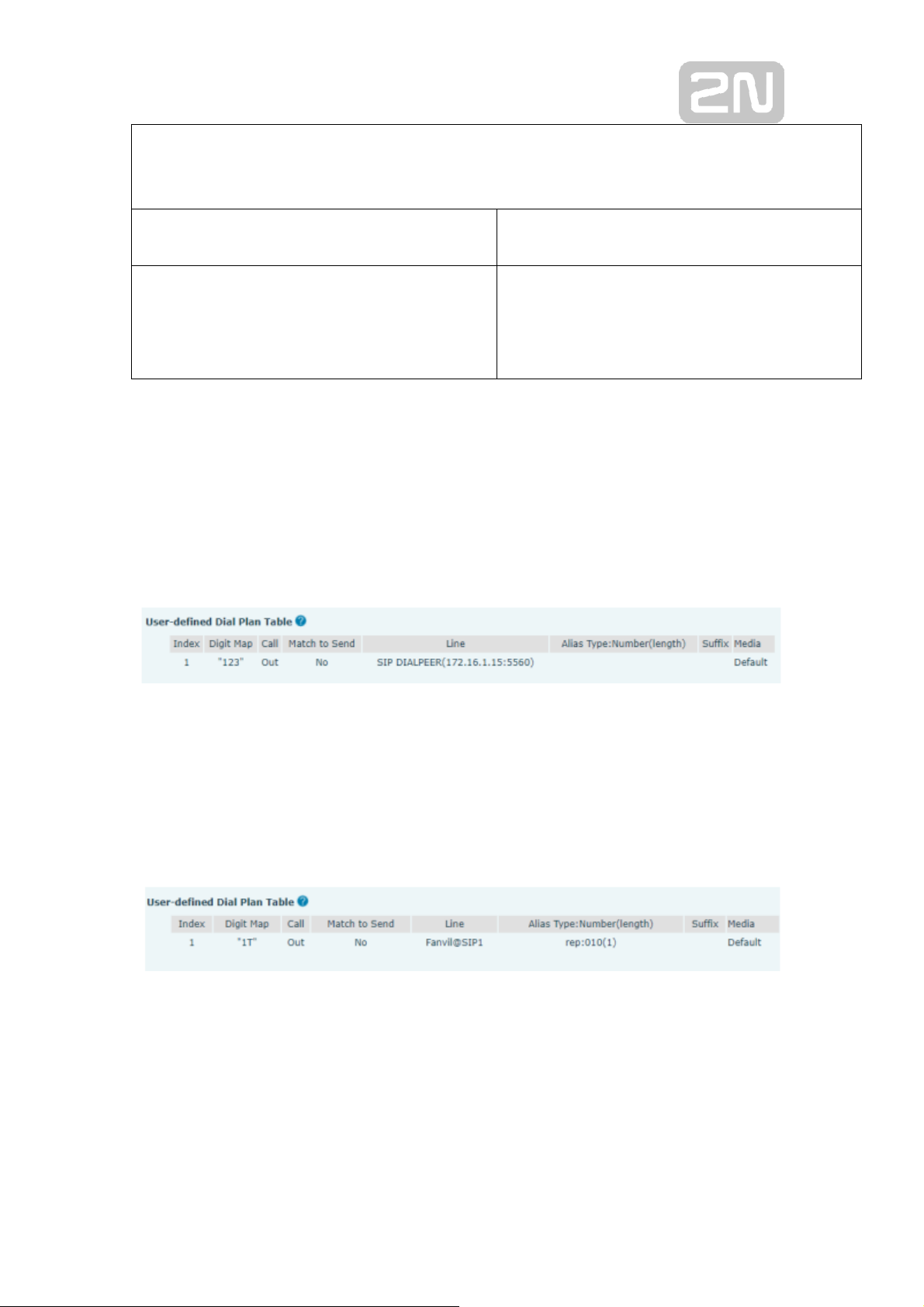

Picture 21 - Dial rules table (1) ........................................................................................................ 43

Picture 22 - Dial rules table (2) ........................................................................................................ 43

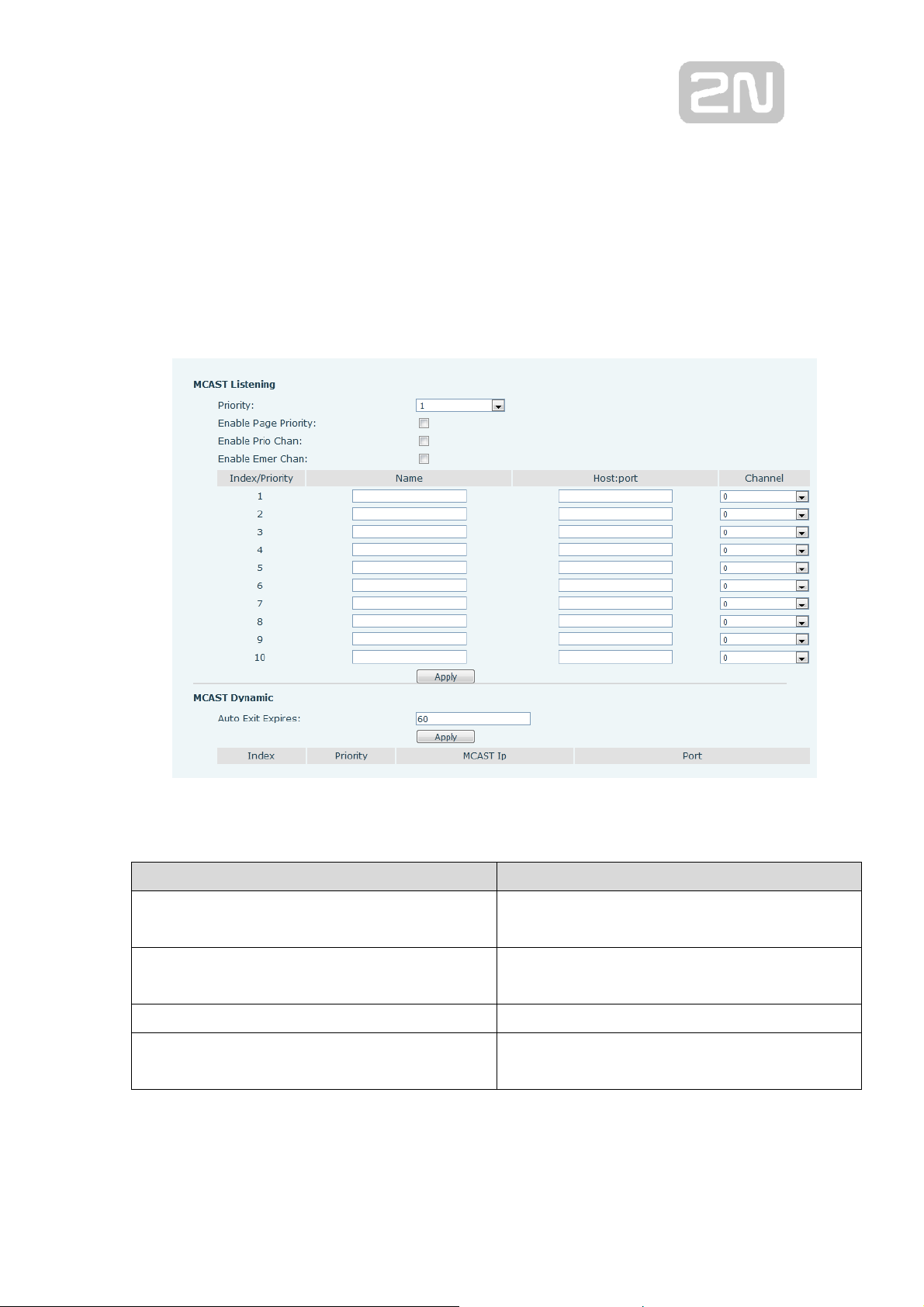

Picture 23 - MCAST...................................................................................................................... 50

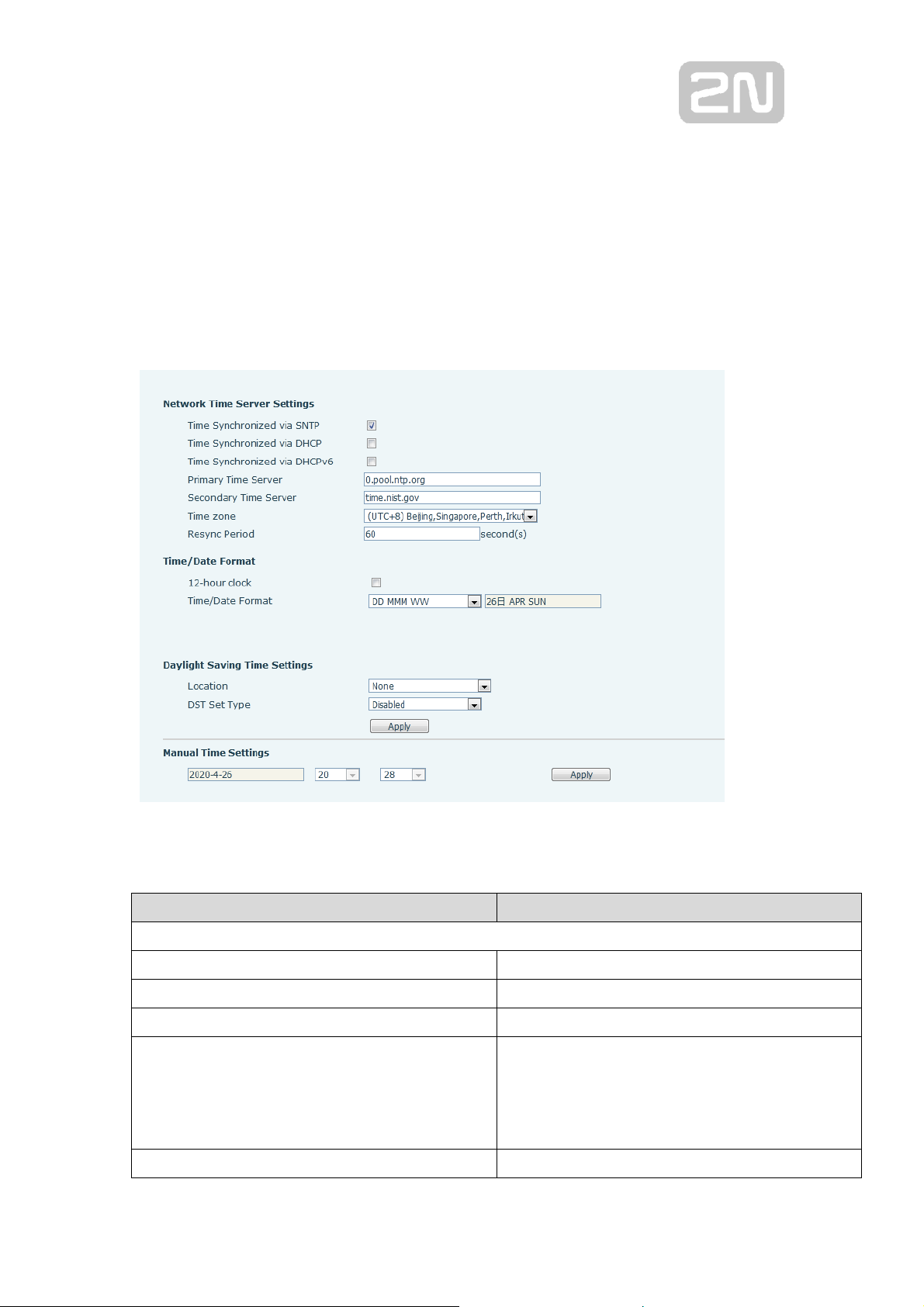

Picture 24 - Time/Date ..................................................................................................................... 51

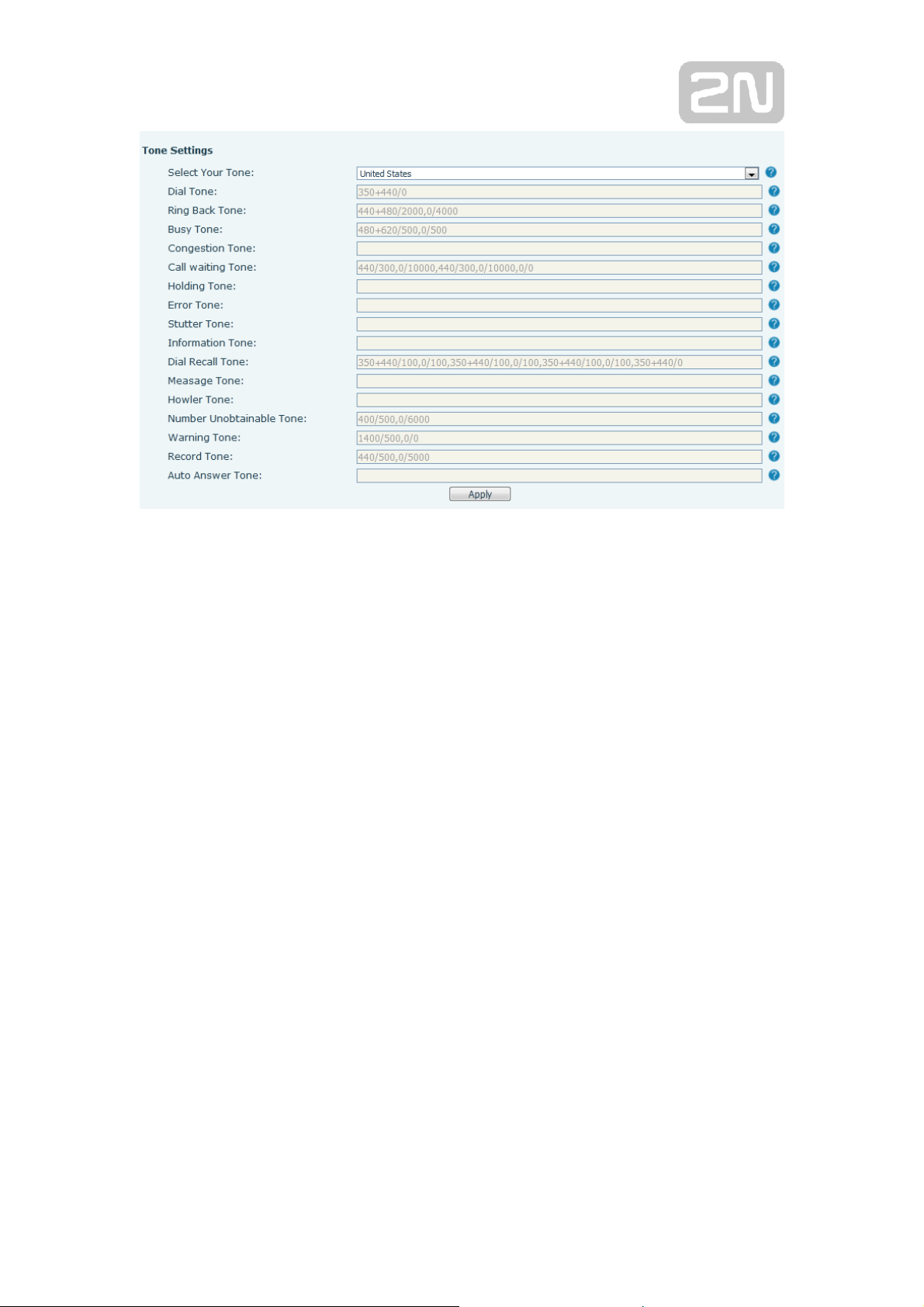

Picture 25 - Tone settings on the web ............................................................................................... 53

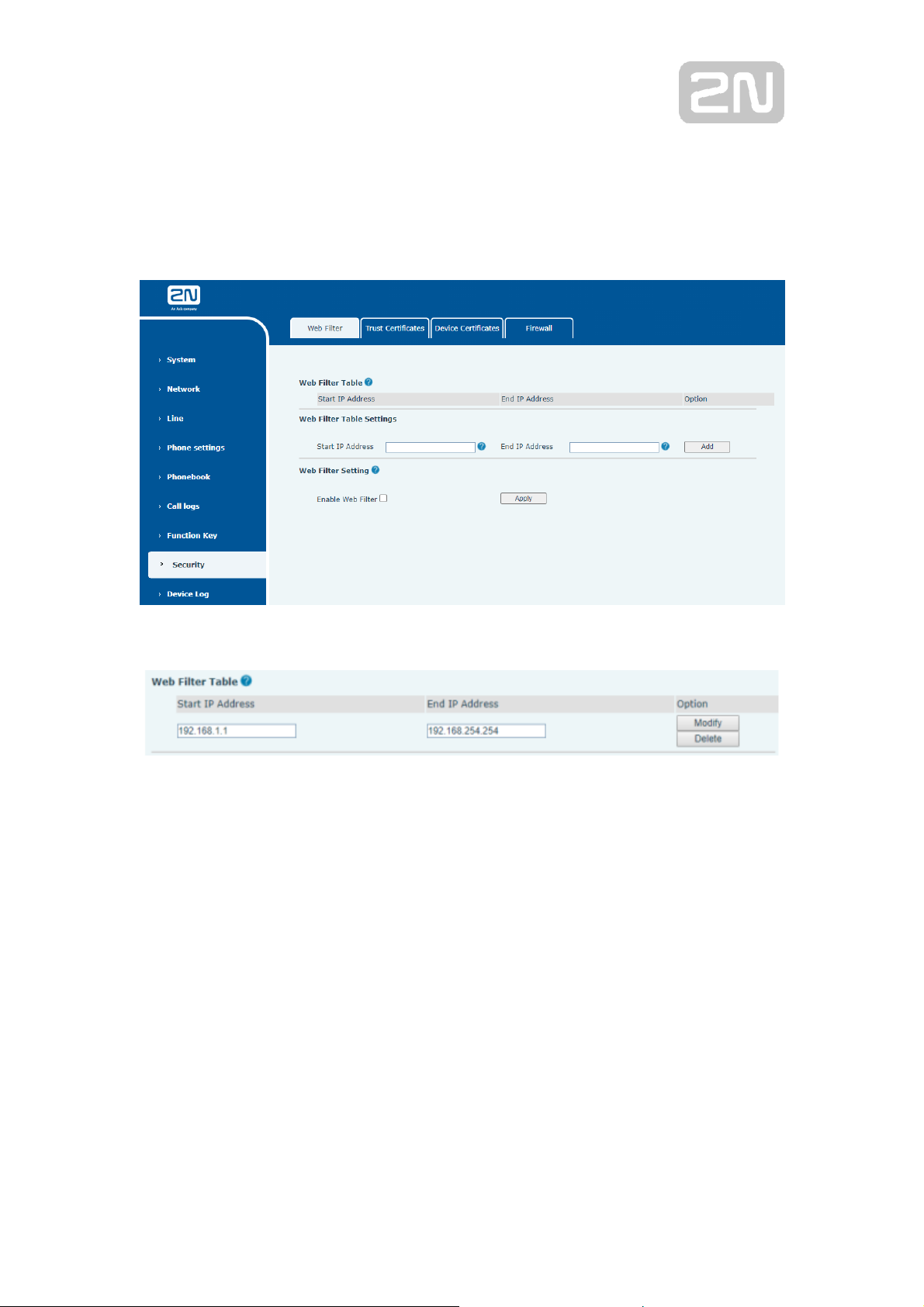

Picture 26 - Web Filter settings ........................................................................................................ 55

Picture 27 - Web Filter Table ............................................................................................................ 55

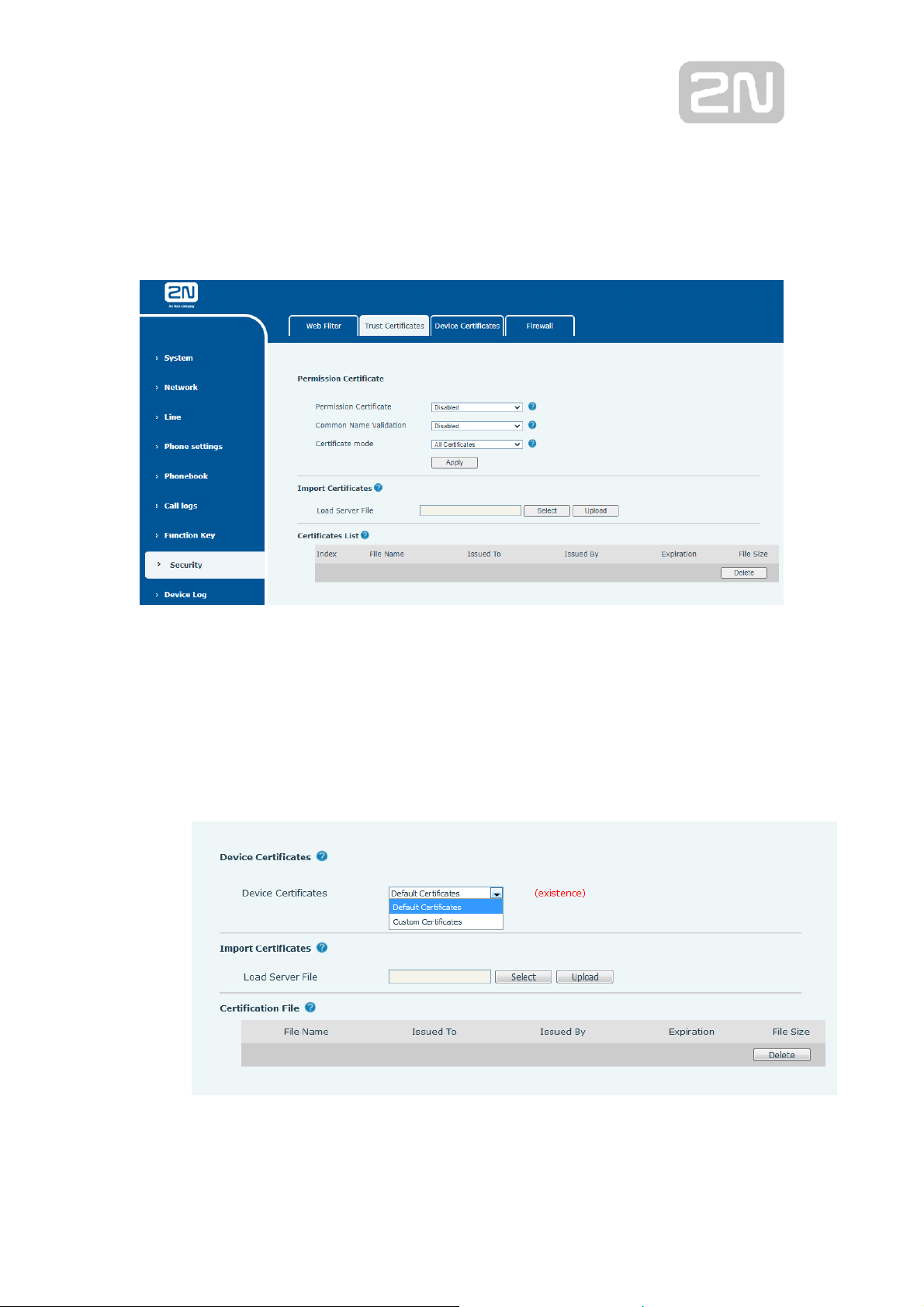

Picture 28 - Certificate of settings .................................................................................................... 56

Picture 29 - Device certificate setting .............................................................................................. 56

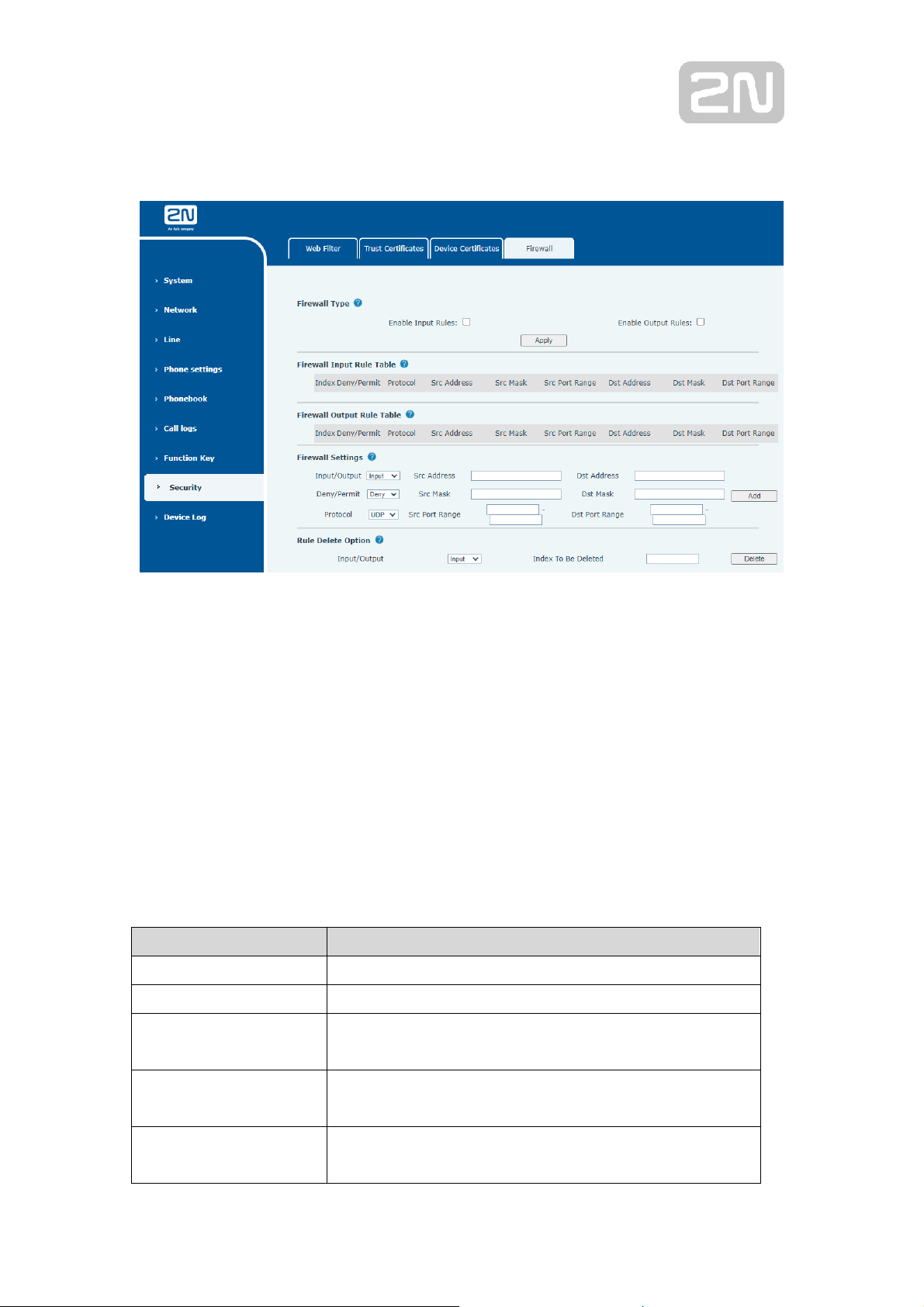

Picture 30 - Network firewall Settings ............................................................................................. 57

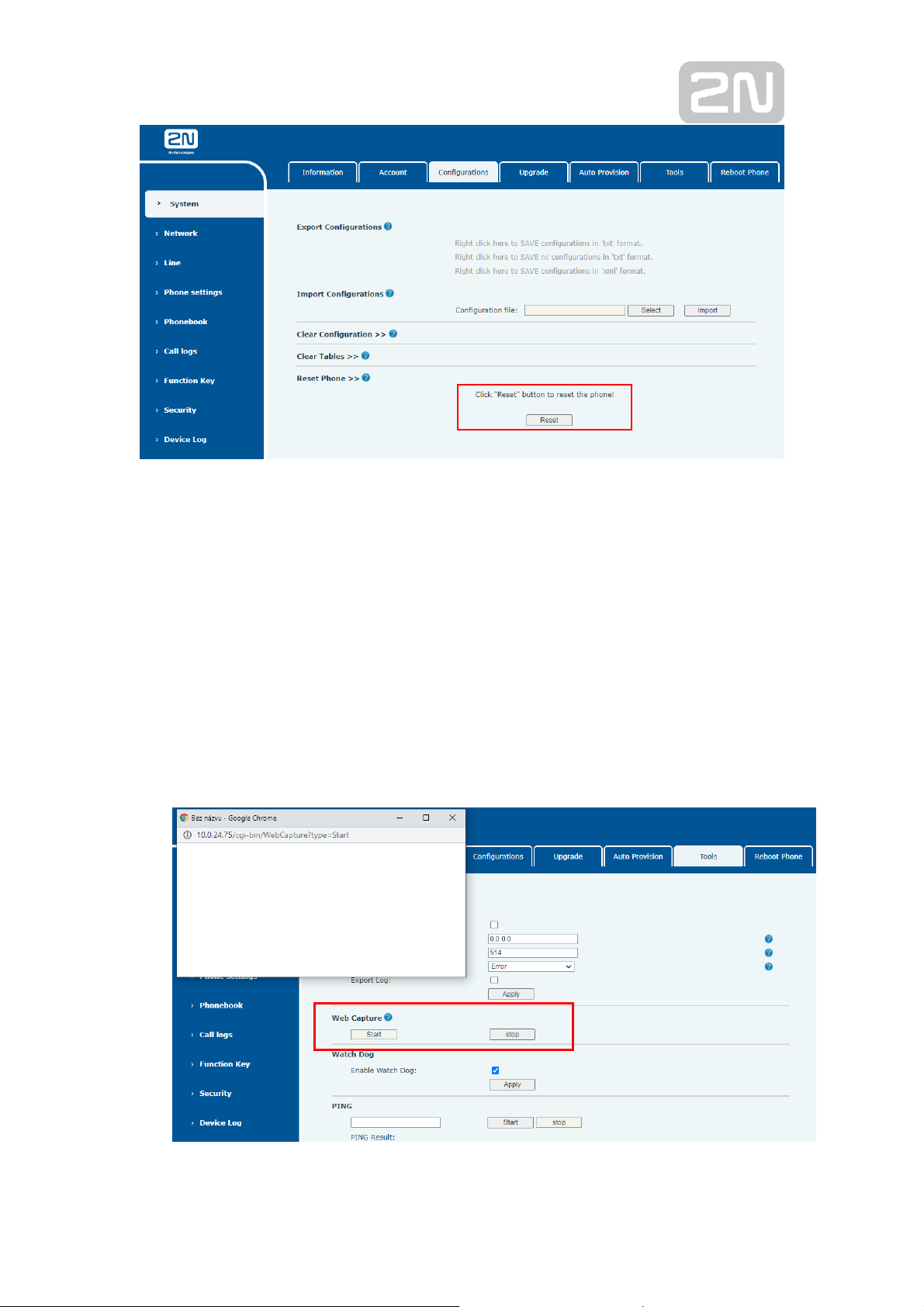

Picture 31 - Reset ............................................................................................................................. 60

Picture 32 - Web capture .................................................................................................................. 60

V

2 Table

Table 1 - DSS KEY LED State ........................................................................................................... 7

Table 2 - Instruction of Keypad .......................................................................................................... 9

Table 3 - Intercom configure ............................................................................................................ 18

Table 4 - Firmware upgrade ............................................................................................................. 23

Table 5 - Service port ....................................................................................................................... 30

Table 6 - Line configuration on the web page .................................................................................. 32

Table 7 - SIP hotspot Parameters ...................................................................................................... 39

Table 8 - Phone 7 dialing methods ................................................................................................... 41

Table 9 - Dial - up rule configuration table ...................................................................................... 42

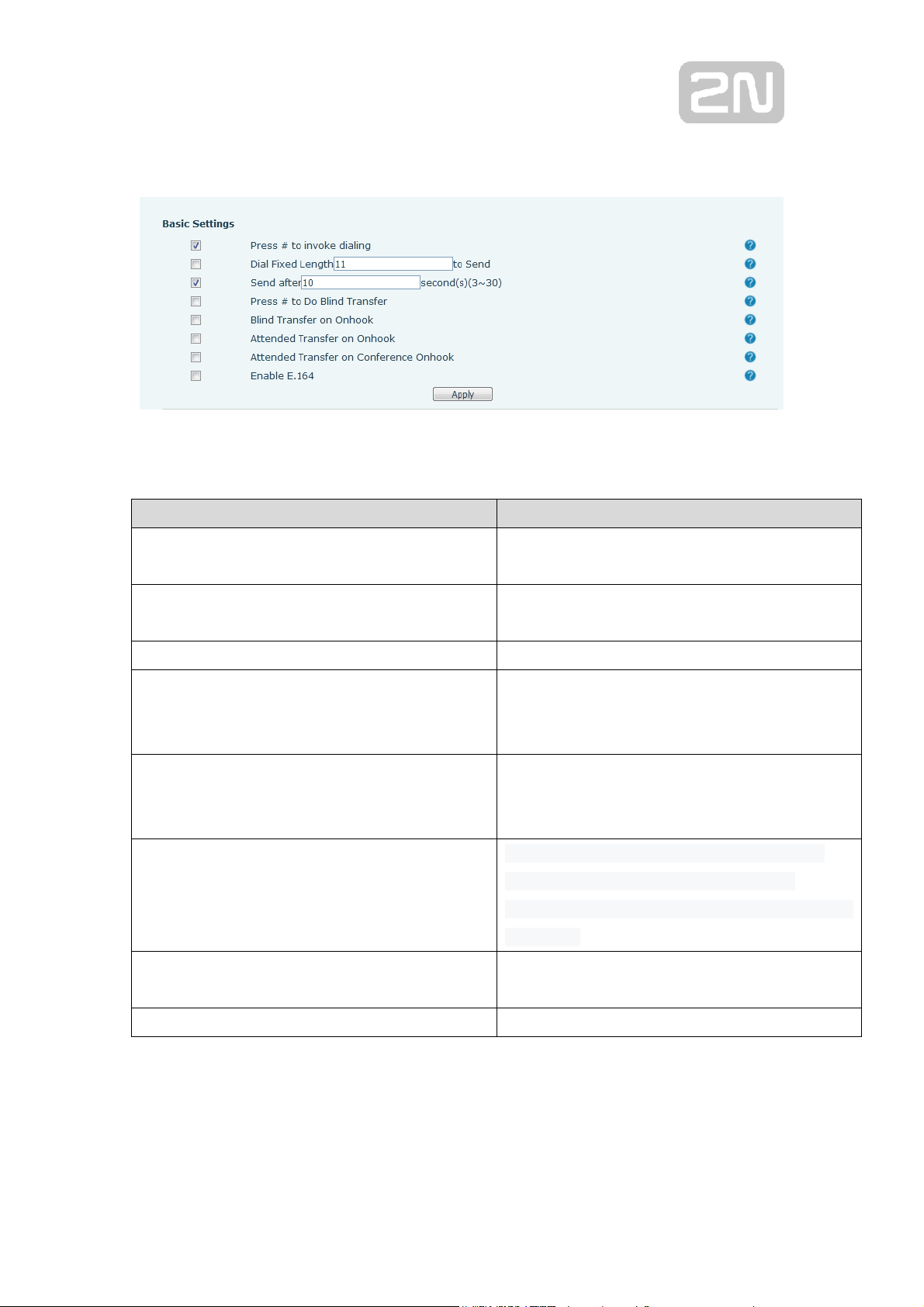

Table 10 - Set the line global configuration on the web page........................................................... 44

Table 11 - General function Settings .......................................................................................... 44

Table 12 - Voice settings ................................................................................................................... 48

Table 13 - Multicast parameters ....................................................................................................... 50

Table 14 - Time&Date settings ......................................................................................................... 51

Table 15 - Function Key configuration ............................................................................................ 54

Table 16 - Network Firewall............................................................................................................. 57

Table 17 - Trouble Cases .................................................................................................................. 61

1

3 Safety Instruction

Please read the following safety notices before installing or using this unit. They are
crucial for the safe and reliable operation of the device.

⚫ Please use the external power supply that is included in the package. Other power

supply may cause damage to the phone and affect the behavior or induce noise.

⚫ Before using the external power supply in the package, please check the home

power voltage. Inaccurate power voltage may cause fire and damage.

⚫ Please do not damage the power cord. If power cord or plug is impaired, do not use

it because it may cause fire or electric shock.

⚫ Do not drop, knock or shake the phone. Rough handling can break internal circuit

boards.

⚫ This phone is design for indoor use. Do not install the device in places where there

is direct sunlight. Also do not put the device on carpets or cushions. It may cause
fire or breakdown.

⚫ Avoid exposure the phone to high temperature or below 0℃ or high humidity.
⚫ Avoid wetting the unit with any liquid.
⚫ Do not attempt to open it. Non-expert handling of the device could damage it.

Consult your authorized dealer for help, or else it may cause fire, electric shock and
breakdown.

⚫ Do not use harsh chemicals, cleaning solvents, or strong detergents to clean it.

Wipe it with a soft cloth that has been slightly dampened in a mild soap and water
solution.

⚫ When lightning, do not touch power plug, it may cause an electric shock.
⚫ Do not install this phone in an ill-ventilated place. You are in a situation that could

cause bodily injury. Before you work on any equipment, be aware of the hazards
involved with electrical circuitry and be familiar with standard practices for
preventing accidents.

2

4 Overview

4.1 Overview

2N® IP Handset is a network telephone specially designed for hotels. The simple design
of the device brings excellent user experience for users. The equipment is not only a
telephone, but also a masterpiece placed in the living room or office.

H2U is the latest generation of network telephone designed for the hotel, which still
continues the excellent performance and specifications of traditional equipment; such as
high-definition voice, high-performance echo cancellation, 100M Ethernet, QoS,
encrypted transmission, automatic configuration, etc.; new system, smooth operation,
flat interface setting and many other advantages.

For enterprise users, the equipment is a cost-effective office equipment, while realizing
environmental protection, it also provides convenient operation; For home users, the
device is a highly efficient communication device. Users can flexibly configure and define
the functions of one DSS keys, saving space and cost. It will be an ideal choice for
enterprise users and home users who pursue high quality and high efficiency.

In order to help some interested users better understand the details of the product, this
user manual can be used as a reference guide for the use of X1S/X1SP.This document
may not be applicable to the latest version of the software. If you have any questions,
you can use the help prompt interface of the X1S/X1SP phone, or download and update
your user manual from the office website.

3

4.2 Packing Contents

IP Phone Handset

Handset Cord Quick Guide

4

5 Desktop Installation

5.1 PoE and the use of external power adapters

The device supports two power supply modes, power supply from external power
adapter or over Ethernet (PoE) complied switch.

PoE power supply saves the space and cost of providing the device additional power
outlet. With a PoE switch, the device can be powered through a single Ethernet cable
which is also used for data transmission. By attaching UPS system to PoE switch, the
device can keep working at power outage just like traditional PSTN telephone which is
powered by the telephone line.

For users who do not have PoE equipment, the traditional power adaptor should be used.
If the device is connected to a PoE switch and power adapter at the same time, the
power adapter will be used in priority and will switch to PoE power supply once it fails.

Please use the power adapter and the PoE switch met the specifications to ensure the
device work properly.

5

5.2 Wall mounted installation method

The device supports wall mounted.
Please follow the instructions in the picture below to install the phone：

1) Drill two holes in the wall with a vertical distance of 136.2 or 161.2mm.

2) Insert two rubber plugs and screws in turn. Note that 5mm is reserved between the nut
and the wall, which is convenient for hanging the phone base.

3) Connect the cable, handle cable and power supply.

4) Align the wall hole on the base with the screws in step 2 and slide down to complete
the installation.

Picture 1 - Device installation

6

Connect the power adapter, network, PC, phone to the appropriate port as shown in the
picture below.

Picture 2 - Connecting to the Device

7

6 Appendix Table

6.1 Appendix I –LED Definition

Table 1 - DSS KEY LED State

Type

LED Light

State

default standby
standby

Green On

mute

Green slow flash

Line error (Registration
failure)/Network
disconnection

Red slow flash
call

calling/Pick up the handle

Red On

mute

Orange slow flash
hold/held

Orange slow flash
Ringing

Red flash

8

7 Introduction to the User

7.1 Instruction of Keypad

Picture 3 - Instruction of Keypad

The picture above shows the keypad layout of the phone. Each button provides its own
specific function. Users can refer to the instructions for the keys in the illustration in this
section to operate the phone.

9

Table 2 - Instruction of Keypad

Number

The keypad
names

Instruction

○

,1

Hands-free
Speaker

The hands-free channel plays sound

○

,2

Status
indicator
lamp

Power indication/line status indication

○

,3

Handle the
horn

The handle channel plays sound

○

,4

Hook
Hang up the handle and hang up the phone

○

,5

Function Key

User-defined functionality

○

,6

Door Unlock
Button

Activates a switch for door lock control.

○

,7

Standard
Telephone
Keys

The 12 standard telephone keys provide the same function as
standard telephones, but further to the standard function, some
keys also provide special function by long-pressing the key,
Key # - Long-pressed to broadcast IP（Default English).

○

,8

Volumes Key

The volume to add and subtract-In the standby state, ring and
ring configuration interface, press this button to increase/reduce
the ring volume; Press this button to increase/lower the volume
on the call

Mute Key-During a call, the user can press this key to mute the

microphone.

○

,9

Redial

Press the Redial key to redial the last number dialed

○

,10

Hands-free
Key

The user can press this key to open the audio channel of the
speakerphone

○

,11

Microphone

Listen when the receiver is answering (do not listen when the
phone is hands-free)

10

7.2 Using Handset / Hands-free Speaker

◼ Using Handset
About the use of the handle, the user can pick up the handle to dial the number, press
the "#" button after pressing the number, the number will be dialed. Users can switch
audio channels of the phone by pressing the hands-free button.

◼ Using Hands-free Speaker
For the use of the speakerphone, the user can dial the number by pressing the
speakerphone button, or by dialing the number and then pressing the speakerphone
button. When the voice channel of the handle is opened, the user can switch the audio
channel of the phone by pressing the button of the hands-free speaker.

11

8 Basic Function

8.1 Making Phone Calls

◼ Default Line

The device provides two line services (1 main line and 1 standby line). If both lines are
configured successfully, the user uses line 1 to make or receive calls by default.

◼ Dialing Methods
Users can dial a number in the following ways:

➢ The Device end

⚫ Dial directly, pick up the handle and input the number, then press "#" to call out
⚫ Redialing the last dialed number（Redial）

➢ The Web end

⚫ Dial from web fill in number dial
⚫ Selecting a phone number from call logs

◼ Cancel Call

When calling a number, the user can cancel the call by putting back the handle/pressing
down the spring.

8.2 Answering Calls

Users can answer the call by picking up the handle or pressing the speakerphone button
to open the hands-free channel.

The telephone does not support multiple calls. When there is an established call, the
user needs to hang up the current call before answering the second call.

8.3 End of the Call

When the call is over, the user can put the handle back on the phone and press the
speakerphone button to end the call.

12

8.4 Redial

⚫ Redial the last outgoing number:

When the phone is in standby mode, press the redial button and the phone will call
out the last number dialed.

⚫ Call out any number with the redial key:

Enter the number, press the redial key, and the phone will call out the number on the
dial.

⚫ Redial record clearing

After the phone is used, redial will default to the last used number; therefore, it is
necessary to clear the records used by the last customer without affecting the use of
other customers.

8.5 Auto-Answering

User may enable auto-answering feature on the device and any incoming call will be
automatically answered. The auto-answering can be enabled on line basis.

⚫ WEB interface：

Log in the phone page, enter [Line] >> [SIP], select [SIP] >> [Basic settings], start

auto-answering, and click apply after setting the automatic answering time.

Picture 4 - Web page to start auto-answering

13

8.6 Mute

You can turn on mute mode during a call and turn off the microphone so that the local
voice is not heard. Normally, mute mode is automatically turned off at the end of a call.

You can also turn on mute on any screen (such as the free screen) and mute the
ringtone automatically when there is an incoming call.

Mute mode can be turned on in all call modes (handles or hands-free).

8.6.1 Mute the Call

During the conversation, press the mute button on the phone: the mute lamp is red
and the power lamp is orange.

Cancel mute: press cancel mute on the phone again. When the mute lamp goes out,
the power lamp returns to its original state

8.6.2 Ringing Mute

⚫ Mute: press the mute button when the phone is in standby mode:
mute light red always bright, power lamp green flashing; There is no ringer for incoming

calls.
Cancel ring tone mute: On the standby or incoming call screen, press the mute button

again or volume up cancel ring tone mute

8.7 Call Hold/Resume

The user can press the [Hold] button to maintain the current call, and this button will
become the [Resume] button, and the user can press the "resume" button to restore the
call.

8.8 Call Waiting

⚫ Enable call waiting: new calls can be accepted during a call.

⚫ Disable call waiting: new calls will be automatically rejected and a busy tone will

be prompted.

14

⚫ Enable call waiting tone: when you receive a new call on the line, the tone will

beep.

The user can enable/disable the call waiting function in the web interface.

⚫ WEB interface: Enter [Phone Settings] >> [Features] >> [Basic Settings],

enable/disable call waiting and call waiting tone.

Picture 5 - Web call waiting tone setting

8.9 Conference

8.9.1 Local Conference

To conduct local conference, the user needs to log in the webpage and enter [Line] >>
[SIP] >> [Basic settings]. The meeting mode is set as local (the default is local mode),
as shown in the figure:

15

Picture 6 - Local conference setting

Two ways to create a local conference：

1） The device has two channels of communication. Press the conference button on

the call interface. When selecting the conference number, select the other
number that already exists.

2） If the device has a call all the way, press the conference key in the call interface,

enter the number to join the meeting and press the call; After the opposite end is
answered, press the conference button again to set up the local tripartite
conference：

Note: during the meeting, press the separate key to separate the meeting, and press
the end key to end the call.

8.9.2 Network Conference

Users need server support for network conference.

Log in the web page, enter [Line] >> [SIP] >> [Basic settings], set the conference mode

as server mode (default is local mode), set the server conference room number (please

consult your system administrator), as shown in the figure：

16

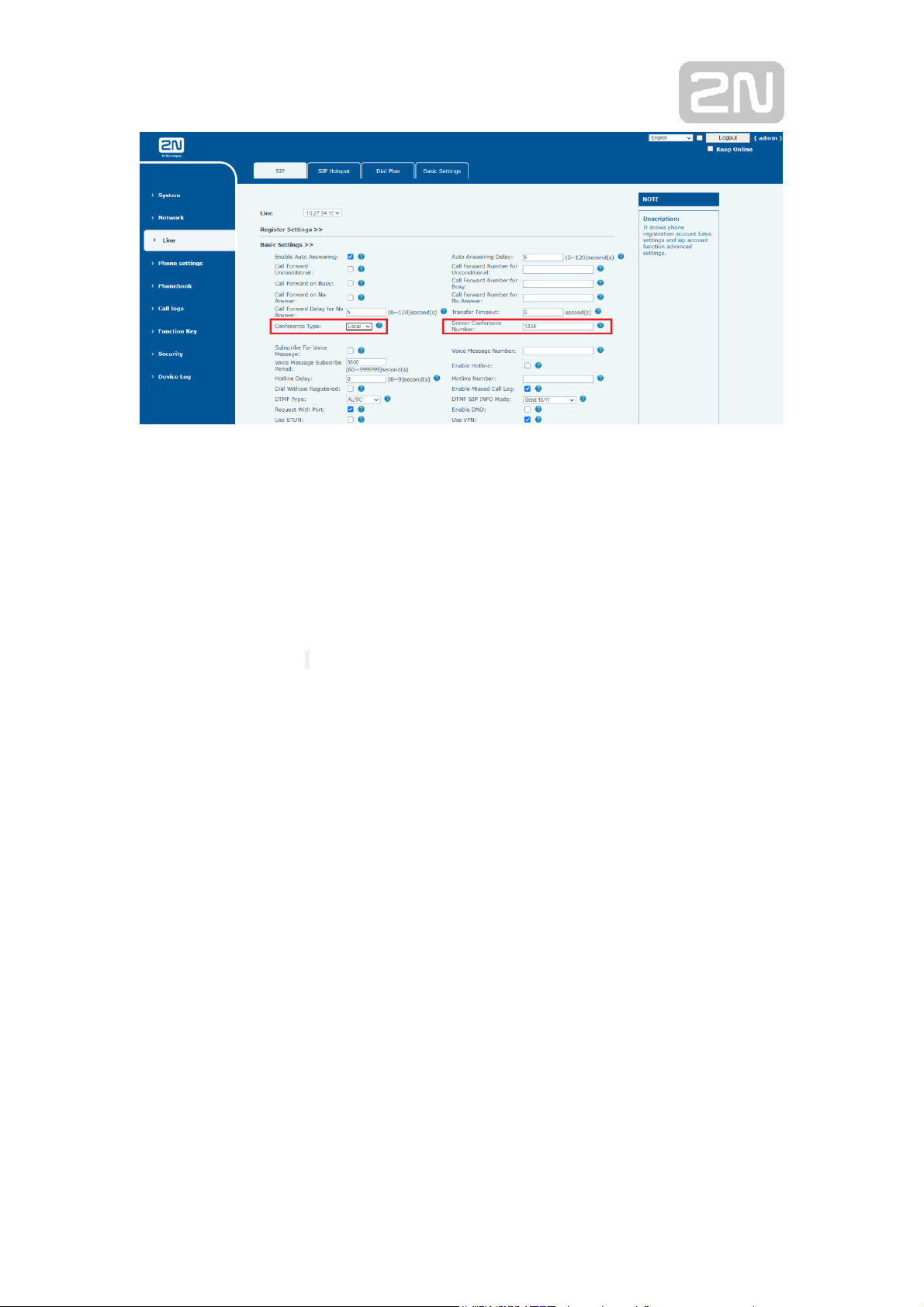

Picture 7 - Network conference

Method to join a network conference：

⚫ Multi-party call number of network conference room and enter the password

then all enter the conference room.

⚫ The two phones have established common calls. Press the conference button

to invite new members to the conference. Follow the voice prompt to operate.
Note: the upper limit of the number of participants in the network conference varies
according to the server.

8.10 Hotline

The device supports hotline dialing. After setting up the hotline dialing, directly pick up
the handset, hands-free, earphone, etc., and the phone will automatically call according
to the hotline delay time.

⚫ On the website [Line] >> [SIP] >> [Basic Settings], can also set up a hotline.
⚫ The setup hotline also corresponds to the SIP line. That is, the hotline set in the

SIP1 webpage can only be activated in the SIP1 line.

17

Picture 8 - Hotline set up on webpage

18

9 Advance Function

9.1 Intercom

When the Intercom is enabled, it can automatically receive calls from the intercom.

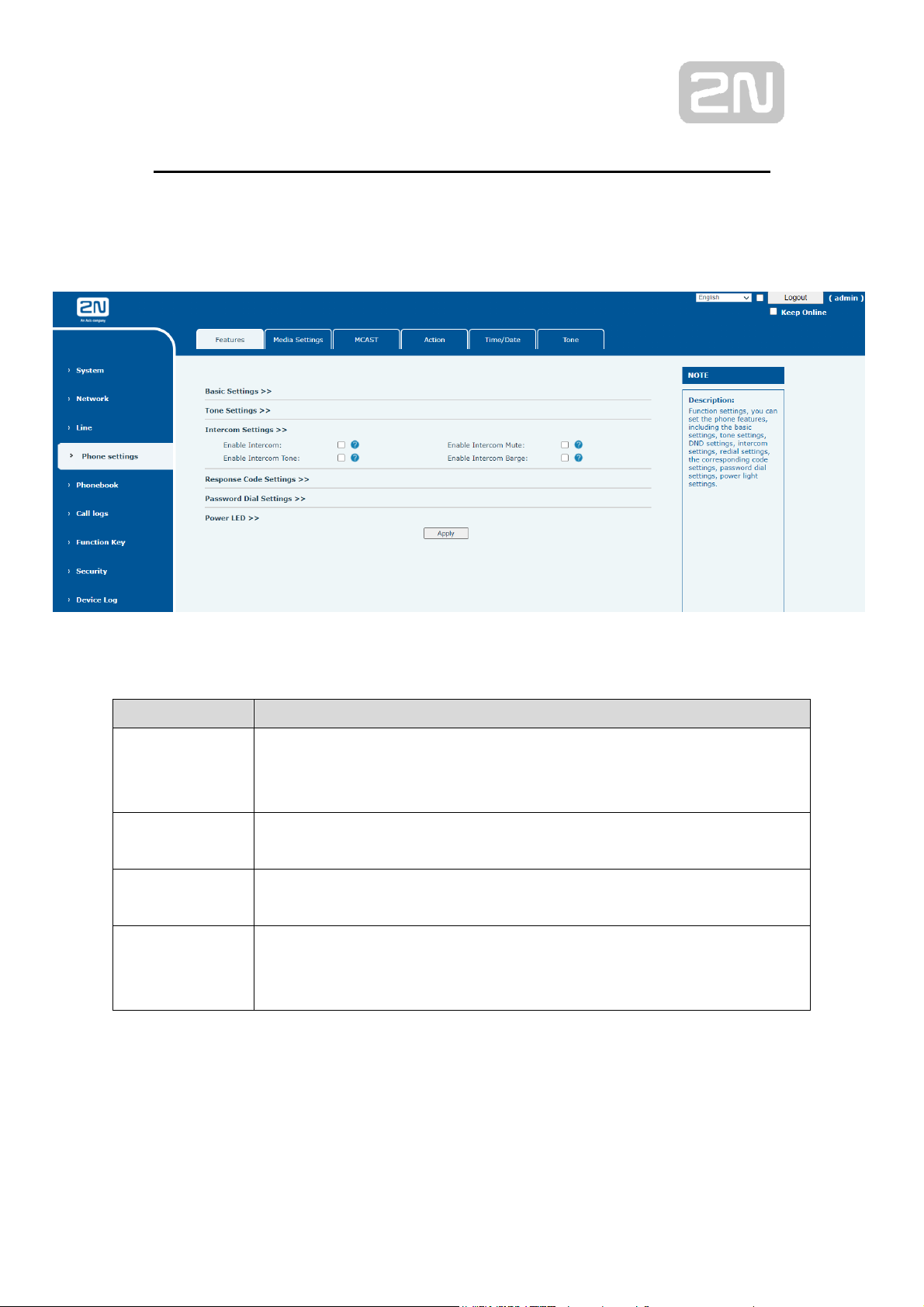

Picture 9 - Web Intercom configure

Table 3 - Intercom configure

Parameter

Description

Enable Intercom

When intercom is enabled, the device will accept the incoming call request
with a SIP header of Alert-Info instruction to automatically answer the call
after specific delay.

Enable Intercom
Mute

Enable mute mode during the intercom call

Enable Intercom
Tone

If the incoming call is intercom call, the phone plays the intercom tone

Enable Intercom
Barge

Enable Intercom Barge by selecting it, the phone auto answers the intercom
call during a call. If the current call is intercom call, the phone will reject the
second intercom call

9.2 MCAST

This feature allows user to make some kind of broadcast call to people who are in
multicast group. User can configure a multicast DSS Key on the phone, which allows

19

user to send a Real Time Transport Protocol (RTP) stream to the pre-configured
multicast address without involving SIP signaling. You can also configure the phone to
receive an RTP stream from pre-configured multicast listening address without involving
SIP signaling. You can specify up to 10 multicast listening addresses.

9.3 Message

9.3.1 MWI（Message Waiting Indicator）

If the service of the lines supports voice message feature, when the user is not available
to answer the call, the caller can leave a voice message on the server to the user.
The user will be notified of the server voice message and the status of the power lamp.

Picture 10 - New Voice Message Notification

To listen to a voice message, the user must first configure the voicemail number. After
the voicemail number is configured, the user can retrieve the voicemail of the default
line.

20

10 Phone Settings

10.1 Basic Settings

10.1.1 Language

The user can set the phone language through the web interface.
⚫ Web interface: Log in to the phone webpage and set the language in the drop-down

box at the top right corner of the page, as shown in the figure:

Picture 11 - Language setting on Web page

⚫ The function box on the right side of the web interface language setting box is

“Synchronize language to phone”; if selected, the phone language will be
synchronized with the webpage language. If it is not selected, it will not be
synchronized.

10.2 Function Key

The device has a total of 11 configurable custom function keys; One direct call

foreground key and 10 custom digital speed dial keys.

Device direct call key, default configuration as a fixed number;(customizable

replacement)

0~9 numeric keys can be used as customized shortcut keys, users can customize
the configuration of 0~9 numeric keys in the web page, users can quickly dial the
corresponding number by long press each shortcut key.

The DSS Key could be configured as followings,

21

◆ Memory Key

◼ Speed Dial/Intercom/BLF/Presence/Call Park/Call Forward (to someone)

◆ DTMF

◆ Action URL

◆ MCAST Paging

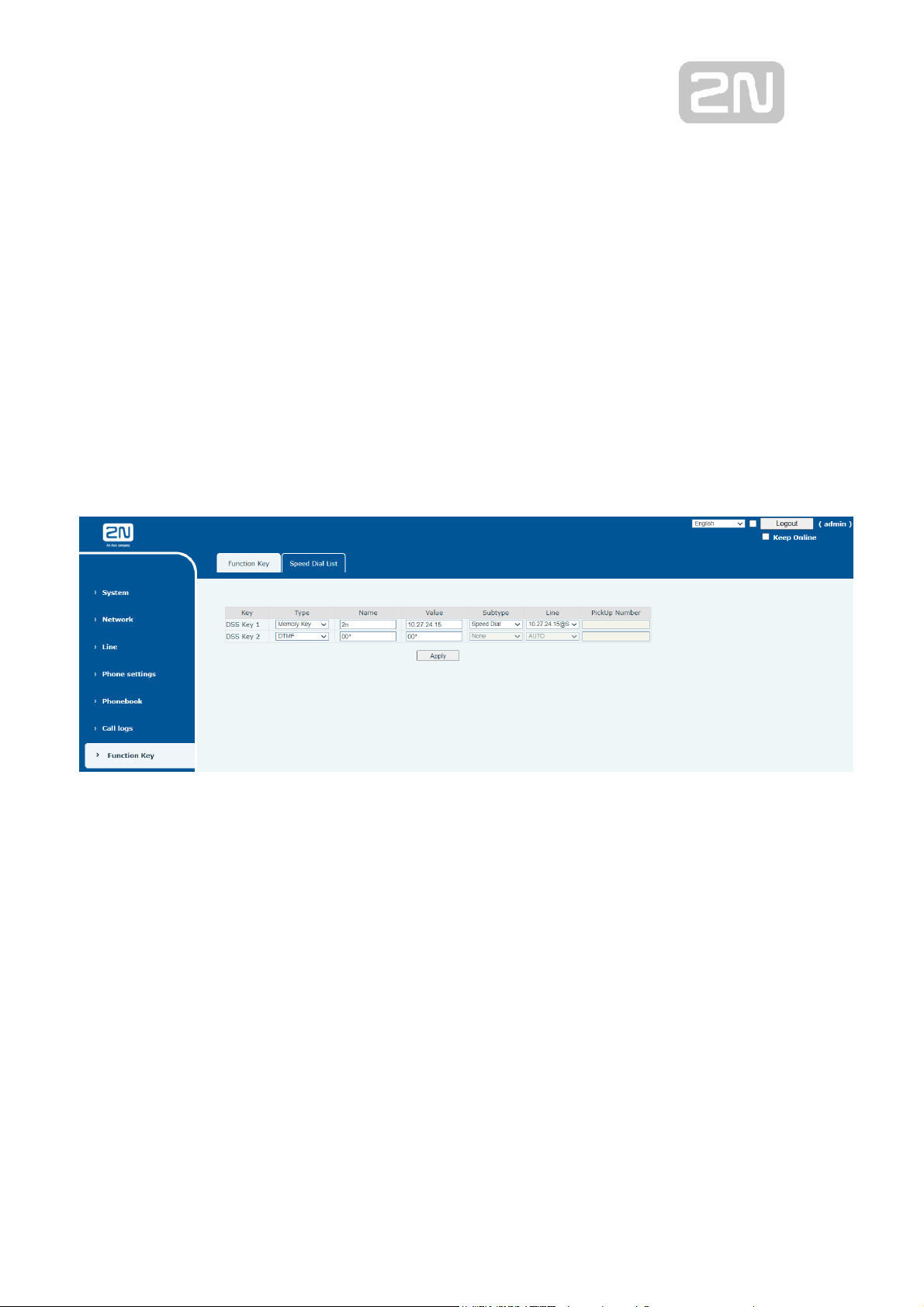

Webpage interface: [Function key] >> [Function key].

Moreover, user also can add the user-defined title for the DSS Keys, which is configured
as Memory Key / Line / URL / Multicast / Prefix.

NOTICE! User-defined title is up to 10 characters.

More detailed information refers to11.26 Function Key and 6.3 Appendix I –LED

Definition .

22

11 Web Configurations

11.1 Web Page Authentication

The user can log into the web page of the phone to manage the user's phone information
and operate the phone. Users must provide the correct user name and password to log
in.

For security reasons, we recommend that you change the default administrator password upon the first
login to the web interface by pressing the Modify button in the User Management section.
Default access data:
User: admin
Password: 2n

11.2 System >> Information

User can get the system information of the device in this page including,

◼ Model
◼ Hardware Version
◼ Software Version
◼ Uptime

And summarization of network status,

◼ Network Mode
◼ MAC Address
◼ IP
◼ Subnet Mask
◼ Default Gateway

Besides, summarization of SIP account status,

◼ SIP User
◼ SIP account status (Registered / Unapplied / Trying / Timeout )

11.3 System >> Account

On this page the user can change the password for the login page.

Users with administrator rights can also add or delete users, manage users, and set
permissions and passwords for new users.

23

11.4 System >> Configurations

On this page, users with administrator privileges can view, export, or import the phone
configuration, or restore the phone to factory Settings.

◼ Clear Configurations
Select the module in the configuration file to clear.
SIP: account configuration.
AUTOPROVISION: automatically upgrades the configuration
TR069:TR069 related configuration
MMI: MMI module, including authentication user information, web access protocol, etc.
DSS Key: DSS Key configuration
BASIC NETWORK: NETWORK configuration

◼ Clear Tables
Select the local data table to be cleared, all selected by default.

◼ Reset Phone
The phone data will be cleared, including configuration and database tables.

11.5 System >> Upgrade

web interface: log into the phone web page and enter the [system] >> [upgrade] page.

Picture 12 - Web page firmware upgrade

Table 4 - Firmware upgrade

24

Parameter

Description

Upgrade server

Enable Auto Upgrade

Enable automatic upgrade, If there is a new version txt and new
software firmware on the server, phone will show a prompt upgrade
message after Update Interval.

Upgrade Server Address1

Set available upgrade server address.

Upgrade Server Address2

Set available upgrade server address.

Update Interval

Set Update Interval.

Firmware Information

Current Software Version

It will show Current Software Version.

Server Firmware Version

It will show Server Firmware Version.

[Upgrade] button

If there is a new version txt and new software firmware on the server,
the page will display version information and upgrade button will
become available; Click [Upgrade] button to upgrade the new
firmware.

New version description
information

When there is a corresponding TXT file and version on the server
side, the TXT and version information will be displayed under the new
version description information.

⚫ The file requested from the server is a TXT file called vendor_model_hw10.txt.Hw

followed by the hardware version number, it will be written as hw10 if no difference

on hardware. All Spaces in the filename are replaced by underline.
⚫ The URL requested by the phone is HTTP:// server address/vendor_Model_hw10

.txt: The new version and the requested file should be placed in the download

directory of the HTTP server.

⚫ TXT file format must be UTF-8
⚫ vendor_model_hw10.TXT The file format is as follows：

Version=1.6.3 #Firmware

Firmware=xxx/xxx.z #URL，Relative paths are supported and absolute paths are

possible, distinguished by the presence of protocol headers.

BuildTime=2018.09.11 20:00

Info=TXT|XML

Xxxxx

Xxxxx

Xxxxx

Xxxxx
⚫ After the interval of update cycle arrives, if the server has available files and

25

versions, the phone will prompt as shown below. Click [view] to check the version

information and upgrade.

11.6 System >> Auto Provision

Page interface: log into the phone page and enter the [system] >> [automatic
deployment] page.

Picture 13 - Auto Provision settings

2N® IP Handset support SIP PnP, DHCP options, Static provision, TR069. If all of the 4
methods are enabled, the priority from high to low as below:
PNP>DHCP>TR069> Static Provisioning
Transferring protocol: FTP, TFTP, HTTP, HTTPS
Details refer to 2N® IP Handset Auto Provision.

Parameters

Description

Basic settings

CPE Serial Number

Display the device SN

Authentication Name

The username of provision server

Authentication Password

The password of provision server

Configuration File
Encryption Key

If the device configuration file is encrypted, user should add the encryption
key here

General Configuration File
Encryption Key

If the common configuration file is encrypted, user should add the
encryption key here

26

Download Fail Check
Times

If there download is failed, phone will retry with the configured times.

Update Contact Interval

Phone will update the phonebook with the configured interval time. If it is 0,
the feature is disabled.

Save Auto Provision
Information

Save the HTTP/HTTPS/FTP username and password. If the provision URL
is kept, the information will be kept.

Download Common
Config enabled

Whether phone will download the common configuration file.

Enable Server Digest

When the feature is enable, if the configuration of server is changed,
phone will download and update.

DHCP Option

Option Value

Confiugre DHCP option, DHCP option supports DHCP custom option |
DHCP option 66 | DHCP option 43, 3 methods to get the provision URL.
The default is Option 66.

Custom Option Value

Custom Option value is allowed from 128 to 254. The option value must be
same as server define.

Enable DHCP Option 120

Use Option120 to get the SIP server address from DHCP server.

SIP Plug and Play (PnP)

Enable SIP PnP

Whether enable PnP or not. If PnP is enable, phone will send a SIP
SUBSCRIBE message with broadcast method. Any server can support the
feature will respond and send a Notify with URL to phone. Phone could get
the configuration file with the URL.

Server Address

Broadcast address. As default, it is 224.0.0.0.

Server Port

PnP port

Transport Protocol

PnP protocol, TCP or UDP.

Update Interval

PnP message interval.

Static Provisioning Server

Server Address

Provisioning server address. Support both IP address and domain
address.

Configuration File Name

The configuration file name. If it is empty, phone will request the common
file and device file which is named as its MAC address.
The file name could be a common name, $mac.cfg, $input.cfg. The file
format supports CFG/TXT/XML.

Protocol Type

Transferring protocol type ，supports FTP、TFTP、HTTP and HTTPS

Update Interval

Configuration file update interval time. As default it is 1, means phone will
check the update every 1 hour.

Update Mode

Provision Mode.

27

1. Disabled.

2. Update after reboot.

3. Update after interval.

TR069

Enable TR069

Enable TR069 after selection

ACS Server Type

There are 2 options Serve type, common and CTC.

ACS Server URL

ACS server address

ACS User

ACS server username (up to is 59 character)

ACS Password

ACS server password (up to is 59 character)

Enable TR069 Warning
Tone

If TR069 is enabled, there will be a prompt tone when connecting.
TLS Version

TLS version (TLS 1.0, TLS 1.1, TLS 1.2)

INFORM Sending Period

INFORM signal interval time. It ranges from 1s to 999s

STUN Server Address

Configure STUN server address

STUN Enable

To enable STUN server for TR069

11.7 System >> Tools

This page provides tools for users to resolve problems.

⚫ Syslog

Can choose the log level, export the system log; In order to analyze the
problem in case of failure.

⚫ Web Capture

Grab packets from network data to analyze problems in case of failure
⚫ Watch Dog
When the device is stuck while in use, it will automatically restart and recover.

⚫ Ping

Check the destination IP address to be reached and record the result, showing

whether the destination is responding and how long it takes to receive the reply.

28

11.8 System >> Reboot Phone

This page can restart the phone.

11.9 Network >> Basic

The phone only supports wired network connections. The phone USES an IP network
connection to provide services. Unlike traditional telephony based on circuit technology,
IP telephony exchanges packets and data over a network based on the IP address of the
telephony.

To enable the phone, the network configuration must be configured correctly; The default
network mode of the device is DHCP/IPv4.The client wants to modify the other modes
and needs to go to the device's web configuration interface.
Web interface: [network] >> [basic] select network mode

Picture 14 - Network mode Settings

◼ IP Mode
There are 3 network protocol mode options, IPv4, IPv6 and IPv4 & IPv6.

◼ IPv4

29

In IPv4 mode, there are 3 connection mode options: DHCP, PPPoE and Static IP.
When using DHCP mode, phone will get the IP address from DHCP server (router).

⚫ Use DHCP DNS: It is enabled as default. “Enable” means phone will get DNS

address from DHCP server and “disable” means not.

⚫ Use DHCP time: It is disabled as default. “Enable” to manage the time of get

DNS address from DHCP server and “disable” means not.

When using PPPoE, phone will get the IP address from PPPoE server.

⚫ Username: PPPoE user name.
⚫ Password: PPPoE password.

When using Static IP mode, user must configure the IP address manually.

⚫ IP Address: Phone IP address.
⚫ Mask: sub mask of your LAN.
⚫ Gateway: The gateway IP address. Phone could access the other network via

it.
⚫ Primary DNS: Primary DNS address. The default is 8.8.8.8, Google DNS server

address.
⚫ Secondary DNS: Secondary DNS. When primary DNS is not available, it will

work.

◼ Pv6
In IPv6, there are 2 connection mode options, DHCP and Static IP.

⚫ DHCP configuration refers to IPv4 introduction in last page.
⚫ Static IP configuration is almost same as IPv4’s, except the IPv6 Prefix.
⚫ IPv6 Prefix: IPv6 prefix, it is similar with mask of IPv4.

11.10 Network >> Service Port

This page provides settings for Web page login protocol, protocol port settings and RTP
port.

30

Picture 15 - Service Port Settings

Table 5 - Service port

Parameter

Description

Web Server Type

Reboot to take effect after settings. Optionally,
the web page login is HTTP/HTTPS.

Web Logon Timeout

Default as 15 minutes, the timeout will
automatically exit the login page, need to login
again.

Web auto login

After the timeout does not need to enter a user
name password, will automatically login to the
web page.

HTTP Port

The default is 80. If you want system security,
you can set ports other than 80.
Such as :8080, webpage login: HTTP://ip:8080

HTTPS Port

The default is 443, the same as the HTTP port.

RTP Port Range Start

The value range is 1025 to 65535. The value of
RTP port starts from the initial value set. For
each call, the value of voice and video port is
added 2.

RTP Port Quantity

Number of calls.

11.11 Network >> VPN

Virtual Private Network (VPN) is a technology to allow device to create a tunneling

connection to a server and becomes part of the server’s network. The network

transmission of the device may be routed through the VPN server.
For some users, especially enterprise users, a VPN connection might be required to be

31

established before activate a line registration. The device supports two VPN modes,
Layer 2 Transportation Protocol (L2TP) and OpenVPN.
The VPN connection must be configured and started (or stopped) from the device web
portal.
◼ L2TP

NOTICE! The device only supports non-encrypted basic authentication and
non-encrypted data tunneling. For users who need data encryption, please use
OpenVPN instead.

To establish a L2TP connection, users should log in to the device web portal, open
webpage [Network] >> [VPN]. In VPN Mode, check the “Enable VPN” option and select

“L2TP”, then fill in the L2TP server address, Authentication Username, and

Authentication Password in the L2TP section. Press “Apply” then the device will try to
connect to the L2TP server.
When the VPN connection established, the VPN IP Address should be displayed in the
VPN status. There may be some delay of the connection establishment. User may need
to refresh the page to update the status.
Once the VPN is configured, the device will try to connect with the VPN automatically
when the device boots up every time until user disable it. Sometimes, if the VPN
connection does not establish immediately, user may try to reboot the device and check
if VPN connection established after reboot.
◼ OpenVPN
To establish an OpenVPN connection, user should get the following authentication and
configuration files from the OpenVPN hosting provider and name them as the following,
OpenVPN Configuration file: client.ovpn

CA Root Certification: ca.crt
Client Certification: client.crt
Client Key: client.key

User then upload these files to the device in the web page [Network] >> [VPN], select

OpenVPN Files. Then user should check “Enable VPN” and select “OpenVPN” in VPN
Mode and click “Apply” to enable OpenVPN connection.

Same as L2TP connection, the connection will be established every time when system
rebooted until user disable it manually.

11.12 Network >> Advanced

◼ LLDP
Link Layer Discovery Protocol. LLDP is a vendor independent link layer protocol used by

32

network devices for advertising their identity, capabilities to neighbors on a LAN
segment.

Phone could use LLDP to find the VLAN switch or other VLAN devices and use LLDP
learn feature to apply the VLAN ID from VLAN switch to phone its self.

◼ CDP
Cisco Discovery Protocol. CDP is a not-for-profit charity that runs the global disclosure
system for investors, companies, cities, states and regions to manage their
environmental impacts. According to the CDP, Cisco devices could share the OS version,
IP address, hardware version and so on.

Picture 14 - QoS & VLAN

Parameters

Description

LLDP setting

Report

Enable LLDP

Interval

LLDP requests interval time

Learning

apply the learned VLAN ID to the phone configuration

QoS

QoS Mode

configure SIP DSCP and audio DSCP

WAN VLAN

WAN VLAN

WAN port VLAN configuration

LAN VLAN

LAN VLAN

LAN port VLAN configuration

CDP

CDP

CDP enable/disable ，CDP interval time

11.13 Line >> SIP

Configure the Line service configuration on this page.

Table 6 - Line configuration on the web page

Parameters

Description

Register Settings

Line Status

Display the current line status at page loading.
To get the up to date line status, user has to

33

refresh the page manually.

Activate

Whether the service of the line is activated

Username

Enter the username of the service account.

Authentication User

Enter the authentication user of the service
account

Display Name

Enter the display name to be sent in a call
request.

Authentication Password

Enter the authentication password of the service
account

Realm

Enter the SIP domain if requested by the service
provider

Server Name

Input server name.

SIP Server 1

Server Address

Enter the IP or FQDN address of the SIP server

Server Port

Enter the SIP server port, default is 5060

Transport Protocol

Set up the SIP transport line using TCP or UDP
or TLS.

Registration Expiration

Set SIP expiration date.

SIP Server 2

Server Address

Enter the IP or FQDN address of the SIP server

Server Port

Enter the SIP server port, default is 5060

Transport Protocol

Set up the SIP transport line using TCP or UDP
or TLS.

Registration Expiration

Set SIP expiration date.

SIP Proxy Server Address

Enter the IP or FQDN address of the SIP proxy
server.

Proxy Server Port

Enter the SIP proxy server port, default is 5060.

Proxy User

Enter the SIP proxy user.

Proxy Password

Enter the SIP proxy password.

Backup Proxy Server Address

Enter the IP or FQDN address of the backup
proxy server.

Backup Proxy Server Port

Enter the backup proxy server port, default is

5060.

Basic Settings

Enable Auto Answering

Enable auto-answering, the incoming calls will
be answered automatically after the delay time

Auto Answering Delay

Set the delay for incoming call before the system

34

automatically answered it

Call Forward Unconditional

Enable unconditional call forward, all incoming
calls will be forwarded to the number specified in
the next field

Call Forward Number for Unconditional

Set the number of unconditional call forward

Call Forward on Busy

Enable call forward on busy, when the phone is
busy, any incoming call will be forwarded to the
number specified in the next field.

Call Forward Number for Busy

Set the number of call forward on busy.

Call Forward on No Answer

Enable call forward on no answer, when an
incoming call is not answered within the
configured delay time, the call will be forwarded
to the number specified in the next field.

Call Forward Number for No Answer

Set the number of call forward on no answer.

Call Forward Delay for No Answer

Set the delay time of not answered call before
being forwarded.

Transfer Timeout

Set the timeout of call transfer process.

Conference Type

Set the type of call conference, Local=set up call
conference by the device itself, maximum
supports two remote parties, Server=set up call
conference by dialing to a conference room on
the server

Server Conference Number

Set the conference room number when
conference type is set to be Server

Subscribe For Voice Message

Enable the device to subscribe a voice message
waiting notification, if enabled, the device will
receive notification from the server if there is
voice message waiting on the server

Voice Message Number

Set the number for retrieving voice message

Voice Message Subscribe Period

Set the interval of voice message notification
subscription

Enable Hotline

Enable hotline configuration, the device will dial
to the specific number immediately at audio
channel opened by off-hook handset or turn on
hands-free speaker or headphone

Hotline Delay

Set the delay for hotline before the system
automatically dialed it

35

Hotline Number

Set the hotline dialing number

Dial Without Registered

Set call out by proxy without registration

Enable Missed Call Log

If enabled, the phone will save missed calls into
the call history record.

DTMF Type

Set the DTMF type to be used for the line

DTMF SIP INFO Mode

Set the SIP INFO mode to send ‘*’ and ‘#’ or ‘10’
and ‘11’

Enable DND

Enable Do-not-disturb, any incoming call to this
line will be rejected automatically

Subscribe For Voice Message

Enable the device to subscribe a voice message
waiting notification, if enabled, the device will
receive notification from the server if there is
voice message waiting on the server

Use VPN

Set the line to use VPN restrict route

Use STUN

Set the line to use STUN for NAT traversal

Enable Failback

Whether to switch to the primary server when it
is available.

Failback Interval

A Register message is used to periodically
detect the time interval for the availability of the
main Proxy.

Signal Failback

Multiple proxy cases, whether to allow the
invite/register request to also execute failback.

Signal Retry Counts

The number of attempts that the SIP Request
considers proxy unavailable under multiple
proxy scenarios.

Codecs Settings

Set the priority and availability of the codecs by
adding or remove them from the list.

Video Codecs

Select video code to preview video.

Advanced Settings

Use Feature Code

When this setting is enabled, the features in this
section will not be handled by the device itself
but by the server instead. In order to control the
enabling of the features, the device will send
feature code to the server by dialing the number
specified in each feature code field.

Enable DND

Set the feature code to dial to the server

Disable DND

Set the feature code to dial to the server

36

Enable Call Forward Unconditional

Set the feature code to dial to the server

Disable Call Forward Unconditional

Set the feature code to dial to the server

Enable Call Forward on Busy

Set the feature code to dial to the server

Disable Call Forward on Busy

Set the feature code to dial to the server

Enable Call Forward on No Answer

Set the feature code to dial to the server

Disable Call Forward on No Answer

Set the feature code to dial to the server

Enable Blocking Anonymous Call

Set the feature code to dial to the server

Disable Blocking Anonymous Call

Set the feature code to dial to the server

Call Waiting On Code

Set the feature code to dial to the server

Call Waiting Off Code

Set the feature code to dial to the server

Send Anonymous On Code

Set the feature code to dial to the server

Send Anonymous Off Code

Set the feature code to dial to the server

SIP Encryption

Enable SIP encryption such that SIP
transmission will be encrypted

RTP Encryption

Enable RTP encryption such that RTP
transmission will be encrypted

Enable Session Timer

Set the line to enable call ending by session
timer refreshment. The call session will be
ended if there is not new session timer event
update received after the timeout period

Session Timeout

Set the session timer timeout period

Enable BLF List

Enable/Disable BLF List

BLF List Number

BLF List allows one BLF key to monitor the
status of a group. Multiple BLF lists are
supported.

Response Single Codec

If setting enabled, the device will use single
codec in response to an incoming call request

BLF Server

The registered server will receive the
subscription package from ordinary application
of BLF phone.
Please enter the BLF server, if the sever does
not support subscription package, the registered
server and subscription server will be separated.

Keep Alive Type

Set the line to use dummy UDP or SIP OPTION
packet to keep NAT pinhole opened

Keep Alive Interval

Set the keep alive packet transmitting interval

Keep Authentication

Keep the authentication parameters from

37

previous authentication

Blocking Anonymous Call

Reject any incoming call without presenting
caller ID

User Agent

Set the user agent, the default is Model with
Software Version.

Specific Server Type

Set the line to collaborate with specific server
type

SIP Version

Set the SIP version

Anonymous Call Standard

Set the standard to be used for anonymous

Local Port

Set the local port

Ring Type

Set the ring tone type for the line

Enable user=phone

Sets user=phone in SIP messages.

Use Tel Call

Set use tel call

Auto TCP

Using TCP protocol to guarantee usability of
transport for SIP messages above 1500 bytes

Enable Rport

Set the line to add rport in SIP headers

Enable PRACK

Set the line to support PRACK SIP message

DNS Mode

Select DNS mode, A, SRV, NAPTR

Enable Long Contact

Allow more parameters in contact field per RFC
3840

Enable Strict Proxy

Enables the use of strict routing. When the
phone receives packets from the server，it will
use the source IP address, not the address in
via field.

Convert URI

Convert not digit and alphabet characters to
%hh hex code

Use Quote in Display Name

Whether to add quote in display name, i.e. “2N”
vs 2N

Enable GRUU

Support Globally Routable User-Agent URI
(GRUU)

Sync Clock Time

Time Sync with server

Enable Inactive Hold

With the post-call hold capture package
enabled, you can see that in the INVITE
package, SDP is inactive.

Caller ID Header

Set the Caller ID Header

Use 182 Response for Call waiting

Set the device to use 182 response code at call
waiting response

38

Enable Feature Sync

Feature Sync with server

Enable SCA

Enable/Disable SCA (Shared Call Appearance)

CallPark Number

Set the CallPark number.

Server Expire

Set the timeout to use the server.

TLS Version

Choose TLS Version.

uaCSTA Number

Set uaCSTA Number.

Enable Click To Talk

With the use of special server, click to call out
directly after enabling.

Flash mode

Chose Flash mode，normal or SIP info.

Flash Info Content-Type

Set the SIP info content type.

Flash Info Content-Body

Set the SIP info content body.

PickUp Number

Set the scramble number when the Pickup is
enabled.

JoinCall Number

Set JoinCall Number.

Intercom Number

Set Intercom Number.

Unregister On Boot

Whether to enable logout function.

Enable MAC Header

Whether to open the registration of SIP package
with user agent with MAC or not.

Enable Register MAC Header

Whether to open the registration is user agent
with MAC or not.

BLF Dialog Strict Match

Whether to enable accurate matching of BLF
sessions.

PTime(ms)

Set whether to bring ptime field, default no.

SIP Global Settings

Strict Branch

Set up to strictly match the Branch field.

Enable Group

Set open group.

Enable RFC4475

Set to enable RFC4475.

Enable Strict UA Match

Enable strict UA matching.

Registration Failure Retry Time

Set the registration failure retry time.

Local SIP Port

Modify the phone SIP port.

11.14 Line >> SIP Hotspot

SIP hotspot is a simple but practical function. With simple configurations, the SIP hotspot
function can implement group ringing. SIP accounts can be expanded.
Phone set functions as a SIP hotspot and other phone sets (B and C) function as SIP
hotspot clients. When somebody calls phone set A, phone sets A, B, and C all ring.

39

When any phone set answers the call, other phone sets stop ringing. The call can be
answered by only one phone set. When B or C initiates a call, the SIP number registered
by phone set A is the calling number.
To set a SIP hotspot, register at least one SIP account.

Picture 16 - Register SIP account

Table 7 - SIP hotspot Parameters

Parameters

Description

Device Table

If your phone is set to “SIP hotspot server”, Device Table will display as Client
Device Table which connected to your phone.

If your phone is set to “SIP hotspot client”, Device Table will display as Server

Device Table which you can connect to.

SIP hotspot

Enable hotspot

Set it to be Enable to enable the feature.

Mode

Choose hotspot, phone will be a “SIP hotspot server”; Choose Client, phone will
be a “SIP hotspot Client”

Monitor Type

Either the Multicast or Broadcast is ok. If you want to limit the broadcast packets,
you’d better use broadcast. But, if client choose broadcast, the SIP hotspot phone
must be broadcast.

Monitor Address

The address of broadcast, hotspot server and hotspot client must be same.

Remote Port

Type the Remote port number.

Configure SIP hotspot server:

40

Picture 17 - SIP hotspot server configuration

Configure SIP hotspot client:
To set as a SIP hotspot client, no SIP account needs to be set. The Phone set will
automatically obtain and configure a SIP account. On the SIP Hotspot tab page, set
Mode to Client. The values of other options are the same as those of the hotspot.

Picture 18 - SIP hotspot client configuration

As the hotspot server, the default extension number is 0. When the phone is used as the
client, the extension number is increased from 1, you can view the extension number
through the [SIP Hotspot] page.
Call extension number:

⚫ The hotspot server and the client can dial each other through the extension number.
⚫ For example, extension 1 dials extension 0.

41

11.15 Line >> Dial Plan

Picture 19 - Dial plan settings

Table 8 - Phone 7 dialing methods

Parameters

Description

Press # to invoke dialing

The user dials the other party's number and then
adds the # number to dial out;

Dial Fixed Length

The number entered by the user is automatically
dialed out when it reaches a fixed length

Timeout dial

The system dials automatically after timeout

Press # to Do Blind Transfer

The user enters the number to be transferred
and then presses the "#" key to transfer the
current call to a third party

Blind Transfer on Onhook

After the user enters the number, hang up the
handle or turn off the hands-free function to
transfer the current call to a third party.

Attended Transfer on Onhook

Hang up the handle or press the hands-free
button to realize the function of attention

-transfer, which can transfer the current call to a
third party.

Attended Transfer on Conference Onhook

During a three-way call, hang up the handle and
the remaining two parties remain on the call.

Enable E.164

Please refer to e. 164 standard specification

42

Add dialing rules:

Picture 20 - Custom setting of dial - up rules

Table 9 - Dial - up rule configuration table

Parameters

Description

Dial rule

There are two types of matching: Full Matching
or Prefix Matching. In Full matching, the entire
phone number is entered and then mapped per
the Dial Peer rules.
In prefix matching, only part of the number is
entered followed by T. The mapping with then
take place whenever these digits are dialed.
Prefix mode supports a maximum of 30 digits.

Note: Two different special characters are used.

◼ x -- Matches any single digit that is dialed.
◼ [ ] -- Specifies a range of numbers to be matched. It may be a range, a list of ranges separated

by commas, or a list of digits.

Destination

Set Destination address. This is for IP direct.

Port

Set the Signal port, and the default is 5060 for
SIP.

Alias

Set the Alias. This is the text to be added,
replaced or deleted. It is an optional item.

Note: There are four types of aliases.
◼ all: xxx – xxx will replace the phone number.

43

◼ add: xxx – xxx will be dialed before any phone number.
◼ del –The characters will be deleted from the phone number.
◼ rep: xxx – xxx will be substituted for the specified characters.

Suffix

Characters to be added at the end of the phone
number. It is an optional item.

Length

Set the number of characters to be deleted. For
example, if this is set to 3, the phone will delete
the first 3 digits of the phone number. It is an
optional item.

This feature allows the user to create rules to make dialing easier. There are several
different options for dial rules. The examples below will show how this can be used.

Example 1: All Substitution -- Assume that it is desired to place a direct IP call to IP
address 172.168.2.208. Using this feature, 123 can be substituted for 172.168.2.208.

Picture 21 - Dial rules table (1)

Example 2: Partial Substitution -- To dial a long distance call to Beijing requires dialing
area code 010 before the local phone number. Using this feature 1 can be substituted
for 010. For example, to call 62213123 would only require dialing 162213123 instead of

01062213123.

Picture 22 - Dial rules table (2)

Example 3: Addition -- Two examples are shown. In the first case, it is assumed that 0
must be dialed before any 11 digit number beginning with 13. In the second case, it is
assumed that 0 must be dialed before any 11 digit number beginning with 135, 136, 137,
138, or 139. Two different special characters are used.

44

x -- Matches any single digit that is dialed.
[] -- Specifies a range of numbers to be matched. It may be a range, a list of ranges
separated by commas, or a list of digits.

11.16 Line >> Basic Settings

Set up the register global configuration.

Table 10 - Set the line global configuration on the web page

Parameters

Description

STUN Settings

Server Address

Set the STUN server address

Server Port

Set the STUN server port, default is 3478

Binding Period

Set the STUN binding period which can be used
to keep the NAT pinhole opened.

SIP Waiting Time

Set the timeout of STUN binding before sending
SIP messages

The TLS authentication

TLS Certification File

Upload or delete the TLS certification file used
for encrypted SIP transmission.

11.17 Phone settings >> Features

Configuration phone features.

Table 11 - General function Settings

Parameters

Description

Basic Settings

Enable Call Waiting

Enable this setting to allow user to take second
incoming call during an established call. Default
enabled.

Enable Call Transfer

Enable Call Transfer.

Semi-Attended Transfer

Enable Semi-Attended Transfer by selecting it

Enable 3-Way Conference

Enable 3-way conference by selecting it

Enable Auto Onhook

The phone will hang up and return to the idle
automatically at hands-free mode

45

Auto Onhook Time

Specify Auto Onhook time, the phone will hang
up and return to the idle automatically after Auto
Hand down time at hands-free mode, and play
dial tone Auto Onhook time at handset mode

Ring for Headset

Enable Ring for Handset by selecting it, the
phone plays ring tone from handset.

Auto Headset

Enable this feature, headset plugged in the
phone, user press ‘answer’ key or line key to
answer a call with the headset automatically.

Enable Silent Mode

When enabled, the phone is muted, there is no
ringing when calls, you can use the volume keys
and mute key to unmute.

Disable Mute for Ring

When it is enabled, you can’t mute the phone

Enable Default Line

If enabled, user can assign default SIP line for
dialing out rather than SIP1.

Enable Auto Switch Line

Enable phone to select an available SIP line as
default automatically

Default Ext Line

Select the default line to use for outgoing calls

Ban Outgoing

If you select Ban Outgoing to enable it, and you
cannot dial out any number.

Hide DTMF

Configure the hide DTMF mode.

Enable CallLog

Select whether to save the call log.

Enable Restricted Incoming List

Whether to enable restricted call list.

Enable Allowed Incoming List

Whether to enable the allowed call list.

Enable Restricted Outgoing List

Whether to enable the restricted allocation list.

Enable Country Code

Whether the country code is enabled.

Country Code

Fill in the country code.

Area Code

Fill in the area code.

Enable Number Privacy

Whether to enable number privacy.

Match Direction

Matching direction, there are two kinds of rules
from right to left and from left to right.

Start Position

Open number privacy after the start of the
hidden location.

Hide Digits

Turn on number privacy to hide the number of
digits.

Allow IP Call

If enabled, user can dial out with IP address

P2P IP Prefix

Prefix a point-to-point IP call.

46

Caller Name Priority

Change caller ID display priority.

Emergency Call Number

Search path

Select the search path.

LDAP Search

Select from with one LDAP for search

Emergency Call Number

Configure the Emergency Call Number. Despite
the keyboard is locked, you can dial the
emergency call number

Restrict Active URI Source IP

Set the device to accept Active URI command
from specific IP address. More details please
refer to this link

Push XML Server

Configure the Push XML Server, when phone
receives request, it will determine whether to
display corresponding content on the phone
which sent by the specified server or not.

Enable Pre-Dial

Disable this feature, user enter number will open
audio channel automatically.
Enable the feature, user enter the number
without opening audio channel.

Enable Multi Line

If enabled, up to 10 simultaneous calls can exist
on the phone, and if disabled, up to 2
simultaneous calls can exist on the phone.

Line Display Format

Custom line format：SIPn/SIPn：xxx/xxx@SIPn

Contact As White List Type

NONE/BOTH/DND White List/FWD White List

Block XML When Call

Disable XML push on call.

SIP notify

When enabled, the phone displays the
information when it receives the relevant notify
content.

Tone Settings

Enable Holding Tone

When turned on, a tone plays when the call is
held

Enable Call Waiting Tone

When turned on, a tone plays when call waiting

Play Dialing DTMF Tone

Play DTMF tone on the device when user
pressed a phone digits at dialing, default
enabled.

Play Talking DTMF Tone

Play DTMF tone on the device when user
pressed a phone digits during taking, default

47

enabled.

DND Settings

DND Option

Select to take effect on the line or on the phone
or close.

Enable DND Timer

Enable DND Timer, If enabled, the DND is
automatically turned on from the start time to the
off time.

DND Start Time

Set DND Start Time

DND End Time

Set DND End Time

Intercom Settings

Enable Intercom

When intercom is enabled, the device will accept
the incoming call request with a SIP header of
Alert-Info instruction to automatically answer the
call after specific delay.

Enable Intercom Mute

Enable mute mode during the intercom call

Enable Intercom Tone

If the incoming call is intercom call, the phone
plays the intercom tone

Enable Intercom Barge

Enable Intercom Barge by selecting it, the phone
auto answers the intercom call during a call. If
the current call is intercom call, the phone will
reject the second intercom call

Response Code Settings

DND Response Code

Set the SIP response code on call rejection on
DND

Busy Response Code

Set the SIP response code on line busy

Reject Response Code

Set the SIP response code on call rejection

Password Dial Settings

Enable Password Dial

Enable Password Dial by selecting it, When
number entered is beginning with the password
prefix, the following N numbers after the
password prefix will be hidden as *, N stand for
the value which you enter in the Password
Length field. For example: you set the password
prefix is 3, enter the Password Length is 2, then
you enter the number 34567, it will display 3**67
on the phone.

Encryption Number Length

Configure the Encryption Number length

48

Password Dial Prefix

Configure the prefix of the password call

number

Power LED

Common

Standby power lamp state, off when off, open is
always bright red. Off by default.

SMS/MWI

The status of power lamp when there is unread
short message/voice message, including
off/on/slow flash/quick flash, default slow flash.

Missed

The state of the power lamp when there is a
missed call, including off/on/slow flash/quick
flash, the default slow flash.

Talk/Dial

In the talk/dial state, the power lamp state, off is
off, on is always red bright, the default is off.

Ringing

Power lamp status when there is an incoming
call, including off/on/slow flash/quick flash,
default flash.

Mute

Power lamp status in mute mode, including
off/on/slow flash/quick flash, off by default.

Hold/Held

The power lamp state, including off/on/slow
flash/quick flash, is turned off by default when
left/retained.

11.18 Phone settings >> Media Settings

Change voice Settings.

Table 12 - Voice settings

Parameter

Description

Codecs Settings

Select enable or disable voice encoding:
G.711A/U, G.722, G.729, G.726-16, G726-24,
G726-32, G.726-40,
ILBC, Opus

Audio Settings

Handset Volume

Set the Handset volume, the value must be 1~9

Default Ring Type

Configure default ringtones. If no special ringtone

49

is set for the phone number, the default ringtone
will be used.

Speakerphone Volume

Set the hands-free volume to 1-9.

Headset Ring Volume

Set the volume of the earphone ringtone to 1~9.

Headset Volume

Set the volume of the headset to 1~9.

Speakerphone Ring Volume

Set the volume of hands-free ringtone to 1~9.

G.723.1 Bit Rate

5.3kb/s or 6.3kb/s is available.

DTMF Payload Type

Enter the DTMF payload type, the value must be
96~127.

AMR Payload Type

Set AMR load type, range 96~127.

Headset Mic Gain

Set the earphone's radio volume gain to fit
different models of earphones.

Opus playload type

Set Opus load type, range 96~127.

OPUS Sample Rate

Set Opus sampling rate, including opus-nb (8KHz)
and opus-wb (16KHz).

ILBC Payload Type

Set the ILBC Payload Type, the value must be
96~127.

ILBC Payload Length

Set the ILBC Payload Length

Enable MWI Tone

When there is a new voice message message, the
phone will start a special dial tone.

Enable VAD

Whether voice activity detection is enabled.

Onhook Time

Configure a minimum response time, which
defaults to 200ms

EHS Type

EHS headset is available after enabling.

RTP Control Protocol (RTCP) Settings

CNAME user

Set CNAME user

CNAME host

Set CNAME host

RTP Settings

RTP keep alive

Hold the call and send the packet after 30s

Alert Info Ring Settings

Value

Set the value to specify the ring type.

Ring Type

Type1-Type9

50

11.19 Phone settings >> MCAST

Using the multicast function, we can simply and conveniently send the announcement to
each member of the multicast, and send the multicast RTP stream to the preconfigured
multicast address by setting the multicast key on the phone. Listen for and play the RTP
stream sent from the multicast address by configuring the listening multicast address on
the phone.

Picture 15 – MCAST

Table 13 - Multicast parameters

Parameters

Description

Normal Call Priority

Define the priority of the active call, 1 is the
highest priority, 10 is the lowest.

Enable Page Priority

The voice call in progress shall take precedence
over all incoming paging calls.

Name

Listened multicast server name

Host: port

Listened multicast server’s multicast IP address

and port.

51

11.20 Phone settings >> Action

Action URL

Action urls are used for IPPBX systems to submit phone events.

11.21 Phone settings >> Time/Date

The user can configure the time Settings of the phone on this page.

Picture 24 - Time/Date

Table 14 - Time&Date settings

Parameters

Description

Network Time Server Settings

Time Synchronized via SNTP

Enable time-sync through SNTP protocol

Time Synchronized via DHCP

Enable time-sync through DHCP protocol

Primary Time Server

Set primary time server address

Secondary Time Server

Set secondary time server address, when
primary server is not reachable, the device will
try to connect to secondary time server to get
time synchronization.

Time Zone

Select the time zone

52

Resync Period

Time of re-synchronization with time server

12-Hour Clock

Set the time display in 12-hour mode

Date Format

Select the time/date display format

Daylight Saving Time Settings

Local

Choose your local, phone will set daylight saving
time automatically based on the local

DST Set Type

Choose DST Set Type, if Manual, you need to
set the start time and end time.

Fixed Type

Daylight saving time rules are based on specific
dates or relative rule dates for conversion.
Display in read-only mode in automatic mode.

Offset

The offset minutes when DST started

Month Start

The DST start month

Week Start

The DST start week

Weekday Start

The DST start weekday

Hour Start

The DST start hour

Minute Start

The DST start minute

Month End

The DST end month

Week End

The DST end week

Weekday End

The DST end weekday

Hour End

The DST end hour

Minute End

The DST end minute

Manual Time Settings

You can set your time manually

11.22 Phone settings >> Tone

This page allows users to configure a phone prompt.

You can either select the country area or customize the area. If the area is selected, it will
bring out the following information directly. If you choose to customize the area, you can
modify the button tone, call back tone and other information.

53

Picture 25 - Tone settings on the web

11.23 Phonebook >> Call List

◼ Restricted Incoming Calls:
It is similar like a blacklist. Add the number to the blacklist, and the user will no longer
receive calls from the stored number until the user removes it from the list.
Users can add specific Numbers to the blacklist or add specific prefixes to the blacklist to
block calls with all Numbers with this prefix.

◼ Restricted Outgoing Calls:
Adds a number that restricts outgoing calls and cannot be called until the number is
removed from the table.

11.24 Phonebook >> Web Dial

Use web pages for call, reply, and hang up operations.

54

11.25 Call logs

The phone can store up to 600 call records, the user can browse the complete call
record in this page. The call record can be sorted by time, call number, contact name or
line, and the call record can be screened by call record type (incoming call, outgoing call,
missed call, forward call).

The user can also save the number in the call record to his/her phone book or add it to
the blacklist/whitelist.

Users can also dial the web page by clicking on the number in the call log.
The user can delete the call records by pressing the delete button, or select all the call
records by exporting

11.26 Function Key >> Function Key

Table 15 - Function Key configuration

Parameters

Description

Memory Key

Speed Dial: You can call the number directly which you set. This
feature is convenient for you to dial the number which you
frequently dialed.
Intercom: This feature allows the operator or the secretary to
connect the phone quickly; it is widely used in office environments.

DTMF

It allows user to dial or edit dial number easily.

Multicast

Configure the multicast address and audio codec. User presses
the key to initiate the multicast.

Action URL

The user can use a specific URL to make basic calls to the phone.

11.27 Function Key >> Speed Dial List

The user can configure the number button "0~9" to be the speed dial key. After the
configuration is completed according to the figure below, the user can press the
configured shortcut key for the phone to quickly dial the configuration number. Can more
quickly and conveniently exhale, eliminating the need to dial, check the number of the
trouble.

55

11.28 Security >> Web Filter

The user can set up a configuration management phone that allows only machines with
a certain network segment IP access.

Picture 26 - Web Filter settings

Picture 27 - Web Filter Table

Add and remove IP segments that are accessible; Configure the starting IP address
within the start IP, end the IP address within the end IP, and click [Add] to submit to take
effect. A large network segment can be set, or it can be divided into several network
segments to add. When deleting, select the initial IP of the network segment to be
deleted from the drop-down menu, and then click [Delete] to take effect.

Enable web page filtering: configure enable/disable web page access filtering; Click the
"apply" button to take effect.

Note: if the device you are accessing is in the same network segment as the phone,
please do not configure the filter segment of the web page to be outside your own
network segment, otherwise you will not be able to log in the web page.

56

11.29 Security >> Trust Certificates

Set whether to open license certificate and general name validation, select certificate
module.
You can upload and delete uploaded certificates.

Picture 28 - Certificate of settings

11.30 Security >> Device Certificates

Select the device certificate as the default and custom certificate.
You can upload and delete uploaded certificates.

Picture 29 - Device certificate setting

57

11.31 Security >> Firewall

Picture 30 - Network firewall Settings

Through this page can set whether to enable the input, output firewall, at the same time
can set the firewall input and output rules, using these Settings can prevent some
malicious network access, or restrict internal users access to some resources of the
external network, improve security.
Firewall rule set is a simple firewall module. This feature supports two types of rules: input
rules and output rules. Each rule is assigned an ordinal number, allowing up to 10 for each
rule.
Considering the complexity of firewall Settings, the following is an example to illustrate:

Table 16 - Network Firewall

Parameter

Description

Enable Input Rules

Indicates that the input rule application is enabled.

Enable Output Rules

Indicates that the output rule application is enabled.

Input/Output

To select whether the currently added rule is an input or
output rule.

Deny/Permit

To select whether the current rule configuration is disabled
or allowed;

Protocol

There are four types of filtering protocols: TCP | UDP |
ICMP | IP.

58

Src Port Range

Filter port range

Src Address

Source address can be host address, network address, or
all addresses 0.0.0.0; It can also be a network address
similar to *.*.*.0, such as: 192.168.1.0.

Dst Address

The destination address can be either the specific IP
address or the full address 0.0.0.0; It can also be a
network address similar to *.*.*.0, such as: 192.168.1.0.

Src Mask

Is the source address mask. When configured as

255.255.255.255, it means that the host is specific. When
set as 255.255.255.0, it means that a network segment is
filtered.

Dst Mask

Is the destination address mask. When configured as

255.255.255.255, it means the specific host. When set as

255.255.255.0, it means that a network segment is
filtered.

After setting, click [Add] and a new item will be added in the firewall input rule.

Then select and click the button [Apply].
In this way, when the device is running: ping 192.168.1.118, the packet cannot be sent to

192.168.1.118 because the output rule is forbidden. However, other IP of the ping

192.168.1.0 network segment can still receive the response packet from the destination
host normally.

Select the list you want to delete and click [Delete] to delete the selected list.

11.32 Device Log >> Device Log

You can grab the device log, and when you encounter an abnormal problem, you can
send the log to the technician to locate the problem. See 12.5 Get log information.

59

12 Trouble Shooting

When the phone is not in normal use, the user can try the following methods to restore
normal operation of the phone or collect relevant information and send a problem report
to technical support mailbox.

12.1 Get Device System Information

Users can get information by pressing the [Menu] >> [Status] option in the phone. The
following information will be provided:
The network information
Equipment information (model, software and hardware version), etc.

12.2 Reboot Device

Users can reboot the device from soft-menu, [Menu] >> [Basic] >> [Reboot System],
and confirm the action by [OK]. Or, simply remove the power supply and restore it again.

12.3 Reset Device to Factory Default

Reset Device to Factory Default will erase all user’s configuration, preference, database
and profiles on the device and restore the device back to the state as factory default.

To perform a factory default reset, user should press [Menu] >> [Advanced], and then
input the password to enter the interface. Then choose [Factory Reset] and press
[Enter], and confirm the action by [OK]. The device will be rebooted into a clean factory
default state.

60

Picture 31 - Reset

12.4 Network Packets Capture

Sometimes it is helpful to dump the network packets of the device for issue identification.
To get the packets dump of the device, user needs to log in the device web portal, open
page [System] >> [Tools] and click [Start] in “Network Packets Capture” section. A
pop-up message will be prompt to ask user to save the capture file. User then should
perform relevant operations such as activate/deactivate line or making phone calls and
click [Stop] button in the web page when operation finished. The network packets of the
device during the period have been dumped to the saved file.

Picture 32 - Web capture

61

User may examine the packets with a packet analyzer or send it to technical support
mailbox.

12.5 Get Log Information

Log information is helpful when encountering an exception problem. In order to get the
log information of the phone, the user can log in the phone web page, open the page
[Device log], click the [Start] button, follow the steps of the problem until the problem
appears, and then click the [End] button, [Save] to local analysis or send the log to the
technician to locate the problem.

12.6 Common Trouble Cases

Table 17 - Trouble Cases

Trouble Case

Solution

Device could not boot up

1. The device is powered by external power supply via power
adapter or PoE switch. Please use standard power adapter or
PoE switch met with the specification requirements and check if
device is well connected to power source.

Device could not register to a
service provider

1. Please check if device is well connected to the network. The
network Ethernet cable should be connected to the

[Network] port NOT the [PC] port.

2. Please check if the device has an IP address. Check the system
information, if the IP displays “Negotiating…”, the device does not
have an IP address. Please check if the network configurations is
correct.

3. If network connection is fine, please check again your line
configurations. If all configurations are correct, please kindly
contact your service provider to get support, or follow the

instructions in “13.5 Network Packet Capture” to get the network

packet capture of registration process and send it to technical
support to analyze the issue.

No Audio or Poor Audio in
Handset

1. Please check if Handset is connected to the correct Handset ( )
port NOT Headphone ( ) port.

2. The network bandwidth and delay may be not suitable for audio

62

call at the moment.

Poor Audio or Low Volume in
Headphone

1. There are two Headphone wire sequence in the market. Please
use the Headphone provided by 2N, or consult 2N the wire
sequence if you wish to use a third-party headphone.

2. The network bandwidth and delay may be not suitable for audio
call at the moment.

Audio is chopping at far-end
in Hands-free speaker mode

This is usually due to loud volume feedback from speaker to
microphone. Please lower down the speaker volume a little bit, the
chopping will be gone.

2N TELEKOMUNIKACE a.s.
Modřanská 621, 143 01 Praha 4, Czech Republic
www.2n.cz
