10Zig V1206-P Product Data Sheet

Part Number: V1206-P

Americas P: 86 6- 865 -5250 E: [e-mail] W: www.10ZiG.com
EMEA

P: [phone] E: [e-mail] W: www.10ZiG.eu

APAC

P: 1300 768 799 E: [e-mail] W: www.10ZiG.com.au

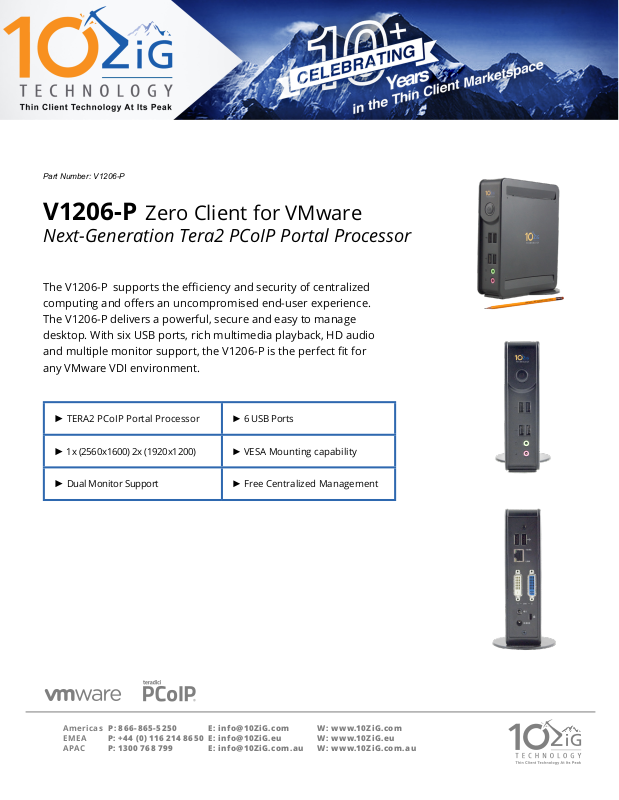

V1206-P Zero Client for VMware

Next-Generation Tera2 PCoIP Portal Processor

The V1206-P supports the eciency and security of centralized
computing and oers an uncompromised end-user experience.
The V1206-P delivers a powerful, secure and easy to manage
desktop. With six USB ports, rich multimedia playback, HD audio
and multiple monitor support, the V1206-P is the perfect t for
any VMware VDI environment.

► TERA2 PCoIP Portal Processor

► 1x (2560x1600) 2x (1920x1200)

► Dual Monitor Support

► 6 USB Ports

► VESA Mounting capability

► Free Centralized Management

TERA2 PCoIP Zero Client Series

V1206-P

System V1206-P

Management Teradici Management

Form Factor Slim Line

Processor Teradici PCoIP™ Portal Processor -TERA2

Chipset TERA2321 PCoIP™

Dimensions

Device 6.3" (Height) x 5.28" (Length) x 1.7" (Thinness)

Weight 1.5lbs - 0.68kgs

Connections

Ports USB x 6, DVI-I x 1, DVI-D x 1, Mic-In x 1, Line-Out x 1

Video 1 x (2560 x 1600) - 2 x (1920 x 1200)

Imaging 50 Mpps (VDI) - 150 Mpps (with Work Station Card)

Networking

Ethernet 10/100/1000 Base-T

Environmental

Operating Temp.

Power

50~104F (10~40C), 10-95%
non-condensing humidity

8 Watt Consumption, 36 Watt,
DC-12V/3A Input

Certications

CE, FCC, CAN ICES-3/NMB-3, VCCI, UL, TUV-GS, C-Tick, GOST, BSMI, RoHS
