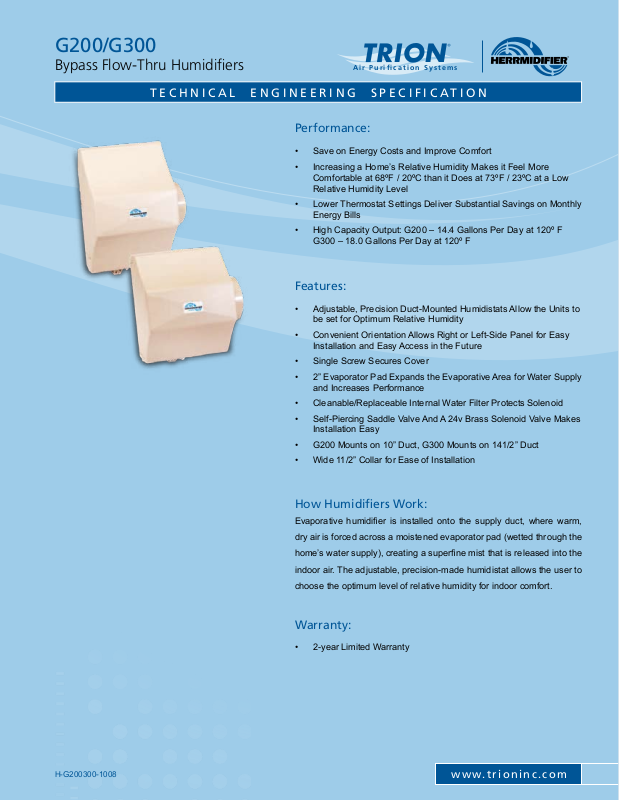

G200/G300
Bypass Flow-Thru Humidifiers
A i r P u r i f i c a t i o n S y s t e m s
T E C H N I C A L E N G I N E E R I N G S P E C I F I C A T I O N
Performance:
•Save on Energy Costs and Improve Comfort
•Increasing a Home’s Relative Humidity Makes it Feel More Comfortable at 68ºF / 20ºC than it Does at 73ºF / 23ºC at a Low Relative Humidity Level
•Lower Thermostat Settings Deliver Substantial Savings on Monthly Energy Bills
•High Capacity Output: G200 – 14.4 Gallons Per Day at 120º F G300 – 18.0 Gallons Per Day at 120º F
Features:
•Adjustable, Precision Duct-Mounted Humidistats Allow the Units to be set for Optimum Relative Humidity
•Convenient Orientation Allows Right or Left-Side Panel for Easy Installation and Easy Access in the Future
•Single Screw Secures Cover
•2” Evaporator Pad Expands the Evaporative Area for Water Supply and Increases Performance
•Cleanable/Replaceable Internal Water Filter Protects Solenoid
•Self-Piercing Saddle Valve And A 24v Brass Solenoid Valve Makes Installation Easy
•G200 Mounts on 10” Duct, G300 Mounts on 141/2” Duct
•Wide 11/2” Collar for Ease of Installation
How Humidifiers Work:
Evaporative humidifier is installed onto the supply duct, where warm, dry air is forced across a moistened evaporator pad (wetted through the home’s water supply), creating a superfine mist that is released into the indoor air. The adjustable, precision-made humidistat allows the user to choose the optimum level of relative humidity for indoor comfort.
Warranty:
•2-year Limited Warranty
H-G200300-1008 |
w w w. t r i o n i n c . c o m |
|
|
