L
IFESTYLE
HOME ENTERTAINMENT SYSTEM
Setup Guide | Guía de instalación | Guide d’installation
135
SAFETY INFORMATION
Please read this guide
Please take the time to follow the instructions in this guide carefully. They will help you set up
and operate your system properly and enjoy its advanced features. Please save this guide for
future reference.
All Bose products must be used in accordance with local, state, federal, and industry
regulations.
The lightning flash with arrowhead symbol within an equilateral triangle alerts the user
to the presence of uninsulated, dangerous voltage within the system enclosure that
may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle alerts the user to the presence of
important operating and maintenance instructions in this guide.
WARNINGS:
• To prevent electric shock, match the wide blade of the line cord plug to the wide slot of the AC
(mains) receptacle. Insert fully.
• To reduce the risk of fire or electrical shock, do not expose the product to rain or moisture.
• Do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids,
such as vases, on or near the apparatus. As with any electronic products, use care not to spill liquids
into any part of the system. Liquids can cause a failure and/or a fire hazard.
• Do not place any naked flame sources, such as lighted candles, on or near the apparatus.
• Contains small parts that may be a choking hazard. Not suitable for children under
age 3.
CAUTIONS:
• Make no modifications to the system or accessories. Unauthorized alterations may compromise
safety, regulatory compliance, and system performance, and may void the warranty.
• Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume
when using headphones, especially for extended periods.
Notes:
• Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device
shall remain readily operable.
• The product must be used indoors. It is neither designed nor tested for use outdoors, in recreation
vehicles, or on boats.
• The product label is located on the bottom or the back of the product.
• The interconnect cables included with this system are not approved for in-wall installation. Please
check your local building codes for the correct type of wire and cable required for in-wall installation.
• This product is intended to be used only with the power supply provided.
Please dispose of used batteries properly, following any local regulations.
Do not incinerate.
2 – English
Th
is product conforms to all EU Directive requirements as applicable by law. The
complete Declaration of Conformity can be found at www.Bose.com/static/compliance.
SAFETY INFORMATION
Additional safety information
See the additional instructions on the Important Safety Information sheet enclosed in the shipping
carton.
Important Safety Instructions
Read these instructions.
1.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. When a polarized plug is used; Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has
been damaged in a way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
HDMI and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in
the United States and other countries.
iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
©2011 Bose Corporation. No part of this work may be reproduced, modified, distributed, or
otherwise used without prior written permission.
English – 3
4 – English
CONTENTS
CONTENTS 5
WELCOME 6
Thank you . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Wall mounting kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
SYSTEM SETUP 8
Putting the system together . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Step 1: Set up the speaker array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Step 2: Set up the control console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Step 3: Set up the Acoustimass
First time startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Step 1: Set up the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Step 2: Turn your system on and follow the
on-screen instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
If you have setup problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Contacting customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
®
module . . . . . . . . . . . . . . . . . . . . . . . . 14
English – 5
WELCOME
AC power cord* AM antennaAudio input cable
Cables and power
cords kit
Thank you
Thank you for choosing a Bose® LIFESTYLE® 135 system for your home. This guide
provides step-by-step instructions for setting up your new system.
Your new home entertainment system includes a speaker array, control console,
Acoustimass module, universal remote control and a dock for iPod or iPhone.
Unpacking
As you carefully unpack the carton, if any part appears damaged, do not attempt to
use it. Notify Bose or your authorized Bose dealer immediately. For Bose contact
information, refer to the address sheet included in the carton.
Be sure to save all of the packing materials. These provide the safest means for any
necessary shipping or transporting.
Carton contents:
• Speaker array
®
• Acoustimass
module
• Accessory kits
Each kit is identified by an icon on the box. The icons appear in the system setup steps
to indicate where parts are located.
*The appropriate power cords for your region are supplied.
6 – English
WELCOME
Remote control
Dock for iPod
or iPhone
Batteries
FM antenna IR emitter cable
ADAPTiQ® audio calibration headset
Stereo audio cable
Speaker array
extension feet
Acoustimass
module feet
USB flash drive
(for system updating only)
Remote control kit
Operating
Guide
LIFESTYLE® 235/135
HOME ENTERTAINMENT SYSTEM
LIFESTYLE® V35/V25
HOME ENTERTAINMENT SYSTEMS
LIFESTYLE® T20/ T10
HOME THEATER SYSTEMS
Operating Guide | Guía del usuario | Guide d’utilisation
Control console HDMI™ cablePower supply
Control console kit
Wall mounting kit
The speaker array can be mounted on a wall. If you wish to do this, contact Bose to
purchase the WB-135 Wall Mount Kit.
CAUTION: Do not use any wall-mounting hardware other than the WB-135 Wall Mount Kit
to mount the speaker array on a wall.
CAUTION: Do not place the speaker array near or over a source of heat, such as a
fireplace. Any damage that may occur to your speaker array as a result of placing it over
a fireplace will not be covered by the limited warranty on your LIFESTYLE® system.
English – 7
SYSTEM SETUP
Audio input
cable
Power cord
Speaker array
OPTIONAL:
Speaker array
feet
Speaker array
Audio input cable
Putting the system together
Note: The LIFESTYLE® 135 system uses the reflective surfaces of your room to deliver
wide, spacious sound. For best sound quality, the speaker array should not be placed inside
a cabinet, or diagonally in a corner.
Note: To avoid wireless interference, keep other wireless equipment, such as wireless
computer network routers, cordless phones, microwave ovens, or other WIFI-enabled
audio/video devices away from the speaker array and Acoustimass® module.
Step 1: Set up the speaker array
What you need:
A. Lay the speaker array grille-side down on the table in front of your TV.
Note: To protect the surface of your table you may want to put a protective cloth under the speaker
array until setup is complete. The foam bag removed from the speaker array could be used for this
purpose.
Note: Be sure to remove all protective films from the speaker array before operating the system.
They may affect acoustic performance if left in place.

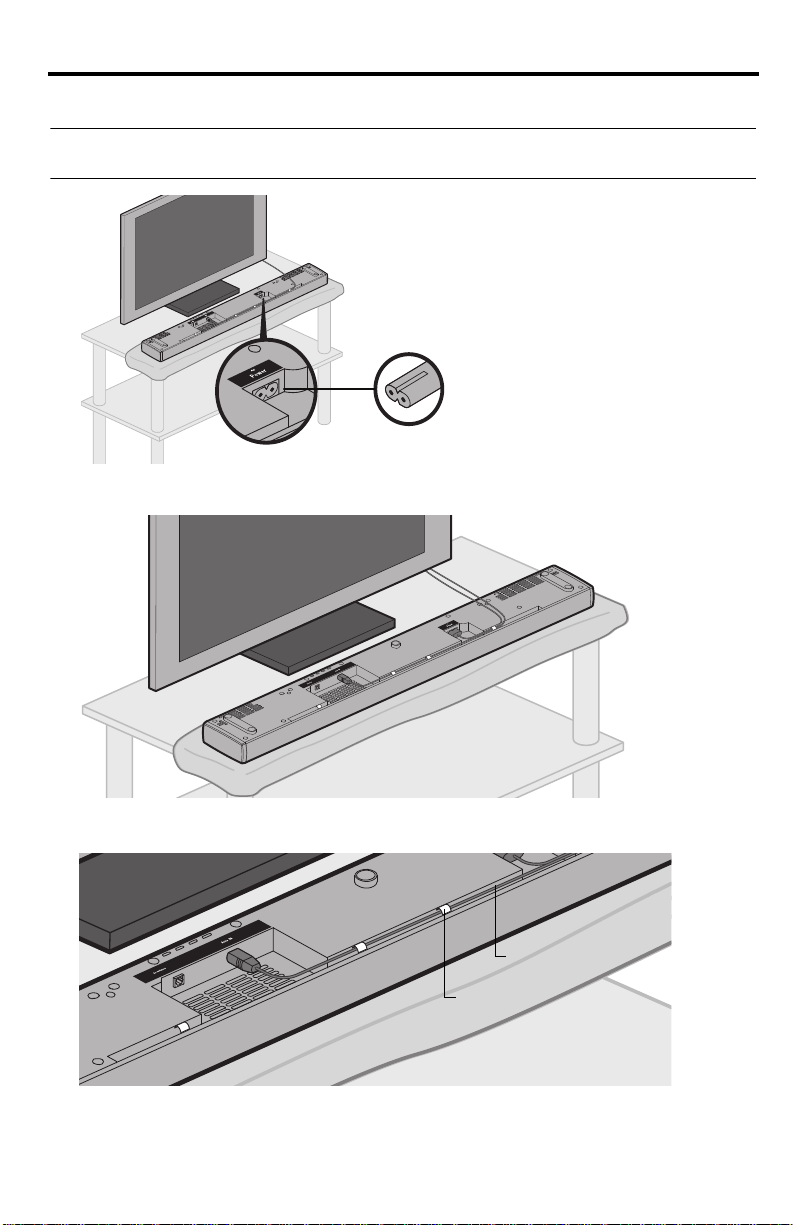

B. Plug the audio input cable into the connector labeled Audio In on the speaker array.
Make sure the flat surface with the arrow on the plug faces up.
8 – English
SYSTEM SETUP
Power cord
Cable clip
Channel
C. Plug the small end of the power cord into the connector labeled Power.
Note: Do not plug the power cord into an AC power outlet at this time. You will be
instructed to do this later in the setup process.
D. Arrange the cables as needed for your setup location.
OPTIONAL: Secure cables under the clips in the channel running along the length of
the speaker array.
English – 9
SYSTEM SETUP
Optional extension
feet
E. Turn the speaker array over and place it in front of your TV with the speaker grille
facing into the room.
CAUTION: The speaker array must be placed on a solid flat surface. For proper support,
all of the feet on the bottom of the speaker array must be resting on the table top
CAUTION: When positioning the speaker array, make sure it is not blocking any ventilation
openings on your TV. Refer to the owner’s guide that came with your TV and install in
accordance with the manufacturer’s instructions.
F. OPTIONAL: To raise the speaker array and allow more space under it, you can install
the optional extension feet (supplied).
10 – English
Step 2: Set up the control console
Control console Power cordPower supply HDMI cable
Control console
What you need:
A. Place the control console on a flat, stable surface near your TV.
SYSTEM SETUP
Note: Until your system is completely installed, it may be helpful to keep the control console
positioned for easy access to its rear connection panel.
English – 11
SYSTEM SETUP
HDMI OUT
Video to TV
HDMI cable from TV
B. Plug one end of the HDMI cable into an HDMI INPUT connector on your TV.
Note: If an HDMI cable is already connected to an HDMI input on your TV, you can use this cable.
Just disconnect the other end.
C. Plug the other end of the HDMI cable you are using into the connector labeled
HDMI OUT Video to TV on the control console.
12 – English
SYSTEM SETUP
Audio Out
Audio Input Cable
Power supply
output cord
AC power
cord
Power
Power
supply
D. Plug the audio input cable coming from the speaker array into the connector labeled
Audio Out
Make sure the flat surface with the arrow on the plug faces up.
on the control console.
Note: Make sure the audio input cable is not plugged into a Bose
®
link connector.
E. Plug the power supply output cord into the connector labeled Power.
F. Plug a power cord into the power supply.
G. Plug the power cords from the speaker array and the control console into an AC
(mains) power outlet.
English – 13
SYSTEM SETUP
Acoustimass module Power cordRubber feet
Bottom panel
Rubber foot
Power
For service use only
Step 3: Set up the Acoustimass® module
What you need for the following steps:
CAUTION: Choose a stable and level surface for the Acoustimass module. Vibration can
cause the speaker to move, particularly on smooth surfaces like marble, glass, or highly
polished wood.
®
A. When placing the Acoustimass
attach the included rubber feet to the bottom of the module for greater stability and
to protect your floor.
module on bare floors, or other smooth surfaces,
B. Plug the small end of the power cord into the Power connector.
14 – English
SYSTEM SETUP
Acoustimass module
Remote control ADAPTiQ® audio calibration headset
AA (IEC LR6)
batteries
C. Place the Acoustimass® module according to the following guidelines:
• For best sound quality, stand the Acoustimass module on its feet along the same
wall as your TV, or along any other wall in the front third of the room.
• The front opening of the module can face any direction.
• Make sure there is an AC outlet nearby.
CAUTION:
Note: Be sure to remove all protective films from the Acoustimass module before operating the
system. They may affect acoustic performance if left in place.
D. Plug the Acoustimass module power cord into an AC (mains) power outlet.
Do not operate the Acoustimass module on its front end, back end, side, or top.
First time startup
What you need for the following steps:
Before you start:
• Do not connect any devices to the control console at this time. The instructions
provided on your TV will tell you when to do this.
• Make sure the speaker array and Acoustimass module are in their final positions
before performing the ADAPTiQ audio calibration.
English – 15
SYSTEM SETUP

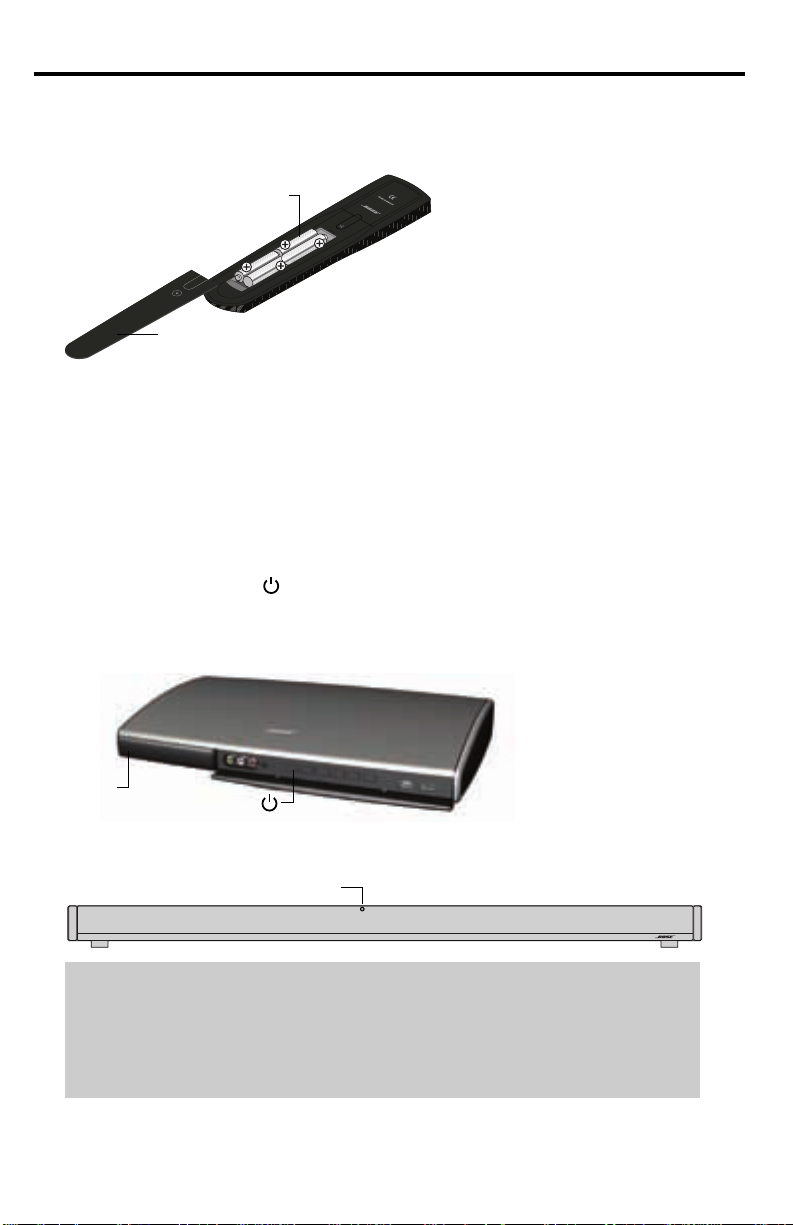

AA (IEC LR6) batteries (4)
Battery compartment cover
Power
light
Status
If the Status indicator is blinking orange:
• There is no wireless connection between the speaker array and the
Acoustimass
®
module.
• See the Troubleshooting table in the back of the operating guide and
follow the instructions for correcting the problem of “No Sound.”
Step 1: Set up the remote control
A. Slide the battery compartment cover off the back of the remote control.
B. Install four AA (IEC LR6) batteries, matching the polarity markings (+ and –) to the
markings inside the battery compartment.
C. Slide the battery cover back into place.
Step 2: Turn your system on and follow the
on-screen instructions
A. Press the power button ( ) on the control console to turn on your system.
Because the system is in a low power state when in standby, it takes several
seconds to start. When the power light on the control console changes from blinking
to steady green, your system is ready to use.
B. Check that the status indicator on the speaker array is off.
16 – English
SYSTEM SETUP
C. Turn on your TV.
D. Using the remote that came with your TV, change the TV input to the one that is
connected to your LIFESTYLE® system.
E. Follow the instructions on your TV screen. You will be prompted to do the following:
• Select your language.
®
• Run the ADAPTiQ
• Connect and set up audio/video devices using the UNIFY® intelligent integration
system.
• Configure your Bose® remote to control your connected devices.
audio calibration system.
If you have setup problems
If you experience any difficulties during the setup process, such as an unrecognized
device remote or a connection error, you can go to the UNIFY menu at any time and
correct or change part of your system setup. See “Changing Your System Setup” in your
system operating guide.
For help in trying to resolve any problems, see the troubleshooting table in your system
operating guide.
Contacting customer service
For additional help in solving problems, contact Bose® Customer Service. See the
address sheet included with your system.
English – 17
2011 Bose Corporation, The Mountain,
Framingham, MA 01701-9168 USA
AM342796 Rev 00
Loading...
