ZYXEL P-334 User Manual

Prestige 334

Broadband Router with Firewall

Quick Start Guide

11/2004 Version 3.60

English

中

文

Deutsch

Espanol Français Italiano

P334 Multilingual Guide

Contents

ENGLISH ................................................................................................................ 2

中文....................................................................................................................... 11

DEUTSCH ............................................................................................................21

ESPANOL.............................................................................................................32

FRANÇAIS............................................................................................................ 43

ITALIANO .............................................................................................................53

P334 ENGLISH

1 Introducing the Prestige

The Prestige is a broadband sharing gateway with a built-in four-port 10/100 Mbps switch that makes it easy for people to set up a small home/office network and share Internet access via a broadband (cable/DSL) modem. Key features of the Prestige include a firewall, VPN, content filtering, NAT and UPnP. See your User’s Guide for more details on all Prestige features.

You should have an Internet account already set up and have been given most of the following information.

Internet Account Information

Your device’s WAN IP Address (if given): __________________

DNS Server IP Address (if given): First ______________, Second ______________, Third ______________

Encapsulation: (select one below):

 Ethernet

 PPTP

 PPPoE (PPPoE) Service Name: ____________

Service Type: _______________________

User Name: ____________ Password: ____________

Your WAN IP Address: ____________ PPTP Server IP Address: ___________

Connection ID (if required): ____________

User Name: ____________ Password: ____________

Procedure to View a Product’s Certification(s)

1. Go to www.zyxel.com.

2. Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.

3. Select the certification you wish to view from this page.

P334 ENGLISH

2 Hardware Installation

2.1 Rear Panel

LABEL DESCRIPTION

LAN 10/100M Use an Ethernet cable to connect at least one computer for initial Prestige configuration. These

ports are auto-negotiating (can connect at 10 or 100Mbps) and auto-sensing (automatically adjust to the type of Ethernet cable you use (straight-through or crossover)).

WAN 10/100M Connect your cable/DSL modem to this port with the cable that came with your modem.

POWER 9 VAC Connect the end of the included power adaptor (use only this adapter) to this power socket.

After you’ve made the connections, connect the power cable to a power supply and look at the front panel LEDs.

RESET You only need to use this button if you’ve forgotten the Prestige’s password. It returns the

Prestige to the factory defaults (password is 1234, LAN IP address 192.168.1.1. See your User’s Guide for details).

2.2 Front Panel LEDs

The PWR LED blinks while performing system testing and then stays on if the testing is successful. The LAN, and WAN LEDs turn on if they are properly connected.

LED STATUS COLOR DESCRIPTION

Off The Prestige is not receiving power. PWR

Amber On Power to the Prestige is too low

P334 ENGLISH

LED STATUS COLOR DESCRIPTION

On The Prestige is receiving power. Green

Blinking The Prestige is performing testing.

LAN 1- 4

WAN

Off The LAN is not connected.

On The Prestige has a successful 10Mb Ethernet connection. Green

Blinking The Prestige is sending/receiving data

Amber

Off The WAN connection is not ready, or has failed.

Amber

On The Prestige has a successful 100Mb Ethernet connection.

Blinking The Prestige is sending/receiving data

On The Prestige has a successful 10Mb WAN connection. Green

Blinking The Prestige is sending/receiving data

On The Prestige has a successful 100Mb Ethernet connection.

Blinking The Prestige is sending/receiving data

3 Preparing Your Computer

Skip this section if your computer is already set up to accept a dynamic IP

address. This is the default for most new computers.

The Prestige is already set up to assign your computer an IP address. Use this section to set up your computer to receive an IP address or assign it a static IP address in the 192.168.1.2 to 192.168.1.254 range with a subnet mask of 255.255.255.0. This is necessary to ensure that your computer can communicate with your Prestige.

Your computer must have an Ethernet card and TCP/IP installed. TCP/IP should already be installed on computers using Windows NT/2000/XP, Macintosh OS 7 and later operating systems.

3.1 Windows 2000/NT/XP

1. In Windows XP, click start, Control Panel. In Windows 2000/NT, click Start, Settings, Control Panel.

2. In Windows XP, click Network Connections.

In Windows 2000/NT, click Network and Dial-up Connections.

3. Right-click Local Area Connection and then click Properties.

4. Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and click Properties.

P334 ENGLISH

5. The Internet Protocol TCP/IP Properties screen opens (the General tab in Windows XP).

- To have your computer assigned a dynamic IP address, click Obtain an IP address automatically.

-To configure a static IP address, click Use the following IP Address and fill in the IP address (choose one from192.168.1.2 to 192.168.1.254), Subnet mask (255.255.255.0), and Default gateway (192.168.1.1) fields.

6. Click Advanced. Remove any previously installed gateways in the IP Settings tab and click OK to go back to the Internet Protocol TCP/IP Properties screen.

7. Click Obtain DNS server address automatically if you do not know your DNS server IP address(es).

If you know your DNS server IP address(es), click Use the

following DNS server addresses, and type them in the Preferred DNS server and Alternate DNS server fields.

If you have more than two DNS servers, click Advanced, the DNS tab and then configure them using Add.

8. Click OK to close the Internet Protocol (TCP/IP) Properties window.

9. Click OK to close the Local Area Connection Properties window.

Checking Your Computer’s IP Address

1. In the computer, click Start, (All) Programs, Accessories and then Command Prompt.

2. In the Command Prompt window, type "ipconfig" and then press ENTER. Your computer’s IP address must be in the correct range (192.168.1.2 to 192.168.1.254) with subnet mask 255.255.255.0 in order to communicate with the Prestige.

Refer to your User’s Guide for detailed IP address configuration for other Windows and Macintosh computer operating systems.

P334 ENGLISH

4 Configuring Your Prestige

Choose one of these methods to access and configure the Prestige. This Quick

Start Guide shows you how to use the web configurator wizard only. See your

User’s Guide for background information on all Prestige features and SMT

configuration. Click the web configurator online help for screen-specific web help.

 Web Configurator

 SMT (System Management Terminal). Access the SMT via LAN or WAN using Telnet.

4.1 Accessing Your Prestige Via Web Configurator

Step 1. Launch your web browser. Enter “192.168.1.1” as the web site address.

Web site address.

Step 2. The default password (“1234”) is already in the password field (in non-readable format). Click

Login to proceed to a screen asking you to change your password. Click Reset to revert to the default password in the password field.

Default password.

Step 3. It is highly recommended you change the default password! Enter a new password, retype it to

confirm and click Apply; alternatively click Ignore to proceed to the main menu if you do not want to change the password now.

P334 ENGLISH

Change default password.

Step 4. You should now see the web configurator MAIN MENU screen.

 Click WIZARD to begin a series of screens to help you configure your Prestige for the first time.

 Click a link under ADVANCED in the navigation panel to configure that Prestige feature.

 Click MAINTENANCE in the navigation panel to see Prestige performance statistics, upload

firmware and back up, restore or upload a configuration file.

 Click LOGOUT when you have finished a Prestige management session. The Prestige

automatically logs you out if it is left idle for five minutes; press ENTER to display the Login screen again and then log back in. This idle timeout timer is one of the many Prestige features that you may edit using the web configurator.

WIZARD

Navigation panel

LOGOUT

4.2 Internet Access Using the Wizard

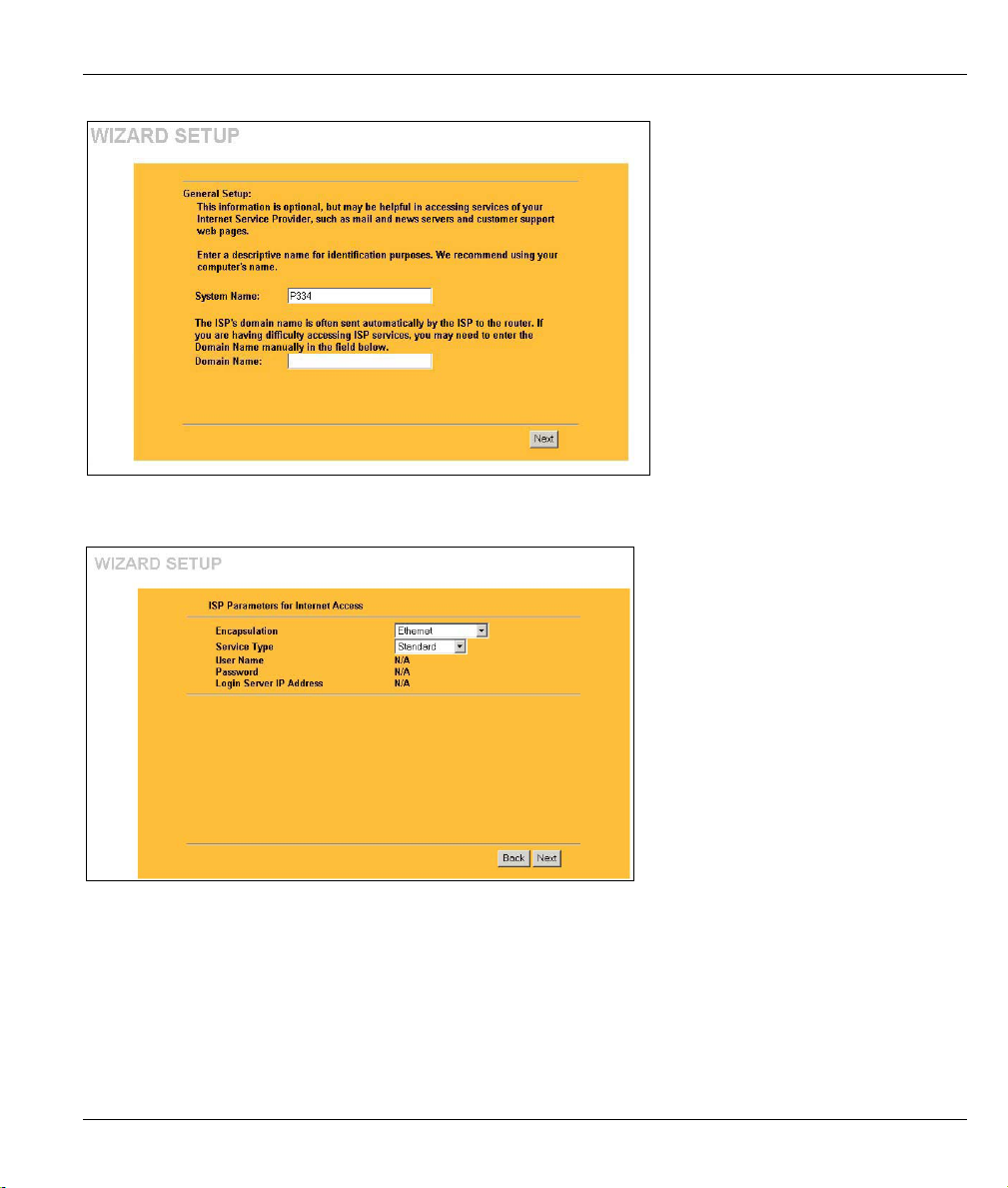

Step 1. Click Wizard Setup in the main menu to display the first wizard screen.

P334 ENGLISH

System Name is for identification purposes. Enter your computer's "Computer Name".

The Domain Name entry is what is propagated to the DHCP clients on the LAN. If you leave this blank, the domain name obtained by DHCP from the ISP is used. Click Next to continue.

Step 2. The second wizard screen has three variations depending on what encapsulation type you use. Use

the information in Internet Account Information to fill in fields.

Choose Ethernet when the WAN port is used as a regular Ethernet. Choose from Standard or a RoadRunner version. You’ll need User Name, Password and Login Server IP Address for some Roadrunner versions.

PPPoE or Point-to-Point Protocol over Ethernet (PPP over Ethernet) also functions as a dial-up connection. Therefore you’ll also need a username and password and possibly the PPPoE service name.

Your ISP will give you all needed information.

Choose PPTP if your service provider uses a DSL terminator with PPTP login. You’ll also need a user name, an associated password, the PPTP server IP address and possibly a connection ID/name.

Click Next to continue.

Step 3. This is the final wizard screen you need to configure. Fill in the fields and click Finish to save

and complete the wizard setup.

P334 ENGLISH

Select User-Defined if you have the IP address of a DNS server. Enter the DNS server's IP address in the field to the right. If you chose User-Defined, but leave the IP address set to 0.0.0.0, User-Defined changes to None after you click Apply. If you set a second choice to User-Defined, and enter the same IP address, the second User-Defined changes to None after you click Apply.

Select None if you do not want to configure DNS servers. If you do not configure a system DNS server, you must use IP addresses when configuring VPN, DDNS and the timeserver.

WAN MAC Address

The WAN MAC address field allows users to configure the WAN port's MAC address by either using the factory default or cloning the MAC address from a computer on your LAN. Select Factory Default to use the factory assigned default MAC address. Alternatively, select Spoof this Computer's MAC address - IP Address and enter the IP address of the computer on the LAN whose MAC address you are cloning.

WAN IP Address Assignment

Select Get automatically from ISP if your ISP did not assign you a fixed IP address. Select Use fixed IP address if the ISP assigned a fixed IP address and then enter your IP address and subnet mask in the next two fields. Enter the gateway IP address in this field (if provided) when you select Use Fixed IP

Address.

DNS Server Address Assignment

Select From ISP if your ISP dynamically assigns DNS server information (and the Prestige’s WAN IP address). The field to the right displays the (read-only) DNS server IP address that the ISP assigns. If you chose From ISP, but the Prestige has a fixed WAN IP address, From ISP changes to None after you click Next. If you chose From ISP for the second or third DNS server, but the ISP does not provide a second or third IP address, From ISP changes to None after you click Next.

Step 4. Click Next to save and complete the wizard setup.

4.3 Test Your Internet Connection

Launch your web browser and navigate to www.zyxel.com. You don’t need a dial-up program such as Dial Up Networking. Internet access is just the beginning. Refer to the User’s Guide for more detailed information on the complete range of Prestige features.

P334 ENGLISH

5 Troubleshooting

PROBLEM CORRECTIVE ACTION

None of the LEDs turn on when you turn on the Prestige.

Cannot access the Prestige from the LAN.

Cannot ping any computer on the LAN.

Cannot get a WAN IP address from the ISP.

Cannot access the Internet.

Make sure that you have the correct power adapter connected to the Prestige and plugged in to an appropriate power source. Check all cable connections.

If the LEDs still do not turn on, you may have a hardware problem. In this case, you should contact your local vendor.

Check the cable connection between the Prestige and your computer or hub. Refer to the Rear Panel section for details.

Ping the Prestige from a LAN computer. Make sure your computer Ethernet card is installed and functioning properly.

If the 10/100M LAN LEDs are off, check the cable connections between the Prestige and your LAN computers.

Verify that the IP address and subnet mask of the Prestige and the LAN computers are in the same IP address range.

The WAN IP is provided after the ISP verifies the MAC address, host name or user ID.

Find out the verification method used by your ISP and configure the corresponding fields.

If the ISP checks the WAN MAC address, you should clone the MAC address from a LAN computer. Click WAN and then the MAC tab, select Spoof this Computer's MAC address - IP Address and enter the IP address of the computer on the LAN whose MAC address you are cloning.

If the ISP checks the host name, enter your computer’s name (refer to the Wizard Setup section in the User’s Guide) in the System Name field in the first screen of the WIZARD.

If the ISP checks the user ID, click WAN and then the ISP tab. Check your service type, user name, and password.

Check the Prestige’s connection to the cable/DSL device.

Check whether your cable/DSL device requires a crossover or straight-through cable.

Click WAN to verify your settings.

P334 中文

1 P334 介紹

P334 是一部寬頻分享閘道器，內建 4 埠自動調整 10/100 Mbps 交換器功能，讓用戶很容易設置小型的家庭/辦公室網路，經由寬頻(cable/DSL)數據機，分享網際網路上的資源。P334 的主要特點包括防火牆(firewall)，內容過濾器(content filtering)，網路位址轉譯(Network Address Translation ，NAT)及通用隨插即用(Universal Plug And Play，UpnP)。

您應該已經有一個設定好的網路帳號並已取得大部份底下的資訊。

網路帳號資訊

用來上網的電腦之 WAN IP 位址 (如果有的話)：: __________________

DNS 伺服器 IP 位址(如果有的話)：第一 ______________，第二 ______________，第三 ______________

Encapsulation:

 Ethernet

 PPTP

 PPPoE

(請選擇底下的一種)：

服務類型：_______________________

登入伺服器 IP 位址： ______________

使用者名稱： ____________ 密碼： ____________

使用者名稱：: ____________ 密碼： ____________

您的 WAN IP 位址： ____________ PPTP 伺服器 IP 位址： ___________

連線 ID (如果需要的話)： ____________

(PPPoE) 服務名稱： ____________

使用者名稱： ____________ 密碼： ____________

檢視產品驗證的步驟

1. 請連上 www.zyxel.com。

2. 在 ZyXEL 的首頁的下拉清單框中選擇您的產品，連接至該產品的頁面。

3. 在本頁面中選擇您要檢視的驗證。

2 硬體安裝

2.1 背面板

標籤說明

LAN 10/100M

(區域網路 10/100M)

WAN 10/100M

(廣域網路 10/100M)

POWER 9 VAC

(電源)

RESET

(重新設定)

可使用 Ethernet 網路線連接至少一台電腦進行 P334 的初始配置。這些埠可自動判斷 (可用 10 或 100Mbps 的速度連線) 和自動偵測 (自動調整為您使用的 Ethernet 網路線類型 (直線或跳線接頭))。

以您的 Cable/DSL 數據機隨付的網路線連接至本埠。

將包裝內隨附的電源變壓器(請只使用本變壓器)的一端連接至本電源插孔。

完成上述連接之後，請將電源線插上插座並查看前面板的 LED 燈。

如果您忘記了 P334 的密碼，您將需要使用此按鍵。按下它可將 P334 返回至原廠設定值 (密碼是

1234，LAN IP 位址是 192.168.1.1。詳細資訊請參閱您的

P334 中文

使用手冊

).。

2.2 前面板 LED 燈

當進行系統測試時 PWR LED 燈會閃爍，如果測試成功將一直亮著。正確連接 LAN 和 WAN 埠時 LAN 和 WAN LED 也會亮起。

LED 燈顏色狀態說明

P334 中文

LED 燈顏色狀態說明

PWR

(電源)

黃色亮 P334 接收的電力太低。

滅 P334 未受電。

LAN 1- 4

(區域網路 1-4)

WAN

(廣域網路)

綠色

黃色

亮 P334 已受電。

閃爍 P334 正在執行測試。

滅未連接 LAN。

亮 P334 已成功連接 10Mb 的 Ethernet。綠色

閃爍 P334 正在傳送/接收資料。

亮 P334 已成功連接 100Mb 的 Ethernet。

閃爍 P334 正在傳送/接收資料。

滅 WAN 連線未備妥或失敗。

亮 P334 已成功連接 10Mb 的 WAN。綠色

閃爍 P334 正在傳送/接收資料。

亮 P334 已成功連接 100Mb 的 WAN。

閃爍 P334 正在傳送/接收資料。

3 設定您的電腦

如果您的電腦已設定為可接受動態 IP 位址，請跳過這一節。此處設定是大部份新電腦的預

設值。

P334 出廠時已設定成將指派(DHCP)一個 IP 位址給您的電腦。本節將設定您的電腦可接收 IP 位址或指派一個子網路遮罩為 255.255.255.0、範圍在 192.168.1.2 到 192.168.1.254 內的靜態 IP 位址給您的電腦。這是要確定您的電腦能與 P334 進行資料傳輸的必要步驟。

您的電腦必須有一張 Ethernet 網路卡且已安裝TCP/IP，在 WindowsNT/2000/XP、Macintosh OS 7 和更新的版本上都應該已經安裝了 TCP/IP。

3.1 Windows 2000/NT/XP

在 Windows XP 中，請按下 start(開始)、Control Panel(控制台)。在 Windows 2000/NT 中，請按下 Start(開始)、Settings(設定)、Control Panel(控制台)。

P334 中文

在 Windows XP 中，請按下 Network Connections(網路連線)。

在 Windows 2000/NT 中，請按下 Network and Dial-up Connections(網路和撥號連線)。

按右鍵點選 Local Area Connection(區域連線)，再選擇 Properties(內容)。

選擇 Internet Protocol (TCP/IP) (Win XP 中是在 General(一般)標籤頁中) ，再選擇 Properties(內容)。

此時會開啟 Internet Protocol TCP/IP Properties (Internet Protocol TCP/IP 內容)畫面 (在 Win XP 中是 General (一般)標

籤頁)。

- 要指派動態 IP 位址給您的電腦，請勾選 Obtain an IP address automatically(自動取得 IP 位址)。

-要配置靜態 IP 位址，請勾選 Use the following IP

Address(使用下列的 IP 位址)並在 IP address(IP 位址) (範圍介於 192.168.1.2 到 192.168.1.254 之間)、 Subnet mask(子網路遮罩) (255.255.255.0)、和 Default gateway(預設閘道)

(192.168.1.1) 等欄位中填入數據。

點選 Advanced(進階)。移除任何先前已安裝在 IP Settings(IP 設定)標籤頁中的閘道，再按下 OK(確定)返回 Internet Protocol TCP/IP Properties (Internet Protocol TCP/IP 內容) 畫面。

如果您不知道您的 DNS 伺服器位址，請勾選 Obtain DNS server address automatically(自動取得 DNS 伺服器位址)。

如果您知道您的 DNS 伺服器位址，請勾選 Use the following DNS server addresses(使用 DNS 伺服器位址)，然後在 Preferred DNS server(慣用 DNS 伺服器) 和 Alternate DNS server(其他 DNS 伺服器)欄位中填入位址。

如果您有兩個以上的 DNS 伺服器，請點選 Advanced(進階)、 DNS 標籤頁，然後使用 Add(新增)來配置它們。

按下 OK( 確定)，關閉 Internet Protocol TCP/IP Properties (Internet Protocol TCP/IP 內容)視窗。

按下 OK( 確定)，關閉 Local Area Connection Properties (區域連線內容)視窗。

檢查您電腦的 IP 位址

P334 中文

依序按下電腦螢幕上的 Start(開始)、 (All) Programs(所有程式或程式集)、 Accessories(附屬應用程式) 和 Command Prompt.(命令提示字元)。

Command Prompt.(命令提示字元)視窗中，輸入"ipconfig"後按下鍵盤上的 ENTER 鍵。你電腦的 IP 位址必定有

255.255.255.0 的子網路遮罩為且範圍正確 (192.168.1.2 到192.168.1.254 之間)，才能和 P334 進行資料傳輸。

其他 Windows 和 Macintosh 電腦作業系統的詳細 IP 位址配置方式請參閱您的

使用手冊

。

4 配置 P334

請選擇下列方法中的一個來存取和配置 P334。本

配置精靈。請參閱您的

 Web Configurator(網頁配置程式)

 SMT (系統管理終端機)。您可使用 Telnet 經由 LAN 或 WAN 存取 SMT。

使用手冊

配置程式的線上說明可取得特定畫面的網頁說明。

以取得 P334 所有功能和 SMT 配置的背景資訊。按下網頁

4.1 經由網頁配置程式存取 P334

步驟 1. 開啟您的網頁瀏覽器。在網路位址欄輸入 “192.168.1.1”。

網路位址欄.

步驟 2. 預設密碼 (“1234”)已經出現在密碼欄中 (以加密格式顯示)。按下Login(登入)，前進到下個畫

面時會要求您變更密碼。按下 Reset(重新設定) 會回復為密碼欄位中的預設密碼。

快速啟動手冊

只在告訴您如何使用網路

預設密碼。

步驟 3. 我們高度建議您變更預設密碼！輸入新密碼且再輸入一次以確認無誤後，請按下Apply(套

用)；或者如果您不想現在變更密碼，請按下 Ignore(略過) 前進到主選單。

P334 中文

(登出)

變更預設密碼。

步驟 4. 現在您應該會看到網路配置程式 MAIN MENU(主選單)畫面。

 按下 WIZARD(精靈)，會出現一系列的畫面幫助您首次配置 P334。

 按下導覽畫面中的 MAIN MENU(主選單)，配置該項 P334 功能。

 按下導覽畫面中的 MAINTENANCE(維護)，查看 P334 的效能統計數字、上傳韌體、回復或

上傳配置檔。

 當您完成 P334 管理區中的設定值後，請按下 LOGOUT(登出)。如果您閒置五分鐘都沒有任

何動作的話， P334 會自動將您登出；按下鍵盤上的 ENTER 鍵可重新顯示 Login(登入)畫面讓您再登入一次。閒置逾時計時器是您可以使用網路設定功能，是在眾多 P334 功能之一。

WIZARD

(精靈)

導覽畫面

LOGOUT

P334 中文

4.2 使用精靈存取網路

步驟 1. .按下主選單中的 Wizard Setup(設定精靈)，顯示第一個精靈畫面。

步驟 2. 第二個精靈設定畫面會根據您目前使用的連線服務方式，顯示三種不同的設定欄位。請參考

網路帳號資訊

，將資料填入相關欄位。

System Name(系統名稱)是做辨識之用請輸入您電腦的「電腦名稱」

Domain Name(網域名稱)項目是傳送到區域網路上的 DHCP 用戶端的資料當此欄位空白時會使用從 ISP 的 DHCP 所取得的網域名稱按下 Next(下一步)繼續設定

當 WAN 埠作為一般 Ethernet 使用時請選擇 Ethernet(乙太網路)。請選擇 Standard (標準)或 RoadRunner 版本。在部份的 RoadRunner 版本中您將需要輸入 User Name(使用者名稱)、

Password(密碼)和 Login Server IP Address(登入伺服器 IP 位址)。

Ethernet 上的 PPPoE 或點對點通訊協定 (PPP over Ethernet)也可作為撥號連線

使用所以您也需要輸入使用者名稱、密碼甚至是 PPPoE 服務名稱

如果您的網路供應商使用的是以 PPTP 登入的DSL 終端，請選擇 PPTP  P334 必定可以提供您一個靜態 IP 位址您也會需要登入名稱DSL  IP 連線 ID

按下 Next(下一步)繼續設定

P334 中文

步驟 3. 這是精靈的最後一個設定畫面。請在欄位內填入相關 IP 位址後，按下 Finish (完成)，將設定

值儲存並結束精靈設定程式。

WAN IP Address Assignment

(指派 WAN IP 位址)

如果您的 ISP 業者不是提供您固定 IP 位址的話，請選擇 Get automatically from ISP(從 ISP 自動取得)。如果您的 ISP 業者提供您固定 IP 位址，請輸入您的 IP 位址然後選擇 Use fixed IP address(使用固定

IP 位址)。當您選取使用固定 IP 位址 (Use Fixed IP Address)時，請在欄位內輸入閘

道器的 IP 位址(如果有提供此欄位的話)。

System DNS Servers

(系統 DNS 伺服器)

如果您的 ISP 業者提供您的是動態 DNS 伺服器資訊(以及 P334 的 WAN IP 位址)，請選擇 From ISP(從 ISP 取得) 。如果您選擇 From ISP(從 ISP 取得)，右邊的欄位將顯示(唯讀的)ISP 指派給您的 DNS 伺服器 IP 位址，但是 P334 的 WAN IP 位址是固定的話，在您按下套用 (Apply)之後 From ISP(從 ISP 取得)會變成 None(無)。如果您在第二或第三個 DNS 伺服器欄位選擇 From ISP(從 ISP 取得)，但是您的 ISP 業者並沒有提提供第二或第三個 IP 位址時，在您按下 Next (下一步)之後 From ISP(從 ISP 取得)會變成 None(無)。

如果您有 DNS 伺服器的 IP 位址，請在下拉清單框中選擇 User-Defined(使用者定義)。在右邊的欄位中輸入 DNS 伺服器的

IP 位址。如果您選擇 User-Defined(使用者定義)，但是維持 IP 位址欄為預設的0.0.0.0，在您按下套用 (Apply)之後User- Defined(使用者定義)會變成 None(無)。如果您在第二個欄位中選擇 User-Defined(使用者定義)而輸入的 IP 位址和第一個相

同時，在您按下套用 (Apply)之後 User-Defined(使用者定義)會變成 None(無)。

如果您不想配置 DNS 伺服器，請選擇 None(無)。如果您不配置系統 DNS 伺服器，在配置 VPN、DDNS 和時間伺服器時您必須使用 IP 位址。

+ 44 hidden pages
